Infinity Total Solutions TSS-SAT4000 User manual

TSS-SAT4000
Owner’s Guide
TOTAL SPEAKER SOLUTIONS
TSS-4000
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 1

2TSS-SAT4000
3Introduction
4Planning Your System
4Placement
5Installation
5Tabletop/Shelf Placement Assembly
8Wall-Mounting theTSS-SAT4000 Using
the Included Wall Bracket
9Wiring the Speaker
10 Specifications
Table of Contents
TSS-SAT4000 OWNER’SGUIDE
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 2

3
TSS-SAT4000
(1) Satellite
Speaker
(1) Medium
Collar
(1) Pan-Head Phillips Screw
1/4-20 x 3/4"
(2) Pan-Head Phillips Screws
1/4-20 x 1"
(1) Flat-Head Phillips
Screw
1/4-20 x 1-1/4"
(6) Flat-Head Phillips
Screws
1/4-20 x 7/8"
(1) Large
Collar
(1) Allen
Wrench
(3) 1/4-20
Flat Washers (3) 1/4-20 Nuts
(1) Table Stand Plate
(1) Bottom Foot
(1) Small Collar
Part A
Part B
(2) Wall-Mount End Caps
(attached to satellite)
(1) Wall Bracket
With Wall
Bracket Cover
INTRODUCTION
InfinityTotal Solutions™
Infinity Total Solutions continues Infinity’s longstanding
commitment to accurate sound reproduction.Our proprietary
Metal Matrix Diaphragm™(MMD®) drivers,precision dividing
networks and rigid, well-braced enclosures combine to deliver
uncompromised performance in any stereo or multichannel home
theater system. In addition, these speakers are magnetically
shielded for safe placement adjacent to a television.
Unpacking the Speaker
Carefully unpack the speaker. If you suspect damage from
transit, report it immediately to your dealer and/or delivery
service. Keep the shipping carton and packing materials for

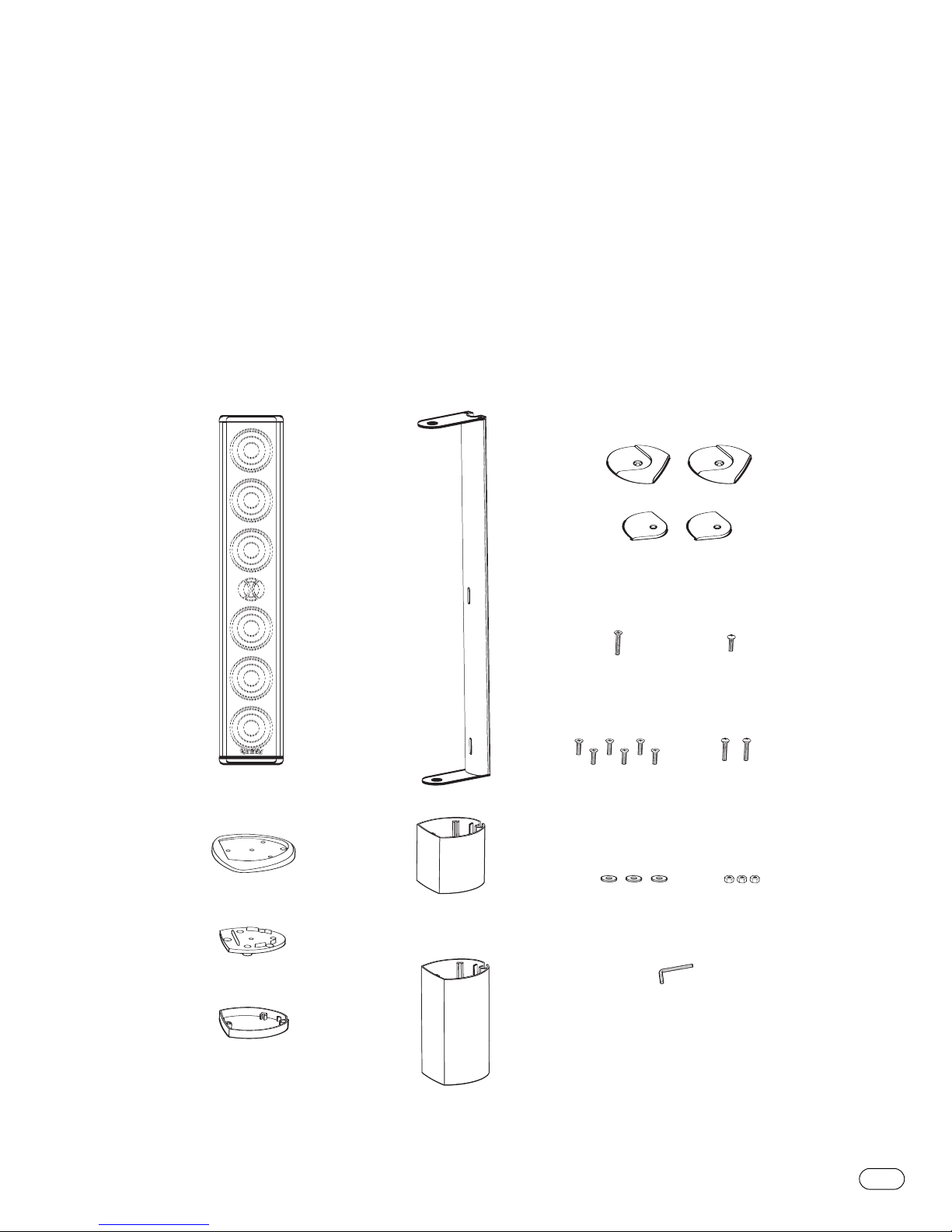

future use. Open the package and verify the following contents:
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 3

4TSS-SAT4000
PLANNING YOUR SYSTEM
Before deciding where to best place your speakers, survey your
room and study Figures 1 and 2.
Figure 1. In this overhead view of a typical 5-channel installation,
satellite speakers are used to reproduce sound for the front
and surround channels.The center channel reproduces sound
and dialogue.The powered subwoofer provides bass for
effects and music.
Figure 2.This overhead view shows a typical home theater plan.
Left/right rear channels are for a 7-channel system. Center rear
channel is for a 6-channel system.
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Left
Rear
Channel
Right
Rear
Channel
Center
Rear
Channel
(above or below TV) Subwoofer
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
(above or below TV) Subwoofer
PLACEMENT
NOTE: The satellite speakers can be placed directly on a shelf
using one of the three included shelf stands, or mounted on a
wall using the included wall brackets. Optional floor stands and
in-wall recess kits are also available. Please contact your dealer.
Left and Right Front Channels
For left and right front channels, place one satellite to the left
and another to the right of the television, as shown in Figure 1.
Since the speakers are magnetically shielded, you can place
them very close to the TV without worrying about the magnetic
field distorting the picture.
Surround Channels
For left and right surround channels, place one speaker on the
left and another on the right, to the side of or slightly behind the
listening area.The surround speakers should be mounted at a
height of between 4 feet and 7 feet.
In 6- or 7-channel configurations, place the rear channel(s)
behind the listening position, as shown in Figure 2.
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 4

5
TSS-SAT4000
INSTALLATION
Please read through this owner’s guide completely before
attempting to install or connect the speakers.We understand that
you may be anxious to play your new system, so we have made
every effort to simplify the installation and connections of the
TSS-SAT4000.
Before proceeding, you should decide how you would like to install
theTSS-SAT4000.TheTSS-SAT4000 may be mounted on the
included shelf stands; mounted on the wall using the included wall
brackets; recessed in the wall using an optional flush-mount kit; or
mounted to our optional floor stands.
Tabletop/Shelf Placement Assembly
Step One
Choose one of the three shelf stands on which to mount the
satellite. If you decide to place the stand next to a television,
the television’s height should be taken into consideration.
If you choose the shortest stand, follow steps two to four
on page 6. If you choose either of the taller stands, follow
steps two to five on page 7.
Small Medium
4"
23-3/8"
7/8"
8"
Large
27"
30-1/2"
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 5

6TSS-SAT4000
1/4-20 x 1-1/4"
Flat-Head Screw
StepThree
For Small Table Stand Assembly
Assemble the table stand plate, the small section and the foot.
Place three nuts (provided) in base of foot and secure them
in place by three screws (provided) through the top of the
table stand plate.
Step Four
For Small Table Stand Assembly
Run speaker wire through base, and screw foot assembly to
speaker assembly.
(3) 1/4-20 Nuts
Table Stand Plate
Speaker Wire
Small Section/Collar
Foot
(3) 1/4-20 x 7/8"
Flat-Head Screws
StepTwo
For Small Table Stand Assembly
Using the included Allen wrench, remove the bottom end cap
of the speaker by unscrewing the single center screw on bottom.
NOTE: The bottom is the
side closest to the Infinity
logo on the front grille
and the speaker
connections on the rear.
Satellite Speaker
Infinity Logo
End Cap
1/4-20 x 3/4"
Screw
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 6

7
TSS-SAT4000

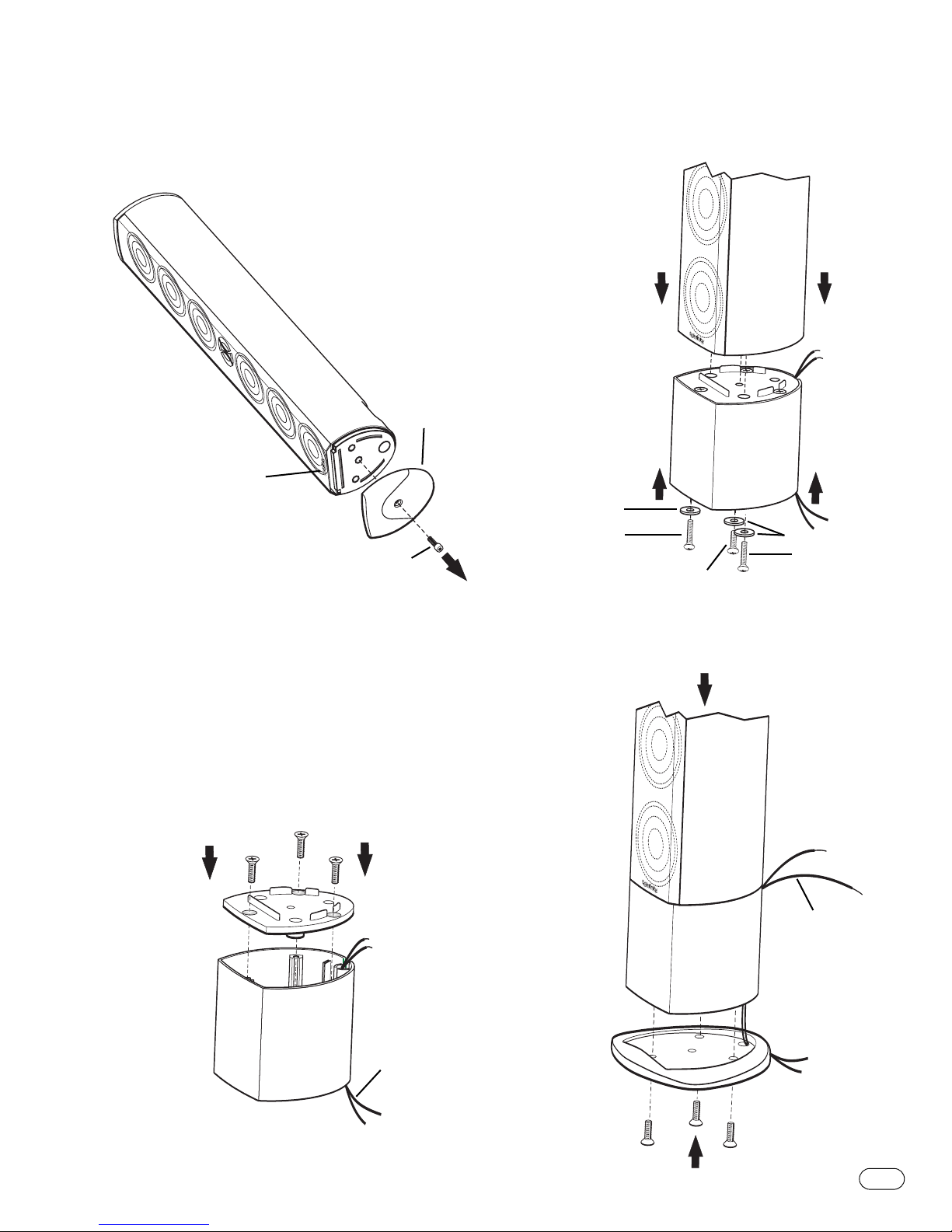

Step Four
For Medium and LargeTable Stand Assembly
Use screw and washer to attach medium
or large base assembly to the
speaker assembly, as shown.
(3) 1/4-20 x 7/8"
Flat-Head Screws
(3) 1/4-20 x 7/8"
Flat-Head Screws
1/4-20 x 1"
Pan-Head Screw
Flat Washer
Flat Washers
1/4-20 x 1"
Pan-Head Screw
1/4-20 x 3/4"
Pan-Head Screw
Step Five
For Medium and LargeTable Stand Assembly
Run speaker wire through table stand plate. Use three screws
(provided) to attach plate to bottom of base assembly.
StepTwo
For Medium and LargeTable Stand Assembly
Using the included Allen wrench, remove the bottom end cap
of the speaker by unscrewing the single center screw on bottom.
NOTE: The bottom is the
side closest to the Infinity
logo on the front grille
and the speaker
connections on the rear.
Satellite Speaker
Infinity Logo
End Cap
1/4-20 x 3/4"
Screw
StepThree
For Medium and LargeTable Stand Assembly
Run speaker wire through collar. Using three screws, attach table
stand plate to the medium or large section as shown.
Speaker Wire
Speaker Wire
INFP1595Sat4000-OM 10/18/04 2:42 PM Page 7

8TSS-SAT4000

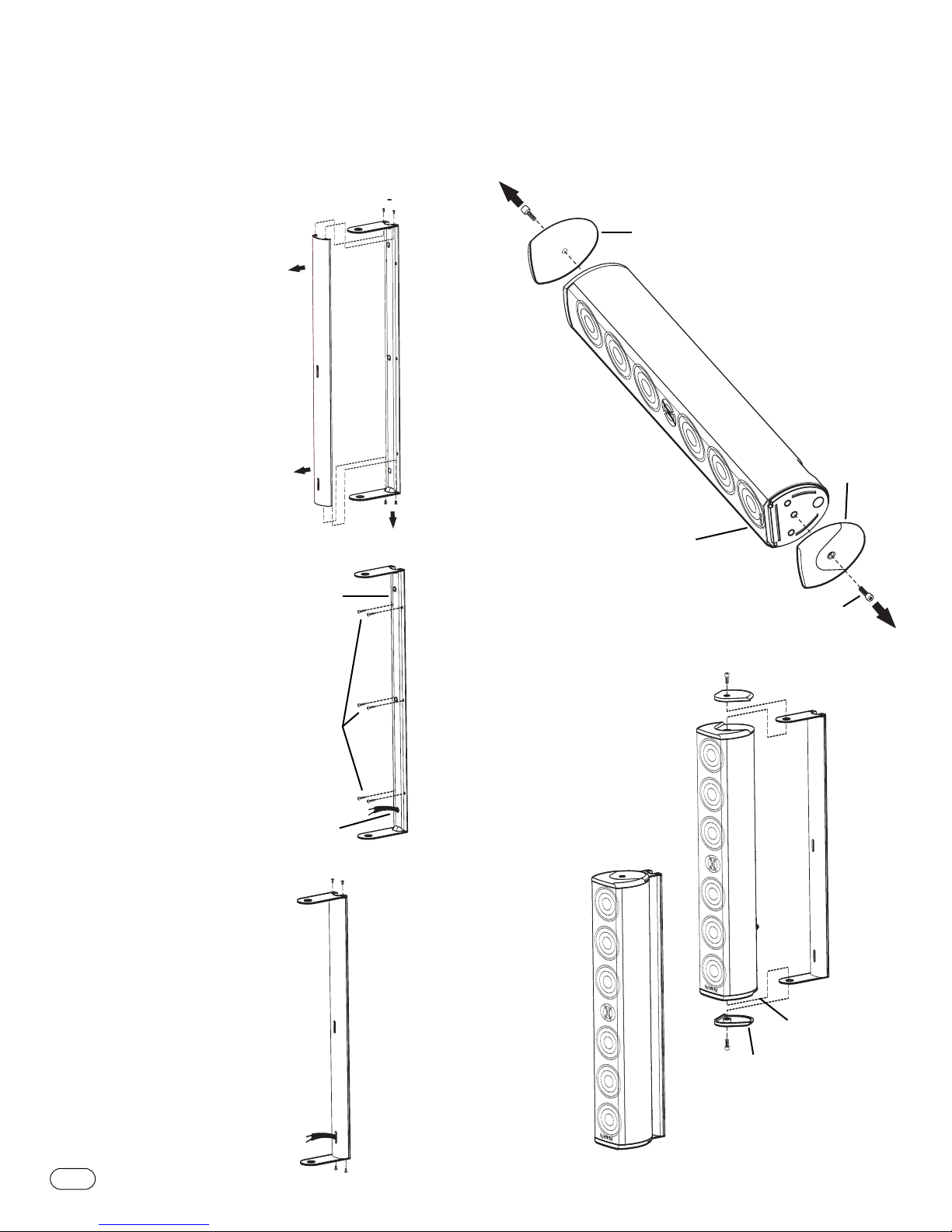

Wall-Mounting the SAT-4000 Using the Included
Wall Bracket
The customer is responsible for proper selection and use of
mounting hardware, and for correctly and safely wall-mounting
the speakers.
Step One
Remove the wall-bracket
cover by removing the four
wall bracket screws on
the ends as shown.
StepTwo
Run the speaker wire behind the
wall bracket and out the hole at
the bottom.After deciding where
to place the satellite speaker,
attach the wall bracket (in a
vertical position) to the wall
using the appropriate screws
and anchors.
StepThree
Run the speaker wires out
through the bottom hole of the
wall bracket cover. Resecure
in place as shown with four
of the wall bracket screws.
Step Five
Connect the wires (page 9).
Replace the end caps while
capturing the wall bracket in
between parts A and B and
securing it in place.Tighten
until snug.
Mounting
Screws and
Anchors
Not Included
Wall-Mount
End Cap A
Wall Bracket
Bottom Hole
Wall-Mount
End Cap B
Step Four
Using the included Allen wrench, remove the bottom end cap
of the speaker by unscrewing the single center screw on bottom.
NOTE: The bottom is the
side closest to the Infinity
logo on the front grille
and the speaker
connections on the rear.
Satellite Speaker
Infinity Logo
End Cap
1/4-20 x 3/4"
Screw
End Cap
INFP1595Sat4000-OM 10/18/04 2:42 PM Page 8

9
TSS-SAT4000
Step Six
The wall-bracket design allows for rotation of the speakers
at angles up to 30 degrees of center. Position the speakers
so they face toward the primary listening position, before
fully tightening.
Figure 3.This example shows how to connect bare wires to the
terminals. Banana plugs may also be inserted directly into the
rear of the connector.
1Loosen the terminals.
2Insert bare ends; tighten terminals.
CARE OF YOUR SPEAKER SYSTEM
When needed, use a soft cloth to remove any fingerprints or
to wipe off dust. Do not use any cleaning products or polished.
Clean the grille by gentle vacuuming.
– +
1
2
WIRING THE SPEAKER
After placing the speaker, you are ready to connect it to your
system. First, turn off all audio-system power. Use high-quality
speaker wire to make the connections. Consult the owner’s
manuals,included with your amplifier or receiver, for connection
and operation procedures.
Surround Modes
When using theTSS-SAT4000 in a Dolby* Digital or DTS®home
theater system, make sure the receiver’s/processor’s speaker
modes are set to“Small.”
Wiring and Polarity
The TSS-SAT4000 speaker has gold-plated terminals that
can accept bare wire.To ensure proper polarity, connect each
+ terminal on the back of the amplifier or receiver to the
respective + (red) terminal on each speaker, as shown in
Figure 3. Connect the – (black) terminals in a similar way.
See the owner’s manuals that were included with your amplifier
or receiver to confirm connection procedures.
Important!
Do not reverse polarities (i.e., + to – or – to +) when making
connections. Doing so will degrade the imaging and bass
response of the home theater system.
After correctly placing and wiring theTSS-SAT4000 and
the rest of your speaker system, adjust the levels for all of
the channels as recommended by the manufacturer of your
receiver/processor.
INFP1595Sat4000-OM 10/18/04 2:42 PM Page 9

10 TSS-SAT4000
SPECIFICATIONS
TSS-SAT4000
Frequency Response 120Hz – 20kHz (±3dB)
Nominal Impedance 8 ohms
Sensitivity 89dB
(2.83V @ 1m)
Recommended Amplifier 10 – 150 watts
Power Range
Crossover Frequencies 1,000Hz, 3,800Hz; 24dB/octave
Low-Frequency Drivers (4) 3-1/2" (89mm) MMD,
®
magnetically shielded
Mid-Frequency Drivers (2) 3-1/2" (89mm) MMD,
magnetically shielded
High-Frequency Driver 3/4" (19mm) MMD,
magnetically shielded
Dimensions (H x W x D) 23" x 4-1/8" x 4-3/8"
(584mm x 105mm x 111mm)
Weight 12.7 lb (5.8kg)
Infinity continually strives to update and improve existing products, as well as create new ones.
The specifications and construction details in this and related Infinity publications are therefore
subject to change without notice.
OPTIONAL ACCESSORIES
FMK-4000 Flush-Mount Kit forTSS-SAT4000
STAND-4000 Floor Stand for TSS-SAT4000
Declaration of Conformity
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
declare in own responsibility that the products
described in this owner’s manual are in compliance
with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Robin Marshall
Harman Consumer International
Chateau-du-Loir, France 10/04
INFP1595Sat4000-OM 10/18/04 2:42 PM Page 10

11
TSS-SAT4000
NOTES
INFP1595Sat4000-OM 10/18/04 2:42 PM Page 11

© 2004 Harman International Industries,Incorporated
Infinity Systems,250 Crossways Park Drive,Woodbury, NY 11797 USA 516.674.4INF (USA only) www.infinitysystems.com
*Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc.
Infinity and MMD are registered trademarks, and Total Solutions and Metal Matrix Diaphragm are trademarks,of Harman International Industries,Incorporated. Part No. 400-OMSAT 10/04
INFP1595Sat4000-OM 10/18/04 2:41 PM Page 12
