Infinova N3787XA User manual

FIBER OPTIC TRANSMISSION SYSTEM
51 Stouts Lane, Monmouth Junction, NJ 08852, U.S.A.
Tel: [phone](toll-free, USA)
1-732-355-9100
Fax:[phone]
E-mail: [e-mail]
1SERIES
10/100/1000Mbps Ethernet Transceiver
User Manual
Infinova
V2.3 1012

TABLE OF CONTENTS
SERVICE NOTICE ................................................................................................................ 1
PRODUCT DESCRIPTION................................................................................................... 2
MAIN FEATURES................................................................................................................. 3
INSTALLATION....................................................................................................................4
POWER SUPPLY................................................................................................................... 4
N3787XA/XB-GE PANEL..................................................................................................... 5
N3787XA-8FE PANEL .......................................................................................................... 6
SPECIFICATIONS................................................................................................................. 7
SYSTEM DIAGRAM ............................................................................................................ 8
CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION ... 10

1
SERVICE NOTICE
The installation of this product should be made by qualified personnel. Do not attempt to
service this product yourself. Refer all servicing to qualified personnel.
If you require information during installation of this product or if service seems necessary,
contact the local suppliers or Infinova at 1-732-355-9100 in 51 Stouts Lane, Monmouth
Junction, NJ 08852 U.S.A. You must obtain a Return Authorization Number and shipping
instructions before returning any product for service.
Our obligation under this warranty is limited only to the repair or replacement of any of our
products, provided that products are used within the specified ratings and applications, and
that products are applied in accordance with good engineering practices, and that products are
proved by our examination to be defective.
This warranty does not extend to any Infinova products which have been subject to acts of
accident, misuse, abuse, neglect, improper application or installation, improper operation or
maintenance, connection to an improper voltage supply or to materials which have been
altered or repaired outside an authorized Infinova factory repair center.
Information provided by Infinova is accurate and reliable. However, no responsibility is
assumed by Infinova for its use; nor for any infringements of other rights of third parties
which may result from its use. No license is granted by implications or otherwise under any
patent or patent rights of Infinova.
WARNING
TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON.

2
PRODUCT DESCRIPTION
Description
N3787 series is Peer-to-Peer fiber optic transmission system released by Infinova as per the
current market demands. By Ethernet transmission medium, it achieves switchover between
twisted paired electrical signals and remote optical signals. With the rapid development of
informatization construction, there is a growing demand for data, audio, image and other
multi-media communication. Ethernet broadband connection is thus becoming more and more
important. However, the traditional Category 5 cables can only achieve 100m transmission for
the electrical Ethernet signal, which no longer meets the actual need in transmission distance
and coverage scope. While fiber communication, with its large capacity, high security, light
weight, small size, no relay and long transmission distance, is widely used in WAN and other
large-scale network. It's applied for remote 1000M Ethernet data switch with large-capacity
Peer-to-Peer transmission
N3787 series single mode transmission system provides the ability to transmit 1000M
Ethernet data over one fiber in full duplex and point-to-point mode. The Ethernet signal on
two ends are 10/100/1000M self-adaptive. There are two or eight RJ45 Ethernet ports on the
transmitter and receiver, easy to connect with different Ethernet devices.

3
MAIN FEATURES
Storage and forward mode to match devices at different speeds
Non-blocking wire-speed reception and transmission, transmission without head-of-line
blocking
Support feedback and diagnosis functions
Detection and correction of port polarity at the physical layer
Support IEEE802.1Q protocol
Support 1000M optical port
The Ethernet optical ports support full/half duplex (self-adaptive)
Support IEEE 802.3x full-duplex flow control and back-pressure half-duplex flow control
Support MAC address self-learning and update
Support 802.1P protocol and QoS mechanism
Compact structure for easy installation
Hot swapping design
With status indication for power, Ethernet and optical link

4
INSTALLATION
To install the apparatus, it is necessary to allow enough space to accommodate the bend radius
of the optical cable connected to it. The transmitter/receiver requires as short as practical
Category 5 or 6 UTP cables to transmit Ethernet data. The RJ45 connector is applied for the
Ethernet port.
POWER SUPPLY
The N3787 series is powered by a plug-in 24VAC@830mA power supply with 2-pin terminal
block connector.
Figure 1. External power supply
Note:
When the series is powered together with other devices (cameras and etc.) by a single
24VAC power source, please make sure that the related device has a full-wave (bridge)
rectifier circuit.

5
N3787XA/XB-GE PANEL
PWR
OP
Figure 2
1. Power on indicator
2. Optical link loss indicator
3. Optical port
4. Optical port (reserved for Wavelength Division Multiplexing)
5. Ethernet port
6. Ethernet indicator
7. GND terminal
Indicator Name Color Indicator Status Indication
On Normal power supply
PWR Red
Off No power supply
On Optical link loss alarming
OP Red
Off Optical link connected
Off 10M/100M Ethernet disconnected
On 10M/100M Ethernet connected, without
data transmission
10/100 Green
Flickering 10M/100M Ethernet connected, with
data transmission
Off 1000M Ethernet disconnected
On 1000M Ethernet connected, without data
transmission
Ethernet
Port
1000 Green
Flickering 1000M Ethernet connected, with data
transmission
Table 1. Indicator Instruction for N3787XA/XB-GE

6

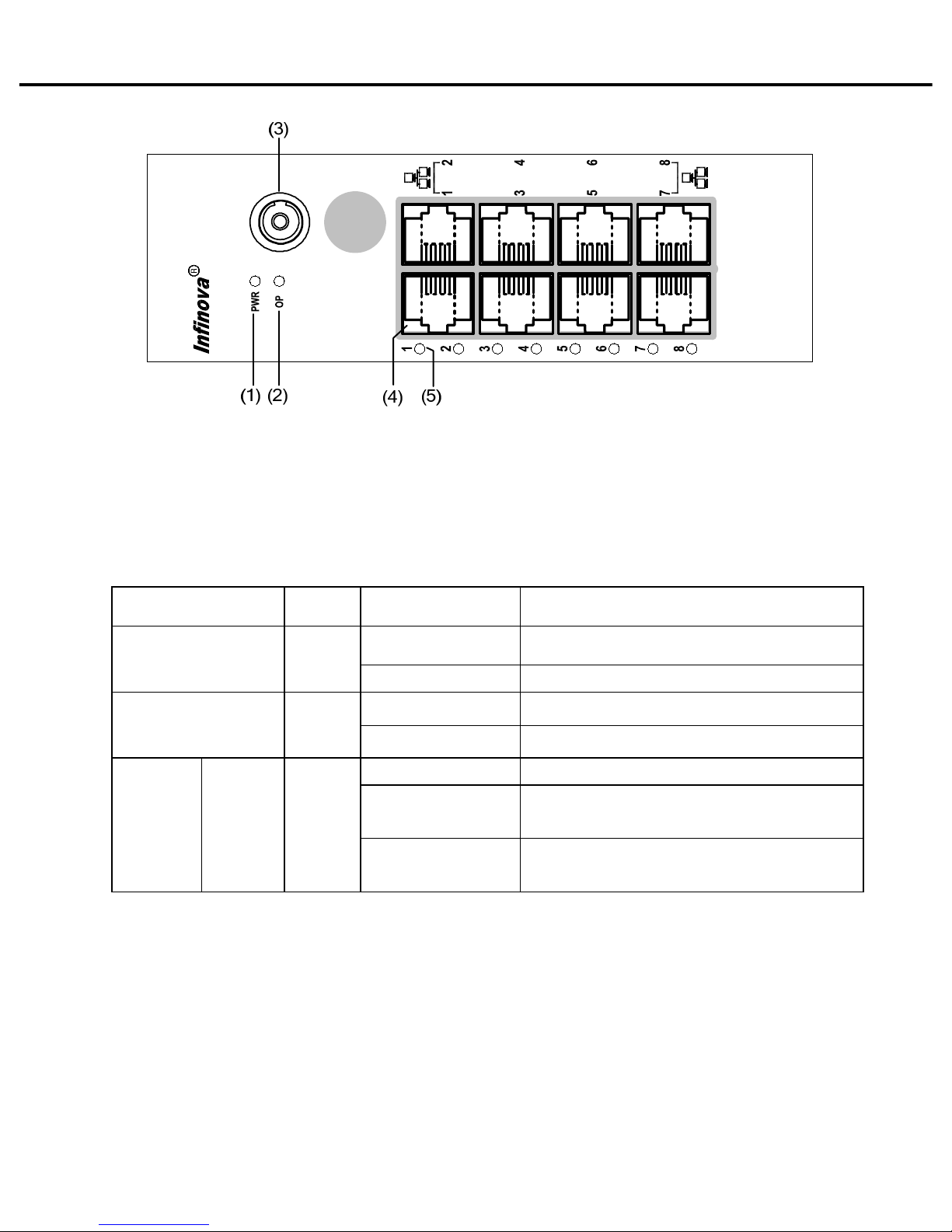

N3787XA-8FE PANEL
Figure 3
1. Power on indicator
2. Optical link loss indicator
3. Optical port
4. Ethernet port
5. Ethernet indicator
Indicator Name Color Indicator Status Indication
On Normal power supply
PWR Red
Off No power supply
On Optical link loss alarming
OP Red
Off Optical link connected
Off 10M/100M Ethernet disconnected
On 10M/100M Ethernet connected, without
data transmission
Ethernet
Port 10/100 Green
Flickering 10M/100M Ethernet connected, with
data transmission
Table 2. Indicator Instruction for N3787XA-8FE

7
SPECIFICATIONS
Ethernet
Connector: RJ45 with magnetic shielding
Ports: 2 or 8
Operation Mode: 10/100M or 10M/100M/1000M, self-adaptive
Optical Performance
Fiber Type: Single-mode
Wavelength: 1310/1550nm
Transmission Distance: 20km, 40km and 80km optional
Speed of Forward/Reverse Transmission: 1.25G/1.25G
Connector: FC
Operating Environment
Operating Temperature: -40°F ~ +165.2°F (-40°C ~ +74°C)
Storage Temperature: -40°F ~ +185°F (-40°C ~ +85°C)
Operating Humidity: 0~95% (non-condensing)
Mechanical Parameters
Dimension (2 slots module) (W ×H ×D): 1.73"×6.22"×7.56" (44mm×158mm×197mm)
Dimension (2 slots card) (W ×H ×D): 1.58"×5.08"×6.58" (40mm×129mm×167mm)
Dimension (1 slot module) (W ×H ×D): 0.95"×6.22"×7.56" (24mm×158mm×197mm)
Dimension (1 slot card) (W ×H ×D): 0.79"×5.08"×6.58" (20mm×129mm×167mm)
Reliability
Mean Time between Failures (MTBF): >100,000 Hrs
Status Indication
LED Indicator: Power, optical link, Ethernet, etc.

8
SYSTEM DIAGRAM
Figure 4. System Diagram for N3787XA/XB-GE-20/40/80
Fiber
Switch
IP Camera
Monitor
PWR
OP
N3787XA-8FE-
20/40/80
N3787XB-GE-
20/40/80
Figure 5. System Diagram for N3787XA-8FE-20/40/80 and N3787XB-GE-20/40/80

9
SYSTEM DIAGRAM
Figure 6. System Diagram for N3787XA-8FE-20/40/80 and third-party FC switch

10
CABLE DIAMETER CALCULATION AND LIGHTNING & SURGE PROTECTION
Relation between 24VAC Cable Diameter and Transmission Distance
In general, the maximum allowable voltage loss rate is 10% for AC-powered devices. The
table below shows the relationship between transmission power and maximum transmission
distance under a certain specified cable diameter, on condition that the 24VAC voltage loss
rate is below 10%. According to the table, if a device rated at 50W is installed 17-meter away
from the transformer, the minimum cable diameter shall be 0.8000mm. A lower diameter
value tends to cause voltage loss and even system instability.
0.8000 1.000 1.250 2.000
10 283 (86) 451 (137) 716 (218) 1811 (551)
20 141 (42) 225 (68) 358 (109) 905 (275)
30 94 (28) 150 (45) 238 (72) 603 (183)
40 70 (21) 112 (34) 179 (54) 452 (137)
50 56 (17) 90 (27) 143 (43) 362 (110)
60 47 (14) 75 (22) 119 (36) 301 (91)
70 40 (12) 64 (19) 102 (31) 258 (78)
80 35 (10) 56 (17) 89 (27) 226 (68)
90 31 (9) 50 (15) 79 (24) 201 (61)
100 28 (8) 45 (13) 71 (21) 181 (55)
110 25 (7) 41 (12) 65 (19) 164 (49)
120 23 (7) 37 (11) 59 (17) 150 (45)
130 21 (6) 34 (10) 55 (16) 139 (42)
140 20 (6) 32 (9) 51 (15) 129 (39)
150 18 (5) 30 (9) 47 (14) 120 (36)
160 17 (5) 28 (8) 44 (13) 113 (34)
170 16 (4) 26 (7) 42 (12) 106 (32)
180 15 (4) 25 (7) 39 (11) 100 (30)
190 14 (4) 23 (7) 37 (11) 95 (28)
200 14 (4) 22 (6) 35 (10) 90 (27)
Power (W)
Diameter (mm)
Distance (ft / m)

11
Lightning & Surge Protection
The product adopts multi-level anti-lightning and anti-surge technology integrated with gas
discharge tube, power resistor and TVS tube. The powerful lightning and surge protection
barrier effectively avoids product damage caused by various pulse signals with power below
4kV, including instantaneous lightning, surge and static. However, for complicated outdoor
environment, refer to instruction below for lightning and surge protection:
The product features with dedicated earth wire, which must be firmly grounded. As for
surveillance sites beyond the effective protection scope, it’s necessary to erect independent
lightening rods to protect the security devices. It’s recommended to separate the lightning
rod from the mounting pole, placing the rod on an independent pole, as shown in the figure
below. If the product has to be installed on the same pole or pedestal for lightning rod, there
should be strict insulation between the video cable BNC terminal, power cable, control
cable and the standing pole of the lightning rod.
For suburb and rural areas, it’s recommended to adopt direct burial for the transmission
cables. Overhead wiring is prohibited, because it’s more likely to encounter lightning strike.
Use shielded cables or thread the cables through metal tubes for burial, thus to ensure the
electric connection to the metal tube. In case it’s difficult to thread the cable through the
tube all the way, it’s acceptable to use tube-threaded cables only at both ends of the
transmission line, yet the length in burial should be no less than 15 meters. The cable
sheath and the tube should be connected to the lightning -proof grounding device.
Additional high-power lightning-proof equipment and lightning rods should be installed for
strong thunderstorm or high induced voltage areas (such as high-voltage substation).
The lightning protection and grounding for outdoor devices and wires should be designed
in line with the actual protection requirement, national standards and industrial standards.
The system should perform equipotential grounding by streaming, shielding, clamping and
earthing. The grounding device must meet anti-interference and electric safety requirements.
There should be no short-circuiting or hybrid junction between the device and the strong
grid. Make sure there’s a reliable grounding system, with grounding resistance below 4Ω
(below 10Ωfor high soil resistivity regions). The cross-sectional area of the earthing
conductor should be no less than 25mm².
Lightning rod
Front device for
surveillance system
Separated layout for the lightning
rod and the standing pole
LPZOB
LPZOA
Mounting pole
for front device
30° 30°
