Ingersoll-Rand ENL 5 User guide

Save These Instructions
Instructions for Installation
and Operation
Instruções de instalação e de serviço
PT
Instructions de montage et de service
FR
Instruciones de instalación y de servicio
ES
Instructions for Installation and Operation
EN
80442874
Revision B
October 2014
Condensate Drain
ENL 5
PRINT LANGUAGE
ENGLISH
PORTUGUESE
SPANISH
FRENCH
01-2684

EN
2 ingersollrandproducts.com 80442874
CONTENTS
CONTENTS PAGE
1. PICTOGRAMS AND SYMBOLS 3
2. SAFETY INSTRUCTIONS 3
3. PROPER USE 4
4. EXCLUSION FROM THE SCOPE OF
APPLICATION 4
5. TECHNICAL DATA 5
6. ELECTRICAL DATA 6
7. DIMENSION DRAWING 7
CONTENTS PAGE
8. FUNCTION 8
9. INSTALLATION 10
10. ELECTRICAL INSTALLATION 12
11. CONTROL AND MAINTENANCE 15
12. TROUBLESHOOTING AND FAULT
ELIMINATION 17
13. ELEMENTS AND COMPONENTS 18
14. RECOMMENDED SPARE PARTS 20

80442874 ingersollrandproducts.com 3
EN
1. PICTOGRAMS AND SYMBOLS
Observe the installation and operating instructions
Observe the installation and operating instructions
(on the type plate)
General danger symbol (danger, warning, caution)
General danger symbol (danger, warning, caution) for supply voltage and supply voltage carrying
plants components
2. SAFETY INSTRUCTIONS
Please check whether or not these
instructions correspond to the device
type.
Adhere to all advice given in these
operating instructions. They include
essential information which must
be observed during the installation,
operation and maintenance. Therefore it is
imperative for the service technician and
the responsible operator / technical sta
to read these operating instructions prior
to installation, start-up and maintenance.
The operating instructions must be
accessible at any time at the place of
application of the ENL 5 .
In addition to these operating instructions,
local or national regulations must be
complied with, if necessary.
Make sure that the ENL 5 is operated
only within the permissible limit values
indicated on the ID plate. Any deviation
involves a risk for persons and materials,
and may result in malfunction and service
failures.
If you have any queries regarding these
installation- and operating instructions,
please contact INGERSOLL RAND.
DANGER
Compressed air!
Risk of serious injury or death through contact
with quickly or suddenly escaping compressed air
or through bursting plant components or plant
components which are not secured.
Measures:
Do not exceed the maximum operating pressure (see
type plate).
Only carry out service measures when the system is
pressure less.
•
•
Use pressure-resistant installation material only.
The feed pipe must be tubed rmly. Discharge pipe:
short, xed pressure hose onto pressure-resistant pipe.
Make sure that persons or objects cannot be hit by
condensate or escaping compressed
DANGER
Supply voltage!
There is the risk of an electric shock involving injury or
death when coming into contact with
non- insulated components carrying supply voltage.
Measures:
During electric installations, all regulations in force
need to be adhered to (e.g. VDE 0100 / IEC 60364).
Service measures must only be undertaken when
the system is deactivated.
The removed control unit has no IP degree of
protection.
All types of electrical works must be carried out by
authorized and qualied personnel only.
Further safety instructions:
For installation and operation, the national regulations
and safety codes in force must also be adhered to.
Do not use the ENL 5 in hazardous areas.
Regarding the inlet screw joints, excessive tightening
forces must be avoided. This applies in particular to
conical screw joints.
The ENL 5 will only function when voltage is applied.
Do not use the test button for permanent drainage.
Use genuine spare parts only. This is imperative to
ensure perfect functioning.
•
•
•
•
•
•
•
•
•
•
•
•
•

4 ingersollrandproducts.com 80442874
EN
Additional advice:
The removed control unit has no IP degree of
protection.
During installation, use spanner at at the feed pipe
(wrench size SW27) as a back rest.
The service unit must not be dismantled.
CAUTION
Malfunction during operation!
Through incorrect installation and poor maintenance,
malfunction may occur at the ENL 5 .
Condensate which is not discharged may cause
damage to plants and in production processes.
•
•
•
Measures:
Condensate drainage which is reliable in performance
directly optimizes the compressed-air quality.
To prevent damage and breakdowns, it is imperative
to observe the following:
Exact compliance with the specications of use
and with the performance parameters of the
ENL 5 , in connection with the case of application
(see“Proper use”section)
Exact compliance with the installation- and
operation instructions in this manual
Regular maintenance and control of the ENL 5 in
accordance with the instructions in this operating
manual.
•
•
a.
b.
c.
3. PROPER USE
The ENL 5 is an electronically level-controlled
condensate drain for compressed-air plants.
The device is employed within the permissible
performance parameters (see “Technical data”).
The ENL 5 is able to drain condensate under operating
pressure from the plant components virtually without
compressed-air loss.
For its function, the ENL 5 requires an supply voltage
and an operating pressure (see “Technical data”).
As far as the employment in plants with increased
demands on compressed air is concerned (food
industry, medical technology, laboratory equipment,
special processes etc.), the operator must decide on
measures for the monitoring of the compressed-air
quality. These have an eect on the safety of the
subsequent processes and may prevent damage to
persons and plants.
•
•
•
•
•
It is the task of the operator to ensure that the
indicated conditions are met during the entire
operating time.
The ENL 5 is a condensate drain whose properties are
adjusted especially to prescribed applications.
ENL 5 devices must not be employed at drain points
other than those prescribed by the supplier, as
this may result in malfunction and damage in the
compressed-air system and at the compressed air
consumers.
ENL 5 devices must not be replaced by other
ENL 5 -types, as this may result in malfunction and
damage in the compressed-air system and at the
compressed-air consumers.
•
•
•
•
4. EXCLUSION FROM THE SCOPE OF APPLICATION
The ENL 5 as a condensate drain alone cannot
guarantee a dened compressed-air quality, for
this purpose, other additional technical devices are
required.
ENL 5 is not suitable for use in plants carrying vacuum
or atmospheric ambient pressure or in ex-areas.
ENL 5 must not be exposed to permanent direct solar
or thermal radiation.
•
•
•
ENL 5 must not be installed and operated in areas
with an aggressive atmosphere.
The ENL 5 is not heatable and, therefore, not suitable
for the use in areas where frost is likely to occur.
The ENL 5 is not suitable for CO2 plants.
•
•
•

80442874 ingersollrandproducts.com 5
EN
min./max. operating pressure
(see type plate)
0,8...16 bar (12...230 psi)
or
1,2...16 bar (17...230 psi)
min./max. temperature
(see type plate)
+1...+60 °C (+34...+140 °F)
or
+1...+70 °C (+34...+158 °F)
Condensate inow NPT ½ (½”) internal
max. screw-in depth 13,5 mm (½”)
Condensate outow G ¼ (¼”) Ø 8 ... 10 mm hose connector
Condensate oil-contaminated + oil-free
Housing aluminium + plastic, glass bre-reinforced
Weight (empty) 1,0 kg (2.2 lbs)
This product has been tested to the requirements of CAN/CSA-C22.2 No. 61010-1-12, third edition, including
a later version of the same standard incorporation the same level of testing requirements.
5. TECHNICAL DATA

6 ingersollrandproducts.com 80442874
EN
6. ELECTRICAL DATA
Supply voltage
(see type plate)
95…240 VAC ±10% (50…60 Hz) /100…125 VDC ±10%
or
24…48 VAC ±10% (50…60 Hz) / 18…72 VDC ±10%
Power consumption P = 0,6 ... 3 VA (W)
Recommended
cable-jacket diameter Ø 5,0…10 mm (0,20“…0,39“)
Recommended
wire cross-section
Spring-loaded terminal (voltage supply/relay)
0,75...1,5 mm² (AWG 16...20)
Recommended
wire cross-section
Screw terminal (voltage supply)
0,75...2,5 mm² (AWG 14...20)
Recommended
wire cross section
Spring-loaded terminal (external test)
0,75...1,0 mm² (AWG 18...20)
Recommended
wire cross section
Screw terminal (relay/external test)
0,75...1,5 mm² (AWG 16...20)
Recommended
stripping of cable jacket (voltage supply/relay) ~ 30 mm (~ 1.18”)
Recommended
stripping of cable jacket (external test) ~ 90 mm (~ 3.54”)
Recommended
length of the wire end tube
Spring-loaded terminal
8 mm (~ 0.31 inch)
Recommended
length of the wire end tube
Screw terminal
~ 6 mm (~ 0.24 inch)
Connection data of the potential free
contact Switch to load*)
AC: max. 250V / 1A
DC: max. 30V / 1A
Connection data of the
potential-free contact
Switch to low signal*)
min. 5 VDC / 10 mA
Connection data of the
external test contact on the unit side 5 VDC; switching current ≥ 0,5 mA
Protection class IP 67
Overvoltage category
(IEC 61010-1) II
VAC = V alternating current
VDC = V direct current
*) The switching of loads means that the properties of the contact are no longer suitable
for the switching of low signals.

80442874 ingersollrandproducts.com 7
EN

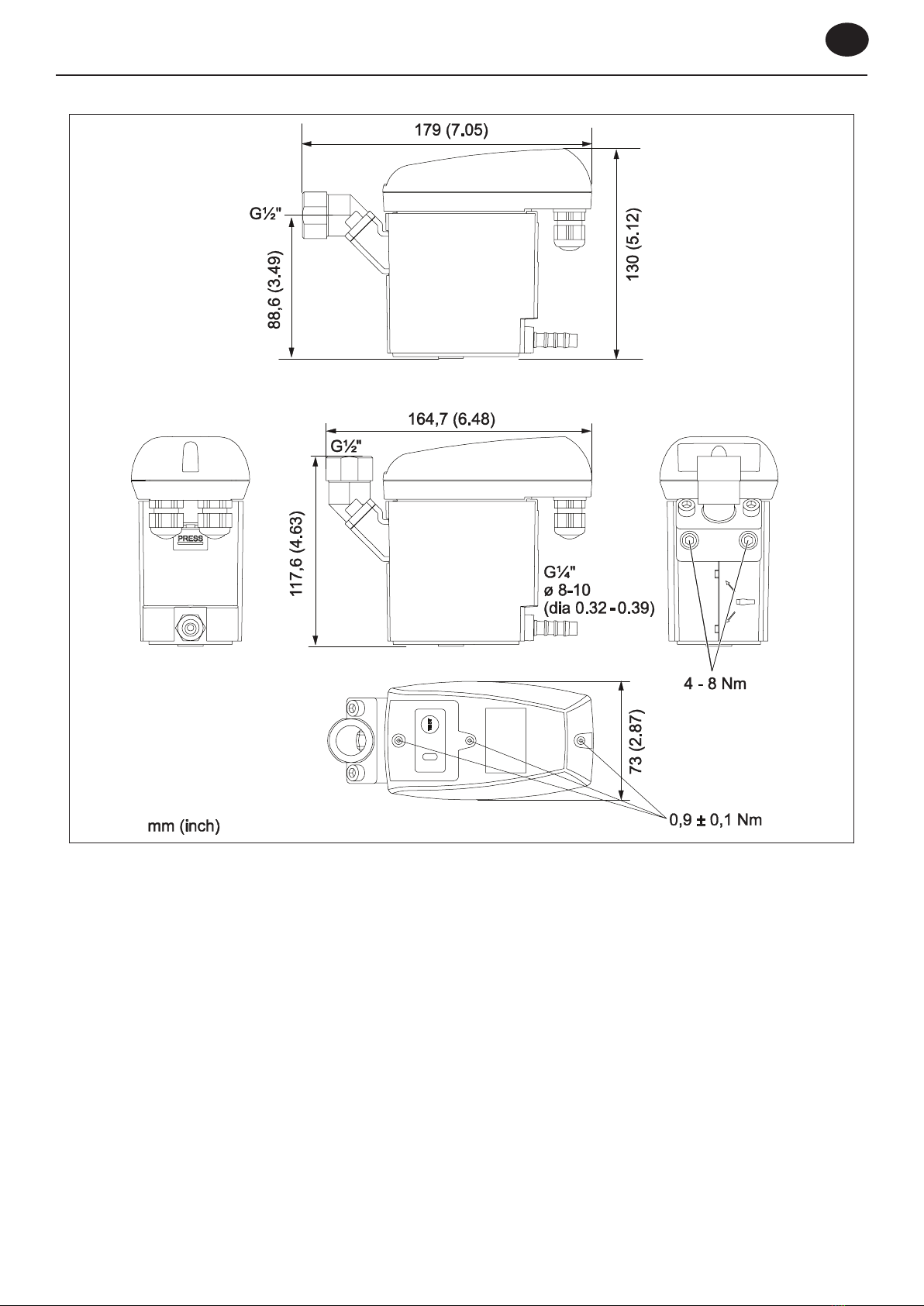

7. DIMENSION DRAWING

8 ingersollrandproducts.com 80442874
EN
8. FuNCTION

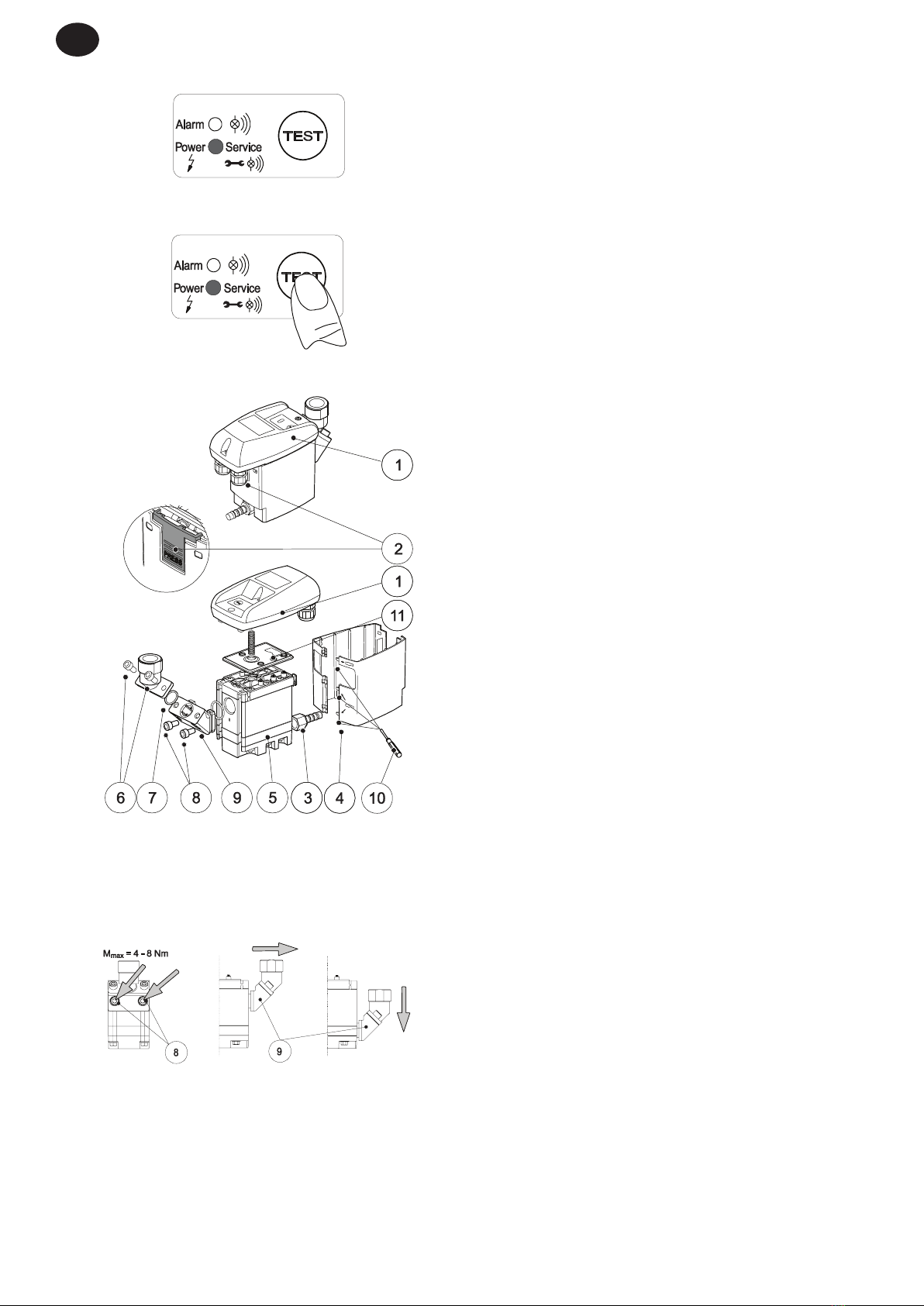

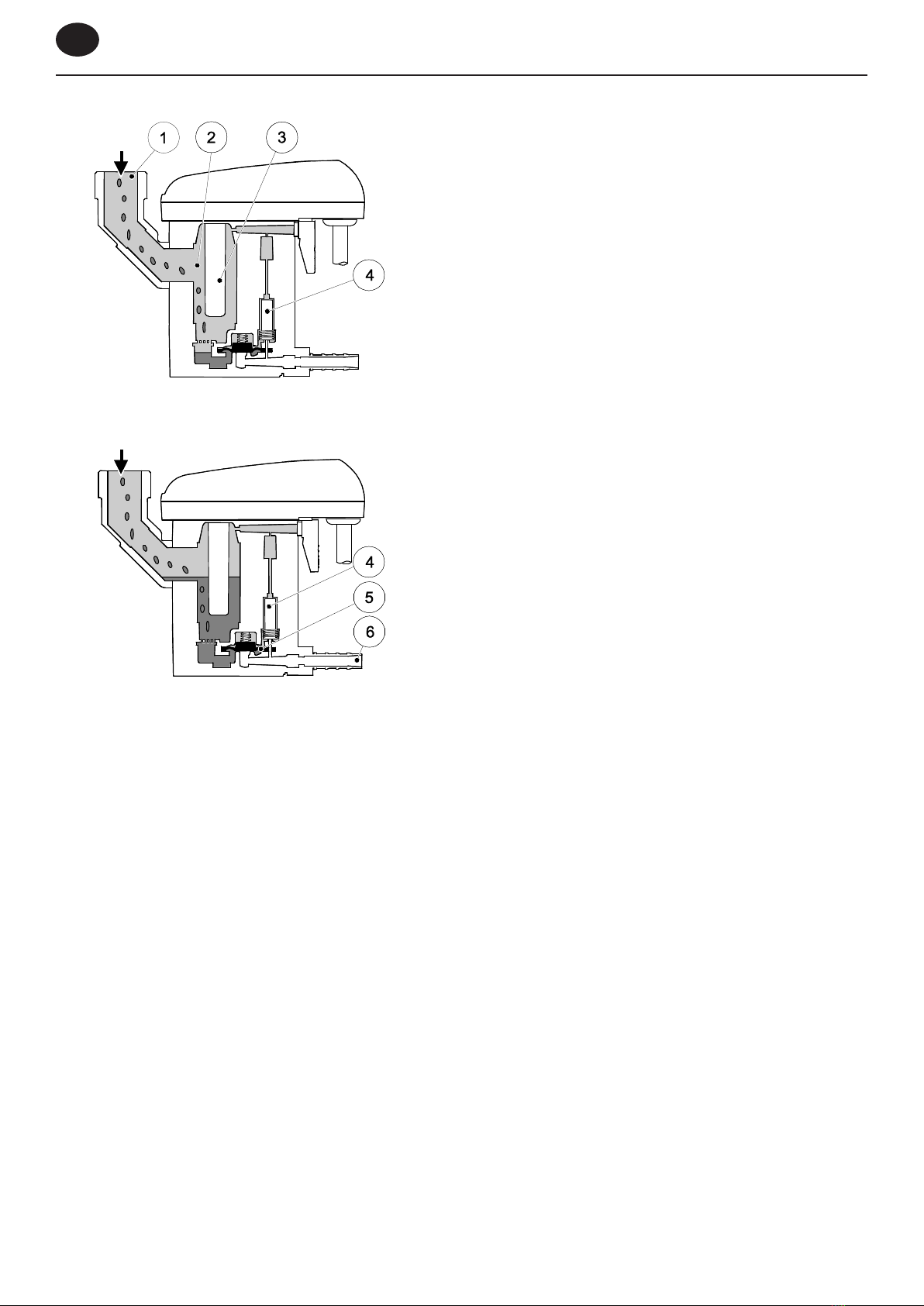

Via the inlet line (1) the condensate ows into the ENL 5
and accumulates in the housing (2).
A capacitive functioning sensor (3) continuously registers
the lling level and relays a signal to the electronic control as
soon as the container is lled.
The pilot valve (4) is activated and the membrane (5) opens
the outlet line to discharge the condensate (6).
When the ENL 5is empty, the outlet line is reclosed tightly
in time before unnecessary compressedair losses occur.
Pos: 36 /Beko Technisch eD okumentation/Fu nktion/BEKOMA T/BM 32U/33U LED-T aster-Funktion @ 4\m od_13546914935 82_15098.doc x@ 290 67 @ 1 @ 1

80442874 ingersollrandproducts.com 9
EN

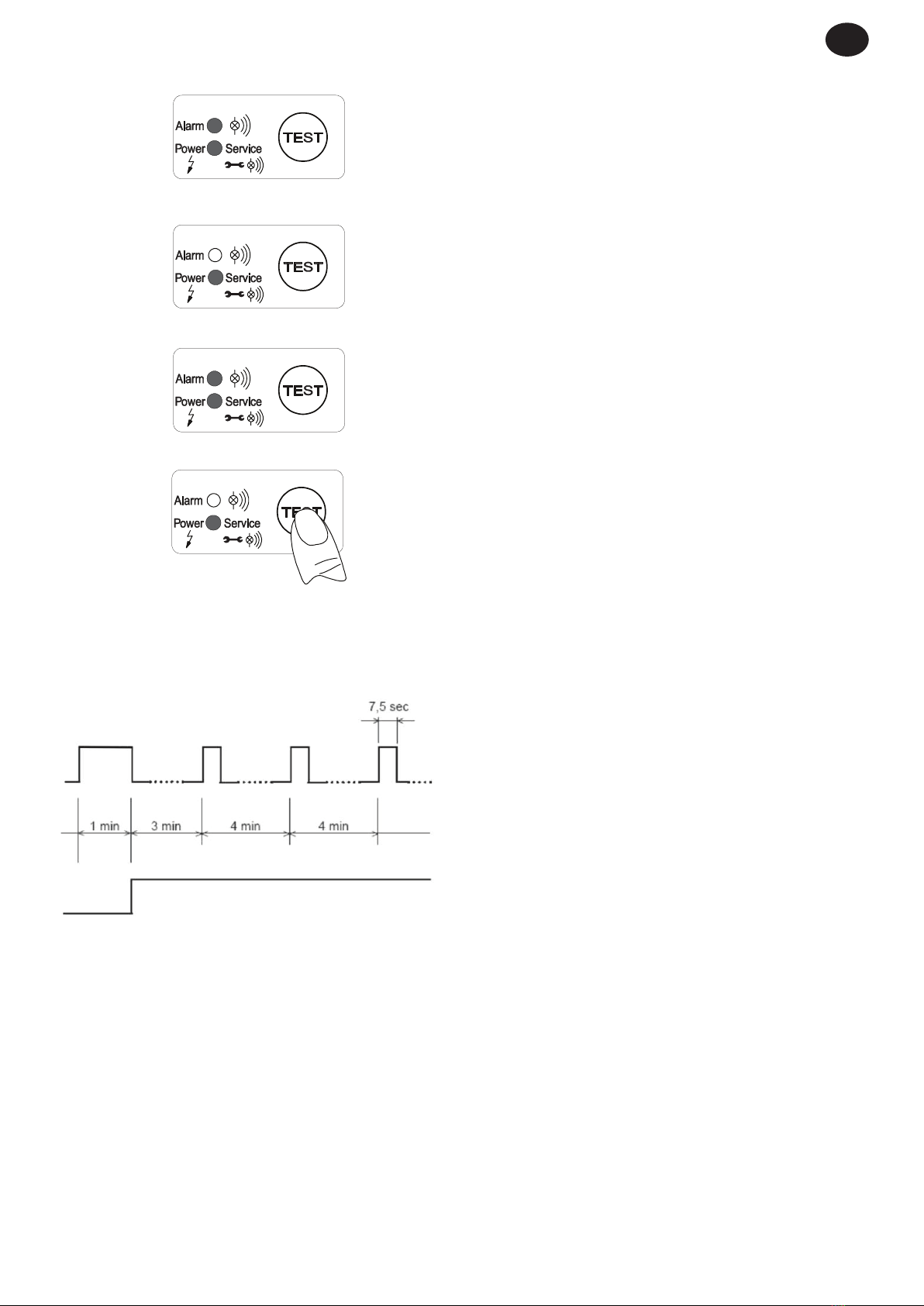

At the ENL 5 , two LEDs indicate the individual operating
states.
When applying supply voltage, the ENL 5 carries out a
self-test.
Both LEDs are lit for approximately 1 second, subsequently,
the device changes over to the state“ready-to-operate”.
Ready to operate, voltage is applied.
In the event that the condensate discharge is disturbed,
an alarm mode will start which is indicated by
the ashing of the red alarm LED.
Malfunction/alarm
Test of the valve function (manual drainage): press
and hold the button for approximately 2 s.
Test of the alarm function (see below): press and hold
the button for at least 1 min.
Do not use for permanent drainage.
Switching sequence of the valve in the alarm mode
Trouble indication via a potential-free contact
Alarm mode:
In the event that the ENL 5 is not empty after one
minute, a trouble indication is released:
The alarm LED ashes.
The alarm relay switches over (the signal can be picked
o potential-freely).
The valve opens every four minutes for 7.5 seconds.
When the malfunction has been eliminated, the ENL 5
will switch back automatically into the normal mode.
Possible trouble sources include :
Mistakes during installation
Dropping below the minimum pressure
Excessive accumulation of condensate (excess load)
Blocked / obstructed outlet line
Extreme amount of dirt particles
Frozen pipe work
•
•
•
•
•
•
•
•
•
•

10 ingersollrandproducts.com 80442874
EN
9. INSTALLATION
DANGER
Compressed air!
Risk of serious injury or death through contact
with quickly or suddenly escaping compressed air
or through bursting plant components or plant
components which are not secured.
Measures:
Do not exceed the maximum operating pressure (see
type plate).
Only carry out service measures when the system is
pressure less.
Use pressure-resistant installation material only.
The feed pipe must be tubed rmly. Discharge pipe:
short, xed pressure hose onto pressure-resistant pipe.
Make sure that persons or objects cannot be hit by
condensate or escaping compressed air.
CAUTION
Malfunction during operation!
Through incorrect installation and poor maintenance,
malfunction may occur at the ENL 5 .
Condensate which is not discharged may cause
damage to plants and in production processes.
Measures:
Condensate drainage which is reliable in performance
directly optimizes the compressed-air quality.
To prevent damage and breakdowns, it is imperative
to observe the following:
Exact compliance with the specications of use
and with the performance parameters of the ENL
5 , in connection with the case of application (see
“Proper use”section)
Exact compliance with the installation- and
operation instructions in this manual
Regular maintenance and control of the ENL 5 in
accordance with the instructions in this operating
manual.
•
•
•
•
•
•
•
a.
b.
c.
NOTE
It is imperative to observe all hazard statements and
warnings listed here.
Please also observe all regulations and notes regarding
industrial safety and re prevention at the place of
installation.
As a matter of principle, only use suitable and appropriate
tools and materials in a proper condition.
Do not use aggressive cleaners and improper devices such
as high-pressure cleaners.
Please note that condensates may contain aggressive or
harmful components. Therefore, skin contact should be
avoided.
Condensate is subject to mandatory waste disposal. As
such, it must be collected in suitable containers, and
disposed of or processed properly.
Installation instructions:
Only the displayed installation position of the ENL 5
(3) is permissible. Never install in a horizontal or any
other tilted position.
Feed pipe (1) and ball valve (2) at least G½.
No lter or screen in the inlet line.
Slope in the inlet line >1%.
Use ball valves (2) only.
Operating pressure: min. 12 psi, max. 230 psi.
Short pressure hose (4) xed on a pressureresistant
pipe.
The required minimum pressure increases by 0.44 psi
per foot gradient in the discharge pipe (5).
Discharge pipe (5) rising by max. 16,4 feet.
Install manifold (7) ¾”with a slope of at least 1%.
Introduce the discharge pipe (6) from the top into the
manifold (7).
Prior to the start-up, always carry out a leak test and
verify the correct engagement of the control unit.
•
•
•
•
•
•
•
•
•
•
•
•

80442874 ingersollrandproducts.com 11
EN
Wrong Correct
Pressure dierences!
Each condensate accumulation point must be
drained separately.
Continuous slope!
Avoid a water pocket when installing the feed pipe
Deector area!
If drainage is to be carried out directly from the
pipe, deection of the air ow will be useful.
No venting line!
Do not install a venting line for a ENL 5 Installations,
where a venting line is normally required, are
impossible in this case. Another suitable ENL 5 must
be used.

12 ingersollrandproducts.com 80442874
EN
10. ELECTRICAL INSTALLATION
DANGER
Supply voltage!
There is the risk of an electric shock involving injury or
death when coming into contact with non-insulated
components carrying supply voltage.
Measures:
During electric installations, all regulations in force
need to be adhered to (e.g. VDE 0100 / IEC 60364).
Service measures must only be undertaken when the
system is deactivated.
The removed control unit has no IP degree of
protection.
All types of electrical works must be carried out by
authorized and qualied personnel only.
•
•
•
•
NOTE
Read the permissible supply voltage on the type
plate and make sure this voltage is observed.
For the supply voltage, a reliably accessible
separator must be provided close-by (e.g. power
plug or switch), which separates all current-carrying
conductors.
At a low-voltage supply
(< 50 VAC / < 75 VDC), only use a protective
extralow- voltage (SELV).
Carry out installation in accordance with
VDE 0100 / IEC 60364.
Observe the terminal assignment.
Do not install when the device is energized.

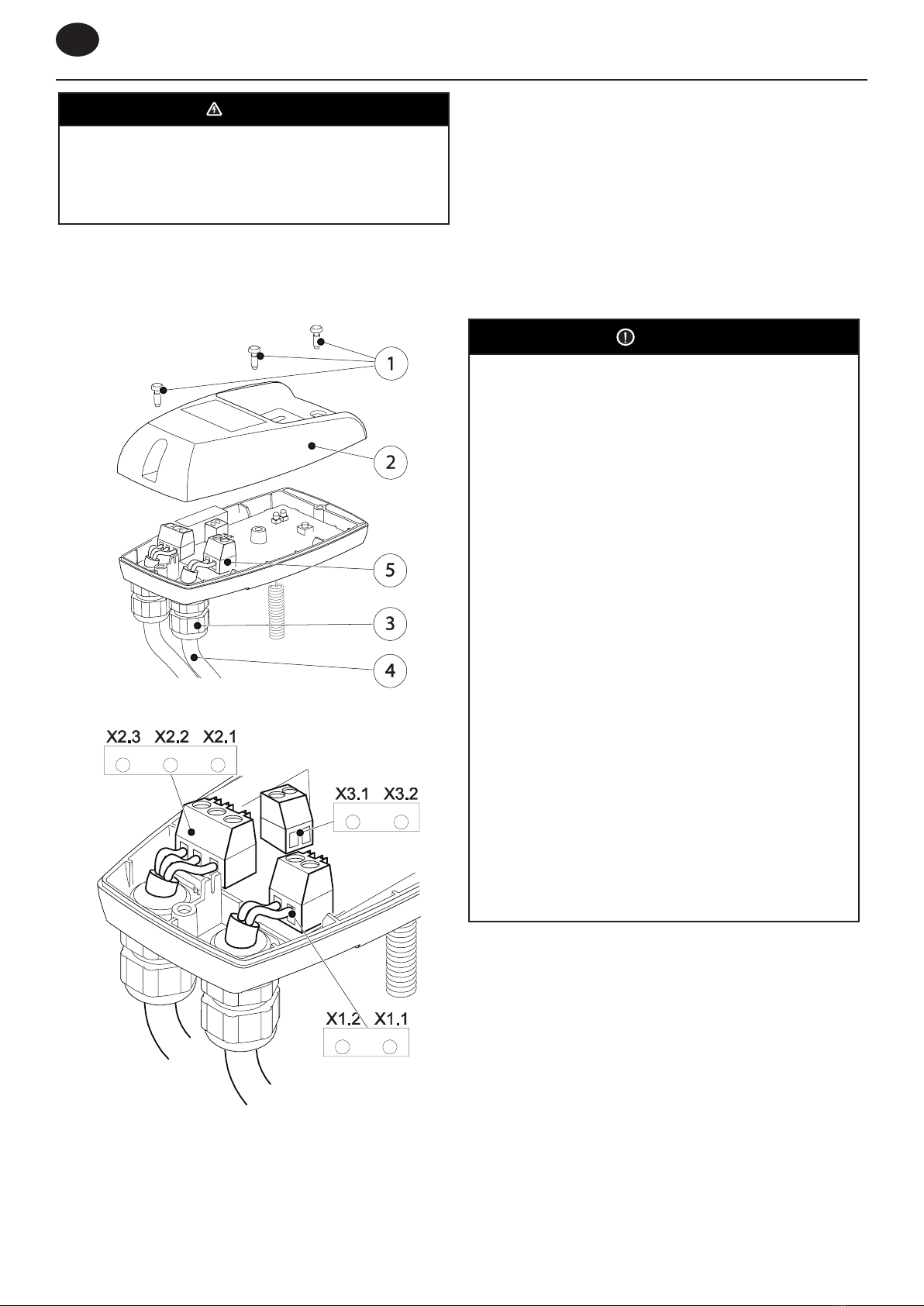

Unscrew the screws (1) and remove the upper part
of the cover (2).
Unscrew the threaded cable connection (3), remove
the plug (if there is one), and lead the cable (4) for
the power supply through.
Connect the cable (4) with terminals X1 (1.1, 1.2) (5).
Install the cables as shown (see also terminal
assignment in the following text).
Tighten the threaded cable connection (3) with a
slightly sealing eect.
Put on the upper part of the cover (2) and tighten
the screws (1) ngertight.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.

80442874 ingersollrandproducts.com 13
EN
Connection of the potential-free contact and of the
external test:
Selection of the suitable cable.
Connection to X2 and X3, as shown on the left.
The installation steps are the same as for the power
supply connection.
If the potential-free contact carries voltage that is
dangerous in the case of contact, a corresponding
separator must also be provided, as described above.
When using the potential-free contacts and the
connection external test, sucient clearance to
the other parts of the unit, or suitable insulation in
accordance with EN 60664-1 must be ensured.
When using a multiwire, common line for the
connection of the potential-free contact and the
external test, this line must be suitable for the highest
occurring voltage and the intended temperature
range with regard to its nominal ratings.
Terminal assignment supply voltage (operating voltage)
X 1 X 2 X 3
12 1 2 3 1 2
power
power normally open
common
normally closed external test (IN1)
GND
1.1 1.2
2.1 2.2 2.3 3.1 3.2
• X 1.1 L mains connection
• X 1.2 N mains connection
L = Outer conductor
N = Outer conductorw
Terminal assignment low voltage (operating voltage)
X 1 X 2 X 3
12 1 2 3 1 2
phase neutral normally open common normally closed external test (IN1)
GND
1.1 1.2
2.1 2.2 2.3 3.1 3.2
• X 1.1 L Power supply
• X 1.2 N Power supply
1.
2.
3.
4.
5.
6.
Terminal assignment of the potential-free contact and of
the external test)
X 1 X 2 X 3
12 1 2 3 1 2
power power normally open common normally closed
external test (IN1) GND
1.1 1.2
2.1 2.2 2.3 3.1 3.2
Alarm/potential-free:
• X 2.1 n.o.
• X 2.2 com.
• X 2.3 n.c.
n.c. - com. Closed in the
event of malfunction or
power failure (closed-
current principle)
n.o. - com. Closed during
normal operation
The contacts X2.1 - 2.3 are
potential-free.
External test/remote
control:
• X 3.1 external Test (IN1)
• X 3.2 GND
Contacts connected = test
active = discharge
Contacts open = test
inactive
The contacts X 3.1 -3.2 are
not potential-free.
NOTE
At a low voltage supply (< 50 VAC / < 75 VDC), only use a
protective extra-low-voltage (PELV).
Tighten the threaded cable connection with a slightly
sealing eect.

14 ingersollrandproducts.com 80442874
EN
Electric diagram

80442874 ingersollrandproducts.com 15
EN
11. CONTROL AND MAINTENANCE
DANGER
Compressed air!
Risk of serious injury or death through contact
with quickly or suddenly escaping compressed air
or through bursting plant components or plant
components which are not secured.
Measures:
Do not exceed the maximum operating pressure (see
type plate).
Only carry out service measures when the system is
pressure less.
Use pressure-resistant installation material only.
The feed pipe must be tubed rmly. Discharge pipe:
short, xed pressure hose onto pressure-resistant pipe.
Make sure that persons or objects cannot be hit by
condensate or escaping compressed air.
DANGER
Supply voltage!
There is the risk of an electric shock involving injury or
death when coming into contact with non-insulated
components carrying supply voltage.
Measures:
During electric installations, all regulations in force
need to be adhered to (e.g. VDE 0100 / IEC 60364).
Service measures must only be undertaken when
the system is deactivated.
The removed control unit has no IP degree of
protection.
All types of electrical works must be carried out by
authorized and qualied personnel only.
CAUTION
Malfunction during operation!
Through incorrect installation and poor maintenance,
malfunction may occur at the ENL 5 .
Condensate which is not discharged may cause
damage to plants and in production processes.
•
•
•
•
•
•
•
•
•
Measures:
Condensate drainage which is reliable in performance
directly optimizes the compressed-air quality.
To prevent damage and breakdowns, it is imperative
to observe the following:
Exact compliance with the specications of use and
with the performance parameters of the ENL 5 , in
connection with the case of application (see“Proper
use”section)
Exact compliance with the installation- and operation
instructions in this manual
Regular maintenance and control of the ENL 5 in
accordance with the instructions in this operating
manual.
NOTE
It is imperative to observe all hazard statements and
warnings listed here.
Please also observe all regulations and notes regarding
industrial safety and re prevention at the place of
installation.
As a matter of principle, only use suitable and appropriate
tools and materials in a proper condition.
Do not use aggressive cleaners and improper devices such
as high-pressure cleaners.
Please note that condensates may contain aggressive or
harmful components. Therefore, skin contact should be
avoided.
Condensate is subject to mandatory waste disposal. As
such, it must be collected in suitable containers, and
disposed of or processed properly.
•
•
•
•
•

16 ingersollrandproducts.com 80442874
EN
Maintenance recommendation:
After 8,760 operating hours or one million switching
cycles, a maintenance message is released.
The green power LED ashes. Afterwards, or at the
latest after two years (8,760 operating hours), the
service unit (5) needs to be replaced.
Prior to the replacement of the service unit, a reset
needs to be carried out. The control unit is released
by actuating the arresting hook. When removed, the
TEST button below the LED must be pressed and held
for at least ve seconds.
Remove the control unit (1) by pressing the arresting
hook (2).
Unfasten the ENL 5 from the outlet (3).
Remove the design shell (4) (if there is one) using a
screwdriver (10).
Detach the service unit (5) from the tubing at the inlet
by removing the union nut.
or remove the screws (6) from the angle nozzle (7).
or remove the screws (8) at the intermediate adapter
(9) and remove the latter from the service unit by
pulling it downwards.
Check whether or not the new service unit (5) goes
with the control unit (1) (model designation and color
of the arresting hook (2)).
Installation of the new service unit (5) in reverse order.
Please consider the torque for the screws (8) with 4...5
Nm.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

80442874 ingersollrandproducts.com 17
EN
Installation of the control unit on the service unit :
Check whether or not the service unit (5) goes with
the control unit (1) (model designation and color of
the arresting hook).
Check whether or not the sealing mat (11) or the
sensor tube plate (14) with contact springs (13) are
clean, dry, and free from impurities.
Introduce the sensor (12) into the sensor tube plate
(14).
Hang the hook (15) of the control unit (1) in the sensor
tube plate (14).
Press the control unit (1) against the service unit (5)
and snap into place.
Start-up subsequent to maintenance measures:
Always carry out prior to the start-up:
Leak test of the screwed connector
Check of the electrical connections
Check of the correct engagement of the control unit
1.
2.
3.
4.
5.
•
•
•

18 ingersollrandproducts.com 80442874
EN

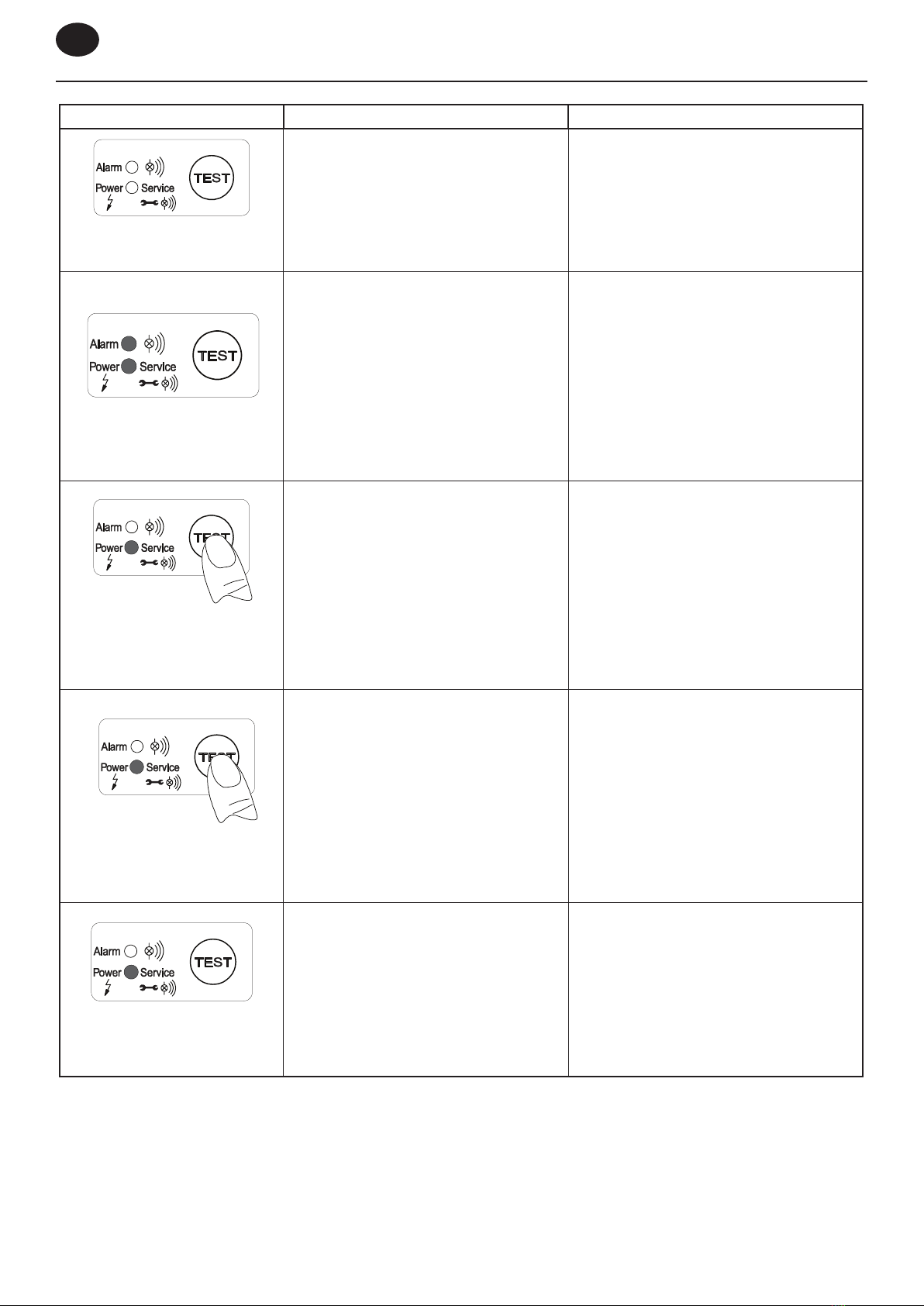

12. TROUBLESHOOTING AND FAULT ELIMINATION
Symptoms Possible reasons Measures
No LED lights up
Supply voltage incorrect
Circuit board defective
Check voltage on the type plate
Check the connections and the supply
voltage
Check the circuit boards for possible
damage
All LEDs are continuously
on
Failure during the start of the program
Circuit board defective
Separate the device from the supply
voltage and reactivate after > 5 s
Check the circuit boards for possible
damage.
Test button pressed,
but no condensate
discharge
Feed pipe and/or discharge pipe
blocked or obstructed
Wear and tear
Circuit board defective
Service unit defective
Minimum pressure not reached
Maximum pressure exceeded
Check feed and discharge pipe
Check whether or not the valve opens
audibly (press the test button several
times for > 2 seconds)
Check the circuit board for possible
damage
Check the operating pressure
Condensate discharge
only when the test but-
ton is pressed
Feed pipe without sucient slope
Cross section not large enough
Condensate accumulation too high
(surge)
Service unit extremely dirty
Install feed pipe with a slope
Replace the service unit
Device blows off con-
tinuously
Service unit defective or dirty Replace the service unit

80442874 ingersollrandproducts.com 19
EN
13. ELEMENTS AND COMPONENTS
Screw 3.5 x 10
Upper part of the cover
Cord packing 2 x 307
Circuit board
Sensor
Lower part of the cover
Cable bushing
Sealing mat
Service unit
Hose connector G¼
O-ring 20 x 2
Intermediate adapter
Screw M6 x 12
O-ring 14 x 1.78
Angle adapter G½
Design shell
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

20 ingersollrandproducts.com 80442874
EN
14. RECOMMENDED SPARE PARTS
Available sets of spare parts Contents Order number
Service-Unit 9 38446118
