Innov'SA SWEETY 1 User manual

7 avenue Bernard Pieds - 10110 BAR-SUR-SEINE - FRANCE
Tél. [phone] - Fax : [phone]
Web: www.innov-sa.com - Email: [e-mail]
(version 1 –march 2020)
User’s manual & assembling instructions
of the seat SWEETY 1 or 2 motors

Symbols used in the user’s guide
Warning
Indicates a potentially hazardous situation which may lead to death or serious injuries
if it is not avoided.
1–USER’S MANUAL
Before to do a cycle (to go up and especially to go down) –Make sure that nothing is
caught when activating the mechanism (people, animals, object…).
Storage condition
The SWEETY must be stored away in a dry and temperate place, while respecting the
upright position storage on the cardboard box.
Conditions of use
Do not operate the equipment without having:
- be initially trained on a practical test by the reseller or the installer;
- Having read and understood the user’s manual.
Ensure a minimal distance (nearly 80 cm) behind the back of the seat to prevent
it from coming into contact with the wall when set in the ‘Relax position’.
Please systematically make sure that nothing can be blocked or hidden under the
mechanism before each using’s cycle. The mechanism of the lift chair mat cause
personal injury, be very careful with young child or domestic animals.
Ensure that the seat in on a flat horizontal surface in order to perfectly stabilize the seat on
the ground.
Do not place the seat close to a significant heat source.
Plug in the power supply cable to the electricity network in compliance with the currents
standard and matching the 230-power-supply-unitvoltage.
In case of threat of thunderstorms, it is recommended not to use the seat.
The lift chair must not to be moved when it use.
We suggest you to first manipulate the seat empty, to get used it.
The user must prevent children from using the seat. The leg rest is not
an additional seat.
Before moving the seat around: unplug the power cable.
In case of quilt packed, please to detach the quilt from the chair and tap it in order
to find his swelling of origin.
Do exclusively use original spare part and accessories distributed by INNOV’ SA, thus
guaranteeing the product’s security and maintaining its conformity.
It is forbidden to modify the seat, in which case the warranty will no longer be
valid. The miss using of the seat will also cancel the guarantee terms.
Do not expose the product to the sun, as it can result in a partial discoloration of the
coatings. Do not remove the 2 rear wheels.

Appropriate precautions
The use of the seat SWEETY is not intended for disoriented people, and for users in
need, the help and vigilance of the third party are imperative.
Weight limit
The SWEETY 1 and 2 motors cannot be used by people weighting over 160 kg.
2 –USER’S MANUAL
Remove the chair from the packaging.
Plug the transformer to the electric actuator’s cable.
Plug the electric cable of the jack to the power transformer on the other end. Please
check that all electrical connexion are in the correct place.
Plug in the power supply cable to an electricity network in compliance with the
currents standards and matching the 220V-power-supply-unitvoltage .
Recline the mechanism of the chair by using the remote control.

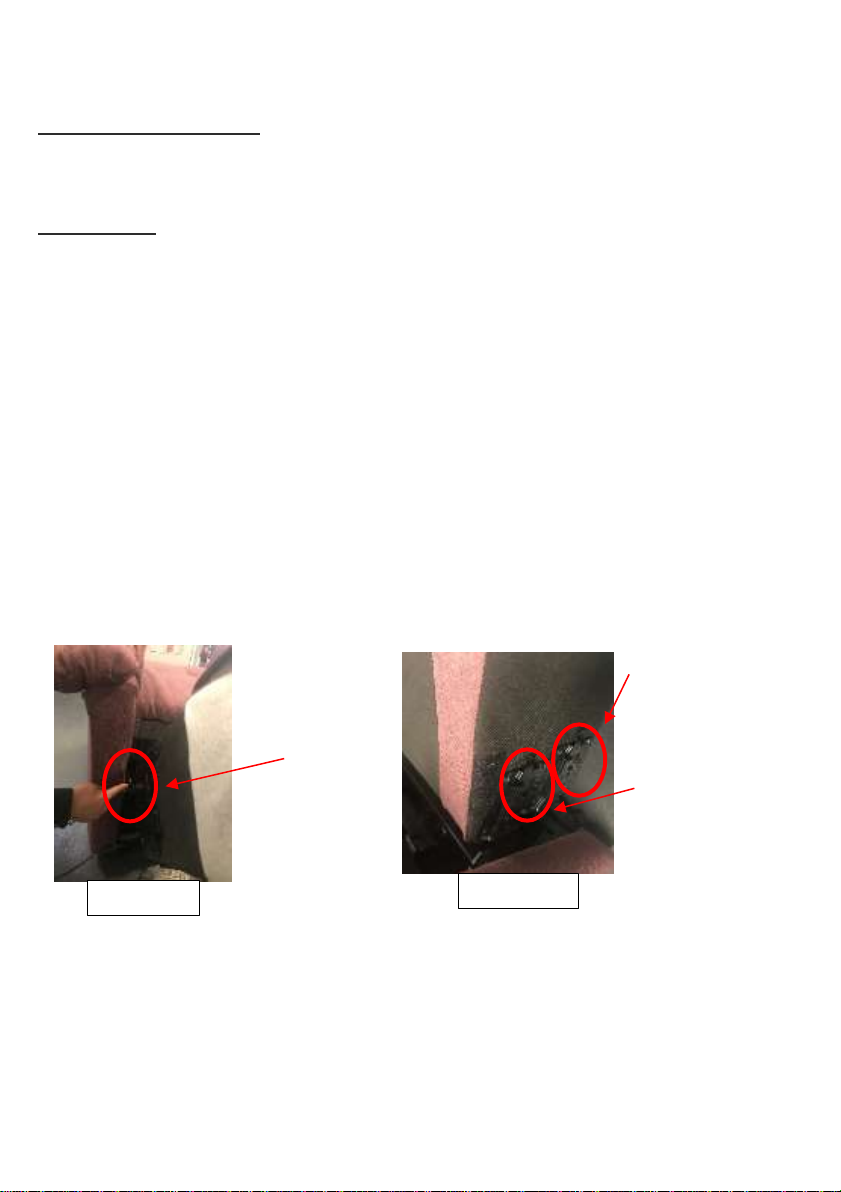

Insert the female bracket of the back into the male bracket of the mechanism, by
switching the two parts until the ‘CLIC’. (Picture 1&2)
Use the remote control to set the chair in seating position.
Male bracket
(picture 1)
Picture 1
Picture 2
Female bracket
Position 1 (picture 2):
Seat depth 46 cm
Female bracket
Position 2 : Seat
depth 53 cm

3
Assembly tray :
- Put the lift chair SWEETY in rising up position (picture 3)
- Fit the metal support of the tray into the opening predicted for (picture 4)
- Put the tray on the support.
If you want to change the side of the tray, put off the black plugs which
obstructs the opening and install your tray’s support .
Picture 4
Picture 3

4
Using the remote control
Running noise can happen during the reclining function of your chair (rubbing of
fabrics, engine operating).
Secured and reversible remote control
- The remote control cannot drop, thanks to its placement under the arm rest cushion.
For the SWEETY 1 motor
Remote control 2-buttons
TOP button : Backward tilt with rising of the leg rest
BOTTOM button : Reset in seating position with lowering of the leg rest
If you press again on the button, your chair will be in rising up position.
For the SWEETY 2 motors (picture 6)
Remote control 4-buttons
GREEN button: Back reclining.
WHITE button: back rising in straight position.
BLUE button: Rising of the leg rest. Return in sitting position
YELLOW button: Downgrading of the leg rest.
Switching in lifting position
Check that anything –no object or animal or other thing would be
blocked or hidden under the mechanism before each cycle of using ..
Picture 5
Picture 6

5

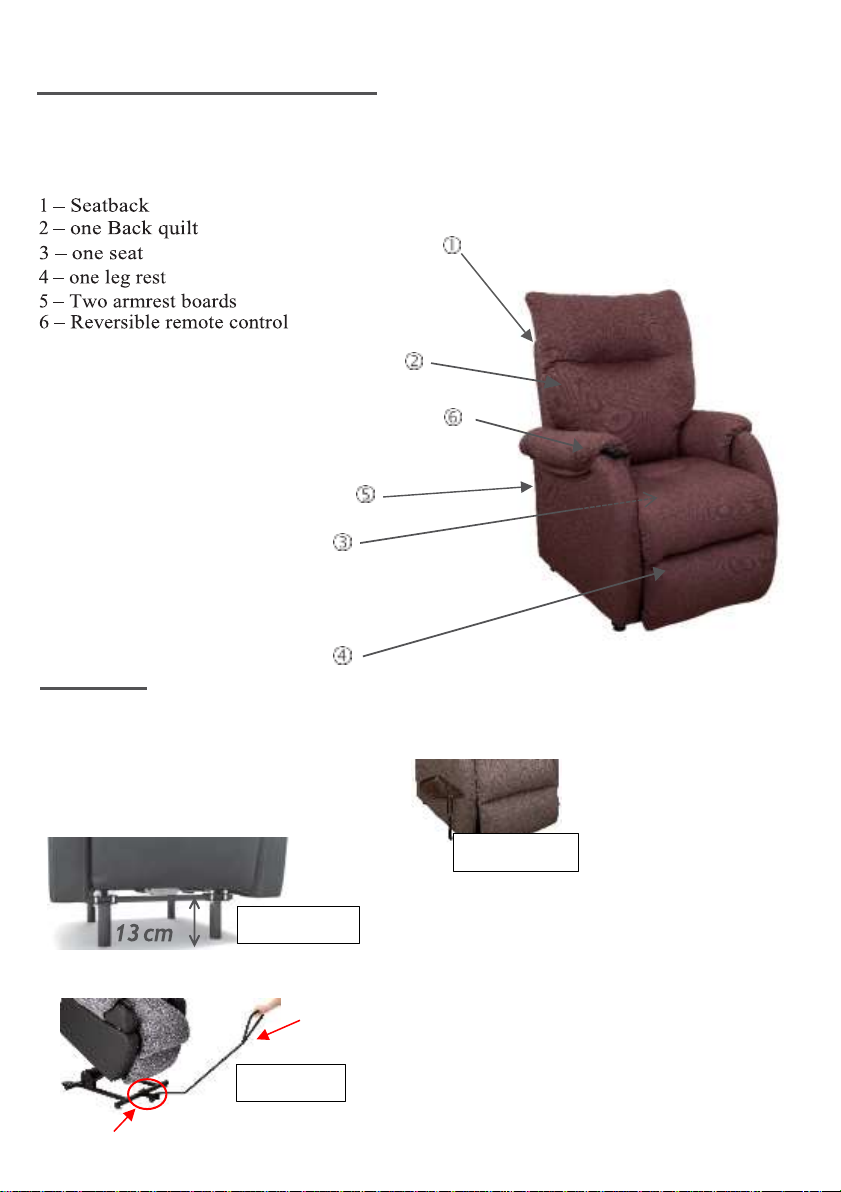

Composition of the SWEETY
Your SWEETY is fitted with following parts:
Accessories:
It is possible to have following optional accessories:
- Reversible tray Left/Right (picture 7)
- Hoist friendly kit (picture 8)
- Mobility kit (picture 9) fitted with a flange + 1 transport stick
Picture 7
Picture 8
Picture 9
Flang
e
Transport stick

6
Changing the quilt modules to be
washed or replaced.
Seat back quilt :
- Remove the Velcro strap from the flap of the cover behind the seat back
- Zip down the left and the right side on the quilt.
Seat base/leg rest quilt :
- Remove the Velcro settled into the seat.
- Zip down between the Back quilt and the Seat/leg rest quilt.
All modules can be machine-washed. We advise you to put the modules in a
washing net or in a pillowcase, to preserve their original aspect.
.
Changing the back :

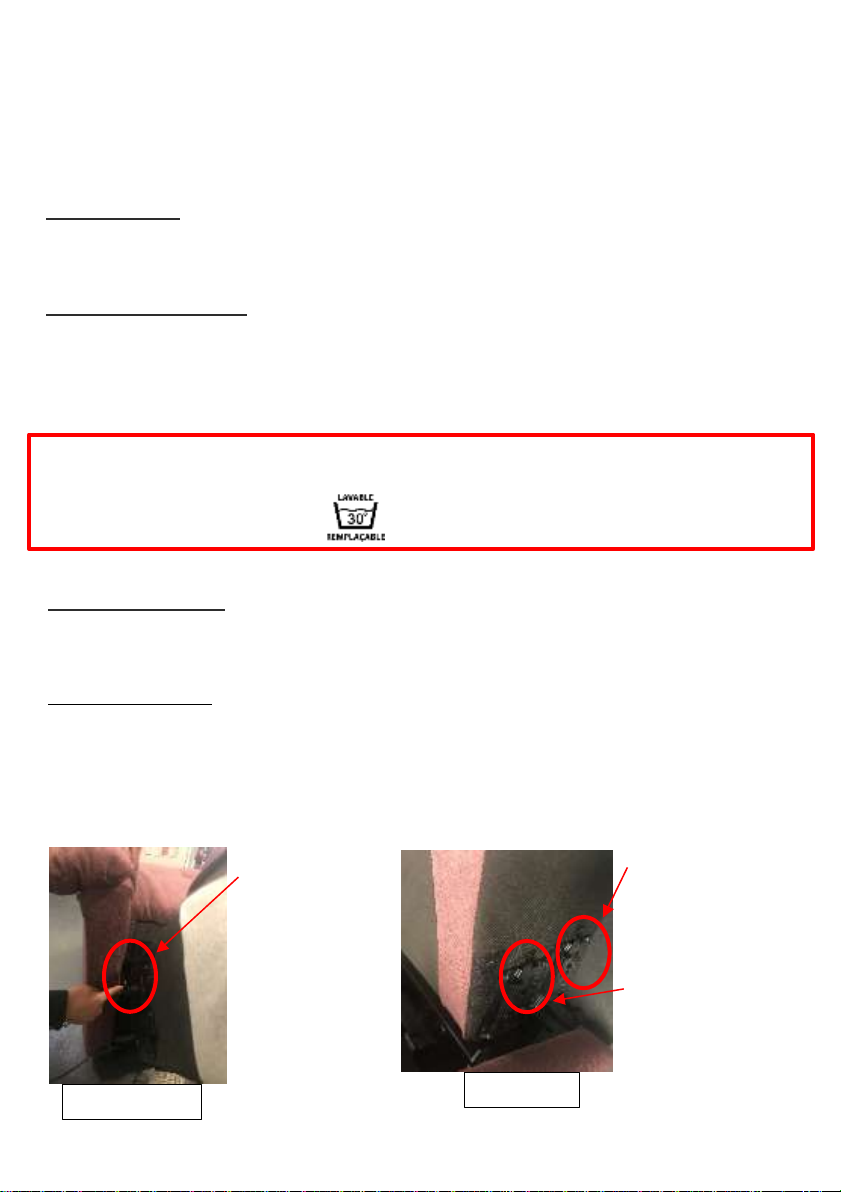

It is possible to modify the seat base depth by replacing the back rest with another
one.
Recline the back :
- Drawn on the « CLIP » and remove the seat back by sliding it away from its base
along the 2 metallic rails, on the right and on the left.
- Assembly the new seat back to the base by sliding it down along the 2 metallic rails
until a perfect engagement of both parts, until the « CLIC
Male bracket
(picture 10)
Picture 10
Female bracket
Position 1 (picture
11) : seat depth 46
cm
Female bracket
Position 2: seat
depth 53 cm
Picture 11

7
TECHNICAL SPECIFICATIONS
Maximum user’s
weight
160 kg (1 and 2 motors)
Coating
100 % Polyester : Colours Pebble, Havana, Prune
Quilt padding
Silicone hollow fiber
CLEANING PROTOCOL FOR ‘SWEETY’ COATINGS:
- All detergent, solvent and stain remover, not listed on the NF
collectivity, WILL BE REALLY PROSCRIBED;
- Ball-point pen’s ink spot, require an immediate cleaning in order to
prevent from the migration into the coated fabric and becomes also
definitive

CERTIFICATE OF GUARANTEE
Surname :
First name :
Adress :
Post code :
City :
Date of purchase:
To enforce your guarantee, the date of purchase must be clearly indicated
Model :
Serial number:
Thank you for respecting the environment. This product and its wrappings are subject to
selective waste sorting. Product and wrappings at end of life cycle, should be recycled in
an authorized collecting facility. Waste recovery will contribute to the environmental
protection.
n order to constantly improve the quality of our service, please forward your remarks
regarding the quality, the functionality or the use of our products that we develop.
NOTES

GUARANTEES
-
Mechanism and actuator : 5 years
-
Lift chair meet the standard CEM 2014/30/EU –Directive low voltage
2014/35/EU –RoHS Directive 2011/65/EU Standards applied :
 EN 60335-1:2012/A11:2014
 EN 55014-1:2006/A2 :2011
 EN 55014-2:1997/A2 :2008
 EN 61000-3-2 :2014
 EN 61000-3-3 :2013
 EN 61000-3-3 :2008
 EN 62233:2008
Learn more about the lift chair SWEETY
on our website www.innov-sa.com
