Innova WS-INNOVA5 User manual

INNOVA
Operating manual
78-520-20523.05.2005

INNOVA
Table of contents
1 Preface ...................................................................................................................................................... 18
2 General hints ............................................................................................................................................ 19
2.1 Safety instructions .............................................................................................................................. 19
2.2 Warning signs .................................................................................................................................... 19
2.3 Safety devices .................................................................................................................................... 19
2.4 Purpose .............................................................................................................................................. 19
3 Function .................................................................................................................................................... 20
4 Technical data .......................................................................................................................................... 21
5 Transport, storage and moving .............................................................................................................. 23
5.1 Transport of the unit ........................................................................................................................... 23
5.2 Storage of the unit .............................................................................................................................. 23
5.3 Unwrapping and positioning ............................................................................................................... 23
5.4 Setting up ........................................................................................................................................... 23
6 Description of the operating elements ................................................................................................... 24
6.1 Adjustment of the timer - automatic mode ......................................................................................... 24
7 Starting up ................................................................................................................................................ 25
7.1 Placing the boot ................................................................................................................................. 25
7.2 Operation ........................................................................................................................................... 26
8 Maintenance .............................................................................................................................................. 27
8.1 Changing the air deodorant ................................................................................................................ 27
8.2 Cleaning ............................................................................................................................................. 27
9 Trouble shooting ...................................................................................................................................... 28

INNOVA
1 Preface
This instruction manual must beread by theoperating staffandthe persons responsible for themaintenance
ofthe appliance prior to start-up and isan addition tothe trainingmaterial.
Any damage caused by non-adherence tothe instructions givenin this manual will not becovered by our
warranty.
The user ofthe machine shall observe all andany legalregulationsdealingwithsecurityand healthregula-
tions in the respective countries.
1.1 Regulations for use
The boot dryer is designed solely for drying andstoring boots (conventionalusage according to
regulations).The use ofthe machinefor any otherpurpose isnot consideredtobe con-
ventional usage. The manufacturer accepts no responsibility for damage caused as a result of unconventio-
nal usage, and the latter is entirely at the risk of the user.
In order to comply with conventional usage, the manufacturer’s regulations concerning operation, mainte-
nance and servicing of the machine should be strictly adhered to.
The relevant accident prevention regulations as well as other generally recognized legal safety standards
must be respected.
Any alterations made to the machine by the user automatically removes any responsibility on the part of the
manufacturer for any damage resulting there of.
As we are constantly striving to improve our products, we reserve the right to make any alterations or impro-
vements we deem to be necessary. However, we are not obliged to carry out these alterations or improve-
ments on machines or equipment already delivered by us.
All illustrations, measurements and weights quoted in the User Guide are not binding.

INNOVA
2 General hints
2.1 Safety instructions
• The installation may only be carried out by a skilled electrician who knows and adheres precisely to the local
regulations and additional provisions as issued by local code.
• Observe correct AC voltage!
• The voltage ratings are shown on the rating plate on the top of the machine.
• Please check whether this data conincide with your voltage.
• The boot dryer may only be operated with fully mounted protective covers and safeguards.
• Before moving the device or making any changes in the machine, disconnect mains plug!
• The appliance should only be operated with original "WINTERSTEIGER" spare parts or materials subject to
wear and tear. If materials of other vendors are used, then this is at your own risk and on the operator´s re-
sponsibility.
• Ensure sufficient ventilation in the work room!
2.2 Warning signs
2.3 Safety devices
•All safetydevicesmustbeinplace duringoperation.
2.4 Purpose
•The bootdryerisonly intended fordryingandstoring boots.
In the event that any of the above instructions are not adhered to, WINTERSTEIGER will refuse
any liability for any damage caused!
Beware of ozone light!
Avoid looking directly at an operating
ozone lamp!

INNOVA
3 Function
• Easy operation with analog timer
• Central heating, adjustable in 2 steps
• Air outlet only for occupied nozzles
• Air-circulation system disinfects and filters the used air and supplies the central ventilator with the clean air.
• Desinfection through germicidal ozone lamp
• Deodorizing through air deodorant
• The appliance can be mounted onto the wall or positioned to a wall on supports.

INNOVA
4 Technical data
Type INNOVA
Boot dryer
Nominal voltage, frequency, nominal
connected wattage, fuse min.-max.: Innova 5 pairs 1AC 208-230V 50/60Hz, 1,05kW, 4,55A, 10/16A or
1AC 110V 60Hz, 0,7kW, 6,45A, 10/16A
Innova 15 pairs
1AC 208-230V 50/60Hz, 2,1kW, 9,1A, 10/16A or
1AC 110V 60Hz, 1,4kW, 12,9A, 15/16A
Power heating: Innova 5pairs230V /110V
Step 1: 500W/ 350W
Step 2: 1000W/700 W
Innova 15 pairs 230V / 110V
Step 1: 1000W/ 700W
Step 2: 2000W/1400 W
The correct connecting voltage is shown on the
type plate!
Weight: Innova 5pairs
approx.35 kg
Innova 15 pairs
approx. 70 kg
Ambient temperature: +18 to 40°C
Air humidity: 30% - 70%

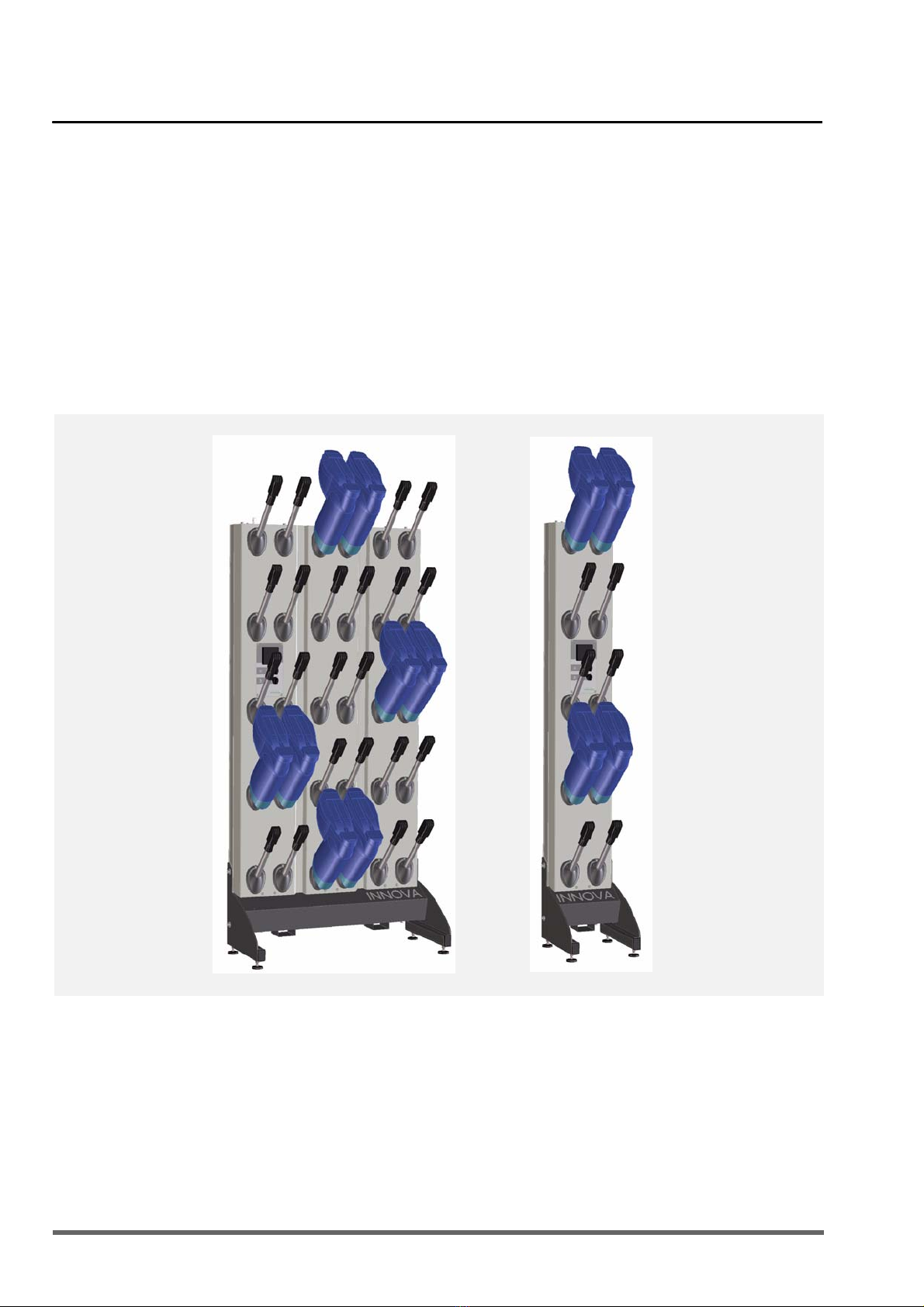

Dimensions: see following table and drawing
Drying time: approx. 2 hours
Average disinfection time: approx. 2 hours
Persistency of deodorant: in 5-hours-operation approx. 2 months
Noise emission: approx. 65 dB(A)
INNOVA
Boots - 5 pairs Boots - 15 pairs
without feet with feet without feet with feet
Height 20302100 2030 2100
Width330 340 930940
Depth390 415 390415

INNOVA

INNOVA
5 Transport, storage and moving
5.1 Transport of the unit
The product has to be transported in the original packing and in an upright position.
5.2 Storage of the unit
Temperature: 0° to +40°C.
To avoid damage of the unit, please do not stack anything on the crate!
5.3 Unwrapping and positioning
• Follow all instructions carefully, in order to avoid any injuries, or damages to the machines.
5.4 Setting up
When choosing the position of the boot dryer you should bear in mind the intensity of work and the space
needed for easy handling (working and walking areas). Whenever possible, the boot dryer should be moun-
tedinawellventilatedroomclosetoapowersource.
When choosing the position of the unit, do not forget to follow the working safety regulations in
force.
• Never push any object into the extractor fan grid of the boot dryer or even cover it up in any
way (do not obstruct the dryer)!
• To ensure that INNOVA operates properly, it must be put in a place where ambient tempera-
ture never falls under 18°C.

INNOVA

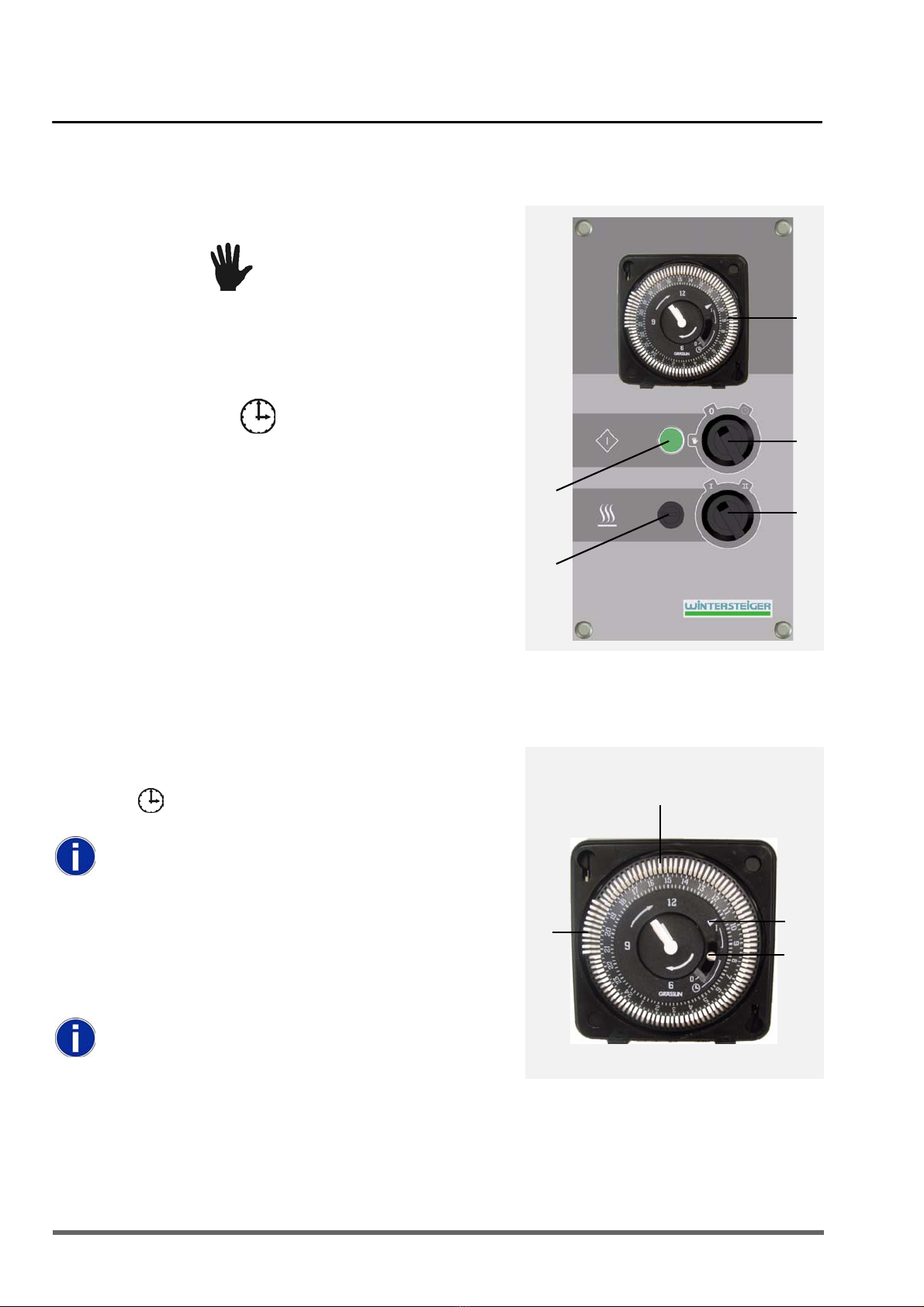

6 Description of the operating elements
A: Main switch manual - automatic mode:
•Manual mode
The circulating fan and the disinfection are activated.
• Off
Switching off of the machine.
•Automatic mode
The drying and disinfection of the boots are done by the pre-
set time on the timer.
B: Switch hot air
• Step 1 or step 2
C: Timer
D: Control lamp
The green control lamp signalizes activity of the dryer (main
switch not ain off-position)
E: Glass-tube fuse (15A)
6.1 Adjustment of the timer - automatic mode
• Turn the marking (F) of the outer ring (i) to the present hour for
adjustment of the time. Position of the knob (H) has to be in the
center and must not be adjusted.
The timer is equipped with a battery so time will be
kept, should there be a power failure or a short-time
disconnection from the power supply. But the time
has to be adjusted after a longer current interruption.
• Move programming segments (G) towards the outside of the
clock-face to the required drying length of time: cycle starts at
the set time.
Set the switch (A) to automatic for automatic mode.
Set the switch (C) to hot air when drying with hot air.
A
B
C
D
E
0
G
I
F
H

INNOVA
7 Starting up
7.1 Placing the boot

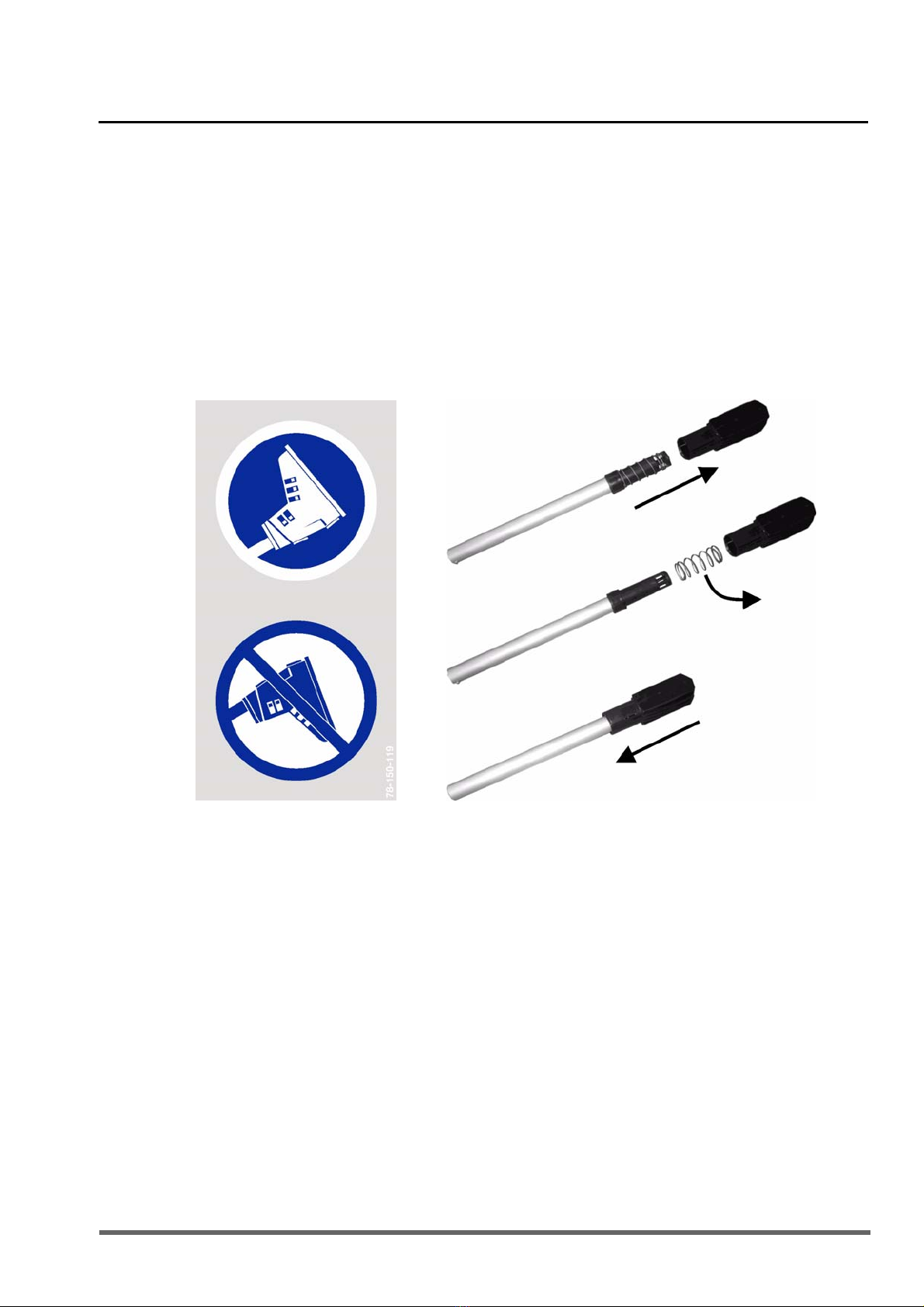

• To dry the boot place it exactly as shown in the picture (1), whether the boots are for downhill, cross-country
skiing or others.
• If the boot dryer is being used for boots whose weight is not enough to activate the nozzle on the dryer head,
undo the spring as shown in picture (2).
Picture 1 Picture 2

INNOVA
7.2 Operation
• Check the level of the air deodorant granules.
• Plug in the appliance.
• Switch on the power to the dryer by means of the switch (A) and select manual or automatic mode. Check
the adjustment of the timer when automatic mode was selected.
• Select the desired heating power (step 1 or 2) using switch (B).
• Remove the boots after the drying cycle.
• The next cycle can be started.
A
B

INNOVA
8 Maintenance
Switch off the appliance and disconnect mains plug before cleaning!
8.1 Changing the air deodorant
• On the bottom of the front there is a shelf for the air deodo-
rant.
• Change the air deodorant plates, as soon as their surface
dries out!
Persistency of the deodorant in 5-hours-operation
approx. 2 months!
8.2 Cleaning
• Clean the frame (C) and the valves (D) regularly with a damp
cloth.
• Remove the dust from the inside of the ventilators yearly by
opening of the front cover (E).
Do not clean the appliance with a high-pressure cle-
aner!
A
E
D
C

INNOVA
9 Trouble shooting
When working on the machine disconnect electricity! The machine may only be operated with
all covers and safeguards mounted!
Error Cause Remedy
The appliance does not work The dryer is not connected. Plug in the plug for the power supp-
ly
The main switch was adjusted to „0“ Switch on the main switch
The automic/manual switch is on
the „0“ position Set the automatic/manual switch to the correct setting
Tripped glass-tube fuse Change glass-tube fuse (see
chapt. 6 Description of the opera-
ting elements)
The machine does not switch on at
the time desired when automatic
mode was selected
Timer is not adjusted Set the marking (F) to the preset
time
The appliance does not dry Not enough air supply Check the air supply of the dryer
and the room
Air humidity > 70 % The less the room humidity, the bet-
ter the drying.
Room temperature < 18 °C The higher the temperature of the
room, the better the drying.
Dryer function decreases or heating
does not work Defective fan Check the fan
No deodorization Deodorant plates are dry Renew deodorant
Defective ozone lamp Change ozone lamp
