innovair RE05C1D1 User manual

SERVICE MANUAL
RE05C1D1
RE05C1M1
RE06C1D1
RE06C1M1
RE08C1D1
RE08C1M1
RE10C1M1
RE12C1D1
RE12C1M1

CONTENTS
1. Precaution............................................................................................................................................. 1
1.1 Safety Precaution............................................................................................................................... 1
1.2 Warning............................................................................................................................................... 1
2. Function and control panel................................................................................................................. 5
3. Dimension............................................................................................................................................. 8
4. Refrigerant Cycle Diagram.................................................................................................................. 9
5. Wiring Diagram................................................................................................................................... 10
6 Electronic function.............................................................................................................................. 12
6.1 Terms and definitions...................................................................................................................... 12
6.2 Protection function .......................................................................................................................... 12
6.3 Fan-only mode function requirement ............................................................................................ 12
6.4 Cooling mode function requirement.............................................................................................. 13
6.5 Heating mode ................................................................................................................................... 14
6.6 Sensor malfunction.......................................................................................................................... 14
7 Installation details............................................................................................................................... 15
7.1 Installation instructions................................................................................................................... 15
7.2 How to install.................................................................................................................................... 16
7.3 Care and cleaning............................................................................................................................ 19
8 Operation characteristics................................................................................................................... 21
8.1 Cooling operation. ........................................................................................................................... 21
8.2 Characteristic of temperature sensor............................................................................................ 22
9 Troubleshooting.................................................................................................................................. 23

1
1. Precaution
1.1 Safety Precaution.
To prevent injury to the user or other people and property damage, the following instructions must
be followed.
Incorrect operation due to ignoring instruction will cause harm or damage.
Before service unit, be sure to read this service manual at first.
1.2 Warning
Installation
Do not use a defective or underrated circuit breaker. Use this appliance on a dedicated circuit.
There is risk of fire or electric shock.
For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized service center.
Do not disassemble or repair the product, there is risk of fire or electric shock.
Always ground the product.
There is risk of fire or electric shock.
Install the panel and the cover of control box securely.
There is risk of fire of electric shock.
Always install a dedicated circuit and breaker.
Improper wiring or installation may cause fore or electric shock.
Use the correctly rated breaker of fuse.
There is risk of fire or electric shock.
Do not modify or extend the power cable.
There is risk of fire or electric shock.
Do not install, remove, or reinstall the unit by yourself(customer).
There is risk of fire, electric shock, explosion, or injury.
Be caution when unpacking and installing the product.
Sharp edges could cause injury, be especially careful of the case edges and the fins on the condenser
and evaporator.
For installation, always contact the dealer or an Authorized service center.
There is risk of fire, electric shock, explosion, or injury.

2
Do not install the product on a defective installation stand.
It may cause injury, accident, or damage to the product.
Be sure the installation area does not deteriorate with age.
If the base collapses, the air conditioner could fall with it, causing property damage, product failure,
and personal injury.
Do not let the air conditioner run for a long time when the humidity is very high and a door or a
window is left open.
Moisture may condense and wet or damage furniture.
Take care to ensure that power cable could not be pulled out or damaged during operation.
There is risk of fire or electric shock.
Do not place anything on the power cable.
There is risk of fire or electric shock.
Do not plug or unplug the power supply plug during operation.
There is risk of fire or electric shock.
Do not touch (operation) the product with wet hands.
There is risk of fire or electric shock.
Do not place a heater or other appliance near the power cable.
There is risk of fire and electric shock.
Do not allow water to run into electric parts.
It may cause fire, failure of the product, or electric shock.
Do not store or use flammable gas or combustible near the product.
There is risk of fire or failure of product.
Do not use the product in a tightly closed space for a long time.
Oxygen deficiency could occur.
When flammable gas leaks, turn off the gas and open a window for ventilation before turn the
product on.
Do not use the telephone or turn switches on or off. There is risk of explosion or fire.
If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the
power supply cable.
There is risk of electric shock or fire.
Stop operation and close the window in storm or hurricane. If possible, remove the product from the
window before the hurricane arrives.

3
There is risk of property damage, failure of product, or electric shock.
Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the
unit is so equipped.)
There is risk of physical injury, electric shock, or product failure.
When the product is soaked (flooded or submerged), contact an Authorized service center.
There is risk of fire or electric shock.
Be caution that water could not enter the product.
There is risk of fire, electric shock, or product damage.
Ventilate the product from time to time when operating it together with a stove, etc.
There is risk of fire or electric shock.
Turn the main power off when cleaning or maintaining the product.
There is risk of electric shock.
When the product is not be used for a long time, disconnect the power supply plug or turn off the
breaker.
There is risk of product damage or failure, or unintended operation.
Take care to ensure that nobody could step on or fall onto the outdoor unit.
This could result in personal injury and product damage.
CAUTION.
Always check for gas (refrigerant) leakage after installation or repair of product.
Low refrigerant levels may cause failure of product.
Install the drain hose to ensure that water is drained away properly.
A bad connection may cause water leakage.
Keep level even when installing the product.
To avoid vibration of water leakage
Do not install the product where the noise or hot air from the outdoor unit could damage the
neighborhoods.
It may cause a problem for your neighbors.
Use two or more people to lift and transport the product.
Avoid personal injury.
Do not install the product where it will be exposed to sea wind (salt spray) directly.
It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins,

4
could cause product malfunction or inefficient operation.
Operational.
Do not expose the skin directly to cool air for long periods of time. (Do not sit in the draft).
This could harm to your health.
Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a
consumer air conditioner, not a precision refrigerant system
There is risk of damage or loss of property.
Do not block the inlet or outlet of air flow.
It may cause product failure.
Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
There is risk of fire, electric shock, or damage to the plastic parts of the product.
Do not touch the metal parts of the product when removing the air filter. They are very sharp.
There is risk of personal injury.
Do not step on pr put anything on the product. (outdoor units)
There is risk of personal injury and failure of product.
Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
A dirty filter reduces the efficiency of the air conditioner and could cause product malfunction or damage.
Do not insert hands or other object through air inlet or outlet while the product is operated.
There are sharp and moving parts that could cause personal injury.
Do not drink the water drained from the product.
It is not sanitary could cause serious health issues.
Use a firm stool or ladder when cleaning or maintaining the product.
Be careful and avoid personal injury.
Replace the all batteries in the remote control with new ones of the same type. Do not mix old and
new batteries or different types of batteries.
There is risk of fire or explosion.
Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.
They may burn of explode.
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not
use the remote of the batteries have leaked.
The chemical in batteries could cause burns or other health hazards

5
2. Function and control panel.
RE06C1M1 RE10C1M1
RE12C1M1
RE08C1M1
202020190176
202021190010 202021590001

6
RE05C1M1，RE10C1M1
The controls featured in this manual are representative of many available models. Your model
may offer slightly different features.

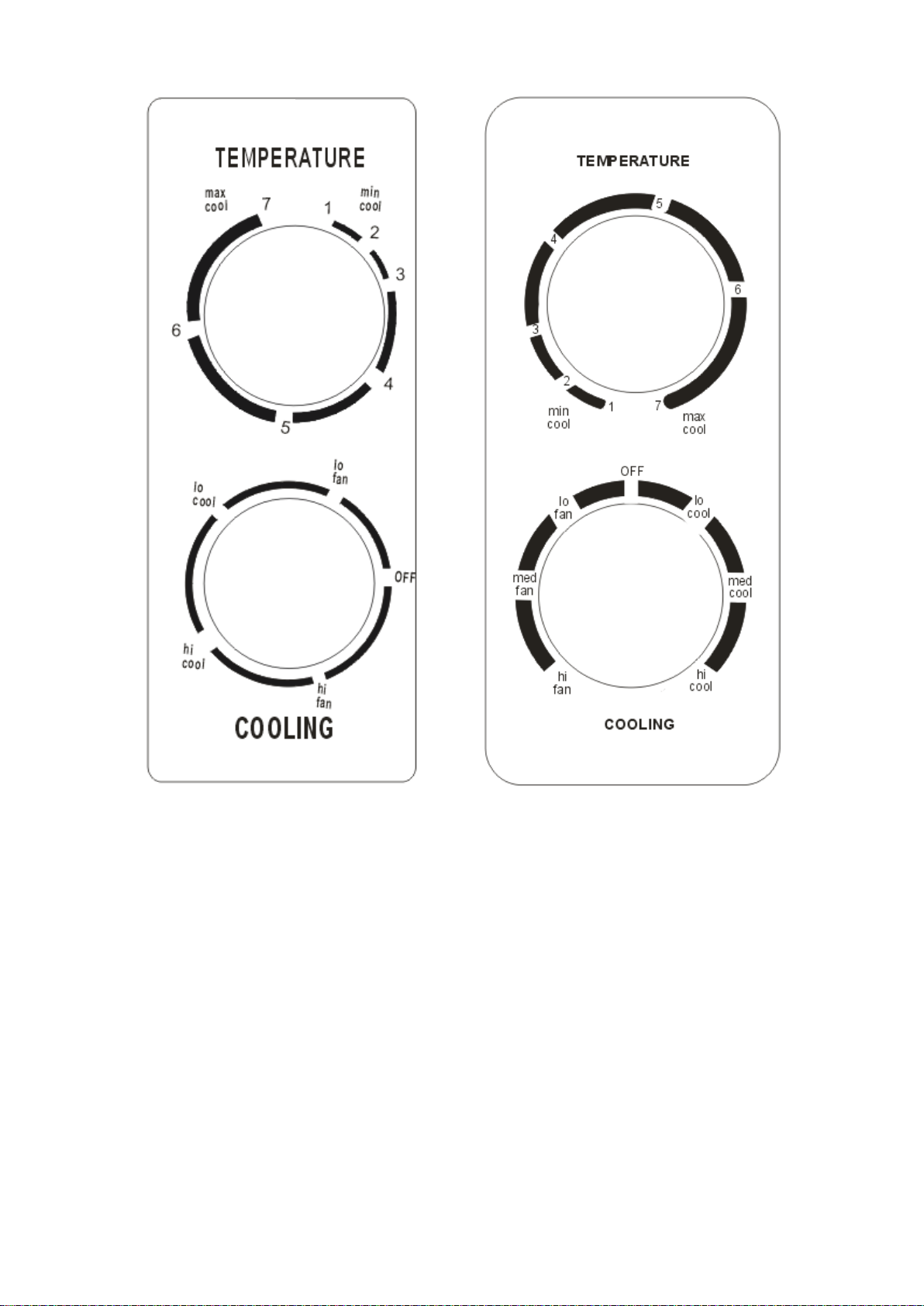

The desired cool setting is selected by rotating the knob to the right to the appropriate location.
HI COOL has maximum cooling effect and airflow.
MED COOL has intermediate cooling effect and airflow.
LO COOL has minimum cooling effect and airflow.
Cool Mode
Fan Mode
202021190147

7

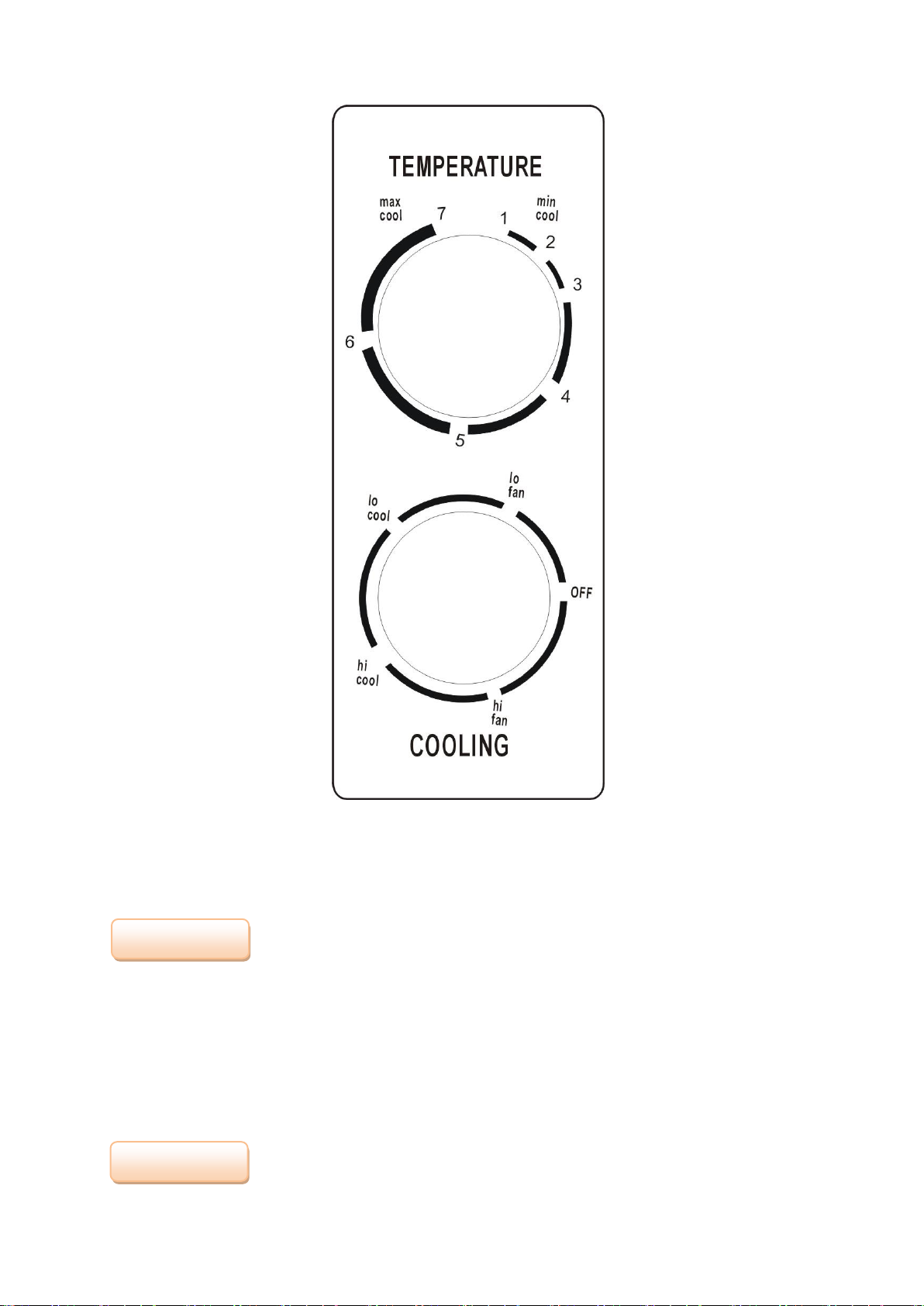

Rotate the knob to the left to select your choice of fan speeds for air circulation.
NOTE: When selecting a fan speed, the compressor will not run.

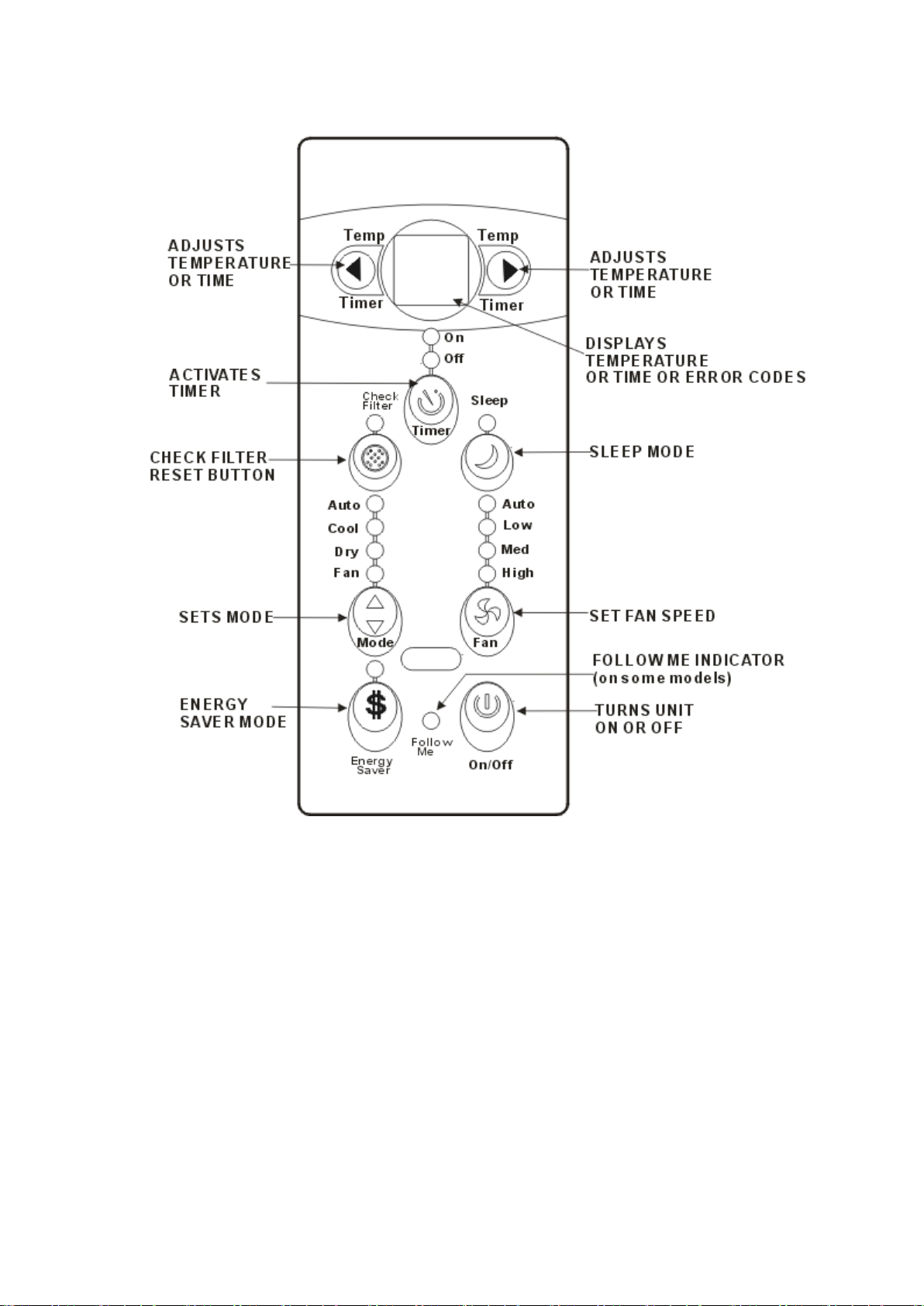

RE12C1D1
RE05C1D1
RE06C1D1
RE08C1D1
202021191063 202021190022
202021790023

8
3. Dimension.
Mode
W(mm)
H(mm)
D(mm)
RE05C1D1,
RE05C1M1
406
306
335
RE06C1D1,
RE06C1M1
406
306
390
RE08C1D1,
RE08C1M1
471
340
400
RE10C1M1,
RE12C1D1,
RE12C1M1
482
372
487

9
4. Refrigerant Cycle Diagram.
The figure below is a brief description of the important components and their function in what is
called the refrigeration system.
This will help to understand the refrigeration cycle and the flow of the refrigerant in the cooling cycle.
For only cooling
LIQUID SIDE
GAS SIDE
EVAPORATOR CONDENSER
COMPRESSOR
CAPILIARY TUBE

10
5. Wiring Diagram.
(1) RE05C1M1 , RE06C1M1
202021191021

11
(2) RE12C1D1,RE05C1D1, RE06C1D1, RE08C1D1
202021190003

12
(3) RE10C1M1, RE10C1M1,RE12C1M1, RE08C1M1
6 Electronic function
6.1 Terms and definitions
TA: Temperature of indoor ambient (T1)
TE: Temperature of evaporator (T2).
TS: The set temperature.
DAHT: Sensor of heater
6.2 Protection function
6.2.1 The compressor functions protection with a delay of three minutes.
6.2.2 Sensor protection at open or short circuit.
6.2.3 The compressor is off with a delay of five minutes.
6.3 Fan-only mode function requirement
6.3.1. The compressor is OFF at Fan-only mode.
6.3.2. The speed can′t be controlled at the mode, and the temperature of indoor is display on LED.
6.3.3. The ION/TIMER functions are valid at the fan-only mode.
202020490172

13
6.4 Cooling mode function requirement

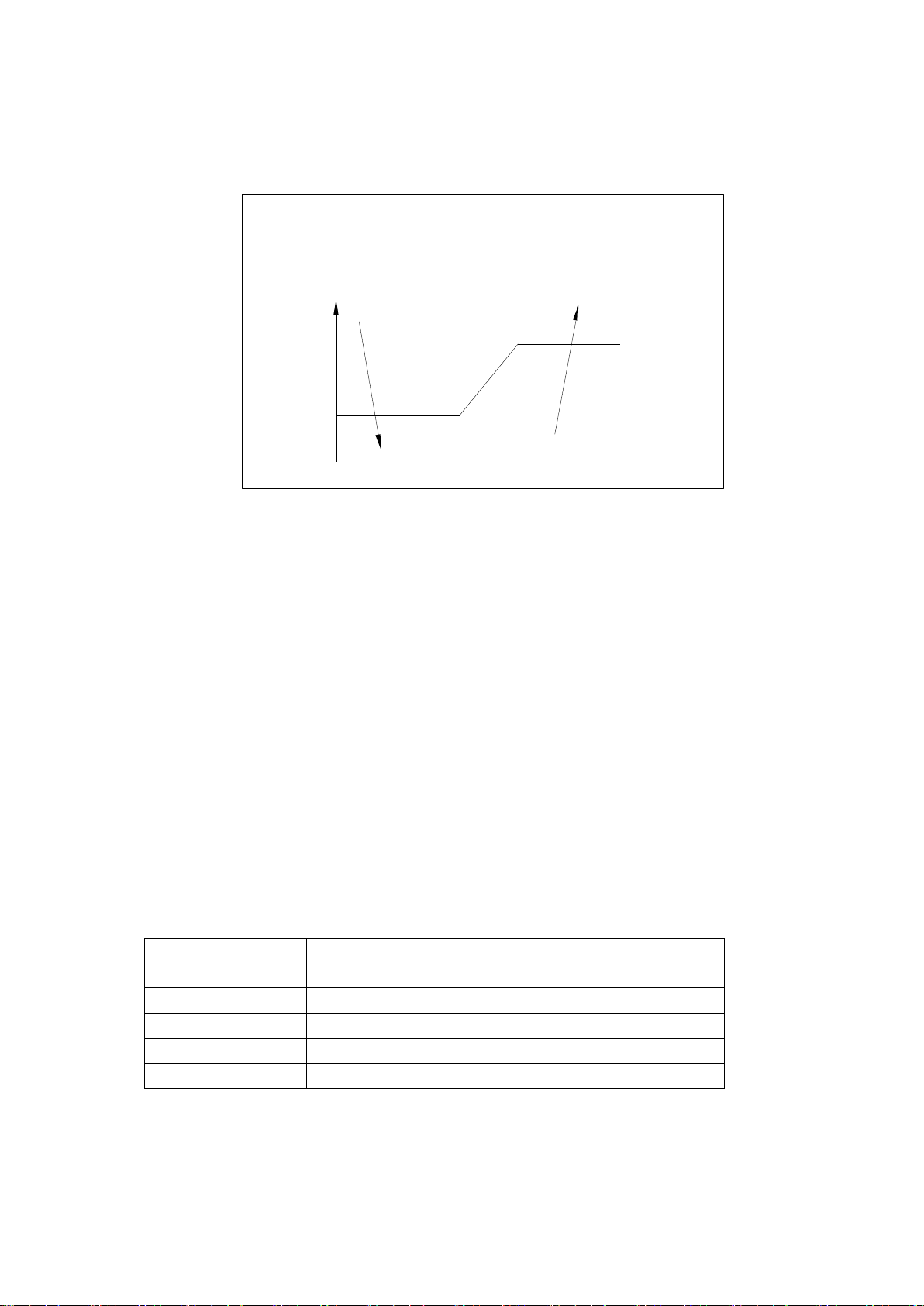

6.4.1. The compressor will be activated by sensing the difference between setting temperature and the
actual ambient room temperature.
6.4.2. The compressor operates as below:
(TA-Ts)℉
+2
0
Operation conditon
compressor off with a delay of 1 minute
compressor on
When TA≤TS, compressor off
When T1>TS+2F, compressor on
6.4.3. The ION/TIMER/SLEEP/ENERGY SAVE/FOLLOW ME functions are valid at the cooling mode.
6.4.4. Auto-defrosting function protection as below:

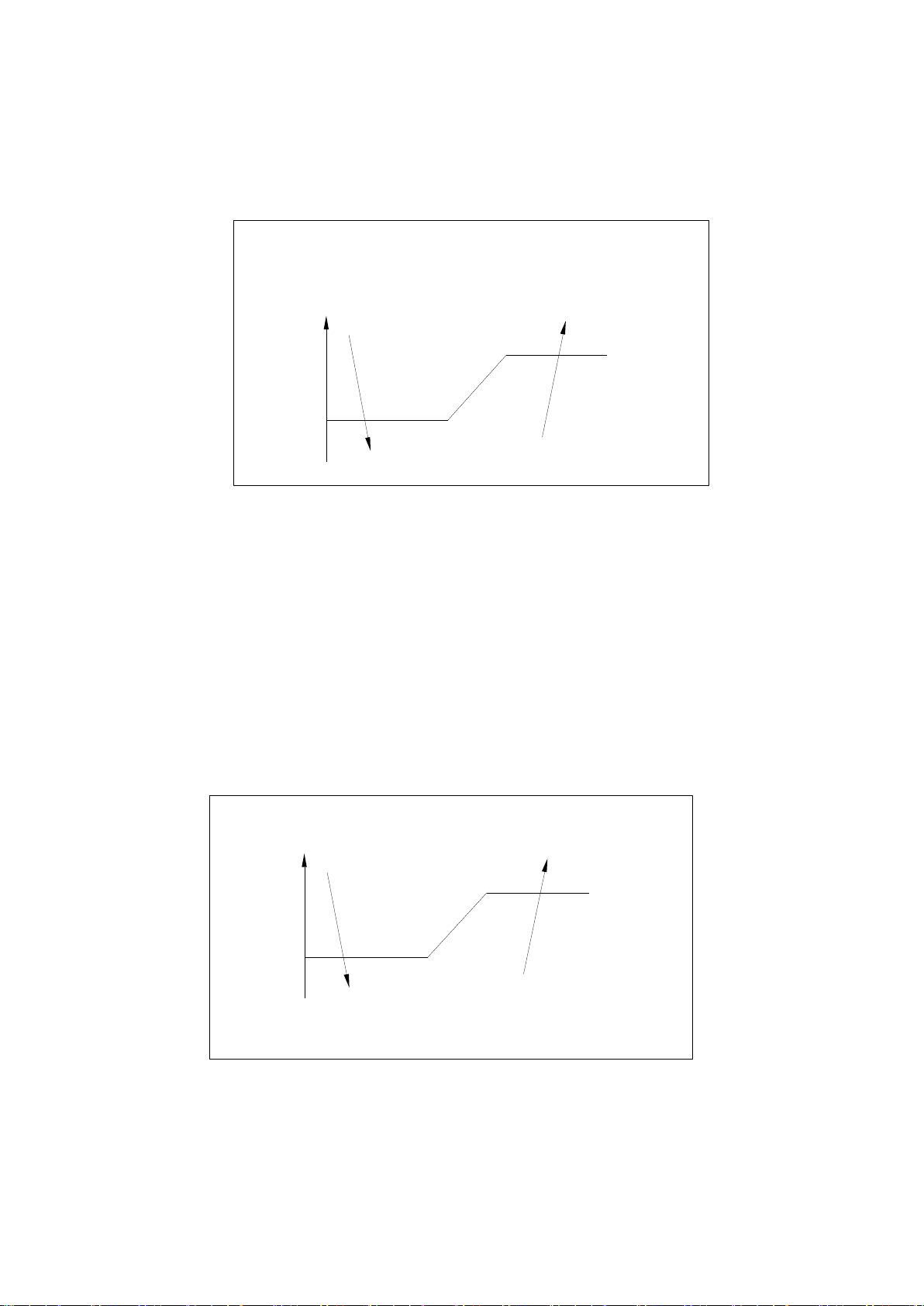

When TE is lower, it means that the evaporator frosts. Then the unit starts defrosting, and the
indoor fan keeps working at the moment. When the temperature is up, the unit stops defrosting.
TE ℉
55
30
compressor off
when TE is lower than 30℉
lasting for 5 seconds
compressor on

14
6.5 Heating mode
6.5.1. The heater will be activated by sensing the difference between setting temperature and the actual
ambient room temperature.
(TA-Ts)℉
2
-2
Operation conditon
Heater off
Heater on
The Electric heater operates as below:
a. When TA﹤Ts-2℉, the fan motor operates, and 3 seconds later, the heater is on and
operates at low speed within 30 seconds. After 30 seconds, it will change to the setting
speed. If the DAHT temperature checked is higher than the protection temperature, when the
heater operating, the fan motor will be off automatically.
b. When TA≥Ts+2℉, the heater is off, and the fan motor keeps on working at setting speed. If
the DAHT temperature checked is low than the protection temperature, and the operation
time of fan motor is more than 15 seconds, then the fan motor will be off.
6.5.2. The ION/TIMER/SLEEP/FOLLOW ME functions are valid at the heating mode
6.6 Sensor malfunction
LED display
Stand for
AS
Room temperature sensor error
LO
Sensor protection at open circuit sensor error
HI
Sensor protection at short circuit sensor error
HS
Electric heating sensor error
ES
Evaporator temperature sensor at open or short circuit

15
7 Installation details
7.1 Installation instructions.
Your air conditioner is designed to install in standard double hung windows with opening widths of 23
to 36 inches(584mm to 914mm) (See Fig.1).
Table 1
MODEL
5000~8000Btu/h
10000~12000Btu/h
SIZE
14 (356mm)
15-1/2 (394mm)
Lower sash must open sufficiently to allow a clear vertical
opening of following size (see Table 1).Side louvers and the
rear of the AC must have clear air space to allow enough
airflow through the condenser, for heat removal. The rear of
the unit must be outdoors, not inside a building or garage.
NOTE: Save Carton and these Installation Instructions
for future reference. The carton is the best way to store unit
during winter, or when not in use.
TOOLS NEEDED:
Phillips Screw Driver
Drill(If pilot holes are needed)
CAUTION: When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and rear coils.
NOTE: The top rail hardware and the following Fig.A, Fig.B
and Fig.C are not applicable to the units more than 10000Btu/h.
Before installing unit, the top rail must be assembled on the
unit (For <10000Btu/h models only).
Tool Needed: Phillips Screwdriver
A: Remove the air conditioner from the carton and place on a
flat surface.
B: Remove top rail from the rear of the packaging material as
shown in Fig. A
C: Align the hole in the top rail with those in the top of the
unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8 Screws as
shown in Fig.C.
NOTE: For safety reasons, all four(4) screws MUST be
securely fastened.
Fig. B
Fig. C

16
7.2 How to install.
NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of
(5/16 ). This is necessary for proper condensed water utilization and drainage. If you are not using the
Side Panels for any reason, this pitch to the rear must be maintained.
1. Place unit on floor, a bench or a table. There is a Left and Right Window Filler Panel- be sure
to use the proper panel for each side. When installed the flange for securing the panel in place to
the window sill will be facing into the room.
A. Hold the Accordion Panel in one hand and gently pull back the center to free the open end. See
Fig.1.
B. Slide the free and (“I” section) of the panel into the cabinet as shown in Fig. 2A, 2B & 3. Slide the
panel down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on
the cabinet.
C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into
the top and bottom ends of the frame into the top and bottom rails of the cabinet. Fig.4.
D. Slide the panel all the way in and repeat on the other side.
NOTE: If storm window blocks AC, see Fig. 13.
FIG.3
FIG.4

17
2. Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the
bottom of the air conditioner frame is against the window sill (Fig.5). Carefully close the window
behind the top rail of the unit.
3. Extend the side panels out against the window frame (Fig.6).
4. Place the frame lock between the frame extensions and the window sill as shown (Fig.7).
Drive 3 / 4(19mm) or 1 / 2(13mm) locking screws through the frame lock and into the sill
(Fig.8).
NOTE: To prevent window sill from splitting, drill 1 / 8 (3mm) pilot holes before driving screws.
FIG.5
FIG.6

18
5. Drive 1 / 2 (13mm) locking screws through frame holes into window sash (Fig.9/10)
6. To secure lower sash in place, attach right angle sash lock with 3 / 4 (19mm) or 1 / 2 (13mm) screw
as shown (Fig.11).

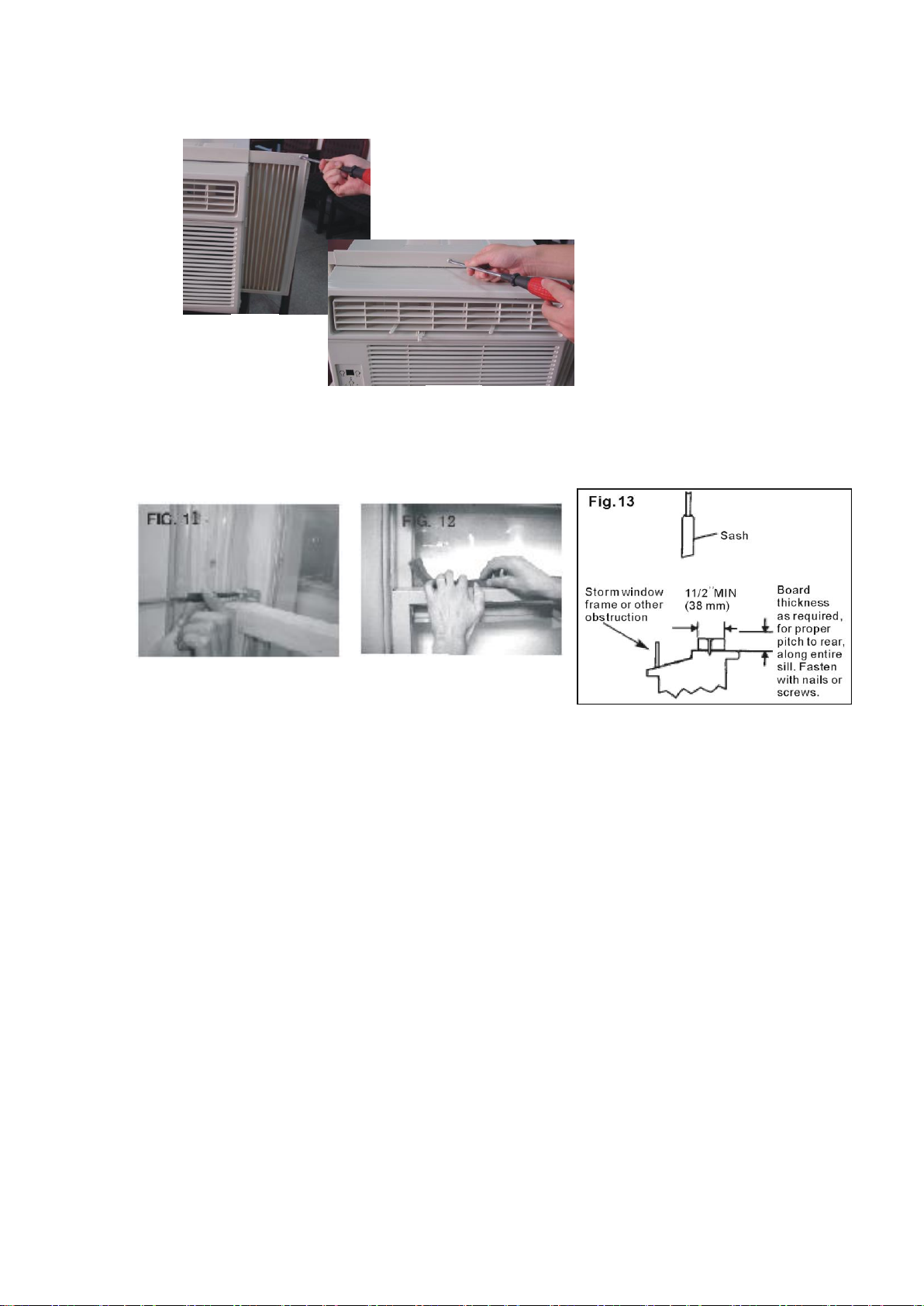

7. Cut foam seal and insert in the space between the upper and lower sashes (Fig.12).
If AC is Blocked by Storm Window
Add wood as shown in Fig.13, or remove storm window before air conditioner is installed. If Storm
Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensation must be allowed to drain out.
Removing AC From Window
Turn AC off, and disconnect power cord. Remove sash seal from between windows, and
unscrew safety lock. Remove screws installed through frame and frame lock. Close (slide) side panels
into frame. Keeping a firm grip on air conditioner, raise sash and carefully rock air conditioner
backward to drain any condensate water in base of unit. Be carefully not to spill any remaining water
while lifting unit from window. Store parts with air conditioner.
FIG.9
FIG.10
