Innovative Dehumidifier IW-25-4 User manual

1
!
Installation and Operation Manual
IW-25-4 Dehumidifier
In-Wall'Solution' ' ' ' ' ' ' ' ' ' ' ' ' ' On-Wall'Solution'
Please Read and Save These Instructions
AlorAir Solutions, Inc
Innovative!Dehumidifier!Systems,!LLC.!
' 6260'Ocean'Highway'17'West'Ocean'lsle'Beach,'28469!
910-579-DEHU' '
910-579-3348'
www.HumidityHappens.com!

2
Table of Contents
Safety'Notes...................................................................................................................................' 2'
Identification.................................................................................................................................'.' 3'
Electrical'Supply.............................................................................................................................' 3'
Principle'of'Operation....................................................................................................................' 3'
Dehumidifier'Diagram....................................................................................................................' 4'
Dimension'Diagram.........................................................................................................................' 5'
Dehumidifier'Installation'General' ' ' ' ' ' ' ' ' ' ' ' ' ' 6'
' In-Wall'Solution'Only' ' ' ' ' ' ' ' ' ' ' ' ' ' ' 8'
'On-Wall'Solution'Only' ' ' ' ' ' ' ' ' ' ' ' ' ' ' 9' '
Optional'Condensate'Pump'Installation'' ' ' ' ' ' ' ' ' ' ' ' 11' '
Operating'Instructions....................................................................................................................'12'
Maintenance...................................................................................................................................' 13'
Wiring'Schematic.............................................................................................................................'13'
Troubleshooting...............................................................................................................................'14'
Warranty'Information......................................................................................................................' 15
Safety Notes
l The!IW-25-4!Dehumidifier'must'always'be'connected'using'a'grounded'electrical'connection'as'
required'for'all'electrical'appliances.'The'warranty'is'voided'and'all'responsibility'for'the'operation'is'
born'by'the'owner'if'non-grounded'wiring'is'utilized.'
l The'IW-25-4'Dehumidifier'must'only'be'installed,'maintained'and'serviced'by'a'qualified'technician.''
Follow'all'state'and'local'plumbing'and'electric'codes.'
l The!IW-25-4!Dehumidifier'is'intended'only'for'operation'when'the'unit'is'wall'mounted'or'in'wall'and'
level.'Any'other'orientation'could'cause'water'to'contact'electrical'components.' ' ' '
l If'any'water'may'have'spread'throughout'the'unit,'the'unit'should'be'opened'and'allowed'to'dry'
thoroughly'before'reconnecting'to'electric'and'restarting.'
l For'proper'operation,'no'obstruction'should'be'located'within'36”'of'the'discharge'of'the'unit' ' '
l Do'not'insert'any'objects'or'fingers'into'the'inlet'or'discharge.'If'service'is'required,'call'a'qualified'
technician.'All'work'on'unit'should'be'done'with'the'unit'“off”'and'unplugged'or'the'breaker'turned'
“off.”'
l Do'not'use'water'to'clean'the'unit'exterior.'Only'use'a'damp'cloth'to'clean'the'exterior'and'always'
unplug'or'disconnect'the'power'of'unit'first.'

3
l The'drain'hose'must'be'installed'to'ensure'the'proper'flow'of'condensate'water'to'a'drain'source.'
!
Identification:!
For'future'reference,'write'down'the'model,'serial'number,'date'of'purchase'so'you'can'identify'
your'unit'when'seeking'assistance'in'the'future.'The'data'label'on'the'side'of'your'unit'has'key'
characteristics'of'your'specific'unit.'
Model'Number' ' ' ' ' ' IW-25-4'
Serial'Number'_____________________________'
Date'of'Purchase' _____________________________'
'
For'additional'questions'concerning'the'operation'of'your'dehumidifier,'please:'
'
q Contact'your'installing'contractor' '
q Please'call'Innovative'Dehumidifier'systems,'LLC.'Support'Team'at'910-579-3348'
'
Electrical!Supply:'
Power'Supply:'120'V,'60'Hz'AC,'Single'Phase''
Outlet'Requirement:'3-Prong,'GFCI'
Circuit'Protector:'15'Amp'Time'Delay'Fuse'or'Circuit'Breaker'
WARNING:' ' 120'Volts'AC'may'cause'serious'injury'from'electric'shock.'
To'ensure'safety:'
1. Disconnect'electrical'power'before'servicing'
2. Only'plug'unit'into'grounded'electrical'circuit'
3. Do'not'use'extension'cord'
4. Do'not'use'plug'adapter'
!
Principle!of!Operation!
The'IW-25-4'Dehumidifier'utilizes'its'integral'humidistat'to'monitor'the'conditioned'space.'When'the'
relative'humidity'goes'above'the'selected'set'point,'the'dehumidifier'will'energize.'Air'is'drawn'across'an'
evaporator'coil,'which'is'cooler'than'the'dew'point'of'air.'This'means'moisture'will'condense'out'of'the'
air.'The'air'is'then'reheated'through'the'condenser'coil'and'distributed'back'into'the'room.' '
'

4
IW-25-4 Dehumidifier Diagram
Front!View!
+
Back View
Back!cover!
Air!Discharge!
!!!!Front!Cover!Screws'
'
!
Power!cord!routing!
options!
Chassis!
!
Front!cover!
Rear!top!cover'
Drain!line!routing!
options!
Filter!replacement!
reminder
Security!Screw!
Mounting!Holes!
(On-Wall!Solution)!
Keyhole!Mounting!Holes!
(On-Wall!Solution)!
Air!Intake!
In-Wall!Solution!
On-Wall!Solution!

5
Dimension Diagram
In-Wall'Solution'
!
On-Wall'Solution'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'

6
'
Dehumidifier Installation
Step!1.'Cut'the'two'zip'ties,'remove'the'three'screws'from'the'shipping'bracket,'then'remove'the'
shipping'bracket.'Fasten'mounting'tabs'(4)'with'screws'provided'to'the'chassis'(In-Wall!Only)'
'
'
CAUTION:!'
Location'of'Electric'Control'Box,'Water'Collect'Tray' '
Step!2.!Connect'power'to'unit'using'either'included'10’'power'cord'or'the'unit'can'be'hardwired.' '
WARNING!'
SHUT!OFF!BREAKER!/!POWER!/Make!sure!power!cord!is!unplugged!BEFORE!Wiring!Unit.!
There'are'two'reserved'power'cord'holes,'one'on'the'back'and'
one'on'the'bottom'of'the'unit.'Remove'appropriate'knock'out'as'
needed.'Complete'electrical'connections:'
•'White'to'White'(L)' ' '
•'Green'to'Green'(GRN)' ' '
•'Black'to'Black'(N)' ' '
Attach!mounting!
tabs!to!chassis!for!
in-wall!mounting!
only!
!

7
'
After'complete'electrical'connections,'slide'electrical'connection'inside'unit,'fasten'the'strain'
relief'to'the'power'cord'and'then'snap'it'on'the'selected'power'cord'holes.'All!state!and!local!
electrical!codes!must!be!adhered!to!for!proper!unit!operation!and!warranty!compliance.!
'
Step!3.!The'drain'hose'can'be'routed'through'the'back,'side,'or'bottom'of'the'unit.'Remove'the'
appropriate'knock-out'or'plug'for'your'application.' '
Pipe!Connection!(No!Pump):!
Step!4.!Slide'the'grommet'over'the'drain'hose'and'snap'into'place'at'the'selected'drain'location.'
Use'hex'nut'screwdriver'to'apply'hose'clamp'to'the'drain'hose.'

8
IN-WALL!ONLY!–!SEE!PAGE!9!for!Balance!of!ON-WALL!Installation!Instructions! !
!
NOTE:!If'mounting'unit'to'drywall,'position'mounting'template'so'that'1'of'the'keyhole'mounting'
locations'is'on'a'stud.!
Step!5.'Select'mounting'location'between'two'studs.'
Step!6.'Using'the'mounting'template'on'the'front'cover'box,'mark'install'location'on'wall.'
Step!7.!Cut'hole.'(Rough'Opening'Dimensions:'28.0”'x'14.5”'5.75”)'
Step!8.'Lift'the'unit'and'place'it'near'the'wall'opening'to'route'electrical'wires'and'drain'hose'
through'appropriate'knockouts.'
Step!9.!Once'electrical'and'drain'hose'are'routed'through'the'unit,'set'the'unit'into'the'wall.'
'
'
'
'
'
'
Step!10.!The'chassis'of'the'units'slips'in'the'wall'from'the'front'and'is'secured'by'the'four'
mounting'tabs'with'screws'(not'provided).' ' Ensure!the!unit!is!level!and!the!bottom!of!the!unit!
is!supported!before!screwing!through!the!drywall!and!into!the!studs.!
Step!11.!Connect'the'drain'line'to'the'drain'source'making'sure'to'have'adequate'slope'on'the'
drain'hose.'
Step!12.!Turn'breaker/power'back'on.'
Step!13.'Set'the'digital'controller'to'desired'RH.'See'Operating'Instructions'(Page'12)'
Step!14.'Install'diffuser'cover'by'aligning'the'lower'tabs'first,'then'setting'the'cover'back'against'
the'wall.'Insert'the'included'four'tamper-resistant'screws'to'secure'the'diffuser'cover.'
'
!
!
!
!
!
!

9
!
!
!
ON-WALL!ONLY!(SEE!PAGE!8!for!IN-WALL!Specific!Instructions)!
!
Step!5:'Install'2'screws'on'the'wall'(Select'appropriate'hardware'based'on'
application).'Leave'screw'head'3/16”'out'from'the'wall'surface'to'allow'the'unit'to'
be'slipped'over'the'screws'into'the'teardrop'shaped'hanger'holes'on'the'rear'of'
the'dehumidifier.' '
'
Step!6:!Hanging'the'unit'on'the'wall'
Position'keyhole'mounting'slots'over'screws'in'wall.'Allow'unit'to'drop'onto'screws.'

10
!
!
!
!
Step!7:'Secure'the'unit'with'the'2'safety'mounting'screws.'
'
Step!8.!Turn'breaker/power'back'on.'
Step!9.'Set'the'digital'controller'to'desired'RH.'See'Operating'Instructions'(Page'12)'
Step!10.'Install'diffuser'cover'by'aligning'the'lower'tabs'first,'then'setting'the'cover'back'against'
the'wall.'Insert'the'included'four'tamper-resistant'screws'(2'tamper-resistant'screws'on'the'left'
and'right'sides'and'2'tamper-resistant'screws'on'the'bottom)'to'secure'the'diffuser'cover.'
'
!
!
!
!

11
Optional!Condensate!Pump!Installation:
!
SHUT!OFF!BREAKER!/!POWER!BEFORE!BEGINNING!INSTALLATION.!
1.'Remove'the'shipping'to'prepare'for'installation'of'pump'assembly.'
2.'Insert'included'¾”'DIA'short'drain'line'into'pump'reservoir.'This'drain'line'will'eventually'
connect'to'water'drain'tray.'
3.'Insert'condensate'pump'into'chassis'while'routing'attached'drain'line'and'check'valve'through'
desired'chassis'drain'hole'location'(back,'bottom,'side).'
4.'Attach'pump'to'chassis'with'included'screw.' '
5.'Connect'other'end'of'short'¾”'DIA'drain'line'to'drain'on'drain'tray'just'about'pump'reservoir'
insuring'that'other'end'of'¾”'DIA'line'remains'in'pump'reservoir.'
6.'Connect'power'supply'line'from'circuit'board'to'power'line'from'condensate'pump'
7.'Connect'float'switch'line'from'circuit'board'to'switch'line'from'condensate'pump'
8.'Connect'included'long'condensate'line'to'check'valve'connected'to'pump.'Route'condensate'
line'to'desired'drain.'' NOTE:'' Pump'can'pump'up'approximately'10’.'' After'initial'vertical'rise,'
condensate'line'must'flow'down'to'drain'without'any'additional'loops'or'vertical'rises.'
' '
'
!
!
!
!
!
!
!
!
!
!
!
!
!

12
!
Display!Board'
!
Operating!Instructions
1. ON/OFF!Control'
Plug'the'unit'in'and'the'display'will'show'the'current'room'relative'humidity.'Press'the'on/off'
button,'and'the'machine'will'beep'twice'indicating'it'is'ready'for'automatic'service.'If'the'
humidity'is'below'setpoint,'it'will'remain'in'standby'condition.'The'on/off'led'will'flash'indicating'
the'unit'is'in'standby'mode.' ' If'the'humidity'is'above'setpoint,'the'unit'will'turn'on'and'begin'to'
remove'moisture'from'the'room.'The'on/off'led'will'be'in'constant'on'mode'while'the'
dehumidifier'is'in'on'mode.'
Press'the'on/off'button'again,'and'a'single'beep'will'indicate'that'the'unit'is'turning'off.'No'room'
conditioning'will'occur'until'the'unit'is'turned'on'again.' ' The'on/off'LED'will'be'turned'off.'
2. Setting the Humidity Level
Press'the' ' ' ' ' button'to'set'indoor'humidity.'The'humidity'display ' will'shift'from'displaying'
the'actual'room'humidity'level'to'the'current'setpoint.'The'humidity'can'be'in'1%'increments'from'
36-90%.'Pressing'the'SET'button'increases'the'setpoint'by'1%'unit'you'reach'90%,'then'rolls'over'
to'“CO” and'increases'from'there.'
3. Time
Humidity!Display!
!
On/Off!Button!
!
Humidity!Setpoint!Button!
'
Filter!replacement!time!switches!between!60!or!75!days!
'
'
LED!

13
Used'to'adjust'the'filter'replacement'time'(selection'of'60'days'or'75'days).'
Maintenance
WARNING: 120!Volts!AC!may!cause!serious!injury!from!electric!shock.!Be!sure!the!unit!is!
powered!off!and!unplugged!or!circuit!breaker!is!turned!off!before!removing!front!cover!to!
service!unit.'
1.'Clean!front!cover! '
Use'a'soft'damp'cloth'to'clean'the'front'cover'as'required.'Do'not'use'any'soap'or'solvents.'
'
2.'Filter!Maintenance!Reminder'
!
Wiring Schematic
A. When'the'filter'maintenance'red'
light'on'the'front'panel'lights'up,'
open'the'front'panel'and'wash'or'
replace'filter'as'necessary'
B. After'the'filter'replacement'is'
completed,'press'the'filter'
reminder'reset'button'to'reset'
the'filter'replacement'time.'

14

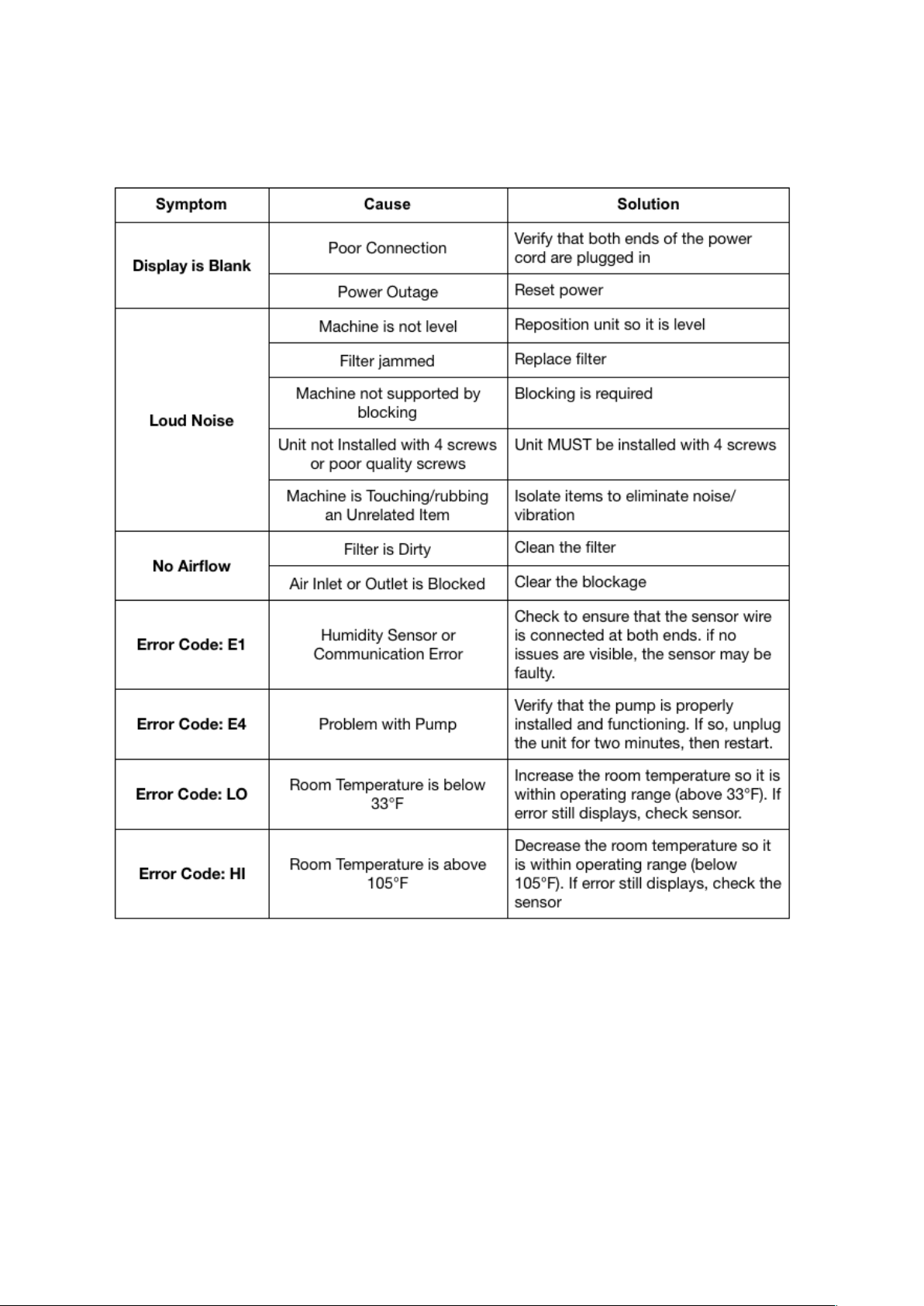

Troubleshooting

15
Warranty
Innovative'Dehumidifier'systems,'LLC.'warrants'the'equipment'to'be'free'from'defects'in'
workmanship'and'materials'for'a'period'of'60'months'after'shipment.'This'warranty'is'limited,'
however,'to'the'repair'or'replacement'of'defective'equipment'at'the'manufacturer’s'
discretion.'' If'it'is'necessary'to'return'unit'for'service,'customer'is'solely'responsible'for'proper'
packaging'and'transportation'costs'to'and'from'the'service'center.'' Customer'must'initiate'
warranty'process'by'contacting'IDS.'' Do'not'send'any'component'or'product'back'to'IDS'without'
a'Return'Material'Authorization.'
'
This'limited'warranty'does'not'apply'to'any'part'or'component'that'is'damaged'in'transit'or'
when'handling,'during'installation,'has'been'subject'to'misuse,'has'not'been'installed,'operated'
or'serviced'according'to'the'Seller’s'instructions,'or'has'been'operated'beyond'the'seller’s'–'rated'
capacity'or'has'been'altered'in'any'way.'Routine'maintenance'is'not'covered'by'this'warranty.'
Lack'of'proper'maintenance'voids'this'warranty.'
'
This'warranty'does'not'cover'corrosion,'freezing'or'acts'of'nature'–'flooding,'fire,'water'damage,'
power'surges,'and'hurricane'or'storm'damage.'
'
Seller’s'liability'is'limited'to'replacement'of'defective'parts'or'components'and'does'not'include'
any'cost'of'labor'(including,'but'not'limited'to,'labor'to'remove'and/or'reinstall'any'defective'
part),'refrigerant'or'piping.'' Customer'may'elect'to'have'unit'fixed'locally'with'prior'
authorization'in'which'case'required'replacement'parts'will'be'sent'to'customer'at'customer’s'
expense.'
'
IDS'shall'not'be'responsible'for'loss'of'use'of'any'product,'loss'of'time,'inconvenience,'or'damage'
to'other'equipment,'or'any'other'indirect'or'consequential'damage'with'respect'to'property'
whether'as'a'result'of'breach'of'warranty,'neglect,'or'otherwise.'
'
THE'WARRANTIES'AND'LIABILITIES'SET'FORTH'ARE'IN'LIEU'OF'ALL'OTHER'WARRANTIES'
EXPRESSED'OR'IMPLIED,'IN'LAW'OR'IN'FACT,'INCLUDING'IMPLIED'WARRANTIES'OF'
MERCHANTABILITY'AND'FITNESS'FOR'PARTICULAR'PURPOSE.'' IDS'total'liability,'regardless'of'
nature'of'claim'shall'not'exceed'original'purchase'price'of'the'product.'' If'a'product'or'
component'is'replaced'while'under'warranty,'the'applicable'warranty'period'shall'not'be'
extended'beyond'the'original'warranty'time'period.'
'
The'foregoing'shall'constitute'the'total'liability'of'seller'in'the'case'of'defective'performance'of'
all'or'any'of'the'equipment'or'services'provided'to'Buyer.'' Buyer'agrees'to'accept'and'hereby'
accepts'the'foregoing'as'the'sole'and'exclusive'remedy'for'any'breach'or'alleged'breach'of'
warranty'by'Seller.
