Insane Tj1001 User manual

TJ1001

Operations Manual v1.0

Contents

Introduction……………………………………………………………..03

Safety………………..……………………………………………………..04

Basic Operations…..………………………………………………….05

Touch Screen Operations………………………………………….07

Radio………………………………………………………………………..10

Disc Playback

Usage and maintenance of discs…………………..…12

Disc Mode………………………………….………………..….13

USB and SD Card Playback…..……………………………..…...14

Bluetooth

Phone Support……………..…………………………..……..16

Bluetooth Audio……………………………………………….19

Digital Television……………………………………………………….21

iPod Support……………………………………………………………..22

GPS……………………………………………………………………………23

Remote Control…………………………………………………………24

Appendix A: Specifications

Appendix B: Fitment

TJ1001 Operations Manual

Congratulations! If you are reading this, then you are

most likely the proud owner of a new TJ1001

multimedia and navigation head unit. The purpose of

this document is to give you a basic overview of some

of the features and functionality of the TJ1001. We

recommend you read this manual in its entirety as well

as the separate Navigation Manual to familiarize

yourself with your new head unit.

If you have any additional questions or need technical

support, please e-mail us at

support@insanejeepaudio.com

Enjoy your new TJ1001!!

INTRODUCTION

TJ1001 Operations Manual

•First and foremost, please use common sense when

operating the TJ1001. You should NEVER be operating the

unit, watching videos or television while driving. Keep

your hands on the wheel and keep your eyes on the road!

•The TJ1001 comes with a wiring harness and everything

you need to connect to your vehicle, however, if you aren’t

comfortable with this then we highly recommend having

the TJ1001 installed by a professional. If you’re doing any

kind of aftermarket audio setup or customization, please

consult a professional installer.

•Never attempt to open your TJ1001 or repair it yourself.

Doing so is not only dangerous, but it will void your

warranty.

SAFETY

TJ1001 Operations Manual

Mute / Power

BASIC OPERATIONS

AM/FM

CD/DVD Player

Bluetooth

GPS

Accept Call

(Bluetooth)

Volume

Hang Up

(Bluetooth)

TJ1001 Operations Manual

BASIC OPERATIONS

MicroSD Slot

Mini USB Port Eject Disc

Time Display

(disc mode)

Fast Forward / Rewind (disc mode)

Manual Scan (radio mode)

APS

Seek

TJ1001 Operations Manual

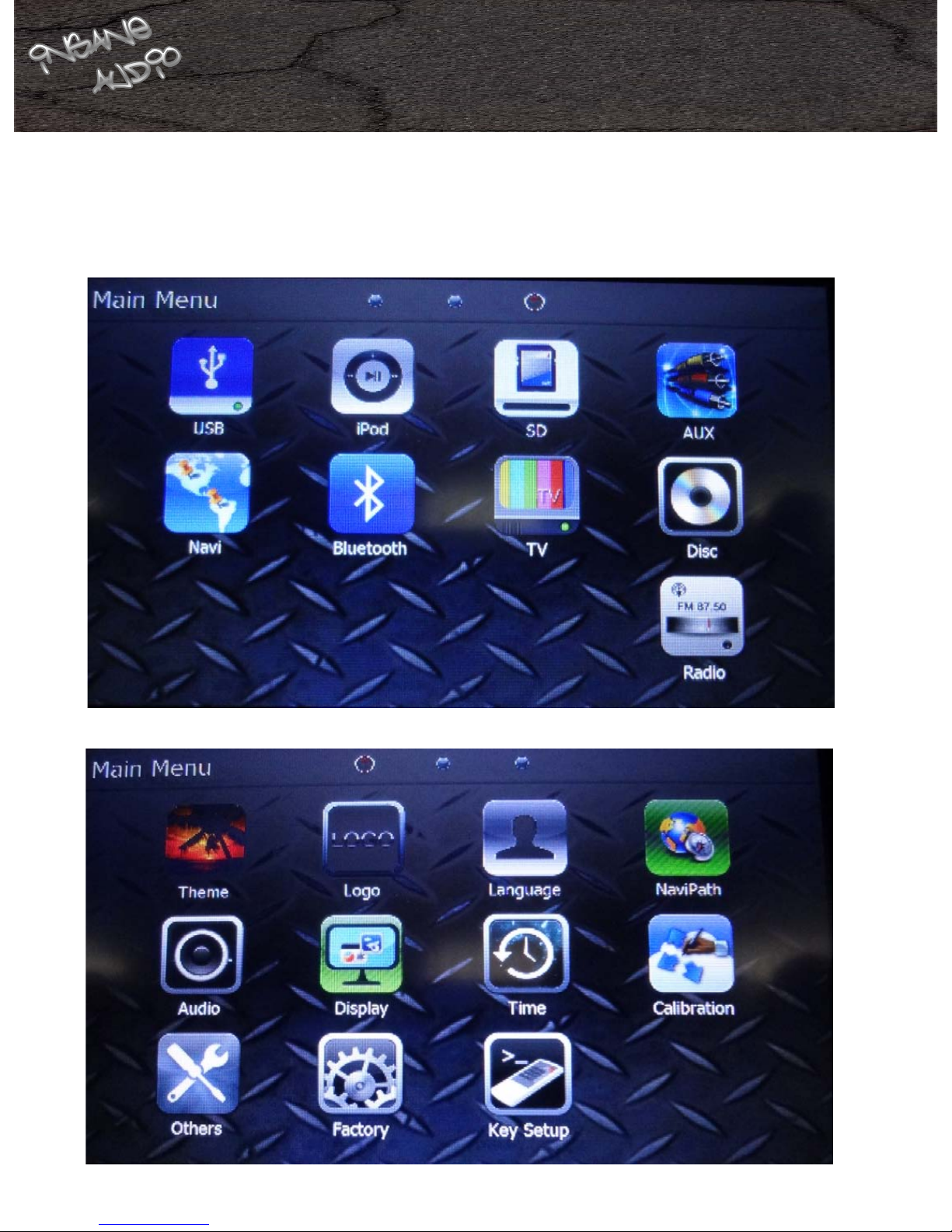

TOUCHSCREEN OPERATIONS

•Your TJ1001 comes with a high resolution digital touch

screen display.

•To access the main menu, press the home button on

the upper right corner of the unit.

•You can access additional functionality by swiping the

screen in either direction (similar to how most smart

phones operate)

Alternatively, you can press one of the small round buttons on the

top of the screen to access each screen directly.

TJ1001 Operations Manual

TOUCHSCREEN OPERATIONS

•There two other screens which contain icons that access

additional features of your TJ1001

TJ1001 Operations Manual

TOUCHSCREEN OPERATIONS

•Your touch screen contains a special protective coating

from the factory, however, you still should take a few

simple steps to ensure years of trouble free use.

–When cleaning your TJ1001, power it off first

–Use only a lint-free or microfiber cloth

–Never use any chemicals or cleaning products on the touch screen.

A very small amount of soapy water will do the trick

–After cleaning, make sure that the surface is free from moisture by

wiping it with a dry lint-free cloth

•You can customize the menus on your TJ1001 by moving

around the icons however you’d like. Simply press and hold

the icon for a few seconds, then drag it to your desired

location. You can even drag it to different screens if you

would like.

•You can change the background on the touch screen menu

by clicking on the “Theme” icon that is located on the far

left screen by default.

•The button on the main menu will switch

between a digital and analog clock display.

TJ1001 Operations Manual

RADIO

•To access the radio, press the icon on the

touchscreen or the BAND button on the face of the unit.

•Press the BND button on the user interface to select

between FM1, FM2, FM3, AM1 and AM2

•The and icons will seek to the next station. You

can also use the knob on the right hand side of the

TJ1001 to seek stations.

•You can manually change stations by holding the or

the icon for more then one second. Alternatively,

you can use the or buttons on the face of

your TJ1001.

TJ1001 Operations Manual

RADIO

•To store a station as a preset, simply press and hold one

of the top station presets for more then one second.

•The APS button will scan each preset for 7 seconds.

Press the APS button again to remain on a given preset.

Alternatively, there is a manual apps button on the right

hand side of your TJ1001 (by the seek knob) offering the

same functionality.

•ST switches between mono and stereo.

TIP: While stereo will give better sound quality,

mono is useful when trying to tune into a weak

station.

TJ1001 Operations Manual

DISC PLAYBACK

In order to ensure the best sound quality and longevity of your

TJ1001, here are a few helpful hints on handling discs:

•Do not touch the playback side of the disc

•Do not stick paper or tape to the disc

•Keep discs away from direct sunlight or heat

•Avoid leaving discs loaded into the TJ1001 on

extremely hot days

•Do not use discs with remaining glue or ink on the

surface

•Do not use discs with a torn tag

•If a disc is dusty, wipe it outwards from the center with

a soft microfiber cloth

•Do not use any solvent, alcohol or cleaners on discs

•Avoid using discs offroad or on a bumpy road.

TJ1001 Operations Manual

DISC PLAYBACK

•Insert a disc (with the label side upward) and your

TJ1001 will automatically start playing.

•You can also access disc mode by pressing the DISC

button on the face of your TJ1001 or by pressing the

DISC icon from the touch screen menu.

•Press the button on the front panel to eject a disc

•You can control playback through the seek and fast

forward buttons on the face of your TJ1001

•Touch the screen and a pop-up menu will allow for

additional controls

•Advanced features and functionality can be accessed via

the included remote control.

•Your TJ1001 supports a number of different formats

including CD, CD-R, CD-RW, VCD, DVD, MP4, MP3, and

WMA.

TJ1001 Operations Manual

USB AND SD CARD PLAYBACK

•Your TJ1001 can access multimedia such as videos or

music through the USB or SD Card interface

•There is a Micro USB slot on the front of your TJ1001 and

a full size USB slot at the rear. (you most likely wired the

latter to your glove box)

•The TJ1001 can access up to 32GB of storage through

the USB interface.

•The TJ1001 comes with a special cable allowing you to

plug a full sized USB thumb drive directly into the Micro

USB slot at the front of the unit.

•The TJ1001 has a built-in Micro SD Card slot right in the

front of the unit and can support up to 32 GB of storage.

•To access the USB or SD interface, simply select the

appropriate icon from the touch screen menu.

•Playback can be controlled from the remote control, the

touch screen, or the physical knobs on your TJ1001.

TJ1001 Operations Manual

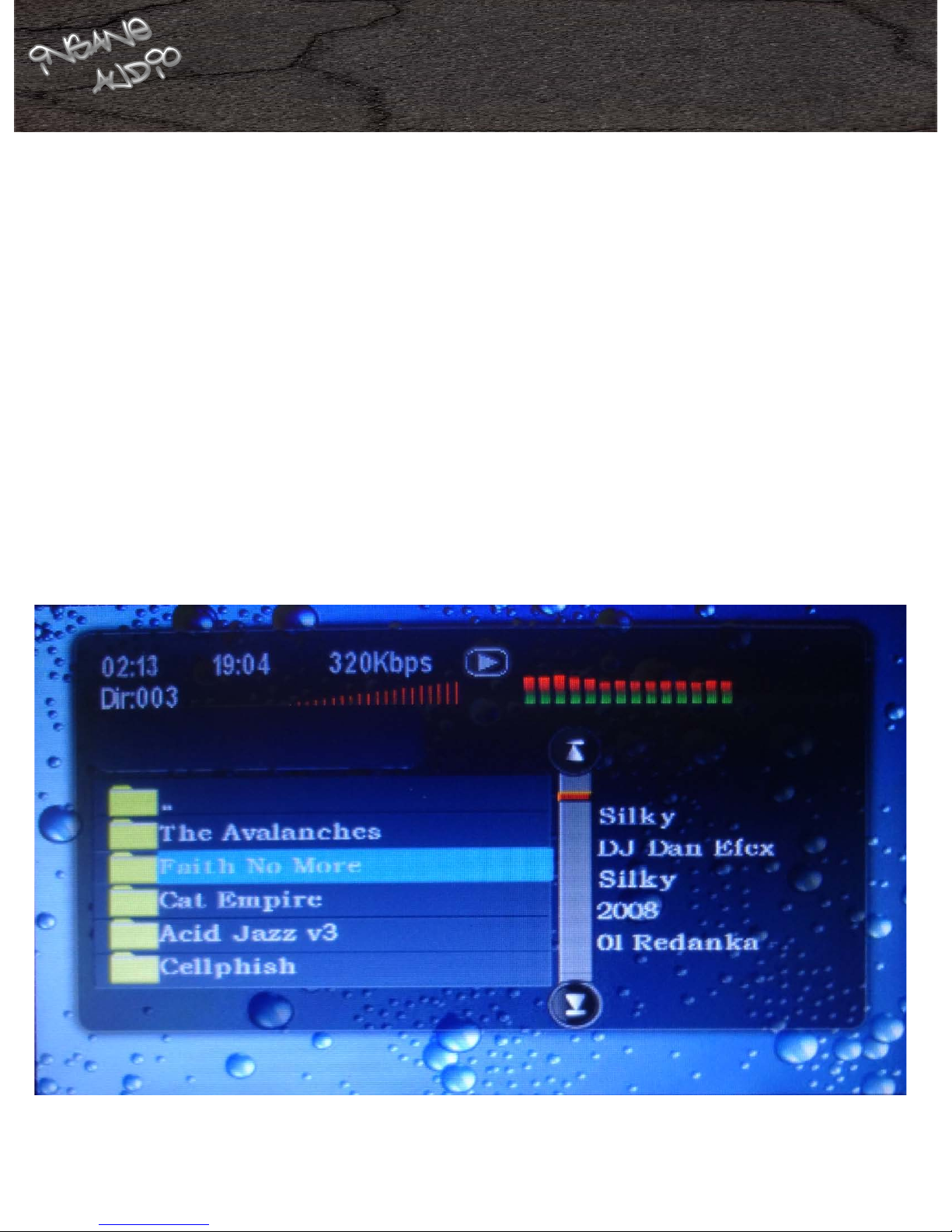

USB AND SD CARD PLAYBACK

•You can organize your music or movies however you’d

like (i.e by genre or artist) by placing them in folders on

your media.

•Note that if you place a large amount of music in a single

folder, you can press the random button on the remote

control to randomly play from all tracks within that

folder. This comes in handy for long road trips.

TJ1001 Operations Manual

BLUETOOTH PHONE SUPPORT

•Access the Bluetooth menu by

pressing the B.T. button on the face

of the TJ1001 or via the Bluetooth

icon on the touchscreen.

•Connect to the BLUETOOTH device

through your smartphone.

•If you are asked for a PIN, enter

“0000”

TJ1001 Operations Manual

BLUETOOTH PHONE SUPPORT

•Note that while the TJ1001 uses standard technology,

we cannot guarantee compatibility with all devices.

•You can place calls through your telephone, or the

touch screen on your TJ1001.

•You can accept calls or hang up with the physical

buttons on the face of your TJ1001 or via the touch

screen.

•Audio will play through your vehicle speakers and the

microphone on the face of the unit (or the external

microphone if installed) will transmit your voice.

•Simply talk just as if the other person was sitting next to

you.

•Press the button to access the phonebook screen

TJ1001 Operations Manual

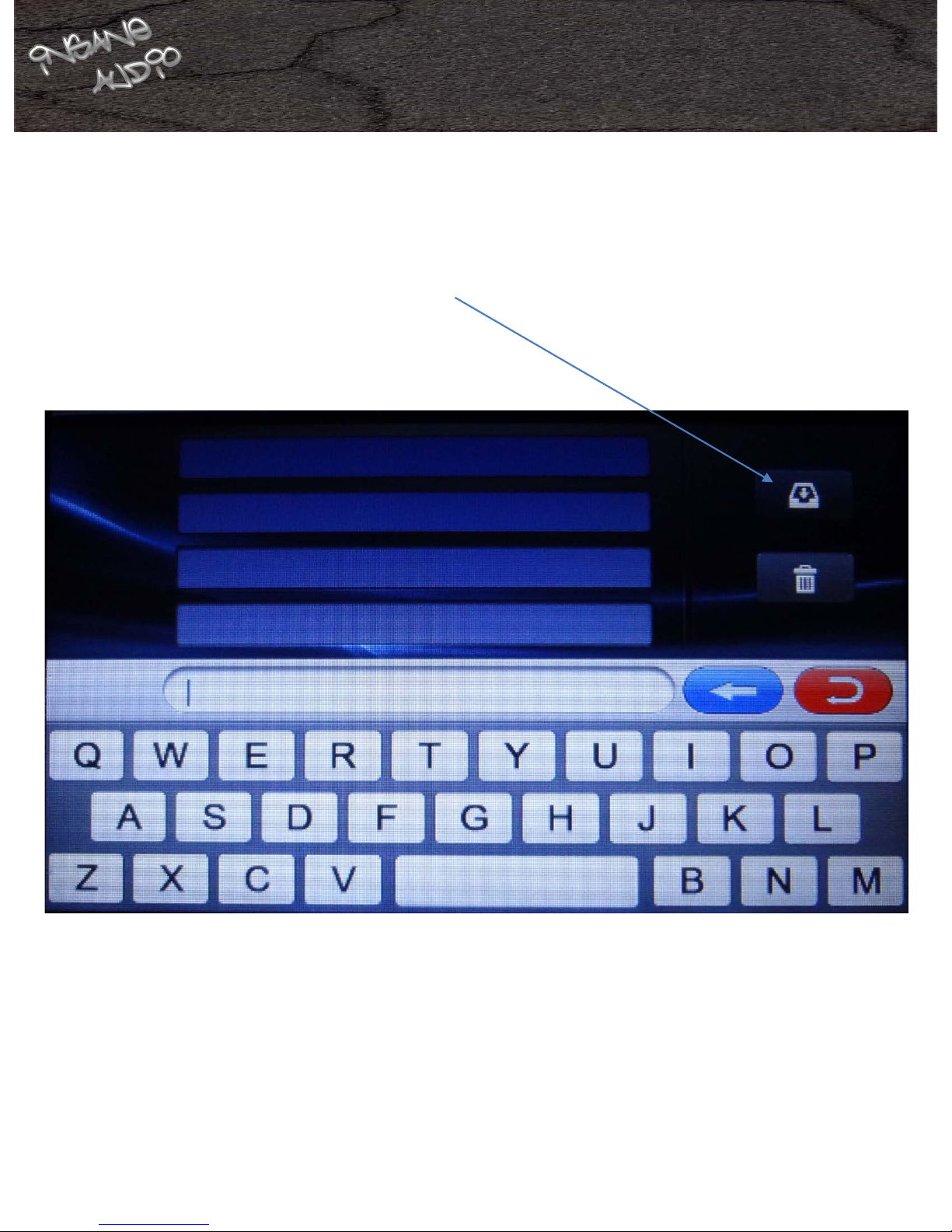

BLUETOOTH PHONE SUPPORT

While in the phonebook, you can press the load button

to transfer contacts from your smartphone to your

TJ1001.

You will now be able to search contacts through this

screen.

TJ1001 Operations Manual

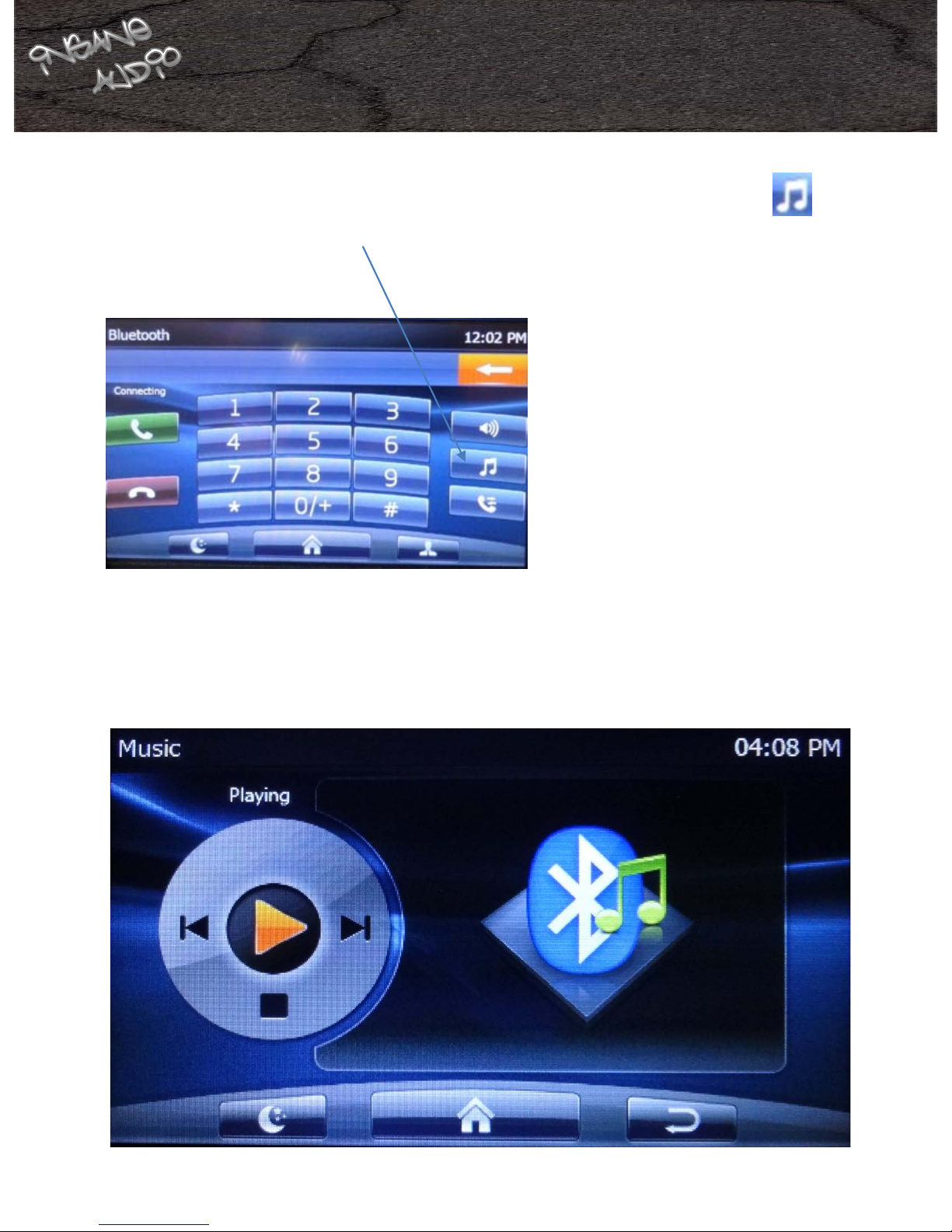

BLUETOOTH AUDIO

To access the Bluetooth Audio screen, press the

button from the main Bluetooth menu

You will then be able to play music wirelessly directly

through your smartphone.

TJ1001 Operations Manual

BLUETOOTH AUDIO

•If you have difficulty connecting to bluetooth audio,

check the device settings on your smartphone.

•You can control media through your phone directly, or

via the touchscreen on your TJ1001.

•This will work with stored media on your phone or

internet radio such as Pandora™.

If you are driving a late model TJ (2003 – 2006 Jeep Wrangler),

the upper dash tray is a perfect spot to store your smartphone

while connected via bluetooth for hands free calling and

internet radio….
