Congratulations on your purchase of an Insignia 5-Disc CD player. Your CD player
represents the state of the art in CD player design and is designed for reliable and
trouble-free performance. See your User Guide for more information on your CD player.
Package contents
• 5-Disc CD Player
• Remote control with two AAA batteries
• RCA stereo audio cable (6 ft./1.8 m)
Quick Setup Guide

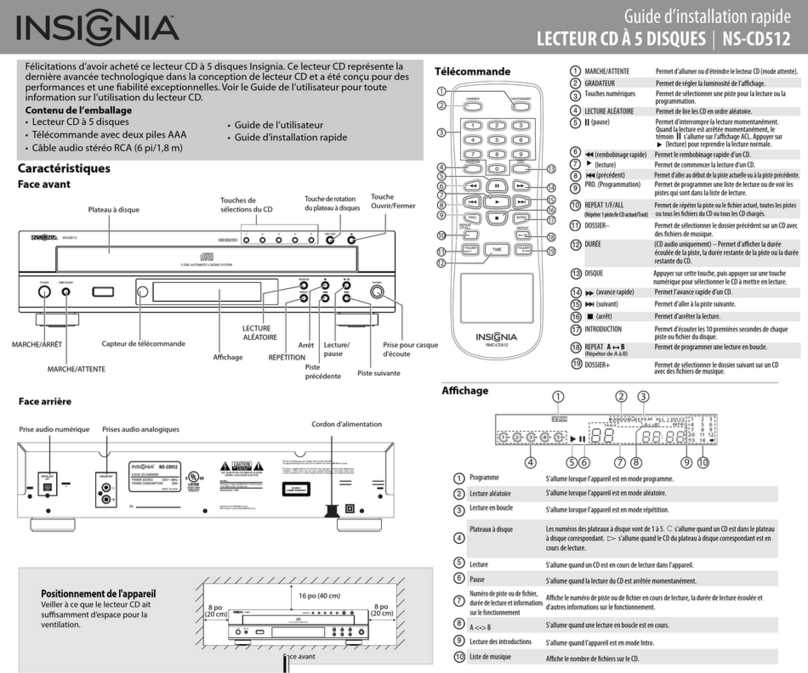

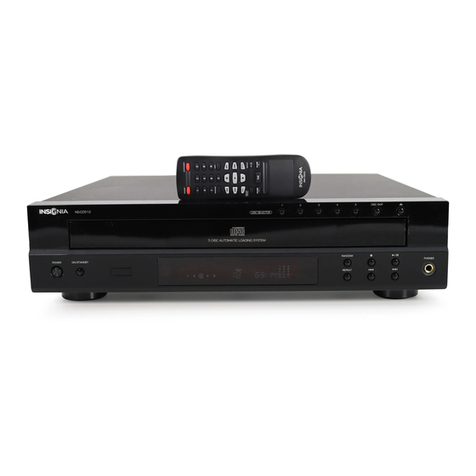

5-DISC CD PLAYER NS-CD512
Remote control
NS-CD512
Back view
POWER
ON/STANDBY
Remote control sensor
Display
CD tray
CD selector
buttons
CD tray
rotation button
Open/close
button
RANDOM
REPEAT
Stop Headphone
jack
Next
track
Previous
track
Play/pause
Digital audio jack Analog audio jacks Power cord
Display
5 DISC C D C HA NG ER CDC -5 506
POW E R
DISC SEL E C TO R
1 2 3 4 5
DISC SKI P OPE N /CLO S E
PHONE S
USB
5V 500mA
5 DI S C A UTOM AT IC LOAD I NG S YS T E M
ON/S T A ND B Y
INTR O
DIMMERCD/US B TIME
PRO G R AM
RAND OM
RE P E AT
NS-CD512
16 in. (40 cm)
8 in.
(20 cm) 8 in.
(20 cm)
Front view
ON/STANDBY Press to turn your CD player on or o (standby mode).
DIMMER Press to adjust the brightness of the display.
Numbers Press to select a track for playing or programming.
RANDOM Press to play CDs in random order.
(pause)
Press to pause playback. When playback is paused, the
indicator lights on the LCD.
Press (play) to resume playback.
(fast reverse) Press to fast reverse on a CD.
(play) Press to start playing a CD.
PRO.
Press to program a playlist or to view the tracks in a playlist.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
FOLDER – Press to select the previous folder on a CD containing
music les.
TIME(Audio CD only) Press to display the elapsed track time,
remaining track time, or remaining CD time.
DISC Press this button, then press a number button to select
the CD you want to play.
Press to fast forward on a CD.
(next) Press togo to the next track.
(stop) Press to stop playback.
INTRO Press to play the rst 10 seconds of each track or le.
REPEAT A BPress to create a playback loop.
FOLDER + Press
to select the next folder on a CD containing music les.
Program Lights when your CD player is in program mode.
Random play Lights when your CD player is in random mode.
Repeat play Lights when your CD player is in repeat mode.
CD trays
1–5 are the CD tray numbers.
lights when a CD is in the related CD tray slot.
lights when the CD in the related CD tray slot is
playing.
Play
Pause Lights when CD playback is paused.
Track or le number,
playing time, and
operating information
Displays the currently playing track or le number,
elapsed playing time, and other operating
information.
Intro play Lights when your CD player in Intro mode.
Music calendar Displays the number of les on the CD.
11
12
13
15
16
17
18
19
12345
S C E NE T R A C K
P R O G R A ND OM R E P E AT AL L 1 D IS C S
1 2 3
4 5 6
7 8 9
10 11 12
13 14
A< >B IN T R O
123
4 5 6 7 89
1
2
3
4
5
6
7
8
9
(previous)Press to go to the beginning of the current track or to
go to the previous track.
REPEAT 1/F/ALL Press to repeat the current track or le, all the tracks
or les on a CD, or all the loaded CDs.
10
(fast forward)
14
Lights when your CD player is playing a CD.
Positioning your CD player
Make sure that your CD player
has room for ventilation.
• User Guide
• Quick Setup Guide
Features
Front view
10
10
A <•> B Lights when a playback loop is active.

n
en
a
n
en
a
n
en
a
n
en
a
ENGLISH 12-0640
Setting up your CD player
1. Installing remote control batteries
1 Remove the battery compartment cover.
2
Insert two AAA batteries into the battery compartment. Make sure that the + and –
symbols on the batteries match the + and – symbols in the battery compartment.
3 Replace the cover.
2. Connect cables
Connecting digital audio
Connecting analog audio
3. Connecting power
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this
product is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
FCC warning
Changes or modications not expressly approved by the party responsible
for compliance with the FCC Rules could void the user’s authority to
operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
One-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your User Guide! This comprehensive guide includes
everything from basic how-to steps to more advanced features.
Check out our online community forum at
www.insigniaproducts.com for helpful information from other
Insignia owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA 55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc.
Registered in some countries. All other products and brand names
are trademarks of their respective owners.
AUDIO IN
Analog audio cable with
red and white connectors
(included)
DIGITAL
AUDIO IN
Digital optical cable (not included)
Inserting discs
1 Press OPEN/CLOSE to open the CD tray.
2 Place a CD in the tray, label side up.
3 Press DISC SKIP to rotate the CD tray clockwise one position.
4 Place a CD in the next tray. You can place ve CDs in the tray.
5 Press OPEN/CLOSE to close the CD tray.
Playing a CD
1Insert a CD in the CD tray.
2 Press (play).
3 To control CD playback:
• Press (pause) to pause playback. Press (play) to resume playback.
• Press (stop) to stop playback.
• Press to fast reverse.
• Press to fast forward.
• Press (previous) to go to the beginning of the currently
playing track or to the previous track.
• Press to go to the next track.
• Press INTRO on the remote controlto play the rst 10
seconds of each track.
• Press DISC on the remote control, then press a
number (1–5) to select a different disc.
• Press ABon the remote control to mark the
beginning of a playback loop.
Press AB again to mark the end of a playback loop. The
loop plays. Press ABto resume normal playback.
• Press 1/F/ALL REPEAT on the remote control once to play
the current track repeatedly. Press again to play the current
CD repeatedly. Press a third time to play all the CDs
repeatedly. Press a fourth time to cancel repeat mode.
NS-CD512
US B
5V 5 00mA
5 D IS C A U T OM AT IC LO AD IN G SY S TE M
ON/ STANDBY
INTRO
DIMMERCD/ USB TIME
PROGRAM
RA NDO M
RE P E AT
NS-CD512
Note:
You can use either digital or analog audio
connections, depending on the
connection available on your amplier
or receiver.
