Insignia NS-19D220NA16-A User manual

2MAKING CONNECTIONS
How do I watch TV (cable, satellite, or antenna) or connect a device, such as a DVD or Blu-ray disc player or game console?
FEATURES
1START HERE
How do I attach the stand to my TV? (not for wall mounting)
You’ll need: Soft surface and Phillips screwdriver
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You’ll need: Soft surface and Phillips screwdriver
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service.
Enter NS-19D220NA16-A or
NS-19D220MX16-A in the box under
Manual, Firmware, Drivers & Product
Information, then click ►.
STOP
Do not plug your power cord in until all
other devices have been connected.
!
BMake sure that the arrows on the bottoms of the stands point toward
the front of the TV. Align the screw holes on the TV stands with the
holes on the bottom of your TV, then secure each stand with one of
the provided M3 × 12 mm screws.
APlace your TV face-down on a cushioned,
clean surface.
Before using your new product, please read these
instructions to prevent any damage.
AB
B
A
OR
ACarefully place your TV face-down on a cushioned, clean surface.
BSee the instructions that came with your wall-mount for more information about which screws to use and how to
correctly mount your TV.
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the HDMI/ARC jack. See the instructions that came with
your device for more information.
Note: Connect the yellow
video cable to the green
VIDEO/Y jack.
INCLUDED ACCESSORIES
Remote control and
two AAA batteries
Stand bases
M3 screws (12 mm length) (2 pcs.)
YourTV has four VESA mounting holes on the back. If you
attach a wall-mount bracket to the back of your TV, the
bracket must be securely attached, using all four holes.
If you do not use all four mounting holes, your TV may fall
and cause property damage or personal injury. See the
documentation that came with your wall-mount for
complete mounting instructions.
Quick Setup Guide | NS-19D220NA16-A / NS-19D220MX16-A
19" 720p 60Hz LED TV
WHICH CABLES
DO YOU HAVE?
OR
HDMI (BEST)
Best video quality
COMPONENT
(BETTER)
AV (GOOD)
COAXIAL
(GOOD)
Note: The component and AV jacks are shared. This means you can connect only
one component or AV device at a time. We suggest upgrading to HDMI (BEST)if
your device supports it.
ANT/CABLE
IN
L R
- AUDIO -
AV IN
COMPONENT IN
VIDEO / Y P B PR
AUDIO/VIDEO OUT
AUDIO/VIDEO OUT
CABLE
Power indicator
Remote control sensor
Note: Images do not necessarily represent the exact design of your television.
M3 screws (12 mm length)
ANT/CABLE
IN
L R
- AUDIO -
AV IN
COMPONENT IN
VIDEO / Y P B PR
AUDIO
OUT
HDMI 2 FACTORY
USE
ONLY
HDMI 1
(ARC)
(COAXIAL)
DIGITAL
OUTPUT USB
ANT/CABLE
IN
L R
- AUDIO -
AV IN
COMPONENT IN
VIDEO / Y P B PR
HDMI 2 HDMI 1
(ARC)
LR
AAA
+
AAA
+
R
L
Front of TV
C
M
Y
CM
MY
CY
CMY
K
NS-19D220NA16-A_15-0991_QSG_V2_EN.ai 1 12/31/2015 9:48:42 AMNS-19D220NA16-A_15-0991_QSG_V2_EN.ai 1 12/31/2015 9:48:42 AM

On your TV’s Audio menu, highlight Digital Audio
Format / Audio Delay, then press ENTER.
Set the Audio Format option to PCM.

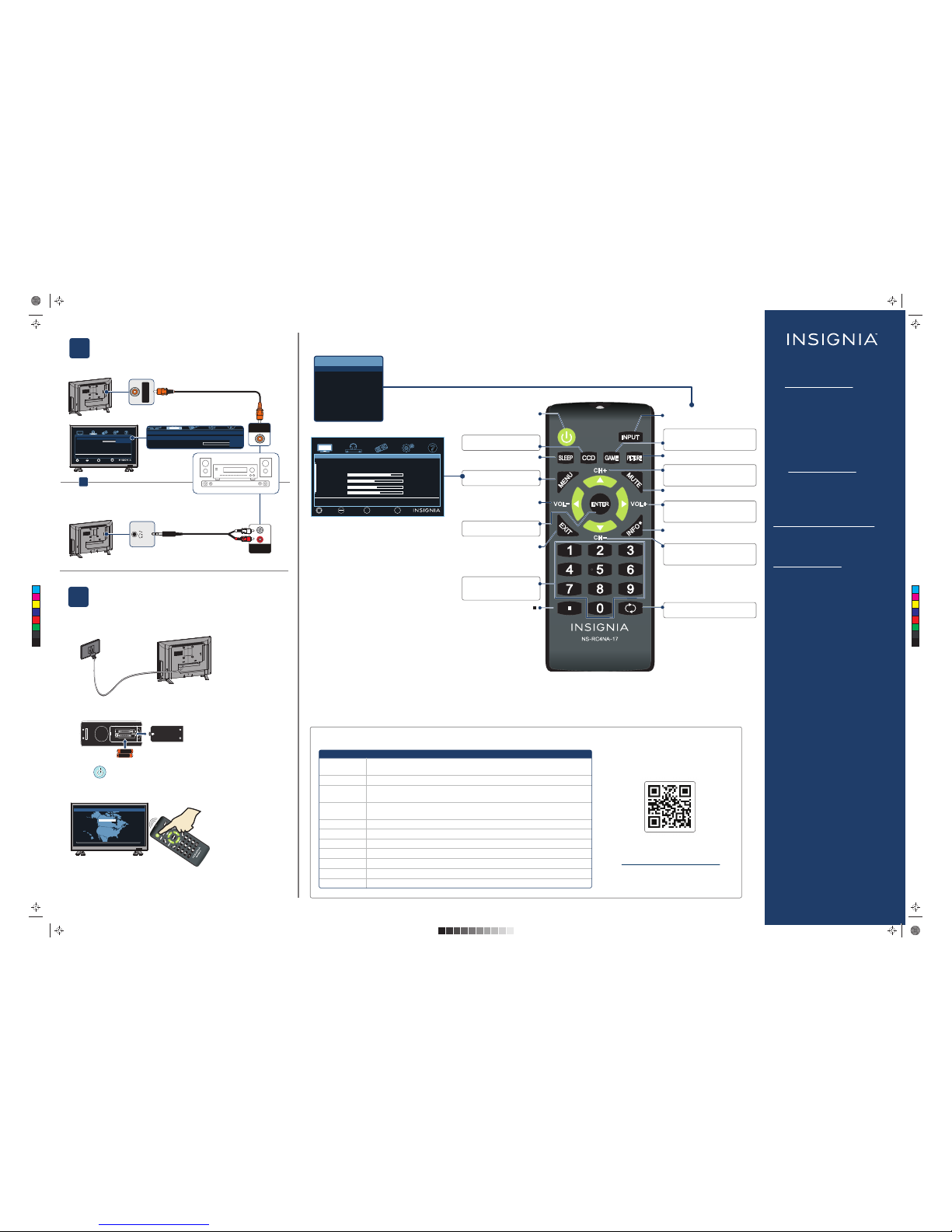

USING YOUR REMOTE CONTROL
I already have a universal remote control. How do I make it control this TV?
4TURNING ON MY TV
When can I turn on my TV?
WHEN YOUR TV IS IN PLACE:
1Plug the power cord into a power outlet.
2Remove the remote control cover and install the batteries.
3Press (power) on your remote control.
4Follow the on-screen instructions.
For an up-to-date list of codes for other cable
providers and universal remote brands,
scan this QR code or visit
www.insigniaproducts.com/remotecodes
V2 ENGLISH 15-0991
The companies listed are the most commonly used. If you already have a universal remote control that you would like to program to work with your TV and don’t want to use
the included Insignia remote control, see the table below for common codes.
MOVE PREVIOUS EXIT
EXIT
SELECT
OK
ENTER MENU
Picture Mode
Advanced Settings
Backlight
Brightness
Contrast
Color
Energy Savings
37
50
52
55
INPUT SOURCE
TV
HDMI1
HDMI2
Component/AV
USB(Photos)
SETTINGSPICTURE AUDIO CHANNELS HELP
GAME
Adjusts the picture for the ultimate gaming
experience.
INPUT
Opens the Input Source list.
Power
Turns your TV on or off.
MENU
Opens the TV menu.
ENTER
Confirms selections or changes.
EXIT
Closes the TV menu.
SLEEP
Sets the sleep timer.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or off.
MUTE
Mutes the sound.
Selects the picture mode.
Enters a digital sub-channel number
(for example 4.1).
Recall
Returns to the previous channel.
VOL-
Decreases the volume or
navigates left in TV menus.
VOL+
Increases the volume or navigates right
in TV menus.
CH+
Selects the next TV channel or navigates up
in TV menus.
CH-
Selects the previous TV channel or navigates
down in T V menus.
Numbers
Enter channel numbers or the
parental control password.
Note: See the instructions
that came with your
speakers or soundbar for
more information.
ONEYEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box for the
NS-19D220NA16-A but is available online.
The NS-19D220MX16-A comes with a
printed manual.
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-19D220NA16-A or NS-19D220MX16-A
in the box under Manual, Firmware, Drivers &
Product Information then click ►.
Check out our Support Community
http://community.insigniaproducts.com/
for helpful information from other Insignia
TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada)
01800-926-3000 (México)
U.S. and Canada:
INSIGNIA is a trademark of Best Buy and its aliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
Mexico:
INSIGNIA is a trademark of Best Buy and its aliated companies.
Registered in some countries.
Distributed by Best Buy Imports S. DE R.L. DE C.V.
Avenida Santa Fe No. 440 Piso 2 O fna 202Y 203 P3 Y P4
Colonia Santa Fe Cuajimalpa, C. P. 05348,
Delegación Cuajimalpa De Morelos, Mexico, Distrito Federal
©2015 Best Buy. All rights reserved.
DIGITAL
OUTPUT
(COAXIAL )
AUDIO
OUT
3CONNECTING AUDIO DEVICES
How do I connect my TV to external speakers?
USING DIGITAL AUDIO
USING ANALOG AUDIO
SOUNDBAR
AUDIO I N
OR
COAX
INPUT
MOVE PREVIOUS EXIT
EXIT
SELECT
OK
ENTER MENU
Audio
SETTINGS
PICTURE AUDIO CHANNELS HELP
• Audio Format / Audio Delay
Audio Format
Audio Delay
Passes through original digital audio sound format.
Pass Thru
PCM
MOVE PREVIOUS EXIT
EXIT
SELECT
OK
ENTER MENU
Audio
SETTINGS
PICTURE AUDIO CHANNELS HELP
• Digital Audio Format / Audio Delay
Audio Format
Audio Delay
Down-mixes to 2-channel audio.
Pass Thru
PCM
Easy Setup • Choose your Menu Language
English
Français
Español
MADE CHINAIN
AAA
+
AAA
+
Audio • Digital Audio Format / Audio Delay
Audio Format
Audio Delay
Pass
PCM
AT&T Uverse
Cablevision
Charter
Comcast
Cox
DirecTV
Dish Network
RCA
Rogers
Time Warner
Verizon
1034, 1035, 1040, 1398, 1465, 1596, 1437, 1507, 12049, 11641, 11564, 11326 , 11423, 11892,
11517, 10171, 10463, 11385, 11660, 11963, 12184, 13227
068, 069, 078, 096, 100, 164, 168, 229, 026
2002, 1204, 1423, 1517, 0171, 1963, 0463, 1463, 0842, 1326, 167, 415, 424, 450, 456, 461, 507,
523, 567, 577, 586
10463, 10171, 11204, 11326, 11463, 11517, 11641, 11780, 11785, 11892, 11963, 12002,
01877, 00276, 01982, 01376, 00810, 01187, 01106, 00877, 00476
1326, 1463
10463, 10171, 11204, 11326, 11517, 11564, 11641, 11963, 12002, 11463, 12049
834, 720, 222, 898, 365, 777, 754
135, 12049, 11423, 11564, 10171, 10463, 11810, 11892, 11963, 12184, 12417
0463, 1326, 2049, 1785, 1780, 1423, 1963
400, 450, 461, 456, 10463, 1463, 0463
0198, 0490
UNIVERSAL REMOTE CONTROL CODES
