1 Overview
Indoor HD Wireless IP Camera with P2P is an integrated wireless IP Camera with a color CMOS sensor
enabling viewing in High Definition resolution. It combines a high quality digital video camera, with a powerful
web server, to bring clear video to your desktop and mobile devices from anywhere on your local network or
over the Internet.
Thanks to the P2P easy access technology, you don’t need to do complicated Port Forwarding and DDNS
settings, you just need to scan the QR code on the bottom of the camera to connect it on smart phone, or input
the UID on CMS software to do remote access.
With flexible 300-degree pan and 120-degree tilt(except for FC1403P), the IP Camera gives users more
comprehensive control over a monitored site. The camera supports H.264 video compression technology,
dramatically reducing file size and saving network bandwidth.
The camera is based on the TCP/IP standard. There is a WEB server inside which could support Internet
Explore. Therefore the management and maintenance of your device is simplified by using the network to
access the website of your camera.
The camera is designed for indoor surveillance applications such as home, retail store and office. Controlling
the camera and managing images is simplified by using the provided web interface across the network utilizing
wired or wireless connectivity.
The IPCAM supports Smart Phone APP for Android and iPhone users, please search and install IPCam
Viewer on Google Play for Android devices, search and install IPCam_Viewer on APP Store for iOS devices,
then you can view your camera anywhere, anytime on your smart mobile devices.
1.1 Key Features
Standard H.264 video compression algorithm to satisfy the transmission of high definition video in narrow
bandwidth network
P2P feature for easy access
Megapixel HD video
Pan 300 degree, tilt 120 degree
Supports IE/Firefox/Google/Safari browser
Supports WEP,WPA-PSK and WPA2-PSK Encryption
Wireless connection is compliant with IEEE 802.11b/g/n Wi-Fi, up to 150Mbps
IR night vision (Range: 8m)
Supports image snapshot
Supports dual-stream
Supports SD Card storage up to 32GB(except for FC1403P)
Supports IR-Cut auto switch

2
2
Embedded free DDNS(dynamic domain name service) Service
Support for Third Party Domain Name Service
Supports two-way audio using select browsers and apps
Multi-level users management with password protection
Motion detection alert via email or upload image to FTP server
Free Android and iPhone APP for viewing live video
Supports recording schedule
1.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents listed below.
Before the IP Camera is installed, please carefully read and follow the instructions in the Quick Installation
Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly
as intended.
1.3 Package Contents
● IP Camera × 1
●
● Wi-Fi Antenna × 1
Mounting bracket × 1
●Ethernet Cable × 1
●
DC Power Adapter × 1
1.4 Physical Description
Front Panel
Figure 1.1
1.Speaker: Built-in speaker
2.LENS: Fixed focus lens.
3.Infrared LED: Infrared LEDs for night vision
4.Microphone: Built-in microphone
5.Wi-Fi Antenna: Wireless Antenna
1.Speaker
2.LENS
3.Infrared LED
4.Microphone

3
3
Rear Panel(FC2401P/FC2503PZ)
Figure 1.2
1.LAN: 10/100 Mbps RJ-45 port for wired connection
2.Power: DC 5V/2A Power supply
3.Network Light: The LED will blink slowly in wired connection, blink two times faster in wireless connection,
blink four times faster when WPS
4.Power Light: If the power supply works fine, the light will turn on
5.WPS: Push the WPS button on the camera and wireless router in 1 minutes, the camera will connect the
wireless router automatically, in WPS process, the Network Light will blink very fast
6. SD card Slot: Supports up to 32GB SD card for storing the video
7.Audio Output: This jack is used to plug an external speaker
8.Audio Input: This jack is used to plug an external microphone
9.Antenna: Used to connect external wireless antenna
Bottom View
9.Antenna
8.Audio Input
7.Audio Output
2.Power
1.LAN
6. SD Card Slot
5.WPS
4.Power
light
3.Network light
1.Mounting Port
2.Reset Button

4
4
Figure 1.3
1. Mounting Port: Port for mounting bracket
2. Reset Button: Push and hold for more than 5 seconds to set the camera to factory default.
1.5 INSTEON Application Access
1.5.1 Adding the HD Camera to the INSTEON Hub - Android

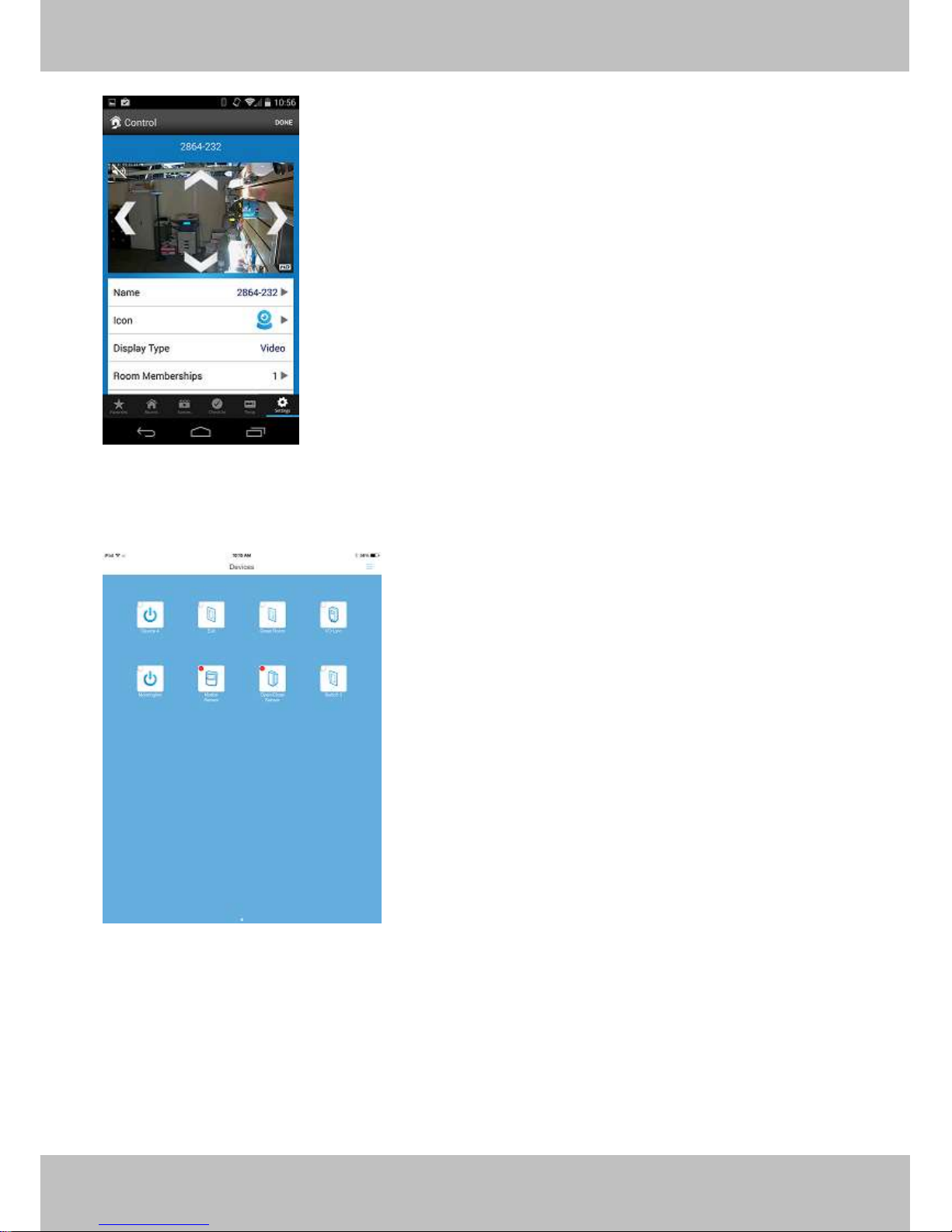

From any screen in the app, tap the Rooms Icon at the bootom, then select All devices, then tap the + iten in
the top to add a new device

5
5
Select the Camera from the list of available devices.

6
6
Select Skip Video for automatic setup.
Confirm that your phone, INSTEON Hub, and Wi-Fi Camera are all on the same network and select OK

7
7
Put in the Cameras username and password. By Default this will be admin for the username, and the
password will be blank. It is advisable to change these at this time.
Select your option, for this example we will be adding it in on a protected Wi-Fi network. The app will then ask
you for the Wi-Fi network’s password. Please enter and reconfirm this for the camera.

8
8
The app will pull up an image of your camera and ask that you now disconnect the camera from the router to
test the Wi-Fi.

9
9
Once it has rebooted the camera, you can now rename the device and move on to adding additional units into
the hub.
1.5.2 Adding the HD Camera to the INSTEON hub - iOS
From any screen in the app, swipe to the right and select ‘Add Devices’

10
10
Select the Camera from the list of available devices.

11
11
Select Skip Video for automatic setup.
Confirm that your phone, INSTEON Hub, and Wi-Fi Camera are all on the same network and select OK.

12
12
Agree to the terms associated with the HD Camera and its Data usage
Put in the Camera’s username and password. By Default this will be admin for the username, and the
password will be blank. It is advisable to change these at this time, then select your option, for this example we
will be adding it in on a protected Wi-Fi network. The app will then ask you for the Wi-Fi network’s password.
Please enter and reconfirm this for the camera.

13
13
The app will pull up an image of your camera and ask that you now disconnect the camera from the router to
test the Wi-Fi.
Once it has rebooted the camera, you can now rename the device and move on to adding additional units into
the Hub.

14
14
2 Access the IP Camera
This chapter explains how to access the camera through browser and RTSP player.
2.1 Access the Camera in LAN
This camera supports HTTP and HTTPS protocols, you can access the camera by two ways.
(1) http:// LAN IP + HTTP Port NO.
The default HTTP port no is 88. Double click the IP Camera Tool icon to run, and it should find the camera’s IP
address automatically after you plug in the network cable.
Figure 2.1
Double click the IP address of the camera; your default browser will open to the camera login page.
(2) https:// LAN IP + HTTPS Port NO.
The default Https port no is 443. You can use the url to access the camera: https:// LAN IP + HTTPS port.
Go to Settings - Network - Port panel , you can see and change the http and https port no.
Figure 2.2
HTTPS(Hypertext Transfer Protocol over Secure Socket Layer) is a safe way to access your camera, the data
transferred on the Internet will be encrypted. Since we can not apply license for every LAN or DDNS URL, the
webpage may pop up a warning like the following picture, you just need to click 'Continue to this website (not
recommended). '

15
15
Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options.
Next, click the Security tab, then click the Trusted sites button.
Figure 2.3
For Firefox, you can add the trusted as the following way:

16
16
Tools ---- Options ---- Advanced --- View Certificates --- Servers
Figure 2.4
Click View Certificates, and go to Servers option.
Figure 2.5
Go to Add Exception panel.
