INSURGICAL MAXLiFe 3004022 User manual

02/2013 110-2008-001rB
INSURGICAL ™ MAXLiFe™Battery Charger
Catalog # 3004022
INSTRUCTIONS FOR USE
INTRODUCTION
The information and procedures described in this manual are intended to assist medical
professionals in the safe and effective use, care, cleaning, and long-term maintenance of
INSURGICAL Battery Charger.
INTENDED USE
The INSURGICAL Battery Charger is intended for use with the INSURGICAL MAXLiFe battery Cat.
# 3002022 only.
WARNINGS
Only trained and experienced medical professionals should use this equipment. Failure
to comply with the INSURGICAL Battery Charger instructions for use (IFU) may result in
patient and/or medical staff injury.
Do not use if damage is apparent.
Use of eye protection is required while operating equipment.
DO NOT modify.
DO NOT use this equipment in the presence of flammable anesthetic and air, or with
oxygen or nitrous oxide.
DO NOT operate the Battery Charger with a damaged power cord or plug.
DO NOT modify the ground of the Battery Charger power cord.
Install the power cord of the Battery Charger directly into wall electrical outlet.
DO NOT disassemble or service the Battery Charger. Return to INSURGICAL for service
or repair. Failure to comply may result in electric shock or fire.
Always disconnect the power cord from the Battery Charger before performing cleaning
to reduce the risk of electric shock.
CAUTIONS:
DO NOT sterilize the Battery Charger.
DO NOT connect multiple Battery Charger units in a series.
ENVIRONMENTAL SPECIFICATIONS

02/2013 110-2008-001rB

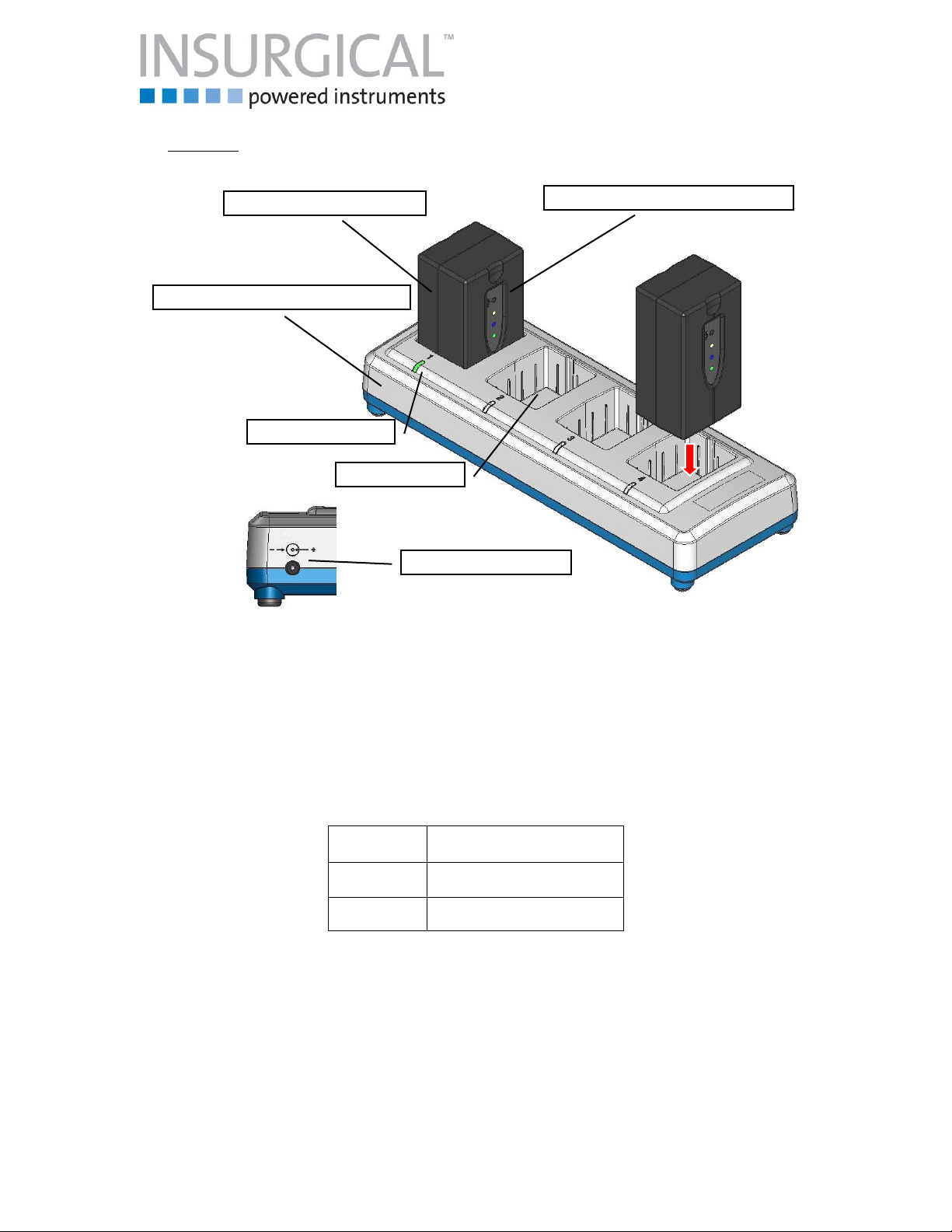

FEATURES
Power Connection –connects and disconnects Battery Charger from facility power.
Charging Bay –accepts and charges INSURGICAL batteries (Cat. # 3002022).
INSURGICAL Battery Charger accommodates up to four (4) batteries.
Charging Bay and battery are mechanically protected, preventing incorrect introduction
of battery to charging bay.
Charging Bay Indicator Lights –provide battery status information when illuminated.
Amber
Charging in Progress
Green
Full Charge
Yellow
System Alert*
* Flashing yellow indicator light signals user that the battery has been charged more than 200 of
its rated 300+ charging cycles. Yellow indicator light will flash 3 times then resume normal
charging.
Overcharge Protection –terminates battery charge at 15.77 VDC.
Short Circuit Protection –prevents charger from commencing when battery has an
electrical short.
Charging Bay
Indicator Lights
Power Connection
Battery Charge Indicator Lights
Battery Charger - Cat # 3004022
Battery - Cat # 3002022

02/2013 110-2008-001rB
SETUP
1. Connect the female end of the power cord to the power connection receptacle on the
Battery Charger.
2. Connect the male end of the power cord to the wall outlet.
BATTERY CHARGING
1) Insert INSURGICAL battery (Cat. # 3002022) into the charging bay.
-Note: Charging bay and battery are mechanically protected, preventing incorrect introduction of
battery to charging bay.
2) Follow warnings, caution, and notes in INSURGICAL Battery Instructions for Use.
3) Charging Bay Indicator Light will indicate battery status.
Amber
Charging in Progress
Green
Full Charge
Yellow
System Alert*
* Flashing yellow indicator light signals user that the battery has been charged more than 200 of
its rated 300 charging cycles. Yellow indicator light will flash 3 times then resume normal charging.
4) Battery Charge Indicator Lights
Green
Fully Charged
Blue
50-85% Charged
Yellow
Less than 50% Charged
Note: Batteries may be left in the charging bay when fully charged.
CARE AND MAINTENANCE
INSURGICAL recommends facilities using the Battery Charger employ a regular care regimen that
includes routine cleaning and inspection for damage.
CAUTIONS:
Follow universal cautions and protective apparel when handling and cleaning
contaminated instruments.
DO NOT immerse Battery Charger in liquids.
DO NOT use solvents, lubricants, or other chemicals to clean the Battery Charger unless
otherwise directed.
DO NOT allow water to collect on Battery Charger or its charging bays.
DO NOT sterilize the Battery Charger.
DO NOT clean the charging contacts with abrasives.

02/2013 110-2008-001rB
CLEANING PROCEDURE
1. Disconnect the Battery Charger from the wall outlet.
2. Remove the batteries.
3. Wipe the external surfaces of the Battery Charger and charging bays with a clean lint-
free soft cloth lightly dampened with a non-abrasive hospital disinfectant.
4. Dry immediately with a clean lint-free soft cloth.
5. Clean charging contacts using a cotton swab lightly with isopropyl alcohol. DO NOT
clean the charging contacts with abrasives.
6. Ensure equipment is completely dry before reconnecting to power.
7. Inspect for damage or malfunctioning. Return damaged components to INSURGICAL.
SPECIFICATIONS
1. Performance
Input Voltage
+ 19 VDC +/- 5%
Max Rated Current
2.63A Maximum
Output Power Max.
10.95 Watts per Bay, 43.8 Watts total for 4 bays
Classification
Protection Class 2 with Functional Earth
Class of Rating
Continuous Operation
2. Physical Characteristics
Dimensions
319.02mm x 115.95mm x 48.20mm
Weight Including Power Adapter
1.05kg
3. Compliance Standards
EMC Compliance Standards : IEC 60601-1-2
Safety Compliance: IEC 60601-1
Explanation of Symbols
DO NOT SERVICE
ELECTRONIC EQUIPMENT –DO NOT
THROW AWAY
DANGEROUS ELECTRIC VOLTAGE
INSIDE
PROPER EYE PROTECTION MUST BE
WORN AT ALL TIMES
CAUTION, SEE INSTRUCTIONS FOR
USE
DO NOT IMMERSE
HUMIDITY LIMITS
TEMPERATURE LIMITS

02/2013 110-2008-001rB
Contact INSURGICAL for complaint reporting at:
[e-mail]
DISPOSAL INSTRUCTIONS
Dispose of this product as municipal waste, according to local governmental regulations.
INSURGICAL LLC
9111 Jollyville Road
Suite 230
Austin, TX 78759
www.insurgical.com
Caution: Federal Law (USA) restricts this device to sell by or on the order of a physician.
