INSYS EloStar time User manual

EloStar time
Handbuch
Version 1.03
1
EloStar time
User manual
EN 1300
M 102301
Class 2/B

EloStar time
Handbuch
Version 1.03
2
Table of contents
1. OPENING THE LOCK.................................................................................................................................... 3
2. LOCKING THE LOCK ................................................................................................................................... 4
3. PROGRAMMING THE LOCK ...................................................................................................................... 5
3.1. R EPROGRAMMING THE MASTER CODE .......................................................................................................... 6
3.2. R EPROGRAMMING THE MASTER CODE WITH EMERGENCY OPENING LOCK .................................................... 6
3.3. P ROGRAMMING USER CODES ........................................................................................................................ 7
3.4. 4- EYES PRINCIPLE ......................................................................................................................................... 8
3.5. S ETTING THE OPENING DELAY / RELEASE TIME .............................................................................................
3.6. A UTOMATIC LOCKING ................................................................................................................................ 10
3.7. B LOCKING / RELEASING THE LOCK ............................................................................................................. 11
3.8. S ETTING DATE AND TIME ............................................................................................................................ 12
3. . P ROGRAMMING WITH A PC ........................................................................................................................ 13
3.10. E VENT LOG ............................................................................................................................................... 15
3.11. R EPROGRAMMING THE QUICK OPENING CODE .......................................................................................... 15

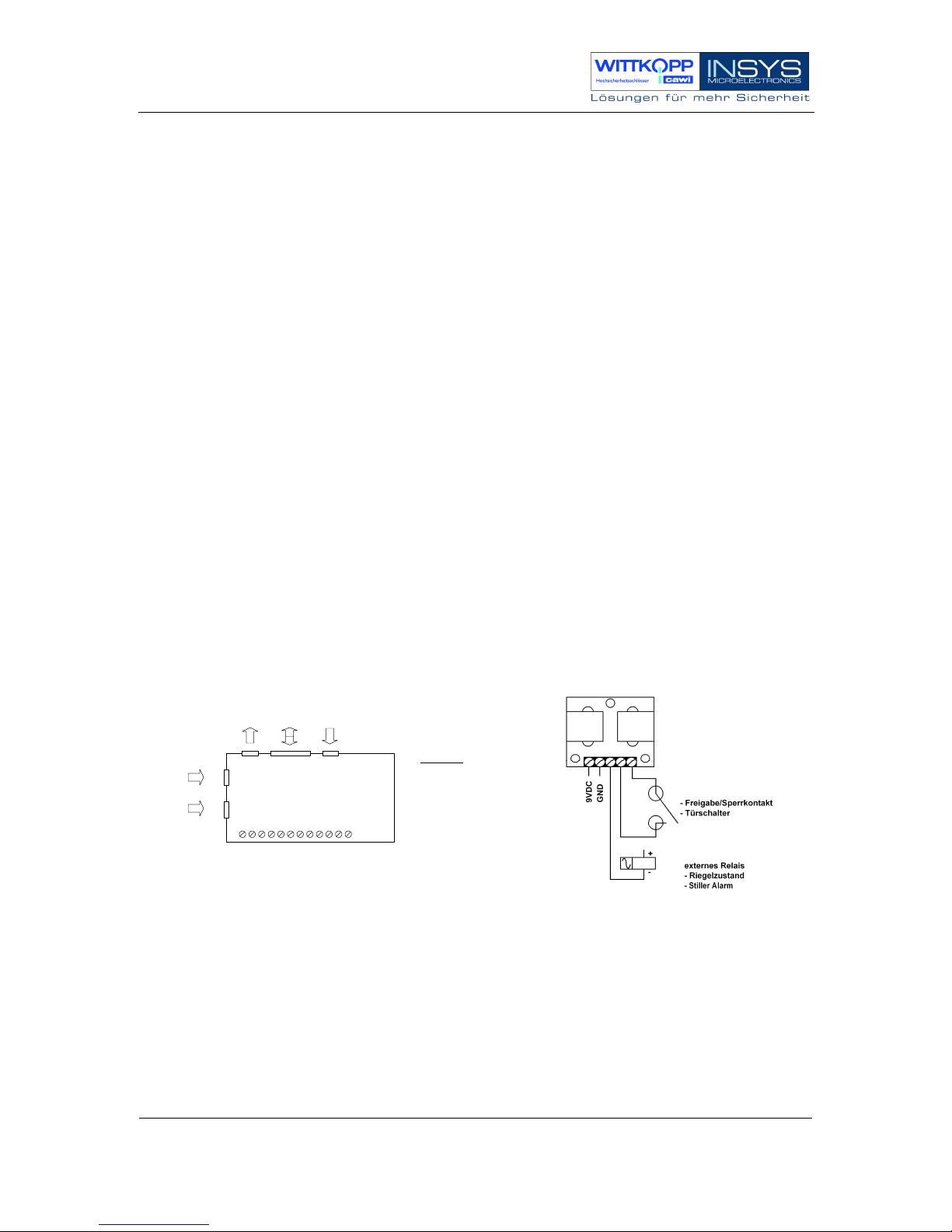

3.12. A CTIVATING EXTERNAL INPUT AND OUTPUT SIGNALS .............................................................................. 16
3.13. C ONNECTION OF THE EXTERNAL LCDXT DISPLAY .................................................................................. 20
3.14. R ESETTING THE LOCK ............................................................................................................................... 21
4. APPENDIX ...................................................................................................................................................... 22
4.1. O PTICAL AND ACOUSTIC SIGNAL OUTPUTS ................................................................................................. 22
4.2. N OTES ........................................................................................................................................................ 22
4.3. A CCESSORY LIST ........................................................................................................................................ 23

EloStar time
Handbuch
Version 1.03
3
EloStar time
Safety notes
• Immediately change the factory-set master CODE 1 2 3 4 5 6 for security reasons.
• Do not use any personal data for your new CODE such as birthdays or other information that
could be guessed from knowledge about you.
• After entering your new CODE, open and close the electronic lock se eral times with your PIN
and new CODE while the door is open.
• You can always cancel an entry that you ha e started with the C key.
1. Open ng the lock
Open ng w th a code
0 Enter your user number (0 = master code)
123456 1  Enter the opening code
If a power interruption has occurred, e.g. battery change, the code has to be
entered tw ce.
If a signal sequence sounds after you ha e entered your user number, the lock is
blocked for access:
 A time program is acti e
 Lock blocked by master
 Lock blocked by a connected burglar alarm system, for example
When the lock is open, the green LED flashes e ery second (only when the function
“Automatic locking after 10 sec.” is acti ated). In this state, all functions of the lock
can be programmed. (See Programming the lock)

EloStar time
Handbuch
Version 1.03
4
2. Lock ng the lock
Three options are pro ided for locking the lock:
 Locking by pressing a key (default setting)
 Locking ia door switch/boltwork switch
 Automatic locking after 10 seconds
The lock is locked by pressing a key (except for C and * key) as the default setting. In
order to acti ate one of the two other options, the lock has to be programmed
correspondingly. The programming can either be done ia the keypad (see Chapter
3. Programming the lock) or ia the PC software CombiComm (not included in the
scope of supply).
Attention:
Before lea ing the safe deposit, it is imperati e to make sure that the lock is correctly
locked.
Further funct ons of EloStar time:
 1 master code (6-d g t)
 9 user codes
 S lent alarm w th alarm t me delay
 Automat c lock ng w th door sw tch
 Automat c lock ng after 10 seconds
 4-eyes pr nc ple
 Open ng delay w th release t me
 Block ng / releas ng lock
 Event log w th the last 512 events
 Date / t me
 User-def ned t me programs
 Qu ck open ng code
 Programm ng v a PC
 Resett ng the lock

EloStar time
Handbuch
Version 1.03
5
3. Programm ng the lock
In order for the lock to be programmed, it has to be opened. For this purpose, the
lock can be opened with any user code.
In the deli ery state, the lock can only be opened with the factory master code
(0 = user no. + 1 2 3 4 5 6 = master code, 0 123456 ).
The most important functions of the lock can be programmed with the keypad;
extended functions are programmed with the PC software CombiComm and the
e ent log is read out with the PC software.
Programm ng w th the keypad
Program number Funct on
0 Reprogram the master code
1 Program/reprogram/delete user codes
2 Acti ate the 4-eyes principle
3 Set the opening delay / release time
4 Set automatic locking after 10 sec.
5 Reset lock
6 Block / release lock
7 Start programming ia PC
8 Set date and time
9 Set IO functions / set blocking element

EloStar time
Handbuch
Version 1.03
6
3.1. Reprogramming the master code
Notes:
• Immediately change the factory-set code 1 2 3 4 5 6 for security reasons.
• The programming can only be done when the lock is open.
• Do not use any personal data for your new code such as birthdays or other
information that could be guessed from knowledge about you.
• After you ha e entered the new code, open and close the electronic lock
se eral times with the new code while the door is open.
*0* Enter the program number
123456 * 1 Enter the old master code
654321 * Enter the new master code
654321 * 1  Enter the new master code
3.2. Reprogramming the master code with emergency opening lock
In conjunct on w th an emergency open ng lock, the master code can be
reprogrammed w thout knowledge of the current master code. The emergency
open ng lock must be open for th s.
*0* Enter the program number
654321 * Enter the new master code
654321 * 1  Enter the new master code

EloStar time
Handbuch
Version 1.03
7
3.3. Programming ser codes
Note:
• The programming can only be done when the lock is open.
• Do not use any personal data for your new code such as birthdays or other
information that could be guessed from knowledge about you.
• After you ha e entered the new code, open and close the electronic lock
se eral times with the new code while the door is open.
• The programming or deletion of user codes is sa ed in the e ent log. (For
reading out the e ent log, see the manual of the PC software CombiComm)
Programm ng or creat ng a new user code
*1* Enter program number 1
1* Enter the user number (e.g. user 1)
123456 * 1 Enter the master code
111111 * Enter the new user code
111111 * 1  Enter the new user code
Reprogramm ng the user code
*1* Enter program number 1
1* Enter the user number (e.g. user 1)
111111 * 1 Enter the master code or old user code
132132 * Enter the new user code
132132 * 1  Enter the new user code
Delet ng a user code
*1* Enter program number 1
1* Enter the user number (e.g. user 1)
123456 * 1 Enter the master code
* 1  Delete
Note:
When the 4-eyes principle is acti ated, it is not possible to delete all users;
at least one user must be programmed.

EloStar time
Handbuch
Version 1.03
8
3.4. 4-eyes principle
Notes:
• The 4-eyes principle can only be set with the master code.
• This setting can only be made when the lock is open. After this function has
been programmed (acti ated), the lock can only be opened when two codes
are entered.
• The programming or deletion of the 4-eyes principle is sa ed in the e ent log.
(For reading out the e ent log, see the manual of the PC software
CombiComm)
• In addition to the master code, at least one user code must be programmed.
Act vat ng the 4-eyes pr nc ple
*2* Enter program number 2
123456 *  Enter the master code
1* 1  Acti ate the 4-eyes principle
Delet ng the 4-eyes pr nc ple
*2* Enter program number 2
123456 *  Enter the master code
0* 1  Delete the 4-eyes principle
Open ng w th the 4-eyes pr nc ple
1 010101 1 Enter the user number of the first code (e.g. 1) and
enter the first code (e.g. 010101)
1 Green LED is lit.
2 020202 1  Enter the user number of the second code (e.g. 2) and
enter the second code (e.g. 020202)

EloStar time
Handbuch
Version 1.03
3.5. Setting the opening delay / release time
Notes:
• The opening delay can only be programmed by the master.
• The programming can only be done when the lock is open.
• The programming or deletion of the opening delay and release time is sa ed in
the e ent log. (For reading out the e ent log, see the manual of the PC
software CombiComm)
Sett ng the open ng delay and release t me
*3* Enter the program number
123456 * 1 Enter the master code
01* Set an opening delay, e.g. 01 min.
01* 1  Set a release time, e.g. 01 min.
The opening delay can be set in the range of 01 – 99 minutes.
The release time can be set in the range of 01 – 15 minutes. When 00 is entered, the
lock immediately opens after the opening delay has expired, without an additional
code entry or expiration of a release time.
Delet ng the open ng delay and release t me
*3* Enter the program number
123456 * 1 Enter the master code
00* Delete the opening delay
00* 1  Delete the release time
Open ng w th open ng delay and release t me
1 010101 1 Enter the user number of the first code (e.g. 1) and
enter the first code (e.g. 010101)
(in the case of the 4-eyes principle, enter the second code
as well).
1 Expiration of the opening delay. The green LED flashes
e ery 5 seconds. After the time delay has expired, this is
signaled by the signal tone 15x. The green LED is lit. The
lock waits for the opening code to be entered again during
the release time.
1 010101 1  Enter the user number of the code (e.g. 1) and
enter the first code (e.g. 010101).
Lock opens. (Only one code is required, e en with
the 4-eyes principle!)

EloStar time
Handbuch
Version 1.03
10
3.6. A tomatic locking
Notes:
• Automatic locking can only be set by the master.
• After this function has been acti ated, the lock automatically locks 10 seconds
after it was opened.
• The programming can only be done when the lock is open.
• The programming or deletion of the opening delay and release time is sa ed in
the e ent log. (For reading out the e ent log, see the manual of the PC
software CombiComm)
Act vat ng automat c lock ng
*4* Enter the program number
123456 * 1 Enter the master code
1* 1  Acti ate automatic locking
Delet ng automat c lock ng
*4* Enter the program number
123456 * 1 Enter the master code
0* 1  Delete automatic locking

EloStar time
Handbuch
Version 1.03
11
3.7. Blocking / releasing the lock
Notes:
• The lock can only be blocked by the master.
• The programming is done when the lock is closed!
• After the blocking has been acti ated, the lock is blocked for user codes until
the master remo es the blocking.
• The programming is sa ed in the e ent log. (For reading out the e ent log, see
the manual of the PC software CombiComm)
Block ng the lock
*6* Enter the program number
123456 * 1 Enter the master code
1* 1  Acti ate the blocking
Releas ng the lock
*6* Enter the program number
123456 * 1 Enter the master code
0* 1  Cancel blocking

EloStar time
Handbuch
Version 1.03
12
3.8. Setting date and time
Notes:
• The programming is only done by the master.
• Date and time are entered without points.
• A corresponding number must be entered for the day of the week.
• 1 = Monday / 2 = Tuesday / 3 = Wednesday / 4 = Thursday / 5 = Friday / 6 =
Saturday / 7 = Sunday
• The correct setting of the time, date and day of the week is essential for the
correct operation of the time programs, the automatic summer/winter time
changeo er and the e ent log.
• The setting can be made when the lock is open as well as closed.
*8* Enter the program number
123456 * 1 Enter the master code
150507 * Enter the date, e.g. 15.05.09
1500 * Enter the time, e.g. 15:00
3* 1  Enter the day of the week, e.g. 3 = Wednesday

EloStar time
Handbuch
Version 1.03
13
3.9. Programming with a PC
Programming with a PC is done using the CombiComm parameterization set.
More detailed information can be found in the manual of the CombiComm PC
software.
Programming with a PC can only be done when the electronic lock is open!
Note:
Before the connection is established, the CombiComm PC software m st be
started and the correct comm nication interface m st be selected.
The following settings, among others, can be made with a PC:
• User-defined time programs
• 4-eyes principle
• IO functions
• Silent alarm incl. alarm delay
• Quick opening code
• Opening delay / release time
• Date / time
• Reading out the e ent log

EloStar time
Handbuch
Version 1.03
14
Establ sh ng a connect on to the PC
Depending on the keypad design, the interface cable is correspondingly connected
on the inside or the outside of the cabinet.
Keypad 7236 Connection outside, below keypad co er
Keypad 7233 Connection inside the safe deposit or the
door
Keypad 7231 Connection inside the safe deposit or the
door
Starting communication with the PC
*7* Enter program number 7
123456 * 1 Enter the master code

EloStar time
Handbuch
Version 1.03
15
3.10. Event log
The last 512 e ents are logged in chronological order with the date and time. The
information is read out with the CombiComm parameterization set. More detailed
information on this can be found in the manual of the PC software.
The following e ents are logged:
 Reset of the lock or battery change
 Code entries
 Lock open
 Lock closed
 Programming ia serial interface
 Programming or deletion of the 4-eyes principle
 Reprogramming the master code
 Programming, reprogramming or deletion of user codes
 Programming or deletion of the opening delay and release time
 Programming of the automatic locking
 Lock blocking
 Resetting the lock
Note:
The correct setting of the date and time is the basis for correct event logging!
The log data is read out ia PC, as the programming is done!
(See Programming ia PC !)
*7* Enter program number 7
123456 * 1 Enter the master code
3.11. Reprogramming the q ick opening code
• A programmed opening delay can be circum ented by the quick opening code.
• The quick opening code is assigned to user 9 at the factory.
• Howe er, this code can be reprogrammed to any other user with the PC
software CombiComm.

EloStar time
Handbuch
Version 1.03
16
3.12. Activating external inp t and o tp t signals
3.12.1. General funct onal ty
The following functions can be implemented using external signals, inputs and
outputs:
 Silent alarm
 Automatic locking with the door switch
 Status display of the deadbolt of the lock
 External blocking / release of the lock
 Display of the end of the opening delay
The electronic lock EloStar time has 2 inputs and 2 outputs for implementing the
abo e-mentioned functions. A particular function can be assigned to each input
signal and output signal according to the following description of the function
numbers.
The extension unit EloXT and the adapter p.c.b. EloAdapt are a ailable for
professionally connecting the signals of the lock.
EloXT EloAdapt
2 relay outputs 1 open collector output
2 switching inputs / 2 12V inputs 1 switching input
Power supply unit connection 12VDC Voltage connection 9VDC
RS-232 connection
More detailed information can be found in the installation instructions for EloXT and EloAdapt.
EloXT
1 2 4 5 6 7 8 9 10 11 123
Anschlussbelegung:
1 GND
2 12VDC
3 OUT1_Z
4 OUT1_O
5 OUT1_C
6 OUT2_Z
7 OUT2_O
8 OUT2_C
9 IN2_1
10 IN2_2
11 IN1_1
12 IN1_2
Schloss 7215
Tastatur PC / Laptop
1
2
12VDC

EloStar time
Handbuch
Version 1.03
17
Act vat on of IO funct ons
Notes:
 After acti ation, the following inputs/outputs are queried or actuated.
 Acti ation or deacti ation can only be performed by the master.
 The acti ation or deacti ation is sa ed in the e ent log.
*9* Enter program number 9
123456 * 1 Enter the master code
11* 1  Enter the funct on number (e.g. 11)
2nd digit => outputs
1st digit => inputs
Explanat on of the funct on numbers:
Inp ts:
1st digit  0 = No function
1 = Door switch (IN1)
2 = Door switch (IN1), release/blocking (IN2)
3 = Release/blocking (IN1)
O tp ts:
2nd digit  0 = No function
1 = Deadbolt status (OUT1)
2 = Silent alarm (OUT1)
3 = Silent alarm (OUT1), deadbolt status (OUT2)
4 = Silent alarm (OUT1), end of opening delay (OUT2)
5 = Deadbolt state (OUT1), end of opening delay (OUT2)
Delet ng I/O funct ons
*9* Enter program number 9
123456 * 1 Enter the master code
00* 1  Delete = 00 *

EloStar time
Handbuch
Version 1.03
18
3.12.2. S lent alarm and alarm t me delay
Notes:
• The silent alarm function and the corresponding output signal are only acti e
when the function has been acti ated.
• The silent alarm is triggered by entering the opening code, whereby the last
digit has to be increased by one.
Example: 0 123456 Normal opening code
0 123457 Triggering of the silent alarm (9+1 -> 0)
• After a silent alarm has been triggered, a programmed alarm time delay
becomes acti e. The release time of the alarm time delay is permanently set
to 5 minutes.
• The alarm signal can either be signaled and connected ia the EloXT
expansion unit (relay output) or ia the adapter p.c.b. EloAdapt (open
collector output).
• The triggering of a silent alarm is also sa ed in the e ent log.
• The silent alarm and alarm time delay functions can also be programmed with
the PC software CombiComm.
Act vat on of the “s lent alarm”
*9* Enter program number 9
123456 * 1 Enter the master code
02* Enter the user funct on number (e.g. 02)
01* 1  Enter the opening delay in the case of an alarm
in minutes, e.g. 01 minute.

EloStar time
Handbuch
Version 1.03
1
3.12.3. Automat c lock ng w th the door sw tch
Notes:
• With the function “Automatic locking ia door switch”, the electronic lock can
be automatically locked by actuating a door or boltwork switch.
• If the door switch is not opened within 15 seconds after the code is entered
and the lock is opened, the electronic lock locks again automatically.
• The “Automatic locking” function can also be programmed with the PC
software CombiComm.
Act vat on of the funct on “Automat c lock ng v a door sw tch”
*9* Enter program number 9
123456 * 1 Enter the master code
10* 1  Enter the funct on number (e.g. 10)
Connect the door switch to IN1
3.12.4. External release / block ng
Notes:
• The electronic lock can be blocked or released by an external signal, e.g. by a
burglar alarm system, ia this input contact. The lock can then no longer be
operated by a user.
• The function can either be programmed to IN1 or IN2, see function numbers.
Act vat on of the funct on “External block ng / release”
*9* Enter program number 9
123456 * 1 Enter the master code
30* 1  Enter the funct on number (e.g. 30)
Connect the blocking signal to IN1

EloStar time
Handbuch
Version 1.03
20
3.12.5. S gnal ng the status of the deadbolt of the lock
Notes:
• The electronic lock can signal the status of the deadbolt ia this output
contact.
• The function can either be programmed to OUT1 or OUT2, see function
numbers.
Act vat on of the “Status nd cat on” funct on:
*9* Enter program number 9
123456 * 1 Enter the master code
01* 1  Enter the funct on number (e.g. 01)
Connect IN1
3.13. Connection of the external LCDXT display
For optical display of a programmed opening delay (count down =
“Zeit erzoegerung”), the mobile display LCDXT (optional accessory) can be
connected.
More detailed information can be found in the manual of the display.
