800 Series - Integra Dishwasher
800 Series - Integra
Dishwasher
SHV68M03UC
Integra® 800 Series
Dishwasher
Colors
Stainless Steel
White
Black
Fully Integrated
Stainless Steel with
Display
Previous View all 800 Series
The Good Housekeeping Seal
Recognized for their quality manufacturing, Bosch
are backed by The Good Housekeeping Seal - a
two-year limited warranty.
Integra® Dishwashers Key Features
800 Series - Integra Dishwasher Performance
Auto Plus (NSF Certified Cycle)
Auto Delicate Wash
QUICKWASH
800 Series - Integra Dishwasher Convenience
Extra Capacity
RACKMATIC®
Extra Tall Item Sprinkler
Stainless Steel TALLTUB
Platinum Premium Racks
800 Series - Integra Dishwasher Efficiency
ECOSENSE™
ECOACTION™
Flow Through Water Heater
Condensation Drying
Optional Half Load Wash
ENERGY STAR® Qualified
NSF Certified
800 Series - Integra Dishwasher Silence
45 dBA
Two-Pump Motor System
Suspension Motor
Solid Molded Base
Insulation
INFOLIGHT™
Browse Integra®
800 Series
500 Series
300 Series
Special Application
Site Tools
Overview
View Price
Stainless Steel SHX68M05UC
View Price
White SHX68M02UC
View Price
Black SHX68M06UC
View Price
Fully Integrated SHV68M03UC
View Price
Stainless Steel with Display
SHX68M09UC
Find A Dealer
Postal Code: Distance:
55
Miles
Find Dealer
Quick Search
Search for products, manuals,
installation guides and more.
Enter your terms below.
Search
Home
Products
Dishwashers
Integra®
Evolution™
Ascenta™
Washers
Dryers
Ovens
Warming Drawers
Microwaves
Cooktops
Ventilation
Ranges
Refrigeration
Small Appliances
Vacuums
Site Tools
Customer Care
Literature Requests
About Bosch
Multimedia Gallery
Press Room
Awards
Green Resource Center
Compare Integra®
Product Manuals
Product Registration
Visit A Showroom
Purchase Small Appliances
Purchase Accessories
Purchase Parts
Add To My Favorites
View My Favorites
View My Products
View Features
View Specs/Dimensions
View Accessories

800 Series - Integra Dishwasher Automation
OPTIDRY®
Variable Spray Pressure
Optional Delay Start
800 Series - Integra Dishwasher Safety
AQUASTOP® Leak Protection
PERFECTDOOR™ with AUTOCLOSE™
No Exposed Heating Element
Back to top

Close
Key Features
Product Information
Product Category Integra® Dishwashers
Product Series 800 Series
Product Name Integra® 800 Series Dishwasher
Model Number SHV68M03UC
Color Fully Integrated
Also available in Stainless Steel, White, Black,
Stainless Steel with Display
Silence
dBA 45 dBA
Energy
kWH 234 kWh/y
Dimensions
Click Image for Full Size
Special Notes
Cabinet Opening Dimensions
SHX/SHV/SHE – 24" TallTub Dishwashers:
Width: 24" to 24-1/4" (23-5/8" with décor strips removed)
Height: 34" to 35" (36" with Custom Toe-Kick *Always use included metal toe-kick behind custom toe-kick)
Depth: 24"
Upper Clearance: Leave 1/8" to 1/4" of space between the countertop and the dishwasher
SRV – 18" EuroTub Dishwashers:
Width: 17-11/16"
Height: 32" to 34-1/2"
Depth: 24"
Upper Clearance: Leave 1/8" to 1/4" of space between the countertop and the dishwasher
SGV – 24" EuroTub Dishwashers:
Width: 24" to 24-1/4"
Height: 32" to 34-1/2"
Depth: 24"

Print Close
Upper Clearance: Leave 1/8" to 1/4" of space between the countertop and the dishwasher
Custom Panel Dimensions
SHV – 24" TallTub Dishwashers:
Recommended Width: 23-3/8"
Minimum Door Height: 27-1/4"
Maximum Door Height: 30-7/16"
Toe-kick Height Range: 4" to 7"
Panel Thickness: 3/4"
Panel Weight: Min. 9 lbs to Max. 18 lbs
SRV – 18" EuroTub Dishwashers:
Recommended Width: 17-1/2"
Recommended Door Height: 28-5/16"
Panel Thickness: 3/4"
Panel Weight: Min. 5-1/2 to Max. 16-1/2 lbs
SGV – 24" EuroTub Dishwashers:
Recommended Width: 23-3/8"
Recommended Door Height: 28-5/16"
Panel Thickness: 3/4"
Panel Weight: Min. 9 lbs to Max. 18 lbs
IMPORTANT
SHX/SHE models do not accept custom panels.
SHV/SRV/SGV models are not supplied with handles.
SRV models require SGZ3022 Accessory Hinge for custom panel installation at U.S. countertop height.
Dimensions are for planning only.

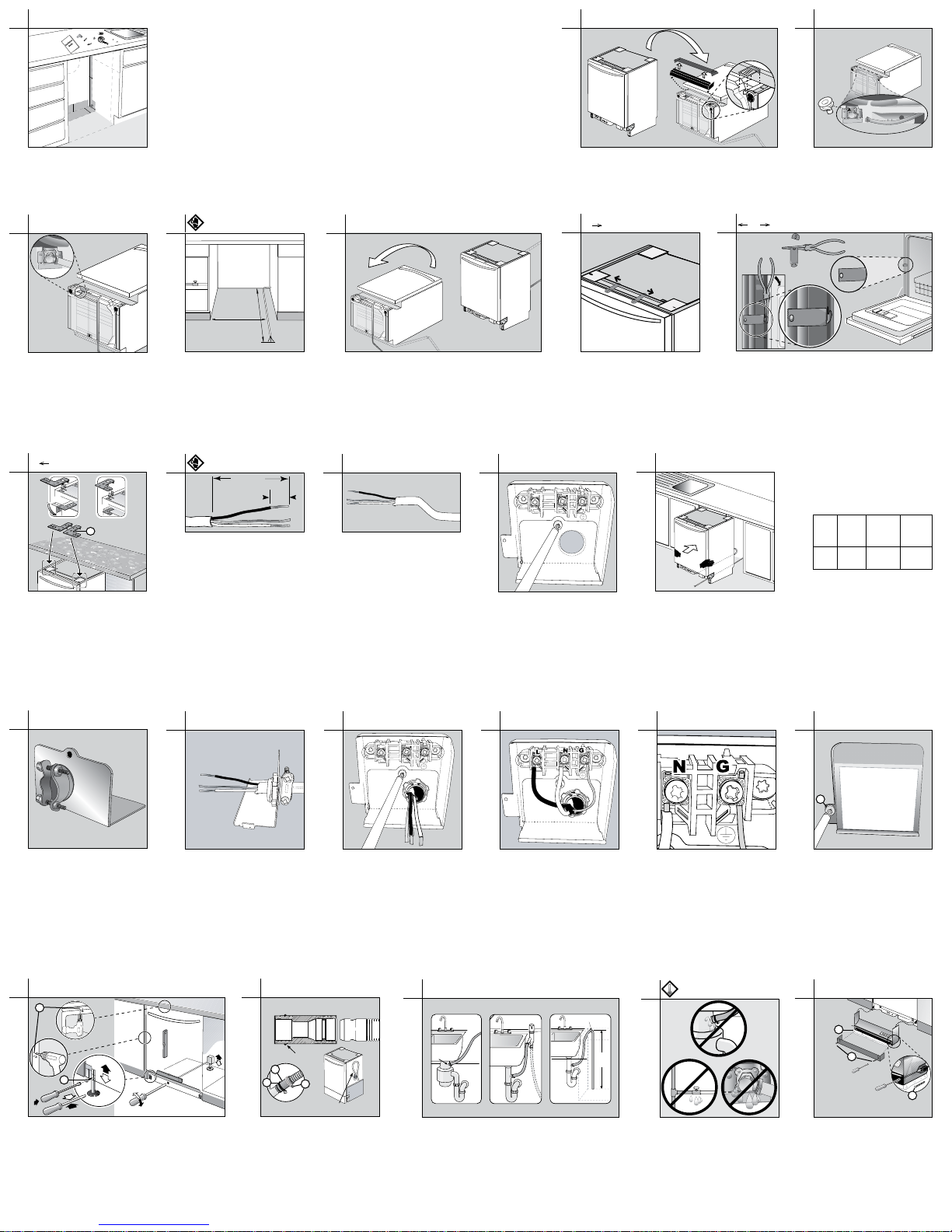

For details, see installation manual, or visit www.boschappliances.com.
Specifications to change without notice.
Click Here to View Features

(3mm, 1/8")
(2mm, 1/16")
(12mm, 1/2")
(45mm, 1-3/4")
(155mm, 6-1/2")
- Si l'appareil a 33 7/8 po (860 mm) de haut, la hauteur maximale de la porte et du tiroir est de 30 7/16 po (774 mm).
- Si l'appareil avec cuve plus petite a 31 7/8 po (810 mm) de haut, la hauteur maximale de la porte et du tiroir est
de 28 1/2 po (724mm)
- Si su unidad mide 33 7/8" (860mm) de altura, la máxima altura de la puerta y del cajón será 30 7/16" (774 mm).
- Si su unidad incluye la tina de diseño más corto con una altura total de la unidad de 31 7/8" (810 mm), la máxima
altura de la puerta y del cajón será 28 1/2" (724 mm).
Étape 3 pour panneau 2 pièces seulement
Paso 3 solamente para el panel de dos piezas
Luego utilizando el taladro, perfore los agujeros para los tornillos.
Avec la perceuse, faire les trous de vis.
Les deux trous
supérieurs sont
pour le panneau
monopièce
seulement
Los dos orificios
superiores
solamente para
el panel de una
pieza
Insérer les fixations en métal au bas de la porte. Presser le haut de la porte pour fixer au
lave-vaisselle. Positionner la porte au besoin.
Inserte los soportes metálicos de montaje en la parte inferior de la puerta. Luego presione la
parte superior de la puerta para fijarla a la lavavajillas. Posicione la puerta según sea necesario.
4
4
Enlever les vis d'expédition et remplacer par la vis
Quite los tornillos de transporte y reemplácelos con el tornillo

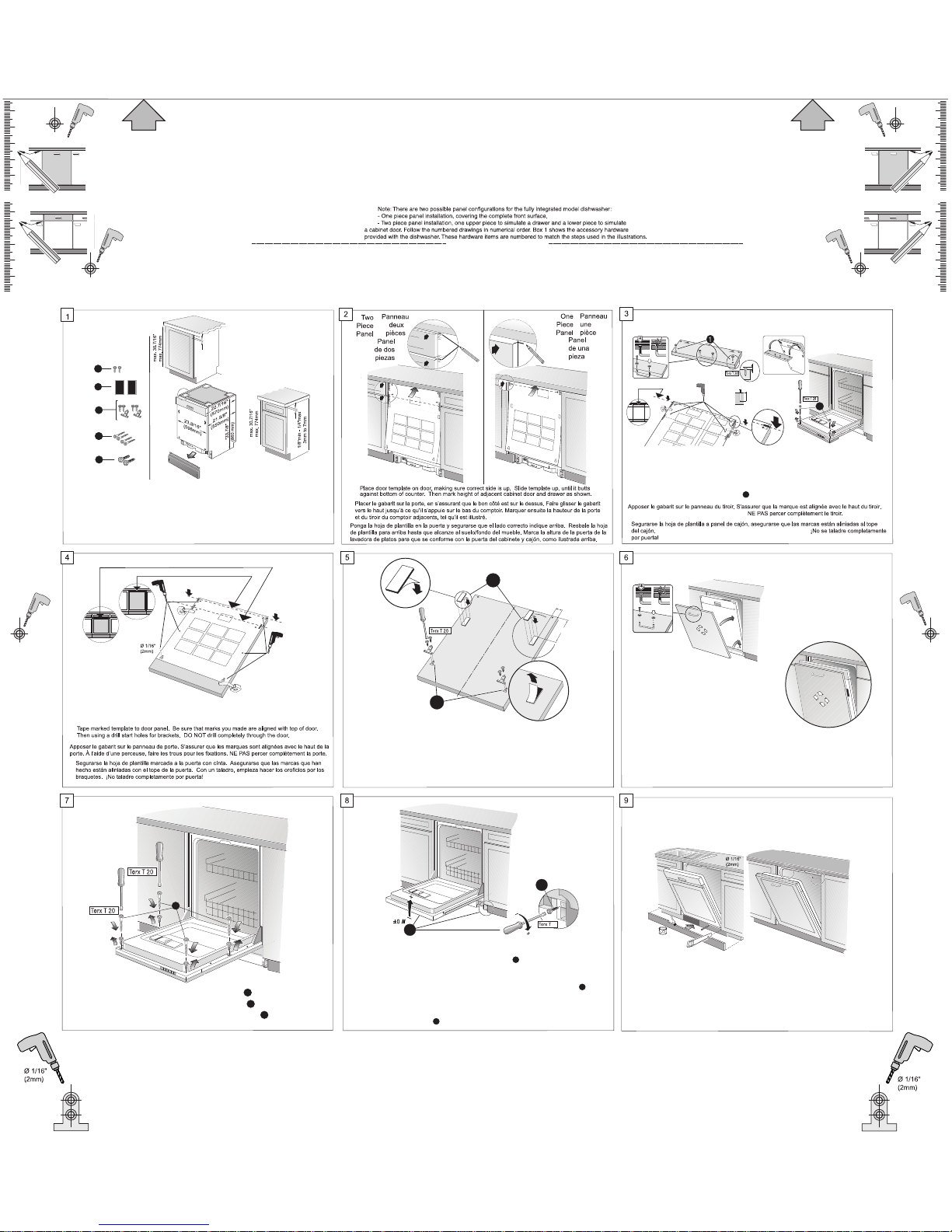

Fully Integrated Panel Installation
Installation Entièrement Intégrée Du Panneau
Instalación Completamente Integrada Del Panel
* - If your unit is 33 7/8" (860mm) tall, the maximum height of the door and drawer will be 30 7/16" (774 mm).
- If your unit is the shorter tub design with a total unit height of 31 7/8" (810 mm), the maximum height of the door
and drawer will be 28 1/2" (724 mm).
When using a custom toe kick it must be notched to clear the dishwasher door.
90 00 13 06 57 Rev. A • 10/05
Custom Panel Requirements:
Do not exceed 30 7/16" (774mm) for the overall front panel length
Needs to be at least 3/4" thick
Minimum weight is 9 lbs. and maximum weight is 18 lbs
Panneaux sur mesure requis:
Ne doit pas excéder 30 7/16 po (774mm) pour la longueur hors tout du panneau avant
Doit avoir au moins 3/4 po d'épaisseur
Le poids minimal est de 9 lb et le poids maximal est de 18 lb
Reqerimientos de los tableros:
No debe exceder 30 7/16 pulgadas (774mm) por el largo del tablero frontal
Necesita ser por lo minimo 3/4 pulgadas en densidad
El peso minimo es 9 libras y el peso maximo es 18 libras
Note: The door springs that are included with the Fully Integrated units will provide proper function
for custom door panels weighing between 9 and 15 pounds. Custom Door panels weighing up
to 18 pounds require the use of the TensionAdjustment Screws.
Remarque: les ressorts de porte sont compris avec les appareils entièrement intégrés pour assurer un
bon fonctionnement pour les panneaux de porte sur mesure pesant de 9 à 15 lb. Les panneaux de
porte sur mesure pesant jusqu à 18 lb requièrent l utilisation des vis de réglage de tension.
Nota: Los resortes de puertas que se incluyen con las unidades totaimente integradas proporcionarán
un funcionamiento correcto para paneles de puertas personalizadas que pesan entre 9 y 15 libras
(4.1 y 6.8 kg). Paneles de puertas personalizadas que pesan hasta 18 libras (8.2 kg) requieren del uso
de tornillos de ajuste de tensión.
Step 3 forTwo Piece Panel Only
3
1
4
5
2
4
Install metal mounting brackets. Then install Hook and Loop fastener strips, exposing
adhesive on both sides of each strip.
Installer les fixations en métal. Installer ensuite le crochet et les attaches en boucle, de façon
à exposer l'adhésif sur les deux côtés de chaque attache.
Instale los soportes metálicos de montaje. Luego instale las tiras sujetadoras de gancho y
lazo, descubriendo el adhesivo en ambos lados de cada tira.
2
3
Insert metal mounting brackets at bottom of door.Then press the top of the door to attach to
the dishwasher. Position door as necessary.
Remove shipping screws and replace with screw 4
4
5
5
Tape marked template to drawer panel, being sure to align marks with top of drawer.
Then using drill start holes for screws . DO NOT drill completely through drawer.
1
Top two holes
for one piece
panel only
5
5
5
Si l'on utilise un panneau de base sur mesure, il doit y avoir une encoche pour libérer
la porte du lave-vaisselle.
Cuando use un panel de pie personalizado, éste debe ser entallado para liberar la puerta
de la lavavajillas.
Nota: Hay dos configuraciones de panel disponibles por el lavadora de platos de modelo
Completamente Integrado.
- Instalación de panel de una pieza, que cubra/e todo lo frente.
- Instalación de panel de dos piezas, una pieza que simúla un cajón y otra pieza que simúla
la puerta de cabinete. Sigue las ilustraciones en orden numérica. La caja numero uno enseña los artí
ulos de la ferretería accesorios que se proveen con la lavadora de platos.
Estos artículos accesorios corresponden en orden numérica con los pasos usados en las ilustraciones.
Remarque: Il y a deux configurations possibles pour le lave-vaisselle Entièrement intégré.
- Installation du panneau une pièce, couvrant entièrement la surface avant.
- Installation du panneau deux pièces, une pièce supérieure pour simuler un tiroir et la pièce
inférieure pour simuler une porte d’armoire.
Suivre les dessins dans l’ordre numérique. La figure 1 illustre les ferrures fournies avec le lave-vaissell.
Ces ferrures sont numérotées afin de correspondre aux étapes illustrées.
