Integrated Appliance group ICI6GE2 User manual

600mm
INDUCTION
Cooktop
MODEL: ICI6GE2
InstallatIon and opEratIon Manual
1800 805 300
PRODUCT SERVICE NUMBER
RSDMC1208

Working Principle
Product Introduction
The induction hotplate is mainly composed of an induced heating coil,
hotplate made of ferromagnetic materials and control system. In principle,
current generates a powerful magnetic field via the coil. Large numbers
of vortexes are produced in the way that the magnetic lines in the field
contact the bottom containing iron or stainless steel substances. The
tremendous energy generated by the vortexes can heat the food directly
by converting efficiency heat energy penetrating through the bottom.
The induction hotplate can meet various of cuisine demands by
electromagnetic heating, with micro-computerized control and multi-
functions, really the optimal choice for modern families.
the induction hotplate centers on customers and adopts personalized
design. Made of imported materials and through advanced process, the
unit has safe and reliable performances, making your life comfortable
and enabling to fully enjoy the pleasure of life.
Dear customer:
Thank you for purchasing the the induction hotplate our product can
serve you many years to your satisfaction.
Please read this instructions manual carefully before using and
installation, keep it cautiously after reading for future reference.
Thank you for your purchase of the induction hotplate again, and wish
you to enjoy the pleasure by it.
magnetic circuit
ceramic glass plate
iron pot
induction coil
Induced currents
2

We have designed this hob for private use in home.
With a view to constantly improving our products, we reserve the right to make
any changes to their technical, program or aesthetic features connected with
their technical evolution.
Over- Temperature Protection
A temperature sensor equipped can monitor the temperature inside the hotplate.
Detection of Small Articles
When a unsuitable size or non-magnetic pan (e.g. aluminium), or some other small
item (e.g. knife, fork, key) has been left on the hob, the hob goes automatically on
to standby a minute later.
Heat Indication
When the hotplate is used for a long time, waste heat remains in the heating zone
in a few minutes. The code “H” appears, warning to be away from the heating zone.
Auto shutdown protection
Autoshutdownisasafetyprotectionfunctionforyourinductionhotplate.Itshutdown
automatically if ever you forget to turn off your cooking. The default working times
for various power levels are shown in the below table: .
Power level The heating zone shut down automatically after
1~3
4~6
7~9
8 hours
4 hours
2 hours
Safety
When the pot is removed, the induction hotplate can stop heating immediately and
shut down after 1 minute.
*Remind:
The patient with a heart pacemaker shall use this product under
the guidance of the doctor.
3
Whenanexcessivetemperatureismonitored,theinductionhotplatewilldecreasepower
tosafetylevalautomatically.

5 cm mini
5cm mini 5cm mini
56 cm
49
c
m
Installation
Selection of installation equipment
Drill holes on the table surface according to the sizes shown in the
drawing. For the purpose of installation and use, a minimum of 50 mm
space shall be preserved around the hole.
Be sure the thickness of the table surface is at least 30mm. Please
select heat-resistant table material to avoid larger deformation caused
by the heat radiation from the hotplate.
As shown in Figure (1)
Figure (1)
Figure (2)
Air intake
Air exit
Under any circumstances, make sure the induction hotplate is well
ventilated and the air inlet and outlet are not blocked.
Ensure the induction hotplate is in good work state. As shown in
Figure (2)
Note: The safety distance between the hotplate and the cupboard above the
hotplate should be at least 760mm.
mini 5 cm mini 5 mm
mini 2 cm
4

Cautions
4.
5.
1. The induction hotplate must be installed by qualified personnel or technicians.
We have professionals at your service. Please never conduct the operation
by yourself.
The induction hotplate shall not be mounted to cooling equipment, dishwashers
and rotary dryers.
The induction hotplate shall be installed such that better heat radiation
can be ensured to enhance its reliability.
The wall and induced heating zone above the table surface shall withstand
heat.
To avoid any damage, the sandwich layer and adhesive must be resistant
to heat.
2.
3.
Figure (3)
Voltage&frequency
400V 2-N
50\60HZ
220-240V
50\60HZ
220-240V 2+2-N
50\60HZ
1 2
L1 L2
Black Brown
21
L
Black&Brown
1 2
L1 L2 Gray
Blue
N1 N2
3 4
43
34
Gray&BlueYellow/Green
5
5
5
Wire connection
N
N
Yellow/Green
Yellow/Green
Gray&Blue
Black Brown
Fix the hob on the table by screw four brackets on the bottom of hob
(see picture) after installation. Adjust the bracket position to suit for
different table top thickness.
Power line connection
The socket shall be connected according to the relevant standard
or connected to a single-pole cut-out. The method of connection
is shown in Figure (3):
5

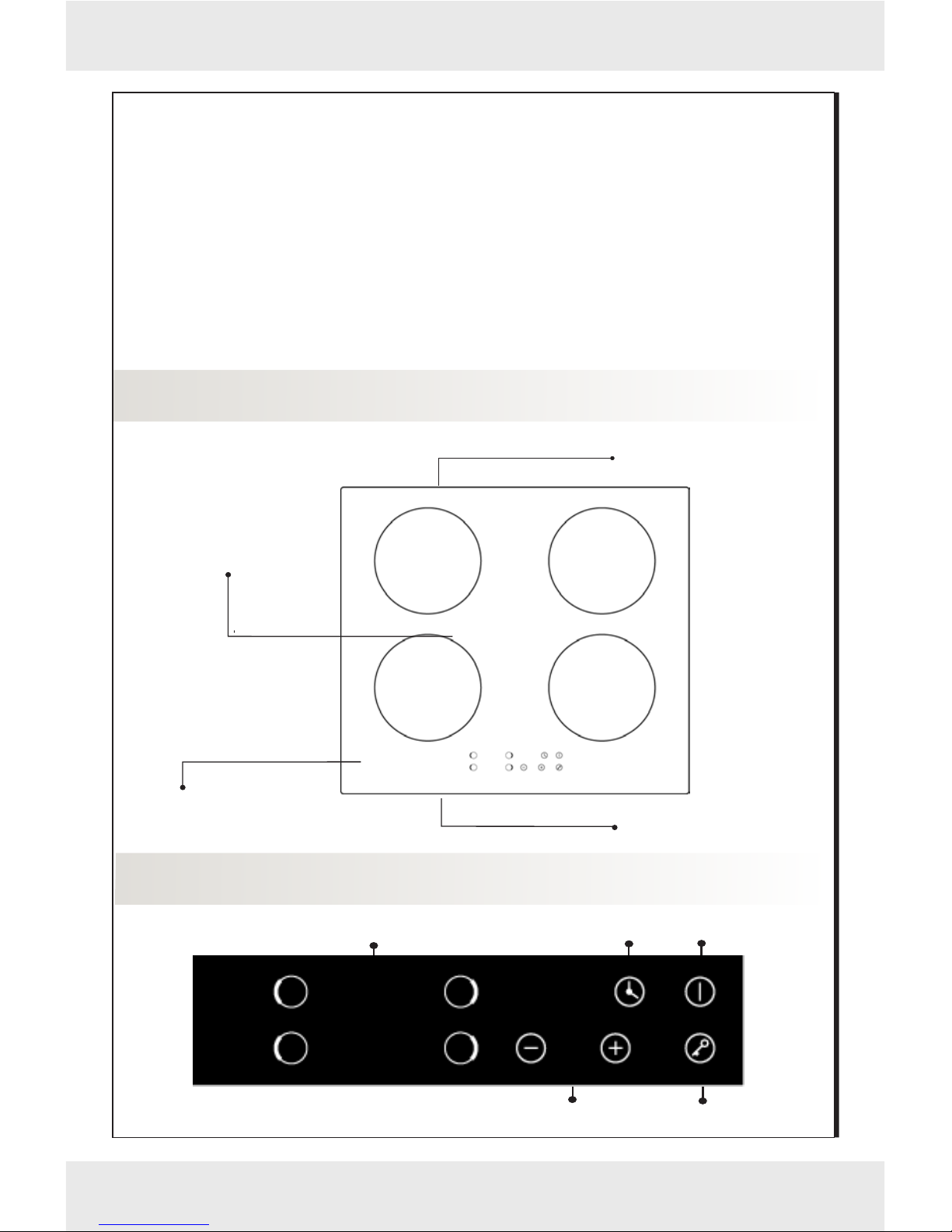

Control panel Air vent
Ceramic plate
Air entry
Heating zone selection key
ON/OFF
Timer key
System key
Induction hotplate appearance
Power regulating key
Schematic diagram of the control panel
If the cable is damaged or to be replaced, the operation must be
carried out the by after-sale agent with dedicated tools to avoid
any accidents.
If the appliance is being connected directly to the mains an omnipolar
circuit-breaker must be installed with a minimum opening of 3mm
between contacts.
The installer must ensure that the correct electrical connection has
been made and that it is compliant with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorised
technicians only.
1
23
4
6

Preparation before using:
After power on, the buzzer beep once, all the indicators
light up for 1 second then go out, indicating the induction
hotplate enters the state of standby.
Put the pot in the center of the heating zone.
Operation Instructions
After the “ON/OFF” key is pressed, all the indicators show
“-”. According to the heating zone where the pot is placed,
select a relevant zone selection, with a corresponding
power level indicator flashing. At the moment, press the
"+" or "-" button, the indicator displays 5, then adjust the
power levels using the“+” or“-” button. Press the "+" and
"-" buttton simultaneously, the hotplate immediately returns
the power setting to 0 and all the cooking zone switches
off.
See the attached table on PAGE 8 for the power specific
to each heating zone.
Note: After the “ON/OFF” key is pressed, the induction
hotplate will restore to its standby state if no any operation
is carried out within two minutes.
Instructions for Use
7
Minute reminder
Timer can be used as a Minute reminder. Active timer by
press timer key, display shows "00", adjust timer by press
+/- key, single touch +/- key will increase or decrease 1
Minute, by press and hold +/- key you can adjust time by
10 Minutes. After set time press timer key again to confirm
time setting. Display will stop flashing, Minutes reminder
start count down. Buzzer will bips for 30 seconds when
setting time reached and the display shows "- -", cooking
process and power setted will not be affected by Minute
reminder.

Timing cancellation:
If press the "+" and "-" simultaneously, the timing can be cancelled
automatically, with the timing indicator showing “--”.
Unlocking: under the locking state of the induction hotplate,
hold the “Interlock” key ,removing the locking state automatically.
System function: to ensure the safety of children, the induction
hotplate is provided with the function of interlock.
Locking: Press the “Interlock” key, then the induction hotplate
enters the locking state, with the timing indicator showing “L0”
and the rest keys disabled except the "ON/OFF" key.
8
The above power may vary if the material or the size of pot is different.
The max. power of each heating zone are as follows:
1
2
3
1500
2000
2000
Heating zone Max. power (W)
41500
Cooking timer
Sellect first one cooking zone by press cooking zone key,
cooking zone display flashing. Then press Timer key to active
cooking timer, adjust timer by +/- key, then press Timer key
again to confirm the time setted. You will find a red dot display
at the cooking zone display you sellected. It reminds you this
cooking zone is with a timer setting. When cooking timer expire,
relative cooking zone will be swhitch off automatically. Cooking
timer only works for one cooking zone at the same time.

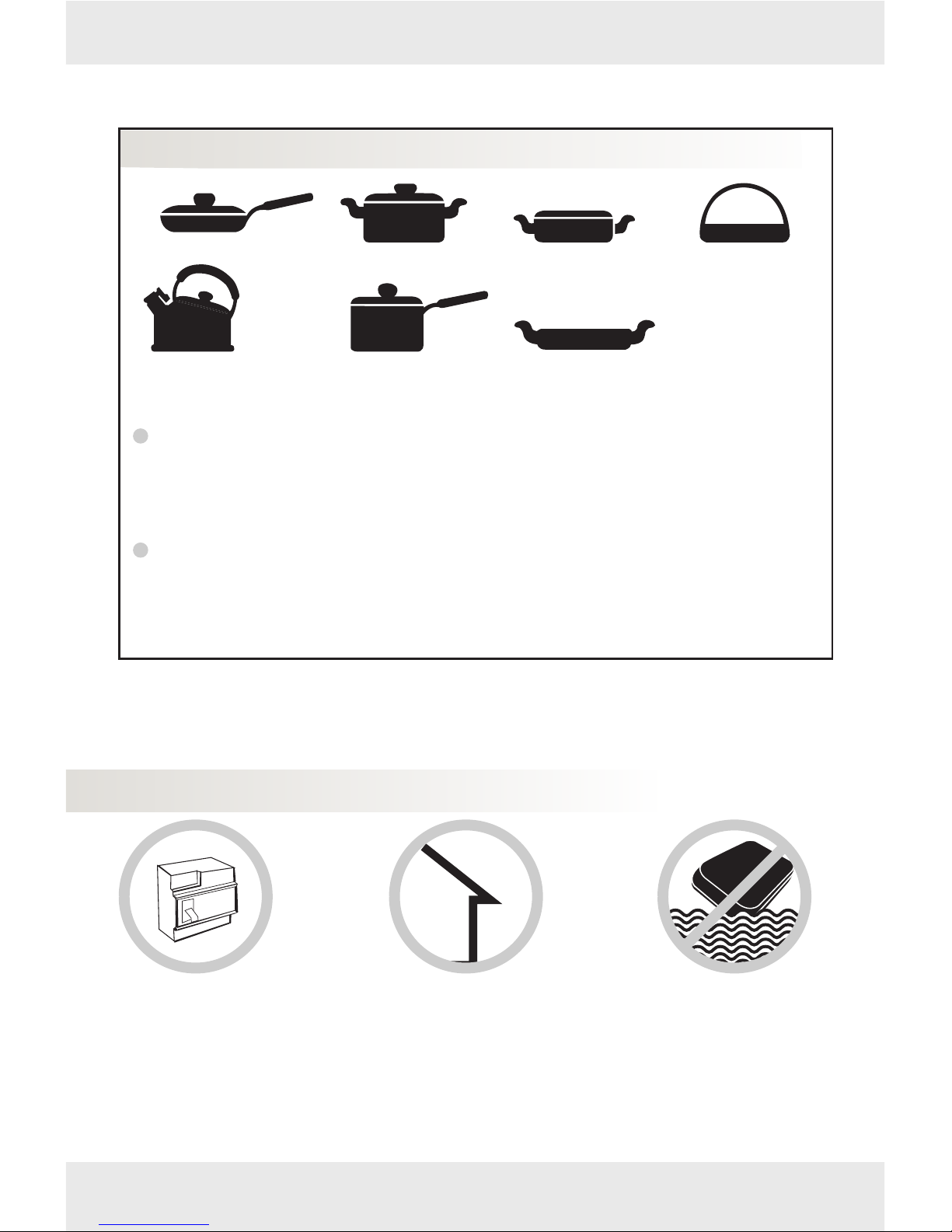

Iron oil frying pan Stainless steel pot Iron pan Iron kettle
Enamel stainless
steel kettle Enamel cooking utensil Iron plate
Selection of heating appliances
Safety Reminding and Maintenance:
You may have multiple appliances suitable for heating.
This induction hotplate is able to identify multiple heating appliances, and you
can test them according to one of the following methods:
Place the appliance in the heating zone. If the corresponding heating zone
displays a power level, it shows the suitability of the appliance; if “U” flashes, it
shows the appliance does not fit in the induction cooking.
Have a magnet to contact the appliance. If there is attraction between them, it
shows the appliance also fits in the induction cooking.
Requirement for pot material: the bottom contains materials of magnetic
conductivity.
Requirement for shape: flat bottom, more than 12 cm in diameter.
*
*
Please use a dedicated
power protection air switch; Never directly wash the induction hotplate with water
so as to avoid dangers.
Indoor use only.
9

After being used for a long
time, the corresponding
heating zone of the induction
hotplate is till hot. Never touch
the ceramic surface to avoid
burning.
We suggest that you should
periodically check that there
are no object (glass, paper,
etc) that could obstruct the
inlet under your induction
hotplate.
Keep electrical appliance out
of reach from children or
inform person. Do not let them
use the appliances without
supervision.
If the supply cord is damaged ,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Clean the induction hotplate
on a regular basis to prevent
foreign matters from entering
the fan thus influencing the
normal operation.
Do not put any detergents or
flammable materials in the
equipment installed under the
induction hotplate.
For sealed food such as
canned goods, please do not
heat them before opening their
covers so as to avoid any
dangers of explosion due to
heating expansion.
Never have the induction
hotplate to work without food
inside, otherwise its
operational performance may
be affected and danger may
happen.
Do not place rough or uneven
appliances, which may
damage the ceramic surface.
If the surface is cracked, swith
off the appliance to avoid the
possibility of electric shock.
Metallic objects such as
knives, forks,spoons and lids
should not be placed on the
hotplate since they can get
hot.
Never use the induction
hotplate in high temperature
environments such as near a
gas stove or kerosene stove.
10

DISPOSAL: Do not dispose this
product as unsorted municipal
waste. Collection of such waste
separately for special treatment
is necessary.
If an abnormality comes up, the induction hotplate will enter the protective
state automatically and display corresponding protective codes:
E3/E4 Abnormal
temperature Please inspect the pot.
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages
to the induction hotplate.
F0/F1/F2
E1/E2
E5/E6
Fan failure Please contact the
supplier
Temperature
sensor failure Please contact the supplier.
Abnormal supply voltage Please inspect whether
power supply is normal.
Power on after the
power supply is normal.
Bad hotplate
heat radiation Please restart after the hotplate cools down.
Failure Display and Inspection
F3-F8
Troubles Possible reasons Solutions
X``Ud0
LYZd Raa]ZR_TV Zd ]RSV]]VU Z_ T`^a]ZR_TV hZeY Af `aVR_
UZ VTeZgV 42241;81A? W` ORdeV
>j V_df Z_X eYRe eYZd Raa]ZR_TV
Zd UZda`dVU `W T` VTe]j. j`f hZ]] YV]a a VgV_e R_j
a`ddZS]V UR^RXV e` eYV V_gZ `_^V_e R_U e` Yf^R_
YVR]eY. hYZTY ^ZXYe `eYV hZdV SV TRfdVU ZW Ze hV V
UZda`dVU `W Z_ eYV h `_X hRj0
LYV dj^S`] `_ eYV a `UfTe Z_UZTReVd eYRe Ze ^Rj _`e SV
e VReVU Rd _` ^R] Y`fdVY`]U hRdeV0 De dY`f]U SV eR\V_
e` R T`]]VTeZ`_ a`Z_e W` eYV VTjT]Z_X `W V]VTe ZTR] R_U
V]VTe `_ZT
LYZd Raa]ZR_TV VbfZ Vd daVTZR]Zde hRdeV UZda`dR]0
B` Wf eYV Z_W` ^ReZ`_ VXR UZ_X eYV e VRe^V_e.
VT`gV j R_U VTjT]Z_X `W eYZd a `UfTe a]VRdV T`_eRTe
j`f ]`TR] T`f_TZ]. j`f Y`fdVY`]U hRdeV UZda`dR]
dV gZTV. ` eYV dY`a hYV V j`f af TYRdVU Ze0
A]VTe ZTR] R_U A]VTe `_ZT
AbfZa^V_e,OAAA-0
B` ^` V UVeRZ]VU Z_W` ^ReZ`_ RS`fe e VRe^V_e. VT`gV j R_U VTjT]Z_X `W eYZd
a `UfTe. a]VRdV T`_eRTe j`f ]`TR] TZej `WWZTV. j`f Y`fdVY`]U hRdeVU Zda`dR]
dV gZTV ` eYV dY`a hYV V j`f af TYRdVU eYV a `UfTe0
11

Light Immerse in hot water then
wipe it dry Cleaning sponge
Accumulation
of dirt Immerse in hot water then
wipe it dry with abrasive
sponge
Special cleaning
sponge for ceramic
glass
Rings and lime
crumbles
Sweetmeat,
melt aluminum
or plastics
Apply white vinegar to the
polluted zone, then wipe it
dry with soft cloth or a
special article available in
local markets
Use a scraper suitable for
ceramic glass (to protect
glass, a silicon product is
preferred) to remove
residuals
Special adhesive for
ceramic glass
Special adhesive for
ceramic glass
Cleanness and Maintenance
Type of contam-
ination Method of cleaning Articles used for
cleaning
You can easily clean the surface of the induction hotplate if following
the methods given in the table.
Hint: please disconnect power before the cleaning.Hint: please disconnect power before the cleaning.
12

Customer Care Service
Before calling the After Sales Service
In case the appliance should not work correctly we suggest to:
-verify if the plug is correctly inserted in the socket
-read the Failure and Display table above
In case it is not possible to establish the reason for the bad functioning
of the appliance:
switch it off, do not try to manumit it and call the After Sales Service.
Special DecIaration
All the contents in this material have been subjected to careful check.
For any mistake and omission in printing or misunderstanding of the
contents,the company keeps the right of interpretation.
Addition:any technical improvement will be placed in the revised
manual without notice;for product appearance and color is according
to the actual one
13
