CT Induction Cooktop
Service Manual

Page 2
Induction Cooktop
Installation Information
2-2
THIS APPLIANCE MUST BE PROPERLY GROUNDED AT ALL TIMES WHEN ELECTRICAL POWER IS APPLIED.
DO NOT GROUND THE APPLIANCE WITH THE NEUTRAL (WHITE) HOUSE SUPPLY WIRE. A SEPARATE
GROUND WIRE MUST BE UTILIZED.
IF ALUMINUM HOUSE SUPPLY WIRING IS UTILIZED, SPLICE THE APPLIANCE COPPER WIRE TO THE
ALUMINUM HOUSE WIRING USING SPECIAL CONNECTORS DESIGNED AND CERTIFIED FOR JOINING
COPPER AND ALUMINUM. FOLLOW THE CONNECTOR MANUFACTURES RECOMMENDED PROCEDURE
CAREFULLY. IMPROPER CONNECTION CAN RESULT IN A FIRE HAZARD.
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage
space located above the surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood that protects horizontally a
minimum of 5” (127 mm) beyond the bottom of the cabinets.
PRE-INSTALLATION SPECIFICATIONS
This section of the manual covers some of the installation issues a service technician may need to know when servicing
a Wolf Induction Cooktop. If additional information is needed after reviewing this section of the manual, please refer to
the Installation Guide or contact the WolfAppliance Customer Service Department.
Electrical Requirements - Induction
Nominal Voltage
Model CT15I .......................240 VAC / 50/60 Hz / 20 amp service
208 VAC / 60 Hz / 20 amp service
Model CT30I & CT30IU ..... 240 VAC / 50/60 Hz / 40 amp service
208 VAC / 60 Hz / 40 amp service
Model CT36I & CT36IU...... 240 VAC / 50/60 Hz / 50 amp service
208 VAC / 60 Hz / 50 amp service
Maximum Connected Load
Model CT15I ...................... 3.6 kW at 240 VAC, 3.1 kW at 208VAC
Model CT30I & CT30IU ..... 7.2 kW at 240 VAC, 6.3 kW at 208VAC
Model CT36I & CT36IU ..... 10.2 kW at 240 VAC, 8.9 kW at 208VAC
The Wolf Induction Cooktops require a separate, grounded three-wire service with their own circuit breaker. These
appliances must be installed in accordance with National Electrical Codes, as well as all state, municipal and local
codes. The correct voltage, frequency and amperage must be supplied to the appliance from a dedicated, grounded
circuit which is protected by a properly sized circuit breaker or time delay fuse. The proper voltage, frequency and
amperage ratings are listed on the product rating plate. The cooktops are provided with a 48” (1219 mm) conduit
consisting of two insulated hot lead conductors (copper) and one insulated ground conductor (copper).

Page 3
Induction Cooktop Installation Information
2-3
Electrical Requirements (Continued)
The cooktop is provided with a flexible conduit with
electrical leads that must be connected to residential
wiring.
International units come with a terminal box and should
be connected to the residential wiring with the hot leads
connected to positions 1 and 5. The residential ground
lead should be connected to the position marked with the
ground symbol. (See Figure 2-1)
For electrical installation attach the conductors to the
residence wiring in accordance with National Electrical
Codes and all state, provincial, municipal and local
codes.
Site Preparation
NOTE: Installation of the Wolf induction cooktop
must meet the following location requirements. All
dimensions listed are minimum requirements for safe
operation.
Location In Counter top
See Figure 2-2 for the location of the following letter call
outs.
A. Minimum flat counter top surface. Must be equal to or
greater than cooktop width.
B. Minimum 1” (25mm) wide clearance from the cooktop
side edge to any combustible surface up to 18”
(457mm) above the cooktop (noted by shaded area).
C. Minimum 1” (25mm) from rear wall.
Overhead Cabinet Dimensions
D. Minimum 18” (457mm) vertical distance from the
counter top to the bottom of side cabinets within
minimum side clearance.
E. Minimum vertical distance between the counter top
and combustible materials above the cooktop must be
30” (762mm).
F. Minimum spacing between overhead side cabinets
must be greater than or equal to the nominal width of
the cooktop unit(s).
G. Maximum 13” (330mm) depth of overhead and side
cabinets directly above and within side clearance (See
letter B).
L2
L1
Ground
1
2
3
4
5

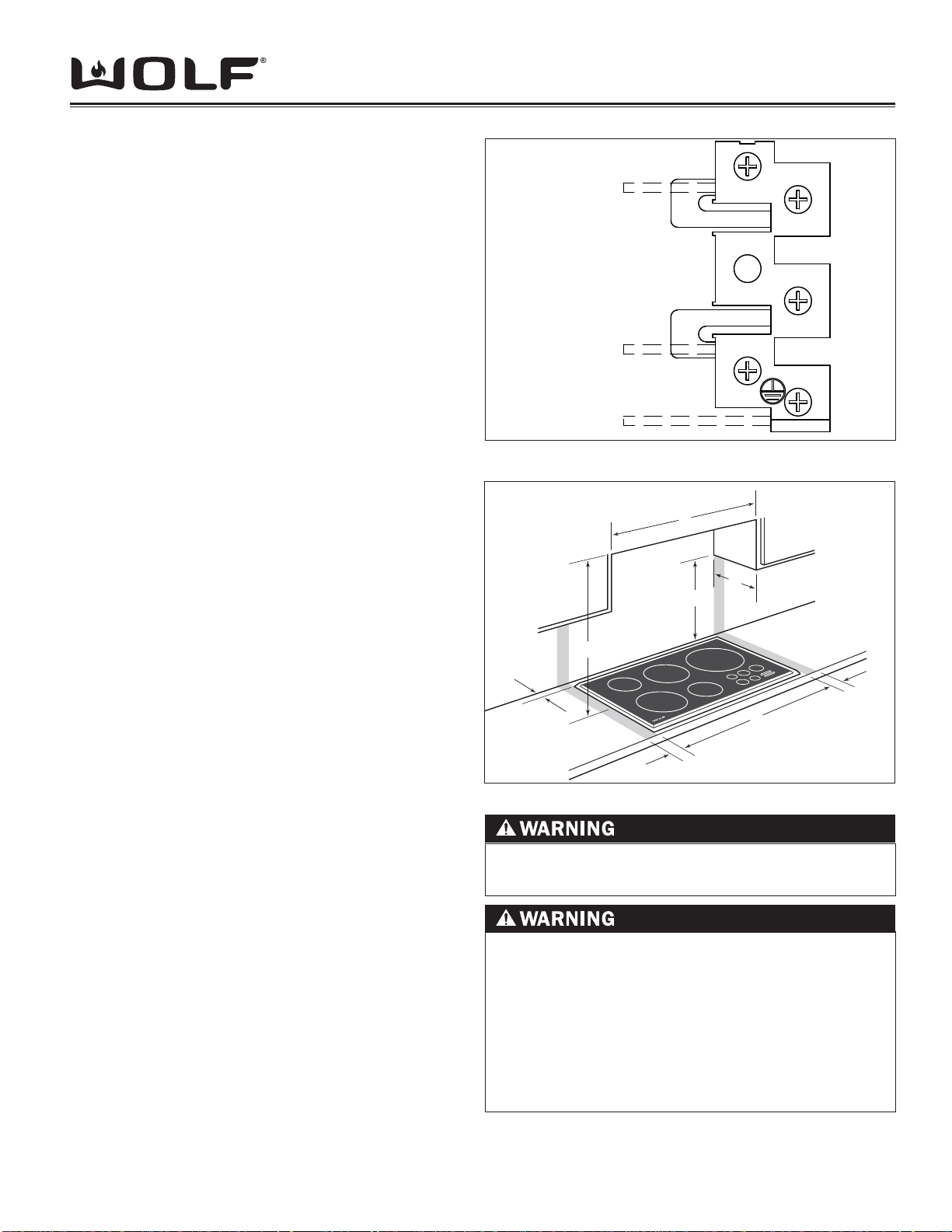

Figure 2-1 Terminal Connections (International Units)
C
G
D
A
B
B
E
F
Figure 2-2 Installation Specifications
Failure to locate the cooktop without the
proper clearances will result in a fire hazard.
To eliminate the risk of burns or fire by
reaching over heated surface units, cabinet
storage space located above the surface
units should be avoided. If cabinet storage
is to be provided, the risk can be reduced
by installing a ventilation hood that projects
horizontally a minimum of 5” (127mm) beyond
the bottom cabinets.

Page 4
Induction Cooktop
Installation Information
2-4
Counter top Cut-out Dimensions (CT15I )
This cooktop is designed to fit a standard 24” (610 mm)
width base cabinet with a 25” (635 mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. There should be at least 6” (152mm) clearance
between the top counter top surface and any combustible
surface directly below the unit. This includes upper edges
of drawers located directly below unit. If a shelf is installed
below the unit, a 1” (25mm) gap at the rear of the cabinet
shelf is necessary to allow for proper ventilation. Failure
to do so could result in decreased performance or product
damage. (See Figure 2-3 & 2-4)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
Figure 2-3 CT15I Counter top Cut-Out Top View
WIDTH
(64)
COOKTOP CUT-OUT
13-3/8” (340)
COOKTOP
DEPTHCUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
E
4-1/2”
(114)
15"
(381)
15"
(381)
2"*min (51)
13-3/8”
(340)
WIDTH
33" (838)
RECOMMENDED
CABINET WIDTH
18"
(457)
19-1/4”(489) 2-1/2” min
(64)
36" (914)
FLOOR TO
HEIGHT
13" max
(330) 30" (762)
2"**
(51)
STANDARD
COUNTER
CUT-OUT
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
COOKTOP
CUT-OUT
DEPTH
NOTE: Application shown allows for installation of two 15” (381mm) modules side-by-side with 33” (838mm)
recommended cabinet width. 18” (457mm) recommended cabinet width for installation of single 15” (381mm) cooktop
or module. *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top.
NOTE: If the cooktop is to be used with any combination of additional cooktops or modules with a filler strip, the cut-out
width increases to 14” (356mm).
NOTE: Unit dimensions may vary to ±1/8” (3mm).
Figure 2-4 CT15I Counter top Cut-Out

Page 5
Induction Cooktop Installation Information
2-5
Figure 2-5 CT30I Counter top Cut-Out Top View
(64)
WIDTH
COOKTOP CUT-OUT
COOKTOP
DEPTHCUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
28-2/8” (721)

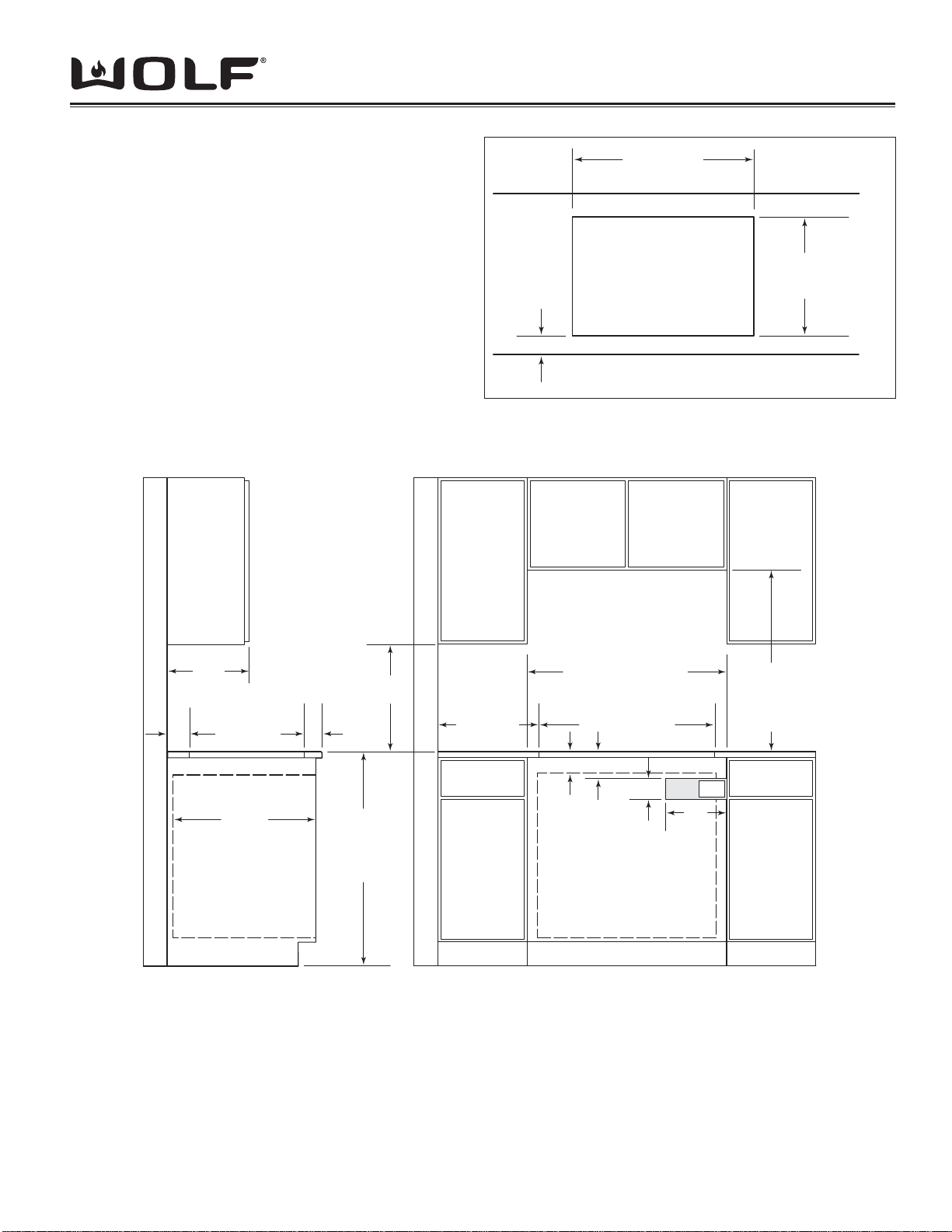

Counter top Cut-out Dimensions (CT30I )
This cooktop is designed to fit a standard 33” (838mm)
width base cabinet with a 25” (635mm) deep counter
top. Before making the counter top cut-out, verify that
the cooktop will clear the side walls of the base cabinet
below. A Wolf 30” (762mm) or 36” (914mm) built-in
single oven may be installed below Model CT30I. For
this installation, unless the cabinets are deeper than 24”
(610mm), it is recommended that the electrical supply be
placed in the base cabinet to the right of the oven. Refer
to installation instructions provided with the built-in oven
for additional specifications. (See Figure 2-5 & 2-6)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
Figure 2-6 CT30I Counter top Cut-Out
NOTE: *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top.
NOTE: Unit dimensions may vary to ±1/8” (3mm).
2"*min (51)
18"
(457)
(64)
36" (914)
13" max
(330) 30" (762)
24"min
(610)
33/4"min
(95) 10"
(254)
(89) E
33" (838)
RECOMMENDED
CABINET WIDTH
30"min (762)
2"**
(51)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
19-1/4”(489)
COOKTOP
CUT-OUT
DEPTH
2-1/2” min
FLOOR TO
HEIGHT
STANDARD
COUNTER
30” OVEN OPENING
28-3/8” (721) COOKTOP
CUT-OUT WIDTH
4-1/2”(114)
3-1/2”

Page 6
Induction Cooktop
Installation Information
2-6

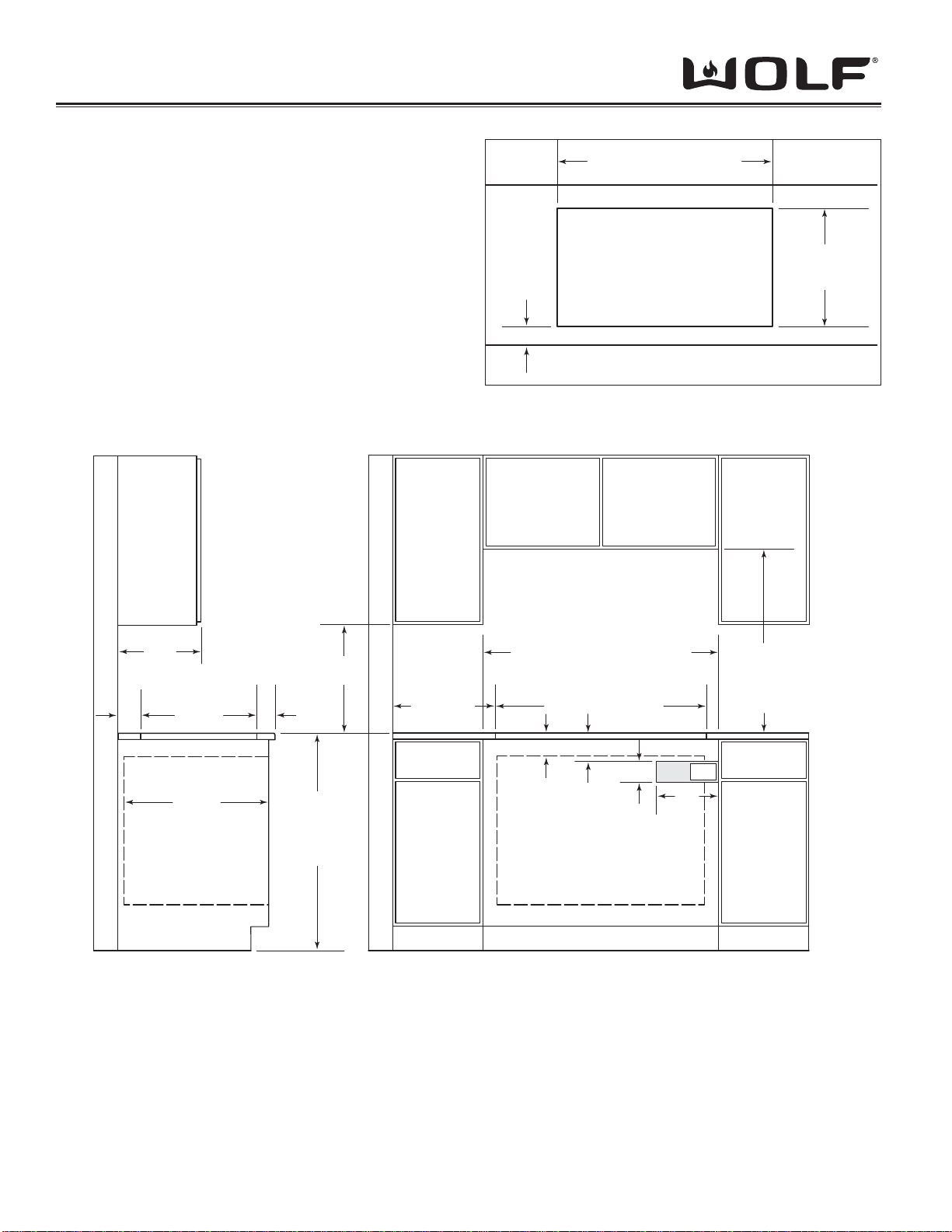

Counter top Cut-out Dimensions (CT36I )
The CT36I is designed to fit a 39” (838mm) minimum
width base cabinet with a 25” (635mm) deep counter
top. Before making the counter top cut-out, verify that the
cooktop will clear the side walls of the base cabinet below.
A Wolf 30” (762mm) or 36” (914mm) built-in single oven
may be installed below Model CT36I. For this installation,
unless the cabinets are deeper than 24” (610mm), it is
recommended that the electrical supply be placed in the
base cabinet to the right of the oven. Refer to installation
instructions provided with the built-in oven for additional
specifications. (See Figure 2-7 & 2-8)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
2"*min (51)
18"
(457)
(64)
13" max
(330) 30"(762)
24"min
(610)
33/4"min
2"**
(51)
10"
(254)
31/2" (89) E
39" (991)
RECOMMENDED
CABINET WIDTH
36"min (914) COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
CUT-OUT TO
COMBUSTIBLE
MATERIALS
BOTH SIDES
19-1/4”(489)
COOKTOP
CUT-OUT
DEPTH 2-1/2” min
36" (914)
FLOOR TO
HEIGHT
STANDARD
COUNTER 36” OVEN OPENING
34-3/8” (873) COOKTOP
CUT-OUT WIDTH
4-1/2”(114)
(95)
(64)
WIDTH
COOKTOP CUT-OUT
COOKTOP
DEPTHCUT-OUT
19-1/4” (489)
2-1/2” MIN
FRONT OF COUNTERTOP
34-3/8” (873)
Figure 2-7 CT36I Counter top Cut-Out Top View
Figure 2-8 CT36I Counter top Cut-Out
NOTE: *Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top. **Minimum clearance from rear edge of cooktop cut-out to combustible materials up to 18” (457mm)
above counter top.
NOTE: Unit dimensions may vary to ±1/8” (3mm).

Page 7
Induction Cooktop Installation Information
2-7
Figure 2-9 CT30IU Counter top Cut-Out Top View
18"
(457)
30-INCH OVEN OPENING
E
10"
(254)
4" min (102)
TO OVEN
OPENING
31/2"(89)
41/2"(114)
13” max
(330)
24” min
(610)
4” min (102)
SEE COUNTERTOP
CUT-OUT ABOVE
36” (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
2”* min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
SEE COUNTERTOP
CUT-OUT ABOVE
30” (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
33” (838) RECOMMENDED
CABINET WIDTH
30” MIN (762)
Figure 2-10 CT30IU Counter top Cut-Out
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm) above
counter top.
**Minimum dimension, but may be exceeded by up to 1/8” (3).
NOTE: Unit dimensions may vary to ±1/8” (3mm).
Counter top Cut-out Dimensions (CT30IU )
NOTE: For complete installation information, please refer
to the Installation Guide provided with the unit.
The CT30IU is designed to fit a 33” (838mm) width base
cabinet with a 25” (635mm) deep counter top. Before
making the counter top cut-out, verify that the cooktop
will clear the side walls of the base cabinet below. A Wolf
30” (762mm) built-in single oven may be installed below
Model CT30IU. For this installation, unless the cabinets
are deeper than 24” (610mm), it is recommended that the
electrical supply be placed in the base cabinet to the right
of the oven. (See Figure 2-9 & 2-10)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
NOTE: Do not block the cooling fan located at the bottom
of the cooktop. Minimum 6 1/4” (159mm) clearance
is required between countertop and any combustible
surface directly below the cooktop.
NOTE: International units must also take the extra space
required for the Terminal Box into consideration.
NOTE: For flush mount application, it is recommended to measure the glass before cutting the countertop to ensure a
proper fit. Small variances may exist between the template and the cooktop.
15/16"(33)
RADIUS
27/16"(62)
7/16"(11) RADIUS
19/16"(40)
5/16"(8)
7/8"
(22) max
2"* (51)
30 1/8” ** (765)
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
28 3/8” (721)COOKTOP
CUT-OUT WIDTH
19 3/8” (492)
COOKTOP
CUT-OUT DEPTH
FRONT OF COUNTERTOP
21 1/8” ** (537)
RECESSED AREA
FOR FLUSH MOUNT
INSTALLATION ONLY
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
COUNTERTOP
PROFILE

Page 8
Induction Cooktop
Installation Information
2-8
*Minimum clearance from both side edges of cooktop cut-out to combustible materials up to 18” (457mm) above counter
top.
**Minimum dimension, but may be exceeded by up to 1/8” (3).
NOTE: Unit dimensions may vary to ±1/8” (3mm).
Counter top Cut-out Dimensions (CT36IU )
NOTE: For complete installation information, please refer to
the Installation Guide provided with the unit.
The CT36IU is designed to fit a 39” (914mm) width base
cabinet with a 25” (635mm) deep counter top. Before
making the counter top cut-out, verify that the cooktop
will clear the side walls of the base cabinet below. A Wolf
36” (762mm) built-in single oven may be installed below
Model CT36IU. For this installation, unless the cabinets
are deeper than 24” (610mm), it is recommended that the
electrical supply be placed in the base cabinet to the right
of the oven. (See Figure 2-11 & 2-12)
NOTE: Locate the junction box within reach of the 48”
(1219 mm) conduit, and accessible when the cooktop unit
is installed.
NOTE: Do not block the cooling fan located at the bottom
of the cooktop. Minimum 6 1/4” (159mm) clearance is
required between countertop and any combustible surface
directly below the cooktop.
NOTE: International units must also take the extra space
required for the Terminal Box into consideration. Figure 2-11 CT36IU Counter top Cut-Out Top View
Figure 2-12 CT36IU Counter top Cut-Out
18"
(457)
36-INCH OVEN OPENING
13" max
(330)
24" min
(610)
4" min (102)
E
10"
(254)
4" min (102)
TO OVEN
OPENING
31/2"(89)
41/2"(114)
SEE COUNTERTOP
CUT-OUT ABOVE
36” (914)
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
2”* min (51)
CUT-OUT TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)
30” (762)
COUNTERTOP TO
COMBUSTIBLE
MATERIALS
ABOVE COOKTOP
39” (991)
RECOMMENDEDCABINET WIDTH
36” MIN (914)
SEE COUNTERTOP
CUT-OUT ABOVE
NOTE: For flush mount application, it is recommended to measure the glass before cutting the countertop to ensure a
proper fit. Small variances may exist between the template and the cooktop.
15/16"(33)
RADIUS
27/16"(62)
19/16"(40)
7/16"(11) RADIUS
5/16"(8)
7/8"
(22) max
2"* (51)
36 1/8” ** (918)
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
34 3/8” (873)
COOKTOPCUT-OUT WIDTH
FRONT OF COUNTERTOP
21 1/8” ** (537)
RECESSED AREA
FOR FLUSH MOUNT
INSTALLATION ONLY
19 3/8” (492)
COOKTOP
CUT-OUT DEPTH
RECESSED AREA FOR
FLUSH MOUNT INSTALLATION ONLY
COUNTERTOP
PROFILE

Page 9
Induction Cooktop Installation Information
2-9
Figure 2-9 Multiple Cooktop Arrangements
Multiple Cooktop Installations
If the induction cooktop is to be used with any
combination of additional cooktop units or modules with
a filler strip, the cut-out width is calculated by adding
the corresponding units’ cut-out dimensions plus 1-1/4”
(32mm) for each additional unit. (See Figure 2-9)
NOTE: For Model CT15I, the cut-out width should be
increased from 13-3/8” (340mm) to 14” (356mm) when
installed with multiple units.
NOTE: When multiple units are installed side by side,
each unit must have its own separate recommended
electrical circuit.
NOTE: It is recommended that you operate the Wolf
induction cooktop with either a Wolf cooktop ventilation
hood, downdraft system or Pro ventilation hood.
When two or more modules are installed together,
an integrated module filler strip (IFILLER/S) is
recommended. If a 30” (762mm) downdraft ventilation
system is also installed, an integrated module support
for downdraft ventilation (ISUPPORT) is also required.
Contact your Wolf dealer for information on these
accessory components.
Ventilation Options
NOTE: It is recommended that you operate the Wolf induction cooktop with either a Wolf cooktop ventilation hood,
downdraft system or Pro ventilation hood. Contact your Wolf dealer for details.
The following is a list of ventilation units that can be used with the induction cooktops.
Cooktop Wall Hood – 30” (762) or 36” (914) widths in classic stainless steel.
Cooktop Island Hood – 42” (1067) width in classic stainless steel.
Downdraft Ventilation System – 30” (762), 36” (914) or 45” (1143) widths, with top cover and control panel in classic,
platinum and carbon stainless steel finishes. 45” (1143) downdraft available in classic finish only.
Pro Wall Hood – 22” (559), 24” (610) or 27” (686) depths and 30” (762) to 66” (1676) widths in classic stainless steel.
Pro Island Hood – 36” (914) to 66” (1676) widths in classic stainless steel.
Pro Hood Liner – available in widths to accommodate 36” (914) to 60” (1524) hoods.
NOTE: When installing a ventilation hood, refer to the specific requirements of the hood for the minimum dimension to
counter top.

Page 10
Induction Cooktop
Installation Information
2-10
Cooktop
Foam
Strip
Cooktop
Countertop
Bracket
Bracket
Screws 3-1/2” (89)
Clamping
Screw

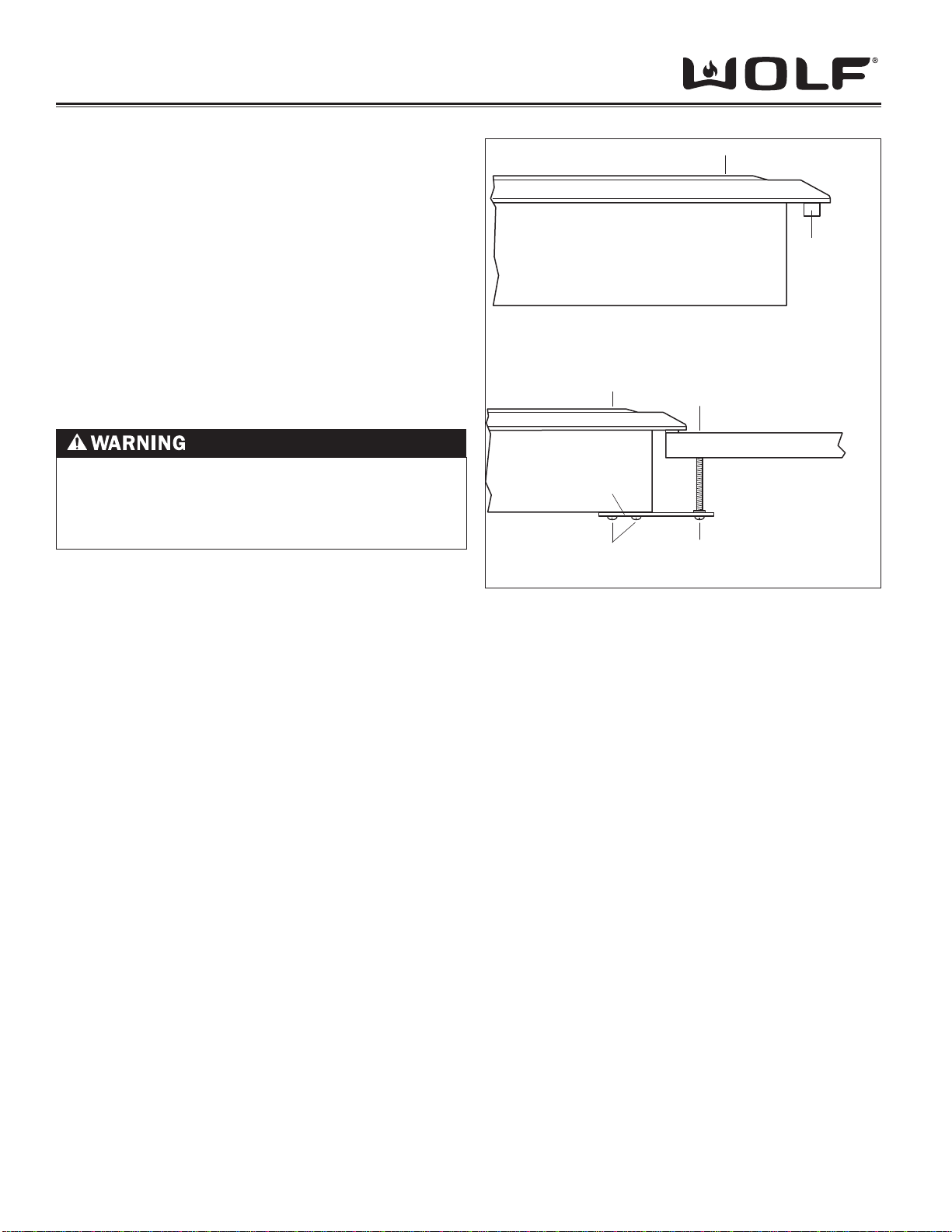

Figure 2-10 Cooktop Installation
Cooktop Installation
Attach the foam strip to the underside of the cooktop
frame. Gently lower the cooktop into the cut-out area in
the counter top and center. Check that the front edge of
the cooktop is parallel to the front edge of the counter top.
Check that all required clearances are met.
Attach the brackets to the bottom of the unit, as shown in
the illustration below. Install the clamping screws into the
bracket and tighten until the screws contact the underside
of the counter top. Do not overtighten the screws. (See
Figure 2-10)
NOTE: Do not seal the cooktop to the counter top. The
cooktop must be removable if service is necessary.
If the ceramic glass top of the cooktop is
broken, turn off power to the unit. Do not
operate until glass has been replaced by a
Wolf authorized service center.
