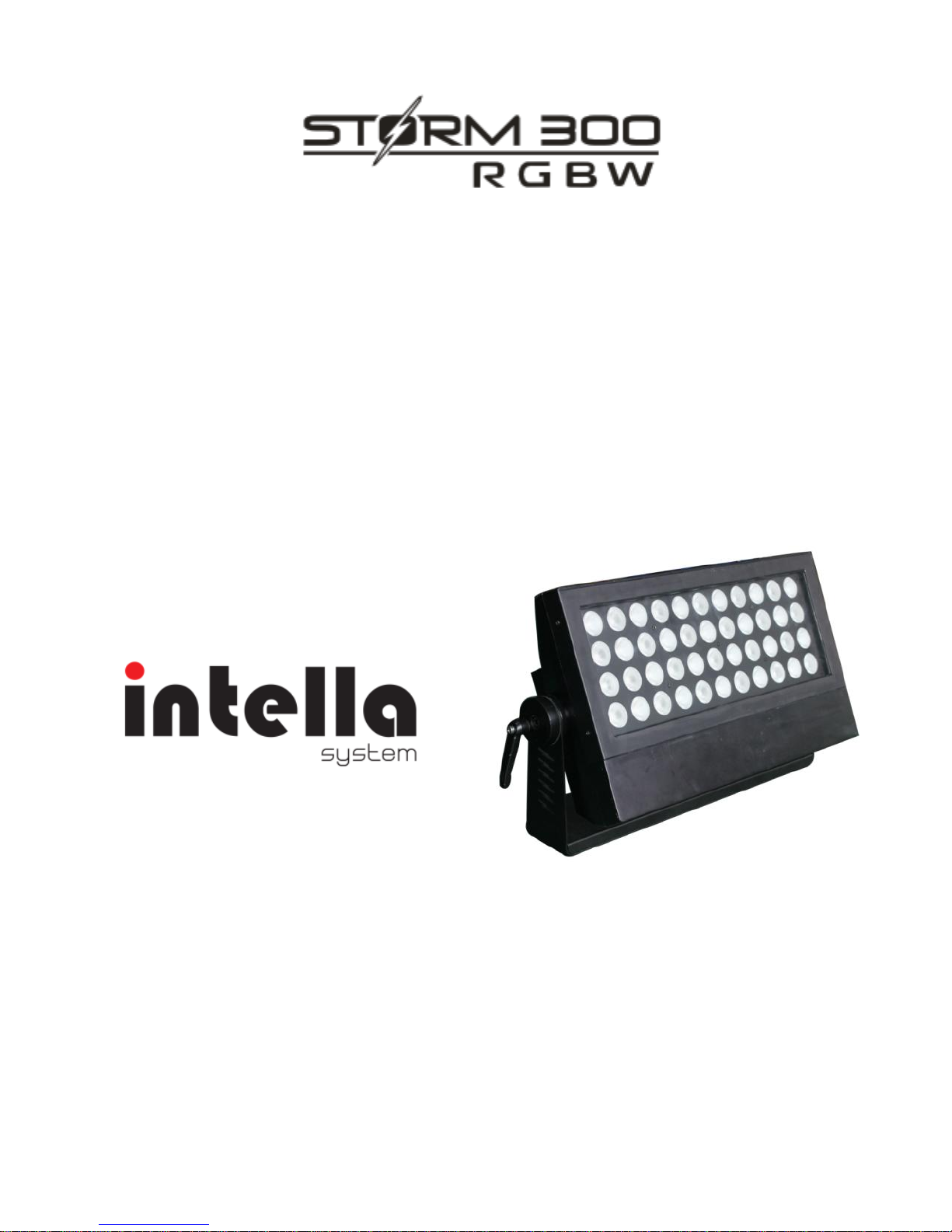

Intella storm 300 RGBW User manual

44pcs

1
INTRODUCTION.......................................................................................................2
DESCRIPTION...........................................................................................................2
SAFETY INSTRUCTIONS .......................................................................................2
DMX-512 connection with DMX terminator...................................................3
Display Menu ............................................................................................................4
Main functions..........................................................................................................5
DMX functions and values ...................................................................................7
CLEANING AND MAINTENANCE.........................................................................9
INSTALLATION .......................................................................................................10

2
INTRODUCTION
Thank you for having chosen our LED lighting
Unpack the device, inside the box you should find:
The fixture device
One power cable
One XLR connection cable
This manual
Please check carefully that there is no damage caused by transportation.
Should there be any problems, consult your dealer and don’t install this
device.
DESCRIPTION
Features
Easy multi fixture hanging system, outdoor version available
44pcs RGBW 4in1 LED, no ultraviolet radiation
More than 50,000 hours for the LED light source
12,000 lm
35 degree
1/3/4/5/10/14/15 DMX channels
16 Bit Dimmer
DMX Mode /Master-slave mode
AC 100-240V 50/60Hz 260W
Diecasting heatsink, convection cooling, no fans, no noise
With temperature sensor to extend the lamp life
7000 Hz LED scan rate
L: 490mm H:285mm W:105mm, Weight 9Kg
IP65/IP43 selectable
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to
maintain this condition and to ensure a safe operation, it
is absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
This device falls under protection-class I. Therefore it is essential that
the device should be earthed.
The electric connection must carry out by qualified person.
If the external flexible cable or cord of this luminaire is damaged,
it shall be exclusively replaced by the manufacturer or his
service agent or a similar qualified person in order to avoid a hazard.

3
Make sure that the available voltage is not higher than stated at the
end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
If this would be the case, replacement of the cable must be done by
an authorized dealer.
Always disconnect from the mains, when the device is not in use or before
cleaning it. Only handle the power cord by the plug. Never
pull out the plug by tugging the power cord.
Never look directly into the light source, as sensitive
persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not
subject to warranty. The dealer will not accept liability for any
resulting defects or problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors.
Screened cables in compliance with EIA RS-485 specifications and the
following characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment,such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 OHM resistor connected between
pins 2 and 3,which is then plugged into the output XLR socket of the last
fixture in the chain.

4
Display Menu
Main menu
Sub-menu
address
DMX Address Setting
config
channel
channel 1Ch
channel 3Ch
channel 4Ch
channel 5Ch
channel 10Ch
channel 15Ch
Dimmer Curve
Mode L
Mode Q
Mode I
Mode S
Cipher Setup
0-999
Key Mode
Lock
UnLock
Temp Uint CS
Celsius Degree
Fahrenht Degree
DMX Status
Value Clear
Value Hold
Display Mode
Auto
On
System Info
Temp
Hour
Color Menu
Red
0-255
Green
0-255
Blue
0-255
White
0-255
White Balance
Set Red
0-255
Set Green
0-255
Seg Blue
0-255
Static color
Color 0-51
Auto Test
Load Default
Firmware Version

5
Main functions
1. address:Current DMX address
A.Setting DMX address by button
press ENTER button when show the address menu, then adjust the
DMX address by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or pressing [ESC] to return to main menu.
B.Setting DMX address by controller
1.Set the DMX value of channel 5 to 10-15,channel 17 to 20-26,
channel 7 to 30-36,channel 8 to 40-46,then the devices connected to
the controller will enter to the setting address mode
2. Set the DMX value of channel 1 from 0-59,then you will see the
the first number of the Address change to (channel 1 vaule)/10.
For example,when set the value of channel 1 to 20,the first DMX
address number will be 2(20/10=2) ,
3. Set the DMX value of channel 2 from 0-99,then you will see the
the sencond number of the Address change to (channel 2 vaule)/10.
For example,when set the value of channel 2 to 30,the first DMX
address number will be 2(30/10=3) ,
4.Set the DMX value of channel 3 from 0-99,then you will see the
the third number of the Address change to (channel 3 vaule)/10.
For example,when set the value of channel 1 to 40,the first DMX
address number will be 3(40/10=4) ,
And the DMX address you set by conctroller will be 234.
5. Set the DMX value of channel 4 to 255,then you will save the DMX
address setted by the controller.
Caution: It won’t save the address if the address number is
over 512
6. set the value of channel 5-8 out of the value range show on the
step 1,and the device will exit the setting address mode
2. config
Setting DMX mode
press ENTER button when show the channel menu, then select the
DMX mode by pressing [UP] or [DOWN] button
Setting Dimmer Curve
press ENTER button when show the dimmer curve menu, then
select the dimmer curve by pressing [UP] or [DOWN] button
Setting Cipher

6
press ENTER button when show the cipher setup menu, then
setup cipher by pressing [UP] or [DOWN] button
Key mode
press ENTER button when show the key mode menu, then select
lock or unlock by pressing [UP] or [DOWN] button
Show Temperature
press ENTER button when show the Temp Uint CS menu, select the
way of showing the fixture’s temperature in ℃or ℉by pressing
[UP] or [DOWN] button
DMX status
press ENTER button when show the DMX Status menu, then select
clear value or hold value by pressing [UP] or [DOWN] button
Display mode
press ENTER button when show the Display Mode menu, then
select auto or on by pressing [UP] or [DOWN] button
3. System info
Temperature
press ENTER button when show the Temperature menu, then it will
show the temperature of the fixture
Fixture time
press ENTER button when show the Fixture time menu, then it will
show how long time of the fixture already used
4. Color menu
press ENTER button when show the Color menu, press Enter button
to select the color mode, then adjust the color by pressing [UP] or
[DOWN] button
5. White balance
press ENTER button when show the white balance menu, press
Enter button to select the color mode, then adjust the color by
pressing [UP] or [DOWN] button
6. Auto test
press ENTER button when show the auto test menu, select test
mode by pressing [UP] or [DOWN] button

7
DMX functions and values
1CH Mode
1
0-255
Static color
3CH Mode
1
0-255
Red
2
0-255
Green
3
0-255
Blue
4CH Mode
1
0-255
Red
2
0-255
Green
3
0-255
Blue
4
0-255
White
5CH Mode
1
0-255
Master dimmer
2
0-255
Red
3
0-255
Green
4
0-255
Blue
5
0-255
White
10CHF Mode
1
0-255
Master dimmer
2
0-255
Master dimmer fine
3
0-255
Red dimmer
4
0-255
Red dimmer fine
5
0-255
Green dimmer
6
0-255
Green dimmer fine
7
0-255
Blue dimmer
8
0-255
Blue dimmer fine
9
0-255
White dimmer

8
10
0-255
White dimmer fine
14CH Mode
1
0-255
Master dimmer
2
0-255
Red1 dimmer
3
0-255
Green1 Dimmer
4
0-255
Blue1 Dimmer
5
0-255
White1 Dimmer
6
0-255
Red2 Dimmer
7
0-255
Green2 Dimmer
8
0-255
Blue2 Dimmer
9
0-255
White2 Dimmer
10
0-15
No Effect
16-255
Strobe Rate(0 - 30HZ)
11
0-255
Color Macro Color+Black
12
Auto run
0-35
No Effect
36-71
ramp up
72-107
ramp down
108-143
ramp up/down
144-179
color mix mode
180-215
4-colors
216-255
8-colors
13
0-255
dimmer speed
14
dimmer curve
0-63
L curve
64-127
S curve
128-191
I curve
192-255
Q curve

9
15CH Mode
1
0-255
Master dimmer
2
0-255
Master dimmer fine
3
0-255
Red dimmer
4
0-255
Red dimmer fine
5
0-255
Green dimmer
6
0-255
Green dimmer fine
7
0-255
Blue dimmer
8
0-255
Blue dimmer fine
9
0-255
White dimmer
10
0-255
White dimmer fine
11
0-15
No Effect
16-255
Strobe Rate(0 - 30HZ)
12
0-255
Color Macro Color+Black
13
Auto run
0-35
No Effect
36-71
ramp up
72-107
ramp down
108-143
ramp up/down
144-179
color mix mode
180-215
4-colors
216-255
8-colors
14
0-255
dimmer speed
15
dimmer curve
0-63
L curve
64-127
S curve
128-191
I curve
192-255
Q curve
CLEANING AND MAINTENANCE
We recommend a frequent cleaning of the device. Please use a soft

10
lint-free and moistened cloth. Never use alcohol or solvents!
CAUTION!Disconnect from mains before starting maintenance
operation.
There are no servicable parts inside the device. Maintenance and
service operations are only to be carried out by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be
replaced by authorized dealers only in order to avoid hazards.
If you have further questions, please contact your dealer.
INSTALLATION
The device must only be installed at a vibration-free, oscilation-free
and fire-resistant location.
