Inter-m PF-6302A User manual
Operation Manual
Auto Blower
PF-6302A
AUTO BLOWER
Welcome
Welcome
A personal welcome to you from the management and employees of Inter-M
All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently
good value, and we are delighted you have purchased one of our products.
We sincerely trust this product will provide years of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make things right.
Welcome to Inter-M, and thank you for becoming part of our worldwide extended family!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION : RISQUE DE CHOC ELECTRIQUE
NE PAS QUVRIR
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
*WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc). Care should
be taken so than objects do not fall and liquids are not spilled into the enclosure through openings.
*Do not install this equipment in a confined space such as a book case or similar unit.
*Warning : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and objects filled with liquids,
such as vases,
should not be placed on this apparatus.
*This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
*
To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from the AC receptacle.
*
The mains plug of the power supply cord shall remain readily accessible.
CAUTION
*These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you are qualified to do so.
NOTE
*This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user to the
presence of important operation and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Caution: To prevent electric shock do not use this (polarized) plug
with an extension cord, receptacle or other outlet unless
the blades can be fully inserted to prevent blade
exposure.
Attentions: Pour prévenir les chocs électriques ne pas utiliser
cette fiche polarisée avec un prolongateur, une prise
de courant on une autre sortie de courant, sauf si les
lames peuvent étre insérées à fond sans en laisser
aucune partie à découvert.
Pour deconnecter completement l’appareil du reseau
d’alimentation. deconnecter le cordon d’alimentation
de la prise murale.
La prise du reseau d’alimentation doit demeurer
aisement accessible.
AUTO BLOWER
1
PF-6302A
Contents
Contents
Unpacking .........................................................................................................................2
Installation
Environment ......................................................................................................................2
Important Safety Instructions ...............................................................................................2
Features .............................................................................................................................3
Accessories .......................................................................................................................3
Front Panel ........................................................................................................................4
Rear Panel .........................................................................................................................5
Applications ......................................................................................................................6
Block Diagram ..................................................................................................................7
Specifications ....................................................................................................................8
Service
Procedures ......................................................................................................................10
Schematic .......................................................................................................................10
Parts List..........................................................................................................................10
Warranty .........................................................................................................................10
AUTO BLOWER
Unpacking
2PF-6302A
Unpacking
Although your PF-6302A is neither complicated nor difficult to operate, we recommend you take a
few minutes to read this brief manual and familiarize yourself with the important information
regarding product features, setup and operation.
As with most electronic devices, we strongly recommend you retain the original packaging. In the
unlikely event the product must be returned for servicing, the original packaging (or reasonable
equivalent) is required.
Installation
Installation
Environment
Never place this product in an environment which could alter its performance or reduce its service life.
Such environments usually include high levels of heat, dust, moisture, and vibration.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
S3125A
S3125A
AUTO BLOWER
3
PF-6302A
Features
Features
- AUTO BLOWER
Auto fan operates when the inside temperature of PA RACK goes up.
- MANUAL MODE OPERATION
When it's manual mode, the fan operates always regardless of temperature.
- AUTO MODE OPERATION
When it’s auto mode, the fan operates at 35°C/95°F.
AUTO BLOWER
4PF-6302A
Front Panel
Front Panel
1. POWER INDICATOR LED
This LED is turned on when DC power supplied.
2. AIR FLOW HOLE
During the fan operation, air flows outside of PA RACK through air hole.
3. MODE SELECTOR SWITCH
You can select the operating mode by using this switch. When its OFF mode the fan is stopped.
When it’s manual mode, the fan always works regardless of temperature. When it’s auto mode,
the fan starts automatically over 35°C/95°F.
AUTO BLOWER
5
PF-6302A

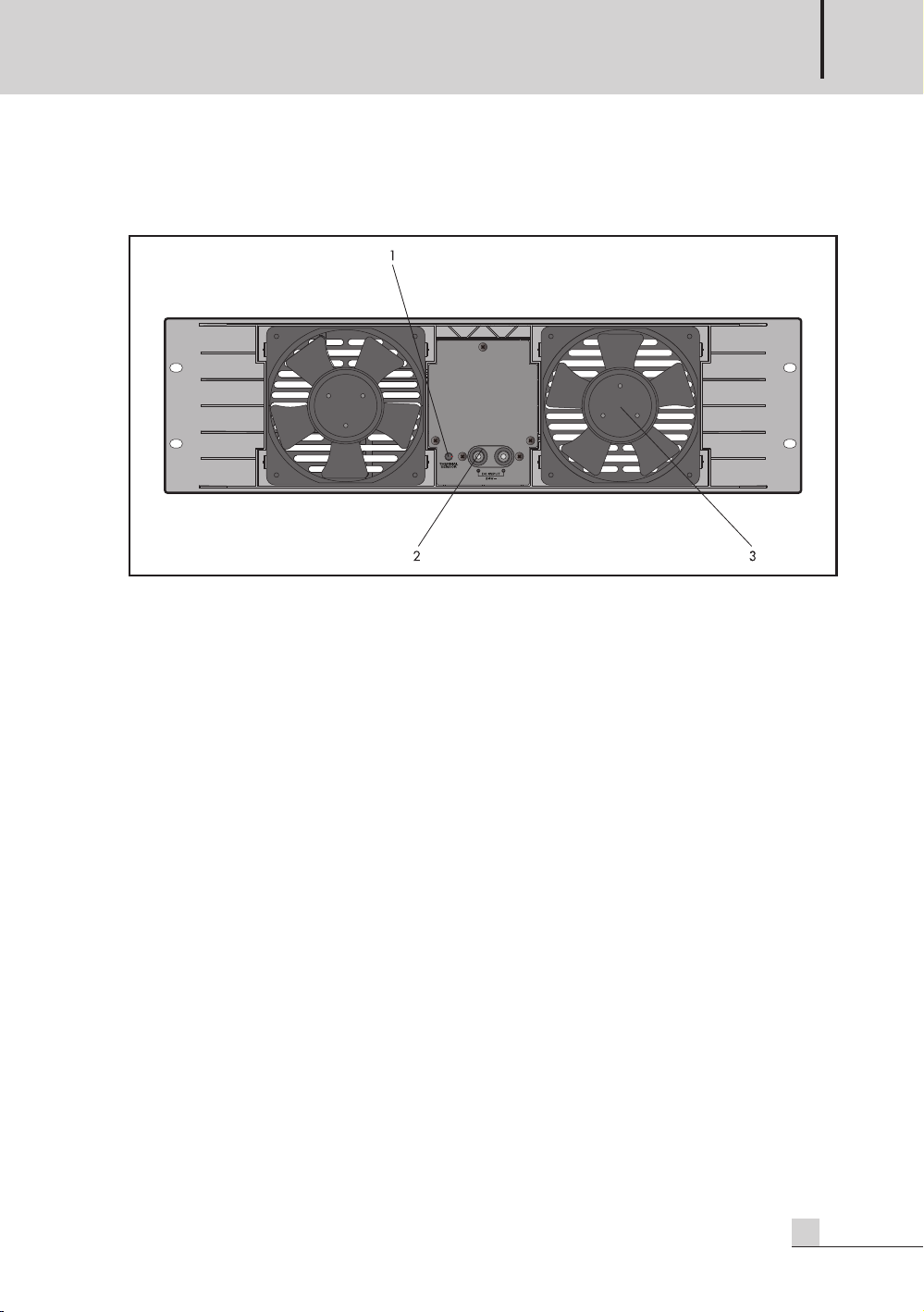

Rear Panel
Rear Panel
1. THERMAL SENSOR
The FAN operates when the thermal sensor detects heat inside the rack and reaches 35 °C.
2. DC INPUT TERMINAL
It connected to DC +24V.
3. FAN
As a low-noise fan, it is operated by the selection switch on the front panel of this unit and
ventilates the heat inside the rack system to the outside.
AUTO BLOWER
6PF-6302A
Applications
Applications
PF-6302A
PD-6359
※Please be careful the polarity DC power.
AUTO BLOWER
7
PF-6302A
Block Diagram
Block Diagram
+24V
DC TERMINAL
POWER
LED
AUTO
MANU
OFF
REGULATED
POWER
MODE
SELECTOR
SWITCH
THERMAL
SENSOR
COMPARATOR FAN101 FAN101
AUTO BLOWER
8PF-6302A
Specifications
Specifications
PF-6302A
Operating Mode Off/Manual/Auto
Operating Temperature at Auto Mode 35°C
FAN
Current Max. 300mA
Opeating Speed 2600 RPM
Air Flow Max. 2.33m3/min
SOUND NOISE 40dBA
Operation Temperature -10°C ~ +40°C / 14°F~104°F
Power Source 24V DC
Weight (SET) 0.7kg/1.54lb
Dimensions (SET) 482(W)x132(H)x28(D)mm/19(W)x5.2(H)x1.1(D)in
* Design and specification are subject to be changed for the improvement of product quality without pre notice.
AUTO BLOWER
9
PF-6302A

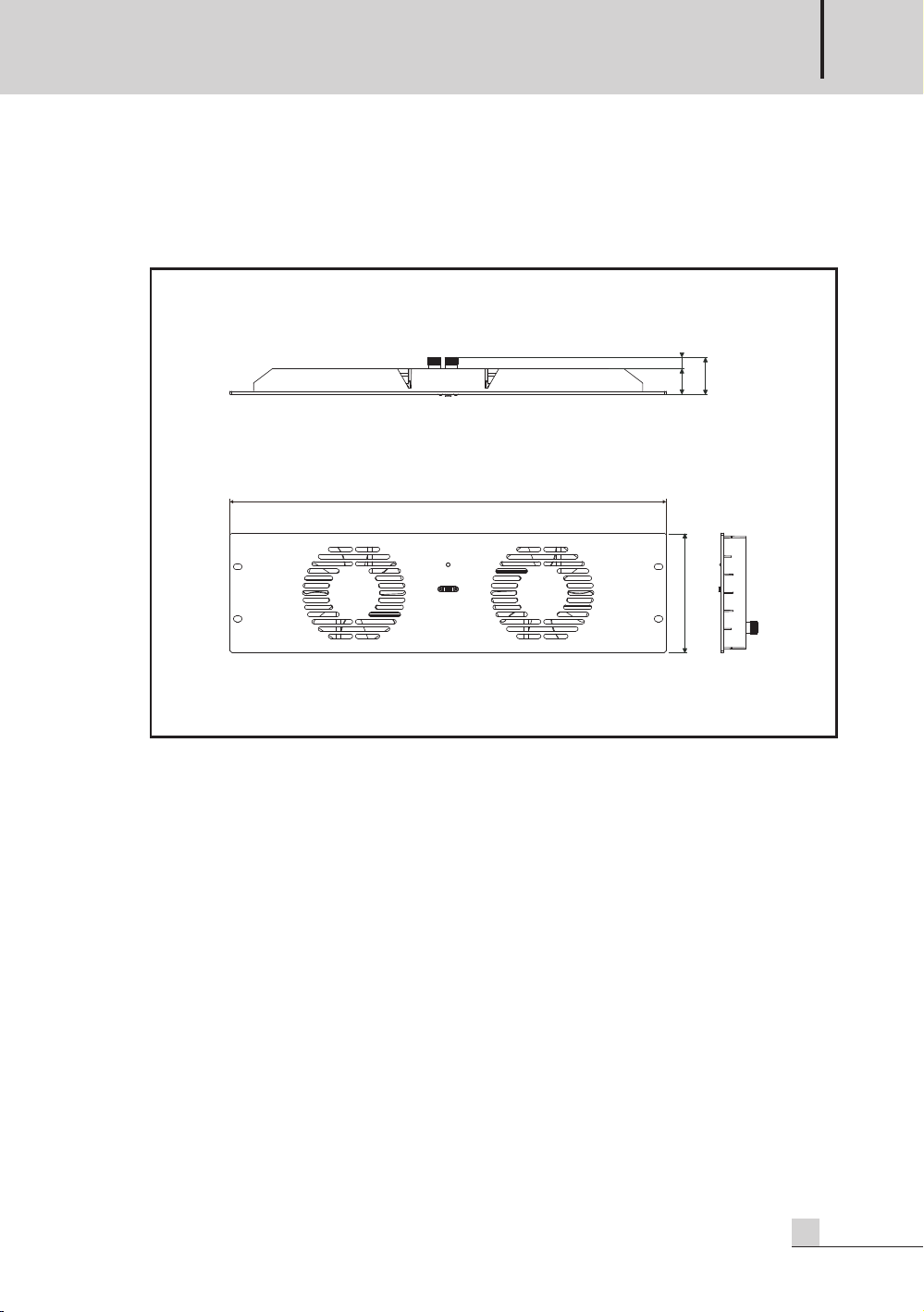

※ DIMENSIONS
482
132
41
28 13
AUTO BLOWER
10 PF-6302A
Service
Service
Procedures
Take steps to insure the problem is not related to operator error or other products within the system.
Information provided in the troubleshooting portion of this manual may help with this process. Once it
is certain that the problem is related to the product contact your warranty provider as described in the
warranty section of this manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Warranty
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and
conditions of warranty for a given product may be determined first by locating the appropriate
country which the product was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Inter-M directly or the
authorized Inter-M Distributor for your specific country or region.
3
PF-6302A
NOTE
2PF-6302A
NOTE
3
PF-6302A
MADE IN KOREA
March 2023 157701
Inter-M, Ltd. (Korea) began operations in 1983.
Since then, Inter-M has grown to become one of the largest manufacturers
of professional audio and commercial sound electronics equipment in the world.
Inter-M has gained worldwide recognition for its own branded products,
as well as private label manufacturing of electronics sold under other names (OEM).
The company is no longer just a Korean company, but rather a global company
that is truly international in scope, with factories and offices in Korea and China,
and sales and marketing operations located in Japan, Europe, and the U.S.A.
With more than 850 employees around the globe,
Inter-M is well-poised for further growth and expansion.
Inter-M Corporation
SEOUL OFFICE : 719, DOBONG-RO, DOBONG-GU, SEOUL, KOREA
TEL : +82-2-2289-8140~8, FAX : +82-2-2289-8149
