Inter-m CD-611 User manual

CD/MP3/WMA Player with PITCH Control
CD-611

CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Electrical Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

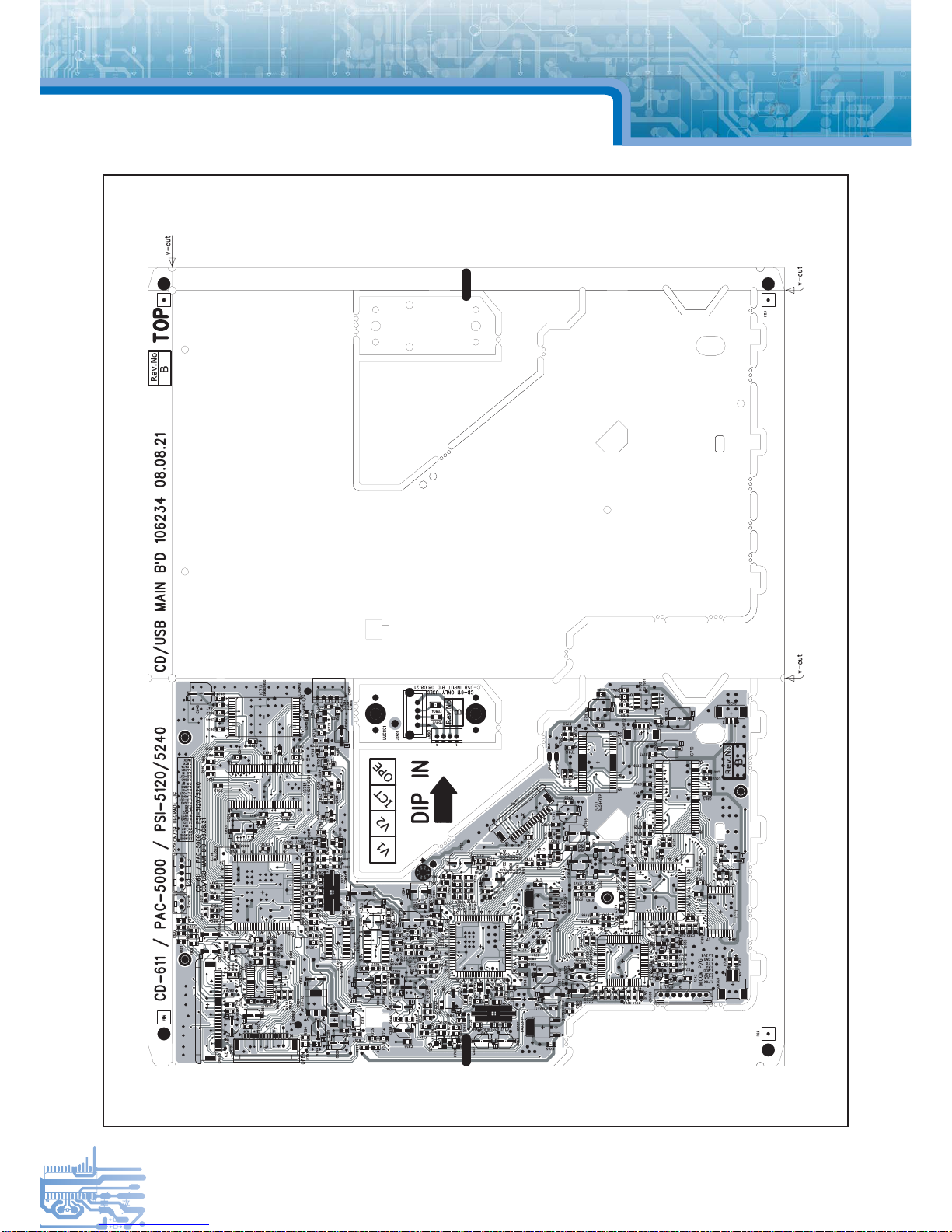

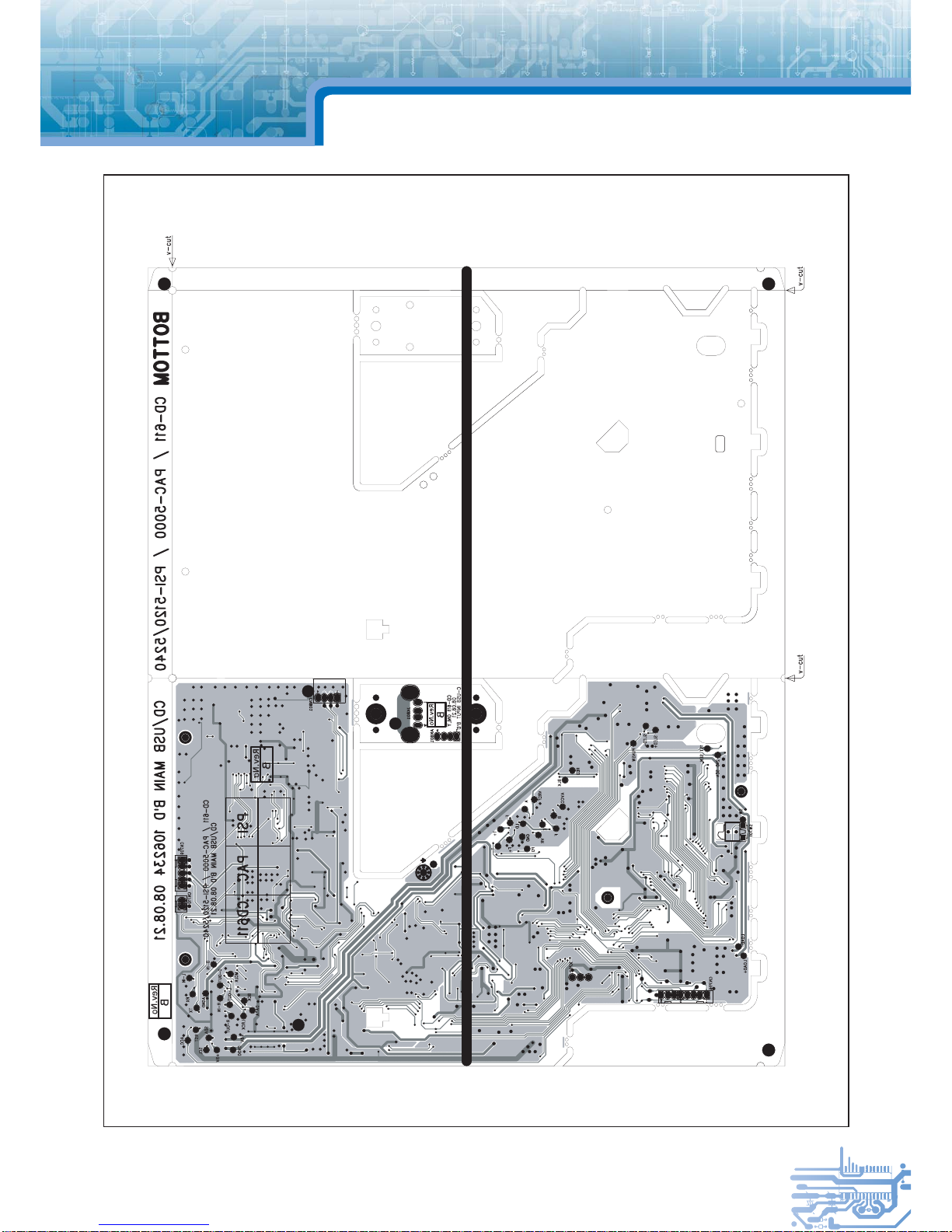

Top and Bottom View of P.C. Board . . . . . . . . . . . . . . . . . . . . . . . . 8

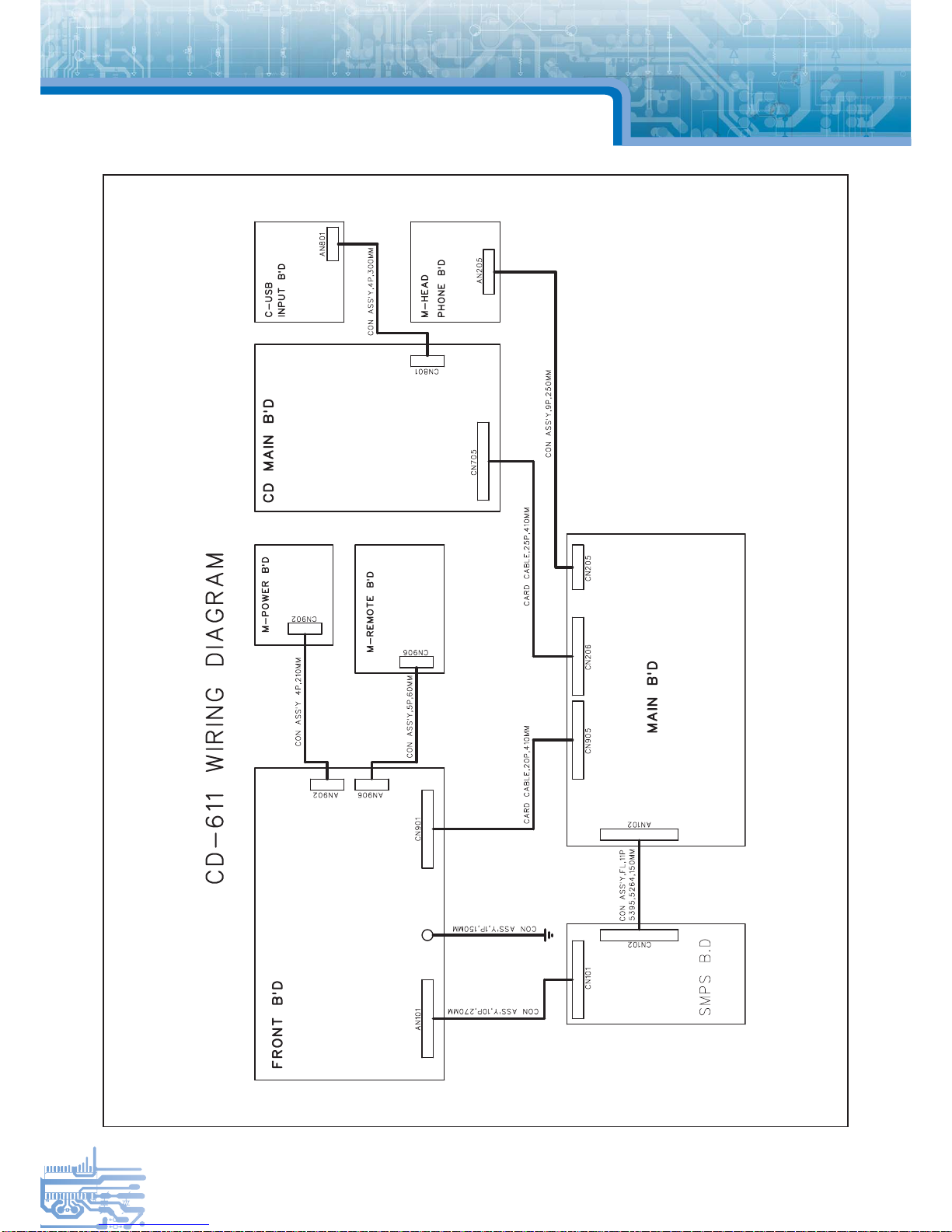

Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

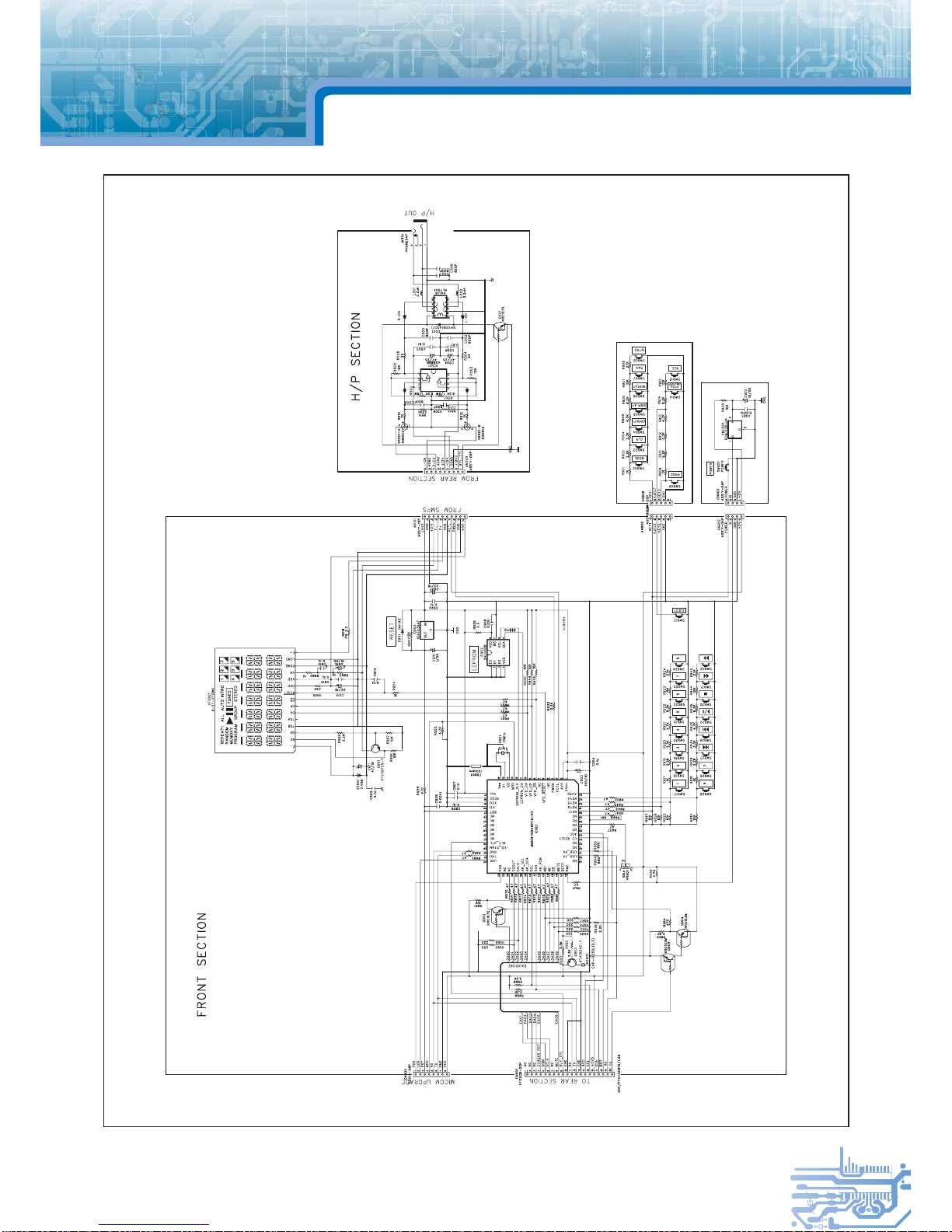

Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Exploded View of Cabinet & Chassis / Mechanical Parts List . . . 18

1
SPECIFICATIONS
CD-611
Frequency Response 20Hz~20KHz ±1dB
T.H.D. (with A filter) Less than 0.02%
S/N (with A Filter) Better than 85dB
Analog Output Level 6 dBV
Headphone Output Level (load impedance 32Ω) 3.5dBV±2dB
Analog Output Terminal RCA-L/R, XLR-L/R, XLR MONO
Digital Output (TOS LINK/RCA) SPDIF(IEC958)
Player Responds CD-DA/MP-3/WMA
Operation Temperature -10°C ~ +40°C
Power Source 100–240VAC, 50/60Hz
Power Consumption 18W (Standby: Less than 1W)
Weight (SET) 5.8kg/12.8lb
Dimensions (SET) 482(W)x88(H)x380(D)mm/19(W)x3.5(H)x14.9(D)in
* Specifications and design are subject to change without notice.

2
JK201 111597 JACK,RCA,1U,AN,ORANGE,JC010127HN RCA01P
AN102 107266 CON ASS'Y,FL,11P,5395,5264,150MM ASS'Y-11P
CN905 111205 CON FFC/FPC STRAIGHT 20P-P1.25 ZIF8370-20P
RLY201-204 112643 RELAY,DPDT,12V,1A,125VAC 12V
JK207 111451 JACK,DSUB(M),1U,9P,2/AN,RIVET TYPE D-SUB09P
JK202 111455 JACK,MODULAR,1U,3P,AN,TOTX177L TOTX177L
JK206 111596 JACK,RCA,2U,2P,2/AN RCA02P
JK203-205 110896 JACK,XLR(M),1U,3P,AN,E503A0130N XLR/F
CN205 111337 CON WAFER 9P (2MM) 53014-09P
CN206 110976 CON WAFER,FPC/FFC,25P,1MM,ST,FMN-BTRK FMN/BTK-25P
D201-204 102659 DIODE,RE,1A,800V,1N4006,DO-41,TA 1N4006(4007)
FB208-209 103528 INDUCTOR,BEAD H5B
C209 C211-215 C217 105405 CAP,E,SM,SG,85C,10UF,50V,M,5P,TA 10/50
C221 C225 C229 C231 105421 CAP,E,SM,RG,105C,100UF,25V,M,6.3X11,TA 100/25
C233 C238 C247 C258
C291-293 C305-306
C201
C285 C287-290 105445 CAP,E,SM,SG,85C,1UF,50V,M,5P,TA 1/50
C242 C244 C256-257 105463 CAP,E,SM,SG,85C,22UF,50V,M,5P,TA 22/50
C260 C265 C299-300 105504 CAP,E,SM,SG,85C,47UF,25V,M,6P,TA 47/25
C202 C249-250 C261
C263 C275 C282 105511 CAP,E,SM,SG,85C,47UF,50V,M,6P,TA 47/50
C297-298
C227
C312-313 105672 CAP,CE,HI-DI,Y5V,0.1UF,50V,Z,RA,TA 0.1U
C280 105942 CAP,FILM,M-POLYESTR,0.1UF,50V,J,TA 0.1/50(M)
Q201 Q207 102530 TR,SW,PNP,100MA,50V,KRA107M,TO-92M,TA KRA107M
Q202-206 Q208 118640 TR,NPN,KRC107S,SOT23 KRC107S
Q209-210 118670 KTD1304-RTK KTD1304
IC208-210 IC212 118712 IC,OP AMP,NJM5532M,DMP8 NJM5532M
IC201 118756 IC,VOL REG,3.3V 1A,BA033FP,TO252 BA33FP
IC211 118967 IC,INVERTER,74HC04D,SOP14 74HC04
IC204 119001 IC,RECEIVER/DRIVER,RS232,MAX232,SOP16 MAX232CWE
IC202 119032 IC,CODEC,TLV320AIC23B,TSSOP28 TLV320AIC23
IC117 119165 IC,CODEC,AUDIO,24BIT,CS4265,QFN32 CS4265
FB202-207 119251 INDUCTOR,BEAD,2012,TA 120ohm
L201-202 119291 COIL,FER,4.7UH,TA 4.7uH
R201 R217 119333 RES,TF,0,1/16W,0.05,1608 0
R226-227 R232 119345 RES,TF,10,1/16W,5%,1608 10
R235-236 119361 RES,TF,1K,1/16W,5%,1608 1K
R238-239 R288-289
R294-295 119366 RES,TF,10K,1/16W,5%,1608 10K
R241-244 R267-270
R276-278 R287 119369 RES,TF,100K,1/16W,5%,1608 100K
R290-291 R304
R222-223 R286
R247-248 119381 RES,TF,11K,1/16W,5%,1608 11K
R240 R245 119400 RES,TF,12K,1/16W,5%,1608 12K
R231 R233 119486 RES,TF,22,1/16W,5%,1608 22
R214-215 119496 RES,TF,2.2K,1/16W,5%,1608 2.2K
R204 R246 R263-264 119498 RES,TF,22K,1/16W,5%,1608 22K
R275 R292-293 119526 RES,TF,2.7K,1/16W,5%,1608 2.7K
R261-262
ELECTRICAL PARTS LIST
Ref. Part No. Description Value
MAIN B'D 106204

Ref. Part No. Description Value
3
R250 119564 RES,TF,33,1/16W,5%,1608 33
R210-212 119569 RES,TF,330,1/16W,5%,1608 330
R202-203 R205 R213 119616 RES,TF,47,1/16W,5%,1608 47
R228-230 R237 119619 RES,TF,470,1/16W,5%,1608 470
R283-285
R257-260 R271-272
R279 R281 R305 119624 RES,TF,4.7K,1/16W,5%,1608 4.7K
R224-225
R234 119629 RES,TF,47K,1/16W,5%,1608 47K
R282 119666 RES,TF,56,1/16W,5%,1608 56
R216 R218-220 119746 RES,TF,8.2K,1/16W,5%,1608 8.2K
R273-274 119816 RES,TF,43K,1/10W,1%,2012 43K 1%
C210 C317 120240 CAP,CE,MONO,X7R,0.001UF,50V,K,1608,TA 0.001U
C203-208 C216 C218 120246 CAP,CE,MONO,X7R,0.1UF,50V,Z,1608,TA 0.1U
C224 C226 C228 C230 120313 CAP,CE,MONO,X7R,0.047UF,50V,K,1608,TA 0.047U
C232 C241 C243
C253-254 C262
C264 C281 C284 C286
C295-296
C277
C267-273 C301 C304 120351 CAP,CE,MONO,COG,100PF,50V,J,1608,TA 100P
C252 C255 C279 C294 120359 CAP,CE,MONO,COG,18PF,50V,J,1608,TA 18P
C302 120428 CAP,CE,MONO,X7R,2200PF,50V,K,1608,TA 2200P
C219-220 C222-223
C274 120430 CAP,CE,MONO,X7R,0.022UF,50V,K,1608,TA 0.022U
C276 120417 CAP,CE,MONO,X7R,0.01UF,50V,K,2012,TA 0.01U
VFD901 103351 VFD,9-ST-37GINK,FUTABA 9-ST-37GINK
BZ901 112730 BUZZER,CAP-1205SL(9.5),KEUM KANG CAP-1205SL(9.5)
CN901 111199 FFC,WAFER,1.25,ANGLE,20P FFCSCB-20P
AN902 123297 CON ASS'Y 4P,F/W,35023,35023,210MM ASS'Y-04P
CN903 111336 CON WAFER,BOX(M),8P,ST 53014-08P
X901 106115 RESONATOR 10MHZ 3P 10MHz
AN101 107271 CON ASS'Y,FL,10P,BH0640,BT0640,270MM ASS'Y-10P
VR901 105169 VR,SLIDE,VER,1U,T45,L15,10K,B,CC 10KA
AN906 107268 CON ASS'Y,FL,5P,51004,35023,60MM ASS'Y-05P
D901 102687 DIODE,SW,100MA,75V,1N4148M,DO-34M,TA 1N4148
ZD901 102726 DIODE,ZN,500MW,BM,2.4V,DO-35,TA 2.4BM
R916 104287 RES,MF,2.2R,1/5W,5%,AX N,TA FR 2.2
C916 105396 CAP,E,SM,SE,85C,10UF,50V,M,6.3X5,TA 10/50
C915 C921 105459 CAP,E,SM,SE,85C,22UF,16V,M,5X5,TA 22/16
C911 105502 CAP,E,SM,SE,85C,47UF,16V,M,3X5,TA 47/16
SW913 SW917-932 112063 SW,TACT,HOR,THVV501BAA,BLACK THVV501BAA
Q904 102481 TR,SW,PNP,100MA,50V,KRA103M,TO-92M,TA KRA103M
Q905 102533 TR,SW,NPN,100MA,50V,KRC103M,TO-92M,TA KRC103M
Q903 118630 TR,SG,PNP,150MA,50V,KTA1504S,SOT-23,TA KTA1504S-Y
Q902 118640 TR,NPN,KRC107S,SOT23 KRC107S
Q901 118642 TR,SG,NPN,150MA,50V,KTC3875S,SOT-23,TA KTC3875S-Y
IC903 118737 IC,VOLTAGE DETECTOR,KIA7039AF,SOT89 KIA7039AF
IC901 118806 IC,MCU,5V,MB95F108AHWPFM-GE1,LQFP64 MB95F108AWPFM-5V
IC902 118888 IC,EEPROM,24LC02,SOIC8 24LC02B
FB901 119251 INDUCTOR,BEAD,2012,TA 120ohm
R962-963 119345 RES,TF,10,1/16W,5%,1608 10
R917-918 R954 119361 RES,TF,1K,1/16W,5%,1608 1K
ELECTRICAL PARTS LIST
M-FRONT B'D

Ref. Part No. Description Value
ELECTRICAL PARTS LIST
4
R910 R925-927 R946 119366 RES,TF,10K,1/16W,5%,1608 10K
R948-950 R957 119427 RES,TF,15K,1/16W,5%,1608 15K
R966-967 R991
R923 R944
R983-986 R989-990 119490 RES,TF,220,1/16W,5%,1608 220
R919 R929 R932 R939 119496 RES,TF,2.2K,1/16W,5%,1608 2.2K
R965 R968 R998-999 119510 RES,TF,2.2,1/10W,5%,2012 2.2
R956
R924 R945 119530 RES,TF,27K,1/16W,5%,1608 27K
R920 R934 R992-993 119575 RES,TF,3.3K,1/16W,5%,1608 3.3K
R969 119579 RES,TF,33K,1/16W,5%,1608 33K
R902 R931 R937 119616 RES,TF,47,1/16W,5%,1608 47
R941-943 R951-953 119619 RES,TF,470,1/16W,5%,1608 470
R960-961 R970-981
R958 R964
R921 R930 R935 R955 119624 RES,TF,4.7K,1/16W,5%,1608 4.7K
R994-995 119700 RES,TF,680,1/16W,5%,1608 680
R922 R936 119746 RES,TF,8.2K,1/16W,5%,1608 8.2K
C903 120180 CAP,TT,100UF,10V,M,6032,T 100/10
C909 120240 CAP,CE,MONO,X7R,0.001UF,50V,K,1608,TA 0.001U
C904 C907-908 120246 CAP,CE,MONO,X7R,0.1UF,50V,Z,1608,TA 0.1U
C912-914 C920 C922 120415 CAP,CE,MONO,X7R,0.01UF,50V,K,1608,TA 0.01U
C906
C910 105448 CAP,E,SM,SE,85C,1UF,50V,M,4X5,TA 1/50
CN906 111333 CON WAFER,LOCK(M),5P,ST 53014-05P
SW902-909 SW914-915 112063 SW,TACT,HOR,THVV501BAA,BLACK THVV501BAA
R901 R909 119361 RES,TF,1K,1/16W,5%,1608 1K
R907 R915 119427 RES,TF,15K,1/16W,5%,1608 15K
R903 R911 119496 RES,TF,2.2K,1/16W,5%,1608 2.2K
R908 119530 RES,TF,27K,1/16W,5%,1608 27K
R904 R912 119575 RES,TF,3.3K,1/16W,5%,1608 3.3K
R905 R913 119624 RES,TF,4.7K,1/16W,5%,1608 4.7K
R906 R914 119746 RES,TF,8.2K,1/16W,5%,1608 8.2K
D501 102659 DIODE,RE,1A,800V,1N4006,DO-41,TA 1N4006(4007)
C501 C504 105504 CAP,E,SM,SG,85C,47UF,25V,M,6P,TA 47/25
Q501 118640 TR,NPN,KRC107S,SOT23 KRC107S
L501-502 119275 INDUCTOR,FERRITE IND,2.2UH,2012,K(10%) 2.2uH
R510 R512 119361 RES,TF,1K,1/16W,5%,1608 1K
R503 R505 119400 RES,TF,12K,1/16W,5%,1608 12K
R511 R513 119501 RES,TF,220K,1/16W,5%,1608 220K
R504 R506 119564 RES,TF,33,1/16W,5%,1608 33
R501-502 119689 RES,TF,6.2K,1/10W,5%,2012 6.2K 1/8W
C503 C506 120246 CAP,CE,MONO,X7R,0.1UF,50V,Z,1608,TA 0.1U
C502 C505 C507-510 120411 CAP,CE,MONO,COG,820PF,50V,J,1608,TA 820P
RLY501 112643 RELAY,DPDT,12V,1A,125VAC
IC501 102818 IC,OP AMP,NJM4556AD,DIP8 12V
VR501 104963 VR,ROT,HOR,2U,50K,B 4556AD
AN205 107272 CON ASS'Y,9P,250MM.CD-660 50KB*2
JK501 111603 JACK,PHONE,1U,4P,AN ASS'Y-09P
M-HEADPHONE B'D
M-RMT SENSE B'D
M-POWER SW B'D

Ref. Part No. Description Value
ELECTRICAL PARTS LIST
5
RMC901 103434 IR RECEIVER MODULE,RPM7138-H4 RPM7138-H4
C902 105405 CAP,E,SM,SG,85C,10UF,50V,M,5P,TA 10/50
SW901 112063 SW,TACT,HOR,THVV501BAA,BLACK THVV501BAA
R928 119352 RES,TF,100,1/16W,5%,1608 100
CN902 ASS'Y-04P
C901 120240 CAP,CE,MONO,X7R,0.001UF,50V,K,1608,TA 0.001U
D706 118613 DIODE,S-SW,1A,30V,RB160M-30,SOD-123,TA RB160M-30
Q701 118630 TR,SG,PNP,150MA,50V,KTA1504S,SOT-23,TA KTA1504S-Y
Q710 118640 TR,NPN,KRC107S,SOT23 KRC107S
Q702-703 118652 TR,IGBT,N,FDV303N,SOT-23,TA FDV303N
Q705-706 118658 TR,SW,NPN,100MA,50V,KRC113S,SOT-23,TA KRC113S
Q707 118659 TR,SW,PNP,0.1A,50V,KRA113S,SOT-23,TA KRA113S
Q704 Q709 118661 TR,SW,MF P,3.5A,-8V,SI2305DS,SOT-23,TA SI2305
Q708 118662 TR,SW,MF N,3.9A,20V,SI2312DS,SOT-23,TA SI2312DS
IC707 118756 IC,VOL REG,3.3V 1A,BA033FP,TO252 BA033FP
IC706 118758 IC,VOL REG,2.5+3.3V,BA33C25FP,TO252-5 BA33C25FP
IC703 118766 IC,DSP,AUDIO,CD DSP,CXD3059AR,LQFP120 CXD3059AR
IC714 118767 IC,DSP,AUDIO,MP3 DECODER,MLC3890,LQFP144 MLC3890
IC708 118805 IC,MCU,3.3V,MB95F108AWPFM-GE1,LQFP64
MB95F108AWPFM-3.3V
IC709 118811 IC,MP3 IC,MLC3300,TQFP100 MLC3300
IC718 118865 IC,MUX,MM74HC4052M,SOIC16 74HC4052M
IC711 118895 IC,FLASH 2M,SST39VF020-70-4C-WH,TSOP32 SST39VF020
IC710 IC712 118912 IC,SDRAM,K4S641632H-UC60,TSOP54 K4S641632H-TL75
IC717 119032 IC,CODEC,TLV320AIC23B,TSSOP28 TLV320AIC23
IC701 119049 IC,DRIVER,4CH BTL DRIVER,BA5947FP,HSOP28 BA5947FP
IC702 119050 IC,DRIVER,POWER DRIVER IC,BD7931F,SOP8 BD7931F
IC716 119051 IC,MUX,QUAD 2INPUT,74LVC157AD,SOP16 74LVC157A
IC713 119115 IC,FLASHROM,K9K8G08U0A,TSOP48 K9K8G08U0M
D701-705 119171 DIODE,SW,200MA,100V,MMBD4148,SOT-23,TA 1N4148
FB701-702 119251 INDUCTOR,BEAD,2012,TA 120
L703 119291 COIL,FER,4.7UH,TA 4.7uH
R706-709 R729 119333 RES,TF,0,1/16W,0.05,1608 0
R739-741 R768 R797 119337 RES TF 1ߟ1/16W 1608J 1
R806 R821-823 R832
TP805-806 TP810-812
R762 R774-775
R701 R730 R785-787 119352 RES,TF,100,1/16W,5%,1608 100
R815-820 R845-846 119361 RES,TF,1K,1/16W,5%,1608 1K
R719 R798-799 R808
R810 R812-813 119366 RES,TF,10K,1/16W,5%,1608 10K
R828-829
R705 R718 R737-738
R744-745 R747-749 119369 RES,TF,100K,1/16W,5%,1608 100K
R792-796 R811
R825-826 R843 R877
R857-858 R863-864
R703 R716 R776 R807
R809 R814 R834 119372 RES,TF,1M,1/16W,5%,1608 1M
R731 R783 R830
R781 119422 RES,TF,1.5K,1/16W,5%,1608 1.5K
R712-714 R778 R780 119427 RES,TF,15K,1/16W,5%,1608 15K
R833 TP801-804 119464 RES,TF,180K,1/16W,5%,1608 180K
R777
CD/USB MAIN B'D 106234

Ref. Part No. Description Value
ELECTRICAL PARTS LIST
6
R779 R782 119486 RES,TF,22,1/16W,5%,1608 22
R757-759 119490 RES,TF,220,1/16W,5%,1608 220
R704 119498 RES,TF,22K,1/16W,5%,1608 22K
R836 119501 RES,TF,220K,1/16W,5%,1608 220K
R844 119526 RES,TF,2.7K,1/16W,5%,1608 2.7K
R824 119547 RES,TF,3K,1/16W,5%,1608 3K
R717 119575 RES,TF,3.3K,1/16W,5%,1608 3.3K
R723-728 R732-733 119616 RES,TF,47,1/16W,5%,1608 47
R746 R752-756 119619 RES,TF,470,1/16W,5%,1608 470
R760-761 R763-767
R769-773 R784
R837-839
R750 R841
R720 R742-743 R751 119624 RES,TF,4.7K,1/16W,5%,1608 4.7K
R804-805 R865-866 119629 RES,TF,47K,1/16W,5%,1608 47K
R715 R722 R835 R842 119634 RES,TF,470K,1/16W,5%,1608 470K
R800-803 119653 RES,TF,5.1K,1/16W,5%,1608 5.1K
R710-711 119678 RES,TF,56K,1/16W,5%,1608 56K
C771 C829 C857-860 120117 CAP,E,SM,RC,105C,10UF,16V,M,TA 10/16.
C722 C738 C745 C848 120120 CAP,E,SM,RC,105C,100UF,6.3V,M,TA 100/6.3
C853 120122 CAP,E,SM,RC,105C,100UF,16V,M,6.3P,TA 100/16
C711-712
C729 C895 120131 CAP,E,SM,RC,105C,22UF,16V,M,5P,TA 22/16
C701 C705 C760 C762 120144 CAP,E,SM,RC,105C,47UF,6.3V,M,TA 47/6.3
C767 C777 C783 C792 120145 CAP,E,SM,RC,105C,4.7UF,16V,M,4P,TA 4.7/16
C800 C894
C804 C818 C820
C822-823 C825-826 120234 CAP,CE,MONO,X7R,1000PF,50V,J,1608,TA 0.001U
C862-865
C747-748 C785 C789
C794-795 C801 120246 CAP,CE,MONO,X7R,0.1UF,50V,Z,1608,TA 0.1U
C702-703 C707-710
C713-715 C721 120249 CAP,CE,MONO,X7R,1UF,10V,K,1608,TA 1/10
C724-726 C728 C730
C736-737 C740-742
C746 C765 C768-770
C772-775 C784 C793
C798-799 C803 C805
C808-809 C812-813
C816 C819 C821 C824
C830-846 C849-852
C861 C891-893
C896-898
C739
C743-744 120267 CAP,CE,MONO,COG,20PF,50V,J,1610,TA 20P
C854 120349 CAP,CE,MONO,COG,10PF,50V,J,1608,TA 10P
C704 C732 C757-758 120351 CAP,CE,MONO,COG,100PF,50V,J,1608,TA 100P
C847 120367 CAP,CE,MONO,COG,22PF,50V,J,1608,TA 22P
C814-815
C806-807 C827-828 120388 CAP,CE,MONO,COG,47PF,50V,J,1608,TA 47P
C786 120411 CAP,CE,MONO,COG,820PF,50V,J,1608,TA 820P
C734 120415 CAP,CE,MONO,X7R,0.01UF,50V,K,1608,TA 0.01U
C735 C810-811 120423 CAP,CE,MONO,X7R,1500PF,50V,K,1608,TA 1500P
C796-797 C802 120428 CAP,CE,MONO,X7R,2200PF,50V,K,1608,TA 2200P

ELECTRICAL PARTS LIST
7
Ref. Part No. Description Value
C855-856 120430 CAP,CE,MONO,X7R,0.022UF,50V,K,1608,TA 0.022U
C759 C761 C764 C776
C778-782 C787-788 120441 CAP,CE,MONO,X7R,4700PF,50V,K,1608,TA 4700P
C790-791
C706
X701 120467 X-TAL,16.9344MHZ,HC49/S SMD 16.9344MHz
X703 120476 X-TAL,12.000MHZ,30PPM,20PF,HC49/S 12MHz
CN705 120495 CON WAFER,ZIF,25P,1MM,AN,FPC/FFC,TA FFCFPC553-25P
CN704 120515 CON WAFER,12505WR,03P,RA 12505WR-03P
CN702 120516 CON WAFER,12505WR,04P,RA 12505WR-04P
CN703 120517 CON WAFER,20022WR,02P,RA 20022WR-02P
CN701 120520 FFC,WAFER,P1.0,ZIF,AN,15P,TOPCONTACT,SMD FFCFPC553-15P
SW701 120532 SWITCH,MICRO,SW1AB-277-21T40 SW1AB
IC720 118973 IC,VOLT REG,1.8V,1A,AP1117E18L,TO223 AP1117E18L
R702 119416 RES,TF,15,1/10W,5%,2012 15
C880-881 120127 CAP,E,SM,RC,105C,1UF,50V,M,TA 1/50
C733 120315 CAP,CE,MONO,X7R,0.47UF,50V,Z,2012,TA 0.47U
C717 C719 120390 CAP,CE,MONO,COG,470PF,50V,J,1608,TA 470P
C731 120432 CAP,CE,MONO,X7R,3300PF,50V,K,1608,TA 3300P
C716 C723 C763 120132 CAP,E,SM,RC,105C,220UF,16V,M,6.3P,TA 220/16
C727 120240 CAP,CE,MONO,X7R,0.001UF,50V,K,1608,TA 0.001U
X702 106115 RESONATOR 10MHZ 3P 10MHz
CN710 111330 CON WAFER,BOX(M),2P,ST 53014-02P
CN709 111333 CON WAFER,LOCK(M),5P,ST 53014-05P
CN706 111336 CON WAFER,BOX(M),8P,ST 53014-08P
CN801 111381 CON WAFER,LOCK(M),4P,ST 53015-04P
JK801 111624 USB JACK (USB-102) USB04P
FB803-804 119251 INDUCTOR,BEAD,2012,TA 120
USB CABLE 108213 CABLE USB CABLE 2M MVF-2132
SMPS 103737 SMPS,FREE,12V,1.5A,KSP169F-1302007-1
CARD CABLE 106804 CARD CABLE,FFC,20P,P1.25,PL/PL,410MM
INDUCTOR 103476 INDUCTOR,CORE,CLAMP,20.5MMX8MM,36MMX19MM
ASS'Y 2000447 ASS'Y,AC CORD,2P,3A,250VAC,K,2200MM DOM
AC CORD 106943 AC CORD,2P,3A,250VAC,K,2200MM DOM
2000402 AC CORD,2P,5A,250VAC,BSI,1830MM + CON 2P C
106890 AC CORD,2P,5A,250VAC,BSI,1830MM C
2000401 AC CORD,2P,10A,125VAC,UL,2100MM + CON 2P E
106889 AC CORD,2P,10A,125VAC,UL,2100MM E
2000403 AC CORD,2P,2.5A,250VAC,VDE,2200MM +CON2P R
106896 CORD AC POWER(EUROPE KEMA) R
C-USB INPUT B'D
ASS'Y

TOP & BOTTOM VIEW OF P.C BOARD
8

TOP & BOTTOM VIEW OF P.C BOARD
9

TOP & BOTTOM VIEW OF P.C BOARD
10

TOP & BOTTOM VIEW OF P.C BOARD
11

WIRING DIAGRAM
12

BLOCK DIAGRAM
13

14
SCHEMATIC DIAGRAM

15
SCHEMATIC DIAGRAM

SCHEMATIC DIAGRAM
16

SCHEMATIC DIAGRAM
17

18
EXPLODED VIEW OF CABINET & CHASSIS/
MECHANICAL PARTS LIST
19
048602956116
PAR T NUM BE R
FRONT PANEL
1
PARTNAME
No
4
2
3
6
5
7
1
REMARKQ'TY
14
11
9
8
10
12
13
15
16
17
19
18
20
24
21
22
23
25
26
27
S4
SCREW FM 3x8BS1
S2
S3
4
S6
S5
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
SUB PANEL 048521987321 1
2
WINDOW REMO 8575985110 1
048575985211
WINDOW 1
DECO WINDOW 048543972416 1
WINDOW FILTER 1
KNOB FUNC A 1
KNOB FUNC C 1
FRONT PCB 1
HEADPHONE PCB
1
DECO KNOB POWER
1
1
REMOTE SENSE PCB
MAIN CHASSIS
FOOT
SMPS
1
1
1
1
1
TOP COVER
RACK BKT 2
04857500070B
048543972926
048543972716
400290023A
048545980916
400290025A
4438092810
1
048603988816
HANDLE 2
2
4
4
4
DOT SCREW 2BTC 3x10B 9
8
2
SCREW 2BTC 3x8B 3
8029130083R
SCREW BM 4x15B 8009140153R
SCREW 2BTC 3x8B 8109230083R
8159230061R
BACK CHASSIS
1
20
21
33
34
6102970330
6033102510
2828052700
046102975817
SYSTEM GND
REAR PCB 400290021A
31
32
CORD STOPPER (DACH-1) 6518997910
AC CORD 4308998610
046121670216
046503961516
4
1
SCREW FM 4x10B 8029140103R
4
SCREW BM 4x15B 8009140153R
SCREW BM 3x6B 8009130063R
8109230083R
8095996520R
S15
S16
SCREW 2BTC 3x8B 5 8109230083R
2
1
S2
S3
5
6
7
8
16
17
18
15
22
23
27
28
29
30
S1
S5
S7
S8
S9
S12
S13
S14
2
SCREW 2BTC 3x8B 8109230083R
6
SCREW 2BTC 3x8B 8109230083R
SCREW 2BTC 3x6B 8109230063R
1
SCREW BM 3x6B 8009130063R
SCREW BM 3x6B 8009130063R
SCREW 2BTC 3x6B 8109230063R
S17 SCREW 2WPTC 3x6Y 1
KNOB FUNC B 1
048543972816
KNOB POWER 048543973111
6503961410HANDLE BKT
1
KNOB VOLUME 048543972316
MECHANISM CD 1 5728007800
1
CD MAIN PCB 4002900300
CD BKT 6503961810 1
28
29
30
1
31
32
33
34
S17
3
4
9
10
11
12 13
14
19
M-FUNCTION KEY PCB 1
400290024A
CAUTION LABEL 9057999800 1
24
25
26
S4
3
S6
S10
S11
S18
S19
S18
8109220063RS19 SCREW 2BTC 2x6B 4
3
SCREW BM 3x6B 8009130063R
SCREW 2BTC 3x6B 8109230063R 4
FELT 6735975610
FELTBKT 6505923410 1
1
5-1 PITCH CONTROL KNOB 048545003900 1
5-1
USB PCB 1 35
35
EXPLODED VIEW OF CABINET & CHASSIS/
MECHANICAL PARTS LIST
