InterTest PCAM-3150i User manual

Before installing, operating or adjusting this
product, please read this instruction booklet
carefully and completely.
INSTRUCTION MANUAL
Distributed by
Mobile HD Zoom IP Camera
PCAM-3150i
매뉴얼
대지 크기
1cm 줄이기-완료

The lightning flash with an arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated
dangerous voltage within the product's enclosure
that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying
the product.
WARNING - Do not install this equipment in a confined
space such as a bookcase or similar unit.
Disposal of your old appliance
1.
When this crossed-out wheeled bin symbol
is attached to a product it means the product
is covered by the European Directive
2002/96/EC
2.
All electrical and electronic products should
be disposed of separately from the municipal
waste stream via designated collection fafilities
appointed by the government or the local
authorities
3. The correct disposal of your old appliance
will help prevent potential negative conse-
quences for the environment and human
health
4.
For more detailed information about disposal
of your old appliance, please contact your
city office, waste disposal service or the shop
where you purchased the product.
To disconnect power from the mains, pull out the mains
cord plug. When install the product, ensure that the plug
is easily accessible.
WARNING - Wiring methods shall be in accordance with
the National Electric Code, ANSI/NFPA 70.
WARNING - To reduce a risk of fire or electric shock, do
not expose this product to rain or moisture.
CAUTION - This installation should be made by a qualified
service person and should conform to all local codes.
CAUTION - To avoid electrocal shock, do not open the
cabinet. Refer servicing to qualified personnel only.
CAUTION -
To apparatus should not be exposed to
water (dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the apparatus.
WARNING - This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION :
03
매뉴얼
대지 크기
1cm 줄이기-완료

1. Read these instructions - All these safety and operating
instructions should be read before the product is operated.
2. Keep these instructions - The safety, operating and user
instructions should be retained for future reference.
3. Heed all warnings - All warnings on the product and in
the operating instructions should be adhered to.
5. Do not use this apparatus near water - For example :
near a bath tub, wash bowl, kitchen sink, laundry tub,
in a wet basement; near a swimming pool; etc.
6. Clean only with dry cloth - Unplug this product from
the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions. -
Slots and openings in the cabinet are provided for
ventilation, to ensure reliable operation of the product,
and to protect it from overheating. The openings should
never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should not
be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided and the
manufacturer’s instructions have been adhered to.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
4.
Follow all instructions - All operating and user instructions
should be followed.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11.
Only use attachments/accessories specified by the
manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as powersupply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
04 05
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
매뉴얼
대지 크기
1cm 줄이기-완료

FEATURES...................................................................................................................................
CAUTION FOR SAFE OPERATION..................................................................................................
PART NAMES AND FUNCTIONS....................................................................................................
OSD ............................................................................................................................................
SPECIFICATIONS..........................................................................................................................
7p
8p
9p
12p
13p
06 07
CONTENTS FEATURES
1/4 Type Exmor CMOS HD(1280x720P) Resolution
Day/Night Function, Minimum Illumination – 0.3 lx
12x Optical Zoom (144x with Digital Zoom)
High Performance Digital Signal Processor (DSP)
Large Backlight buttons
Entire Metal (Aluminum) Body
One touch Auto Zoom-in/out button- Auto & Semi auto supported
BLC On/Off Control by Back button
Red LED for recording status
VIDEO CODEC : H.264
NETWORK PROTOCOL : HTTP, TCP/IP, telnet, ftp, NTP, RTP/RTSP(Unicast/Multicast),
SMTP, DHCP, PPPoE, UPnP, RARP, PPP, PAP, CHAP, UDP, SNMP, Onvif, PSIA etc.
NETWORK INTERFACE : Ethernet 10/100Base-T(LAN Port)

【1】Rec Inducator LED
Red LED for recording status
Mode : On, Blinking, Off
【2】Camera Cable(RJ-45)
【3】Camera LENS
【4】Name Plate
08 09
CAUTIONS FOR SAFE OPERATION PART NAMES AND FUNCTIONS
Power Supply
Use POE
Handling of unit
Be careful not to spill water or other liquids on the unit.
Be cautious not to get combustible or metallic material
inside the body. If used with foreign matter inside, the camera
is liable to fail or cause a fire or an electric shock.
Operating and storage
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing the
unit in the following locations.
·Extemely hot or cold places (operating temperature
-10℃ ~ 50℃, however, we recommend that the
unit be used within a temperature range of 0℃ ~ 45℃)
·Damp or dusty place
·Places exposed to rain
·Places subject to strong vibration
·Close to generators with powerful electromagnetic
radiation such as radio or TV transmitters.
Cleaning of the unit
·Remove dust or dirt on the surface of the lens with
a blower.
·
Use a dry soft cloth to clean the body. If it is very dirty,
use a cloth dampened with a small quantity of neutral
detergent, then wipe dry.
·Avoid the use of volatile solvents such as thinners,
alcohol, benzene, and insecticides.
They may damage the surface finish and / or impair
the operation of the camera.
【1】【2】
3
】
【
3
3
】
】
【
【4】

【5】Auto Zoom
Two modes Auto / Semi Auto in the menu
Auto : when the zoom key is pressed, the camera
will zoom into the pre- programed position
and stay for a number of seconds that is
also pre-programed before zooming out to the
default position.
Semi-Auto : When the zoom key is pressed, the
camera will zoom into the pre-programed
position. When the zoom key is pressed one
more time, the camera will zoom out to default
position
【6】BLC(Back light compensation)
Toggles back-light compensation mode on/off
【7】Day/Night function
Manual Day&Night
【8】Manual Focus
Focus Far and Near function
【9】Zoom
Zoom Tele and Wide function
10 11
PART NAMES AND FUNCTIONS PART NAMES AND FUNCTIONS
DC 12V IN
C-VIDEO OUT
】
【7
】
】
【5】
8
】
C Video
Analogue video output ter
minal of C
Video.
9
Used to plug the power cable.
【6】
【8】
【9】
【
【10】
【10】 RJ-45 cable

12 31
OSD SPECIFICATIONS
13
A : Day & Night
A - Auto
D - Day
N - Night
BL : Back light compensation
A.F : Focus
A.F - Auto Focus
M.F - Manual Focus
X4 : Zoom Ratio
X1 ~ X12 - Optical Zoom
DX24 ~ DX144 - Digital Zoom
Specifications
Specifications
CAMERA
Image sensor 1/4 Type Exmor CMOS Sensor
Picture elements 920K pixels
resolution HD 1280x720P/30FRAME
Lens 12x optical zoom lens
f=3.7 mm (wide) to 44.4 mm (tele), F1.6 to F2.5
Digital zoom 12x (144x with Digital Zoom)
Angle of view (H) 53.4° (WIDE end) to 4.6 ° (TELE end)
Min. working distance 10 mm (WIDE end), 1000 mm (TELE end)
Minimum illumination 0.3 lx (1/30 sec, 50%, High Sensitivity mode ON)
S/N ratio More than 50 dB
White balance Auto, ATW, Indoor, Outdoor, Manual
Focusing system Auto/Manual
Wide-D ON/OFF
Auto ICR Auto/Manual
Picture effects Yes (E-Flip, Mirror Image)
Title display Yes (English)
Camera mode display Yes
Auto ICR Yes
NETWORK
CPU/OS 32bit RISC Processor/Embedded Linux
CODEC Algorithm H.264(MPEG-4 AVC Part 10.)/M-JPEG Dual Stream, JPEG
DATA Transfer rate MAX 30fps
Video Output RJ-45(10/100M Ethernet LAN)
NETWORK Protocol
HTTP, TCP/IP, telnet, ftp, NTP,
RTP/RTSP(Unicast/Multicast), SMTP, DHCP
PPPoE, UPnP, RARP, PPP, PAP, CHAP, UDP, SNMP,
Onvif, PSIA etc.
Viewer Transfer rate, Viewer(CMS)
Storage temperature -20°C ~ 60°C
Operating temperature -5°C ~ 60°C
Power requirements POE
Power consumption MAX 7.2W
Weight(Kg) 0.4

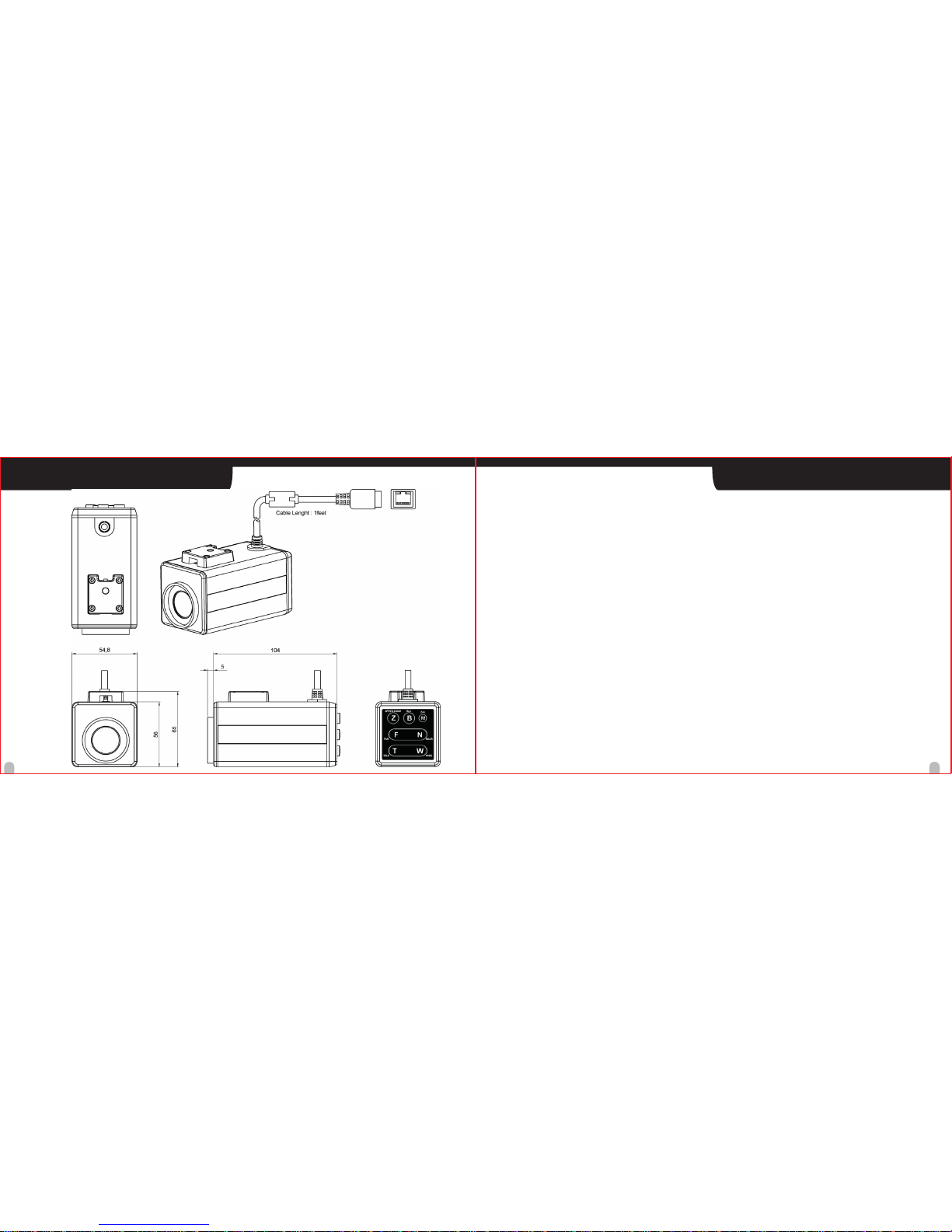

14 31
SPECIFICATIONS Memo
