Intimidator SPOT 375Z IRC User manual
User Manual
Table of Contents
Intimidator Spot 375Z IRC User Manual Rev. 2
TABLE OF CONTENTS
1. Before You Begin....................................................................... 1
What Is Included ........................................................................................... 1
Unpacking Instructions.................................................................................. 1
Claims ..................................................................................................................... 1
Text Conventions.......................................................................................... 1
Symbols ........................................................................................................ 1
Disclaimer ..................................................................................................... 1
Product at a Glance ...................................................................................... 2
Safety Notes.................................................................................................. 2
2. Introduction ................................................................................ 3
Product Overview.......................................................................................... 3
Product Dimensions...................................................................................... 3
3. Setup ........................................................................................... 4
AC Power...................................................................................................... 4
Fuse Replacement.................................................................................................. 4
Power Linking.......................................................................................................... 4
Mounting ....................................................................................................... 5
Orientation............................................................................................................... 5
Rigging.................................................................................................................... 5
4. Operation .................................................................................... 6
Control Panel Operation................................................................................ 6
Menu Map..................................................................................................... 6
Configuration (DMX) ..................................................................................... 7
Starting Address...................................................................................................... 7
DMX Personalities................................................................................................... 7
Gobos............................................................................................................ 7
DMX Channel Assignments and Values....................................................... 8
15Ch........................................................................................................................ 8
09Ch........................................................................................................................ 10
Configuration (Standalone)........................................................................... 12
Automatic Programs................................................................................................ 12
Sound-Active Mode................................................................................................. 12
Sound Sensitivity..................................................................................................... 12
Manual Mode........................................................................................................... 12
Configuration (Settings) ................................................................................ 13
Pan Reverse............................................................................................................ 13
Tilt Reverse............................................................................................................. 13
Screen Reverse....................................................................................................... 13
Pan Angle................................................................................................................ 13
Tilt Angle ................................................................................................................. 13
Totem Mode............................................................................................................ 14
Reset....................................................................................................................... 14
Factory Reset.......................................................................................................... 14
System Information ................................................................................................. 14
IRC-6 Infrared Remote Control..................................................................... 15
IRC-6 Operation...................................................................................................... 15
Master/Slave Mode....................................................................................... 16
Zero Adjust Mode.......................................................................................... 16
Changing Gobos........................................................................................... 17
5. Maintenance................................................................................ 18
Product Maintenance.................................................................................... 18
6. Technical Specifications ........................................................... 19
Returns............................................................................................ 20
Contact Us ...................................................................................... 21
Page 1 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Before You Begin
1. Before You Begin
What Is Included
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2017 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States ofAmerica.
CHAUVET, the Chauvet logo, and Intimidator Spot 375Z IRC are registered trademarks or trademarks of
Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other
company and product names and logos referred to herein may be trademarks of their respective
companies.
• Intimidator Spot 375Z IRC
•PowerCord
• Hanging Bracket with Mounting Hardware
• Warranty Card
• Quick Reference Guide
Convention Meaning
1–512 Arange of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Page 2 of 21
Before You Begin
Intimidator Spot 375Z IRC User Manual Rev. 2
Product at a Glance
Safety Notes
Use on Dimmer Auto Programs
Outdoor Use Auto-ranging Power Supply
Sound-Active Replaceable Fuse
DMX User-Serviceable
Master/Slave
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the
fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power cord by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• Always make sure that the voltage of the outlet to which you are connecting the product is
within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20)To prevent risk of fire or shock, do not expose the
product to rain or moisture.
• Alwaysinstalltheproduct in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the hanging/
mounting bracket.
• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at
higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Keep this User Manual for future use. If you sell the product to someone else, be sure that
they also receive this document.
Page 4 of 21
Setup
Intimidator Spot 375Z IRC User Manual Rev. 2
3. Setup
AC Power
The Intimidator Spot 375Z IRC has an auto-ranging power supply and it can work with an input voltage
range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power
outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to
the product’s specifications chart. The listed current rating indicates the product’s average current draw
under normal conditions.
Fuse Replacement
1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse.
4. Replace with a fuse of the same type and rating.
5. Screw the fuse holder cap back in place and reconnect power.
Power Linking
The product provides power linking via the Edison outlet located in the back of the product. Please see the
diagram below for further explanation.
Power Linking Diagram
•Always connect the product to a protected circuit (a circuit breaker or fuse). Make
sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.
Disconnect the product from the power outlet before replacing the fuse.
You can power link up to 3 Intimidator Spot 375Z IRC products on 120 VAC or up
to 5 Intimidator Spot 375Z IRC products on 230 VAC.
1st Product
2nd Product
3rd Product
Additional
Products
Power
Source
Page 5 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Intimidator Spot 375Z IRC may be mounted in any position; however, make sure adequate ventilation
is provided around the product.
Rigging
• Before deciding on a location, always make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the
product’s weight. (see the Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the
knobs.
• The rubber feet also serve as floor supports. When mounting the product on the floor, make sure
that the product and cables are away from people and vehicles.

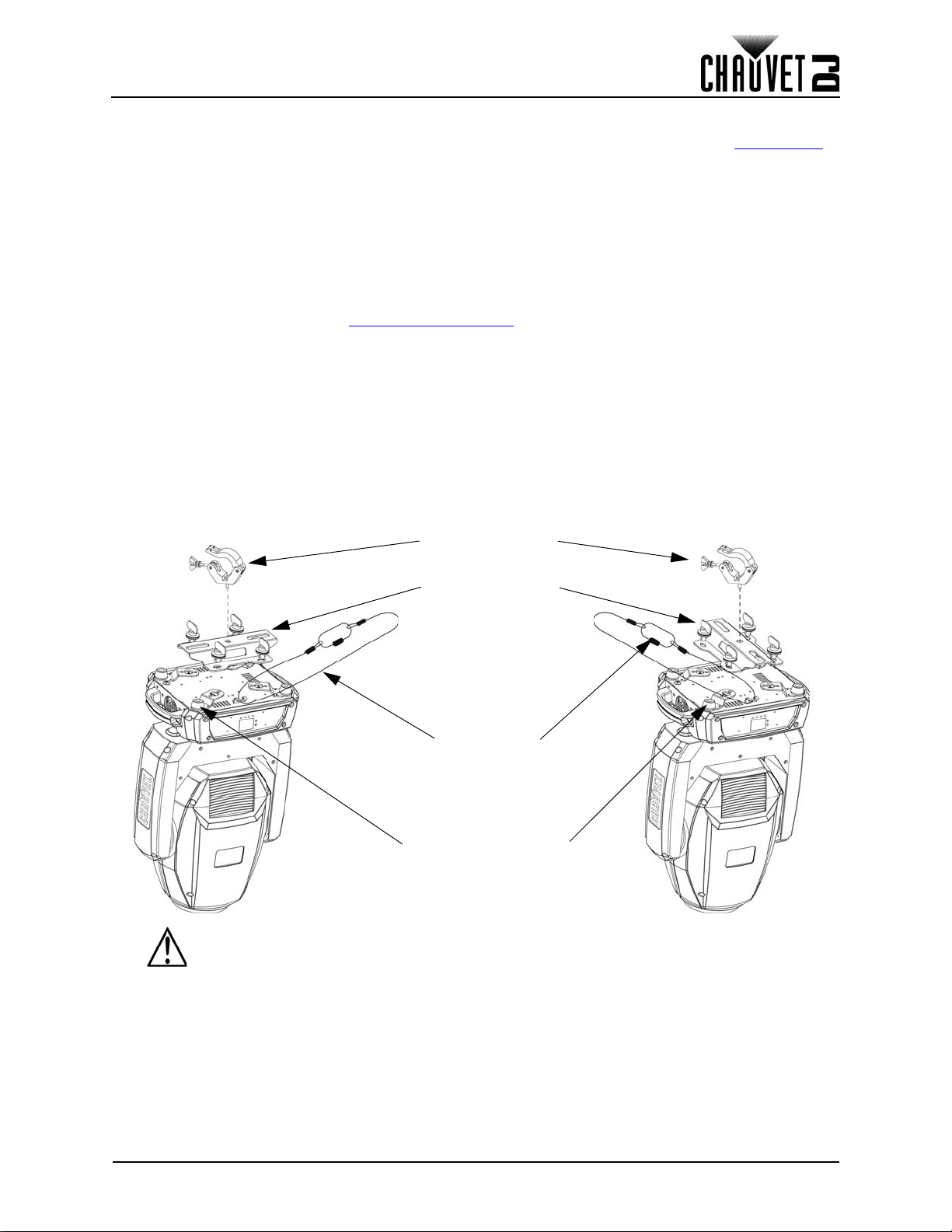

Mounting Diagram
When using only one mounting clamp with this fixture, you must use a clamp with
a captive bolt to prevent accidental loosening.
Safety Cable
(such as CH-05 from
Chauvet)
Mounting Clamp
(such as CLP-15 from Chauvet)
Mounting Bracket
Rubber Feet for Floor
Mounting
(x4)
Page 6 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
4. Operation
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview to see the button locations on the control panel.
Menu Map
Button Function
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to find a higher value
<DOWN> Press to scroll down the list of options or to find a lower value
<ENTER> Press to activate a menu option or a selected value
Main Level Programming Levels Description
Address 001–512 Sets the DMX starting address
Run Mode
DMX 15CH Selects DMX mode
09CH
Slave Slave1–4 Selects Slave mode 1, 2, 3, or 4
Auto Selects Auto mode
Sound Selects Sound mode
IR Selects infrared control
Manual
Pan
000–255
0–540°
Tilt 0–270°
Color Selects color options
Gobo Selects gobo options
Gobo Rotate Rotates gobo
Prism Selects prism and rotation effect
Focus Manual focus control
Zoom Manual zoom control
Dimmer Sets dimmer value
Shutter Sets shutter value and strobe effect
Setup
Pan Reverse OFF Normal pan operation
ON Reverse pan operation
Tilt Reverse OFF Normal tilt operation
ON Reverse tilt operation
Screen Reverse OFF Normal display
ON Reverse display
Pan Angle 540 Selects the 540° pan angle range
360 Selects the 360° pan angle range
180 Selects the 180° pan angle range
Tilt Angle 270 Selects the 270° tilt angle range
180 Selects the 180° tilt angle range
90 Selects the 90° tilt angle range
Totem Mode OFF Totem mode off
UP Selects upward pan and tilt range
DOWN Selects downward pan and tilt range
Sensitivity 001–100 Sets sound sensitivity
Reset Resets the product
Factory Set Loads factory defaults
Sys Info
Ver: V_ Displays the software version
Running Mode _ _ _ _ _ _ _ Displays the current running mode
DMX Address _ _ _ Displays the current DMX address
Temperature _ _ _ Displays current temperature in °C
Page 7 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
Configuration (DMX)
The Intimidator Spot 375Z IRC works with a DMX controller. Information about DMX is in the CHAUVET
DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/
DMX_Primer_rev05_WO.pdf.
Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX
mode uses. If you choose a starting address that is too high, you could restrict the access to some of the
product’s channels.
The Intimidator Spot 375Z IRC uses up to 15 DMX channels, which defines the highest configurable
address to 498.
If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetdj.com.
To select the starting address, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Address.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select the starting address, from 001–512.
5. Press <ENTER>.
DMX Personalities
The Intimidator Spot 375Z IRC has two DMX personalities, a 15-channel personality, and a 9-channel
personality.
To choose which DMX personality to use, follow the steps below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select DMX.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select the DMX personality, from 15CH or 09CH.
7. Press <ENTER>.
Gobos
Page 8 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
DMX Channel Assignments and Values
15Ch
Channel Function Value Percent/Setting
1Pan 000 255 0–540°
2 Pan Fine 000 255 Fine control of panning
3Tilt 000 255 0–270°
4TiltFine 000 255 Fine control of tilting
5 Pan/Tilt Speed 000 255 Pan/Tilt speed, fast to slow
6 Color Wheel
000 007 White
008 015 Orange
016 023 Lime green
024 031 Blue
032 039 Red
040 047 Green
048 055 Magenta
056 063 Yellow
064 White
065 189 Color indexing
190 221 Color cycling rainbow, fast to slow
222 223 Stop
224 255 Reverse color cycling rainbow, slow to fast
7 Gobo Wheel (see Gobos)
000 007 Open
008 015 Gobo 1
016 023 Gobo 2
024 031 Gobo 3
032 039 Gobo 4
040 047 Gobo 5
048 055 Gobo 6
056 063 Gobo 7
064 071 Gobo 7 shake, slow to fast
072 079 Gobo 6 shake, slow to fast
080 087 Gobo 5 shake, slow to fast
088 095 Gobo 4 shake, slow to fast
096 103 Gobo 3 shake, slow to fast
104 111 Gobo 2 shake, slow to fast
112 119 Gobo 1 shake, slow to fast
120 127 Open
128 189 Cycle effect, slow to fast
190 193 Stop
194 255 Reverse cycle effect, slow to fast
8 Gobo Rotation
000 No function
001 063 Gobo indexing
064 145 Rotation, slow to fast
146 149 Stop
150 231 Reverse rotation, slow to fast
232 255 Bounce, slow to fast
Page 9 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
9Prism
000 003 No function
004 006 6-facet prism
007 065 6-facet prism rotation, slow to fast
066 123 6-facet prism reverse rotation, slow to fast
124 127 6-facet prism
128 131 No function
132 134 5-facet prism
135 193 5-facet prism rotation, slow to fast
194 251 5-facet prism reverse rotation, slow to fast
252 255 5-facet prism
10 Focus 000 255 Focus, 0–100%
11 Dimmer 000 255 0–100%
12 Shutter
000 003 Closed
004 007 Open
008 076 Strobe, slow to fast
077 145 Pulse strobe, slow to fast
146 215 Random strobe, slow to fast
216 255 Open
13 Function
000 007 No function
008 015 Blackout on pan/tilt movement
016 023 Blackout on color wheel movement
024 031 Blackout on gobo wheel movement
032 039 Blackout on pan/tilt/color wheel movement
040 047 Blackout on pan/tilt/gobo wheel movement
048 055 Blackout on pan/tilt/color/gobo wheel movement
056 095 No function
096 103 Pan reset
104 111 Tilt reset
112 119 Color wheel reset
120 127 Gobo wheel reset
128 135 No function
136 143 Prism reset
144 151 Focus and zoom reset
152 159 All reset
160 255 No function
Channel Function Value Percent/Setting
Page 10 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
09Ch
14 Movement Macros
000 007 No function
008 023 Movement macro 1
024 039 Movement macro 2
040 055 Movement macro 3
056 071 Movement macro 4
072 087 Movement macro 5
088 103 Movement macro 6
104 119 Movement macro 7
120 135 Movement macro 8
136 151 Sound-active movement macro 1
152 167 Sound-active movement macro 2
168 183 Sound-active movement macro 3
184 199 Sound-active movement macro 4
200 215 Sound-active movement macro 5
216 231 Sound-active movement macro 6
232 247 Sound-active movement macro 7
248 255 Sound-active movement macro 8
15 Zoom 000 255 Narrow to wide
Channel Function Value Percent/Setting
1Pan 000 255 0–540°
2Tilt 000 255 0–270°
3 Color Wheel
000 007 White
008 015 Orange
016 023 Lime green
024 031 Blue
032 039 Red
040 047 Green
048 055 Magenta
056 063 Yellow
064 White
065 189 Color indexing
190 221 Color cycling rainbow, slow to fast
222 223 Stop
224 255 Reverse color cycling rainbow, slow to fast
Channel Function Value Percent/Setting
Page 11 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
4 Gobo Wheel (see Gobos)
000 007 Open
008 015 Gobo 1
016 023 Gobo 2
024 031 Gobo 3
032 039 Gobo 4
040 047 Gobo 5
048 055 Gobo 6
056 063 Gobo 7
064 071 Gobo 7 shake, slow to fast
072 079 Gobo 6 shake, slow to fast
080 087 Gobo 5 shake, slow to fast
088 095 Gobo 4 shake, slow to fast
096 103 Gobo 3 shake, slow to fast
104 111 Gobo 2 shake, slow to fast
112 119 Gobo 1 shake, slow to fast
120 127 Open
128 189 Cycle effect, slow to fast
190 193 Stop
194 255 Reverse cycle effect, slow to fast
5 Gobo Rotation
000 No function
001 063 Gobo indexing
064 145 Rotation, slow to fast
146 149 Stop
150 231 Reverse rotation, slow to fast
232 255 Bounce, slow to fast
6Prism
000 003 No function
004 006 6-facet prism
007 065 6-facet prism rotation, slow to fast
066 123 6-facet prism reverse rotation, slow to fast
124 127 6-facet prism
128 131 No function
132 134 5-facet prism
135 193 5-facet prism rotation, slow to fast
194 251 5-facet prism reverse rotation, slow to fast
252 255 5-facet prism
7 Focus 000 255 Focus, 0–100%
8 Shutter
000 003 Closed
004 007 Open
008 076 Strobe, slow to fast
077 145 Pulse strobe, slow to fast
146 215 Random strobe, slow to fast
216 255 Open
9 Zoom 000 255 Narrow to wide
Channel Function Value Percent/Setting
Page 12 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
Configuration (Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
Automatic Programs
To run the Intimidator Spot 375Z IRC in automatic mode, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Auto.
5. Press <ENTER>.
Sound-Active Mode
To run the Intimidator Spot 375Z IRC in sound-active mode, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sound.
5. Press <ENTER>.
Sound Sensitivity
To change the sound sensitivity on the Intimidator Spot 375Z IRC, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Sensitivity.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to increase or decrease the sound sensitivity, from 001–100.
7. Press <ENTER>.
Manual Mode
To operate the Intimidator Spot 375Z IRC manually through the menu, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Manual.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Pan, Tilt, Color, Gobo, Gobo Rotate, Prism, Focus,
Zoom, Dimmer, or Shutter.
7. Press <ENTER>.
8. Use <UP> or <DOWN> to increase or decrease the value of the function, from 000–255.
9. Press <ENTER>.
10. Repeat steps 6-9 until the product is set as desired.
Never connect a product that is operating in any standalone mode to a DMX string
connected to a DMX controller. Products in standalone mode may transmit DMX
signals that could interfere with the DMX signals from the controller.
The product will only respond to low frequencies of music (bass and drums).
Page 13 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
Configuration (Settings)
Pan Reverse
To set the pan orientation on the Intimidator Spot 375Z IRC, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal pan orientation) or ON (reverse pan orientation).
7. Press <ENTER>.
Tilt Reverse
To set the tilt orientation on the Intimidator Spot 375Z IRC, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal tilt orientation) or ON (reverse tilt orientation).
7. Press <ENTER>.
Screen Reverse
To set the display orientation on the Intimidator Spot 375Z IRC, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Screen Reverse.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal display orientation) or ON (reverse display
orientation).
7. Press <ENTER>.
Pan Angle
To set the pan angle range on the Intimidator Spot 375Z IRC, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Pan Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°).
7. Press <ENTER>.
Tilt Angle
To set the tilt angle range on the Intimidator Spot 375Z IRC, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Tilt Angle.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from 270 (270°), 180 (180°), or 90 (90°).
7. Press <ENTER>.
Page 14 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
Totem Mode
To activate the Totem mode, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Totem Mode.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select OFF (normal range of motion), UP (upward tilt range), or DOWN
(downward tilt range).
7. Press <ENTER>.
Reset
To reset all functions on the Intimidator Spot 375Z IRC, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Reset.
5. Press <ENTER>.
Factory Reset
To restore the Intimidator Spot 375Z IRC to factory default settings, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Setup.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Factory Set.
5. Press <ENTER>.
System Information
To view the system information on the Intimidator Spot 375Z IRC, do the following:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Sys Info.
3. Press <ENTER>.
Page 15 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
IRC-6 Infrared Remote Control
The Intimidator Spot 375Z IRC is compatible with the IRC-6 infrared remote control from Chauvet. To set
the Intimidator Spot 375Z IRC to IR mode, follow the instructions below:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Press <UP> or <DOWN> to select IR.
5. Press <ENTER>.
IRC-6 Operation The list below describes which features each button controls:
•<BLACKOUT> - Keeps shutter closed.
•<AUTO> - Activates Auto mode. Use <+>, <->, or <0>–<9> to select an auto
program.
•<SOUND> - Activates Sound mode.
•<STROBE> - Activates Strobe control. Use <+> or <-> to increase or decrease
the strobe speed from 00 (off) to 20
•<SPEED> - Sets Pan/Tilt Speed. Use <+> or<-> to increase or decrease the pan/
tilt speed from 000 (fastest) to 255 (slowest)
•<SENSITIVITY>-SetsSoundSensitivity.Use<+> or<->toincreaseordecrease
the sensitivity from 001 (lowest) to 100 (highest)
•<%> - Sets Dimmer value. Use <+> or <-> to widen or narrow the shutter.
•<MANUAL> - Cycles through static gobos.
•<FADE> - Cycles through static colors.
•<R> - Sets color wheel rotation speed. Use <+> or <-> to increase or decrease
the speed from 000 (slowest) to 100 (fastest). Press <R> to toggle direction.
•<G> - Sets gobo wheel rotation speed. Use <+> or <-> to increase or decrease
the speed from 000 (slowest) to 100 (fastest). Press <G> to toggle direction.
•<B> - Activates Auto Color/Gobo mode.
•<A> -Setsmanual Pan/Tiltvalues. Press <A> totogglebetween pan andtilt.Use
<+> or <-> to increase or decrease the pan/tilt value, from 000–255.
•<UV>/<P> - sets manual Zoom and Focus values. Press <UV>/<P> to toggle
between zoom and focus. Use <+> or <-> to increase or decrease the zoom/
focus value, from 000–255.
•<W> - Sets manual Prism values. Use <+> or <-> to increase or decrease the
prism value, from 000–255.
•<+> - Increases a value when in a function.
•<-> - Decreases a value when in a function.
•<0>–<9> - Selects Auto programs 0–9.
Page 16 of 21
Operation
Intimidator Spot 375Z IRC User Manual Rev. 2
Master/Slave Mode
The Master/Slave mode allows a single Intimidator Spot 375Z IRC product (the “master”) to control the
actions of one or more Intimidator Spot 375Z IRC products (the “slaves”) without the need of a DMX
controller. The master product will be set to operate in either Stand-Alone mode or with the IRC-6, while
the slave products will be set to operate in Slave mode. Once set and connected, the slave products will
operate in unison with the master product.
Configure the products as indicated below.
Slave products:
1. Press <MENU>.
2. Use <UP> or <DOWN> to select Run Mode.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select Slave.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select from Slave1, Slave2, Slave3, or Slave4.
•SelectSlave1 for 100% synchronized actions.
•SelectSlave2, Slave3, or Slave4 for a delayed show, creating a wave effect.
7. Connect the DMX input of the first slave product to the DMX output of the master product.
8. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave
product.
9. Finish setting and connecting all the slave products.
Master product:
1. Set the master product to operate in Stand-Alone mode or with the IRC-6.
2. Make the master product the first product in the DMX daisy chain.
Zero Adjust Mode
The Intimidator Spot 375Z IRC contains a passcode protected mode which allows the user to calibrate and
adjust several of the product’s operating parameters.
In order to access this mode, do the following:
1. Press and hold <MENU> for at least 3 seconds.
2. Use <UP> (increases the selected value) and <DOWN> (selects the next value) to enter the
passcode: 2323.
3. Press <ENTER>.
In this mode, the starting positions for the following can be adjusted:
To adjust the starting position of one of these parameters, follow the instructions below:
1. Access the Zero Adjust mode.
2. Use <UP> or <DOWN> to select the parameter to be adjusted.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to increase or decrease the selected value, from 000–255.
5. Press <ENTER>.
• Configure all the slave products before connecting the master to the daisy chain.
• Never connect a DMX controller to a DMX string configured for Master/Slave
operation because the controller may interfere with the signals from the master.
• Do not connect more than 31 slaves to the master.
Parameter Default Function
PAN 128 Pan motor
TILT 128 Tilt motor
COLOR 128 Color wheel
GOBO 149 Gobo wheel
GOBO ROTATE 128 Gobo rotation
PRISM 134 Prism assembly
PRISM1 114 Prism rotation
FOCUS 063 Focus assembly
ZOOM 128 Frost assembly
DIMMER 128 Shutter assembly
Page 17 of 21
Intimidator Spot 375Z IRC User Manual Rev. 2
Operation
Changing Gobos
To change the gobos in the Intimidator Spot 375Z IRC, do the following:
1. Turn off and disconnect the product from power.
2. Place the product on a flat, level surface with the front facing up.
3. Remove 4 screws with a Phillips-head screwdriver to remove the cover.
4. Rotate the gobo wheel until the gobo that needs replacing is accessible.
5. Separate the gobo holder assembly from the gobo wheel by pushing it forward and up. Be careful
not to push the gobo out of the gobo plate.
6. Extract the gobo holder by pulling it backwards out of the product.
7. On a flat surface, remove the tension ring that holds the gobo in place and remove the gobo from
the gobo plate.
8. Insert a new gobo and secure it in place with the tension ring.
9. To reinsert the gobo holder, slide the tip of the gobo holder under the pressure plate near the
center of the gobo wheel.
10. Push the gobo holder assembly inwards. DO NOT force the gobo holder into the gobo wheel slot.
Move the holder slightly from the side to side if needed to get it to sit properly. If correctly installed,
the bottom of the holder will be flush with the gobo wheel.
11. Replace the cover of the Intimidator Spot 375Z IRC and secure with the 4 screws.
NOTE: If the gobo wheel is not accessible, the wrong cover was removed. Replace the
cover immediately and remove the cover on the opposite side of the Intimidator Spot
375Z IRC.
1
2
3
Tension Ring
Gobo
GoboHolder
Assembly
Pressure Plate
Page 18 of 21
Maintenance
Intimidator Spot 375Z IRC User Manual Rev. 2
5. Maintenance
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
Other manuals for SPOT 375Z IRC
1
Table of contents
Other Intimidator Dj Equipment manuals
