INVT HT1106S User manual

ImportantSafetyInstructions
True Online 6-20k UPS User Manual 1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important safety instructions. Read all safety and operating
instructions before operating the uninterruptible power systems (UPS). Adhere to all
warnings on the unit and in this manual. Follow all operating and user instructions. This
equipment can be operated by individuals without previous training.
This product is designed for commercial/industrial use only. It is intended for use with lift
support and other designated “critical” devices. Maximum load must not exceed that shown
on the UPS rating label. The UPS is designed for data processing equipment. If uncertain,
consult your dealer or local representative.
This UPS is designed for use on a properly grounded (earthed), 220/230/240VAC, 50 or
60Hz supply. The factory default setting is 220VAC/50Hz. Installation instructions and
warning notices are in this manual.
The UPS 06-20@220/230/240VAC is designed for use with a three-wire input (L,N,G).
WARNING
THE BATTERY CAN PRESENT A RISK OF ELECTRICAL SHOCK AND
HIGH SHORT CIRCUIT CURRENT. FOLLOWING PRECAUTIONS
SHOULD BE OBSERVED BEFORE REPLACING THE BATTERY.
zWear rubber gloves and boots.
zRemove rings, watches and other metal objects.
zUse tools with insulated handles.
zDo not lay tools or other metal objects on the batteries.
zIf the battery is damaged in any way or shows signs of leakage, contact your local
representative immediately.
zDo not dispose of batteries in a fire. The batteries may explode.
zHandle, transport and recycle batteries in accordance with local representative.
WARNING
ALTHOUGH THE UPS HAS BEEN DESIGNED AND MANUFACTURED
TO ENSURE PERSONAL SAFETY, IMPROPER USE CAN RESULT IN

Important Safety Instructions
True Online 6-20k UPS User Manual 2
ELECTRICAL SHOCK OR FIRE. TO ENSURE SAFETY, OBSERVE
THE FOLLOWING PRECAUTIONS:
zTurn off and unplug the UPS before cleaning it.
zClean the UPS with a dry cloth. Do not use liquid or aerosol cleaners.
zNever block or insert any objects into the ventilation holes or other openings of the
UPS.
zDo not place the UPS power cord where it might be damaged.

Contents
True Online 6-20k UPS User Manual 1
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.............................................................................................1
1. ELECTROMAGNETIC COMPATIBILITY .....................................................................................3
2. INTRODUCTION..................................................................................................................................4
3. SYSTEM DESCRIPTION ....................................................................................................................7
3.1 TRANSIENT VOLTAGE SURGE SUPPRESSION (TVSS)AND EMI/FRI FILTERS..................................7
3.2 RECTIFIER/POWER FACTOR CORRECTION (PFC) CIRCUIT...............................................................7
3.3 INVERTER..........................................................................................................................................7
3.4 BATTERY CHARGER ..........................................................................................................................8
3.5 DC-TO-DC CONVERTER...................................................................................................................8
3.6 BATTERY ...........................................................................................................................................8
3.7 DYNAMIC BYPASS ............................................................................................................................8
4. PRODUCT SPECIFICATION AND PERFORMANCE...................................................................9
4.1 MODEL DESCRIPTION .......................................................................................................................9
4.2 PRODUCT SPECIFICATION AND PERFORMANCE................................................................................9
5. INSTALLATION..................................................................................................................................11
5.1 UNPACKING AND INSPECTION.........................................................................................................11
5.2 CONNECT INPUT/OUTPUT POWER ..................................................................................................11
5.3 OPERATING PROCEDURE FOR CONNECTING THE LONG BACKUPTIME MODEL UPS WITH THE
EXTERNAL BATTERY .............................................................................................................................15
5.4 PARALLEL OPERATION ....................................................................................................................15
6. CONTROLS AND INDICATORS .....................................................................................................20
7. OPERATION........................................................................................................................................23
7.1 OPERATION MODE ..........................................................................................................................23

Contents
True Online 6-20k UPS User Manual 2
7.2 PARALLEL OPERATION....................................................................................................................23
7.3 MAINTENANCE BYPASS OPERATION MODE.......................................................................24
8. BATTERY MAINTENANCE.............................................................................................................27
9. NOTES FOR BATTERY DISPASALAND REPLACEMENT PROCEDURES..........................28
9.1 BATTERY DISPOSAL........................................................................................................................28
9.2 BATTERY REPLACEMENT PROCEDURES .........................................................................................28
10. TROUBIE SHOOTING ....................................................................................................................29
10.1 CHECKING UPS STATUS................................................................................................................29
10.2ADJUST THE FACTORS CAUSED THE PROBLEM..............................................................................29
ANNEX A. RATED PARAMETERS SET ON LCD............................................................................34
ANNEX B. INTELIGENT SLOT...........................................................................................................36
ANNEX C. EPO ......................................................................................................... 37

Introduction
True Online 6-20k UPS User Manual 3
1. ELECTROMAGNETIC COMPATIBILITY
* Safety
IEC/EN 62040-1-1
* EMI
Conducted Emission.........IEC/EN 62040-2 Category C3
Radiated Emission............IEC/EN 62040-2 Category C3
*EMS
ESD..................................IEC/EN 61000-4-2 Level 4
RS....................................IEC/EN 61000-4-3 Level 3
EFT..................................IEC/EN 61000-4-4 Level 4
SURGE............................IEC/EN 61000-4-5 Level 4
Low Frequency Signals..............:IEC/EN 61000-2-2
Warning: This is a product for commercial and industrial application in the second
environment-installation restrictions or additional measures may be needed to
prevent disturbances.
NOTICE：
This is a product for restricted sales distribution to informed partners. Installation
restrictions or additional measures may be needed to prevent radio interference.
Operated the UPS in an indoor enviroment only in an ambient temperature range of
0-40°C(32-104°F). Install it in a clean environment, free from moisture, flammable liquids,
gases and corrosive substance.
This UPS contains no user-serviceable parts except the internal battery pack. The UPS
on/off push buttons do not electrically isolate internal parts. Under no circumstance attempt
to gain access internally, due to the risk of electric shock or burn.
Do not continue to use the UPS if the panel indications are not in accordance with these
operating instructions or the UPS performance alters in use. Refer all fault to your dealer.
Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the precautions. Keep unauthorized personnel away from the batteries. Proper
disposal of batteries is required. Refer to your local laws and regulations for disposal
requirement.
DO NOT CONNECT equipment that could overload the UPS or demand DC current
from the UPS, for example: electric drills, vacuum cleaners, laser printers, hair dryer or any
appliance using half-wave rectification.
Storing magnetic media on top of the UPS may result in data loss or corruption.
Turn off and isolate the UPS before cleaning it. Use only a soft cloth, never liquid or aerosol
cleaners.

Introduction
True Online 6-20k UPS User Manual 4
2. INTRODUCTION
Congratulations on your choice of the UPS uninterruptible power system(UPS), the
UPS comes in nominal power ratings of 6000VA,10000VA,15000VA and 20,000VA. It is
designed to provide conditioned power to microcomputers and other sensitive electronic
equipment.
When it is generated, alternating current is clean and stable. However, during
transmission and distribution it may be subject to voltage sags, spikes and complete power
failure that may interrupt computer operations, cause data loss and even damage
equipment. The UPS protects equipment from these disturbances.
The UPS is a compact, on-line UPS. An on-line UPS continuously conditions and
regulates its output voltage, whether utility power is present or not. It supplies connected
equipment with clean sine wave power. Sensitive electronic equipment operates best from
sine wave power.
For ease of use, the UPS features a LCD display to indicate all information for UPS,
and provide kinds of function buttons.
6K,10K long backup model 6K,10K standard model 15K,20K long backup model

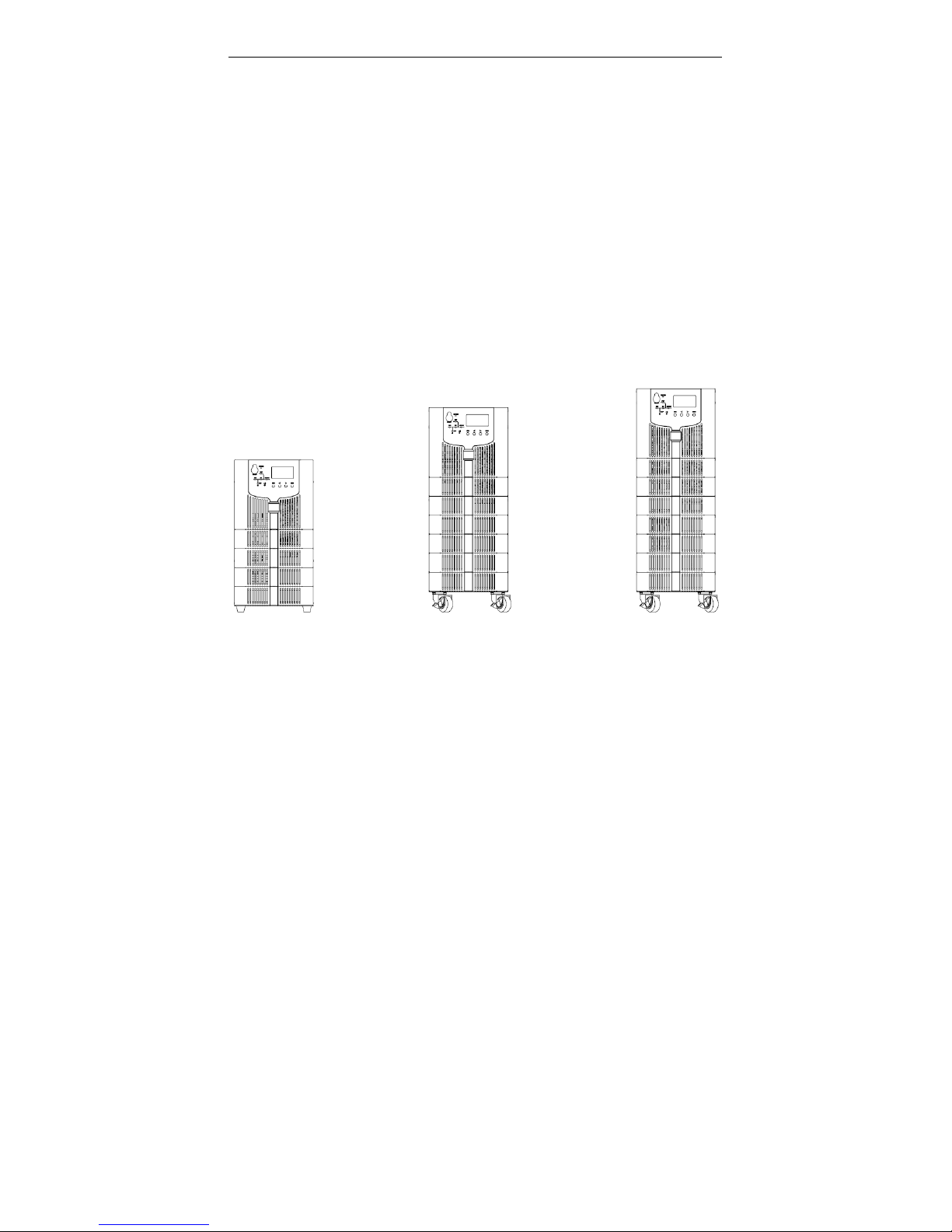

Fig 1. Front View of UPS Series

Introduction
True Online 6-20k UPS User Manual 5
1 1
1
22
2
34
5
6
7
8
9
10
11
12
34
5
6
78
9
10
11
12
34
5
6
8
7
11
10
9
12
13 13
13
6K long backup model 10K long backup model 6K standard model
11 2
2
33
44
5
5
6
6
7 7
88
9
10
10
11 11
12 13
13
10K standard model 15K,20K long backup model

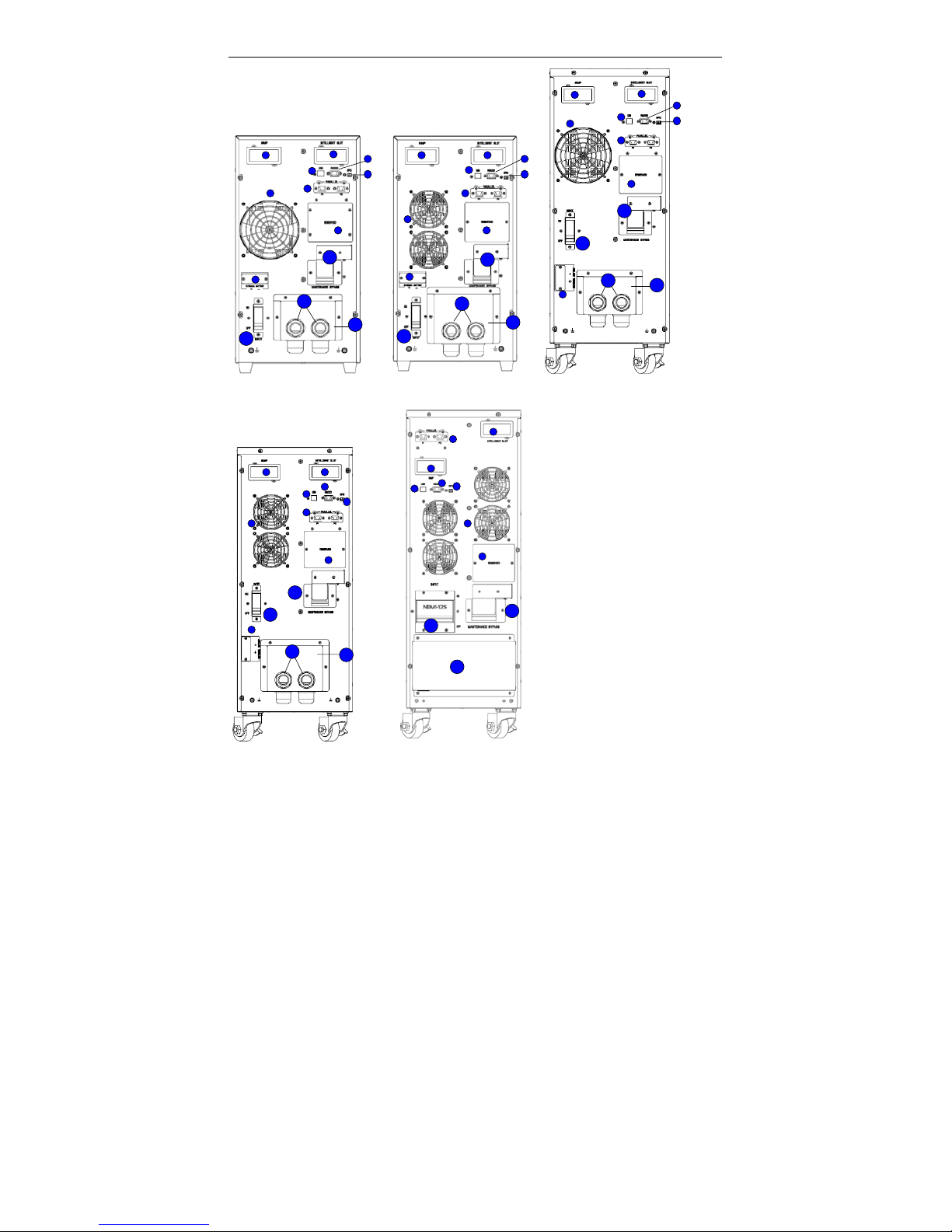

Fig 2. Rear View

Introduction
True Online 6-20k UPS User Manual 6
Function instructions:
1. SNMP card slot
2. Dry contactor slot
3. USB port
4. RS232
5. EPO
6. Parallel ports
7. Fans
8. Reserved customer function
9. External battery connector. Optional for standard model.
10. Internal maintenance bypass
11. Input breaker
12. Cable entry protector
13. Terminal cover

SystemDescription
True Online 6-20k UPS User Manual 7
3. SYSTEM DESCRIPTION
3.1 Transient Voltage Surge Suppression (TVSS) and EMI/FRI Filters
These UPS components provide surge protection and filter both electromagnetic
interference (EMI) and radio frequency interference (RFI). They minimize any surge or
interference present in the utility line and keep the sensitive equipment protected.
3.2 Rectifier/Power Factor Correction (PFC) Circuit
In normal operation, the rectifier/power factor correction (PFC) circuit converts utility AC
power to regulated DC power for use by the inverter while ensuring that the waveform of the
input current used by the UPS is near ideal. Extracting this sine wave input current achieves
two objects:
zThe utility power is used as efficiency as possible by the UPS.
zThe amount of distortion reflected on the utility is reduced.
This results in cleaner power being available to other devices in the building not being
protected by the UPS.
3.3 Inverter
In normal operation, the inverter utilize the DC output of the power factor correction
circuit and inverters it into precise, regulated sine wave AC power. Upon a utility power
failure, the inverter receives its required energy from the battery through the DC-to-DC
converter. In both modes of operation, the UPS inverter is on-line and continuously
generating clean, precise, regulated AC output power.

System Description
True Online 6-20k UPS User Manual 8
3.4 Battery Charger
The battery charger utilizes energy from the utility power and precisely regulates it to
continuously float charge the batteries. The batteries are being charged whenever the UPS
is connected to utility power.
3.5 DC-to-DC Converter
The DC-to-DC converter utilizes energy from the battery system and raises the DC
voltage to the optimum operating voltage for the inverter. The converter includes boost
circuit which is also used as PFC.
3.6 Battery
The 6K/10K Standard include value-regulated, non-spoilable, lead acid batteries inside.
To maintain battery design life, operate the UPS in an ambient temperature of 15-25°C.
3.7 Dynamic Bypass
The UPS provides an alternate path for utility power to the connected load in the
unlikely event of a UPS malfunction. Should the UPS have an overload, over temperature or
any other failure condition, the UPS automatically transfers the connected load to bypass.
Bypass operation is indicated by an audible alarm and illuminated amber Bypass LED. To
manually transfer the connected load from the inverter to bypass, press the ON/OFF button
or Manual Bypass button once.
NOTICE：The bypass power path does NOT protect the connected equipment from
disturbances in the utility supply.

Production Specification and Performance
True Online 6-20k UPS User Manual 9
4. PRODUCT SPECIFICATION And PERFORMANCE
4.1 Model Description
This manual is applicable to the following models:
“L” Model: Long backup time
4.2 Product Specification and Performance
1. General Specification
Model 6KS 6KL 10KS
1
0KL 15KL 20KL
Power Rating 6KVA/5.4KW 10KVA/9KW 15KVA/13.5KW 20KVA/18KW
Frequency (Hz) 50/60
Input Voltage (176-275)VAC
Current 34A max. 57A max 87A max 115A max
Battery Voltage 192VDC 192VDC 192VDC 192VDC
Current 37A max 60A max 90A max 120A max
Output Voltage 220V/230V/240V
Current 27/26/25A 45/43/42A 68/65/63A 91/87/83A
Dimension
(W*D*H) mm
250*562*480/L
250*562*650/S
250*562*480/L
250*562*650/S 250*562*770 250*562*770
Weight (kg) 57 18 65 20 33 33
2. Electrical Performance
Input
Model Voltage Frequency Power Factor
UPS Single-phase 40-70Hz >0.99(Full load)
Model No. Type
6KS Standard
10KS
6KL
Long backup time
10KL
15KL
20KL

Product Specification and Performance
True Online 6-20k UPS User Manual 10
3. Operating Environment
Temperature Humidity Altitude Storage temperature
0°C-40°C <95% <1000m 0°C-70°C
NOTICE：If the UPS is installed or used in a place where the altitude is above than 1000m,
the output power must be derated in use, please refer to the following:
Altitude (M) 1000 1500 2000 2500 3000 3500 4000 4500 5000
Derating Power 100% 95% 91% 86% 82% 78% 74% 70% 67%
Output
Voltage
Regulation
Power
Factor
Frequency
tolerance. Distortion Overload capacity Crest ratio
±1% 0.9 lag
±0.1% of
normal
THD<1%
Full load
(Linear
Load)
110% load: transfers to
Bypass mode after 10
minutes
130% load: transfers to
Bypass mode after 1
minute
150% load :transfers to
Bypass mode after 0.5
minute and shutdown the
output after 1 minute
3:1
maximum

Installation
True Online 6-20k UPS User Manual 11
5. INSTALLATION
The system should be installed and wired only by qualified electricians in accordance
with applicable safety regulations.
NOTICE：UPS operation in sustained temperature outside the range of 15-25
° C (59 ° -77 ° F)
reduces battery life.
5.1 Unpacking and Inspection
1) Unpack the packaging and check the package contents. The shipping package contains:
●1 UPS
●1 user manual
●2 connectors（red and white）for battery with 4 contacts (6KL and 10KL)
●2 cable entry protector (6K and 10K)
2) Inspect the appearance of the UPS to see if there is any damage during transportation.
Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts.
5.2 Connect Input/Output Power
1. Notes for installation
1) The UPS must be installed in a location with good ventilation, far away from water,
inflammable gas and corrosive agents.
2) Ensure the air vents on the front and rear of the UPS are not blocked. Allow at least
0.5m of space on each side.
3) Condensation to water drops may occur if the UPS is unpacked in a very low
temperature environment. In this case it is necessary to wait until the UPS is fully
dried inside out before proceeding installation and use. Otherwise there are hazards
of electric shock.
2. Installation
Installation and wiring must be performed in accordance with the local electric code and
the following instructions by professional personnel.
For safety, please cut off the mains power switch before installation. Open the battery
breaker for long backup time model (“L” model).
1) Open the terminal block cover located on the rear panel of the UPS, please refer to
the appearance diagram.
2) For 6k(L) UPS, it is recommended to select the UL1015 10AWG(6mm2) wire or other
insulated wire which complies with AWG Standard for the UPS input and output
wirings.
3) For 10k(L) UPS, it is recommended to select the UL1015 8AWG(10mm2) wire or

Installation
True Online 6-20k UPS User Manual 12
other insulated wire which complies with AWG Standard for the UPS input and output
wirings.
4) For 15kL/20kL UPS, it is recommended to select the UL1015 6AWG(25mm2) wire or
other insulated wire which complies with AWG Standard for the UPS input wires and
output wirings. It is better to use 3 wires (UL1015 10AWG) connecting input A/B/C
separately from same source as fig.4.
NOTICE：Do not use the wall receptacle as the input power source for the UPS, as its rated
current is less than the UPS’s maximum input current. Otherwise the receptacle may be burned
and destroyed. For the long backup time modes, make sure that the capacity of batteries is
larger than 24AH to avoid over charging.
5) For 6-10K, connect the input and output wires to the corresponding input and output
terminals according to the fig.3. Make sure that wires be connected to terminals
through cable entry protector shown as fig.3:
(a) Cables entry
(b) Wiring connection
Fig 3. Input and Output Terminal Block Wiring Diagram of 6K(L)/10K(L)

Installation
True Online 6-20k UPS User Manual 13
6) For 15KL/20KL,connect the input 3 line wires to input A/B/C separately as fig.4. Or
connect 1 input wire to input C.
(a）Cables entry
(b) Wiring connection

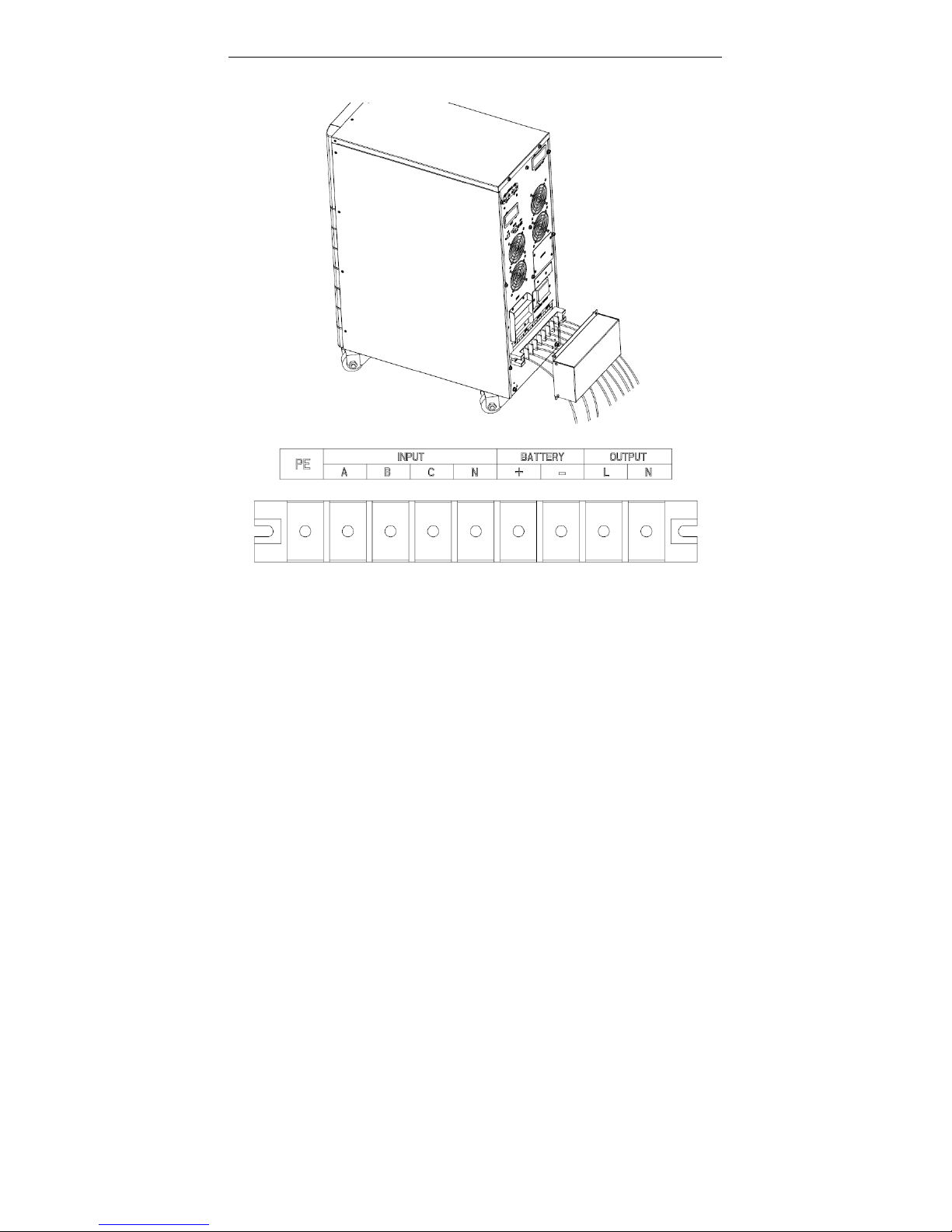

Fig 4. Input and Output Terminal Block Wiring Diagram of 15KL/20KL
NOTICE：You must make sure that the input and output wires and the input and output
terminals are connected tightly.
NOTICE: Please make sure that if there is a copper bar shorting input A/B/C terminal for UPS
15KL/20KL, or else you must contact with supplier.
7）The protective earth ground wire refers to the wire connection between the
equipment which consumes electric equipment and the ground wire. The wire
diameter of protective earth ground wire should be at least as above mentioned for
each model and green wire or green wire with yellow ribbon wire is used.
8）For 6K and 10K UPS,

Installation
True Online 6-20k UPS User Manual 14
9）After having completed the installation, make sure the wiring connection is correct.
10）Please install the output breaker between the output terminal and the load, and the
breaker should with leakage current protective function if necessary.
11) To connect the load with the UPS, please turn off all the loads first, then perform the
connection and finally turn on the loads one by one.
12) No matter the UPS is connected to the utility power or not, the output of the UPS may
have electricity. The parts inside the unit may still have hazardous voltage after
turning off the UPS. To make the UPS have no output, power off the UPS, and then
disconnect the utility power supply.
13) Suggest charging the batteries for 8 hours before use. After connection, turn the input
breaker in the “ON” position, the UPS will charge the batteries automatically. You can
also use the UPS immediately without charging the batteries first, but the backup
time may be less than the standard value.
14) If it is necessary to connect the inductive load such as a monitor or a laser printer to
the UPS, the start-up power should be used for calculating the capacity of the UPS,
as its start-up power consumption is too big when it is started.
5.3 Operating procedure for connecting the long backup time model UPS
with the external battery
Take out Anderson connector and make battery cables according to site’s application
shown as below:
NOTICE: make sure that the red Anderson connector be connected to battery +and the black
Anderson connector be connected to battery -, or else it may destroy UPS. For the long backup
time modes, make sure that the capacity of batteries is larger than 24AH to avoid over

Installation
True Online 6-20k UPS User Manual 15
charging.
1. The nominal DC voltage of external battery pack is 192VDC. Each battery pack
consists of 16 pieces of 12V maintenance free batteries in series. To achieve longer
backup time, it is possible to connect multi-battery packs, but the principle of “same
voltage, same type” should be strictly followed.
2. For UPS 15KL/20KL, select the UL1015 6AWG(25mm2) wire or other insulated wire
which complies with UL Standard for the UPS battery wirings. The procedure of
installing battery bank should be complied with strictly. Otherwise you may encounter
the hazardous of electric shock.
1) A DC breaker must be connected between the battery pack and the UPS. The
capacity of breaker must be not less than the data specified in the general
specification.
2) Set the battery pack breaker in “OFF” position and connect the 16 pieces of
batteries in series.
3) You must connect the external battery cable to the battery first, if you connect
the cable to the UPS first, you may encounter the hazardous of electric shock.
The positive pole of the battery is connected to the UPS with red wire; the
negative pole of the battery is connected to the UPS with black wire; the green
and yellow ribbon wire is connected to the ground of the battery cabinet.
3. To complete the connection of the external battery cable into the UPS. Do not
attempt to connect any loads to the UPS now. You should connect the input power
wire to the right position first. And then set the breaker of the battery pack in the “ON”
position. After that set the input breaker in the “ON” position. The UPS begins to
charge the battery packs at the time.
5.4 Parallel operation
1. Brief introduction
As long as the UPS is equipped with parallel cables, up to 3 UPSs can be connected
in parallel to realize output power sharing and power redundancy.
2. Parallel installation
1) Users need to opt two standard 15-pin communication cables which length is
appropriate to be less than 3m. shown as fig.5:

Installation
True Online 6-20k UPS User Manual 16

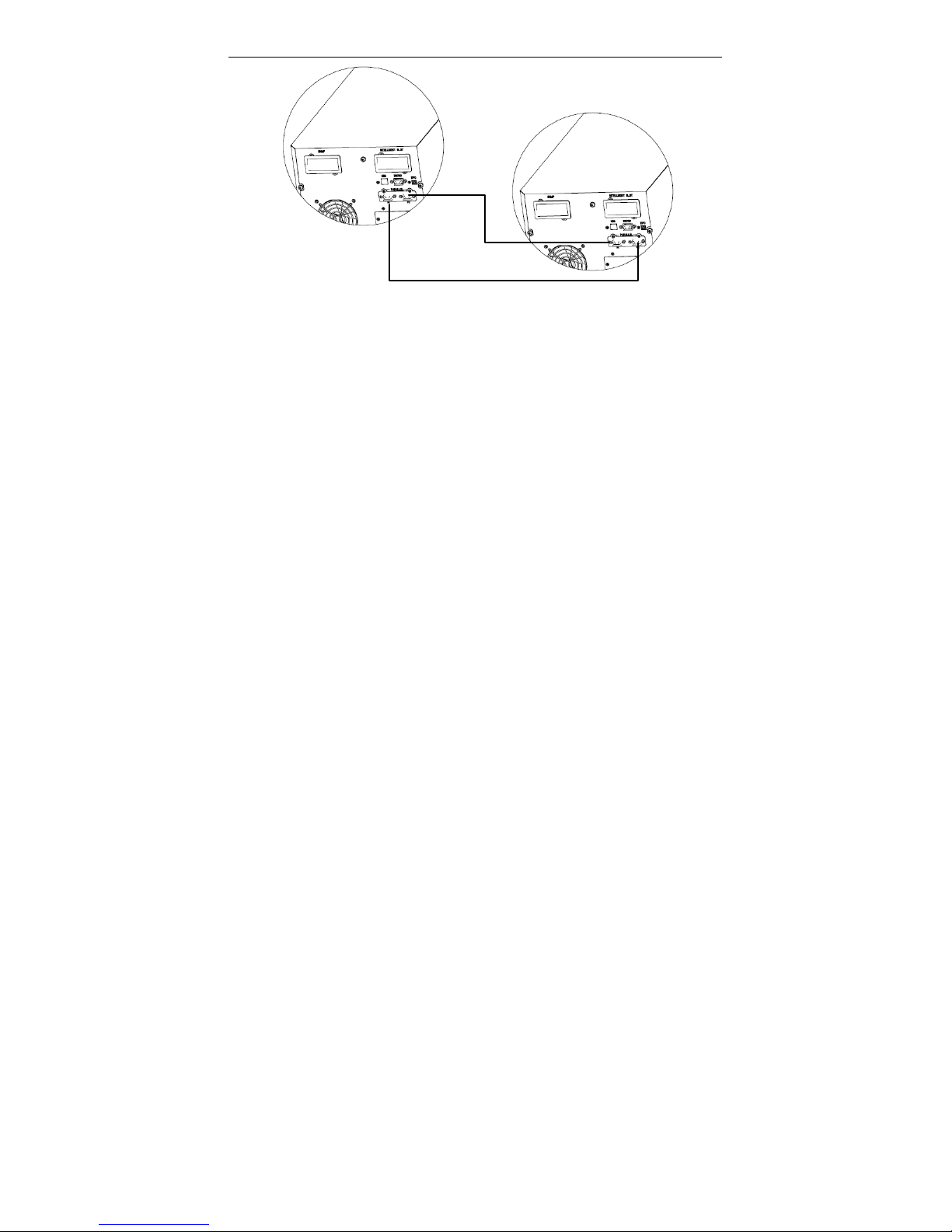

Fig.5 communication cables connection
2) Strictly follow the stand-alone wiring requirement to perform the input wiring of
each UPS.
3) Connect the output wires of each UPS to an output breaker panel.
4) Each UPS need an independent battery pack.
5) Please refer to the wiring diagram in the next page, and opt suitable breaker.
■The requirement of the output wiring is as follows:
●When the distance between the UPSs in parallel and the breaker panel is
less than 20 meters, the difference between the wires of input & output of the
UPSs is required to be less than 20%.
●When the distance between the UPSs in parallel and the breaker panel is
greater than 20 meters, the difference between the wires of input & output of
the UPSs is required to be less than 10%.
The wiring diagram are shown as follows:

Installation
True Online 6-20k UPS User Manual 17
(a)Wiring Diagram of 6K(L/S)/10K(L/S)

Installation
True Online 6-20k UPS User Manual 18
UPS2 input
breaker
UPS1 input breaker
utility
UPS2 battery breaker
UPS1 battery breaker
UPS2 output breaker
UPS1 output breaker
PE Input
AN
+-L
Battery input Output
N
BC PE Input
AN
+-L
Battery input Output
N
BC

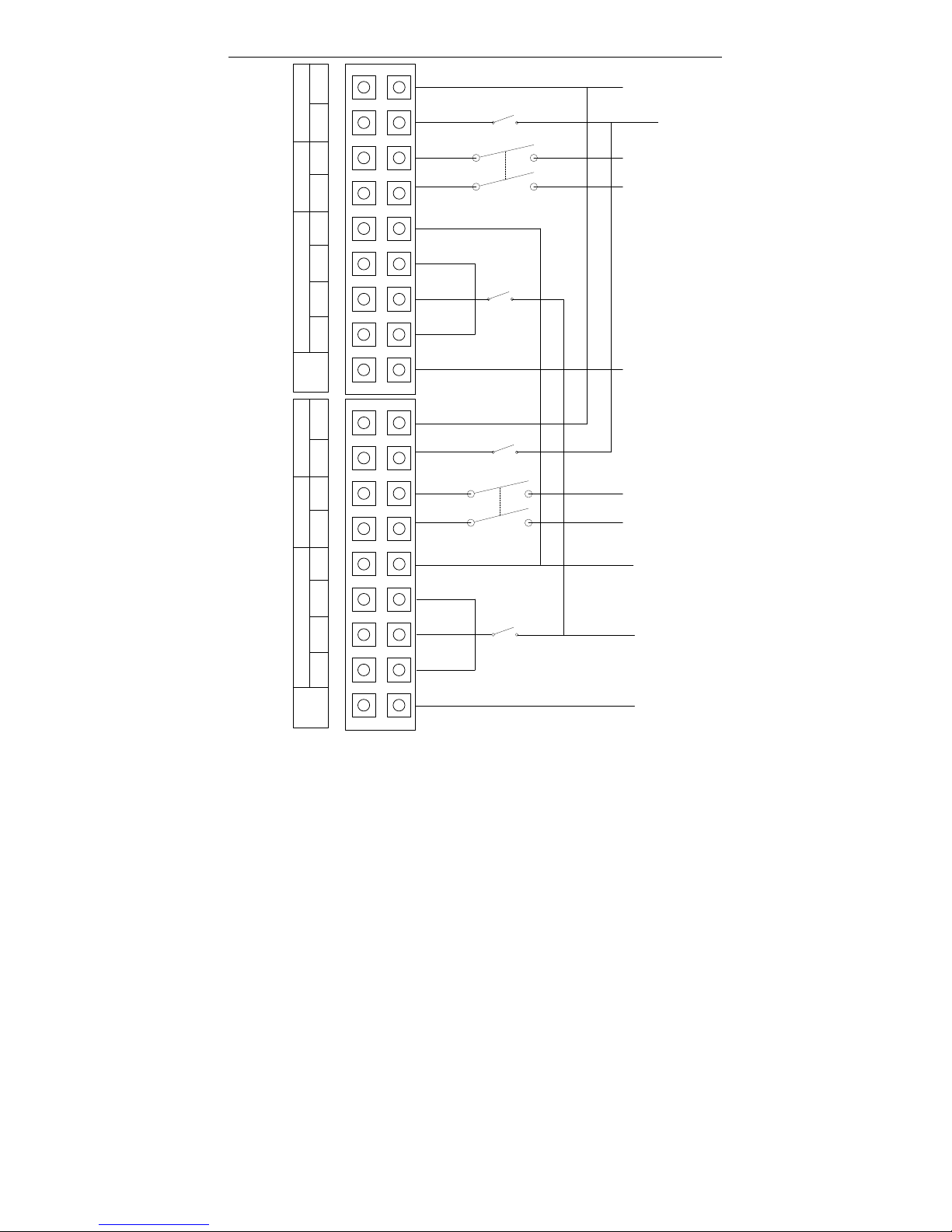

(b)Wiring Diagram of 15KL/20KL
Fig.6 wiring diagram
