Quick Start Guide
SmartStar®E Series Systems
(8500, 8502, 8503, and 8504)
SmartStar®G Series Systems with GPS
(8800, 8802, 8803, and 8804)
Step 1.
Extend tripod legs to full extension.
Step 2.
Attach mount to tripod using the long bolt (#7). Slide tray on
bottom of shaft. Then screw on round black knob (#9).
Step 3a.
Note: you may use 8 AA batteries (Step 3) or the AC
adaptor (Step 5) to operate the mount.
Lift the battery cover. Carefully pull out the battery holder
from the compartment. Be sure not to accidentally
disconnect the wires.
Step 3b.
Insert 8 AA batteries (not included) in the holder. Refer to the
diagram on the holder to orient the batteries properly.
Replace the holder back into the battery compartment and
replace the lid.
For reference: the battery pack fits in with wires on the
bottom right (See arrow in photo). Use only fresh batteries.
Using old or low batteries may cause error messages.
Step 4.
Attach telescope to mount using dovetail lock knob (#2).
(Picture shows 80mm refractor. However all scopes will
attach in the same manner.)
#9knob
#7bolt
#2knob

iOptronCorp.|6EGillStreet|Woburn,MA01801USA|(781)569‐0200|TollFree(866)399‐4587|www.iOptron.com

Step 5. Plug in hand controller and AC adaptor.
Plug hand controller into either one of the two HBX ports on
the mount. Next plug in AC adaptor. (Or use batteries—see
step 3). Turn on power (the red light should go on).
At this point you can begin observing manually. Use the 4 Arrow
keys (▲▼◄►) to rotate the scope Up, Down, Left, and Right. Use
the SPEED key to change the slew rate from the slowest (1X) to the
fastest (MAX). (Note: The slowest speed on the SmartStar®-E is
2X).The next steps show you how to set up the telescope and
controller for automatic slewing and tracking.
Step 6. Set up telescope for auto-observing.
Level the mount using the bubble on side of mount by
adjusting tripod legs. The bubble should be in the middle of
the circle. It is also suggested to use additional levels (such
as a torpedo level) to assure precise leveling.
Step 7.
Set telescope to PARK POSITION.
(1) Position the mount so that the “SOUTH” mark is facing
south (A compass may be helpful).
(2) The telescope tube should be pointed directly up at the
zenith. If it is not perfectly straight then loosen the altitude
lock (#4) to adjust telescope.
Step 8. Main Screen
For models with GPS: Wait for controller to say “GPS-OK” or
“Stop” in top right corner —not “GPS-ON”. GPS provides
Latitude, Longitude, and current time only.
Continue to step 9.
(Please note: this picture shows the SmartStar®-G hand controller.
The SmartStar®-E hand controller has similar menu items, but with a
smaller 4-line screen instead.)
Step 9.
Press the MENU key once.
Scroll (with the ▲/▼keys) to “Set Up Controller”
Press ENTER.
Then go to Set Up Local Time and Site in the next screen.
(This may be one or two menu items depending on your version)
Select and then press ENTER.
Step 10. Set Up Local Time
Go to:
Set up Local Time (or “Local Time and Site”).
Press ENTER.
Enter date and day-light savings (Y-yes. N-no).
For SmartStar®-E controller a checkmark is “yes”, X is “no”.
Then press ENTER
(Note: use arrow keys to scroll through screen and select
numbers)
1)South
2)Up
#4
Alt
lock
PluginAC
adaptor
here

iOptronCorp.|6EGillStreet|Woburn,MA01801USA|(781)569‐0200|TollFree(866)399‐4587|www.iOptron.com

Step 11. Set Up Site
GPS will provide the longitude and latitude information. If
GPS is not included (or available), these values can be
manually entered here.
Use ▲/▼keys to change the numbers and letters. Use ◄/►
keys to scroll through the fields.
The last line of this screen is for setting time zone information
(add or subtract 60 minutes (Min.) per time zone).
Examples: minutes “behind” UT or “ahead of” UT
New York: 300 Min. “behind” UT
Los Angeles: 480 Min. “behind” UT
Rome: 60 Min. “ahead of” UT
Sydney: 600 Min. “ahead of” UT
Press ENTER when finished.
The mount is now ready to find (GOTO) and track objects.
Step 12. Select and Slew to an object
Press Menu button.
Scroll to “Select and Slew”
Press ENTER.
Step 13.
Select a category (ex. “Planets, Sun, Moon”) by scrolling with
the arrow keys.
Press ENTER.
Then select an object (ex. “Moon”) by scrolling with the arrow
keys. Press ENTER.
The telescope will automatically slew to the object and lock
on. It will automatically begin to track once it locks on to the
object.
Step 14. Sync to Target (Use this to center and synchronize
the object selected in Step 13).
Press MENU. Scroll to “Sync. To Target”. Press ENTER.
Next use the arrow keys (▲▼◄►) to center the object in the
eyepiece. Then press ENTER again to synchronize the
object with the memory.
To slew to other objects simply repeat steps 12 and 13. You
do not need to repeat step 14 except for adjustments as
needed.
(Refer to the full online manual for 1-star and 2-star
alignments. Sync to Target is similar to 1-star Alignment
except that you choose the object to align to.)

iOptronCorp.|6EGillStreet|Woburn,MA01801USA|(781)569‐0200|TollFree(866)399‐4587|www.iOptron.com


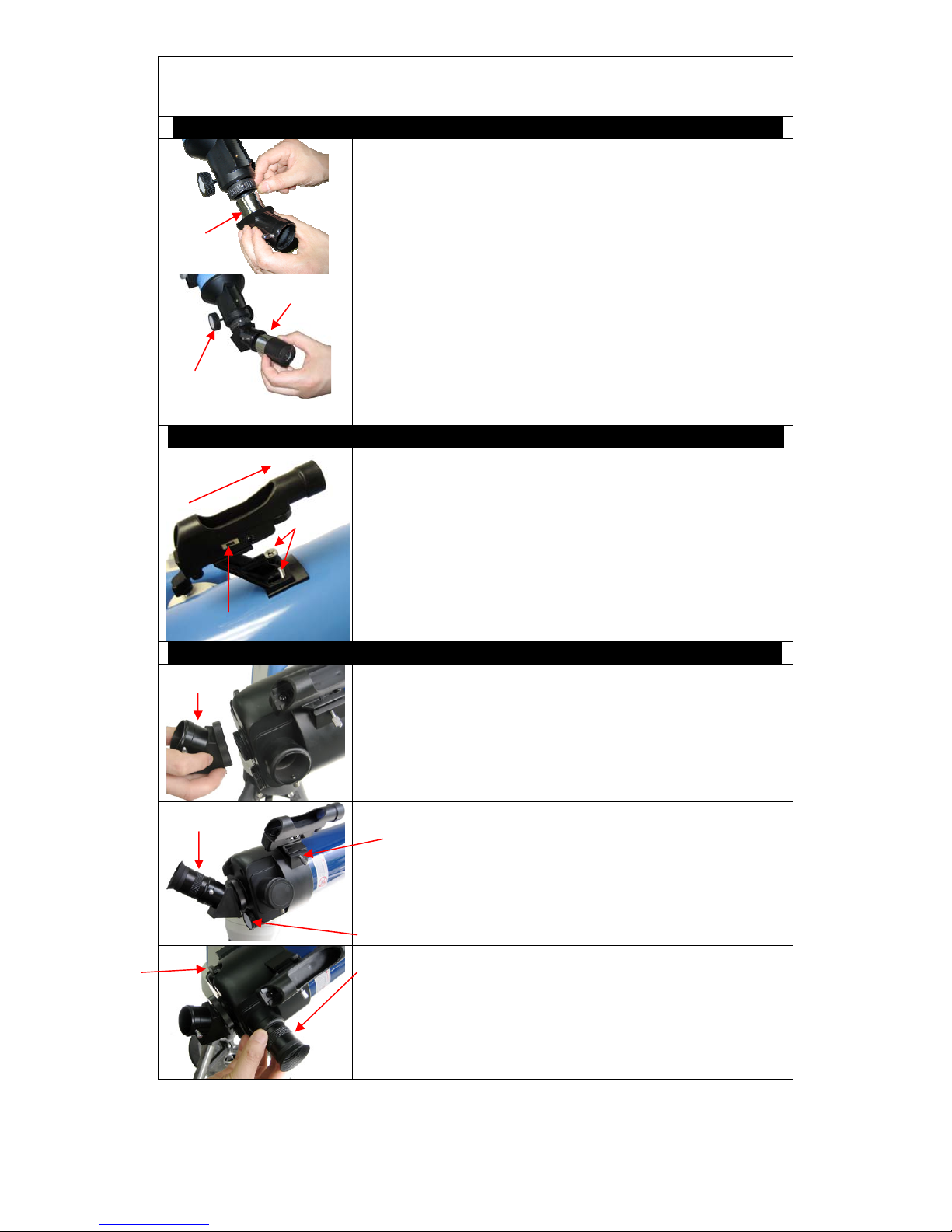

This page shows specific directions for the 80mm Refractor, 114mm
Newtonian, and the 90mm Maksutov (depending on which telescope tube
your unit may come with).
.80mm Refracto
r
(#8502 and #8802)…….....................................................
Insert 45º diagonal: Insert the diagonal into the eyepiece
side of the telescope. Tighten the thumbscrews to a firm feel
only.
Insert the eyepiece: Slide the eyepiece into the open end of
the diagonal. Tighten the thumbscrews to a firm feel only.
Remove the dust cover from the other end of optical tube
assembly.
Use the focus knob to bring objects into focus. You may
need to turn the focus knob quite a few turns to focus your
telescope for the first time. Always start observing using a
low power eyepiece (such as a 25mm eyepiece) to get a nice
wide field of view. Later you can change to high power if so
desired. Higher powered eyepieces have a much narrower
field of view. So it’s more difficult to initially locate objects
using higher powered eyepieces.
.114mm Newtonian (#8503 and #8803) …….................................................
Attach the red dot finder scope to the telescope tube (#1):
First remove the two washers on the tube. Then place the
finder scope onto the two bolts and re-attach the washers
securely. The finder scope should face towards the open end
of the tube (see arrow in diagram).
Turn on the beam using the switch on the side. (note: you
may need to remove the plastic insulation placed next to the
battery underneath)
.90mm Maksuto
v
-Cassegrain (#8504 and #8804)………………………………….
Install Diagonal by screwing it onto the back end of the
scope. You can adjust the position of the diagonal by
loosening the free-spinning threader on the diagonal.
Install the Finderscope by sliding the dovetail plate onto the
sleeve (see arrow) and tightening the side screw.
The eyepiece can be placed on the end of the scope or on
the side (see next step). Secure the eyepiece using the side
screw.
Use the focus knob to adjust the focus.
This picture shows the eyepiece on the side. Remove the
protective cap to insert the eyepiece. The diagonal is not
used for side viewing.
Use the flip switch to flip the internal mirror to view from the
side or the end of the scope.
45º diagonal
eyepiece
Focus knob
Bolts
Switch
Pointtowardopen
endoftelescope
Flip
switch
Diagonal
Eyepiece
