IP Vandal Dome is a professional CCD IP Vandal Dome. It has built-in web server
which enables user to view real-time video via IE browser. It also supports
simultaneously MPEG-4&JPEG video compression and dual streaming which
provides smooth and high video quality. The video can be stored in the SD card,
and can be playback remotely.
IP Vandal Dome is an easy-to-use IP Camera which is designed for security
application.
II.Product Specifications
zSupport PoE (Power Over Ethernet) - Optional
zSupport IP66 (Weatherproof)
zSupport Dual streaming
zHigh Resolution (540 TV Lines)
zTrue Day/Night function, removable IR Cut Filter, ICR (Optional)
zVandal Proof (Polycarbonate shell withstand impact up to 400 pounds)
zMPEG4/ JPEG compression
zSupports SD card for local recording
z2-way audio
zSupport Cell Phone/PDA
zSupport 3GPP
zOnline firmware upgrade
zCompatible with Microsoft Windows Media Player
Specifications
Hardware
Model CDV-3V930MU CDV-3V930HU
Picture Elements H×V NTSC：510×492, PAL：500×582 NTSC：768×494, PAL：752×582
Horizontal Resolution More than 420 TV Lines More than 540 TV Lines
Image sensor 1/3” CCD
Lens Changeable 3.7~12mm vari-focal lens,F1.6
IR LED IR LED Built-in (optional)
CPU ARM 9 ,32 bit RISC

5/39
SDRAM 64MB
Flash 8MB
Video Out 1 Vp-p, 75 Ohms
I/O 1 in/out Relay out (COM. & N.O.)
Audio in 1
Audio Out 1
Power Consumption DC 12V, 490mA
Dimensions (W×H×D) 126 x 126 x 100 mm
Weatherproof IP66
Vandal Proof Polycarbonate shell can withstand impact up to 10 pounds
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP,
3GPP, UPnP
System
Video Resolution NTSC：720x480, 704x480,352x240, 176x120
PAL：720x576, 704x576, 352x288, 176x144
Video adjust Brightness, Contrast, Saturation, Hue
Power Over Ethernet(PoE) Optinal
Dual Streaming Yes
CCD setting BLC
Image snapshot Yes
Full screen monitoring Yes
Compression format MPEG-4/ JPEG
Video bitrate adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to SD card
Pre/ Post alarm Yes, configurable
Security Password protection
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
Audio Yes, 2-way
SD card management
Recording trigger Motion Detection, IP check, Network break down (wire only)
Video format AVI, JPEG
Video playback Yes

6/39
Delete files Yes
Web browsing requirement
OS Windows 2000, XP, 2003, Microsoft IE 6.0 or above
Hardware Suggested Intel-C 2.0G, RAM：512MB, Graphic card：64MB
Minimum
Intel-C 1.6G, RAM：256MB, Graphic card：32MB
III. Product Installation
A. Monitor Setting
i. Right-Click on the desktop. Select “ Properties”.
ii. Change color quality to highest (32bit).

7/39
B. Hardware Installation
i. Connect power adaptor
ii. Connect Ethernet cable to IP Camera
iii. Connect IP Camera to a computer or Local network.
Ｂ-1 I/O Control Instruction
I/O terminal connector – used in application, for e.g., motion detection, event
triggering, alarm notifications. It provides the interface to:
1 Digital Input (GND+Alarm) – An alarm input for connecting devices that can toggle
between an open and closed circuit, for example: PIRs, door/window contacts, glass
break detectors, etc. When a signal is received the state changes and the input becomes
active.
1 Relay output (COM +N.O.) – An output to Relay switch, for example: LEDs, Sirens,
etc
Digital Input
Alarm Input
1. GND (Ground) : Initial state is LOW
2. Alarm : Max. 50mA, 12VDC
Relay Output
1. COM: (Common)
2. N.O. (Normally Open): Max. 1A, 24VDC or 0.5A, 125VAC

8/39

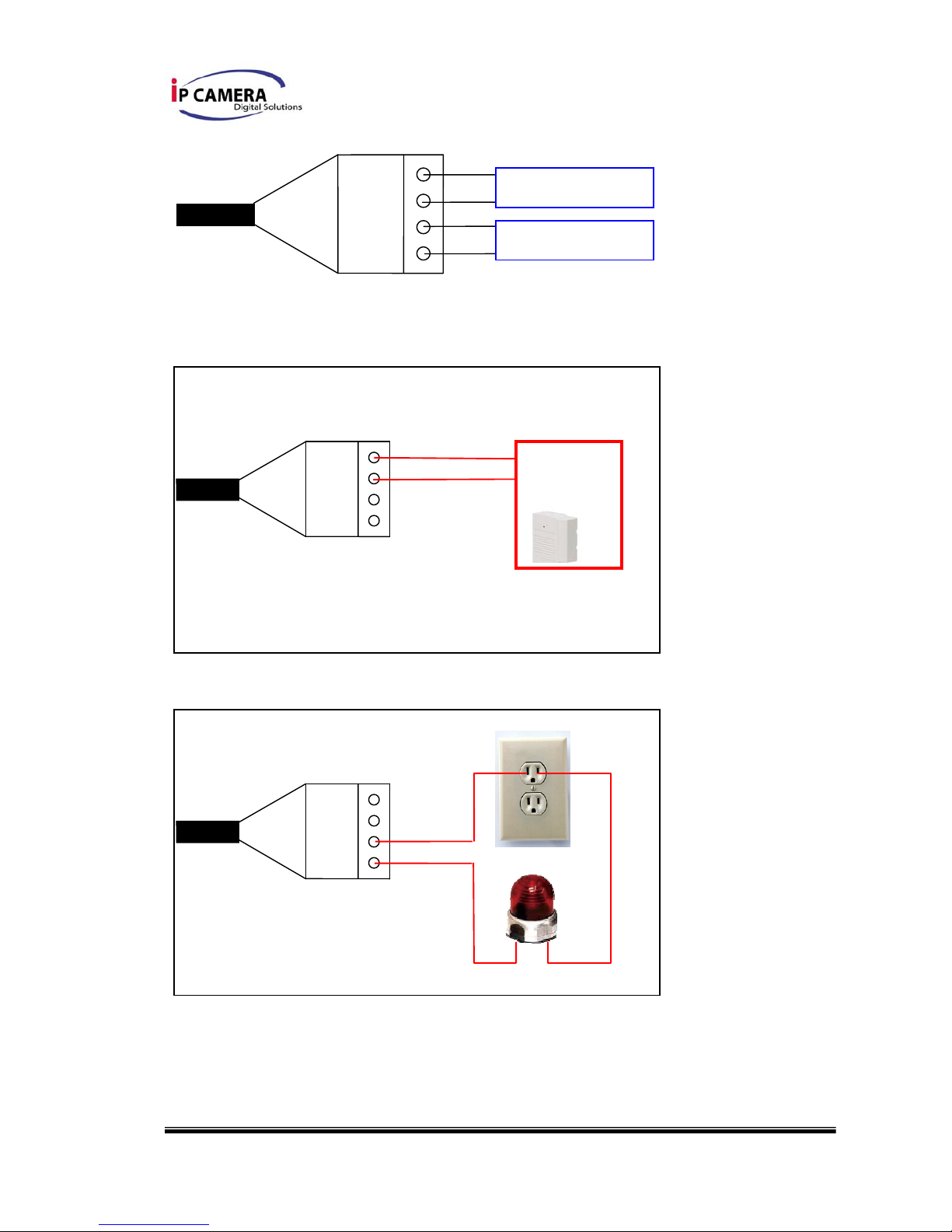

B-2 Relay Connection:
Digital Input connection
Relay Output Connection
GND
ALARM
COM
N.O.
ALARM IN
Relay Out
GND
ALARM
COM
GND
ALARM
COM
Door/Window
Contacts

9/39
B-3 PoE ( Power Over Ethernet)(Optional) 802.3af, 15.4W PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the network
device, such as an IP phone or a network camera, using the same cable as that
used for network connection. It eliminates the need for power outlets at the
camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure 24 hours a day, 7 days a week operation.
Ethernet
PoE Switch
PoE IP Camera
PoE IP Camera
Ethernet Cable
Ethernet Cable

10/39
C. IP Assignment

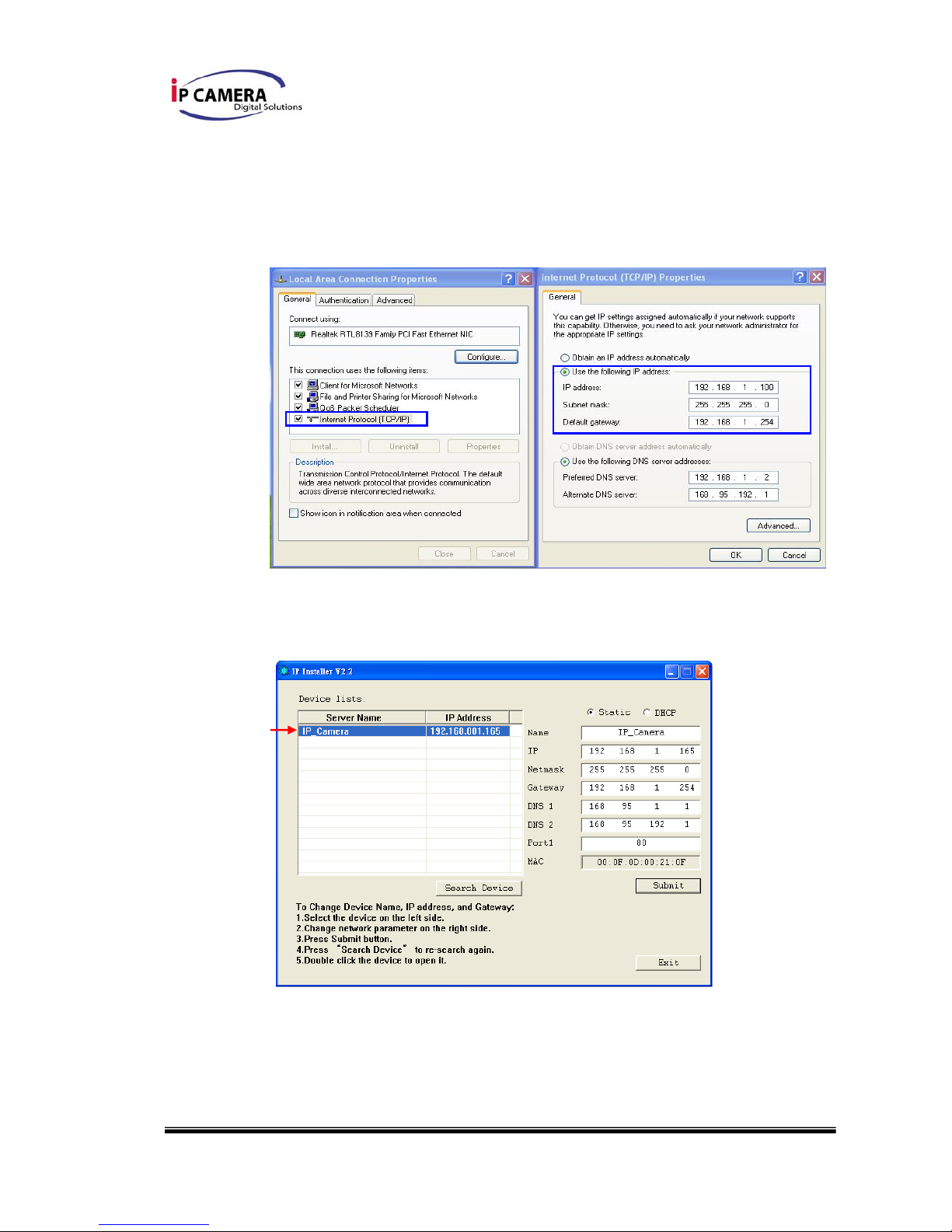

i. Use the software, “IP Installer” to assign the IP address of IP Camera.
The software is in the attached software CD.
ii. There are two languages for the IP installer
a. IPInstallerCht.exe：Chinese version
b. IPInstallerEng.exe：English version
iii. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
iv. Please execute IP Installer
v. For Windows XP SP2 user, the following message box may appear.
Please click “Unblock”.
vi. IP Installer configuration:
