IPAS FDV Galaxy Park User manual

Lysteknikk
Dimmetype
Beskyttelse
IPAS AS Østre Rosten 2A 7075 Tiller Norway Telefon [phone] [email protected] -www.ipas.no
El nr 35 855 60
Article nr 606055
EAN 7090015373377
Type lyskilde LED (Cree X-TE SMD LED)
Spenning 230VAC 50/60Hz
Watt 60W
Systemeffekt (W) 60W
Effektiv lysstrøm (lm)6000 lm
Effekt 100 lm/W
Fargetemperatur 4000K
Fargegjengivelse
(CRI)
Ra>80
MacAdams faktor SDCM<5
Levetid (IEC62717 Ta25) 70 000 L80B50
Lysspredning 150x80º
Type Ikke Dimbar
Isolasjonsklasse Klasse II
IP-grad (armaturhus)IP66
IP-grad (driver) IP20
IK-grad IK08
Galaxy Park
FDV
Materialer og overflater
Armaturhus Aluminium Die-cast
Farge Mørk grå (RAL7024)
Optikk Glass
Energi og godkjenning
Montering/Tilkobling
Dimensjoner (mm)
Forpakning
Energiklasse A+-A++
Godkjenning CE, RoHS
Satety standard EN 55015:2013/A1:2015, EN
61547:2009, EN 61000-3-
2:2014, EN 61000-3-3:2013
Montering Utendørs
Kabling 6m ledning AC
Høyde (H) 627 mm
Diameter (D) Ø520 mm
Vekt 11,5 kgs
Kartong Dimensjon 580x580x290 mm
Antall/Kartong 1 stk
Kartong Vekt 13,0 kgs
7 090015 373377

Art. Nr.: 606055/606155/610065
Galaxy Park SMD_Class II_Manual_V3_20181207
Galaxy Park/Street SMD
IMPORTANT INFORMATION:
1. Please read this instruction carefully before installation and keep it for future reference.
2. Please conform to the instruction of equipment and installed by professional.
3. Make sure correct voltage applied before use and keep away from heat and vibration source.
4. The light source of this luminaire is not replaceable. When the light source reaches its end of life
the whole luminaire shall be replaced.
5. For indoor and outdoor use.
MAIN PARAMETER:
Product:
606055
60W NW
606155
60W WW
610065
100W NW
Rated Voltage
AC 90-305V 50/60Hz
AC 90-305V 50/60Hz
AC 90-305V 50/60Hz
LED Rated Power
60W
60W
100W
System Power
60W
60W
100W
LED
CREE SMD LED
CREE SMD LED
CREE SMD LED
LED Driver
Constant Current 680mA
Constant Current 680mA
Constant Current 1250mA
Color Temperature
4000K
3000K
4000K
Protection
Class II
Class II
Class II
Beam Angle
150°
150°
150°
IP Rated
IP66
IP66
IP66
Operation Temperature:
-40°C~50°C
-40°C~50°C
-40°C~50°C
Weight:
11,8kgs
11,8kgs
11,8kgs

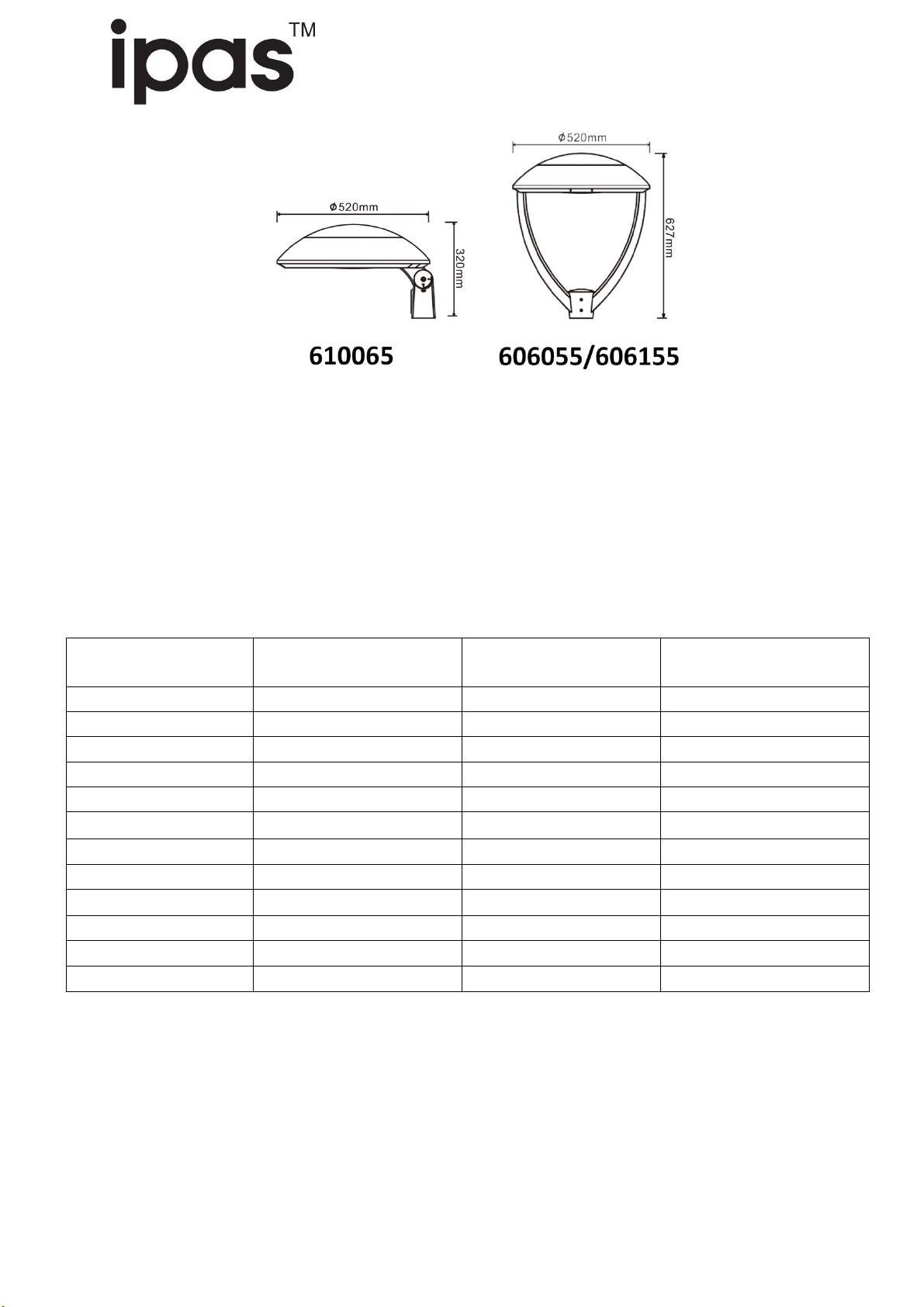

Product Size:
Ø520mmxH320mm
Ø520mmxH320mm
Ø520mmxH627mm
INSTALLATION INSTRUCTIONS:
1. Always switch off the power supply before installation.
2. Make sure all parts are ready when open the box and prepare the installation tools the lighting
needs.
3. Should be installed by qualified electricians.
4. If there is any damage on the housing or glass cover, should view it as disqualified product that
cannot be used.

Art. Nr.: 606055/606155/610065
Galaxy Park SMD_Class II_Manual_V3_20181207
IK08
INSTALLATION STEPS:
1. Select the required position for the luminaire. Ensure the fixings are suitable to withstand the weight
of this product.
WARNING: The luminaire is heavy and must have suitable fixings.
Note:
Galaxy Park (Art. 606055/606155) is with Ø76mm pole. Use inner sleeve attached for diameter
Ø60mm.
Galaxy Street (Art. 610065) is with Ø60mm pole.
2. Provide a power supply to the luminaire using a suitable cable. Connect the mains supply to the
luminaire. Note luminaire is Class II.
l Mains supply LIVE (Brown) – L
l Mains supply NEUTRAL (Blue) – N
3. Switch on the power supply.
