SAFETY PRECAUTIONS
All the following safety and operational instructions to prevent harm or injury to the operator(s) or
other persons should be read carefully before the unit is activated.
 Do not attempt to service this unit yourself, as opening or removing covers may
expose you to dangerous voltage or other hazards. Please refer all servicing to
your distributor / retailer.
 Do not use liquid cleaners or aerosols for cleaning.
 To prevent fire or electric shock, do not overload wall outlets or extension cord.
 This unit must be grounded to reduce the risk of electric shocks.
 Do not block ventilation openings.
 Do not place anything on top of the unit that might spill or fall into it.
WARNING
 To prevent fire or shock hazard, avoid exposing this unit to rain or moisture.
3

1. PRODUCT FEATURES
1.1 Product Instructions
The VE-3500 ipx video server is a user-friendly device. It provides stable, reliable and convenient
network surveillance. It safely downloads automatic video Codec and other components, and lets
you very easily set up the control settings.
The user can access the network to get smooth images in the live mode through the real-time and
synchronized audio/ visual stream provided by the device. The ipxserv has a built-in Website
Server providing many Internet functions and protocols, including the MDIX protocol which
recognizes both the normal and crossover cables, either of which can connect up with a video
server.
The ipxserv also makes it easy for the user to get IP address information since this product
supports the USB interface which helps you get an IP address very easily. You can just open the IE
Browser, then type in the device's IP address to the Browser to access this device.
The ipxserv uses the Motion-JPEG compression mode to get good images. You can save any
important images in your device via an SD memory card or a remote client PC. This device can be
connected to an Analog camera, which can't be remotely surveillance except by using this product.
We believe this unit is the right answer to your Network surveillance problems. You will find it
indispensable.
1.2 Product Features
1. Real-time synchronization of the video and audio functions.
2. Supports the Motion-JPEG/ MPEG4 (dual mode) compression mode.
3. The installation of a Codec or execution file is not necessary. The ipxserv will automatically
send the Codec or any component to a PC if the latter requires it.
4. Built-in Website Server and network connection.
4

5. Built-in SD card slot for copying image to SD card.
6. Supports multi-zones motion detection for each channel.
7. Supports 10 users with 3 levels with authority.
8. Supports encryption to warn you if your images have been tampered with.
9. See live images in any network - connected PC.
10. Operation-status record log.
11. Audio function included.
12. Supports the MDIX protocol that recognizes both the normal and crossover cables, either of
which can connect up with a video server.
13. Provides 1-channel video - in to connect an Analog camera.
1.3 Technical Specifications
General
 Image compression: M-JPEG / MPEG4 (dual mode)
 Power supply: DC 12V, 200mA
 Power consumption: 2.5 W
 Operation temperature: 0 to 50 (32 to 122 )℃℃℉ ℉
 Storage temperature: -20 to 60 (℃℃-4 to 140 )℉℉
 Operations humidity: 30% to 80 %
 Weight: Approx. --- kg
Video signal
 Video input x 1: 1.0Vp-p, 75 ohms (BNC unbalanced)
AGC Range: 0.5 ~ 2.0Vpp
Chrominance: 0.286Vpp, +/- 2db
Color sub-carrier lock range: +/- 200H
 Video output level: 1.0Vpp +/-10%, 75 Ω, composite, negative (BNC unbalanced)
 Video output frequency: -3dB +/-1dB at 3.58 MHz
 Video output burst level: 286mv (NTSC), 300mv(PAL) +/- 10 %
 Compression resolution: FULL D1: 720 x 480(NTSC), 720 x 576(PAL)
HALF D1: 720 x 240(NTSC), 720 x 288(PAL)
CIF: 352 x 240(NTSC), 352 x 288(PAL)
 Video Fine Tune Contrast, Brightness, Hue, Saturation
Audio signal
 Number of tracks: 1 Channel
 Audio compression: 8 kHz sampling, μ-law
 Audio input: 4.7k ohms, 2.6Vp-p, RCA
 Audio output: 1kΩ, 2.6Vp-p, 100~2k Hz, RCA
 Network Audio Stream Available
5

Compression
 Resolution: Full D1, Half D1, CIF
 MJPEG Performance: Up to 30(25) FPS
 MJPEG Picture size: 4~64 KB
 MJPEG Watermark: Digital Signature
 MPEG4 Quality: 5 Levels and Customized bit-rate (from 64 Kbps to 8 Mbps)
 MPEG4 Frame rate: 30(25)/ 24/ 15/ 10/ 5 FPS
Network & Serial ports
 Network interface: Ethernet (RJ-45, 10/100M) and MDIX supported
 Network protocol: TCP/IP, DHCP, HTTP, FTP, SMTP, SNTP, DDNS, UPnP, PPPoE
 IP Filter: 7 policies to deny or allow
 Remote Access software: Microsoft Internet Explorer or Client software
 Network API: Supported with SDK & HTTP-API
 Network throughout: 2.0 M Byte/Sec
 Web server access: 8 simultaneous users
 Serial port: RS-485
 USB: USB Slave 1.1
 USB Download rate: < 1MBytes
Alarm And IO
 Alarm In: 1 input, Hi = 5V, Lo = 0 V (Configurable)
 Alarm Out x 1: 1 output, Hi = 5V, Lo = 0 V (20mA)
 Alarm Reset x 1: 1 reset, Hi = 5V, Lo = 0 V (Active)
 Alarm Notice: GPIO output and SD, FTP, SMTP recording
Display
 Display Format at Local: Full
 Display Format at Client: Full
 Display Refresh Rate: 60(50) fps
Feature
 Built in RTC: Yes
 Software Upgrade: SD Card, USB, HTTP or FTP
 Motion Detection: 96 independent blocks with 5 levels sensitivities
 Security: 10 users with 3 level authorities
 Time Stamp: Date/ Time/ Location
 Regulation: CE, FCC, RoHS
Compatible Devices
 SD Card: 32MB ~ 4 GB (SDHC Support)
Panasonic/PQI/Hagiwara/Transcend/SanDisk
 Media File Format: JPEG Snapshot/AVI File
MTBF
 Main : 135,000 Hr
6

2. DESCRIPTION OF THE FRONT/REAR VIEW
2.1 Front Panel
5
4
32
1
1. Act indicator:
Indicates the network status of the unit. The green light indicates the network is activating.
2. 10/100M indicator:
The green light indicates the network data are transmitting.
3. Reset button:
Recover to factory default.
4. SD CARD Slot:
This is used for system software updating and archiving / accessing critical images.
5. 5pin MINI B Port:
The user can use a USB device cable to connect the ipxserv to the USB port on the PC.
7

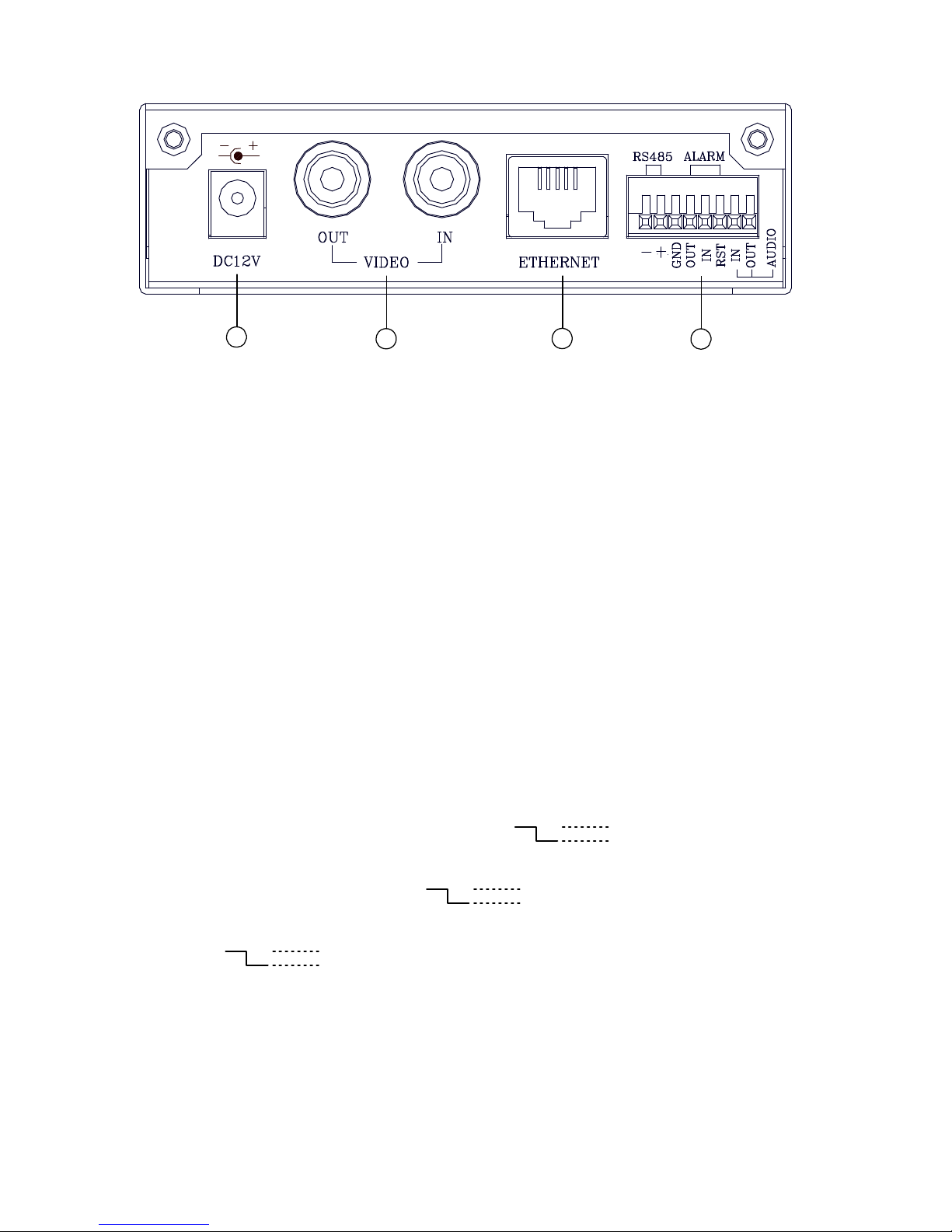

2.2 Rear Panel
4
3
2
1
1. DC jack: The inlet connects to an external power supply. Connect with the 12 V DC
TUV-approved Power Supply; or connect with the UL Listed Class 2 Power Supply or
ITE power supply marked ‘LPS’ or its equivalent.
2. Video in connector: The BNC connector is used to connect to the video output from
the camera. 1 camera can be connected to the connector.
Video out connector: This BNC connector provides a video signal to the main monitor.
3. ETHERNET 10/100 Connector: This is a standard RJ-45 connector for 10/100 Mbps
Ethernet networks. Supports MDI/MDIX.
4. ALARM I/O: This is an 8-PIN connector including the ALARM IN/OUT, ALARM RESET,
GROUND, Audio in/out and RESERVED items for connecting with external devices.
 RS485 pin: D-
 RS485 pin: D+
 ALARM IN (INPUT): This is an alarm input which can be programmed in the menu
system to Normally Open or Normally Closed. (
5V
0V(Active) )
 ALARM OUT 1(OUTPUT): This is an alarm-output trigger. Connect this to external
devices such as buzzers or lights. (
5V
0V(Active) )
 ALARM RESET (INPUT): This pin connects to an alarm-clear device for clearing an
alarm. (
5V
0V(Active) )
 GND: Ground Contact.
 RST: Reset
 AUDIO IN Connector: The connector is used to connect the audio output from a camera
or other devices.
 AUDIO OUT Connector: The connector provides the unit’s audio signal to a speaker or
stereo.
8
