IQCCTV HD 960H User manual

User Manual
Version 1
Adjustable Viewing
Angle (23 to 92°)
IR
Night Vision
30m
Weatherproof
Rated
IP66
HD
Resolution
HD 960H
HD 960H Bullet Camera
with 30m IR Night Vision

1. Product Overview ......................................... 4
1.1. Product Features ......................... 4
2. Product Contents ......................................... 5
3. Installation .................................................... 6
3.1. Lens Angle Adjust ........................ 7
4. Installation Diagram ..................................... 8
5. Specifications ............................................... 10
Contents

3
Warning
Caution: To prevent electric
shock and fire hazards, please
don’t use a power supply not
listed oin the manual.
Warning: To reduce the risk of
electric shock, non-professional
personnel should not remove the
cover.
This symbol alerts the user to operate and maintain the
product according to the manual.
This symbol alerts the user to be careful as the product may
lead to serious shock hazard.
Caution: Any changes or modifications in construction of the
product that are not approved by our company, may affect the
functionality of the camera.
Install and use the camera in an environment that does not
exceed -20°C ~ +50°C and maintain good ventilation.
Do not use the camera in a high pressure or highly corrosive
environment.
This may cause the camera to malfunction or damage the camera.
Do not install the camera in a place where lighting conditions are
not stable.
Drastic illumination changes could cause the camera to malfunction.
Precautions

4
1. Product Overview
Adjustable Viewing
Angle (23 to 92°)
IR
Night Vision
30m
Weatherproof
- IP66 Rated
HD
Resolution
Plug and Play Cable Managed
Design
High Resolution 960H
30m IR Night Vision
Automatic Gain Control
23-92° Adjustable Angle
Durable Metal Casing
Compact and Discreet
Cable Managed Design
Easy Installation - Plug and Play
Internal/External
IP66 Rated
Thank you for purchasing the IQC960BV Internal/External Bullet
Camera from IQCCTV.
The camera features a high quality adjustable wide-angle lens (23-92°)
to capture more, clear images. The bullet is ideal for indoor or outdoor
use (IP66 Rated) and has a cable managed and compact design.
The IQC range of 960H cameras from IQCCTV are designed to offer
crystal clear images and amazing value for money, this is achieved by
removing high-end features not needed in everyday applications.
1.1 Product Features

5
2. Product Contents
Before installing this product, please ensure that it contains the
following;
Contents
1x IQC960BV
Bullet Camera
1x User Manual
User Manual
Version 1
Adjustable Viewing
Angle (23 to 92°)
IR
Night Vision
30m
Weatherproof
Rated
IP66
HD
Resolution
HD 960H
HD 960H Bullet Camera
with 30m IR Night Vision
1x Installation Pack

12v DC Input
Power Cable
BNC
Video Cable

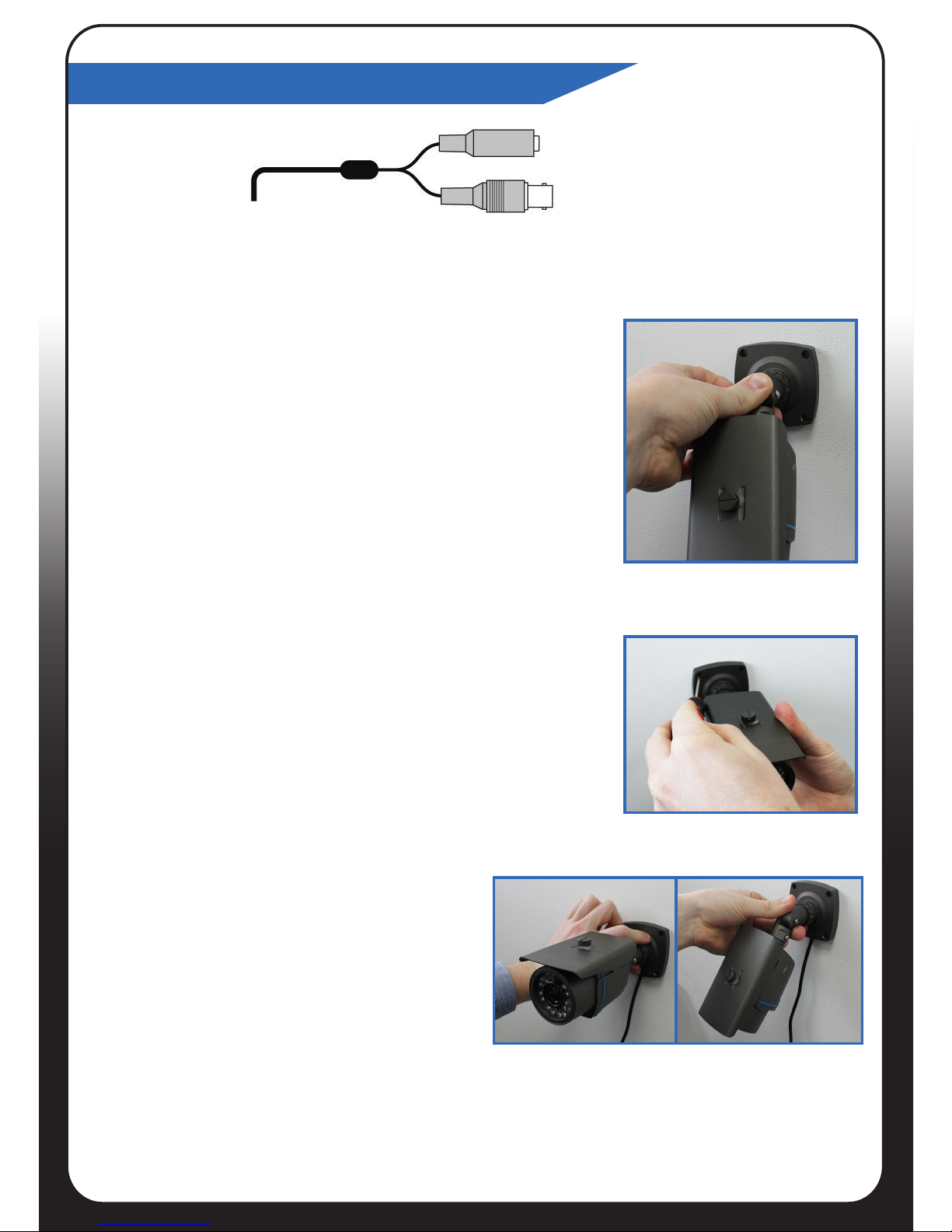

1. Select a suitable position on the wall or
ceiling to install the camera. Use the
camera bracket as a stencil and mark
out holes to be drilled.
2. Using the correct drill bit for the type
of wall, drill the holes out in the wall
or ceiling. If you wish to run the wire
through the wall, you will also need to
drill a hole for the wires to go.
3.When the holes have been drilled,
feed the wires through the hole or
cable managed bracket. Then,
put the screws through the holes in
the bracket and screw into the wall.
4. To adjust the camera angle,
loosen the bracket of the
camera with the allen key
provided. It would be advised
to use a test monitor when
choosing the angle, to get
the perfect angle for your application.
6
3. Installation

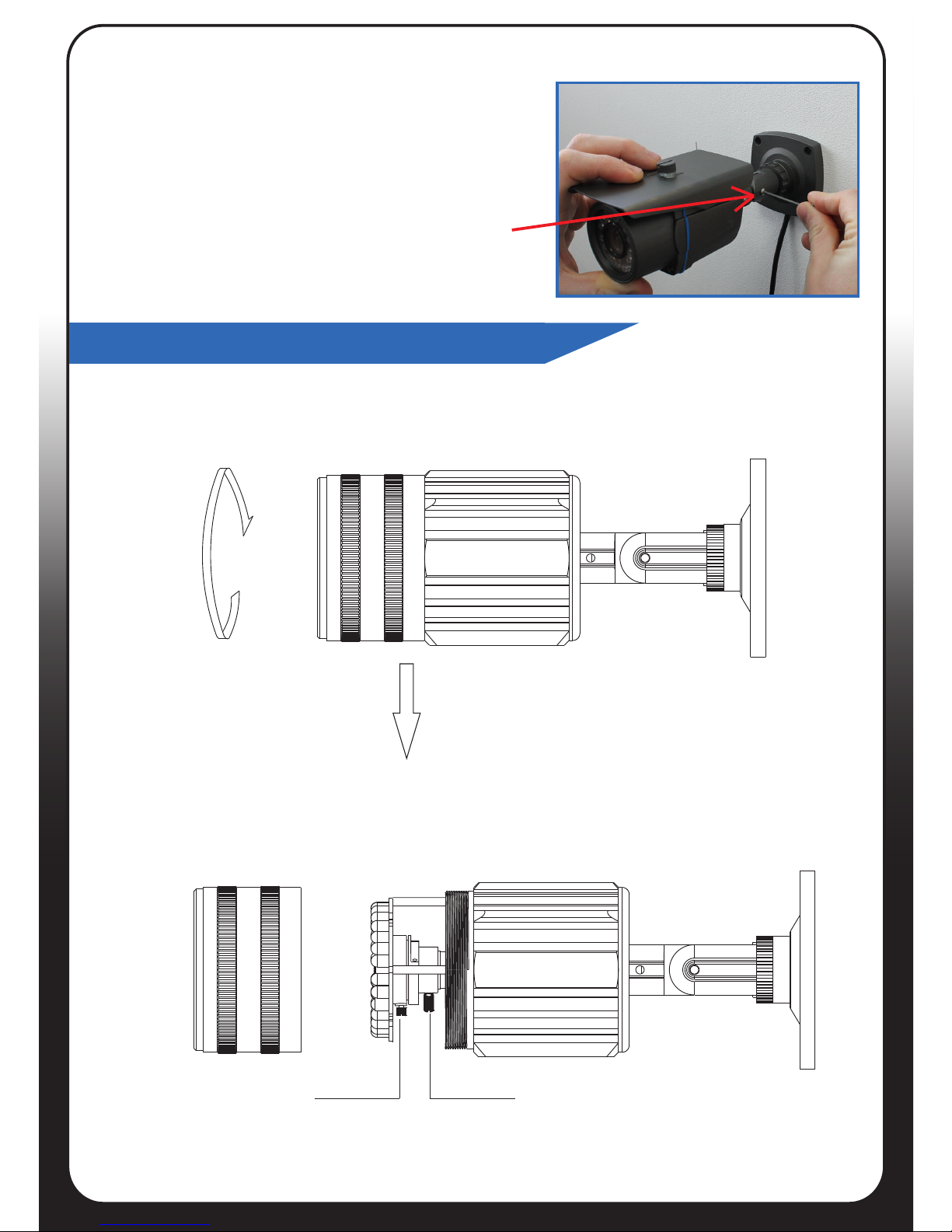

5.To adjust the camera angle, you
will need to loosen the screw
on the bracket, as shown right.
7
3.1 Lens Angle Adjust
To adjust the lens angle, unscrew the cover as shown below
Then, use the twist the focus and zoom screws (Below)
to gain the desired view.
Focus Adjust Zoom Adjust

DVR
TV/Monitor
Power Supply
For Camera
MAINS
POWER
BNC
Video lead
BNC Input
Power
Jack
PLUG & PLAY
CABLE
HDMI
4
5 6
8
9
Power Supply for camera(s)
(Do not use DVR PSU)
Power Lead
Use a power splitter lead to
power more than one
camera.
Plug & Play
Cable
Connect DVR to VGA Monitor
Connect DVR to
TV/Monitor
VGA output also available to
connect to a monitor. * VGA
Cable not included
Connect the HDMI
output from the DVR to
your TV/Monitor HDMI
input. *Monitor not
included.
10
Router
Network
Cable
BNC
Video lead
8
* * *
* *
*
* Not Included
Camera
Power Lead
Power
Jack

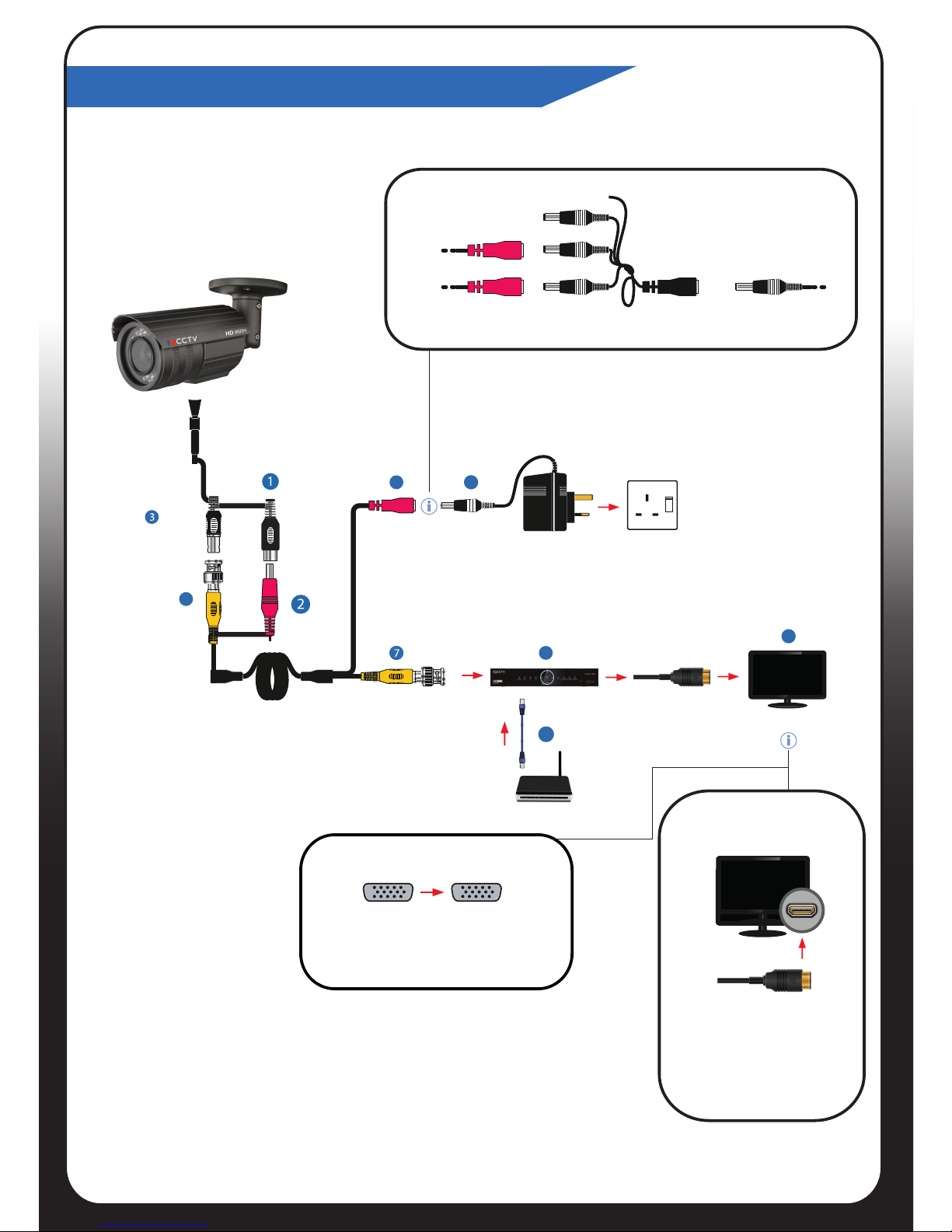

4. Installation Diagram
*
*
*

9
To Connect Cable to Camera(s)
To Connect Power to the Camera(s)
Connect the power lead coming from the camera to the power jack on
the Plug & Play cable
Connect the BNC connector from the camera to the BNC on the Plug
& Play cable
Connect the power socket on the cable to the Power Supply – See
additional information for connecting more than 1 camera
To Connect Cable to the DVR
Connect the BNC connector to the required channel input on the DVR
To Connect Cable to Router
Connect the Network Cable to the DVR then to a Router
Network Access *Router not included
for
1
2
3
5 6
810
78
To Connect Cable to TV/Monitor
Connect the HDMI Lead to the HDMI output on the DVR then to the
HDMI Input on your TV/Monitor *TV/Monitor not included
8
9
Your system is now ready to use
4

10
5. Specications
Image Sensor High Resolution CMOS Image Sensor
Resolution 800 TVL
Lens Size 2.8 - 12mm
DSP Functions
Automatic Electronic Iris
Automatic Electronic Shutter
Automatic Gain Control
Minimum Illumination 3 Lux (IR Off), 0 Lux (IR On)
Night Vision 20-30m IR Night Vision
Power Supply 12v DC 500mA
Weatherproof IP66 Rated
Automatic White Balance
Backlight Compensation
Dimensions (WxHxD) 77x109x211mm

11
Notes

TECHNICAL SUPPORT
For technical support, please contact your local distributor.
Alternatively, call 0871 222 1430
LIMITED WARRANTY
This product is supplied with a 12 month warranty. The warranty excludes products
that have been misused (including accidental damage) and damage caused by
normal wear and tear. In the unlikely event that you encounter a problem with this
product, it should be returned to the place of purchase.
TECHNICAL SUPPORT
For technical support, please contact your local distributor.
Alternatively, call 0871 222 1430
LIMITED WARRANTY
This product is supplied with a 12 month warranty. The warranty excludes products
that have been misused (including accidental damage) and damage caused by
normal wear and tear. In the unlikely event that you encounter a problem with this
product, it should be returned to the place of purchase.
Manufactured for:
IQCCTV, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey CR0 4WP
www.iqcctv.co.uk
