Isis-01 HD Premium Black Box User manual

www.mnjtrade.co.kr
isis backbox manual
1
isis Black Box Manual
▶ Do not remove the SD card when connected.
▶ Do not touch the SD card with oily or wet hands
▶ Do not use water, benzene or alcohol to clean the product
▶ Use recommended SD card
▶ Warm-up time is required to operate the GPS module
▶ After setting GPS module may take a few minutes to starts
depending on reception
▶ There may be a communication error for vehicles with
metal-coated windows
▶ The GPS may not operate properly, on the vehicles with on
metal coating
▶ Installation by a qualified technician is recommended
Precautions
CONTENTS
Precautions 01
TIP before using the Black Box 02
Product Description 03
Product Components 04
Names of Parts 05
Installation Manual 06
Button operation and LED operating status display 07
How to format SD card 08
How to play Video
01_ How to play externally 09
02_ Player play mode 09
03_ PC VIEWER 10
1) Setting 11
2) Playlist 12
Black box External Output Setting 13
Product Warranty 17

2isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
3
isis Black Box Manual

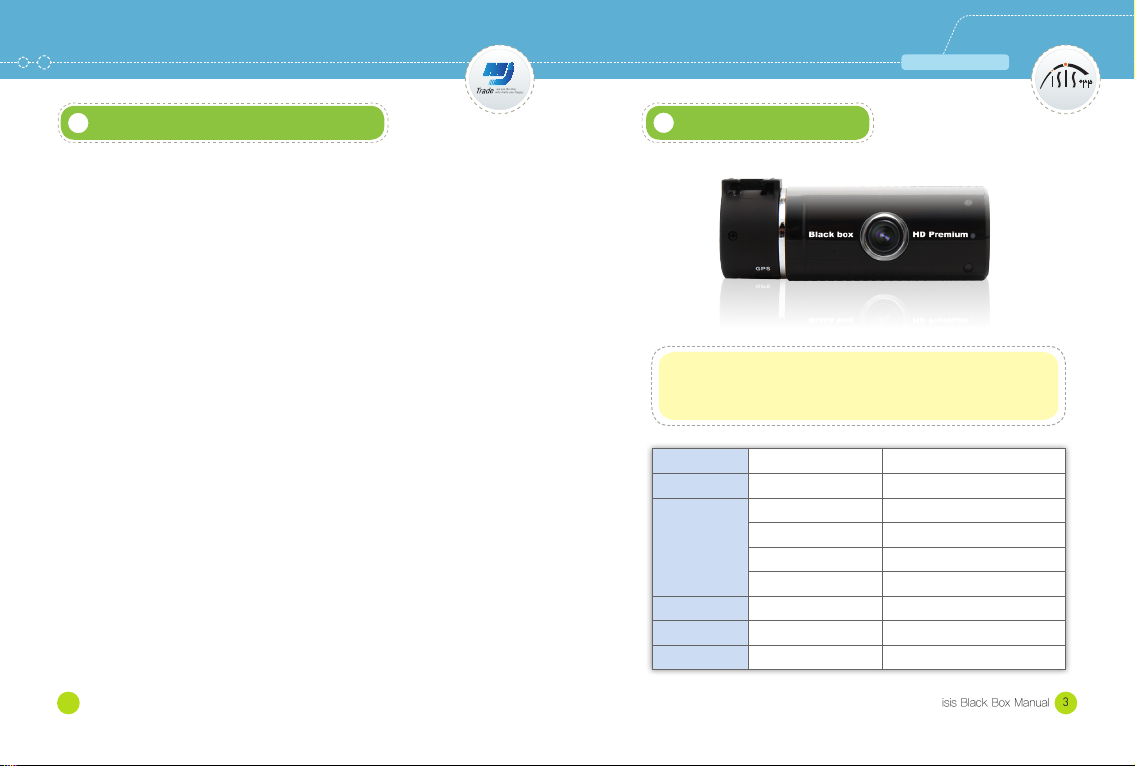

Our round cylinder design for the isis01 black box gives it a simple
feel for better viewing during driving
G-sensor Internal 3D G-sensor
GPS External GPS module Standard Type
Front camera
sensor 2 megapixel CMOS
lens High-quality precision Lens
resolution 1280x720
angle 130°
Memory Micro SD Up to 32GB
Output A/V Out resolution-720x480(NTSC,PAL)
Power supply Voltage DV12V
▶ Memory card management
The memory card used in the black-box has a fixed number of Read / Write lim-
itations. Due to that if you do not periodically manage the product life will be
shortened, and black box recordings won't record properly. Cigarette lighter jack
connection, formatting about once every two weeks, is recommended, Those with
continuous recording we recommend you format your memory card about once a
week, we recommend using running anti-virus programs for you to have a longer
and safer experience. Even if the memory card warranty is over, We recommend
replacing it with a new one.
▶ Recording File Management
Even if there is nothing wrong with the memory card. Proper recording may not
work correctly for a variety of reasons like exceeding buffer capacity. Please check
the memory card recording every 1-2 weeks to check if it's recording properly.
in case of an accident we recommend thorough management
▶ Black box angle adjustment
Due to driving the angle may change, please check your recordings and adjust your
angle. Improper angle may lead to improper recording .
▶ Removing the memory card
Even if you turn off the power to the black box recording through the built-in
backup battery (or capacitor) will continue recording. Therefore, when removing
the memory card from the black box. Make sure the black box is completely turned
off first. Please remove the memory card 30 seconds after turning off the black box.
Removing the memory card while it is turned on may damage the memory card.
TIP before using the Black Box Product Description

4isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
5
isis Black Box Manual
NO Name Explanation
1Power button (LED) Recording start (stop)
2(right) Up button High volume
3Mode selection button Selecting the recording mode
4Down button (left) Lower volume
5LED Displays the operating status
6SD card slot Storing the data recorded on the SD card
7Power jack External power connector
8Speaker Voice output
9A/V out jack Video output
10 Front camera To capture images of the front of the vehicle
11 USB jack PC connection
12 GPS slot GPS Module connection
13 Holder Vehicle-mounted holder
Names of Parts
Product Components
Body
Car cigarette lighter Jack
SD card
User Manual
A/V OUT cable
Holder

6isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
7
isis Black Box Manual
Installation Manual Button operation and LED operating status display
item Operation methods
LED Status
recording activity GPS
red Green Orange
Start recording Press power button
ON ON
(enable to set automatically turn on the power)
Stop recording Press power button for 2 seconds
Set recording
mode Press OK button ON ON
FLASH FLASH
Adjusting volume Press button Up▶ or Down◀ Press
G-SENSOR Press “▶”button for 2 seconds
Emergency
recording Short Press power button FLASH ON
External output
menu setting
In parking mode press ▶ BUTTON
FOR 2 SECONDS. FLASH ON
Video play in
External output
In continuous recording mode press
“OK” button for 2 seconds. FLASH ON
SD card format Press Down◀ button for 2 seconds
When the black box powers on you will the voice command “safe driving with ISIS”
Recording LED GPS LED
Power LED

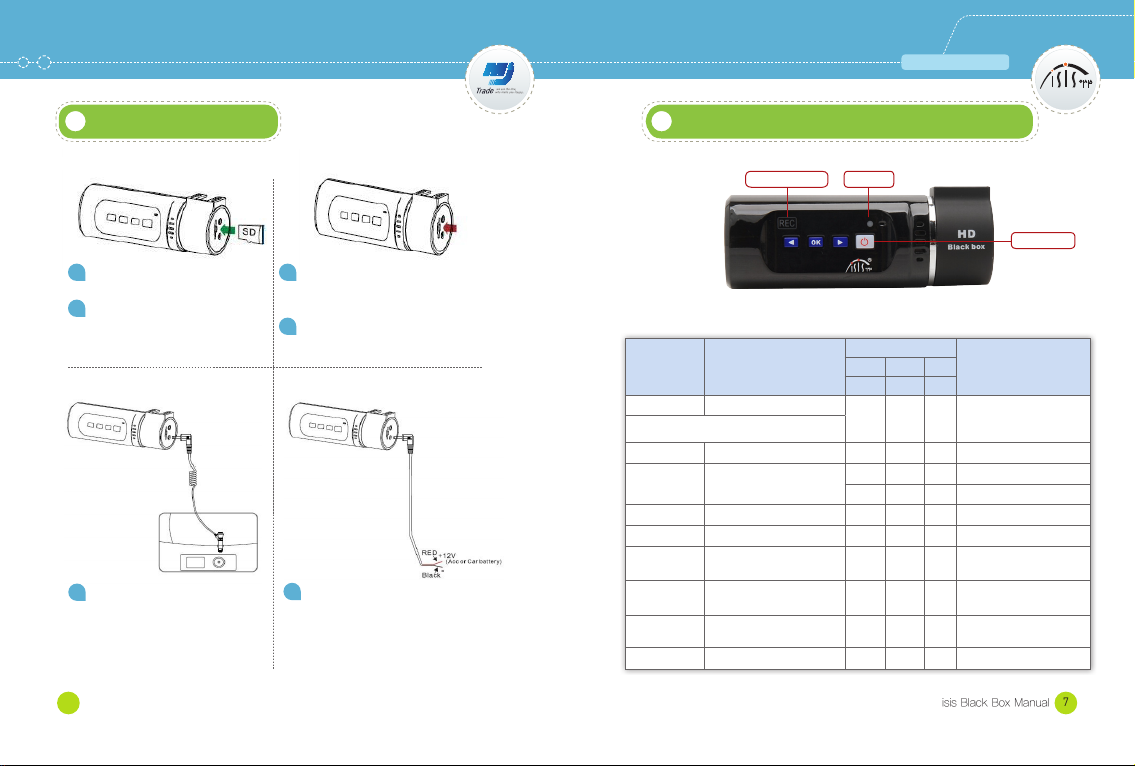

▶ SD Card insertion and removal
1
According to the drawing, insert SD
card to the end
2
Insert the SD card into the slot,
Connect the power cable, Connect
power cable to the cigar jack.
1
Before connecting the power cord
into the cigar jack, Insert the SD
card first. You can start recording by
pressing the power button
▶ Installation
2
Permanent power connection mode
a. Normal mode: ACC connection
b. Parking mode: connected to bat-
tery (To prevent battery discharge,
We recommend that the power cable
connect to the car battery).
1
Press the power button for 2 seconds
and the recording will end and
power off.
2
According to the drawing, press the
SD card, and the SD card will pop out.

8isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
9
isis Black Box Manual
How to play recorded files
01
_ How to play externally
▶ Directory
Continuous recording mode → Press “OK” button down for 2 seconds →
Screen change → press “◀” or “▶” to navigate.
※ In screen change mode, you can delete files by pressing the power button.
02
_ Player play mode
▶ click my computer → Black box player folder→
DCIM file click → file list click.
▶ File type
1. drf0 : Normal recording
2. mod0 : Parking recording
3. evt0 : Event(emergency)recording
▶ File name type
예) drf0 _ 20120816 _ 122341
File type Date Time

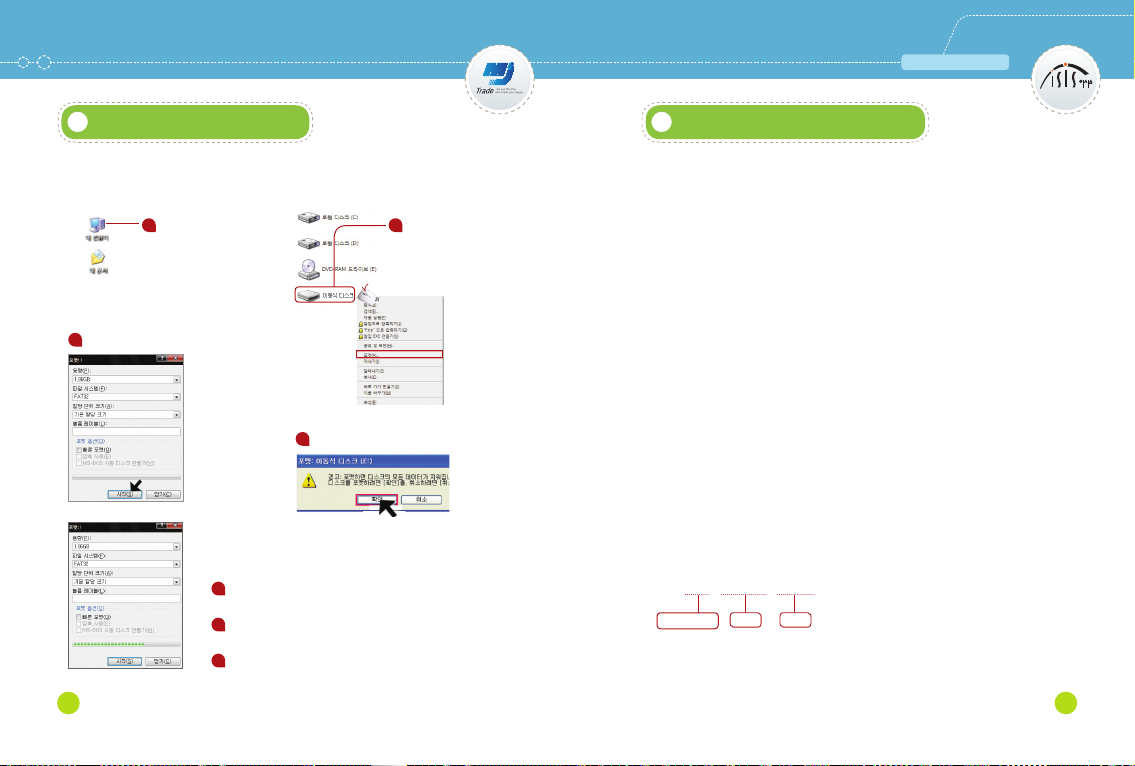

▶ How to fomat SD Card
Periodically formatting the SD card, extends the cards life!
1
on your desktop click on
my computer.
2
Right click on Removable
Storage Device and click
“format”
3
Press start
4
Press OK
5
Don't press cancel while formating.
6
When format is done a window will pop up.
7
Format is done.
How to format SD card

10 isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
11
isis Black Box Manual
■ We use Google Maps
■ Internet connection is required
TIP
Speed Unit Settings
(Km/h, Mile/h, Knot)
Click
Click
Settings
1) Settings
03
_ PC VIEWER
You can download the isis-01 PC viewer from our website.
** You can download the isis-01 PC viewer from our website.
www.mnjtrade.co.kr connect → PRODUCT click → black box-Update click → isis-01
PC Viewer click
▶ isis-Player IMAGE CAPTURE
PLAY SPEED
SPEED PLAY LIST
VOLUME
PRINT
FILE NAME DATE / TIME FILE SAVE
VERSION INFO
SPEED
SETTING
GPS MAP
FRONT
ADJUSTMENT
G-SENSOR
INFO

12 isis Black Box Manual
www.mnjtrade.co.kr
isis backbox manual
13
isis Black Box Manual
Black box external output setting
▶ G-sensor rating ( 1~5 level)
▶ Auto record
▶ Recording resolution
▶ Recording resolution: (1280x720)-30 frame – recommended
▶ Parking recording resolution : (1280x720)-15 frame –
recommended
▶ Motion Detector Rating (1 ~ 3 level) – “level 3 ” recommended
▶ Shooting mode (Auto, Day, Night) – “Auto” recommended
▶ Speaker volume
▶ Microphone Volume
▶ Languages (Korean, English, Chinese)
▶ Voltage Test
▶ Time zone
▶ Parking mode time setting: (5,10,20 min.)–“10min.” recommended.
※ From the time the car is parked (5, 10, 20 min.) automatically switch
to parking mode.
※ 50 seconds after the car starts moving automatically switch to
Continuous recording
▶ Date Setting
▶ Format
▶ Reset Setting
▶ Version
Continuous
recording file
Parking
recording file
Event
recording file
Delete All
File Open
1
file location / list selection
2
file playback. When you play all the files they will be added to the playlist.
3
Viewing Black Box File
- Continuous recording file/ parking recording file: If SD card is full, will over
write files.
- Event recording file: Protected data files/ can only be deleted by computer.
1
2
3
2) Playlist

memo memo

memo
Product Warranty
※ Please keep your serial # and date of purchase while using our product.
(If the date of purchase isn’t available you may be penalized).
Thank you for purchasing our product.
Please record your date of purchase. 1 year from date of purchase.
[ Warranty Info ]
1. Any product failure within 1 year (warranty period) We provide free after service.
2. Any damage by negligence by the consumer After service may request at extra cost
(if you do not read the manual and check your correct voltage),
Connecting the wrong voltage without failure occurred due to the carelessness of
the consumer if the failure occurred
3. Damage or malfunction caused by natural disasters (fire, salt damage, earthquake,
flood, etc.), there may be separate costs.
www.mnjtrade.co.kr
Product Name isis black box
MODEL Name isis-01 Serial number
Customer
Name Tel.
Product Name Model
address
Retailer
Firm Tel
Manufacturer no.
address
Store Location
Warranty Date of Purchase( yr m d )for 1 year
Customer Service Tel : ☎(82)-2-2635-8464

HD Premium Black Box isis-01
