iSymphony LC24iF56 User manual

24" 1080p LCD Television
LC24iF56

Contents
Safety and warnings......................................................................................2-4
Introduction................................................................................... ..............5
Installation.................................................................................................. 6-9
Remote Control............................................................................ ..............10
Operation.....................................................................................................11-14
Trouble Shooting..........................................................................................15

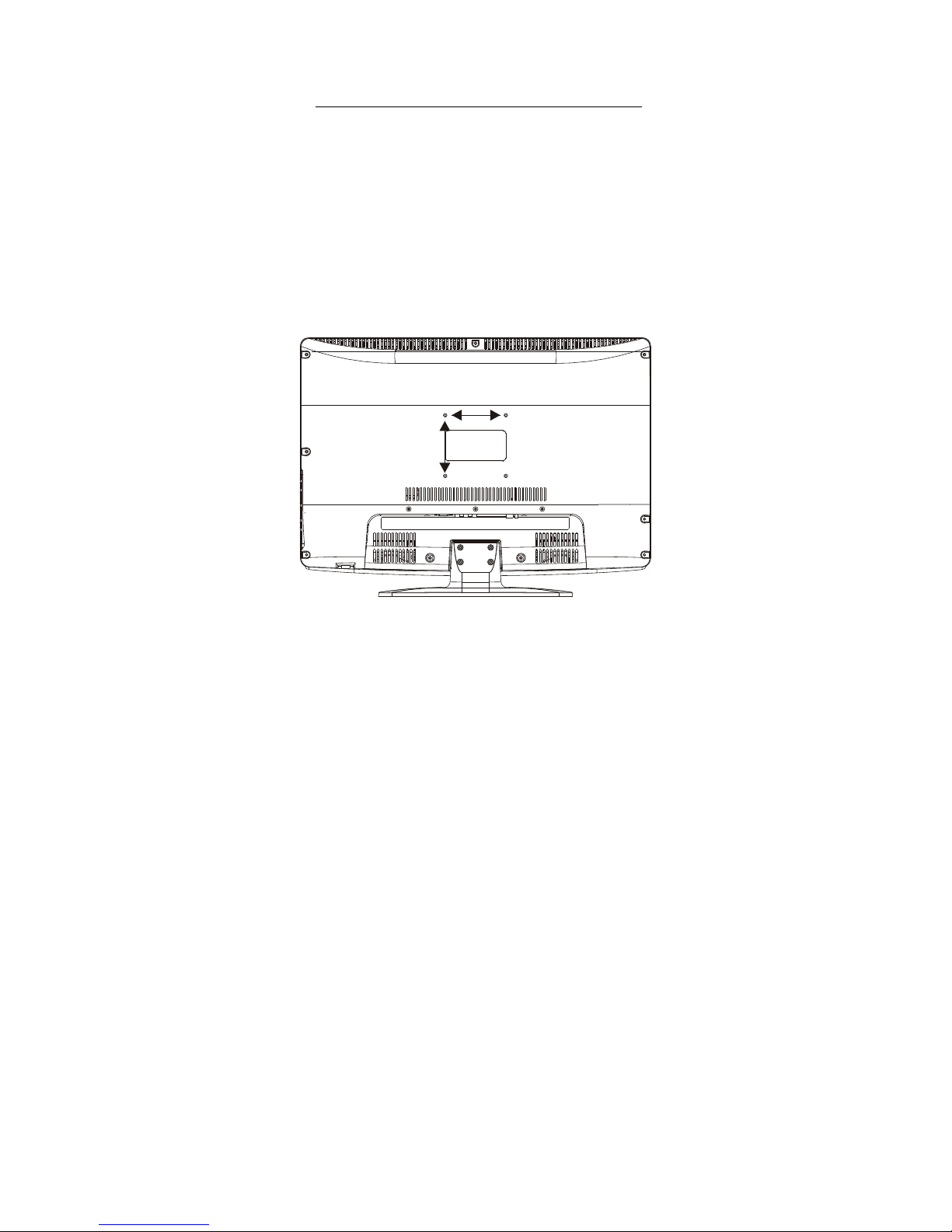

Instruction For Wall Mount............................................................................ 16
Warranty Card.............................................................................................. 17

-2-
SAFETY ANDWARNINGS
1.Read these safety instructions.
2.Keep these safety instructions.
3.Heed all warnings.
4.Follow all safety instructions.
5.Do not use this apparatusnear water.
6.Clean only with dry cloth.
7.Do not block any ventilationopenings. Install in
accordance with the manufacturers instructions.
8.Do not install near anyheat sources such as radiators,
stoves, or other apparatus (including amplifiers)that
produce heat.
9.Protect the power cord frombeing walked on or
pinched particularly at power outlets, andthe point
where they exit from the apparatus.
10.Only use attachments/accessories specified bythe
manufacturer.
11.Unplug this apparatus duringlightning storms or
when unused for long periods oftime.
12.Refer all servicing to qualifiedservice personnel.
Servicing is required when the apparatushas been
damaged in any way,such as the power-supplycord
or plug is damaged, liquid has beenspilled or objects
have fallen into the apparatus, theapparatus has been
exposed to rain or moisture , doesnot operate normally,
or has been dropped.
13.Apparatus must not be exposedto dripping or
splashing and no objects filled with liquids,such as
vases, should be placed on theapparatus.
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous voltages
constituting a risk of electric shock are present
within this unit.
The symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
To prevent fireor shock hazard, do not expose this
appliance to rain or moisture.
WARNING:

-3-
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
SAFETY ANDWARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Do not trap the power supply cord under the television
receiver.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it is advisable to disconnect
the ACpower cord from the ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.

-4-
Thank you very much for purchasing this TV. To enjoy
your product from the very beginning, read this manual
carefully and keep it handy for easy reference.
INSTALLATION
CAUTION
Locate the TV in the room where light does not strike
the screen .
Total darkness or a reflection on the picture screen can
cause eyestrain. Soft and indirect lighting is recommended
for comfortable viewing.
Allow enough space between the TV and the wall to
permit ventilation.
Avoid extremely warm locations to prevent possible
damage to the cabinet or premature component failure.
This TV can be connected to AC 100-240 Volts. 50/60 Hz.
Never connect to a DC supply or any other power supply.
Do not cover the ventilation openings when using the TV.
directly
Never tamper with any components inside the TV, or any
other adjustment controls not mentioned in this manual.
All LCD-TVs are high voltage instruments. When you
clean up dust or water drops on the LCD PANEL or
CABINET, the power cord should be pulled out from the
receptacle, then wipe the TV with a dry soft cloth. During
thunder and lighting, unplug the power cord and antenna
cord to prevent damage to your TV. All repairs to this TV
should only be performed by qualified TV service personnel.
Earthing connection--- The apparatus shall be connected
to MAINS socket outlet with a protective earthing connection
MAINS plug or appliance coupler of the apparatus is used
as disconnect device, it should remains readily operable
SAFETY ANDWARNINGS
Warning: Change or modifications to this unit not expressly
by the part responsible for compliance could void the user 's
authority to operate the Equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected .
-Consult the dealer or an experienced radio TV technician
for help.
Shield cables must be used with this unit to ensure
compliance with the Class B FCC limits.
This symbol indicates that thisproductincorporates
double insulation between hazardous mainsvoltage
and user accessible parts.When servicing use only
identical replacement parts.
WARNING:To reducethe risk of fire orelectric shock,
do not expose this apparatusto rain or cords.

-5-
INTRODUCTION
Main features
1920 x 1080 native resolution for Full-HD (1080p)
performance
Integrated ATSC TV tunerfor HDTV broadcast reception
High brightness providesa vivid andbrilliant picture
Deeper blacks andbrighter whites with high contrast
Wide Screenaspect ratio (16:9) for a complete home
theater experience
HDMI input fortrue digital connection
VGA portfor connection to PC
Built-in stereo speaker system
Full-function Remote Control
Accessories
AC Power Cord......................... 1
Infrared Remote Control........... 1
User s Manual ........................ 1
Battery(AAA).......................... 2
Accessories
Resolution:
Aspect Ratio:
TV System:
Video Signal System:
Receiving Channel:
Input Power Voltage:
Power consumption:
Main parameter
YCb(Pb)Cr(Pr) Input
Horizontal definition(TV line)
Viewing Picture Size(diagonal)
1920x1080
16:9
ATSC Digital system and NTSC Analog system
60W
Audio Output Power(THD 7%): 2x3W
NTSC/PAL/SECAM
Cable :1-135/ Air: 2-69(ATV&DTV)
AC 100V-240V 50/60Hz
Analog RGB(VGA) Input x 1
Rear High-Definition Multimedia Interface(HDMI) Input x 1
Rear Audio Input x 2
Composite Video Input >=350
x 1
YCb(Pb)Cr(Pr) >=400
Video Input >=400
24 inch
Rear Composte Video Input x 1

-6-
INSTALLATION
REAR AV Connection
1.AC Power Socket
2.HDMI Input
3.VGA Port (PC Input)
4.Component Video (YPbPr) Input
5.Composite Video Input
6.Audio Input
7.PC Audio Input
8.Antenna Socket
Note: 1.Composite video input and component video input share the audio input.
2.When "DVI to HDMI cable" is used, the audio output for DVI needs to be connected to the
PC Audio Input (above 7).
1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items .
In standby mode, press CH+ or CH- to turn
on the TV.
4 VOL+/VOL-
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
Front panel KEYBOARD
1: Remote controlsensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board
3
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
123
456
7890
+
CH
_
+
_
VOL
30 30
1
2
×ó
ÓÒ

-7-
INSTALLATION
STEPS:
PC
Be sure boththe TV and computer areset to Poweroff.
1.Connect VGA and audio cable.
2.Connect the powercord.
3.Power on theTV, switch to VGA mode.
4.Power on theVGA.
This sequence isvery important.
PRESET MODE
1
2
3
4
5
6
7
8
9
10
720*400
640*480
640*480
800*600
800*600
1024*768
1024*768
1024*768
1280*1024
1280*1024
70
60
75
60
75
60
70
75
60
75
31.47
31.47
37.50
37.88
46.88
48.36
56.48
60.02
63.98
80.00
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
×ó
ÓÒ

ANTENNA
Note:
Aerial connections:IEC(female).
Input impendance:75 unbalanced.
INSTALLATION
-8-

-9-
INSTALLATION
To audio outputs
VIDEO EQUIPMENT
TO VIDEO
output
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
WR
W R
W R
GR
GBR
B
Blue(Pb)
Green(Y)
B
G
AV EQUIPMENT
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080p,
This TV provides one group of AV ,one group of YPbPr for convenient connectionto VCR,DVD or
other video equipment. Please refer to the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
HDMI
VIDEO EQUIPMENT with YPbPr
WR
×ó
ÓÒ

-10--10-
1
ENTER
23
456
7890
+
CH
_
+
_
VOL
SLEEP P.G
CC
S.M
EXIT
P.M
TV DISPLAY
SOURCE
MENU
MTS/SAP
MUTE
POWER
ASPECT
RECALL
CH LIST FAVEPG
REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
19
20
11
12
13
14
15
16
17
18
30
21
Insert Batteries Into the Remote Control
1 2 3
Remark:
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the
polarity (+ or -) of the batteries matches the polarity
marks inside the unit.
3. Mount the battery cover.
Replace with new batteries when the TV set begins
to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV
set does not function with Remote Control Unit.
1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the
remote control is not to be used for long time.
AV HDMI
YPbPr VGA
PAGE UP PAGE DOWN
24 22
25 23
26
27
28
TV
DTV
STRENGTH
EPG
29
1: POWER
To setthe TV standbyor on.
2: NUMBER KEY
For direct accessto program.
3: MENU
To displayTV menu orto return tothe previous menu.
4: CURSOR
To movewithin the menu.
5: EXIT
Used to exit menu.
6: VOL+/-
To adjustsound level.
7: P.M
To switchpicture mode.
8: PAGE DOWN/PAGE UP
In EPG mode,use this keyto page up/down the EPG
information.
9: SLEEP
Set time toturn off theTV.
10: P.G
Setting the ParentalControl level control.
11: MUTE
To disableor enable thesound.
12: RECALL
To accessthe previously viewedprogram.
13: SOURCE
To displayor exit TVinput source menu.
14: ENTER
Confirms selection.
15: TV DISPLAY
Displays/removes the programInformation
16: S.M
To switchsound mode.
17: CH+/CH-
To accessthe next orprevious Program.
18: ASPECT
To changepicture aspect .
19: CH LIST
Used to displaythe channel list.
20: EPG
Display all theinformation of DTVprograms.
21: FAV
Usedto access your favourite channels in digital TV mode.
22: HDMI
Hot key directlygo to HDMIsource.
23: AV
Hot key directlygo toAVsource.
24: DTV STRENGTH
Used to display the DTVsignal strength menu.
25: TV
Hot key directly go to TVsource.
26: YPbPr
Hot key directlygo to YPbPrsource.
27: CC
Enable or disablethe CC function.
28: VGA
Hot key directlygo to VGAsource.
30: COLOR KEYS
Reserved keys
29: MTS/SAP
Switch the soundstereo, SAP and mono.

OPERATION
-11-
The first item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as contrast,
brightness, etc.
Press to select, press to adjust, press MENU
to exit.
2.AUDIO menu
The second item of the MENU is AUDIO MENU.
You can adjust sound here.
Press to select, press to adjust, press MENU
to exit.
Note:
If you want to adjust contrast, brightness, color,
and sharpness , the picture mode must return to
personal status.
Picture mode Standard
Contrast 50
Brightness 50
Color 50
Tint 0
Sharpness
Color Temp. Normal
50
Select Adjust Menu Exit
Sound mode Standard
Bass 50
Treble 50
Balance 50
Surround
AVC
Audio language English
Select Adjust Menu Exit
Off
Off
Timer Setup V-CHIP Channel
Audio Timer Setup Channel
V-CHIP
1. PICTURE MENU
3.TIMER MENU
The third item of the MENU is TIMER MENU.
You can adjust time here.
Press to select, press to adjust, press MENU
to exit.
Sleep timer
Time zone
Daylight Saving Time
Clock
Select Adjust Menu Exit
1999/12/31 04:03PM
Pacific
Off
Off
Setup Channel
Timer V-CHIP
1).SLEEP TIMER:adjust this item , you can set the
sleep timer .
Note:
The item of Time zone,the item ofDaylight Saving
Time andthe item of clock are available in ATSC
program
4. SETUP MENU
The forth item of the MENU is SETUP MENU.
You can setup system here.
Press to select, press to adjust, press MENU
to exit.
Menu language
Transparency
Aspect
Noise Reduction
Select Adjust Menu Exit
Weak
On
16:9
English
Advanced
XVS
Restore Default
Off
Closed caption
Setup Channel
Timer V-CHIP
Note:
Restore Default: Resetall the settingsto default
value.
Note:
The item of Audio language is available in ATSC
program.
Picture Audio
Audio
Audio

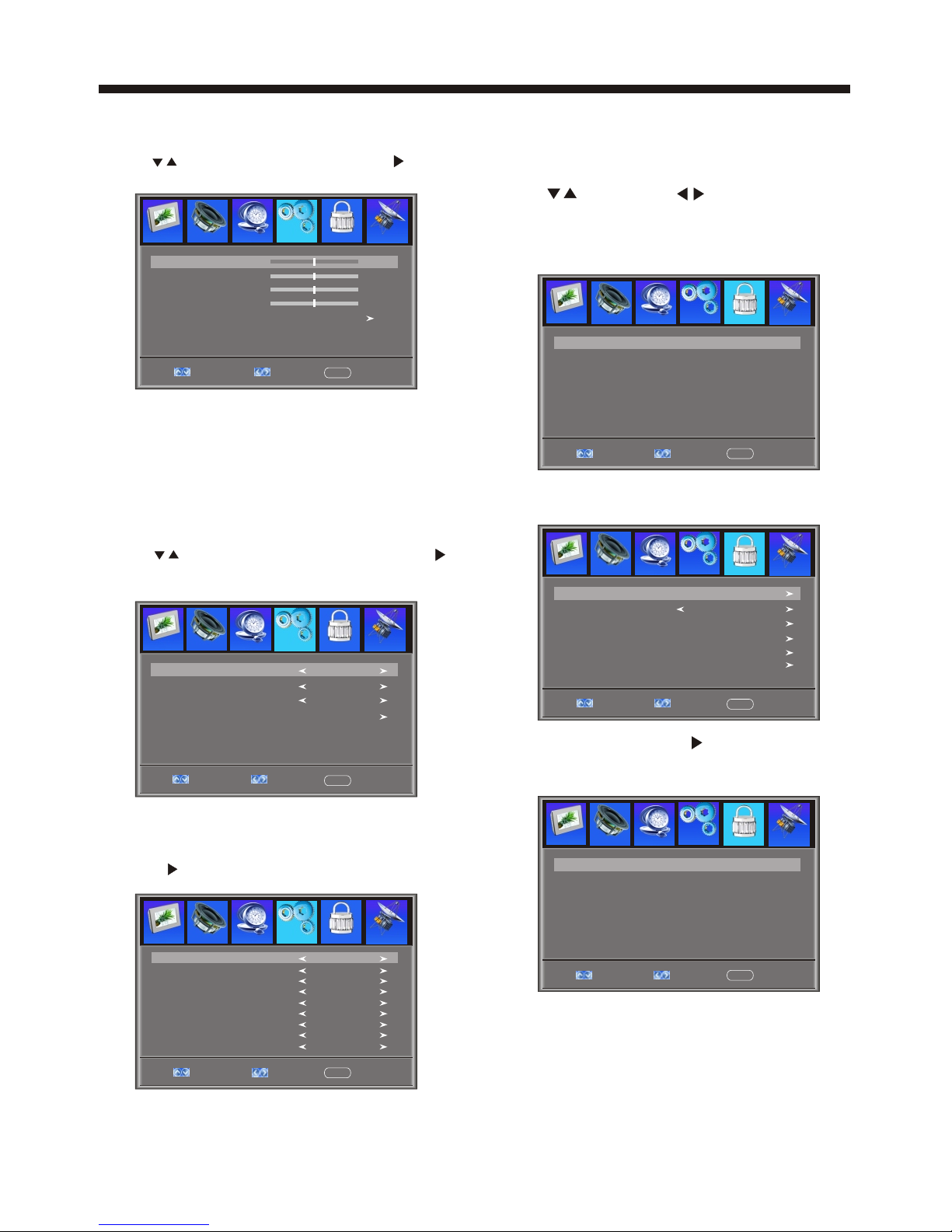

1). Advanced: In PC Modeis available.
(1).H-Pos:Adjust the horizontalposition of the screen.
(2).V-Pos:Adjust thevertical position ofthe screen.
(3).Clock: Fine tunethe screen width.
(4).Phase: Fine tunethe phase of the screen. Usually
don`t adjust thisitem.
(5).Auto: Autoadjust to fitthe screen.
Press button toselect Advanced ,Press
button, the screenwill display as follow:
OPERATION
2). Closed Caption: switch close caption mode.
(2):Option:Used to edit CC font.
Press button, thescreen will display as follow:
-12-
Press button toselect Closed Caption,Press
button, the screenwill display asfollow:
H-pos
V-pos
Clock
Phase
Select Adjust Menu Exit
50
Auto
50
50
50
Setup Channel
Timer V-CHIP
CC Mode
Basic Selection
Advanced Selection
Option
Select Adjust Menu Exit
Off
CC4
Service 3
Setup Channel
Timer V-CHIP
Mode
Font style
Select Adjust Menu Exit
Custom
Default
Font size Default
Font Edge style Default
Font Edge color Default
FG color Default
BG color Default
FG opacity Default
BG opacity Default
Setup Channel
Timer
NOTE: Only ATSC program is available.
5. V-CHIP MENU
The fifth item of the MENU is V-CHIP MENU.
You can setup here.
Press to select, press to adjust, press MENU
to exit.
Parental Control
Parent control: inputthe password, itwill go into
menu. Factory default password
is 6666.
Parental Control
Enter password
Select Adjust Menu Exit
----
Channel
Timer Setup
5.1 .Input the correctpassword ,the screenwill display
as follow:
Change password
Select Adjust Menu Exit
P.G switch On
US
Canada
RRT setting
Reset RRT
Channel
Timer Setup
1). Change Password:Press button, thescreen will
display as follow:
New password
Select Adjust Menu Exit
Confirm password
----
----
Channel
Timer Setup
1).New password: Input the new password
2).Confirm password: Input the new passwordagain
V-CHIP
V-CHIP
V-CHIP
V-CHIP
(1):Advanced selection: onlyATSC program isavailable.
Audio
Picture Audio
Audio
Picture Audio
Picture Audio
Picture Audio

OPERATION
5.2 V-CHIP
Parental Control
switch:
When the switch is ON,the below
options can beadjusted.
5.3 US: Press button,the screen will display as
follow:
TV
Select Adjust Menu Exit
MPAA X
Channel
Timer Setup
1):TV: Press button, the screenwill display as
follow:
TV rating
Select Adjust Menu Exit
ALL FV V S L D
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Block Press ENTER to lock orunlock
Channel
Timer Setup
And use ENTERkey to switchlock/ unlock
feature.
Parental
Control
Rating Content
FV
(Fantasy
violence)
V
(Violence)
S
(Sexual
situation)
L
(Adult
language)
D
(Sexually
suggestive
dialog)
Suggested
age
TV-Y (All
children)
TV-Y7(Direct to
order children)
TV-G(General
audience)
TV-PG(Parental
Guidance
suggested)
TV-14(Parents
strongly
cautioned)
TV-MA(Mature
audience only)
X
X
X
X
X
X
X
X
X
X
X
X
Content
2).MPAA:switchthe movie-rating controllevel; N/A,
G,PG, PG-13,R,NC-17,X.
Rating Description
Age
G General audiences, All Ages admitted
PG
Parental Guidance suggested. Some materialmay not be
Suitable for children.
PG-13 Parents strongly cautioned. Some material.may be
Inappropriate for children under 13.
R
NC-17
X
Restrict. Under 17 requires accompanyingparent or adult
guardian(age varies in somejurisdictions)
No one 17 andunder admitted.
X is an orderrating that is unifiedwith NC-17 but maybe
encoded in the dataof order movies.
5.4 Canada: Press button,the screen willbe
displayed as follow:
Canada English
Select Adjust Menu Exit
Canada French
14+
E
Channel
Timer Setup
1): Canada English:switch the englishrating control
level:E,C,C8+,G,PG,14+,18+.
Rating Description
Age
E Exempt: Includes news,sports, documents and otherinformation
programming: talk shows, musicvideos, and variety programming.
C Children: Intended foryounger children under theage of 8 years.
Pays careful attention to themesthat
could threaten their senseof
securityand well-being.
C8+ Children over 8years old: Contains noportrayal of violence asthe
preferred, acceptable, or only wayto resolve conflict; nor encourage
children to imitate dangerous actswhich they may see onthe screen .
G General: Considered acceptable forall age groups,Appropriate
viewing for the entirefamily, contains verylittle violence, physical,
verbal or emotional.
PG Parental Guidance: Intendedfor a general audience,but may not be
suitable for younger children(under the age of 8)because it could
contain controversial themes orissues.
14+ Over 14 Years: Could contain themeswhere violence is oneof the
dominant elements of thestoryline
,
But it must beintegral to the
devel opment of plotor character. Languageusage could be profane
and nudity present within the context oftheme.
18+ Adults: Intendedfor viewers 18 years andolder and might contain
depictions of violence, which while related tothe development of
plot, character or themes, areintended for adult viewing. Could
contain graphic language and portrayalsof secretary and nudity.
-13-
V-CHIP
P.G
P.G
Picture Audio
Picture Audio
Picture Audio

2).Canada French: switchthe French-rating control
level: E, G,8ANS+,13ANS+,16ANS+,18ANS+.
Rating Description
Age
E Exempt programming
G General :All ages andchildren, contains minimal direct violence,
but may be integratedinto the plot ina humorous or unrealistic
manner .
8ans+ General but inadvisablefor young children :Maybe viewed by a
wide public audience, but couldcontain scenes disturbing to
children under 8 whocannot distinguish between imaginaryand
real situations. Recommended forviewing with paren.
13ans+ Over 13 years: Couldcontain scenes of frequent violentscenes
and in tense violence.
16ans+ Over 16 years: Couldcontain frequent violent scenes andviolence.
18ans+ Over 18 years:Only for adult viewing.Could contain frequent
violent scenes and extreme violence.
OPERATION
5.6 Reset RRT: Press button,the screen willbe
displayed as follow:
5.5 RRT setting:in ATSC digital TVmode, it could be
adjusted
-14-
Select Adjust Menu Exit
Are you sure?
NO YES
Channel
Timer Setup
6. Channel MENU
The sixth item of the MENU is Channel MENU.
You can adjust digital and analoge TV Channel .
Press to move, press to adjust here.
Air/cable
Select Adjust Menu Exit
Auto Scan
Cable
Favorite
Show/Hide
Channel NO.
Channel Lable.
DTV signal :
2-1
Channel
Timer Setup
1). Air/Cable: select Air TV signal and cable TV signal.
2). Auto Scan: If it's the first time you use the TV, you
should scan all the TV channels first,
press the button to confirm, you will see below
menu :
Select Adjust Menu Exit
Start to scan
Channel
Timer Setup
A: Start to scan: press the button to confirm, you
will see below menu which indicates auto search is
in process.
R F CH: 4
Select Adjust Menu Exit
FOUND: 0
Channel
Timer Setup
3). Favorite: Press button to choose/delete the
favorite channel .
4). Show/Hide: Press button to display or hide
currently channel.
5). Channel NO. :Display the currently channel number.
6). Channel lable: Press button to edit currently
channel name.
7). DTV signal: Display DTV signal intension. It can't be
selected and adjusted.
V-CHIP
V-CHIP
V-CHIP
V-CHIP
Picture Audio
Picture Audio
Picture Audio
Picture Audio

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection Check
Interference Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume(check if mute is
activated or ifthe audio system
connections are not correct)
No picture Mute
Power cord isnot inserted
Power switch isnot opened
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No colour Normal audio Colour control
breaking up
Normal audio
or weak
retune channel
No colour Noise TVsystem
Normal audio
antenna position, direction
or connection
Trouble shooting
Trouble phenomenon Symptom
Ghost
-15-
The LCDTV panel is builtwith very high precision technology giving you fine picture details
in vibrant color. Occasionally, a few non-active pixels may appear on thescreen as a fixed
point of red, green, blue, black or white. Please note this does not affect theperformance of
the product.

INSTRUCTION FOR WALL MOUNT
The wall mountkit (not included) with your purchaseallows you tomount your iSymphony
TV on the wall. Fordetailed information oninstalling the wallmount, refer tothe
instructions provided bythe wall mount manufacturer. Itis strongly recommendedto
contact a technicianfor professional assistancefor wall mountinstallation. iSymphony is
not responsible forany damage to the product orinjury to yourselfor others resultingfrom
the wall-mounting.
·This iSymphony TV is compliant with theVESA Standard mounting holepattern100mm
x 100mm
.
·4 pcs oftype M4 screwsare required for installing the wallmount bracket toyour
iSymphony TV. The depth of thethreaded mounting holeson your iSymphony TV is5.5
mm. Therefore, please use M4screws of whichlength is 4mm ~ 5mm plus thethickness of
the wall mountbracket.
·Do not fastenthe screws too tight for thismay damage theTV or cause the TV to fall,
resulting in personalinjury. iSymphony is notliable for these kinds of incidents.
·Do not mountyour iSymphony TV at more than a15 degree tilt.
·Always use twopeople to mountthe TV to a wall.
·Do not installyour Wall Mount Kitwhile your TV is turned on. Itmay result inpersonal
injury due toelectric shock.
-16-
VESA Dimensionsfor Wall Mout
100mm
100mm

Symphony
i
Phone: [phone]
www.isymphonyproducts.com
Ver. 091204

Printed in China
iSymphony Distribution andSales
1-800-710-7740
www.isymphonyproducts.com
