Ivation IVAANGLE90SP User manual

Angled Snow Pusher
User Guide
Thank you for purchasing the Ivation® Angled Snow Pusher. This User Guide is intended to provide you with
guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that
does not conform to the guidelines described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for reference. This product is intended
for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See
warranty for details.
ASSEMBLY
You will need: Allen wrench (supplied), Phillips head screwdriver, wrench.
PARTS LIST:
TO ASSEMBLE

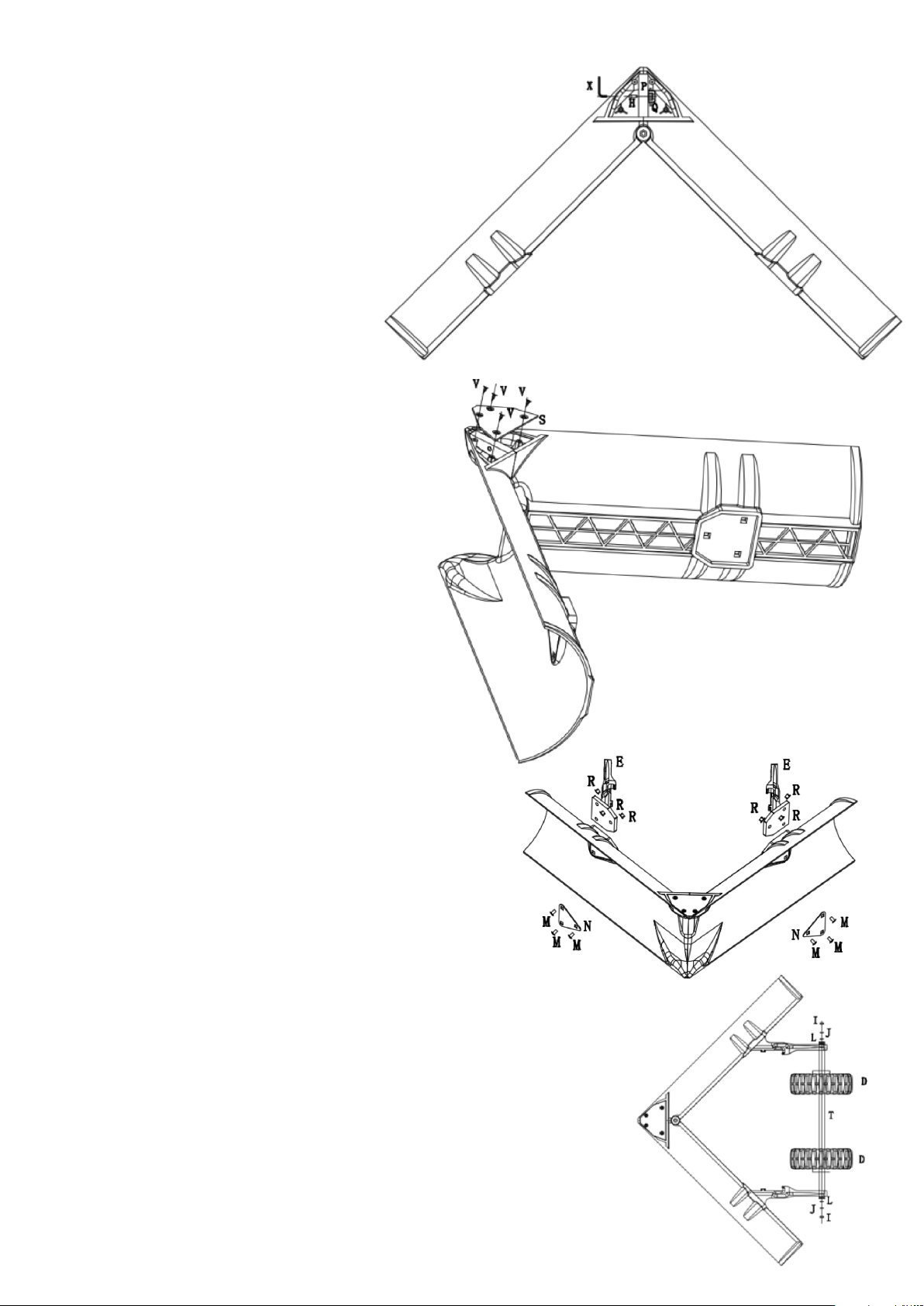

1. Attach the two sides of the blade:
Position the blades (A) so that they form a
right angle.
Locate the hole on the back of the joined blade,
a few inches down from where the two blades
meet at the top.
Press one black plastic tube (U) into each end of
the hole, top and bottom, with the notched side
of the tube facing down. Press down to secure.
Using long screw (F) and washer (W) and bolt (Q), push the screw through the hole, secure with the
washer and bolt, and tighten with a screwdriver.
A
1
G
RS T UVW X
HIJKL MN O P Q
BCDE F

Locate the two metal cuffs (P). Slide a
cuff over the middle section of the top of the
right angle so that it covers the seams. Do this
on both sides (top and bottom) of the angled blade.
Slide the Allen bolt (H) through the hole on the
side of the cuff. Place lock nut (Q) on the open
end of the bolt. Note: The wells on the blade,
on each side of the cuff, are designed to
accommodate the Allen bolt and lock nut
in only one way. Tighten the bolt with the
Allen wrench (X). Attach the other cuff
to the opposite side of the blade using
the same procedure.
Locate the 2 metal plates (S). Place a plate
on the top and bottom of the right angle and
fasten each plate with screws (V).
2. Attach arms:
Locate the 2 arms (E).
Position base of arm into the well on the back
side of the blade. The metal brace should
face inward.
Place triangular plate (N) on the inside of each
blade, corresponding to the base of the arm on
the opposite side. Attach arm base to the blade
using 3 screws (M) and nuts (R) for each side of
the angled blade.
3. Attach Wheels:
Slide rod (Part T) through both wheels (Part D.) Attach
rod to arms with J & L (washers) and bolts (I).
2

4. Attach Handle:
Position blade so that the wheels touch the floor.
Locate the notches on the top of each arm. Attach
the metal, U-shaped bar (B), aligning holes to the
holes in the arms, with screws (G) and bolts (R).
This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions.
See warranty for details.
Customer Service:
[e-mail]
866-849-3049
Attach upper part of handle using
screws (O) and bolts (K).
You can increase or decrease the
total length of the handle according
to your preference. The sets of holes
on the sides of the handle give you
three height options.
