IZZIWOTNOT Tranquillity Wardrobe Manual

20 April 2013(KIN 01)

Unpack your furniture carefully onto a soft level surface such as a carpeted floor.
Familiarise yourself with the parts by comparing them with the checklist provided below.
Do not discard any packaging until you have checked the parts against the list below.
This furniture is provided with an anti-topple device for securing to a wall. Failure to use
this could result in the furniture toppling onto a child.
Ref Part Description Qty
A Large Cam 38
B
Large Cam Bolt(34mm)
34
C Screw(14mm) 32
D Bolt(30mm) 4
E Allen Key 1
F Dowel(40mm) 26
G Screw(30mm) 6
H Metal Handle 2
I Handle screw (25mm) 2
J Small Cam 10
K Small Cam Bolt 14
L Dowel(30mm) 4
M Anti Topple Device 1
N Screw(16mm) 36
O Joining Strip 1
P Hinge 6
Q Hanging Rail Bracket 2
R Hanging Rail 1
S Large Cam Cover 10
1
Important Notes
Parts Checklist

Item Name Qty Item Name Qty
1 Top 1 12 LH Door 1
2 LH Side 1 13 RH Door 1
3 RH Side 1 14 LH Drawer Side 1
4 Back Panels 2 15 RH Drawer Side 1
5 Back Rail 3 16 Drawer Back 1
6 Support Rail For Drawer 1 17 Drawer Base 1
7 Plinth For Drawer 1 18 Drawer Support Rail 1
8
LH Side Panel For Drawer
119 Drawer Front 1
9
RH Side Panel For Drawer
120 Frame Side for Drawer 2
10 Top Shelf 1 21 Feet 4
11 Bottom Shelf 1
2
Parts checklist

1. Attaching dowels to top shelf, LH and RH side for drawer, and feet.
Fx12
2. Attaching cam bolts, dowels to bottom shelf, frame sides for drawer.
Bx4 Fx8 Kx4
3
Assembly

3. Securing support rail and plinth for drawer.
Ax2 Bx2 Fx2
4. Securing LH and RH side panel for drawer.
Jx4
4
Assembly

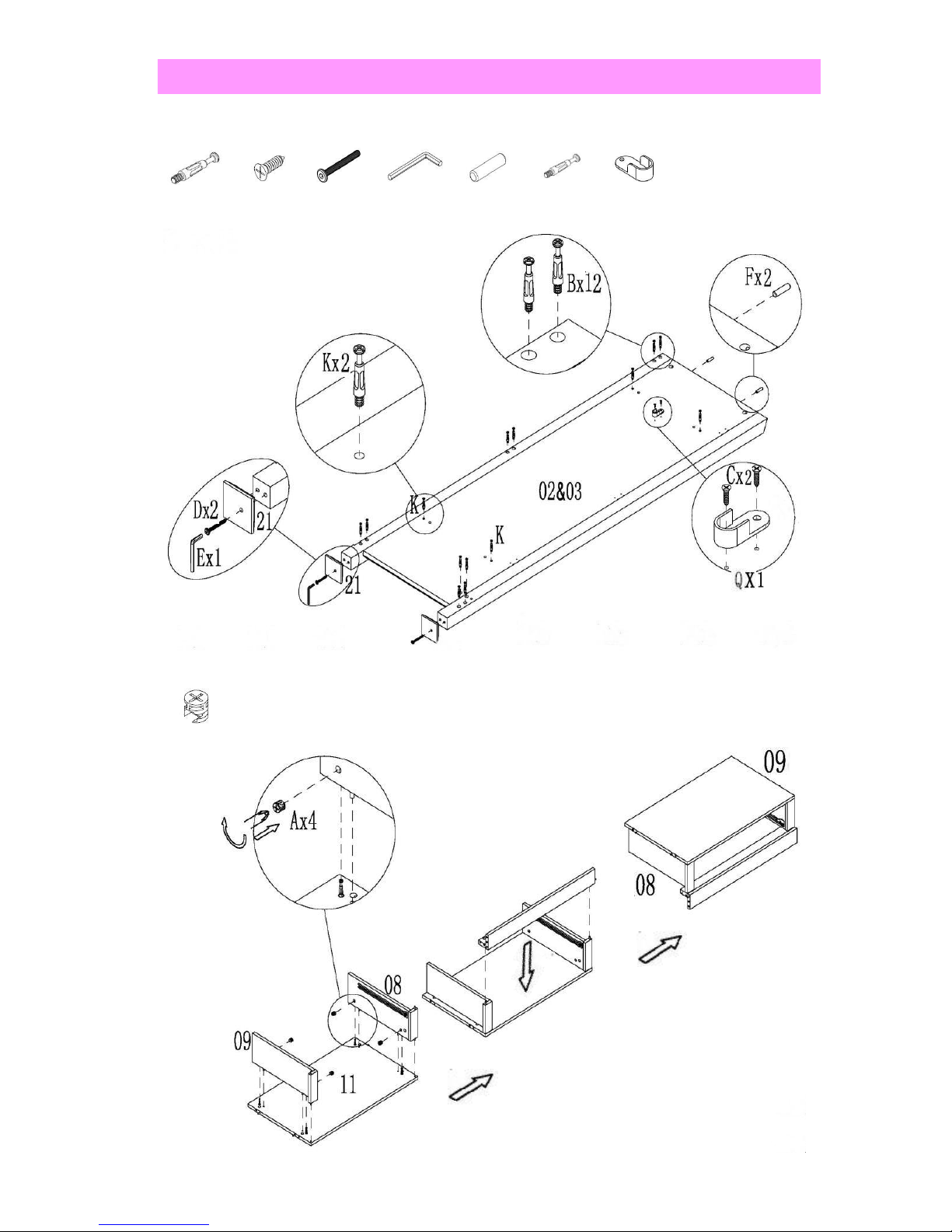

5. Attaching cam bolts, bolts, screws, dowels and hanging rail bracket
to LH and RH side.
Bx24 Cx4 Dx4 Ex1 Fx4 Kx4 Qx2
6. Securing sides, support rail and plinth for drawer with bottom shelf.
Ax4
5
Assembly

7. Securing drawer frame, top shelf and back rails to LH side.
Ax14
8. Securing RH side.
Ax14
6
Assembly

9. Attaching cam bolts to the top.
Bx4
10. Securing top and overlap cam covers to cams of wardrobe inside.
Ax4 Sx10
7
Assembly

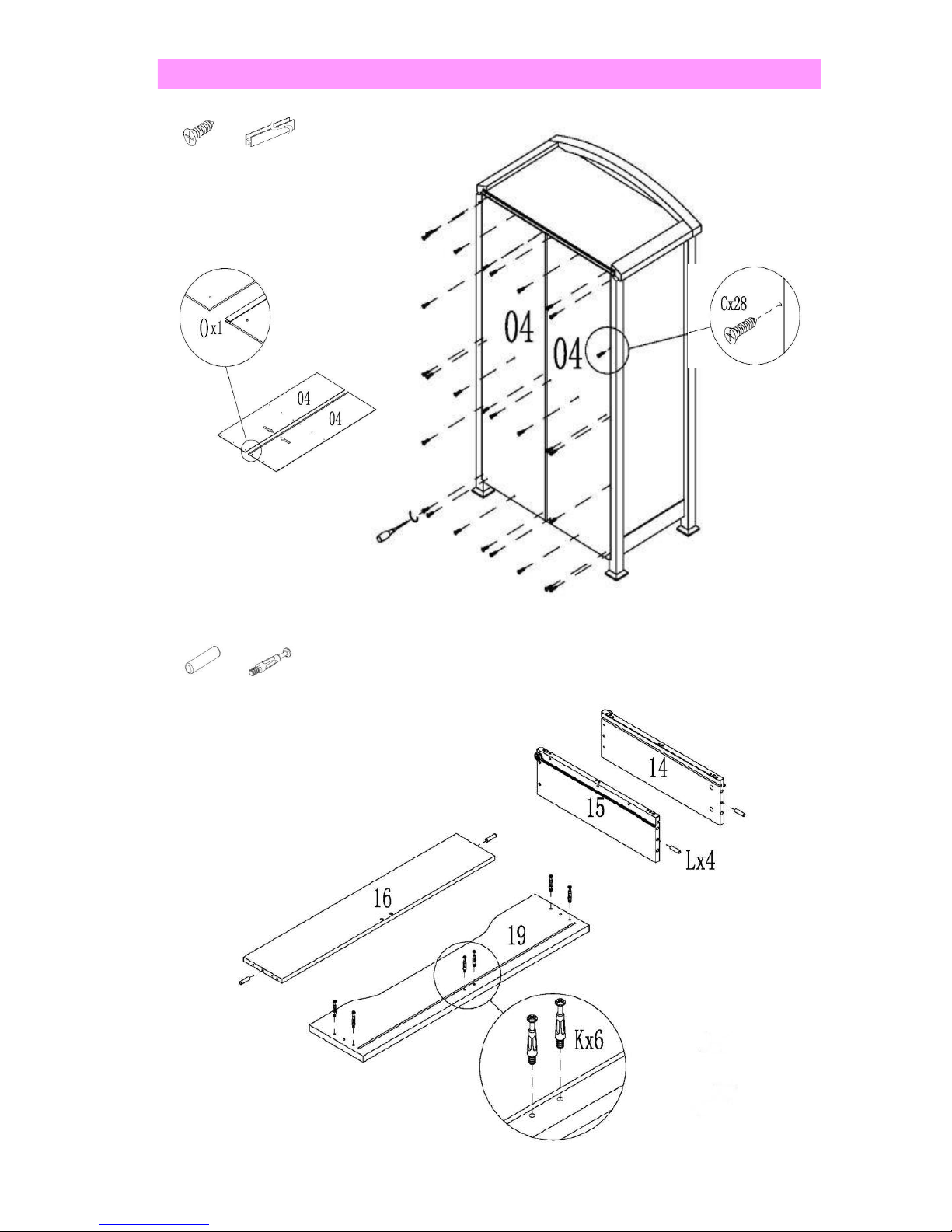

11. Attaching joining strip and securing back panels.
Cx28 Ox1
12. Attaching dowels and cam bolts to drawer front, back and sides.
Lx4 Kx6
8
Assembly

13. Assembling sides, back, base and front of drawer.
Gx4
Jx6 Gx2
9
Assembly

14. Assembling drawer and attaching hanging rail into brackets.
Rx1
15.Securing hinges to doors.
Nx12 Px6
10
Assembly

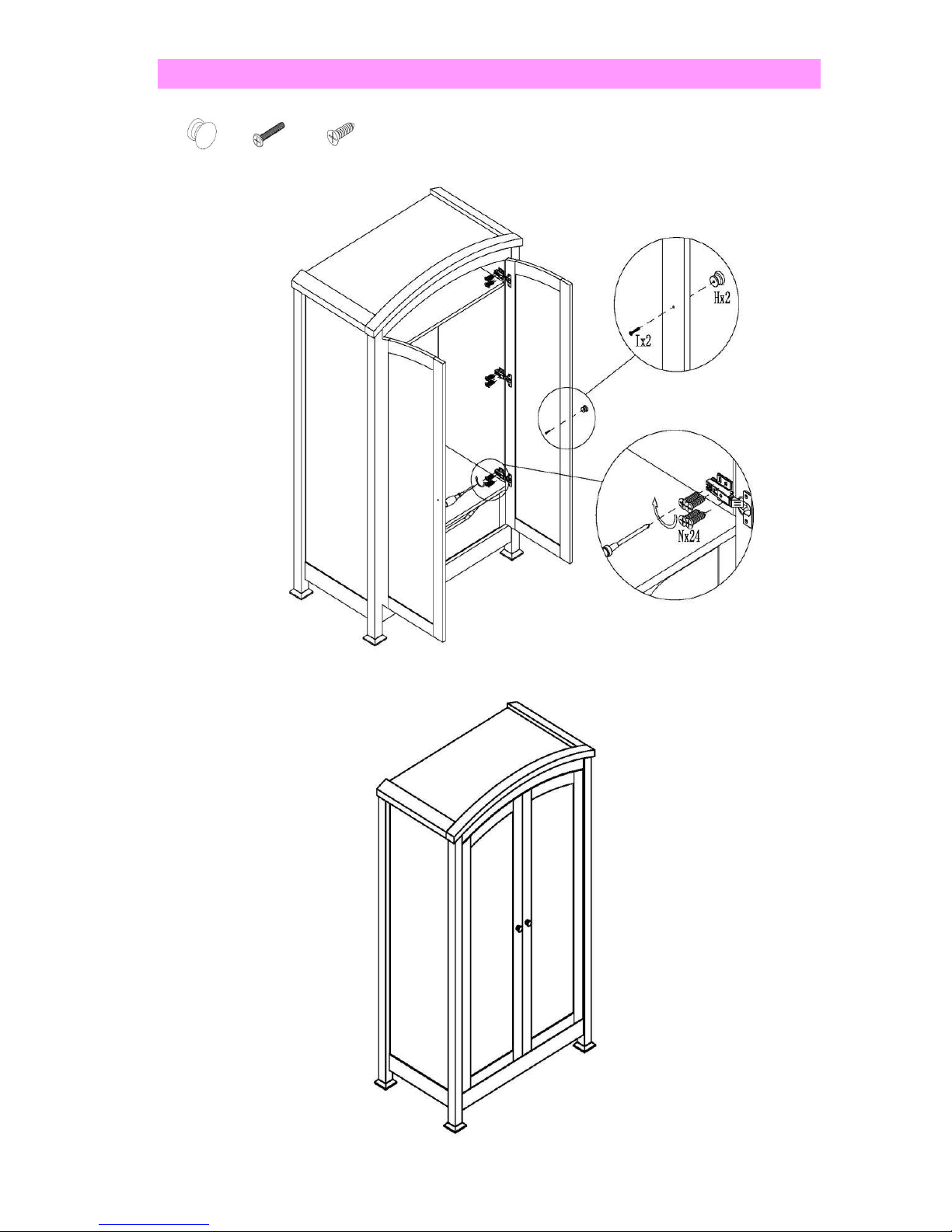

16. Assembling and securing doors and door handles.
Hx2 Ix2 Nx24
The wardrobe is now fully assembly.
11
Assembly

17. Adjusting the doors if necessary.
Adjusting the width of the gap between the doors.
Loosen screw Bto adjust the width of gap between
the doors, and re-tighten after correct alignment.
Adjusting the height of the doors.
loosen screws Con all of hinge plates.
Lift or lower the door until it lines up with the top of the other door and
re-tighten both of screws.
Adjusting the angle of the door.
Loosen screw Aand slide the hinge arm either forwards or backwards
until the door is vertical then re-tighten screw A.
The wardrobe is now fully assembly. Check that all of fittings are fully
tightened before use.
12
Assembly

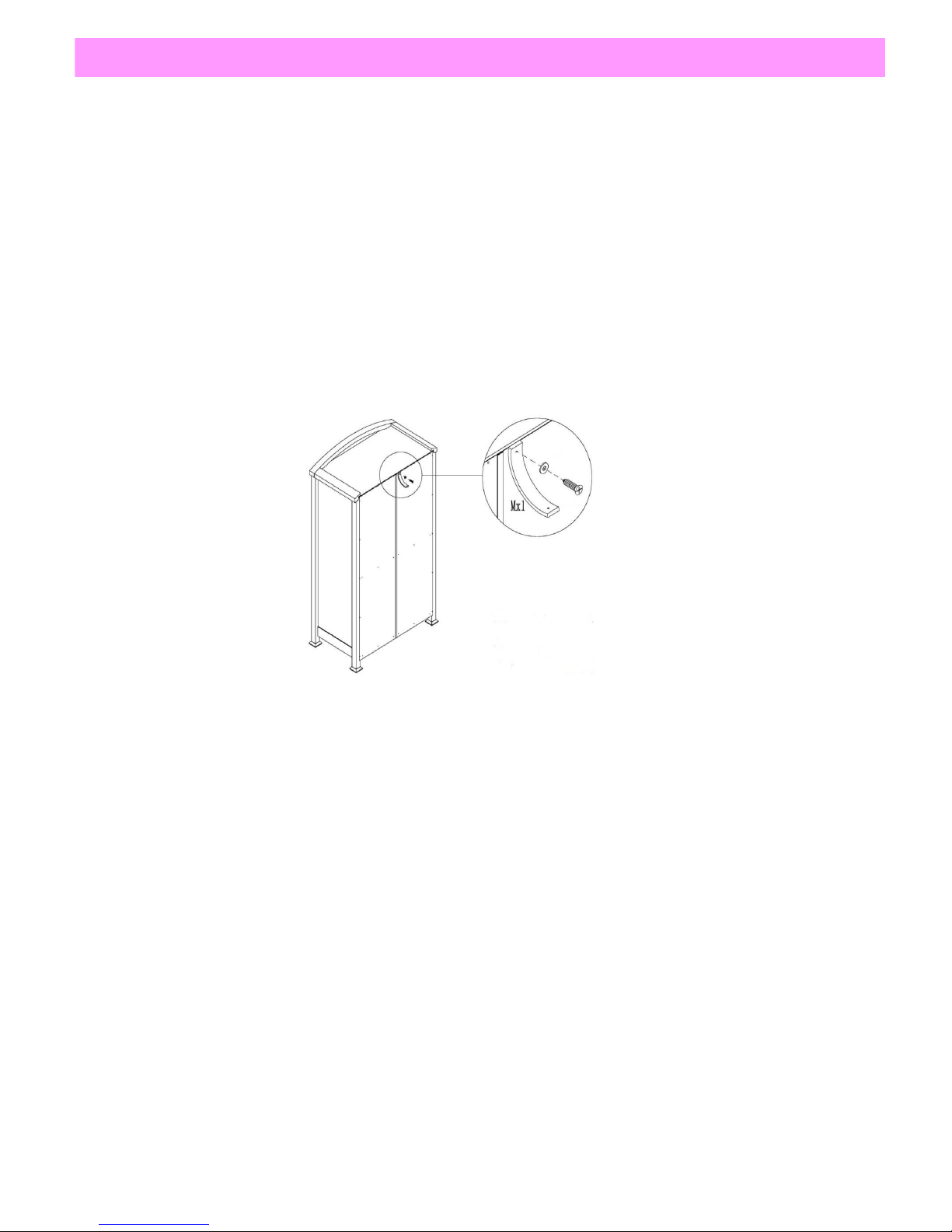

THIS UNIT IS SUPPLIED WITH AN ANTI-TOPPLE DEVICE THAT SECURES THE UNIT
TO THE WALL.
FAILURE TO USE THIS COULD RESULT IN THE FURNITURE TOPPLING OVER. WE
RECOMMEND THAT YOU USE THIS SAFETY DEVICE.
Using the screw, washers and strap provided, fix to the rear of the unit using a cross head
screw driver.
The loose end of the strap requires fixing to the wall where the furniture will be positioned.
Certain wall materials require different types of mounting hardware
(e.g. plastic rawl plugs, plasterboard rawl plugs). Select mounting hardware suitable
for the walls in your home. If you are unsure what type of mounting hardware
required please consult your local DIY store for advice.
SAFETY NOTES:
Do not allow children to climb on the furniture. The safety of your child is your responsibility.
Before use, please ensure each item of furniture is on a stable, level surface.
Never use the item of furniture if any parts are broken or missing.
To avoid the risk of suffocation, keep all plastic bags and packaging out of reach of babies
and young children.
All assembly fittings should always be tightened properly. Care should be taken that no
fittings are loose, because the child could trap parts of the body or clothing which could
pose a risk of strangulation.
Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires,
gas fires etc. in the near vicinity of the changing unit.
Never pivot or drag the item of furniture when moving. The item of furniture must always
be lifted by at least two people.
CARE OF YOUR PRODUCT:
Periodically check all fittings to ensure that none have come loose. Any loose fittings must
be tightened using the correct tool.
The side unit can be cleaned by wiping with a damp cloth and drying with a soft dry cloth.
Never clean with abrasives, ammonia based, bleach based or spirit type cleaners.
Take care when handling or moving side unit. Careless handling can damage wooden
furniture.
13
Care and Safety
OPTIONAL ONLY.

CUSTOMER SERVICE:
If you need assistance please contact our Customer Service Team on 0161 830 1919.
Alternatively please contact the retailer from whom you made your purchase.
GUARANTEE - CUSTOMER COPY
All our products are made using the highest quality materials and are manufactured to
British Standards, some of the highest quality standards in the world.
We guarantee all our products or part thereof, for a period of six months from the date of delivery
against faulty manufacture. This guarantee is not effective against damage caused as a result of
incorrect use or accidental damage. This in no way affects your statutory rights.
To validate this guarantee, please fill in the coupon and retain for future reference:
IZZIWOTNOT, 520 Metroplex, Broadway, Salford Quays, Manchester, M50 2UE
