Jäger ADwin Safety guide

ADwin Installation
Manual for the
Installation
of ADwin Systems
ISA
PCI
PCMCIA
USB
Ethernet
ADwin Installation, manual version 2.1, December 2005

ADwin Installation, manual version 2.1, December 2005
Jäger Computergesteuerte
Messtechnik GmbH
Rheinstraße 2-4
D-64653 Lorsch
Germany
For any questions, please don’t hesitate to contact us:
Hotline: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet www.ADwin.de

ADwin Installation, manual version 2.1, December 2005 III
ADwin
Table of contents
Typographical Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IV
1 Information about this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Installation of the ADwin CDROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 ADwin ISA link interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Installation of software and configuration of the PC. . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Setting the DIP switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3 Settings in ADbasic and hardware installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 ADlink PCI adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.1 Installation of the ADlink-PCI adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.2 Installation of the drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 ADpcmcia adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1 Initialization of the drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.2 Initialization of the hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.3 Connecting several ADwin systems to ISA and PCI . . . . . . . . . . . . . . . . . . . . . . . 30
6 ADwin-light-16 system with USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.1 Installation of the hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.2 Installation of the drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7 ADwin-Gold system with USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7.1 Installation of the USB linkadapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
7.2 Installation of the drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8 ADwin-Pro module with USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
8.1 Installation of the Pro-USB module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.2 Installation of the drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9 ADwin System with Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.1 Basic information about Ethernet operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.2 Hardware configurations and displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
9.3 Configuration with ADconfig. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
9.4 Settings in ADbasic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.5 Application-specific features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.6 Bootloader option for the ADwin Ethernet interface . . . . . . . . . . . . . . . . . . . . . . . . 63
Annex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
A.1 List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1
A.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Typographical Conventions ADwin
IV ADwin Installation, manual version 2.1, December 2005
Typographical Conventions
"Warning" stands for information, which indicate damages of hardware or soft-
ware, test setup or injury to persons caused by incorrect handling.
You find a "note" next to
– information, which have absolutely to be considered in order to guaran-
tee an operation without any errors
– advice for efficient operation
"Information" refers to further information in this documentation or to other
sources such as manuals, data sheets, literature, etc.
<C:\ADwin\ …> File names and paths are placed in angle brackets and characterized in the
font Courier New.
Program text Program instructions and user inputs are characterized by the font Courier
New.
Var_1 ADbasic source code elements such as INSTRUCTIONS, variables, com-
ments and other text are characterized by the font Courier New and are
printed in color (see also the editor of the ADbasic development environment).
Bits in data (here: 16 bit) are referred to as follows:
BitNo. 151413…0100
Bit value 215 214 213 …21=2 20=1
Synonym MSB - - - - LSB

ADwin Installation, manual version 2.1, December 2005 1
Information about this manual
ADwin
1 Information about this manual
With this manual you are starting the installation of your ADwin system:
–Software installation of the drivers for Windows 9x, ME, NT, 2000 and
XP.
Depending on the Windows version, some discrepancy to the following
descriptions (mostly formal) may occur. Knowledge in handling Win-
dows and driver installation routines are assumed in this manual.
–Hardware installation: Installation (if necessary) and hardware initial-
ization up to the first function test.
Please pay attention to the notes for initialization of the hardware and for
the operating environment in your hardware manual.
Order of installationPlease pay attention to the order of installation steps given on the next page.
Install first the interface drivers so that the Windows operating system will be
able to communicate with the ADwin system.
Take sufficient time for the driver installation and initialization, because this is
the fastest solution. If you hurry and for instance do not install the right drivers,
much more effort is necessary to correct the driver installation.
Please note:
To have your ADwin systems work properly, keep strictly to the information
given in this documentation and in other mentioned manuals.
Qualified personnelProgramming, start-up and operation, as well as the modification of program
parameters must be performed only by appropriately qualified personnel.
Qualified personnel are persons who, due to their education, experience
and training as well as their knowledge of applicable technical stan-
dards, guidelines, accident prevention regulations and operating condi-
tions, have been authorized by a quality assurance representative at the
site to perform the necessary acivities, while recognizing and avoiding
any possible dangers.
(Definition of qualified personnel as per VDE 105 and ICE 364).
Availability of the
documents
This product documentation and all documents referred to, have always to be
available and to be observed. For damages caused by disregarding the infor-
mation in this documentation or in all other additional documentations, no lia-
bility is assumed by the company Jäger Computergesteuerte Messtechnik
GmbH, Lorsch, Germany.
Legal instructionsThis documentation, including all pictures is protected by copyright. Reproduc-
tion, translation as well as electronical and photographical archiving and mod-
ification require a written permission by the company Jäger
Computergesteuerte Messtechnik GmbH, Lorsch, Germany.
OEM products are mentioned without referring to possible patent rights, whose
existence is not to be excluded.
Subject to change.
Hotline address: see inner side of cover page.

Information about this manual ADwin
2ADwin Installation, manual version 2.1, December 2005
Before installation of the ADwin CDROM
An important note:
Please, pay absolutely attention to the order of the installation steps.
This refers especially to the initialization of the hardware.
For installation step 2 choose the suitable chapter for your ADwin system in the
table:
1. Installation or update of the ADwin CDROM: ⇒chapter 2
2. Installation of the interface drivers (USB,
Ethernet etc.),
Initialization of the hardware,
Functions check.
Pay also attention to the notes for initializa-
tion in your hardware manual.
⇒one of the chapters
3…9
(see table below)
3. First steps in ADbasic.⇒manual ADbasic
4. Introduction to ADbasic programming ⇒tutorial ADbasic
ADwin system chapter
– Systems with ADlink PC ISA board
–ADwin boards
–ADwin-light boards (not ADwin-light-16)
3: ADwin ISA link interface,
page 5
–ADlink PCI adapter board 4: ADlink PCI adapter,
page 22
–ADpcmcia linkadapter board 5: ADpcmcia adapter,
page 25
–ADwin-light-16 (PCI, EURO, cPCI, EXT)
with USB interface
6: ADwin-light-16 system
with USB interface,
page 34
– ADwin-Gold
• ADwin-Gold-USB
• USB-link-adapter
7: ADwin-Gold system with
USB interface, page 40
–ADwin-Pro modules
• Pro-CPU-T9-USB
• Pro-USB
8: ADwin-Pro module with
USB interface, page 46
–ADwin-light-16
• EURO-ENET
• EXT-ENET
–ADwin-Gold
• ADwin-Gold-ENET
• Ethernet-link-adapter
–ADwin-Pro modules
•Pro-CPU-T9-ENET,
Pro-CPU-T10-ENET
• Pro-ENET
9: ADwin System with Eth-
ernet Interface, page 50

ADwin Installation, manual version 2.1, December 2005 3
Installation of the ADwin CDROM
ADwin
2 Installation of the ADwin CDROM
Please, connect your ADwin system with your PC only if told to do so.
The same applies for the connection of the inputs and outputs, in order to avoid
damages at the ADwin system or at your device.
System requirementsSystem requirements:
– Windows operating systems 9x, ME, NT, 2000, XP.
The latest Windows update should be installed.
– PC local RAM of at least 16MB RAM
The graphic card and monitor should support at least 256 colors.
– Free memory on the hard disk of min. 80 MB (both program packages).
–TheADwin CDROM (see www.ADwin.de, Support Downloads)
If the version of the CDROM is lower than 4.00, see the notes in the fol-
lowing chapters.
UpdateFor an update first uninstall all existing ADwin program packages (Windows
start menu: Settings Control Panel). Install now the latest ADwin
CDROM.
Pay attention to the version number of your ADwin CDROM. Older ADwin ver-
sions do not always have the necessary drivers.
If you do not have installed the right drivers, much more effort is necessary to
correct a wrong driver installation.
After an update, you should not install an older ADwin version. The updates of
the ADwin software are designed in such a manner that applications, pro-
grammed in ADbasic 3.0x, can be used without changes.
InstallationFor installation under Windows NT, 2000 and XP you must be member of the
user group "Administrators". It is not sufficient to have full access rights on
the PC. Ask your system administrator.
Install the program packages as follows:
1. Insert the ADwin CDROM into the drive of your computer; the setup pro-
gram starts automatically. If not, start the program <setup.exe>
directly from the CDROM.
2. Under "Show readme.txt" you will find important installation infor-
mation, helping you to install correctly.
3. Select "Driver and ADbasic Setup"; this program package is nec-
essary for working with any ADwin system. Follow the notes in the instal-
lation program.
We recommend to use the proposed destination file <C:\ADwin\…>, so
that you can use all example programs without any changes.
4. The program package "Developer Software setup" contains the
interfaces for the development environments (see "Contents of the
CDROM" below). We recommend to install this package in any case.
Use the drivers only when the ADwin system is working. How to use the
drivers is described in the corresponding driver manual.
5. "Show Features" shows the changes of this CDROM compared to ear-
lier versions.

Installation of the ADwin CDROM ADwin
4ADwin Installation, manual version 2.1, December 2005
6. For new installations or for updating ADbasic from version 3 to version
4 only: Entering the license key:
• Open ADbasic (Windows start menu: Programs ADwin
ADbasic).
• Open the menu ADwin About ADbasic.
• Select the button Change License.
• You find the license key on the cover of the ADbasic manual; now
enter the license key.
The license key is necessary to include processes written in ADbasic
into your application program. Without license key it is also possible to
generate programs in ADbasic and to transfer them to your ADwin sys-
tem.
7. Continue with the installation of the interface drivers (page 2, installation
step no. 2).
Contents of the CDROM On the CDROM you will find:
– The drivers for communication between your PC and the ADwin system
for the operating systems Windows 9x, ME, NT, 2000, XP.
– The real-time development environment ADbasic.
– The program ADconfig for configuration of the communication interface
(Ethernet, USB, link-adapters such as ISA, PCI, PCMCIA).
– The program ADwinTcpIpServer for connecting the ADwin system via a
network.
– Interfaces for the development environments: .NET, Visual-Basic,
Visual-C, C/C++/C#, Delphi, VBA (Excel, Access, Word), TestPoint,
HP-VEE, Agilent VEE, LabVIEW / LabWINDOWS, InTouch, DIAdem,
Matlab and the ActiveX interface.
– Examples for programming with ADbasic.
–ADtools: A tool collection, providing direct access to variables of the
ADwin system, in order to display or to change them.
– The hardware and software manuals for your ADwin system as PDF
files as well as the Online help for ADbasic.

ADwin Installation, manual version 2.1, December 2005 5
ADwin ISA link interface
ADwin
3ADwin ISA link interface
The first stepThe first step to install your ADwin system is always the installation of the
ADwin-CDROM (chapter 3 of this manual).
Please pay attention to the version number of the CDROM, especially if you
have an update. Depending on the interface, older versions do not always
have the necessary drivers.
If you want to install under Windows 2000, you should use an ADwin CDROM
version 3.00.2360 or higher and under Windows XP use the version 3.20.0101
or higher.
ADwin systems with ISA
link
The following ADwin systems are operated via an ISA link interface:
–ADwin systems with ADlink PC ISA board
–ADwin boards
–ADwin-light boards (not ADwin-light-16)
I/O address assignmentThe PC communicates with the ADwin systems via the link adapter. Each link
adapter uses eight I/O registers in the PC.
For operating the ADwin system you only need the first of these register
addresses: the base address (also link address). The other register addresses
are defined in relation to the set base address.
Default settingFor ADwin systems with ISA interface, the default setting of the base address
is 150h. If this address is occupied on your PC, you may select other
addresses.
As an example, the table shows the register addresses, which are used by
ADwin systems with the base address 150h or 190h.
In this chapter the following installation steps are described (please consider
the order of the steps):
– Installation of the software and configuration of the PC for the ISA link-
adapter.
Depending on the Windows operation system the procedure is always
different:
– Checking or configurating DIP switches on the ISA link board (page 18).
– Installing the ISA link board in the PC and checking its function with
ADbasic (page 20).
Base address 150h 190h
Base address + 00h 150h 190h
Base address + 01h 151h 191h
Base address + 02h 152h 192h
Base address + 03h 153h 193h
Base address + 10h 160h 1A0h
Base address + 11h 161h 1A1h
Base address + 12h 162h 1A2h
Base address + 13h 163h 1A3h
• Windows 9x, NT and ME: page 6
• Windows 2000: page 7
• Windows XP: page 13

ADwin ISA link interface ADwin
6ADwin Installation, manual version 2.1, December 2005
3.1 Installation of software and configuration of the PC
3.1.1 Windows 9x, NT and ME
For these operating systems you don’t need additional software. You just have
to choose a suitable base address and should reserve it on your PC.
Checking the I/O address
assignment of the
hardware
In any case it is recommended to check first which addresses are already allo-
cated.
– Windows 9x, ME
Call the device manager from the Windows start menu: Settings
Control panel System. Double click the field "Computer" in the
"Device Manager". Under "View Resources" set the display to "In-
put/Output (I/O)".
– Windows NT
Under Windows NT call from the Windows start menu: Programs Ad-
ministrative Tools (Common) Windows NT Diagnostics;
choose the tab „Resources“ and then the button „I/O Port“.
Please pay attention to the fact, that devices using an ISA interface are not
always recognized and registered by Windows. Even the display: "Used by
unknown device“ does only appear, if a communication has been effected
via this address after start-up of the computer! If necessary, check the hard-
ware manual of the device, which may cause address conflicts.
Reserve base address
(link address)
If you have found an address which is not allocated (pay attention to addresses
which are allocated twice), you should reserve it in the device manager. Thus
you are avoiding any address conflicts with other devices which allocate
addresses automatically. Proceed by setting the display to "Input/Output
(I/=O)" under "Reserve Resources". Enter under "Add" the selected
address ("Start value" = base address; "End value" = base address
+13h).
Note the base address If you do not wish to set the base address (= link address) to the standard
address 0150 (= 150h), as described in the example above, please make a
note of it. You have to set this address on the ADwin board, ADwin-light board
or ADlink-PC-ISA board per DIP switch.

ADwin Installation, manual version 2.1, December 2005 7
ADwin ISA link interface
ADwin
Select for each ADwin system with ISA interface, which is to be installed, a
separate address.
Now check the configuration of the DIP switches (page 18).
3.1.2 Windows 2000
CDROM versionThe following installation routine applies to the ADwin CDROM version from
3.00.2360 onward. Install your ADwin board, ADwin-light board or your
ADlink-PC-ISA board into the PC only after you are requested to do so.
Call the hardware wizard under the Windows start menu: Settings Con-
trol panel System Hardware Hardware wizard.
Continue according to the wizard instructions:
Start Hardware wizard
Next

ADwin ISA link interface ADwin
8ADwin Installation, manual version 2.1, December 2005

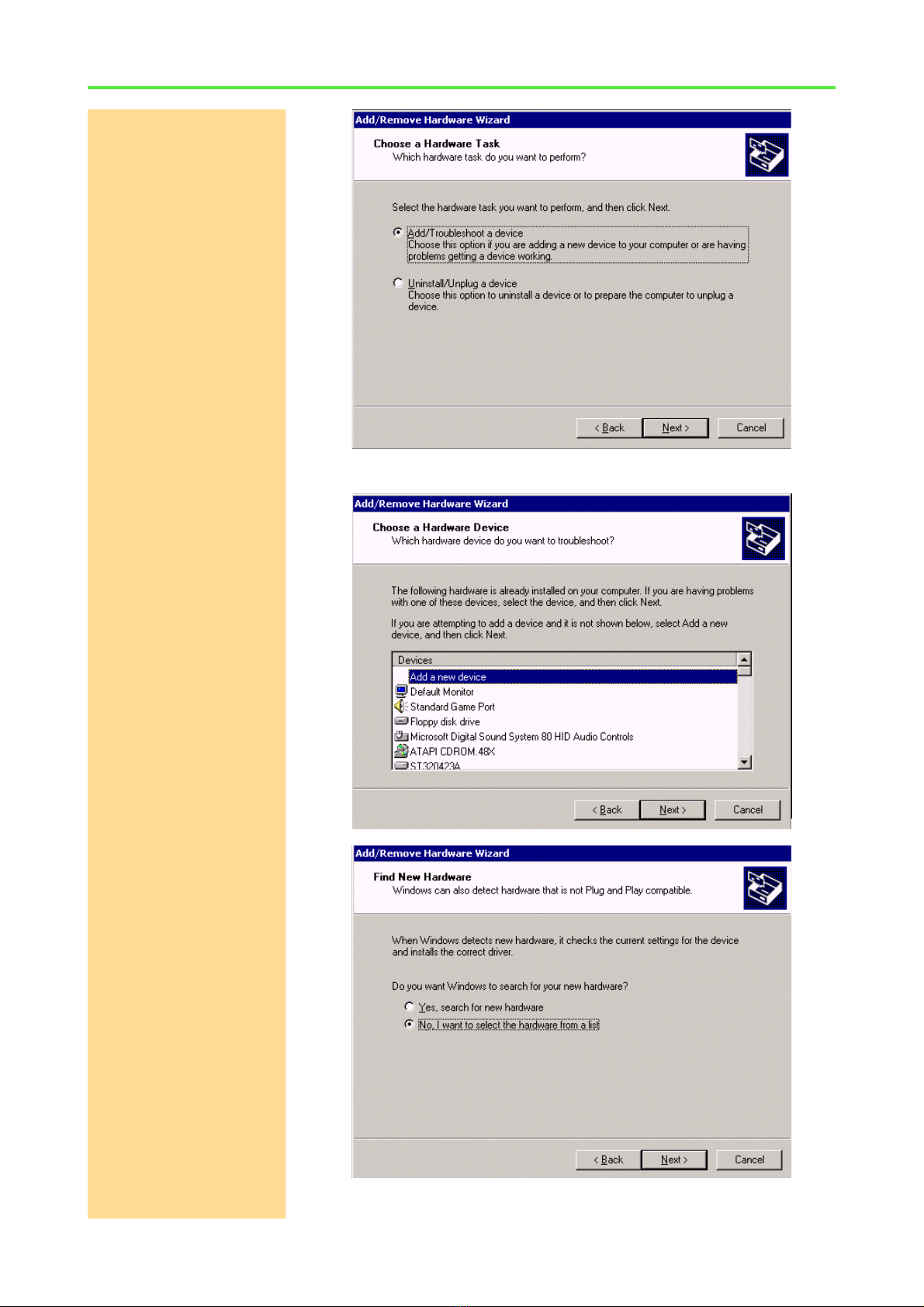

Next
The search for new hardware may take some moments.
Add a new device
Next
No: select hardware from
a list
Next

ADwin Installation, manual version 2.1, December 2005 9
ADwin ISA link interface
ADwin

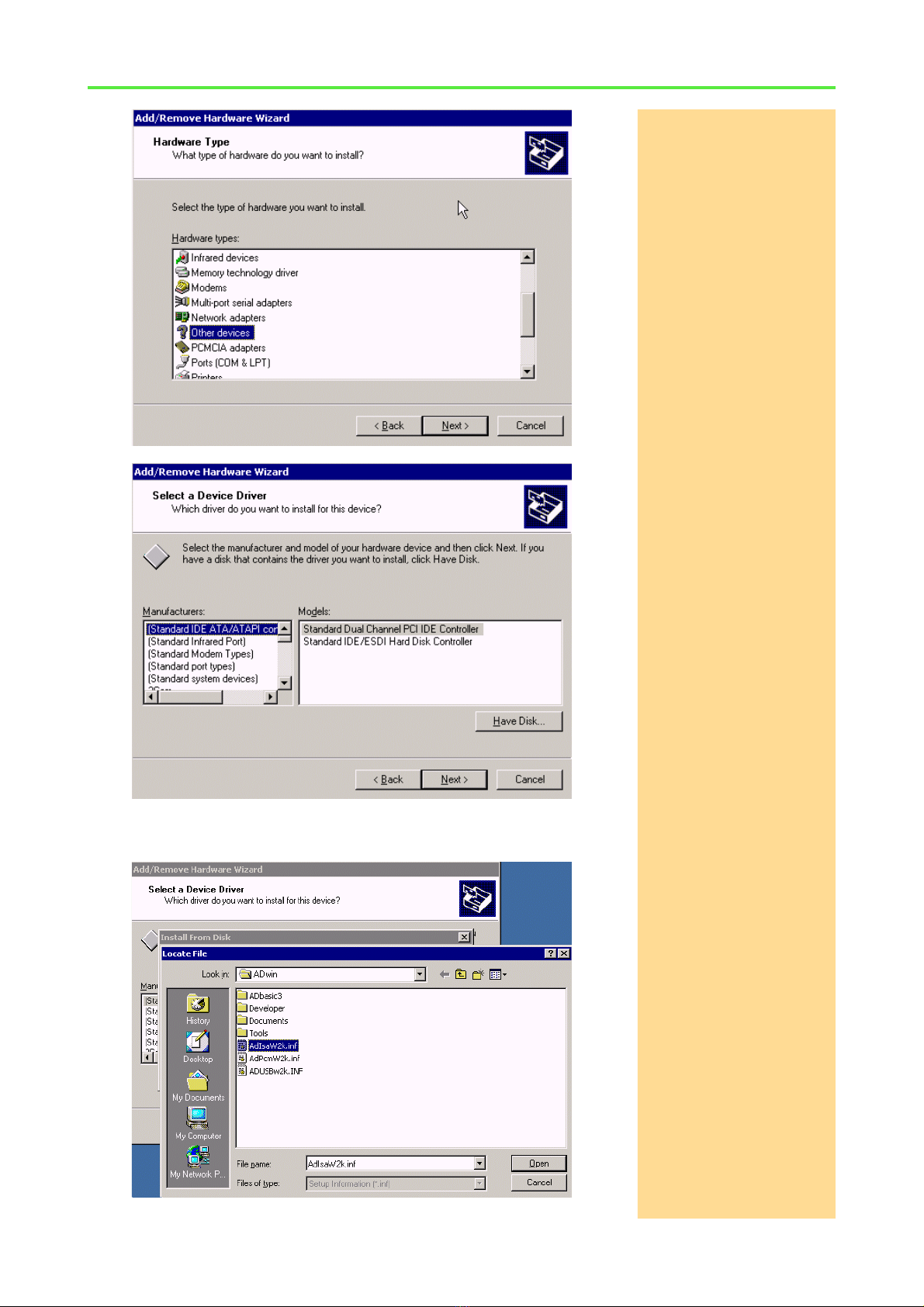

Other devices
Next
Windows searches for all known
drivers. A few minutes may pass
until this window appears.
Continue with:
Have Disk…
Select the path with "Browse" (or during standard installation enter
"C:\ADwin"and skip one picture in this documentation.
Choose:
C:\ADwin\ADIsaW2K.inf
Continue with Open

ADwin ISA link interface ADwin
10 ADwin Installation, manual version 2.1, December 2005

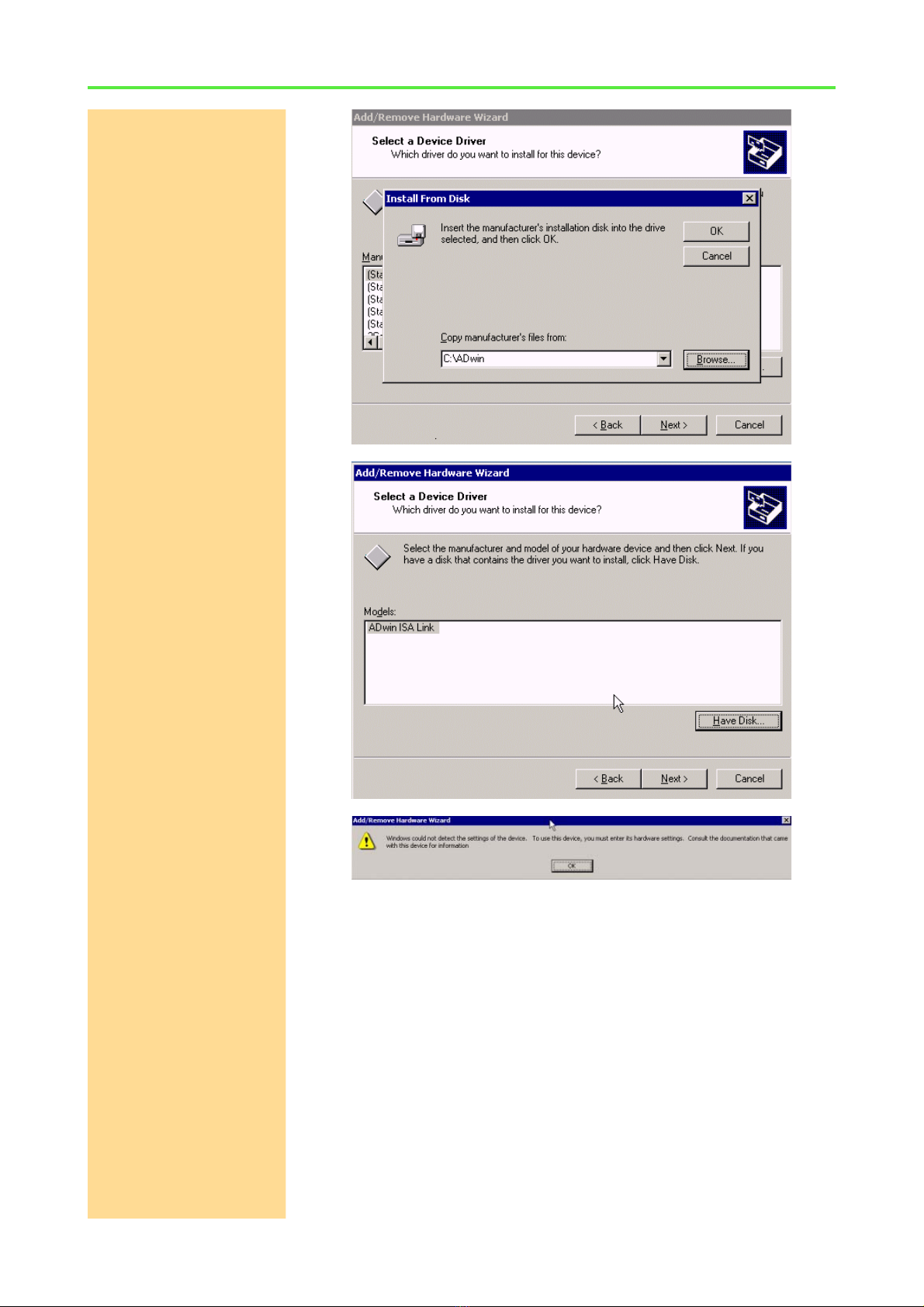

OK
Next
OK

ADwin Installation, manual version 2.1, December 2005 11
ADwin ISA link interface
ADwin
Base address /
link address
Choose basic
configuration
At "Settings based on" choose one of the given basic configurations, so
that in the list "Conflicting Devices" no conflicting devices are displayed.
In doing so, you set the base address of the link adapter.
Note the link addressIf you don’t use the standard base address 0150 (= 150h) as in the example
above, please note this different base address (=link address). You have to set
this address later with the DIP switches on the ADwin board, ADwin-light board
or ADlink-PC-ISA.
Choose a separate link address for each ADwin system.
Yes

ADwin ISA link interface ADwin
12 ADwin Installation, manual version 2.1, December 2005
Next
Finish
No
Choose "No", because you have to restart your PC anyway for the hardware
installation.
For the installation of another ADwin system with ISA interface repeat the
instructions in this subsection.
Continue now with chapter 3.2 on page 18.

ADwin Installation, manual version 2.1, December 2005 13
ADwin ISA link interface
ADwin
3.1.3 Windows XP
ADwin-CD VersionThe following installation routine applies to the ADwin CDROM version from
3.20.0101 onward. Install your ADwin board, ADwin-light board or your
ADlink-PC-ISA board into the PC only after you are requested to do so.

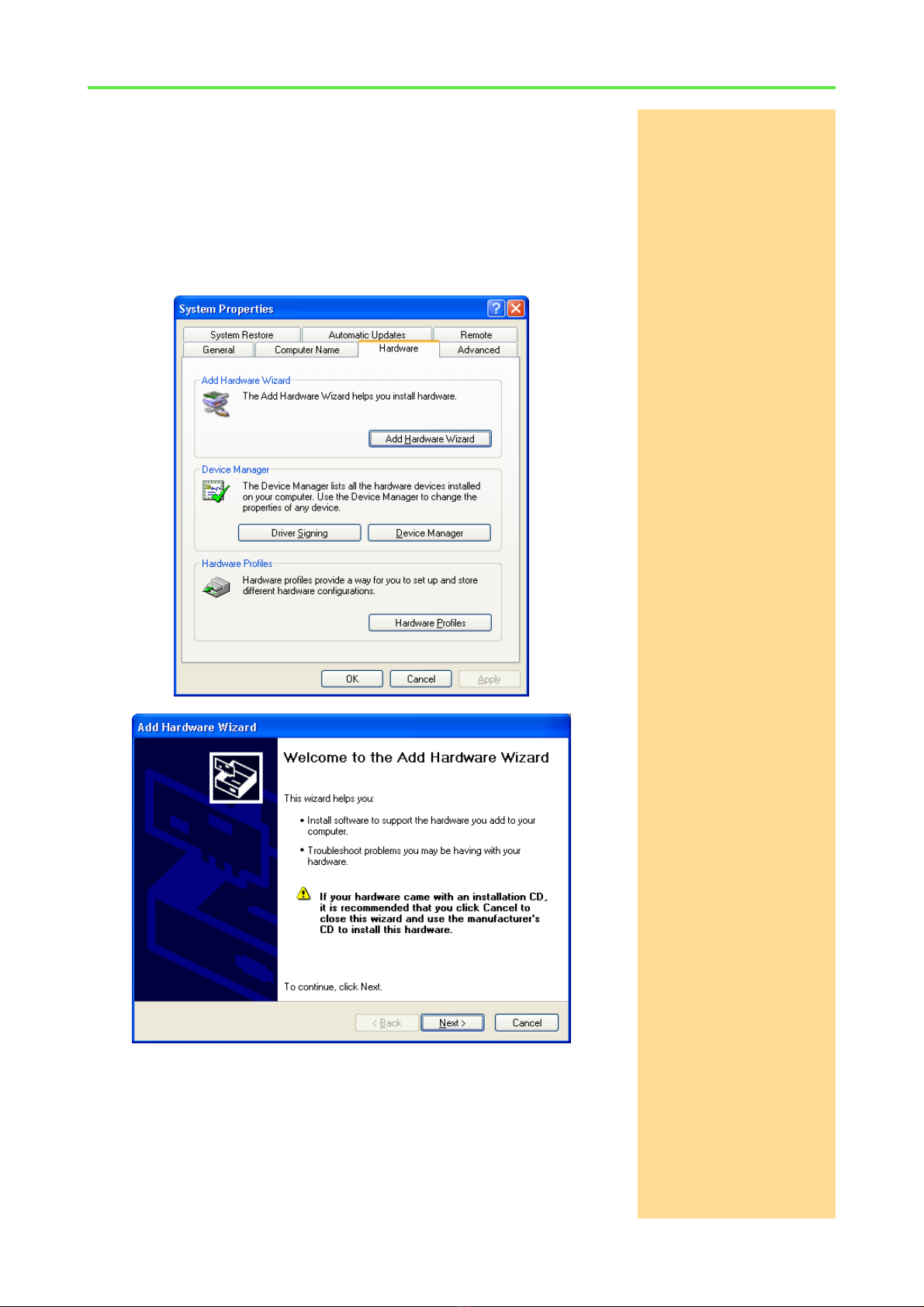

Start the hardware wizard as follows: Call the control panel (for instance via the
XP start menu: Control Panel). Switch to the display "Classic View",
select "System" and start the hardware wizard under the tab "Hardware".
Continue according to the following instructions:
Add hardware wizard
Next

ADwin ISA link interface ADwin
14 ADwin Installation, manual version 2.1, December 2005
Yes
Next
Add a new device
Next
Select hardware from list
Next

ADwin Installation, manual version 2.1, December 2005 15
ADwin ISA link interface
ADwin

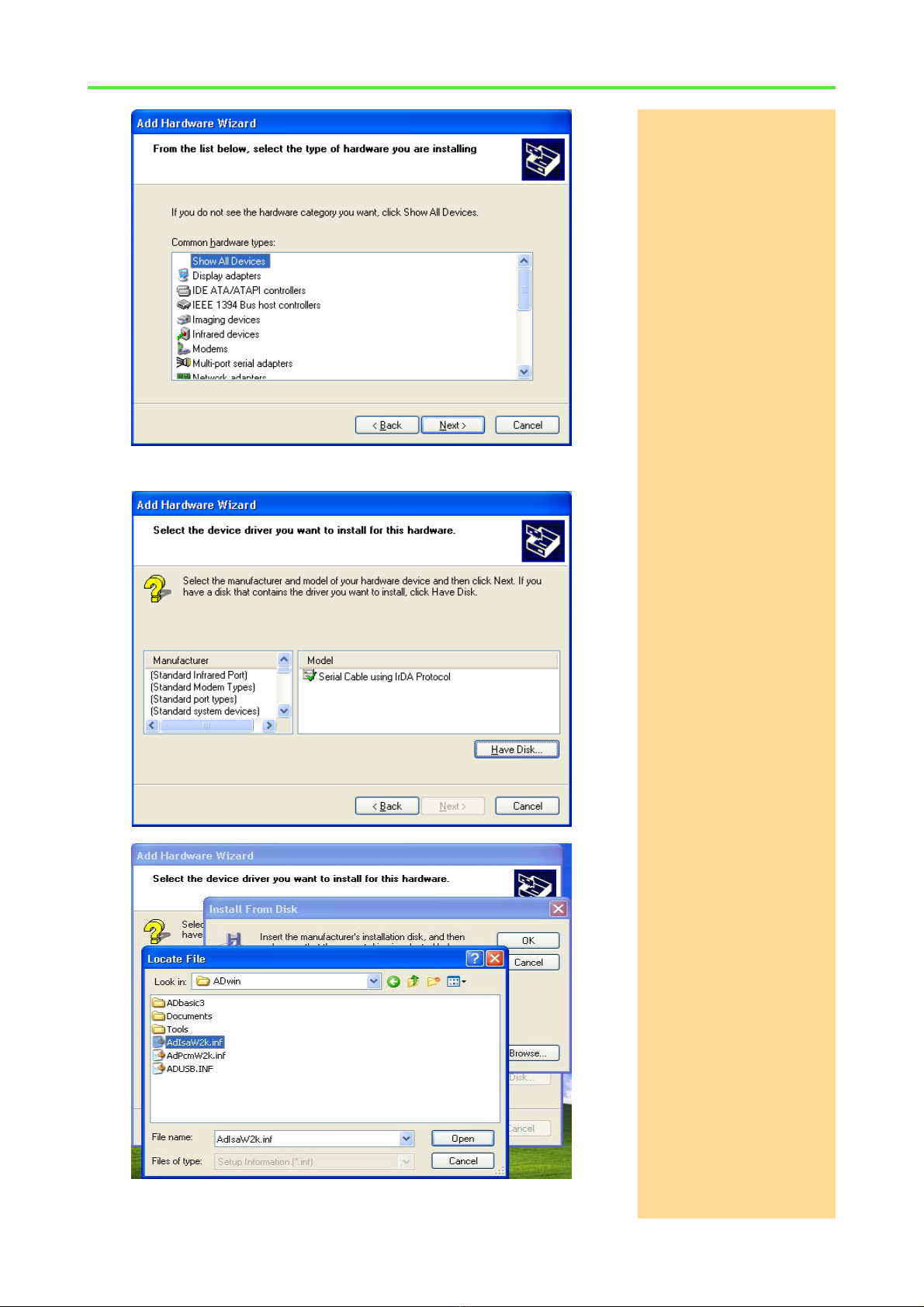

Show all devices
Next
Here you must wait a few minutes until Windows has found all existing drivers.
Have Disk
Select:
C:\ADwin\ADIsaW2K.inf
Open

ADwin ISA link interface ADwin
16 ADwin Installation, manual version 2.1, December 2005

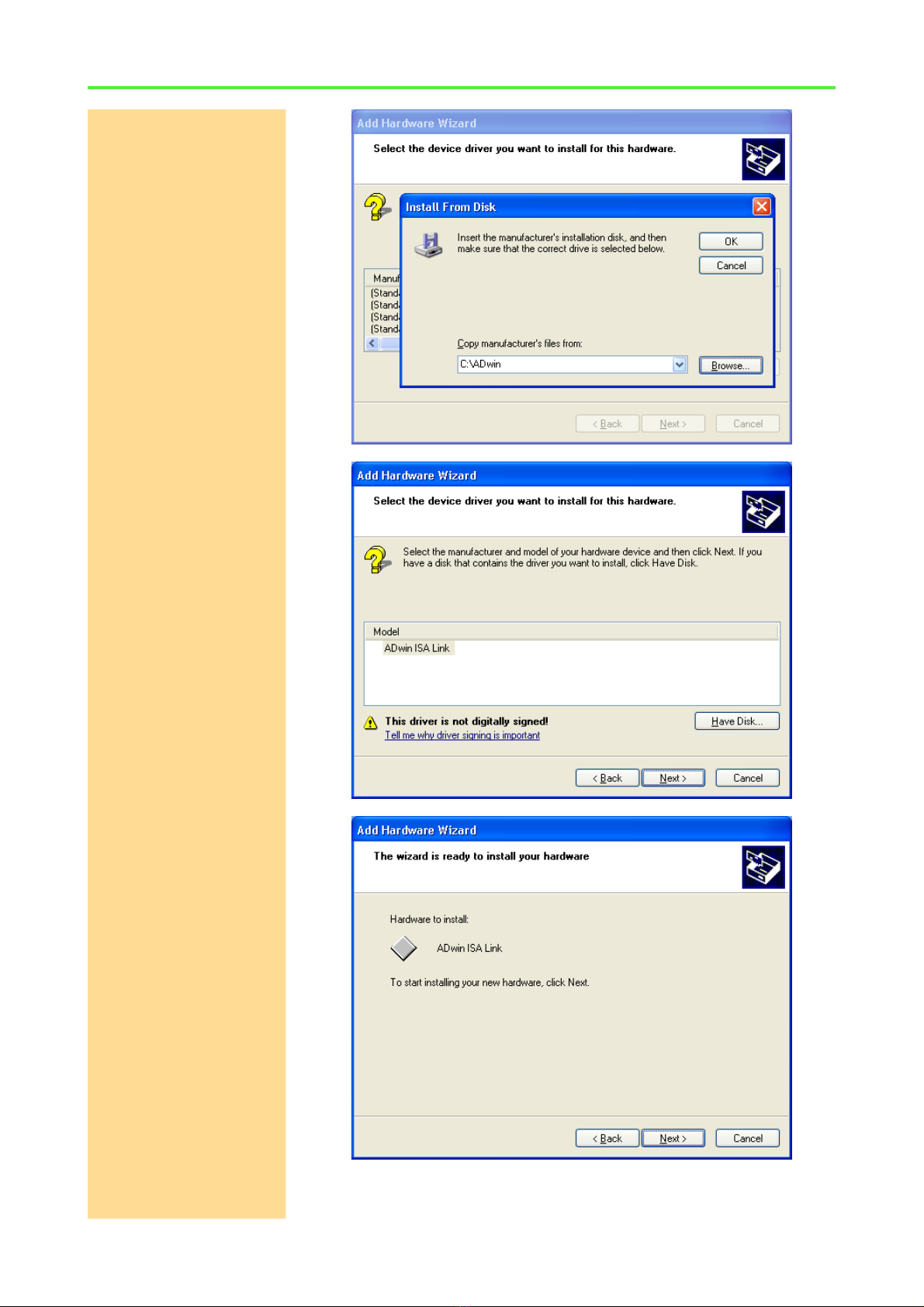

OK
Next
Next
