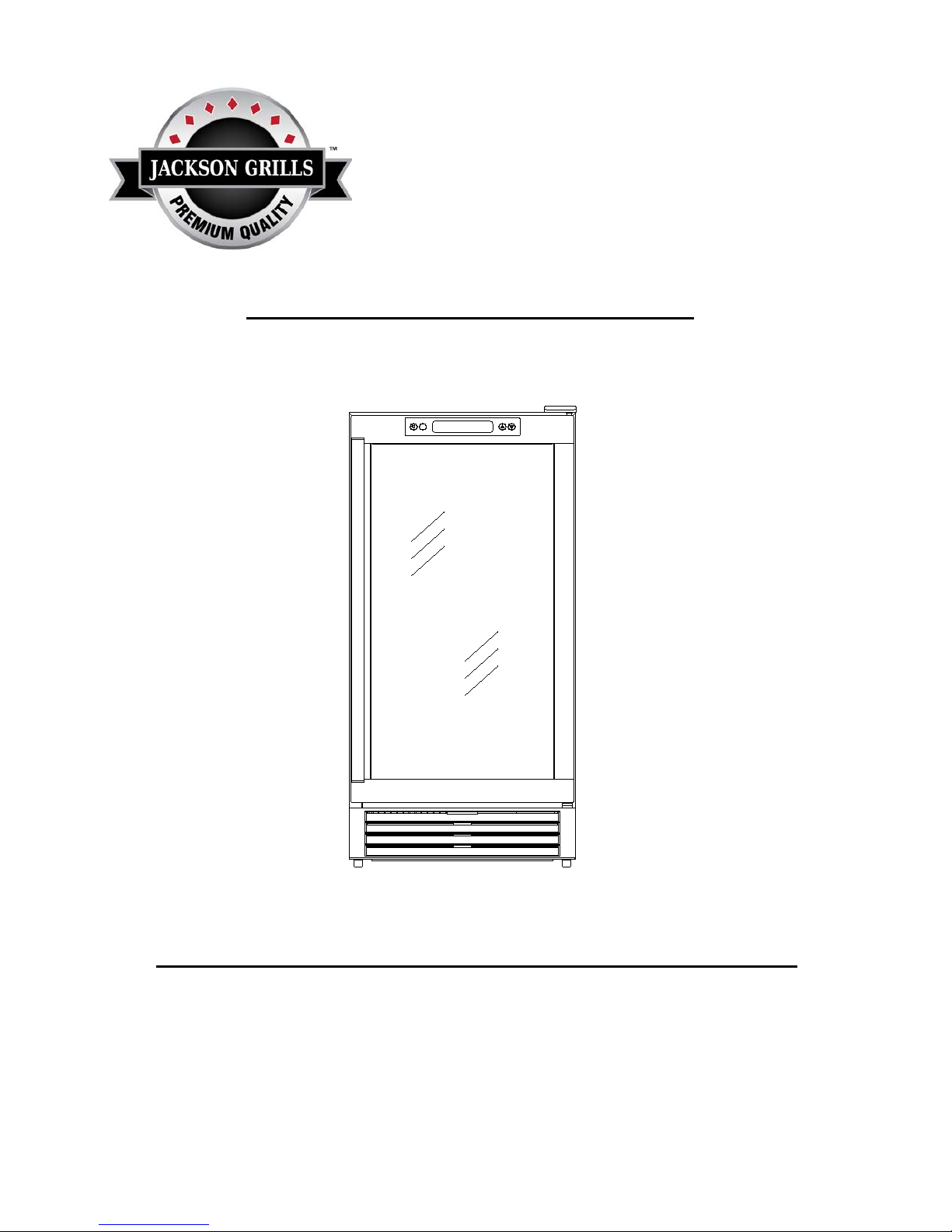

Jackson Grills SC90OD User manual

O N /O FF SET TEMPERATURE
Outdoor Beverage Center
Use and Care Guide
Be sure unit is standing upright 24 hours prior to plug-in.
Model:SC90
OD

1
IMPORTANT SAFEGUARDS
Read all instructions before using this appliance. Use this appliance only for its
intended purpose as described in this instruction manual. Always exercise basic
safety precautions, as described below. After reading the instruction manual,
store it in an accessible place where the user(s) of this product can easily find it.
The purpose of these safety precautions is to ensure safe and correct use of the
product to minimize risks that could cause serious damage and injury to you or
others. The safety precautions are divided into WARNINGS and CAUTIONS.
Cases where improper handling of the unit could lead to death or serious injury
are listed under the WARNING heading. However, the cases listed under
CAUTION could also lead to serious results. To ensure safety, adhere strictly to
both types of safety precautions.
1. All repairs, disassembly and modifications should be performed only by
qualified technicians. Attempting to perform these yourself could result in fire,
malfunction and injury.
2. Never splash water directly onto the product or wash with water without
unplugging as a short circuit could result. In a rainy environment, a water-proof
covering is recommended.
3. Never put flammable or volatile substances into unit as explosion and fire
could result.
4. Do not damage, modify, excessively bend, strain, twist or bundle the power
cord. Also, placing heavy objects on the power cord or binding could damage
the cord, possibly resulting in electrical shock or fire.
5. Use a dedicated wall outlet. Do not use an extension cord or multiple-outlet
adaptor as this could result in electrical shock, overheating and fire.
6. Never use flammable spray cans or leave flammable substances near the unit.
Sparks from electrical switches could result in explosion or fire. If a
combustible gas is present near the appliance, turn off the source of the gas,
then open the windows and doors to allow the gas to dissipate. To avoid an
explosion, do not pull the plug or switch off the unit.
7. The electrical socket must have good grounding. The ground wire cannot be
connected with a gas pipe, heating pipe, water pipe, telephone line or lightning
rod. It cannot be replaced with the neutral wire of single-phase power. In

2
addition to the ground wire, an electrical leakage circuit breaker is also
required.
8. If installation in a damp location is unavoidable, have an electrician install a
ground fault circuit interrupter (GFCI) electrical outlet. If no GFCI is installed,
electrical shock could result.
9. Never climb onto the unit. The unit could tip over or fall and cause material
damage or personal injury.
10. Disconnect the power cord plug from the wall outlet before moving the unit
and make sure that the power cord is not damaged during transport. A
damaged power cord could result in electrical shock and/or fire.
11. Never unplug the unit by pulling on the power cord. Always grip the plug firmly
and pull straight out from the outlet. Pulling the cord could cause wire breakage,
possibly resulting in overheating and fire.
12. Repair or replace any cord that is frayed. Do not use a cord that shows cracks
or abrasions along its length.
1. This unit must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the Installation
section.
2. This model can either be built-in or free-standing. Built-in units vent at the
bottom front and airflow at the front of this vent must be unimpeded.
3. Install the unit in a location where the floor is sturdy enough to support the load
of the unit. If the floor is not sturdy enough or installation is incorrectly
performed, the unit could tip over and cause personal injury. If the unit is
placed on a stand, the front surface must be 3” or more back from the edge of
the stand in order to avoid accidental tipping of the appliance during normal
usage.
4. Never place heavy objects or items containing water on top of the unit. Objects
could fall and cause injury and spilled water could cause the deterioration of
the insulation of electrical components and result in electrical shock.
5. Disconnect the unit if it is behaving abnormally, and do not reconnect until the
situation is corrected.
6. Pull out the plug before doing any maintenance on the unit to avoid electric
shock.
7. Never pull out plug when hands are wet!
8. This unit is not intended for the storage of medicines or chemical reagents.
9. Keep packing materials away from children.

3
10. During long absences, remove the unit’s contents, unplug the unit, clean it
and leave the door open slightly to avoid possible formation of condensation,
mold or odors. Use a cover to protect the unit and prolong its lifespan.
11. Leave disassembly and disposal of the unit to qualified experts.
SAVE THESE INSTRUCTIONS!
DANGER!
Risk of child entrapment! Before discarding your old refrigerator:
• take off the doors
• leave the shelves in place so that children may not easily climb inside.
Table of Contents
IMPORTANT SAFEGUARDS ........................................................ 1 – 3
Technical Specifications .......................................................................4
Location of Parts .............................................................................4 – 5
Installation ..................................................................................... 5 – 6
Operating Your Beverage Center .................................................. 6 – 8
Cleaning and Maintenance .......................................................... 9 – 11
Troubleshooting ......................................................................... 11 – 12
Limited Warranty ............................................................................... 13

4
Technical Specifications
Model Number: SC90OD
Description: outdoor beverage center
Electrical Input: 115VAC ~ 60Hz
Current Rating: 2.0A
Unit Dimensions: 14⅝”W x 24⅜”D x 33½”H
Unit Weight: 76 lbs
Ambient Temperature Range: -4ºC - 38ºC (25ºF - 100ºF)
Compartment Temperature Range: 2ºC – 18ºC(36ºF - 64ºF)
Location of Parts
Shelves
Glass door
Legs
Vents
Control panel and
digital display

5

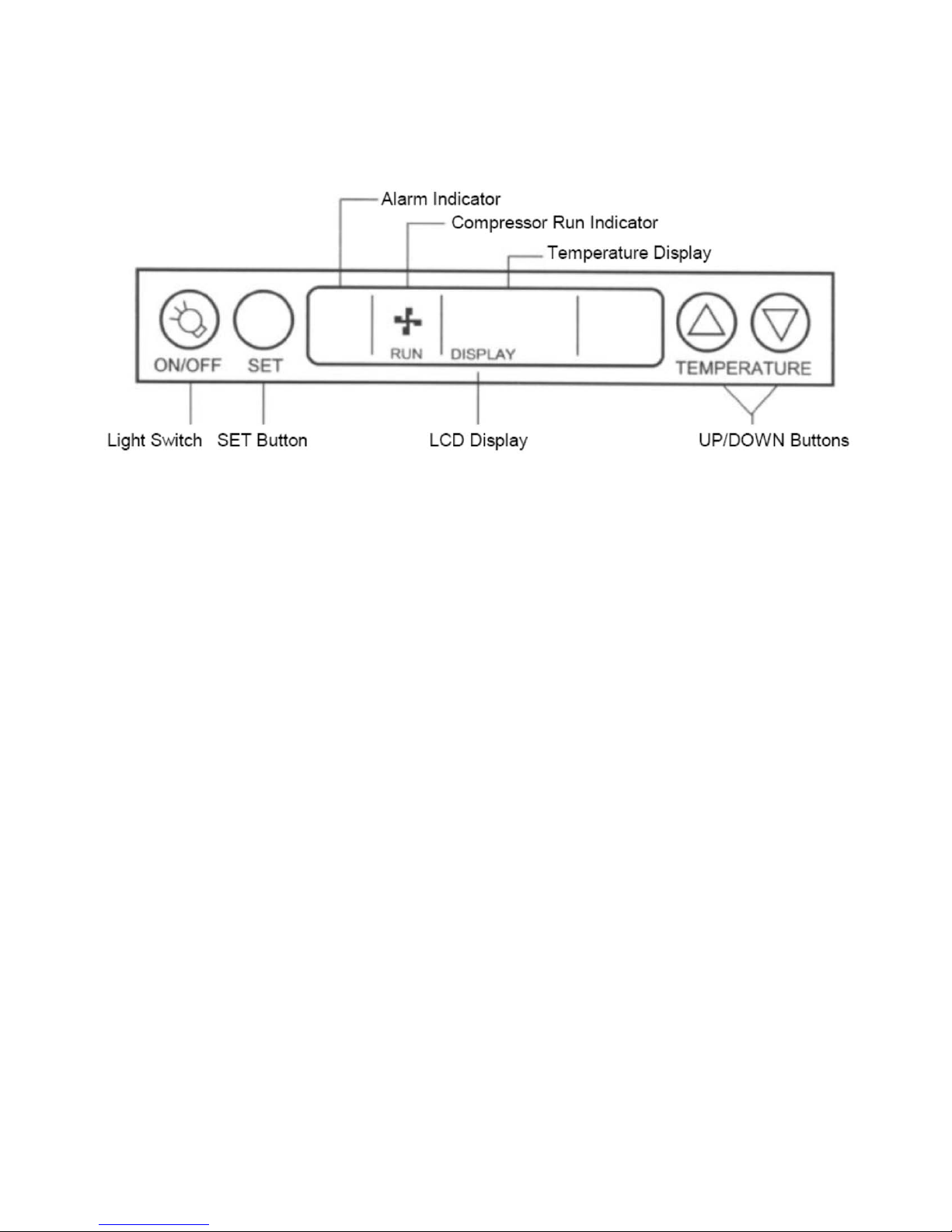

Control Panel
Please note: You can switch temperature display setting from degrees
Fahrenheit to degrees Celsius by pressing and holding the UP button for 10
seconds. The temperature in degrees Fahrenheit or degrees Celsius will appear
in the temperature display window.
Installation
Remove the exterior and interior packaging. Use a soft dry cloth to wipe down the
outside of the Beverage Center thoroughly. Use a clean cloth dampened with
lukewarm water to wipe down the interior.
Air must circulate freely in front of the Beverage Center. Avoid placing it near any
source of heat or moisture, or in direct sunlight. Direct sunlight may affect the
finish, and nearby heat sources will cause higher electrical consumption.
The SC90OD Outdoor Beverage Center is designed to be either free-standing or
built-in. It has motorized fans at the back of the unit that direct compressor-
generated heat away from the compressor and through the front of the unit.
Keep the front vents unobstructed. If the unit is built-in, allow minimum clearances
of 1/4” at the sides, 1/2” at the back and 1” at the top.
Electrical Connection
Important! For your personal safety, this appliance must be properly
grounded. In the event of an electrical short circuit, grounding reduces the risk of
shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug
must be inserted into an outlet that is properly grounded and installed. The ground
wire cannot be connected to a gas pipe, heating pipe, water pipe, telephone line

6
or lightning rod. It cannot be replaced with the neutral wire of single-phase power.
In addition to the ground wire, an electrical leakage circuit breaker is also required.
Consult a qualified electrician if you do not completely understand these
grounding instructions.
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER CORD.
If installation in a damp location is unavoidable, have an electrician install a
ground fault circuit interrupter (GFCI) electrical outlet. If no GFCI is installed,
electrical shock could result.
Do Not Use an Extension Cord
Avoid the use of an extension cord because of potential safety hazards under
certain conditions.
Operating Your Beverage Center
IMPORTANT: Do not plug in the Beverage Center for 24 hours after unit is set in
place. Failure to do so may result in the unit working improperly.
Compartment Design
The SC90OD Beverage Center has a capacity of 28 standard wine bottles or 84
cans. The unit has 3 adjustable chrome-plated flat wire shelves and a wire basket
to hold cans and bottles of beverages such as beer, water and soft drinks. This
design enables you to operate the unit as a Beverage Center or wine cellar. The
control panel also allows you to set a different temperature for Beverage Center or
wine cellar. The control panel displays the current temperature inside the
compartment and allows you to turn the interior light on and off.
OPERATING INSTRUCTIONS
Turning On the Unit
The Beverage Center turns on automatically when it is plugged in. The unit
employs a heater inside the cabinet and is designed for outdoor use. When the air
temperature is below 4ºC (40°F), the compressor will stop working and the heater
will work automatically to maintain the temperature setting. If the Ambient
temperature is below -4ºC(25°F), do not use the unit to storage anything.

7
If you want to use the Automatic Temperature (default) setting, do nothing further.
The SC90OD will automatically set the temperature at 5ºC (41ºF). If you want to
set other temperatures, see below.
Temperature Setting
While wines store best at temperatures around 13-15ºC (56-58ºF), the SC90OD
outdoor unit also allows you to store wine at drinking temperatures. Generally,
RED WINE should be kept at 15-16ºC (60-61ºF) and WHITE WINE, which is
usually served chilled, is best kept at 12-13ºC(54-55ºF). Sparkling wines should
be kept at about 8ºC(46ºF). For beer and soft drinks, choose the temperature
setting that is most agreeable to you and your guests.
To adjust the temperature, press the SET button, then use the UP/DOWN keys to
navigate to the preferred temperature. The range of set temperatures is from 2 to
18ºC (36 to 64ºF).For example, if you are storing red wine, you may want to set a
temperature of 16ºC (61ºF). When the correct temperature appears in the
DISPLAY window of the control panel, press SET to confirm. The actual
temperature inside the unit will now appear in the window. This temperature will
vary depending on the number of bottles stored and how frequently the door is
opened.
Please note: The temperature sensor records the average temperature of the
unit. Cold air falls and warmer air rises, and there will be a temperature variation
from the bottom to the top of the unit. The temperature at the bottom of the unit
will always be slightly colder. The controller only controls the average temperature
of the unit. The temperature displayed by the electronic control panel is the
instantaneous average temperature of the unit and there may be a variation of
approximately 0 to 3ºC (0 to 6ºF).
When fully loaded with room temperature product, the SC90OD will operate
continuously for as long as 24 hours to reduce the temperature inside the cabinet
to the desired point. Under normal conditions, when the unit has been on for six
hours, it will stop working for about thirty minutes to defrost automatically. The unit
should be in a well-ventilated area. Best results are obtained at temperatures
between 18ºC(65°F)and 27ºC (80°F) for built-in models and between 18ºC (65°F)
and 32ºC (90°F)for freestanding models.
To temporarily stop the cooling cycle, unplug the Beverage Center. To shut it
down for longer periods of time, disconnect the plug and leave the door partially
open.
NOTE: If you unplug the Beverage Center, allow 3 minutes before plugging it back
in. The unit will not restart in less than 3 minutes.

8
Memorized Temperature Settings
Your unit has been designed to “remember” the last run mode to which it was set.
If there is a power outage or any other power cutoff, the unit will automatically
return to the previous temperature setting after the power has returned.
Compressor Run Indicator
When the unit’s compressor is running, the control panel will display a moving
icon representing a running fan. If the compressor stops running, the icon will stop
running as well.
About the Liquid Crystal Display (LCD)
When you press any button on the control panel, a backlight will appear in the
display. If no other button is pressed, the backlight will automatically go out after 2
minutes.
ALARM Mode
In the event that there is a fault in the unit, an ALARM indication will appear on the
screen.
In ALARM mode, the unit will make a beeping sound and display an alarm
message. If the LCD on the control panel displays any of the following messages:
PROBE ERROR, LOW TEMP or HIGH TEMP, consult the Troubleshooting
section of this manual.
Interior Light
The interior light can be operated manually by pressing the ON/OFF button on the
control panel. The light will automatically turn off after 5 minutes.
NOTE: Avoid overuse of the interior light since the heat generated can raise the
temperature of the stored contents.
Shelving
The wire racks in your unit are chrome-plated so they will not rust. The unit has 3
adjustable chrome-plated flat wire shelves and a wire basket to hold cans and
bottles of beverages such as beer, water and soft drinks.
The racks are removable and reversible. To remove a rack, take out the bottles on
the rack and pull it out until it stops. Then lift up the front of the rack and remove it
from the unit.

9
Cleaning and Maintenance
Cleaning the Outside
Unplug your Beverage Center. Clean the outside with a cloth dampened in mild
soapy water. Dry thoroughly with a soft cloth. To clean the door gasket, use only
mild soapy water. Never use harsh cleansers or scouring pads to clean any part
of your unit.
Cleaning the Inside
Unplug your Beverage Center and remove its contents. Rinse the inside surfaces
with plain water and dry the chrome racks, basket and shelving. Avoid getting
excess water inside the machine since it will flow into the water trap near the
compressor and possibly overflow.
Defrosting the Unit
The unit uses an automatic defrost system in which the refrigerated surfaces of
the unit defrost automatically. Defrost water drains into a hole in the floor of the
storage compartment and is channeled into a drain pan located at the back of the
unit near the compressor. Heat transferred from the compressor evaporates any
water that has collected in the pan. Be sure the drain hole in the floor of the unit is
clear and unobstructed.
Changing the Light Bulb
The bulb can be replaced with any standard U-shaped, 2-pin compact fluorescent
bulb of 5, 7 or 9 watts.
Don’t use any unusual force to remove the old bulb. No tools should be
necessary.
Follow steps A through D in the diagram on the following page to remove the old
bulb:

10
Follow steps E through H on the following page to install the new bulb:

11
Troubleshooting
Unit does not turn on
Not plugged in.
Fuse blown or circuit breaker tripped.
Noise or vibration
Check that unit is level. If not, adjust leveling legs.
Unit is too warm
Check that door is properly closed and sealed.
Check temperature setting. (To change the temperature setting, follow the
steps in the Operating Your Beverage Center section of this manual.)
Check if door has been opened frequently.

12
LCD displays “PROBE ERROR”
This message is an ALARM MODE indication. The LCD displays “PROBE
ERROR” on the left when the thermostatic sensor has malfunctioned. Contact
your authorized service facility for sensor replacement.
LCD displays “LOW TEMP”
This message is an ALARM MODE indication. The LCD displays “LOW TEMP”
on the left and “L” in the middle. It indicates that the actual temperature is much
lower than your set temperature.
LCD displays “HIGH TEMP”
This message is an ALARM MODE indication. The LCD displays “HIGH TEMP”
on the left and the actual temperature reading in the middle. It indicates that the
actual temperature is much higher than your set temperature. Possible causes
are:
•The door might not be fully closed.
•The refrigerant may have leaked.
•The heater may not be functioning properly and should be replaced.
If you are certain that the door is not the cause of the problem, contact your
authorized service facility immediately.

13
Jackson Grills Limited Warranty
Description of Limited Warranty
This limited warranty is given by Jackson Grills to the original purchaser of the
refrigeration equipment supplied by Jackson Grills as long as the equipment remains in
the possession of the original purchaser.
Your Jackson Grills refrigeration equipment is warranted against defects in workmanship
or material for a period of one year from the date of purchase under the following
requirements:
1. Registration card must be completed and mailed back to Jackson Grills within 30
days from purchase area.
2. Proof of purchase must be submitted for warranty consideration.
3. Defects must be proven to the satisfaction of Jackson Grills to have been caused by
defects in workmanship or material. Jackson Grills may request that defective parts
be returned for inspection at the owner’s expense.
4. The owner is responsible for the following:
a) All freight charges
b) Damage sustained in transit
c) Mileage charges for service calls
d) Proper installation
e) Alterations to original equipment
f) Removal or installation
g) All labour costs
5. During the Limited Warranty parts for the repairs will be provided by Jackson Grills.
In-warranty repair must be performed by factory authorized service centers. For
authority to proceed with repairs contact:
Jackson Grills
Warranty Department
106-2480 Mt. Lehman Road
Abbotsford, British Columbia Canada V4X 2N3
Tel: [phone]

Special Message to Our Customers:
All of us at Jackson thank you, for choosing a Jackson Grills’ product! This appliance was designed,
engineered, and built with quality components and we are confident that it will provide you with years of
excellent operation.
Please take the time to read the entire manual and familiarize yourself with all of the features of the product.
This manual also contains important safety information and operation instructions. Please write your
products’serial number in the space below, and ensure that this manual remains handy for quick reference.
To obtain replacement parts for your product, contact your local dealer. If you have any questions please
call us anytime at the number below: (Please have your model and serial number at hand)
Model: AZ-20A or BC-90OD or SC-90OD
Serial Number:
Write your serial number here for future reference.
OWNER REGISTRATION: Please take the time to fill out and return a Warranty Registration Card, or
on-line at www.jacksongrills.com or simply fill in the form below and mail or fax to:
Jackson Grills Customer Support (Tel): 1(888) 287-3333 or
#106-2480 Mt. Lehman Rd. Customer Support (E-mail): [e-mail]
Abbstsford, BC. Fax: [phone]
Canada V4X 2N3 Pars Ordering: Contact your Dealer
…………………………………………………………………………………………………………………………………………………….…
Please complete and return within 30 days. Thank you.
Title: Mr. Mrs. Ms. Miss (Circle one)
First Name: Initial: Last Name:
Street: Apt.#
City: State/ Prov: Zip/ Postal:
Phone: Email:
Date Purchased: Dealer:
Model: Serial #:
Comments:
Thank you for taking the time to fill out this Ownership and Registration Card
Dear Owner: please keep this manual for future reference.
