Jacobsen Ransomes HR 6010 Service manual

Service Course Manual
HR 6010
Serial Range: EA
WARNING:Ifincorrectlyusedthismachinecancausesevere
injury. Those who use and maintain this machine should be
trained in its proper use, warned of its dangers and should
read the entire manual before attempting to set up, operate,
adjust or service the machine.
®
GB

1
2
3
4
5
6
7
8
9
10
SPECIFICATION
CONTROLS
ENGINE
STEERING
WHEELS & TYRES
HYDRAULICS
ELECTRICAL SYSTEM
PRE ENTATI E MAINTENANCE
OPTIONS
NOTES
INDEX

1
SECTION 1
INTRODUCTION
MachineSpecifications

ENGINE SPECIFICATION
TYPE: Perkins 45KW @ 2800 RPM,
4 cylinder (in line) vertical
Diesel engine, 4 stroke, water
cooled, 2200cc with 12V
electric start.
Model: 404C-22T
Maximum Speed: 2800 +0/-50 RPM (No
load)
Idle Speed: 1250 ± 50 RPM
Oil Sump Capacity: 10.6 litres
Fuel: No. 2-D Diesel fuel (ASTM
D975)
MACHINE SPECIFICATION
Frame construction: Heavy duty formed steel
chassis with box
section frame rails.
Cutting unit drive: Fixed displacement
hydraulic motors coupled to
cutting means through drive
belt.
Transmission: Full time 4-wheel drive.
Direct coupled
variable displacement pump
to direct coupled 280cc
front, 237cc rear wheel
motors.
Speeds:
Cutting: 0 - 12km/h FORWARD
Transport: 0 - 22km/h FORWARD
Reverse: 0 - 12km/h
Steering: Hydrostatic power steering,
with adjustable tilt steering
wheel.
Ground pressure: 1 kg/cm2
Brakes, Service: Positive hydrostatic
braking.
Parking: Fail safe, Oil
immersed wet disc
brakes.
Fuel Tank
Capacity: 45.4 litres
VIBRATION LEVEL
The machine was tested for whole body and
hand/arm vibration levels. The operator was
seated in the normal operating position with
both hands on the steering mechanism. The
engine was running and the cutting device was
rotating with the machine stationary.
Standard ISO 5349: 1986 Mechanical
vibration. Guidelines for the measurement and
the assessment of human exposure to hand-
transmitted vibration.
Standard ISO 2631-1: 1985 Evaluation of
human exposure to whole body vibration --
Part 1: General requirements.
Hydraulic Tank
Capacity: 18.8 litres
Battery: Exide 065
DIMENSIONS
Width of cut:
295cm Model 2.95 metres
323cm Model 3.23 metres
Overall width: 1.55 metres
(transport)
Overall height: 1.35 metres
Overall length: 3.1 metres
Overall weight of machine:
295cm Model 1554 kg
323cm Model 1577 kg
Noise & Vibration Publications
Operators ear level (sound pressure) - 89.3 db
Bystander level (sound power) - 104 db
Whole body acceleration level X 0.64
Whole body acceleration level Y 0.33
Whole body acceleration level Z 0.19

2
SECTION 2
Controls
Contols

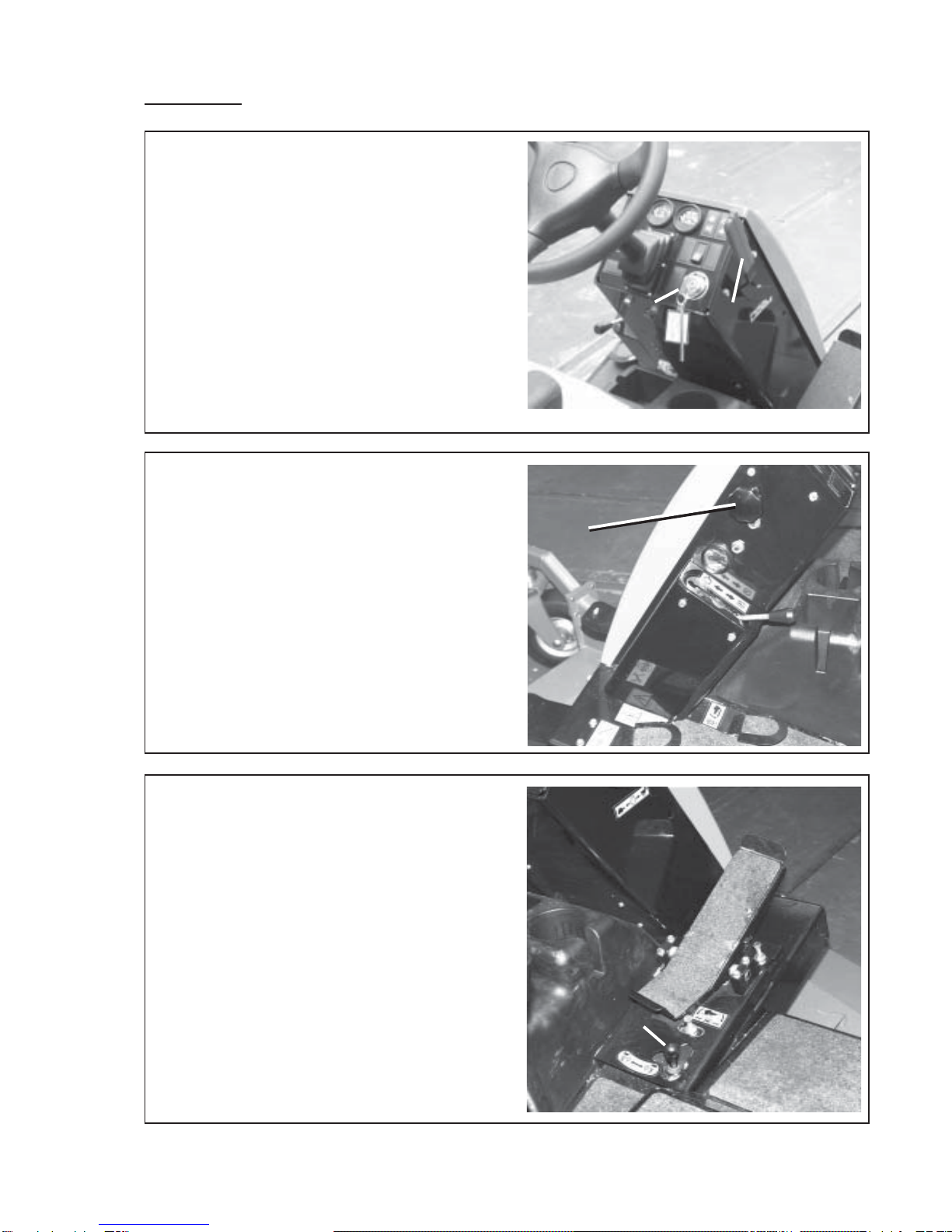

Control Description

STARTER KEY SWITCH
The starter key (A) should be turned clockwise to
the 'pre-heat' (No. 2) position to heat the glowplugs
when the green warning lamp goes out, on warning
lamp display module, turn the starter key clockwise
to the 'start' (No. 3) position to start the engine.
After starting, the key should be released and
allowed to return automatically to the 'on' (No. 1)
position for normal running.
THROTTLE CONTROL LEVER
The lever (B) should be moved away from the
operator to increase the engine speed and
towards the operator to decrease the engine
speed.
NOTE: Engine should be used at full speed.
STEERING WHEEL RAKE ADJUSTMENT
The steering wheel is adjustable for rake. The
clamping release knob (A) is situated on the
side of the control console on the left hand
side. To adjust turn the clamping knob
anticlockwise to release and pivot the steering
wheel backwards and forwards to obtain
desired setting then lock in position by turning
clamping knob clockwise.
TRACTION FOOT PEDAL
To move the machine forward press the front
of the foot pedal (A). To reverse depress the
rear of the foot pedal. When the pedal is
released it will return to its neutral position.
SPEED LIMITER
The speed limiter (B) is operated by sliding the
black knob to the right or left. When slid to the
right the machine is limited to cutting speed,
when slid to the left, transport speed is
available. In transport mode, reverse is not
available.
IMPORTANT: To enable mow engage the speed limiter must be
in the cutting speed position. If cutting units are rotating,
moving the speed limiter between the mow and transport
positions will engage and disengage cylinder rotation.
A
A
B
AB
Controls

TRANSPORT LATCHES
When transporting the machine ensure the
cutting decks are raised and the transport
latches (A) are engaged.
PARKING BRAKE
The parking brake (B) is engaged when the
lever is moved toward the operator. The brake
is fitted with a micro switch that senses brake
position. The brake must be applied to start
the machine, and when stopping and leaving
the seat.
CAUTION:- The parking brake must not
be applied whilst the vehicle is moving
DIFF LOCK CONTROL
The Diff lock (A) is operated by depressing the
foot switch. When the foot switch is released
the Diff Lock ceases to operate. The Diff Lock
should only be used in severe situations, and
should never be used on Tarmac or whilst
steering
A
B
Controls

Controls
HYDRAULIC LIFT LEVERS
The cutting units can be raised and lowered
by three control levers (A,B,C) situated on
the right hand side of the operators seat
and can be operated as follows:
Centre lever controls Centre Cutting Deck.
(B)
Right hand lever controls R.H. Cutting
Deck. (C)
Left hand lever controls L.H. Cutting Deck.
(A)
NOTE: If any unit is raised out of work then
lowered into work again the cylinder will not
rotate until the mow foot switch is depressed.
To lift: Move the lever(s) backwards and hold
in position until the units are at the required
height.
Tolower:Movethelever(s)fullyforwardsand
release, the unit(s) will lower to ground level.
DO NOT hold lever in forward position.
NOTE: The units will only lift and lower when
the engine is running.
IMPORTANT: If, when cutting, a lift control
lever is accidentally pulled back, the cutting
units will not float over ground undulations
until the lever is pushed fully forward and
allowed to return to neutral again.
CUTTING UNIT SWITCHES
To commence cutting ensure speed limiter
is in mow position and the units have been
lowered. Push bottom of the rocker switch
(G) and depress foot switch (A) Push top of
rocker switch to stop cutter unit rotation.
(Cutting unit stop rotating automatically
when raised.)

INSTRUMENT PANEL
A. ENGINE PREHEAT INDICATOR
LAMP
Colour green, on when the ignition switch is
turned clockwise to the pre-heat position.
Once the lamp goes out the engine can be
started.
B. ENGINE TEMPERATURE GAUGE
Indicates current temperature of engine,
whilst running.
C. HYDRAULIC OIL WARNING LAMP
Colour red, on when the hydraulic oil
temperature reaches a preset level. If the
lamp comes on bring the machine to a stop,
disengage the cutting units, apply the
parking brake and stop the engine. The
lamp will also turn on when the charge filter
is blocked.
D. CHARGING WARNING LAMP
Colour red, on when ignition is switched on
and will go out when the engine is started. If
the light comes on while the engine is
running, the fan belt may be slipping or
broken or a fault in the electrical system is
indicated and should be investigated. STOP
IMMEDIATELY.
E. ENGINE OIL PRESSURE
WARNING LAMP
Colour red, on when the ignition is switched
on, and will go out once the engine has
started. If the light comes on while the
engine is running - STOP IMMEDIATELY as
this indicates that the engine oil pressure is
too low. Check the level of oil in the sump
and top up as necessary. Check the oil
pressure sender switch. Continued
operation may cause extensive damage to
the engine.
F. FUEL GAUGE
Located to the left of the engine temperature
gauge. Monitors fuel level.
G: PTO SWITCH
To commence cutting ensure the decks have
been lowered Push bottom of the rocker
switch (A) and depress foot switch. Push top
of rocker switch to stop cutter unit rotation.
(Cutting units stop rotating automatically
when raised.)
H: HEADLIGHT SWITCH
(Optional equipment )-Push switch half way
for running lights. Push down fully for
headlights
I: HAZARD LIGHTS SWITCH
(Optional equipment)- Push down for
flashing hazard lights.
J: TURN SIGNAL LIGHTS SWITCH
(Optional equipment )-rotate switch handle
counterclockwise for L.H. turn and clockwise
for a R.H. turn.
K: HORN
(Optional equipment) press switch to operate
the horn.
L: ROTATING BEACON
(Optional equipment) Press the bottom half
of the switch to activate the flashing beacon.
Controls

HORN
The horn is an audible alarm for the following
situations:
a) Horn (A) sounds continuously-this
indicates a high engine coolant
temperature condition. If this occurs, turn
off the engine immediately and resolve the
problem.
b) Horn (A) sounds intermittently-this
indicates a low engine oil pressure
condition. If this occurs, turn off the engine
immediately and resolve the problem.
BONNET RELEASE KEY
Release bonnet by inserting key (A) into base
of latch bracket.
HOURMETER
Located on the left hand side of the steering
tower, above the parking brake. (A) Records
engine running hours.
A
A
Controls

HEIGHT OF CUT
ADJUSTMENT
The cutting height is determined by the
position of the blades in relation to the caster
wheels. Changes to this height are made at
(4) points and can be made in any order. Make
adjustment selections for each deck from the
height of cut chart for that deck included in this
section.
NOTES
Cutting height must be set the same for all
three decks. The actual height may vary
slightly from the chart value because of tyre
pressure or condition.
HEIGHT OF CUT ADJUSTMENT (CENTRE
DECK)
1. Raise the deck.
2. Remove the quick pin Qfrom the
top of the caster wheel pivot
spindle
3. Remove the caster wheel from
caster support M.
4. Select either Position 1 or Position
2 for wheel mounting bracket. To
change, remove (4) mounting bolts
R, move to the alternate location
and bolt in place.
5. Place the selected size and
number of spacers below the
caster support. Both A-size (6.5
mm) and B-size (12.5 mm) spacers
are provided. Place the remaining
spacers above the caster support.
6. Replace the quick pin.
7. Place pin Pinto the proper hole of
bracket for the selected height of
cut. CENTER DECK HEIGHT OF CUT CHART

HEIGHT OF CUT
ADJUSTMENT
(WING DECKS)
The cutting height is determined by the
position of the blades in relation to the caster
wheels. Changes to this height are made at
(4) points and can be made in any order. Make
selections for each adjustment below from the
accompanying height of cut charts .
1. Raise the deck.
2. Remove the quick pin Qfrom the
top of the caster wheel pivot
spindle.
3. Remove the caster wheel from
caster support M.
4. Select either Position 1 or Position
2 for wheel mounting bracket. To
change, remove (4) mounting bolts
R.
5. Place the selected size and
number of spacers below the
caster support. Both A-size (6.5
mm) and B-size (12.5 mm)
spacers are provided. Place the
remaining spacers above the
caster support.
6. Replace the quick pin.
7. Place pin Pinto proper hole of
front caster bracket for the se
lected height of cut.
8. Place chain pin Tinto the proper
hole of chain adjustment bracket
for the selected height of cut.

3
SECTION 3
Engine
Engine specifications
Engine Routing Servicing

Cast iron engine block
Flywheel and flywheel housing
General Data
Bore and stroke 84mm x 100mm
Number of cylinders 4 in-line
Cubic capacity 2.2 litres (134 cu.in.)
Cycle 4 Stroke
Aspiration Turbocharged
Combustion system Indirect injection
Compression ratio 23:3:1
Engine rotation Anticlockwise viewed on flywheel
Governing All speed mechanical
Cooling system Pressurised water
Length 666mm (26.2 in)
Width 516.3mm (20.3 in)
Height 725mm (28.5 in)
Dry weight 194kg (427.7 lb)
Engine Specification
TYPE: Perkins 45KW @ 2800 RPM, 4 cylinder (in line) vertical Diesel engine, 4
stroke, water cooled, 2200cc with 12V electric start.
Model: 404C-22T
Maximum Speed:2800 +0/-50 RPM (No load)
Idle Speed: 1250 ± 50 RPM
Oil Sump Capacity:10.6 litres
Fuel: No. 2-D Diesel fuel (ASTM D975)

ENGINE: First 50 working hours
and every 250 working hours.
Change Engine Oil.
(a) Warm up the engine first and
then shut it off. Remove oil
drain plug from the bottom of
the crankcase and wipe it off.
(b) Replace the drain plug and fill
engine with 10.6 litres of oil
(with filter).
Fig.1 A Oil Fill, B Dipstick, C Oil fill
Change Engine Oil Filter (A)
(a) Remove single-unit cartridge (A)
(b) Clean area on crankcase.
(c) Apply thin coat of oil to cartridge
gasket before installing.
(d) Tighten filter by hand only.
(e) Check for oil leaks around the
cartridge gasket after engine is
started.
Fig.1
ENGINE MAINTENANCE: Every 500 hrs
Fuel System:
Use Diesel fuel No.2-D (ASTM D975)
See engine manufacturer's manual for
additional information.
Changing fuel filter (Fig.10)
1. Unscrew filter screw (A) from filter
head.
2. Bleed air from system as described
in section 5.5 Fig.10
Bleeding air from fuel system
1. Turn the ignition switch to the ON
position (dont start engine)
2. Open air vent A onto top of fuel filter
to allow air to escape.(Fig.10)
3. Retighten air vent.
4. Open air vent (A) on side of injector
pump to allow air to escape.(Fig.11)
5. Retighten air vent
6. Turn ignition to OFF.
Fig.11

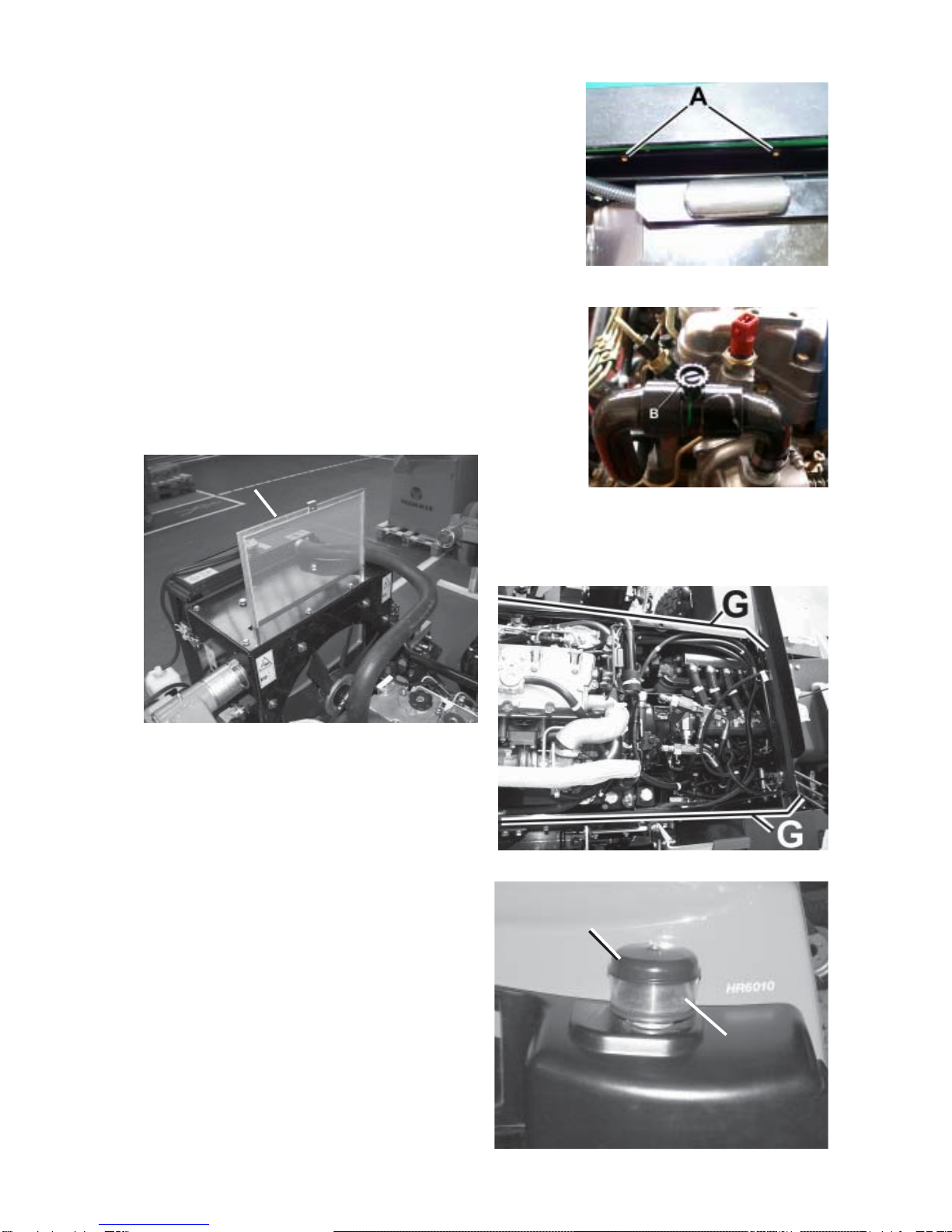

Coolant Change
1. Completely drain the cooling water
from the radiator and flush the
cooling system with flushing deter
gent. Drainplugs A.
2. Check for leaks or loose connec
tions at the radiator, cylinder head
gasket, etc.
3. Open screw valve B fully.
4. Fill cooling system with recom
mended water / antifreeze to the
required level.
5. Close screw valve.
6. Run engine.
7. Open screw valve & top up if
necessary.
Note: When topping up the cooling
system fill with 50/50 solution.
Fig.15
Fig.15A
Cooling System.
Check Bug Screen (F) Radiator & Oil cooler
are all free from dust /debris and there is an
uninterrupted air flow to the engine. The
screen should be fitted with the mesh facing
the front of the machine. Any debris should
be removed with a soft hand brush.
Machine Maintenance.
Fire Hazard: Remove all debris from under
the seat plate and from within the engine
compartment. Area. (G)
F
PRE-CLEANER.
Check Pre-Cleaner is free from debris.
This is by removing the Wing Nut &
Washer from the top of the Pre-Cleaner.
The Cover (A) & Bowl (B) can then be
removed from the body, the Bowl (B)
can then be cleaned out.
A
B
