Jade Built-In Refrigerators Guide

DESIGN GUIDE
BUILT-IN REFRIGERATORS
SAVOR THE PERFORMANCE.™

#
DESIGN OPTIONS 2
MODEL SPECIFICATIONS 4
INSTALLATION GUIDE 5
CUTOUT DIMENSION SPECIFICATIONS 6
PROPER POSITIONING 7
PANEL INSTALLATION 9
FRAMED MODEL PANELS 10
OVERLAY MODELS 13
SIDE PANELS 16
SPECIAL CONSIDERATIONS 17
WARRANTY 19
CONTENTS
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for planning purposes only.
For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
SAVOR THE PERFORMANCE.™

#
1
The Jade™ built-in refrigerator is the new choice in built-in
refrigeration excellence for discriminating homeowners — a choice
that’s backed by the solid reputation of Jade as a leader in the
development of innovative kitchen solutions. Now Jade continues
that tradition with a built-in refrigerator that is setting new
standards in style, storage and performance.
Personalization is the guiding principle behind every aspect of
the Jade™ built-in refrigerator design, from its variety of exterior
styling possibilities, to adaptable choices in interior storage, to
performance that exceeds expectations. It all begins with these
distinct styling options — our versatile overlay model featuring the
homeowner’s choice of custom panels and handles or our elegant
framed model featuring custom panels offset by sleek trim and
matching handles. Exterior customization continues with your
client’s choice of a dispenser or nondispenser model.
Adaptable interior storage enables the client to create and
recreate the space inside the refrigerator with ease. Adjustable
shelves and bins.
When it comes to performance, the Jade™ built-in refriger-
ator excels. The key to its superb performance edge is our
Professional Temperature Management™ System. This sophis-
ticated multi-component system is highlighted by our variable-
speed compressor and Optifresh™ storage drawers, two features
which help ensure precise temperatures for outstanding food
preservation.
The excellence of the Jade™ built-in refrigerator design is also
evident in quality construction details like foamed-in-place doors
THE JADE™BUILT-IN REFRIGERATOR
that provide the best insulation and rigidity possible. A four-
square leveling system allows for each corner of the refrigerator
to be adjusted from the front of the unit for easier and more
precise leveling. And the acoustic design of our Ultra-Quiet sound
package ensures incredibly quiet performance.
You’ll also find that our built-in refrigerator is backed by one of
the best warranties in the industry. The Jade™ built-in refrig-
erator warranty provides parts and labor coverage for a full
three years from the original Purchase date. A five-year parts
and labor warranty and a six-through twelve-year parts warranty
covers major refrigeration components including the compressor,
evaporator, condenser, drier and connecting tubing.
This Design Guide outlines the unique features of the Jade™
built-in refrigerator and provides general guidelines for a smooth
installation process. Complete installation instructions are
shipped with each unit. Refer to these instructions when
preparing and installing all Jade® products. Should you have
unique design considerations or installation questions, you can
easily access comprehensive technical assistance and support
by calling Jade at 1-800-794-5233. Service hours are 8 a.m.–8 p.m.
Monday through Friday and 8 a.m.–5 p.m. Saturday (PT).

#
2
DESIGN OPTIONS
Jade™ built-in refrigerators offer a variety of models with design
options and interior options that can easily be personalized for
each client. From our cool and cultured stainless steel refrigerator,
to the distinctive appeal of our overlay design, to the popular look
of the framed model, Jade has an option that will fit your client's
dream kitchen perfectly (see illustrations below).
Stainless steel models with beautiful wrapped doors come
with stainless steel towel-bar handles. Nondispenser models
are available, as well as dispenser models with a sleek, black
dispenser that enhances the professional look. A heavy-duty
11" stainless steel grille finishes the look.
Overlay models utilize custom panels to convey an elegant,
seamless appearance unique to each client’s kitchen. Since these
models do not include handles, you have the freedom to choose
from a practically unlimited array of handle styles to match
or complement the hardware on surrounding cabinetry. Non-
dispenser models or models with a black dispenser are available.
The 11" grille at the top and toe kickplate at the bottom also accept
custom panels.
Framed models are offered with silver etched frames and
handles to complement the custom panels your client has chosen.
Attractive full-length handles add sophistication to our framed
models. Dispenser and nondispenser framed models are available.
On dispenser models, a black dispenser silver etched frame and
handles. An 11" grille at the top and a toe kickplate at the bottom
Refrigerators that satisfy a world of individual preferences.
STAINLESS STEEL MODEL WITH DISPENSER
(shown with stainless steel towel bar handles)
OVERLAY MODEL WITH DISPENSER
(panels and handles not included)
FRAMED MODEL WITH DISPENSER
(panels not included; includes
extruded handles)

#
Filtered ice and water dispenser with sleek, backlit design provides
a distinctive look for built-in refrigerator dispenser models. The
PuriClean®filtration system delivers fresh, filtered water and crushed
or cubed ice anytime, and touch sensors activate with just a light
touch.
Stainless steel models feature a black dispenser surrounded
completely by the stainless steel of the door and covered with stain-
less steel overlay. Framed models can accept a freezer panel that fits
around all sides of the dispenser. Or, you may choose a custom deco-
rator freezer panel to blend perfectly with your cabinetry on framed or
overlay models.
Installation considerations: Before the built-in refrigerator is
installed, it is important to make sure the unit shipped matches the
exact design that you have specified and ordered. When the unit
arrives at the installation site, make sure the installer checks the
shipment carefully.
Each of the three design choices — stainless steel, overlay and framed — has distinct installation requirements, which means it is crucial
that the unit delivered matches your space and planning requirements. The shipping carton will be labeled with a model number that
will describe exactly the size, design, handle style, color and whether the unit is a dispenser or nondispenser model. Note that the 4th
position of the model number indicates the different styles. (See chart below for model number guide.)
Installation instructions are shipped with each unit. Follow those instructions when preparing the space, uncrating the unit, and when
installing any Jade™ built-in refrigerator. If you cannot locate the installation instructions, call Jade Customer Assistance toll-free at 1-
800-794-5233 (U.S. and Canada). Or visit the Customer Service section of www.jadeappliances.com to download complete instructions
quickly and easily.
3
Dispenser (shown in stainless steel model)

SIZE STYLE TYPE HANDLE & TRIM COLOR MODEL
48" STAINLESS STEEL DISPENSER Stainless Steel Handle/No Trim RJRS4880
NON-DISPENSER Stainless Steel Handle/No Trim RJRS4870
OVERLAY DISPENSER No Handle/Silver Etched RJRS4881
NON-DISPENSER No Handle/Silver Etched RJRS4871
FRAMED DISPENSER Silver Etched RJRS4882
NON-DISPENSER Silver Etched RJRS4872
42" STAINLESS STEEL DISPENSER Stainless Steel Handle/No Trim RJRS4280
NON-DISPENSER Stainless Steel Handle/No Trim RJRS4270
OVERLAY DISPENSER No Handle/Silver Etched RJRS4281
NON-DISPENSER Silver Etched RJRS4271
FRAMED DISPENSER Silver Etched RJRS4282
NON-DISPENSER Silver Etched RJRS4272
JADE™BUILT-IN REFRIGERATOR MODELS
48” MODELS 42” MODELS
STAINLESS STEEL MODELS RJRS4880 RJRS4280
with stainless steel towel bar handles
OVERLAY MODELS RJRS4881 RJRS4281
FRAMED MODELS RJRS4882 RJRS4282
Interior Capacities — cu. ft. (cu. m)
Total Volume 30.7 26.0
Refrigerator Compartment Volume 18.3 15.4
Freezer Compartment Volume 12.4 10.6
Total Shelf Area — sq. ft. (sq. m) 27.3 22.8
Kilowatt-Hours Per Year 790.0 732.0
DISPENSER MODEL INTERIOR CAPACITIES
NONDISPENSER MODEL INTERIOR CAPACITIES
48” MODELS 42” MODELS
STAINLESS STEEL MODELS RJRS4870 RJRS4270
with stainless steel towel bar handles
OVERLAY MODELS RJRS4871 RJRS4271
FRAMED MODELS RJRS4872 RJRS4272
Interior Capacities — cu. ft. (cu. m)
Total Volume 30.1 25.5
Refrigerator Compartment Volume 18.3 15.4
Freezer Compartment Volume 11.8 10.1
Total Shelf Area — sq. ft. (sq. m) 29.4 26.8
Kilowatt Hours Per Year 689.0 661.0
MODEL SPECIFICATIONS
4

Electrical Connection
This appliance is designed to operate on a normal 115 volt, 15 amp,
60 cycle line. There should be a separate, grounded circuit serving
this appliance only. Do not use an extension cord. Do not use any
device that will alter the electrical performance of this appliance.
For the placement of the electrical outlet, refer to Figure 1. Do not
use a ground fault circuit interrupter.
Plumbing Requirements
•Rough in the water line for the location (FIG. 1).
•Connect a 1⁄4" (0.64 cm) copper line to the house water supply
in compliance with local codes and ordinances.
•Use a shutoff valve between the refrigerator and water
supply. The shutoff should be a drilled saddle valve. Do not
use a self-tapping valve.
•The icemaker operates on 30 — 120 PSI.
•Route the water line within 1⁄2" (1.3cm) of the wall and no higher
than 3" (7.6 cm) from the floor. Allow at least 3' (0.91 m) of excess
copper tubing outside the wall for easy connection to the
water valve.
Uncrating The Unit
Uncrate the unit. Remove the lower shipping bolts and brackets.
Slide the unit off of the crate base. Remove and save the
lower toe kickplate, anti-tipping brackets and mounting hardware
(FIG. 2a). Remove the upper cover (this will help when moving the
unit) (FIG. 2b).
Even though Jade™ built-in refrigerators are available in a wide
range of design styles and configurations, the basic installation
planning information for all models has things in common. After
the decision has been made to install a Jade™ built-in refrigera-
tor, be sure to review the installation requirements for the model
design chosen.
Make sure the opening where the unit will be installed is
properly prepared. Refer to Figure 1. Also check placements
for the electrical outlet and water line as shown in Figure 1.
For the door to open properly, it must be able to open at least
90 degrees. For installation in a corner, a 2" (5.1cm) filler strip is
required to ensure the 90-degree opening. Be sure to add the
filler strip width to your finished rough-in dimension.
The floor under the refrigerator has to be level with the
surrounding floor. To protect the floor when moving the refrigera-
tor, place cardboard or a carpet remnant with the backing placed
up on the floor.
INSTALLATION GUIDE – GENERAL CONSIDERATIONS
IMPORTANT TIP: In homes with a reverse-osmosis water
treatment system, remove the water inlet connector from
the yellow valve and attach to the blue valve. Make sure the
water filter bypass plug is in place.

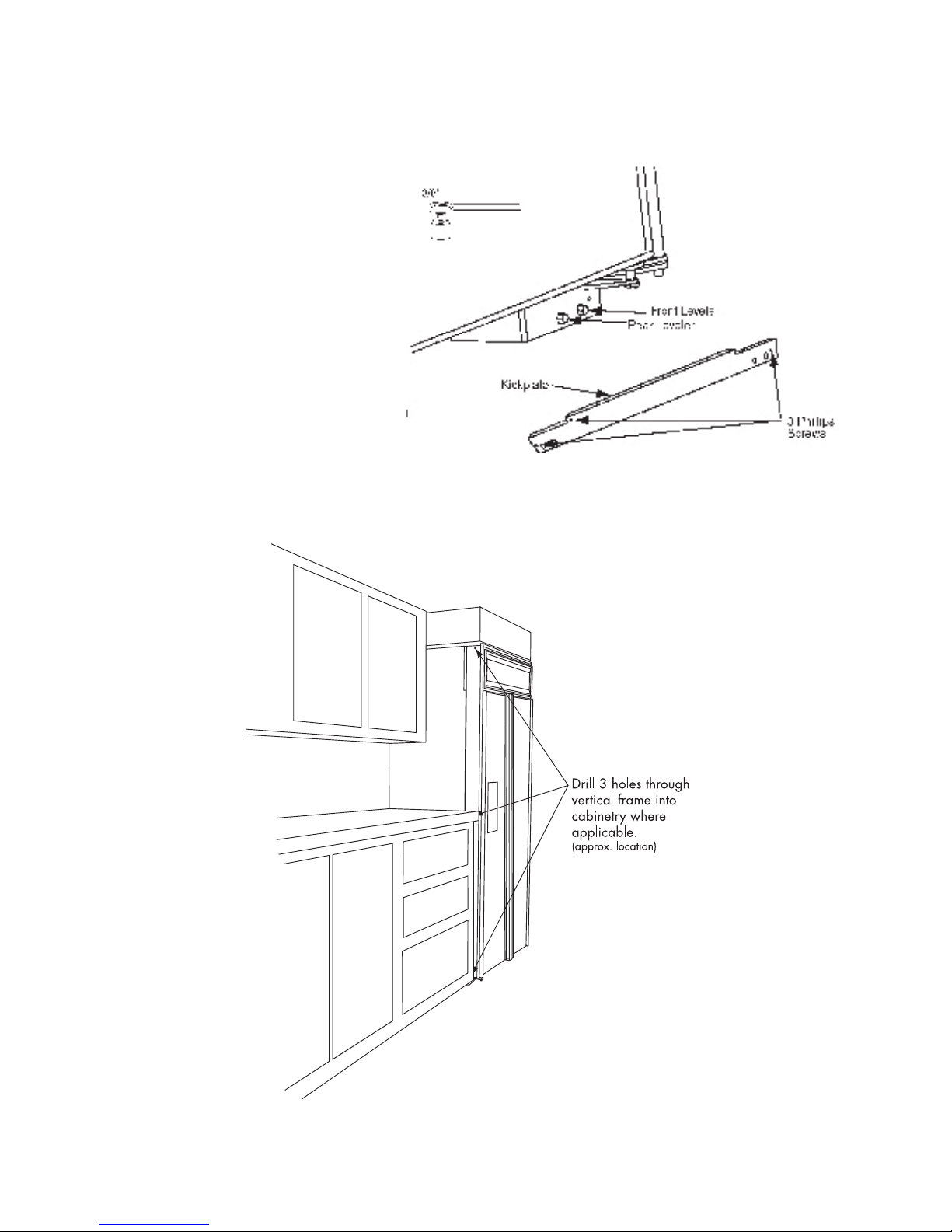

FIG. 2a
FIG. 2b
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
IMPORTANT TIP: Refer to the illustrations at the end of this
section for details on door openings and filler-size alternatives.
5
(48") 47 1/2"/120.7 cm
(42") 41 1/2"/105.4 cm
17.78 cm
5.08 cm
10.16 cm
191.8 cm
(48"/42")
83 3/4"
212.7cm
15.24 cm
7.62 cm
3 1/2"
8.89cm
7.62 cm
60.96 cm

Exterior Dimensions 48" STAINLESS STEEL 48" OVERLAY 48" FRAMED 42" STAINLESS STEEL 42" OVERLAY 42" FRAMED
Model Numbers RJRS4880 RJRS4881 RJRS4882 RJRS4280 RJRS4281 RJRS4282
RJRS4870 RJRS4871 RJRS4872 RJRS4270 RJRS4271 RJRS4272
in. cm in. cm in. cm in. cm in. cm in. cm
A. Cutout Height 83 3⁄4212.7 83 3⁄4212.7 83 3⁄4212.7 83 3⁄4212.7 83 3⁄4212.7 83 3⁄4212.7
B. Cutout Width 47 1⁄2120.7 47 1⁄2120.7 47 1⁄2120.7 41 1⁄2105.4 41 1⁄2105.4 41 1⁄2105.4
C. Cutout Depth 24 61.0 24 61.0 24 61.0 24 61.0 24 61.0 24 61.0
D. Height To Top Of Cabinet †83
1⁄16 210.9 83 1⁄16 210.9 83 1⁄16 210.9 83 1⁄16 210.9 83 1⁄16 210.9 83 1⁄16 210.9
E. Height To Top Of Grille 83 3⁄8211.8 83 3⁄8211.8 83 3⁄8211.8 83 3⁄8 211.8 83
3⁄8211.8 83 3⁄8211.8
F. Width (Cabinet) 47 1⁄4120.0 47 1⁄4120.0 47 1⁄4120.0 41 1⁄4104.8 41 1⁄4104.8 41 1⁄4104.8
G. Width (Doors Closed) 48 1⁄16 122.1 48 1⁄16 122.1 48 1⁄16 122.1 42 1⁄16 106.8 42 1⁄16 106.8 42 1⁄16 106.8
H. Depth Excl. Handles (Closed) 25 1⁄464.1 25 1⁄464.1 25 1⁄464.1 25 1⁄464.1 25 1⁄464.1 25 1⁄464.1
I. Depth Incl. Handles (Closed) 26 5⁄867.6 NA 26 3⁄867.0†† 26
5⁄867.2 NA 26 3⁄867.0††
J. Depth (Fresh Food Door 52 9⁄16 133.5 52 9⁄16 133.5 52
9⁄16 133.5 48 3⁄4123.8 48 3⁄4123.8 48 3⁄4123.8
Open 90°)
K. Width (Doors Open 90°, 50 3⁄4128.9 NA 50 1⁄4 127.6††† 44
3⁄4 113.7 NA 44 1⁄4112.4†††
Including Handles) 51 7⁄8131.8 45 7⁄8 116.5
†1 1⁄4" (3.2 cm) vertical adjustment for leveling and height adjustments.
†† Add 1" (2.5 cm) to depth (I) for extended handle kit, if used, on framed model.
††† Add 2" (5.1 cm) to width (K) for extended handle kit, if used, on framed model.
INSTALLATION GUIDE – CUTOUT DIMENSION SPECIFICATIONS
A
B
D
E
F
I
H
G
J
K
CTOP VIEW
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
6

Blocking and/or Anchoring the Refrigerator
If there is a solid soffit above the unit and the clearance is 1"
(2.5 cm) or less, you will not need to block the unit. For installations
with clearances of more than 1" (FIG. 3), you must use the anti-tip-
ping 2 x 4 and brackets provided (FIG. 4).
More than 1" (2.5 cm) Clearance:
Use the anti-tipping kit provided with the shipping crate. Locate
and mark the two wall studs behind the unit. Mark where the
"L" brackets and 2 x 4 will be located and drill two 1⁄8" pilot holes.
Locate the proper height to clear the unit. The space between the
top of the unit and bottom of the wood block must not exceed
1⁄4" (0.6 cm). Secure the L brackets into the wall studs using the
provided screws ( 1). Make sure the screws will extend 7⁄8" (2.2cm)
into the wall studs. Align the pilot holes with the L brackets and
secure the 2 x 4 with the screws provided ( 2 , 3 ).
INSTALLATION GUIDE – PROPER POSITIONING
FIG. 3
FIG. 4
Adjusting Door Hinges
Check to make sure the doors are properly adjusted. If not,
adjust the top and bottom hinges. The hinges are slotted for
side-to-side movement. First, remove the small Phillips screw
on the door hinge, which is inboard on the hinge, and throw
it away. Adjust the upper and lower hinges by loosening the
three large Torx screws. Tighten the screws after the doors are
adjusted. Door handles can be adjusted to level top handle
trim. The doors are slotted for handle alignment.
7

Leveling
Slide the unit in place and raise the front and rear
levelers until the unit touches the brackets. Use a
3⁄8" socket for raising and lowering the unit. On each
wheel housing, there are two 3⁄8" hex bolts. On the
left side, the outside bolt will move the rear leveler
and the inside bolt will move the front leveler. On
the right side, the outside bolt will move the front
leveler and the inside bolt will move the rear leveler
(FIG. 5). The front levelers must be in contact with
the floor. To raise the leveling legs, turn the hex
screw counterclockwise. Place level on lower ledge
of the machine compartment. Level the unit front to
back and side to side to prevent tipping of the unit
(FIG. 4). Install the kickplate. The kickplate must be
removable to allow access to the water valves. In
the machine compartment there is an on/off power
switch. Make sure the switch is in the ON position
and switch lever is up. Install the upper cover.
FIG. 5
Optional: If you are attaching
the unit to cabinetry, drill three 3⁄16"
holes through both outer trims. Drill 1⁄8"
pilot holes into the cabinetry. Install screws.
Additionally, if the depth/height of opening is excessive, use the steel
hanger strap. Double over strap at the anchor points to secure cabinet.
INSTALLATION GUIDE – PROPER POSITIONING
1 1/4" (3.2 cm) vertical adjustment for leveling and height adjustments.
8

INSTALLATION GUIDE – PANEL INSTALLATION
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
Framed Models
Framed models can accept either a framed panel or a custom
decorator panel. If the thickness of the framed panel to be
installed is less than 1⁄4" (0.6 cm), a sheet of shim material to build
the total thickness to 1⁄4" (0.6 cm) must be used. Likewise, if the
framed panel is thicker than 1⁄4" (0.6 cm), you must rout an edge
around the panel to ensure the panel fits properly. This is illus-
trated in Figures 6 and 7.
FIG. 6
FIG. 7
Integrating the Refrigerator into Kitchen Cabinetry
If the customer has chosen a stainless steel model, it will arrive complete with wrapped stainless steel doors and stainless steel towel bar
handles. You will not have to install panels. Jade offers 42" and 48" dispenser and nondispenser models with the stainless steel design.
Framed or overlay models require the installation of custom or decorative panels to give the refrigerator the personalized look the
consumer has chosen for the kitchen. Framed models are shipped with full-length extended handles (see below). Overlay models are
designed to use the custom hardware the consumer has chosen separately; handles are not included with this type of product.
9
Trim Reveal 1/4"
1/4" Panel
Framed Panels 1/4" thick or less Framed Raised Panels thicker than 1/4"
Trim Reveal 1/4"
Route down to
1/4" thickness

INSTALLATION GUIDE – FRAMED MODEL PANELS
!CAUTION
Refrigerator Panel Weight Not to Exceed
50 lbs. (22.36 kg)
Total Freezer Panel Weight Not to Exceed
33 lbs. (14.96 kg)
Grille Panel Weight Not to Exceed 22 lbs.
(9.97 kg)
A. 1/4" (10.6 cm) Framed Panel Specifications for Framed Models
Jade offers 42" and 48" dispenser and nondispenser models with the framed
design. The framed trim remains visible when using the framed panel instal-
lation. These models accommodate up to a 1/4" (0.6 cm) panel depth.
Refer to page 20 for toe kickplate panel information.
If installing side panels, refer to page 19.
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
42"-Wide Cabinet 48"-Wide Cabinet
in. cm in. cm
(A) Grille Panel
WWidth 40 1/4102.24 46
1/4117.47
HHeight 8
3/422.23 8 3/422.23
(B) Freezer Dispenser Panel
WWidth 15
1/16 38.26 17 5/16 43.97
W1 Width 2 5.08 2 5.08
W2 Width 14 1/236.83 14
1/236.83
HHeight 69
1/8175.58 69 1/8175.58
H1 Height 34 1/16 86.52 34
1/16 86.52
H2 Height 48 1/8122.24 48
1/8122.24
(C) Freezer Nondispenser Panel
WWidth 15 1/16 38.26 17
5/16 43.97
HHeight 69 1/8175.58 69
1/8175.58
(D) Refrigerator Panel
WWidth 22 5/16 56.67 26
1/16 66.20
HHeight 69 1/8175.58 69
1/8175.58
10
Nondispenser
Freezer Panel

Decorator panels for framed models cover the door trim for an
attractive, seamless look that flows into the overall design of the
room. Framed models include full-length extruded handles, unlike
overlay models. Attention must be paid
to hand clearance, or the depth of
space between the decorator panel and
the built-in handle. (See figures 12 and 13
on page 17 for more information.)
This application is often accomplished
by using three panels: the decorative
front panel, a spacer panel of .10" (2.5
cm) thickness and a 1/4" (0.6 cm) backer
panel. Other options to achieve this
look (such as using one panel routed for
different dimensions) may be available
from your cabinet manufacturer.
Jade offers 42" and 48" dispenser and
nondispenser models with the framed
design.
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
INSTALLATION GUIDE – FRAMED MODEL PANELS
B. Decorator Panel Specifications for Framed Models
Refer to page 20 for toe kickplate panel information.
If installing side panels, refer to page 19.

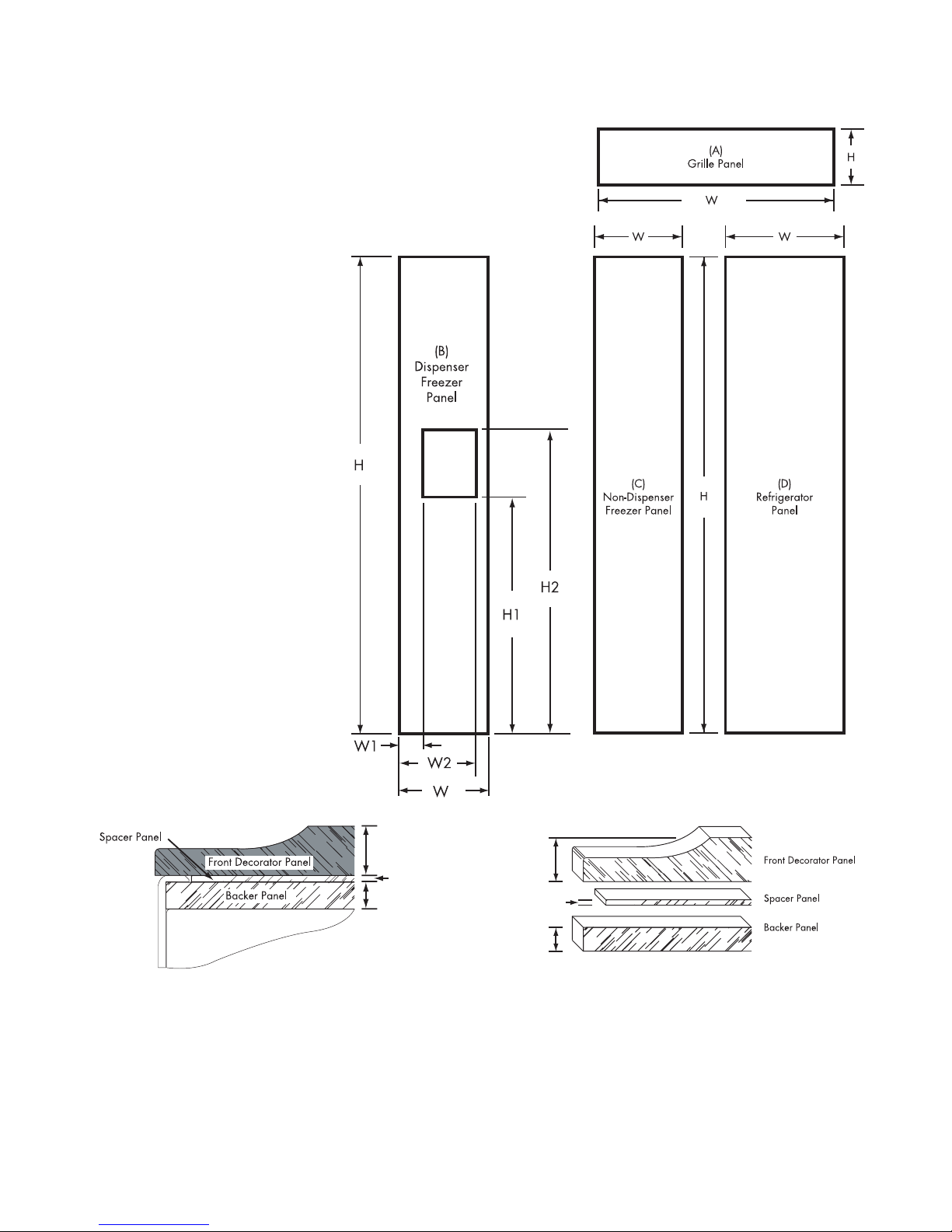

FIG. 8
FIG. 9
Figure 8 shows a cross-section view of the three-panel
assembly indicating the placement of the door/grille trim.
Figure 9 gives a rear view of the three-panel assembly and
important dimensions that are standard for framed and overlay
models. For routed-panel applications, the backer panel
dimension should not exceed 7⁄32" (0.55 cm) thickness.
11
3/4" (1.9 cm) Max.
1/4" (0.6 cm)
3/4" (1.9 cm) Max.
.10" (2.5 mm)
1/4" (0.6 cm)
.10" (2.5 mm)

INSTALLATION GUIDE – FRAMED MODEL PANELS
Backer Panel Thickness 1/4" (0.64 cm)
Spacer Panel Thickness 0.100" (0.25 cm)
If Raised Panel is Used Overall Front Panel
Thickness Not to Exceed 1 1/4" (3.18 cm)
NOTES:
1. Use countersink screws for attaching the
backer panel to the front panel.
2. On 42" custom panels, watch location of
handle mounting due to undercut of front
panel.
3. For freezer dispenser front panels, remove
fountain trim and tape it to the backside
of the backer panel. Note: Recycle symbol
should be visible and located at the bottom.
4. You may want to remove any additional
material on the backer panel when used in
conjunction with a front panel. Remove 1/32"
of thickness and 1/2" of width on the inside
surface of the backer panel. This will help
ease assembly of the panel assembly onto
the door.
42"-Wide Cabinet 48"-Wide Cabinet
BACKER PANEL in. cm in. cm
(A) Grille Panel
WWidth 40 1/4102.24 46
1/4117.48
HHeight 8 3/422.23 8
3/422.23
(B) Freezer Dispenser Panel
WWidth 15 1/16 38.26 17
5/16 43.97
W1 Width 2 5.08 2 5.08
W2 Width 14 1/236.83 14
1/236.83
HHeight 69 1/8175.58 69
1/8175.58
H1 Height 34 1/16 86.52 34
1/16 86.52
H2 Height 48 1/8122.24 48
1/8122.24
(C) Freezer Nondispenser Panel
WWidth 15 1/16 38.26 17
5/16 43.97
HHeight 69 1/8175.58 69
1/8175.58
(D) Refrigerator Panel
WWidth 22 5/16 56.67 26
1/16 66.20
HHeight 69 1/8175.58 69
1/8175.58
SPACER PANEL in. cm in. cm
(A) Grille Panel
WWidth 39 1/499.7 45
1/4114.94
HHeight 7 3/419.69 7
3/419.69
(B) Freezer Dispenser Panel
WWidth 14 1/16 35.72 16
5/16 41.43
W1 Width 2 5.08 2 5.08
W2 Width 14 1/236.83 14
1/236.83
HHeight 68 1/8173.04 68
1/8173.04
H1 Height 34 1/16 86.52 34
1/16 86.52
H2 Height 48 1/8122.24 48
1/8122.24
(C) Freezer Nondispenser Panel
WWidth 14 1/16 35.98 16
5/16 41.43
HHeight 68 1/8173.04 68
1/8173.04
(D) Refrigerator Panel
WWidth 21 5/16 54.13 25
1/16 63.66
HHeight 68 1/8173.04 68
1/8173.04
FRONT DECORATOR PANEL in. cm in. cm
(A) Grille Panel
WWidth 40 1/4102.24 46
1/4117.48
HHeight 8 3/422.23 8
3/422.23
(B) Freezer Dispenser Panel
WWidth 14 7/837.78 17
1/843.50
W1 Width 2 1/45.72 2
1/45.72
W2 Width 14 1/436.20 14
1/436.20
HHeight 69 1/4175.90 69
1/4175.90
H1 Height 34 5/16 87.15 34
5/16 87.15
H2 Height 47 13/16 121.44 47
13/16 121.44
(C) Freezer Nondispenser Panel
WWidth 14 7/8 37.78 17 1/843.50
HHeight 69 1/4 175.90 69 1/4175.90
(D) Refrigerator Panel
WWidth 22 1/8 56.20 26 7/868.26
HHeight 69 1/4 175.90 69 1/4175.90
12

Decorator Panel Specifications for Overlay Models (See illustration on page 14.)
Important: Because of continuing product improvements, Jade
reserves the right to change specifications without notice.
Dimensional specifications are provided for planning purposes
only. For complete details, see installation instructions packed
with product before selecting cabinetry, making cutouts or
beginning installation.
INSTALLATION GUIDE – OVERLAY MODELS
Backer Panel Thickness 1/4" (0.64 cm)
Spacer Panel Thickness 0.100" (0.25 cm)
If Raised Panel is Used Overall Front Panel
Thickness Not to Exceed 1 1/4" (3.18 cm)
NOTES:
1. Use countersink screws for attaching the
backer panel to the front panel.
2. On 42" custom panels, watch location of
handle mounting due to undercut of front
panel.
3. For freezer dispenser front panels, remove
fountain trim and tape it to the backside
of the backer panel. Note: Recycle symbol
should be visible and located at the bottom.
4. You may want to remove any additional
material on the backer panel when used in
conjunction with a front panel. Remove 1/32"
of thickness and 1/2" of width on the inside
surface of the backer panel. This will help
ease assembly of the panel assembly onto
the door.
Overlay Models
The decorator panels for overlay models cover the door trim for an attractive, seamless look that flows into the overall design of the
room. This application is often accomplished by using three panels: the decorative front panel, a spacer panel of .10" (2.5 mm) thickness,
and a 1⁄4" (0.6 cm) backer panel. Other options to achieve this look (such as using one panel routed for different dimensions) may be
available from your cabinet manufacturer.
Jade offers 42" and 48" dispenser and nondispenser models with the overlay design.
42"-Wide Cabinet 48"-Wide Cabinet
BACKER PANEL in. cm in. cm
(A) Grille Panel
WWidth 40 1/4102.24 46
1/4117.48
HHeight 8 3/422.23 8
3/422.23
(B) Freezer Dispenser Panel
WWidth 16 1/441.28 18
1/246.99
W1 Width 2 5.08 2 5.08
W2 Width 14 1/236.83 14
1/236.83
HHeight 69 1/8175.58 69
1/8175.58
H1 Height 34 1/16 86.52 34
1/16 86.52
H2 Height 48 1/8122.24 48
1/8122.24
(C) Freezer Nondispenser Panel
WWidth 16 1/441.28 18
1/246.99
HHeight 69 1/8175.58 69
1/8175.58
(D) Refrigerator Panel
WWidth 23 1/259.69 27
1/469.22
HHeight 69 1/8175.58 69
1/8175.58
SPACER PANEL in. cm in. cm
(A) Grille Panel
WWidth 39 1/499.70 45
1/4114.94
HHeight 7 3/419.69 7
3/419.69
(B) Freezer Dispenser Panel
WWidth 15 1/438.74 17
1/244.45
W1 Width 2 5.08 2 5.08
W2 Width 14
1/236.83 14 1/236.83
HHeight 68 1/8173.04 68
1/8173.04
H1 Height 34 1/16 86.52 34
1/16 86.52
H2 Height 48 1/8122.24 48
1/8122.24
(C) Freezer Nondispenser Panel
WWidth 15 1/438.74 17
1/244.45
HHeight 68 1/8173.04 68
1/8173.04
(D) Refrigerator Panel
WWidth 22 1/257.15 26
1/466.68
HHeight 68 1/8173.04 68
1/8173.04
FRONT DECORATOR PANEL in. cm in. cm
(A) Grille Panel
WWidth 40 1/4102.24 46
1/4117.48
HHeight 8 3/422.23 8
3/422.23
(B) Freezer Dispenser Panel
WWidth 16 7/16 41.75 18
3/447.63
W1 Width 2 1/45.72 2
1/45.72
W2 Width 14 1/436.20 14
1/436.20
HHeight 69 1/4175.90 69
1/4175.90
H1 Height 34 5/16 87.15 34
5/16 87.15
H2 Height 47 13/16 121.44 47
13/16 121.44
(C) Freezer Nondispenser Panel
WWidth 16 7/16 41.75 18
3/447.63
HHeight 69 1/4175.90 69
1/4175.90
(D) Refrigerator Panel
WWidth 23 3/460.33 27
1/269.85
HHeight 69 1/4175.90 69
1/4175.90
13

Installation of Panels (Framed or Overlay Models)
1. Begin by removing the door handle or trim piece. A magnetic-backed molding hides the handle or overlay trim screws. Use the adhesive
side of the packaging tape on the magnetic-backed molding to pull it away from door (FIG. 10a).
2. Remove the screws with a Phillips screwdriver (FIG. 10b). Slide the panel into position. The panel needs to be under the trim. Install the
handle. Replace the molding in the channel and reset the magnetic-backed molding.
3. To install the panel on the grille, remove the screws on the top and bottom of the upper cover (FIG. 10c). DO NOT REMOVE the foam.
4. Slide the panel into place and replace screws (FIG. 10d). If the thickness of the panel is less than a 1/4" (0.6 cm), back it up with a sheet of shim
material to obtain 1/4" (0.6 cm) thickness. Cardboard backer is recommended for stainless steel application. For panel size, refer to pages
9 — 13.
Installing Decorator Panels
Be aware that panels used on refrigerators with the framed or overlay design have the potential for coming into contact with adjacent
cabinets and/or countertops when the refrigerator doors are opened. You will want to be mindful of the surrounding cabinetry and
space limitations when planning for decorator panels.
Refer to the 90° door stop information in Figure 18 on page 21.
INSTALLATION GUIDE – DECORATOR PANELS
Grille Panels
A decorator grille panel that matches the decorator door panels
may be used to replace the standard grille shipped on the
unit. This allows the refrigerator to integrate completely into
the surrounding cabinetry.
!CAUTION. Do not exceed the panel dimensions shown in the
charts on pages 15 and 16 for the grille panel. If the decorator
panel is larger than specified, it may restrict the airflow to the
compressor and condenser area, which may cause the unit to
function improperly.
!CAUTION
When attaching a raised wood panel of
1/2" (1.3 cm) or thicker secure the raised panel to
the back of the grille cover frame. Use four #8 or
similar screws. See illustration for approximate locations.
FIG. 10a FIG. 10b
!CAUTION
Do not drive screws or sharp objects into door panels.
Do not pinch door seal when reinstalling handle.
FIG. 10c
FIG. 10d
3
4
12
14

INSTALLATION GUIDE – INSTALLING PANELS
ON DISPENSER MODELS
1. Power switch needs to be off. Switch is
located in machine compartment area
(see User Guide).
2. Remove magnetic strip on door handle.
Use of tape may be required to remove
magnetic strip. (See FIG. 10a on page 17.)
3. Remove four Phillips screws to remove
door handle/trim. (See FIG. 10b on
page 17.)
(Refer to numbered illustrations for steps 4 — 10)
4. Remove the spill tray grille from the
fountain.
5. Remove the two #15 Torx machine screws,
that retain the stainless steel splashguard.
Remove the splashguard.
6. Remove the two #15 long plastic Torx
screws that retain the fountain control
panel. Slide control panel down to remove.
Disconnect the electrical terminals
going to the fountain control panel. Tuck
dispenser terminal inside to avoid
interference.
7. Remove the four #15 plastic collar Torx
screws from the fountain/escutcheon
collar.
8. Place the fountain/escutcheon collar
onto the backer panel. Use tape to hold
in place.
9. Open the freezer door and slide panel
onto the door.
10. The holes in the fountain/escutcheon
collar should line up with the mounting
holes in the door panel. Reverse
instructions 7 to 1: Replace the four
#15 plastic collar Torx screws in connect
the fountain escutcheon collar, the
electrical terminals, and so on.
Freezer Dispenser Panel Installation
456
7 8 9
10
15

INSTALLATION GUIDE – SIDE PANELS
Installing Side Panels
If you are using side panels with the Jade™ built-in refrig-
erator, they will need to be 1⁄4" (0.6 cm) thick. Slide the
panel into position and secure with screws as indicated
by the shaded area (FIG. 11a). A 3⁄16" spacer is required
between the cabinet and side panel (FIG. 11b). A 1⁄2" thick by
10 1⁄4" tall spacer is required if the side panel extends up
into the machine compartment area on the refrigerator
side (FIG. 11c).
FIG. 11a
FIG. 11c
FIG. 11b
1/4" side panel fitted up to
the cabinet trim (top view)
of freezer side.
1/4" side panel fitted up to
the cabinet trim (top view)
of refrigerator side.
backside of unit
#8-32 1/2" screw
3/16" (0.48 cm)
spacers
1/4" (0.64 cm) side panel
freezer side of unit
door door
backside of unit
#8-32 1/2" screw
1/2" (1.27 cm) spacers
on the side of machine
compartment (3/16"
(0.48 cm) below the
machine compartment)
1/4" (0.64 cm) side panel
refrigerator side of unit
16
82 13/16"
(210.3 cm)
1 3/8" (3.5 cm)
2 7/16" (6.9 cm)
3/8" (0.95 cm)
24" (61 cm)
2 1/2" (6.35 cm)

FIG.12
INSTALLATION GUIDE – SPECIAL CONSIDERATIONS
Special Considerations
The illustrations on this page may be useful to help
you understand some of the situations you may
face as you design and install the various models of
Jade™ built-in refrigerators.
Figures 12 — 14 demonstrate handle placement for
framed models. Figure 14 also shows the optional
handle extension as referenced by the stair-stepped
portion of the drawing.
FIG. 13
FIG. 14
FIG. 15
Figure 15 provides information for using a custom panel in the toe kickplate
area on overlay or framed models.
Important: Because of continuing product improvements, Jade reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details, see installation instructions packed with product before selecting cabinetry, making cutouts or beginning installation.
Optional Extended
Handle Kit
Handle Considerations for Overlay Models
If the customer has specified a Jade™ built-in refrigerator overlay model, the unit will be shipped without
handle hardware. Handle hardware that the customer has specified to match the overall decorating scheme must
be provided separately at the job site.
Before installing the custom panel assembly, the custom
handle hardware must be installed. It is recommended that
handles with larger D-style pulls be used. If the screws that
are used have thick heads, the screws will need to be
countersunk into the panel before it is put into place.
IMPORTANT TIP: Jade advises that single-pull knobs not
be used on built-in refrigerator overlay models.
17
Nondispenser
Panel thicker than 3/16" Angle cut for thicker plates
6 1/4"
5 5/8"(A) Three 3/16" holes may be used to attach panel to cabinet
3 3/4"
3"
Cutout for Dispenser
R. 1/2"
Allow relief here for
dispenser models with
panels thicker than 3/16"(48) 46 7/8"
(42) 40 7/8"
DIA. 1/4" TYP
1 1/8" TYP
3/4" TYP
2 3/16" TYP
5/16"
7/8"
15/16" TYP
4 13/16"
1 13/16"
20" (50.8 cm)
2 7/16" Standard Handle
3 7/16" Optional Extended Handle
Allow min. of 2 5/16"
1/4"
1/2"
3/4"
1 1/4"
1/4"

FIG. 18
INSTALLATION GUIDE – SPECIAL CONSIDERATIONS
Installation Checklist:
INSTALLER
Doors
q Handles are solidly attached to doors.
q Doors seal completely to refrigerator cabinet.
qDoor handle alignment is correct (framed models).
qDoor seals are not pinched.
qScrews/sharp objects have not been driven into the doors.
Leveling
qL brackets are secured to 2x4 wood block.
qStabilizing legs are against floor. Cabinet is secure.
qToe kickplate is properly attached to refrigerator and
aligned with floor.
Icemaker
qWater supply to refrigerator is turned on and lines have
been flushed.
qWater leaks are not present at connection between
house-hold water supply and refrigerator.
qIcemaker arm is down for ice production.
qPuriClean®ice and water filtration system is installed
correctly, if applicable.
qWater has been purged from the fountain on dispenser models.
FIG. 16
FIG. 17
Figures 16 and 17 let you see what considerations you
need to make for any custom panel applications, and
how they may interact with adjacent cabinets and/or
countertops. Also refer to the Installation Guidelines for
framed and overlay models on pages 14 — 17.
Tool Requirements:
Tape measure
Level
Stud finder
Drill with various bits
Socket set
Utility knife
Magnetic extended screwdriver
Phillips screwdriver
Torx bit
Cardboard, carpet remnant or other protective material for flooring
Steel hanger strap
90˚ Door Stop
Both doors are designed to open 135˚. To restrict one or both
doors to a 90˚ opening, use the door stops supplied in this kit.
With the doors closed, screw a door stop into the
underside of the lower hinge plate as illustrated above.
18
90º
Door
Open
90º
135º
Door Open
135º
