J&M Corporation JMDM-IPBT-GL18 Installation instructions
© 2011 J&M Corporation. All rights reserved. 4/11
Digital Music Player
With Bluetooth®
For 2001-2010
Honda® GL-1800
Part#JMDM-IPBT-GL18
Installation
& Operation
Instructions
1. Product Description
This exciting new digital music player from J&M will plug direct-
ly into the CD selected music input plug on all 2001-2010
Honda Gold Wing audio systems, replacing the Honda CD
changer, at a fraction of the cost.
Store and play up to 884 MP3 song tracks from your music
library on a single SD card, (exact # of song track storage and
playback will vary depending on model year of the GL-1800)
and toggle thru song after song using your existing handlebar
audio system controls.
Plug in your iPod®with your favorite music files stored, and tog-
gle thru song after song using your existing handlebar audio
system controls, without discharging your iPod’s internal bat-
tery.
Plug in your remote mounted Satellite radio receiver or MP3
player, using the 3.5mm 3-conductor plug accessory cable and
enjoy high-quality stereo music thru the Honda audio system
CD selection.
Link by Bluetooth®your cell phone or Garmin®Zumo to the
player and your cell phone conversations or navigation com-
mands will automatically prioritize OVER whichever music files
are being played at the time, allowing hands free cell phone
conversations, by both the driver and passenger thru their J&M
brand helmet headsets.
If your cell phone/smart phone/Garmin Zumo 660/665 also
contains stored stereo music files, they will stream via
Bluetooth, into the music player and on thru to the GL-1800
audio system.

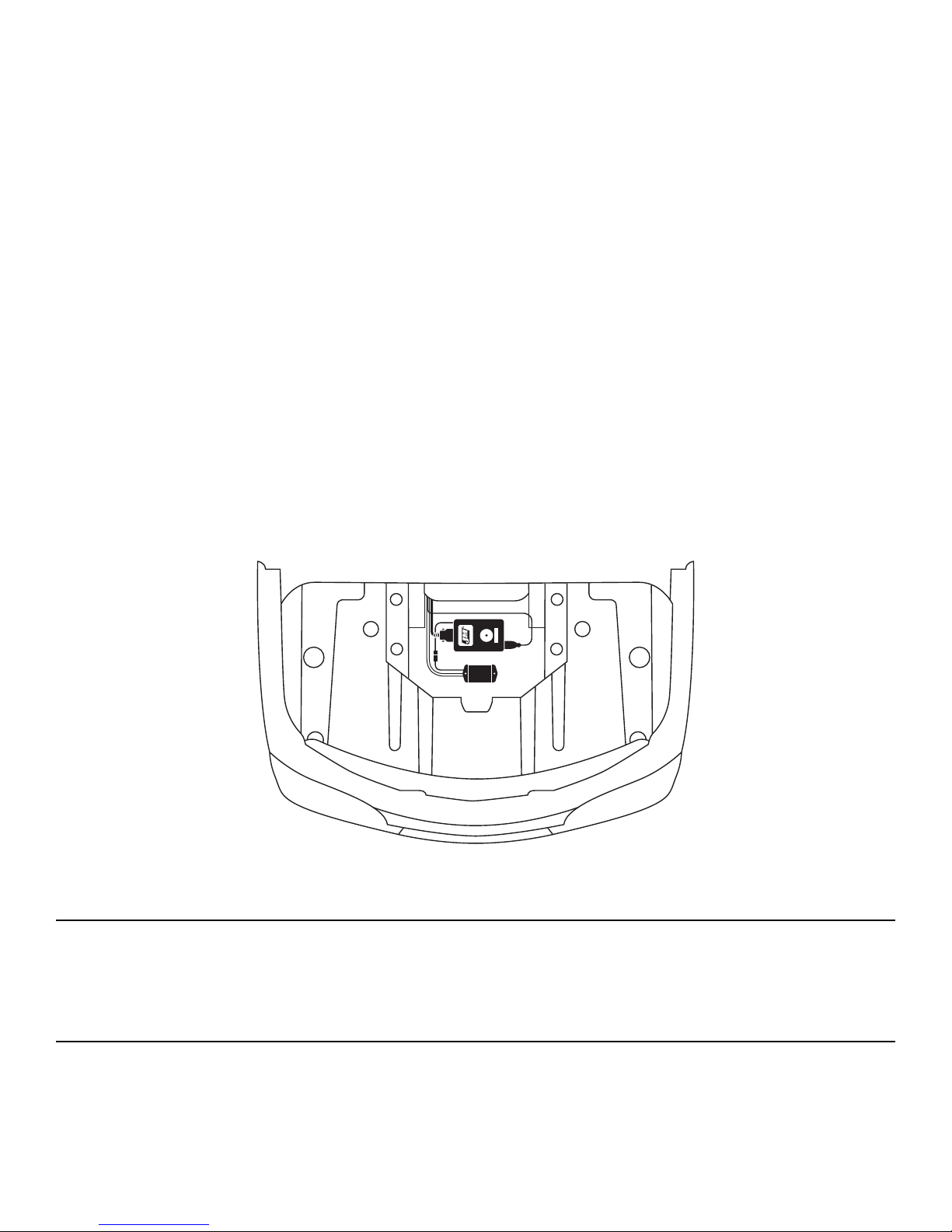

Control head mounts down into the base inside the tail trunk,
in place of the CD changer, along with the custom J&M micro-
phone signal adapter harness, as a complete plug-n-play instal-
lation.
This digital music player/cell phone kit includes a direct plug-n-
play harness for the GL-1800 audio system, SD card
reader/adapter, USB cable extension for iPod, 3.5mm aux
extension cable for satellite radio or MP3 player, pre-loaded
4Gb test SD card, pre-gummed Velcro mounting strips and
complete installation and operation instructions.
Note: When installing this unit on 2009-2010 GL-1800s, if you
wish to use the XM satellite radio feature of your audio sys-
tem, with this digital music changer, you will need to purchase
at additional cost J&M part# JMDM-ADT-GL18.
Supported Bluetooth Profiles
A2DP (Advanced Audio Distribution Profile)
HFP (Hands-free Profile)
HSP (Headset Profile)
AVRCP ( Audio Video Remote Control Profile)
2. Safety and General Information
IMPORTANT INFORMATION FOR SAFE AND EFFICIENT OPER-
ATION. READ THIS INFORMATION BEFORE USING YOUR
DEVICE.
Users are not permitted to make changes or modify the device
in any way. Changes or modifications not expressly approved
by the party responsible for compliance could void the user's
authority to operate the equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation. See FCC 47 CFR Sec. 15.19
(3).
ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY
Note: Nearly every electronic device is susceptible to electro-
magnetic interference (EMI) if inadequately shielded, designed
or otherwise configured for electromagnetic compatibility.
FACILITIES: To avoid electromagnetic interference and/or com-
patibility conflicts, turn off your device in any facility where
posted notices instruct you to do so. Hospitals or health care
facilities may be using equipment that is sensitive to external
RF energy.
AIRCRAFT: When instructed to do so, turn off your device
when on board an aircraft. Any use of a device must be in
accordance with applicable regulations per airline crew instruc-
tions.
MEDICAL DEVICES
HEARING AIDS: Some devices may interfere with some hear-
ing aids. In the event of such interference, you may want to
consult with your hearing aid manufacturer to discuss alterna-
tives.
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the man-
ufacturer of the device to determine if it is adequately shielded
from RF energy. Your physician may be able to assist you in
obtaining this information.
Industry Canada Notice to Users: Operation is subject to the
following two conditions: (1) This device may not cause inter-
ference and (2) This device must accept any interference,
including interference that may cause undesired operation of
the device.
FCC Notice to Users: This equipment has been tested and
found to comply with the limits for a Class B digital device, pur-
suant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following mea-
sures:
Product Description Section 1
Safety & General Information Section 2
Package Contents Section 3
Installation Instructions Section 4
General Operation Instructions Section 5
Bluetooth Linking/Pairing Scenarios Section 6
Table of Contents
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
the receiver.
•Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
3. Package Contents
A
11/4”
Black
Rubber Boot
Relay Box
B
Cross Member
Passengers
6-pin Red Plugs
14-pin
Connector
• Digital music player
• Microphone integration terminal
• SD card (pre-loaded with sample/test MP3 files)
• GL-1800 connection harness
• iPod connection cable
• Auxiliary extension cable
• SD card reader/writer
• Velcro strips for mounting
4. Installation Instructions

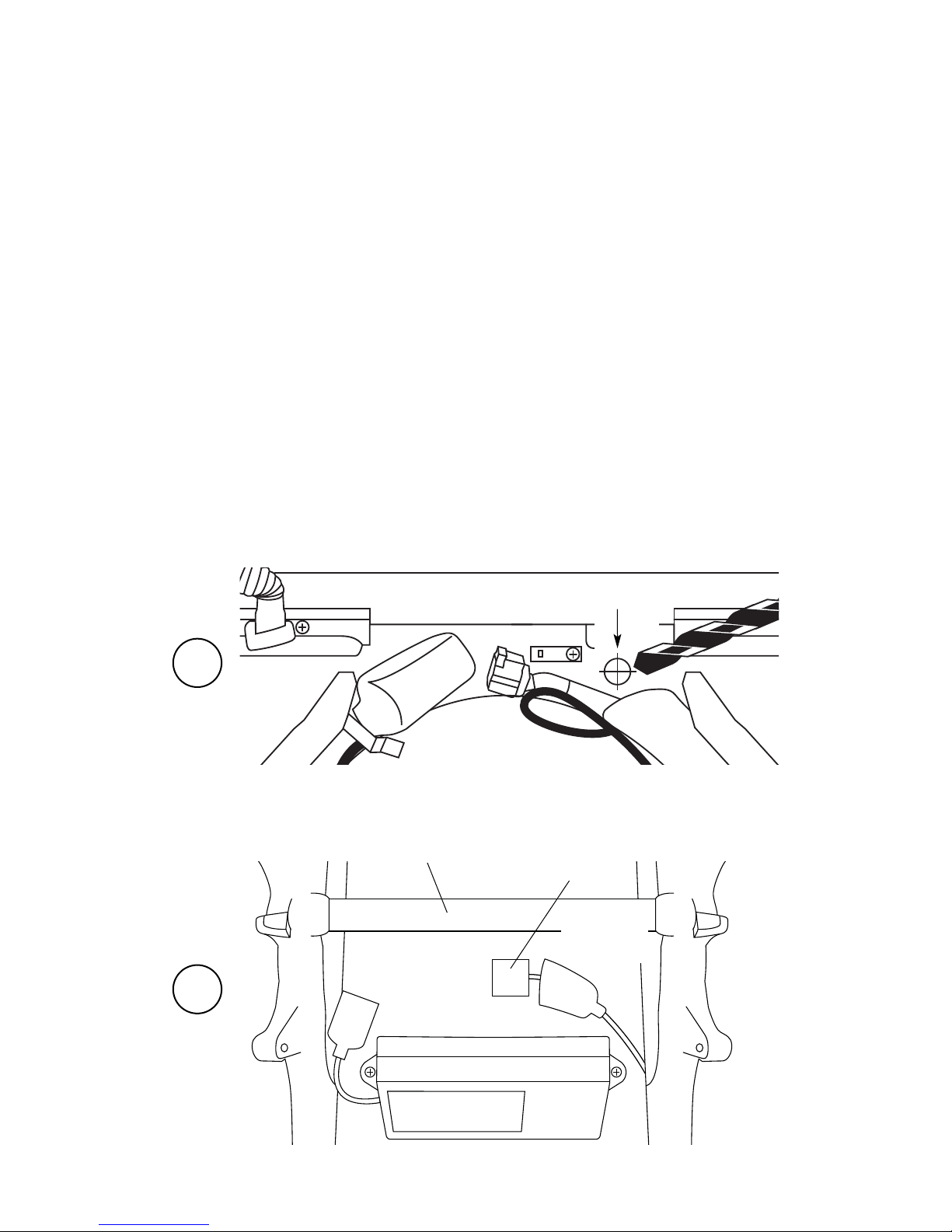

Integration component terminal Installation and connections
➢Diagram A and B
1. Remove:
Left fairing pocket
Headlight/Preload adjustment panel
Left side cover
Seat
2. Locate the mark on the lower left edge of the tour pack and drill a 1 1/4” hole. Diagram A
3. Route the included cables through the hole and install the supplied rubber grommet on the cables and into the 1 1/4” hole.
5. General Operation Instructions
General tips for use with iPod
When connection is made to the iPod the music from the SD card will no longer be heard and the iPod will begin charging. The iPod will
begin to play songs or playlists depending on what has been selected on the iPod. Press the "Tune/Disc" lever on the handlebar up to
play the next song. Press the "Tune/Disc" down to play the previous song. Press and hold the "Tune/Disc" up for three seconds to go
to the next playlist. Press and hold the "Tune/Disc" down for three seconds to go to the previous playlist.
General tips for use with aux input
When the Auxiliary audio cable is plugged into the JMDM-IPBT-GL18 the music from the SD card will no longer be heard. Plug the auxil-
iary cable into the satellite radio/MP3 player. The "Tune/Disc" handlebar lever will have no effect on functions of the satellite
radio/MP3 player.
Note: If both an iPod and auxiliary audio device are used simultaneously the iPod and auxiliary audio will mix together and be heard at
the same time.
4. Locate the white 14 pin plug located in the black rubber boot next to the cross-member and relay box under the seat. Diagram B
5. Plug the white 14 pin connector from the JMDM-IPBT-GL18 harness into the corresponding plug on the bike. NOTE: The cable must
be routed under the frame cross member to prevent damage to the cable.
6. Plug the 20 pin plug on the harness in to the JMDM-IPBT-GL18.
7. Route the short cable with the red 6 pin male/female connectors from the microphone integration terminal, to the black rubber boot
under the seat next to the relay box. Unplug the red 6 pin plugs from the passenger’s headset lead inside the black rubber boot, and
connect the red 6 pin plugs from the microphone integration terminal in series with the passenger’s headset lead.
8. Route the long cable with the red 6 pin male/female connectors from the microphone connection terminal to a location under the
left front fairing pocket and plug the red 6 pin plugs in series with the driver’s headset lead.
9. Plug the black 4 pin plug from the JMDM-IPBT-GL18 into the black 4 pin plug on the microphone integration terminal.
10. If you wish to use the iPod function, route the included iPod cable to your handlebar mounted iPod, or other desired mounting
location.
11. If you wish to use the aux input function, route the included Auxiliary cable to your handlebar mounted satellite radio/MP3 player or
other desired mounting location. Note: Connection of the Auxiliary cable to the JMDM-IPBT-GL18 will override the SD card and music
from the SD card will not be heard until the aux cable is unplugged at the main unit.
12. Test the JMDM-IPBT-GL18 by inserting the supplied SD card. Turn the ignition switch to either the On or ACC position and select CD
on the stereo.
Using the “Tune/Disc” up down toggle control on the handlebar, select between individual tracks with each single toggle, or hold
up/down for 3 seconds to change to another folder/CD #.
Important Note: When installing this unit on 2009-2010 GL-1800s, if you wish to use the factory installed XM satellite radio feature of
your audio system, in conjunction with the J&M digital music player, you will need to purchase at an additional cost J&M part# JMDM-
ADT-GL18.
General Tips for Use with SD Card
For the 2001-2005 GL-1800, it usually works best to limit the # of folders to 5, plus the root, with no more than 45 files/tracks per
folder, using a 4Gb (max) SD card.
2006-2010 GL-1800s will support up to 8 folders, plus the root and up to 99 files/tracks per folder, using an SD card up to 8Gb in
size.
The included card reader/writer is not a thumb drive and is used only to load music into your SD card.
The suggested file format for music is MP3, while WMA can be used if the files/tracks are not protected.
If you are using iTunes, the music files will need to be converted to MP3 before they are loaded into the SD card or thumb drive.
When both an SD card and USB Flash Drive are inserted into the JMDM-GL18B, the SD card will be recognized first.

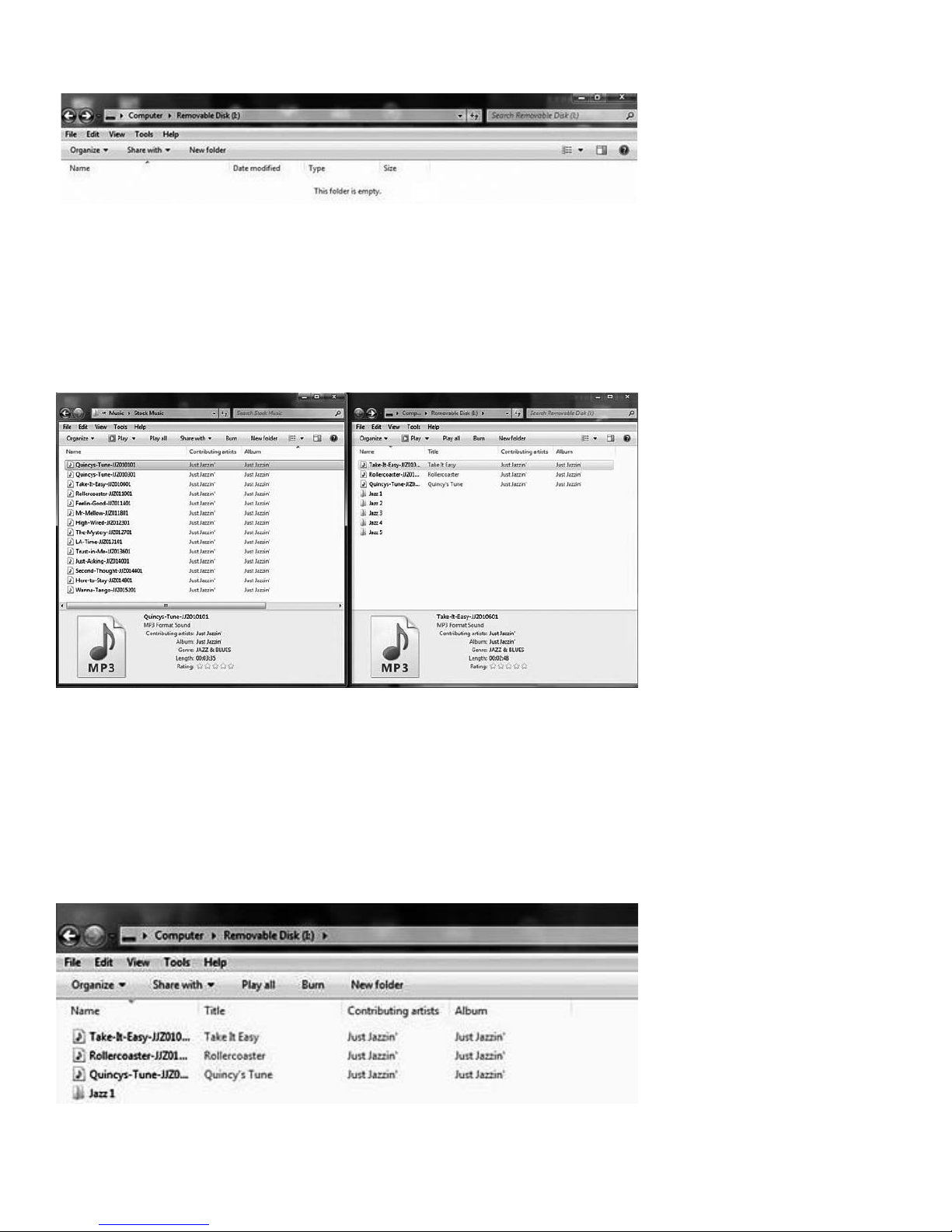

How to add MP3 or WMA files/folders to an SD Card or USB Thumb-Drive.
1. Connect your SD card to the computer by inserting the SD card into the supplied SD card reader/writer or simply plug your USB
Thumb Drive into the computer.
2. Click on Start and then My Computer.
3. Now find the SD card or USB thumb-drive (designated as Disk (I): in this example)
4. Click on the Removable Disk (I): and you should now have an open folder, this is also known as the Root Folder.
5. At this point Music can be added to the SD Card or USB Thumb-Drive. You will need to locate your MP3 or WMA files on your com-
puter.
6. To transfer music files from your computer to the SD Card or USB Thumb-Drive, drag and drop at least one track into this main root
folder. This main root folder must contain at least one MP3 file/track or the JMDM-GL18B will not play. This main root folder will be dis-
played as CD 1.7. For a more complex method of arranging and playing your music, move your music to the SD Card or USB Thumb-
Drive into specific folders. This main folder is called the Root folder and MUST CONTAIN AT LEAST ONE MP3 FILE OR THE JMDM-GL18
WLL NOT PLAY ANY MUSIC. NOTE: This main folder will be displayed as CD 1.
Additional folders can now be added to the root folder by clicking on (Top-Left) File, then New, then Folder.
For the 2001-2005 GL-1800, it usually works best to limit the # of folders to 5, plus the root, with no more than 45 files/tracks per
folder, using a 4Gb (max) SD card.
2006-2010 GL-1800s will support up to 8 folders, plus the root and up to 99 files/tracks per folder, using an SD card up to 8Gb in
size.
These folders can be named as you choose but these names will not display on the Honda Radio, only the CD Disk number will be
displayed. The MP3 files and folders will play in the actual order you have added them to the SD Card or USB thumb-drive, not by the
track number itself.
Here is an example of five folders with three MP3 files/tracks in the main root folder, as per the included SD card.
7. When you are finished loading the SD card or USB thumb-drive, unplug it from the computer, insert into the JMDM-GL18B and select
CD on the Honda audio system control panel.
The music will begin to play and is displayed as CD1. To change to the next folder press and hold the “Tune/Disc” up toggle for three
seconds and CD2 will begin to play. If you do not press and hold the “Tune/Disc” up/down toggle for the three seconds, the next track
will play in CD1 instead of the CD2 folder.
6. Bluetooth Linking/Pairing Scenarios
Note: CD must be selected on the Honda GL-1800 audio system for the following to function properly.
Pairing and Operation of the JMDM-IPBT-GL18 to a Bluetooth Enabled MP3 Player/iTouch
1. Turn the motorcycle ignition switch to on or accessory position.
2. Go into the settings menu of the MP3 player and select search for new Bluetooth device.
3. Once JM-MPBT-2 is displayed on your screen, click on it. When you are asked for a passkey, enter: 9088.
4. Once the MP3 player connects to the JMDM-IPBT-GL18 the music from the MP3 player will be heard through the Honda GL-1800
audio system and the music from the SD card will pause.
5. Volume adjustments can be made on the MP3 player itself. Set the music volume on the MP3 player to a maximum level before
distortion.
6. Once paired the Bluetooth enabled MP3 player will not need to be re-paired to the JMDM-IPBT-GL18 each time the ignition switch is
turned on.
Pairing and Operation of the JMDM-IPBT-GL18 to a Bluetooth Enabled Cell Phone
1. Turn the motorcycle ignition switch to on or accessory position.
2. Select the hands-free menu on the cell phone, go into the Bluetooth section and have the cell phone search for devices. When JM-
MPBT-2 is displayed on your screen, click on it. When you are asked for a passkey, enter: 9088. Your cell phone should now pair with
the JMDM-IPBT-GL18.
3. To set the cell phone volume, adjust the volume up or down buttons on the cell phone itself, during an actual conversation only.
4. During a cell phone conversation, both the driver and passenger can hear the call and also talk on the cell phone using their
helmet headsets.
5. For incoming cell phone calls you will first hear a Bluetooth alert tone followed by a verbal caller ID. To accept the incoming call
toggle the Tune/Disc button on the handlebar down. To reject the incoming call toggle the Tune/Disc button on the handlebar up.
6. Once paired the cell phone will not need to be re-paired to the JMDM-IPBT-GL18 each time the ignition switch is turned on.
Note: The intercom mute sensitivity level on the Gl-1800 audio system should be set to level 5 during cell phone conversation to
prevent the muting of the incoming cell phone audio level.
Pairing and Operation of the JMDM-IPBT-GL18 to a Bluetooth Enabled Smart Cell Phone
1. Turn the motorcycle ignition switch to on or accessory position.
2. Select the hands-free menu on the cell phone, go into the Bluetooth section and have the cell phone search for devices. When JM-
MPBT-2 is displayed on your screen, click on it. When you are asked for a passkey, enter: 9088. Your cell phone should now pair with
the JMDM-IPBT-GL18.
3. To set the cell phone volume, adjust the volume up or down buttons on the cell phone itself, but during actual conversation only.
4. During a cell phone conversation , both the driver and passenger can hear the call and also talk on the cell phone using their
helmet headsets.
5. For incoming calls you will first hear a Bluetooth alert tone followed by a verbal caller ID. To accept the incoming call toggle the
Tune/Disc button on the handlebar down. To reject the incoming call toggle the Tune/Disc button on the handlebar up.
6. The music player in the cell/smart phone can also be used to play music through the Gl-1800 audio system. Select your music play-
er in your smart phone and click on the play button. Adjust the music volume from the phone to a maximum level before distortion. The
Disc/Tune button on the handlebar can be used to track the music up and down on the smart phone.
7. The music from the smart phone will be interrupted during cell phone conversation and will resume play once the call has ended.
WARRANTY REGISTRATION FORM Please fill out this card completely and mail it immediately after purchase. Please be sure that your zip code
and serial number (if applicable) are legible. This will help us to serve you better. NOTE: Lift the velcro flap on the right speaker pouch to expose serial number.
(PLEASE PRINT)
Name_______________________________________________________________________________________________________________________________________________________
Address_____________________________________________________________________________________________________________________________________________________
City _______________________________ _________________________________State __________________________ Zip ____________________________________________________
Motorcycle ❍Other ❍ E-mail ________________________________________________________________________________________________
Make ___________________________________________ Model ______________________________________ Year __________________
Product part number ______________________________________________________________________
Serial number (if applicable)________________________________________________________________
Date of purchase _________________________________________________
Name of dealer it was purchased from ____________________________________________________________________________________
Mail to:
J&M Corporation
1415 S. Cherry Avenue
Tucson, AZ 85713
U.S.A.
✃
Thank you for the confidence you have shown in J & M by purchasing one of
our innovative products. It will give you many hours of riding pleasure. If you
have any questions during installation or require more information about this
product, you may call our Customer service Department (English only,
please) at 1-800-358-0881, Monday through Friday, 8:00 a.m. to 5:00 p.m.
Mountain Standard Time, U.S.A.
J&M Corporation
Tucson, Arizona, U.S.A.
Tel. 1-800-358-0881
www.jmcorp.com
8. Once paired the smart phone will not need to be re-paired to the JMDM-IPBT-GL18 each time the ignition switch is turned on.
Note: The intercom mute sensitivity level on the Gl-1800 audio system should be set to level 5 during cell phone conversation to pre-
vent the muting of the incoming cell phone audio level.
Pairing and Operation of the JMDM-IPBT-GL18 to a Bluetooth Enabled Garmin Zumo 660/665
1. Turn the motorcycle ignition switch to on or accessory position.
2. Select the hands-free menu on the Zumo command center, go into the Bluetooth section and have it search for devices. When
JM-MPBT-2 is displayed on the screen, click on it. When you are asked for a passkey, enter: 9088. Your Zumo unit should now pair with
the JMDM-IPBT-GL18.
3. Now pair your cell phone to the Zumo, as per the linking/operation instructions included with it.
4. If your Zumo has a built in media player, you can play music through the Gl-1800 audio system. Select the media player and click on
the play button. Adjust the music volume to a maximum level before distortion. The Tune/Disc button the handlebar can be used to
track the music up and down on the Zumo 660/665.
5. To set the Zumo navigation and/or cell phone conversation volume levels, refer to the operation instructions included with your Zumo
660/665. Additional cell phone volume adjustments can also be made on the cell phone itself, but during actual conversation only.
6. Once paired the Zumo will not need to be re-paired to the JMDM-IPBT-GL18 each time the ignition switch is turned on.
Note: The intercom mute sensitivity level on the Gl-1800 audio system should be set to level 5 during cell phone conversation to
prevent the muting of the incoming cell phone audio level.
WARRANTY AND REPAIR INFORMATION
TWO YEAR LIMITED WARRANTY In order to facilitate the servicing of this warranty, the Warranty Registration Form should be filled
out and returned within 10 days of the date of purchase. However, return of the Warranty Registration Form is not a precondition of
this warranty, and this Warranty will be observed by J&M CORPORATION whether or not the Warranty Registration Form is returned,
on the condition that other satisfactory evidence of the date of the original purchase is provided to J&M CORPORATION.
WHO PROVIDES THE WARRANTY? This warranty is provided by J&M CORPORATION.
WHO IS PROTECTED? This warranty is extended only to the original owner of this J&M CORPORATION product and may not be
transferred or assigned.
WHAT IS COVERED AND HOW LONG? This warranty covers all defects in material or workmanship of our product for a period of
2 years from date of original retail purchase. At its option, J&M CORPORATION will repair or replace any defective part(s) or
equipment.
The provisions of the warranty shall not apply to any unit which has been subjected to misuse, neglect, incorrect mechanical or
electrical installation, unauthorized modifications, accident, nor to units which have been repaired or altered outside of our factory.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY In the event that the product does not conform to this warranty, the
product should be shipped prepaid to the J&M CORPORATION service facility. Transportation charges, insurance fees, and labor costs
for shipment, removal, or reinstallation of our product are not covered by this warranty. Loss or
damage in shipment is the sole responsibility of the freight carrier.
FOR YOUR INFORMATION Repair as provided under this warranty is the exclusive remedy of the consumer. J&M CORPORATION
shall not be liable for any incidental or
consequential damages or for breach of any express or implied warranty on this product. Except to the extent prohibited by applica-
ble law, any implied warranty of
merchantability or fitness for a particular purpose on this product is limited in duration to the duration of the warranty. Some states
do not allow the exclusion or
limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limita-
tions or exclusion may not apply to you. This warranty gives you specific legal rights which vary from state to state.
J&M CORPORATION reserves the right to make changes in design and to make improvements in its products without the obligation
to incorporate the changes or improvements in any of its previously manufactured products.
J&M CORPORATION has not authorized anyone to make representations or warranties other than the warranty contained herein.
The above warranty is effective for all products manufactured after 10/01/86.
NON-WARRANTY REPAIR RATES J&M CORPORATION reserves the right to change the labor repair rates without prior notice. At
the time of this printing the out-of- warranty repair is $40 per hour for labor only. However, the customer is advised to verify the
current rate when he/she calls customer service to obtain the return authorization number.
FACTORY SERVICE ADDRESS J&M Corporation, 1415 S. Cherry Avenue, Tucson, Arizona, 85713, U.S.A. Tel: 1-800-358-0881
[email protected] www.jmcorp.com
CUSTOMER SERVICE NUMBER 1-800-358-0881
Please complete
WARRANTY REGISTRATION FORM
on the reverse side and send to J&M Corporation
Table of contents
