Janser 135SH User manual

MOD.135SH
112 455 000 - 230 Volt
112 455 600 - 120 Volt
MOD.145SH
112 560 000 - 230 Volt
112 560 600 - 120 Volt
MOD.155 S
112 750 000 - 230 Volt
112 750 600 - 120 Volt
Subfloor Treatment
GRINDING MACHINES
USER INSTRUCTIONS
Janser GmbH
Machines & Tools
Work Clothing
E-mail: [e-mail]
Internet: www.janser.com
Böblinger Street 91
71139 Ehningen
GERMANY
Phone +49 / 7034 / 127-0
Fax +49 / 7034 / 8838 Manufacturer of machines & tools for the flooring industry

COLUMBUS
Grinding machines and accessories
INDEX
OPERATING INSTRUCTIONS 3
Chapter Page
1 Rules for save operation
1.1 Elektric Connection 4
1.2 Staff 5
1.3 Usage 5
2 Product Information
2.1 Technical Description 6
2.2 Technical Data and Range of application 6
2.3 Accessory units 7
2.4 Accessories driving discs/brushes/plates 8-12
3 Security Instructions
3.1 Determined Application 13
3.2 Electric Supply 13
3.3 Measures of Precaution 13
3.4 Accident control Measures 13
3.5 Emissions 13
4 User Instructions
4.1 Assembly of guide bar 14
4.2 Installing and changeing accessories 14
4.3 Starting the machine 15
4.4 Operation 15
4.5 Transport 15
5 Maintenance Instructions 16

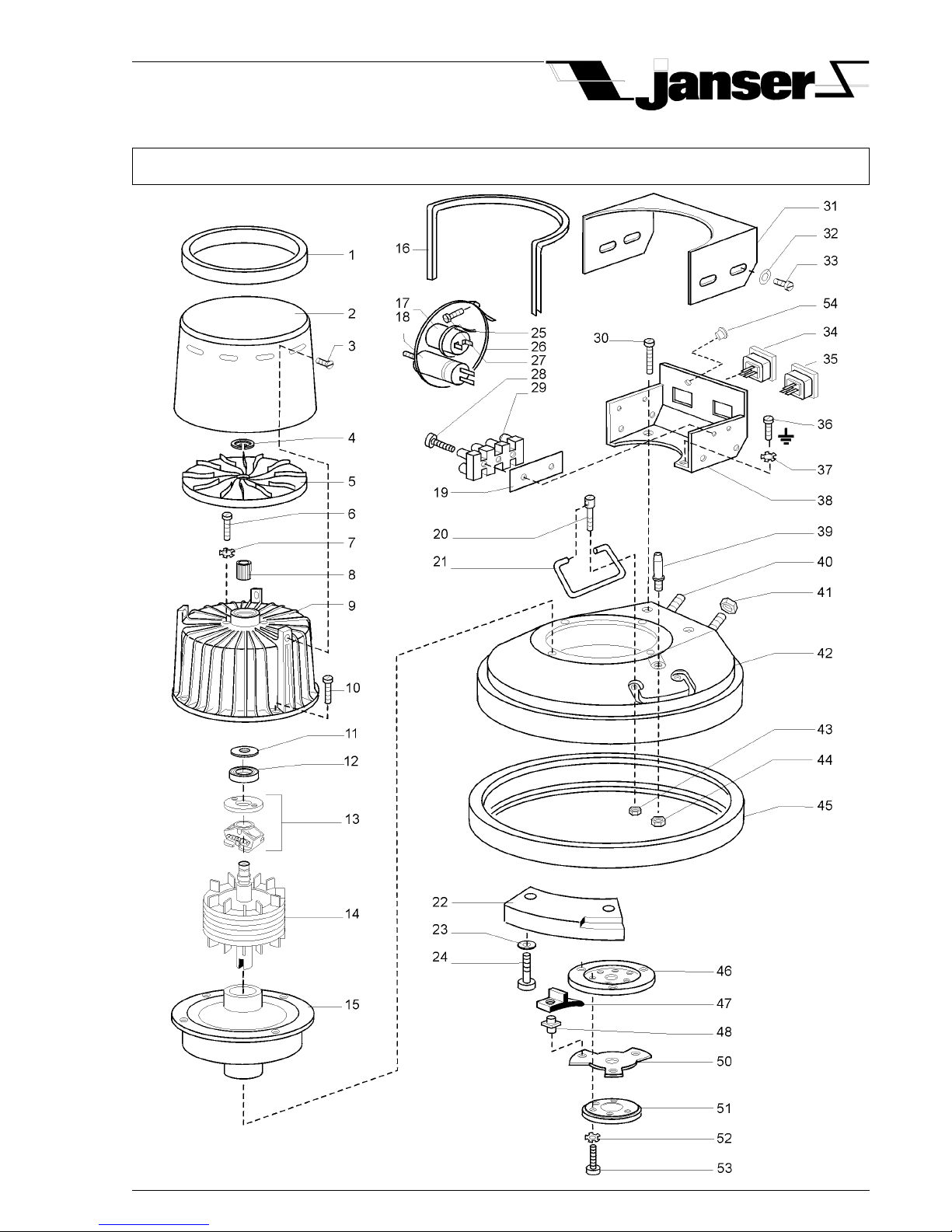

6 Spare Parts 17
Declaration of conformity

Grinding machines and accessories
Kettelmaschine
BEDIENUNGSANLEITUNG
4
1 RULES FOR SAVE OPERATION
1.1 Electric Connection
Commandment Warning /
Caution
Hint /
Clue
Forbiddance /
Prohibition
Always disconnect power plug before servicing.
Maintenance, replacement or adjustment of hydraulic fluid or other parts can cause serious
injury or death to the user or other persons, if the machine is connected to the power supply
system.
Keep the cable away from the blade to avoid damage of the cable.
Das Run over or damage of the cable can cause an electric shock.
The machine is constructed for inside-usage only.
Danger of electric shock. Do not expose the machine to water or rain.
Connection: power supply system – machine
Only to the given ranges on the type plate.
Check before usage.
Connection: cable – machine only with authorized cable.
Europe, Cable – Type: HAR HO5VV-3x2,5 mm² , Connector / Plug – Type: 2P+T16A-250v
Using cables with to little average or excessive length can cause damage to persons and
objects.
Electrical equipments like cables or plugs must be controlled / renewed by an authori-
zed electrician. Risk of injuries or fatalities by wrong electrical connection
Never operate with a damaged cable or connector.
Replacement of worn or damaged cables or connectors has to be effected by a specialist or
a similar qualified person.
Improperly connecting the grounding wire can result in risk of electric shock.
Check with a qualified electrician if your in doubt as to whether the outlet is properly groun-
ded. Do not modify the plug provided with the tool. Never remove the grounding prong from
the plug. Do not use the tool if the cord or plug is damaged. If the plug will not fit the outlet,
have a proper outlet installed by a qualified electrician.
Do not use machine when cable is damage. Don't move the machine by dragging the
cable. Utilization with a damaged cable can cause an electric shock.
Non observance of the symbols, which you can see in the instruction manual or on the machi-
ne, may result in serious injury or death for the user and other persons. Read, understand
and follow all the clues / hints, which are situated in the machine or in the instruction manual.

COLUMBUS
Grinding machines and accessories
1 RULES FOR SAVE OPERATION
OPERATING INSTRUCTIONS 5
1.2 Staff
The operator has to be instructed to the use of the machine before operating.
Non observance of the instruction manual before commissioning, adjustment or maintenance
could cause serious injury to personal or objects.
Read unexceptionally all security statements. Be sure that type plate, security sym-
bols as commandments, warnings, precautions and the directives are mounted / fixe
to the machine. Non observance of the directives inside this manual may cause serious
injury or damage.
Always wear eye-protection, protective suit, dust-mouthguard / dust respirator and
ear-protection during the usage of the machine. The noise that appears while removing
flooring can be so intense that at long term use it may cause injury of the auditory tube.
Working without appropriate security equipment, as for instance a protective suit, can injure
eyes and body. Arising airborne dust may be inhaled when wearing no mouthguard.
Keep arms, feet and clothes away from the operating machine parts.
Moving parts of the machine can cause serious injury or damage.
1.3 Usage
Use only the recommended accessories ensure its function before starting.
Spare parts and accessories are manufactured especially for the COLUMBUS.
We explicitly point out that other parts must not be used. Thereby the safety of the machine
can be negatively affected, especially the blade. Janser GmbH cannot be held responsible
for the performance of any damage arising from the use of machines in which genuine spare
parts have not been used.
Work Safety
The grinding machine COLUMBUS is designed to the highest technical standards.
Nevertheless the usage may cause dangers for life, body and objects. Use this machine only
as instructed in this operation manual and with the machine in perfect working order.
Disturbances that could impair safety, have to be eliminated immediately.
Restrictions of Use
The grinding machine COLUMBUS is exclusively for use in dry rooms for grinding,
cleaning and sanding of subfloors. It should not be used for any other materials.
Janser GmbH cannot be held responsible for any damage or loss caused by incorrect use.
Correct use also includes to take care of all directions from the operation manual and the
execution of maintenance and service.

COLUMBUS
Grinding machines and accessories
2 PRODUCT INFORMATION
OPERATING INSTRUCTIONS
6

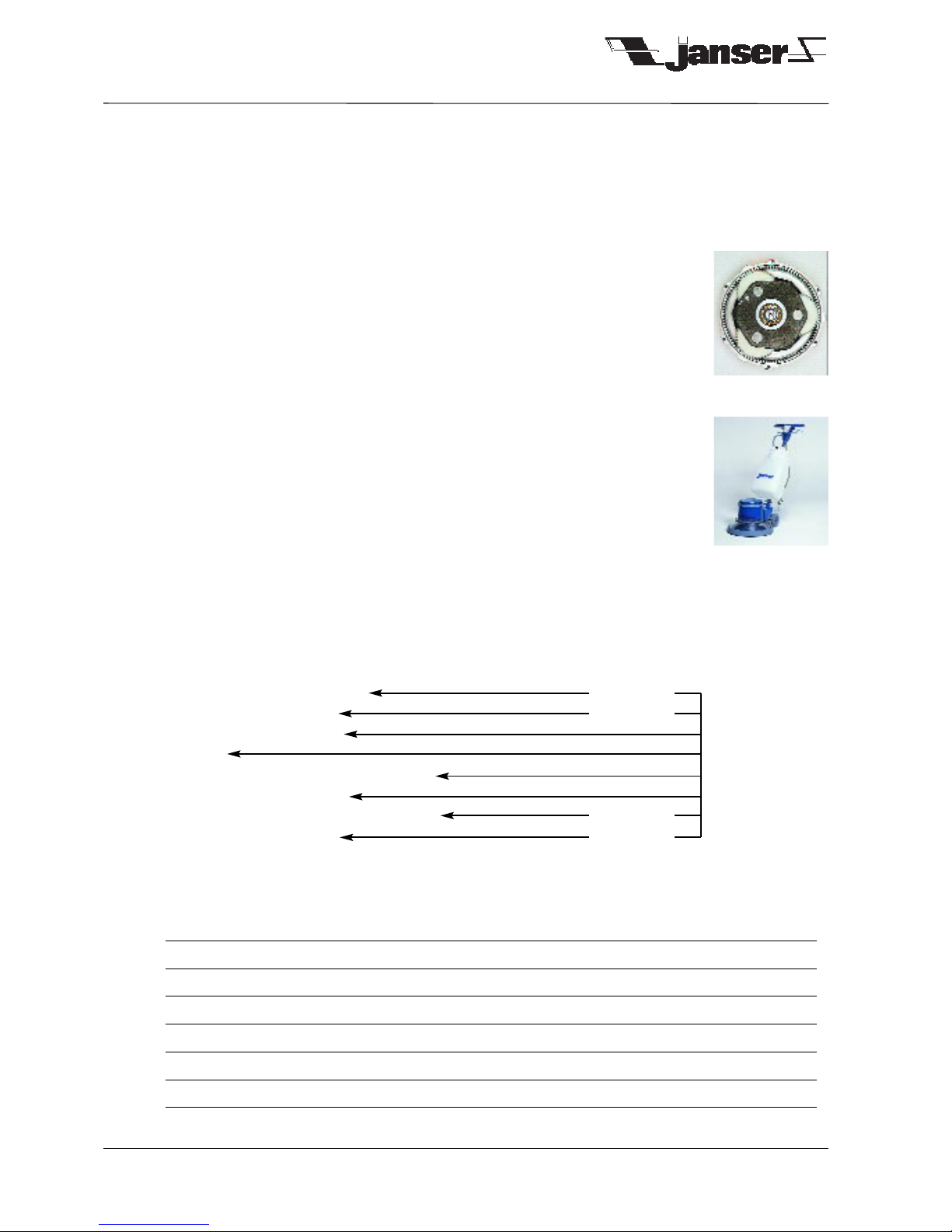

2.1 Technical Description
Columbus
Removes decisively all that unwanted material adhered to your subfloor !
This machine will mill, grind and sand your floor surface while creating a
minimum of dust - thus helping to maintain a healthier working environ-
ment.
All types of plaster, screed, asphalt and adhesive along with small surface
irregularities can be removed from the subfloor with ease.
On parquet floors the Columbus is ideal for sanding immediately before
and between sealing and varnishing coats. It can then be used for surface
cleaning, polishing and the applying of sealing wax.
With a wide range of working plate options to suit all types of floor surfa-
ces, the machine is unsurpassed in saving you time and effort.
The robust design and construction of the Columbus ensures a long life and
good reliability. The 3-gear planetary transmission designed to cope with
the toughest tasks.
With the appropriate accessories the machine is also used for shampooing
carpets. Working plates can be changed in seconds.
2.2 Restrictions of Use - Range of Application
Finish sanding of parquet
Intermediate grinding
Grinding of cork floors
Waxing
Incorporating of flooring materials
Shampooing of carpets
Grinding of wassh floors and fillers
Removing all residues
MOD.145
MOD.155
MODEL 135 SH 145SH 155S
Power supply 230V or 110 V 230V or 110 V 230V or 110 V
Motor power 1200 Watt (1,5 HP) 1500 Watt (2 HP) 2000 Watt (2,5HP)
Working Width Ø 375 mm (14 3/4’’) Ø 375 mm (14 3/4’’) Ø 375 mm (14 3/4’’)
Speed 140 rpm 140 rpm 140 rpm
Weight 42 kg (93 lbs) 42 kg (93 lbs) 50 kg (110lbs)
Order-No. 110 V 112 455 600 112 560 600 112 750 600
Order-No. 230 V 112 455 000 112 560 000 112 750 000
2.3 Technical Data
MOD.135
MOD.155

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS 7
2 PRODUCT INFORMATION

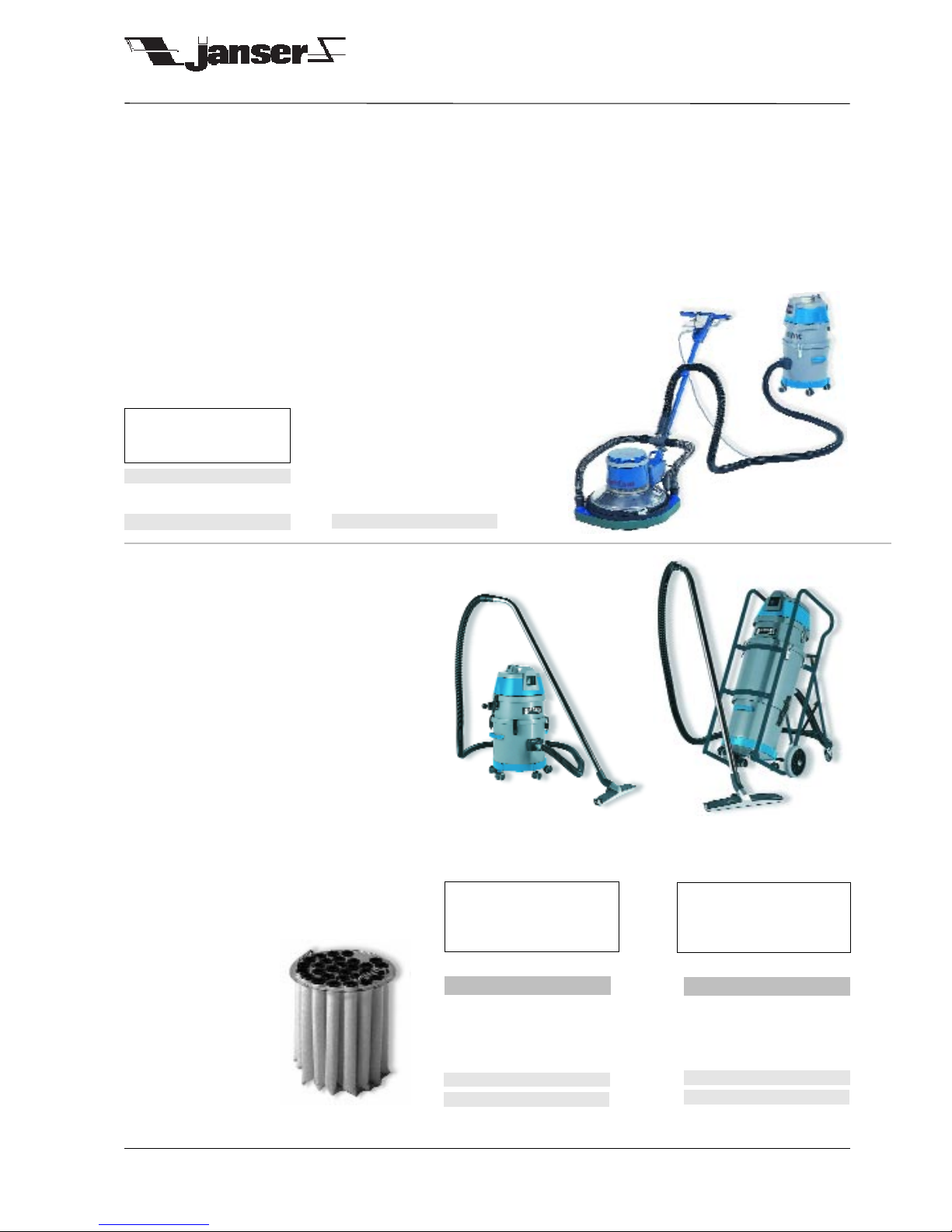

2.4 Accessory units
For connection to the JANVAC Vacuum Cleaner. Fits on Columbus Machines
This vacuum-system was developed with the latest "2-Channel Suction System".
If used in combination with a strong vacuum cleaner like the JANVAC,
grinding or sanding can be done in one dust free process with vacuum
so that hardly any dust will be left.
Dust Extraction Ring MULTI-VAC
Dust Extractors JANVAC
CONTENTS:
Dust Ring with closure-ring,
velco straps, 2 suction hoses
and T-Adapter
Order-No. 113 700 000
Spare Parts
Velcro Strap 113 700 100
Modell 1600 Modell 2400
The Teflon-coated
channel filter has a
self-cleaning effect
because the filter
material is stretched
over springs which
move automatically
when in operation.
- Built for construction materials such as
concrete, plaster, grout and stone.
- Safe when working with insanitary dust.
- Easy to transport.
- Delivered complete with cleaning
equipment.
With a 1200 Watt motor and the Teflon-
coated filter areas, the airflow is so great
that vacuuming from hand tools and the
removal of other dust is performed with-
out difficulty.
Power Supply 230V or 120 V
Motor Power 1200 Watt (1,6 HP)
Filter Area 8000 cm² (8,6 sq’)
Weight 15 kg (33 lbs)
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION
Power Supply 230V or 120 V
Motor Power 1200 Watt (1,6 HP)
Filter Area 14000 cm² (15,1sq’)
Weight 30 kg (66 lbs)
230 V 115 096 000
STANDARD ACCESSORIES:
- 4 m (13 1/8’) suction hose
Ø 38 mm (1½”)
- Rolling floor nozzle 45 cm (1½”) -
Suction pipe
STANDARD ACCESSORIES:
- 4 m (13 1/8’) suction hose
Ø 38 mm (1½”)
- Rolling floor nozzle 45 cm (1½”)
- Suction pipe
230 V 115 095 000
120 V 115 096 500
120 V 115 095 500
for older Columbus-Models
(with small wheels & foot-
rest)
Special Equipment
Clutch Adaptor 112 336 100

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS
8
2 PRODUCT INFORMATION
2.6 Accessories driving discs/brushes/plates
for Mod.135/145/155 112 300 001
Grinding Plate
with Felt
For holding sandpaper discs and also suita-
ble for compressing adhesive on PVC/lin-
oleum type floor coverings.
Polishing Brush
Scrubbing Brush
For cleaning hard surfaces
Shampooing Brush
For cleaning of rugs and carpets
Tank
Capacity 15 l
Ø 375 mm (14¾”) 112 300 002
Ø 430 mm (17”) 112 801 002
Felt Plate
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Order-No.:
for Mod.135/145/155 112 334 000
Universal Plate
For accepting sandpaper discs, sanding
gauze discs and abrasive pads.
for Mod.135/145/155 112 320 000
for Mod.135/145/155 783 000 012
for Mod.135/145/155 783 000 011
for Mod.135/145/155 783 000 010
Ø 375 mm (14¾”) 112 334 001
Ø 410 mm (16”) 112 809 001
Rubber-coconut-disc

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS 9
2 PRODUCT INFORMATION
2.4 Accessories driving discs/brushes/plates
Order-No.:
Order-No.:
Grit 12 112 309 000
Grit 16 112 311 000
Grit 24 112 312 000
Grit 30 112 313 000
Ø 375 mm (14¾”)
for Mod.135/145/155
Sandpaper
double sided
pack of 25
Grit 40 112 314 000
Grit 60 112 315 000
Grit 80 112 316 000
Grit 100 112 317 000
Grit 120 112 318 000
Pad Mounting Plate
For mounting of sanding mats and pads to
take grinding gauze.
for Mod.135/145/155 783 000 040
for Mod.135/145/155 783 000 015
Black Pad
for fixing grinding gauze
for Mod.135/145/155 783 000 041
Velcro Top
Grit 60 783 000 045
Grit 80 783 000 047
Grit 100 783 000 050
Grit 120 783 000 055
for Mod.135/145/155
Grit 150 783 000 057
Grit 180 783 000 060
Grinding Gauze
Ø 410 (16”)
pack of 10 pcs
Sandpaper - full plastic -red
double sided
pack of 25
Grit 12 112 324 000
Grit 16 112 310 000
Grit 24 112 325 000
Grit 30 112 326 000
Ø 375 mm (14¾”)
for Mod.135/145/155
Grit 40 112 327 000
Grit 60 112 328 000
Sanding Mats
Gr. 40 coarse for smoothing off wood
Gr. 80 medium for in-between smoothing
Gr.280 fine for cutting sealed floor surfaces
Grit 40 783 000 140
Grit 80 783 000 180
Grit 280 783 000 280
for Mod.135/145/155
Polyester Pads
brown for stubborn dirt
red for normal dirt
white for polishing
brown 783 000 023
red 783 000 025
white 783 000 026
for Mod.135/145/155
Regular Pads
brown 783 000 017
green 783 000 016
for Mod.135/145/155

for Mod.145/155 112 332 000
Grinding Plate
Grit 20 with 6 Rectangular Grinding Stones,
replaceable 75 x 90 mm (3 x 3½”)
For grinding of plaster and levelling compound,
removal of residual paint and gypsum, smoo-
thing of slight unevenness.
Repacement Stone Grit 20
with tapped hole
for Mod.145/155 161 515 003
Stone Disc
Grit 30
For grinding of plaster and levelling
compound.
for Mod.145+155 112 330 030
Stone Disc Grit 30 112 341 041
Spare Parts
Special Glue 112 350 000
Grinding Plate
Grit 16 with 5 truncated,conical stones,
For grinding of screed and hard plaster, asphalt
and concrete. Good grinding rate due to high
total edge measurement of hollow conical stones.
Removes unevenness, soft spots, coatings and
residual filling plaster.
for Mod.145+155 112 346 000
Grinding Stone, Grit 16112 346 001
Replacement Parts
COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS
10
2 PRODUCT INFORMATION
2.4 Accessories driving discs/brushes/plates
Steel Brush
Wire length 45 mm (1¾”)
For removal of foam backing, adhered resi-
dual underlay and carpet backing for indu-
strial floor cleaning. for Mod.145+155 112 319 000
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Ø 375 mm (14¾”)
Abrasive Disc
metal Grit 14
A thin steel disc with randomly scattered hard-
metal fragments welded to the surface.
For roughing the surface of anhydrite and scre-
ed. Also suitable for levelling off surface irregu-
larities.
for Mod.145+155 112 308 000
Plate with 6 Pot Brushes
For removal of the metallic layer that builds up
between anhydrite and magnesite screed
materials.
Also for the removal of residual foam-backing,
plaster splatter, residual paint coatings etc. and
the removal of adhered underlay.
for Mod.145+155 112 322 000
Pot Brushes 112 321 003
Replacement Parts

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS 11
2 PRODUCT INFORMATION
2.4 Accessories driving discs/brushes/plates
Surface Roughener
with Fully Hardened Metal Spikes,
replaceable
For removal of paint and synthetic sealants,
removal of adhered underlay, cork tiling and
adhesive residue for roughening industrial floors
for the removal of adhered felt board.
for Mod.145+155 112 344 000
Spare Fully
Hardened Spikes 112 344 001
Replacement Parts
Star-Wheel Grinding Plate
with 5 redating Heads of 20 wheels
each
For the effective scraping, peeling and removal
of adhesive and various coatings as well as thin
set and mastic.
for Mod.145+155 112 339 000
Grinding Head, complete 112 339
Set of 20 Grinding Wheels112 339 110
Replacement Parts
Roughening Plate with 4 hard
metal flats, very coarse Grit 10
For removal of residual adhesive (Dampening
with water assists cooling without reducing abra-
siveness). For removal of paint, paint-on coatings
and insulating screeds.
Roughening of industrial floors. The grinding
smooth of hardened anhydrite screeds.
for Mod.145+155 112 336 000
Hardmetal Flats,
set of 4 112 336 010
Replacement Parts
Grinding Plate with 8 Hardmetal
Titanium - coated Insets
Each inset is useable on 4 sides. For removal of
residual adhesive (also bitumen) or other adhe-
red surface covering material. The hardmetal
inserts can be redated to make use of all 4 cut-
ting edges in turn.
for Mod.145+155 112 343 000
Hardmetal Inset,
set of 8 112 343 001
Replacement Parts
Hexa-Plate
with 12 Carbide-Hexpins
designed with a replaceable, four-sided, abrasi-
on resistant, carbide insert to be used for scra-
ping and removal of coatings and paints from
concrete surfaces.
for Mod.145 SH+155S 112 355 000
Carbide Hexpin 112 355 020
Replacement Parts
Carbide Insert 112 355 050
Order-No.:
Order-No.:
Order-No.:
Order-No.:
Order-No.:

Hexa-Plate
with 6 Diamond-Segments
Grinding of hard surfaces such as concrete or
levelling compounds seems to be more effective
as by using other diamond plates due to the lar-
ger area covered. It also proves more effective
when grinding plaster and anhydrite screed.
for Mod.145SH+155S 112 353 000
1 pcs 112 353 020
Diamond Segment compl
with input unit
set of 6 pcs 112 353 200
1 pcs 112 353 010
Replacement Diamond Segment
set of 6 pcs 112 353 100
Abrazor Diamond Plate
with 5 Diamond Cups on Ball Bearings
For superior grinding, sanding and bevelling on
hard surfaces like concrete and coated levelling
compounds. The 5 Diamond Cups are stabilized in
a way that they work in unity. The use of a strong
Sander is recommended. (min. 1500 Watt /2 HP +
3-gear planetary) Diamond Cup (1pcs) 112 357 100
Replacement Parts
for Mod.145 SH/155 S 112 357 000
Grit 40 112 359 110
Grit 60 112 359 111
Grit 80 112 359 112
Grit 100 112 359 113
Grit 120 112 359 114
Grit 80 112 359 120
Grit 100 112 359 121
Grit 120 112 359 122
Grit 150 112 359 123
Order-No. 112 359 000
Order-No. 112 359 100
HM-Inserts 112 359 510
Replacement Parts
Satellite MULTI-PAD
for holding velcro sanding discs
Order-No. 112 359 200
MULTI-TITAN
with hard metal fragments
for grinding of hard surfaces
Order-No. 112 359 300
MULTI-DIAMOND
with diamond segments for
sanding and roughening
on hard floors
Order-No. 112 359 400
MULTI-STONE
ideal accessory to sand
cement foundations.
Eleminates brush marks
and surplus materials.
Order-No. 112 359 500
MULTI-SCRAPER
created to remove glue
underneath carpets or level-
ling products.
Velcro Sanding Paper
Ø115 mm (4½”) pack of 25
Velcro Screen Pad
Ø105 mm (4 1/8”) pack of 25
Multi-Disc-Satelites®
5 same Satellites per Shuttle needed
Multi-Disc-Shuttle®
with 5 Satellites to hold 5 Sanding- or Grinding Plates.
The particular rotation of the five satellites guarantees consistancy and stability
to the machine also during the hardest tasks.
COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS
12
2 PRODUCT INFORMATION
2.4 Accessories driving discs/brushes/plates
Order-No.:
Order-No.:

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS 13
3 IMPORTANT SECURITY INSTRUCTIONS
3.1 DETERMINED APPLICATION
3.2 ELECTRIC SUPPLY
All columbus single disc floor cleaning machines may only be used indoors for scrubbing,
polishing, shampooing of floor coverings. Certain models - see range of applications - may
also be used indoors for grinding, roughing and milling all kind of subsoils.
Before usage it has to be taken care that the connected load corresponds to the marking on
the rating plate.
Unplug machine before carrying out maintenance or repair works or changing accessories
The main cable may not be damaged by passing over, pinching, wrenching, chafing or simi-
lar. Machines may only be used with perfect cables.
When replacing cables, plugs, couplings, fuses or sockets take care the same comply with
the the specifications stated by the manufacturer and genuine spare parts are being used.
Only splash-proof couplings may be used for the main cable or extension cords.
3.3 MEASURES OF PRECAUTION
3.4 ACCIDENT CONTROL MEASURES
The machines may never be transported with the guide bar in its upright position
When transporting in elevators the relevant user instructions and safety measures especially
the carrying capacity have to be kept in.
The machine is only suitable to be used on plain areas with a miximum gradient up to 2%
Drive carefully over sills and steps to avoid damages at the edges respectively brushes or
pads
After stoppage the machine has immediately to be switched off to avoid damages on floors.
Never switch on machine when in upright position only when tilting back to working position.
Take care not to cross the cable. The working field must be always behind the machine at the
guide bar.
IN CASE OF EMERGENCY - UNPLUG MACHINE
3.5 Emissions
The equivalent A-weighted continuous sound level of these machines without suction unit lies
under 70 dB (A) and with suction unit under 81 dB (A).

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS
14
4 INSTRUCTIONS
4.1 Initial Operation
Assembling the guide bar
a. First of all the guide bar has to be fitted to the body with the four fixing nuts
which have to be tightened with a 13 mm fork wrench.
b. Then plug the cable of the guide bar on to the machine body.
c. Unlock the guide bar by pulling the lower lever on the right, tilt the machine
slightly forward into the upright position until it locks.
d. With a tipping chassis tilt the machine slightly forward and step on the wheel frame
until it locks.
4.2 Installing and changing accessories
Manual
a. Unplug the machine.
b. Tilt the machine back until the guide bar lies on the floor.
c. Install the accessory with a slight left-hand movement to the fixing device.
d. To remove it turn the same jerkily to the right.
by machine
a. Connect the main cable.
b. Put the accessory on the floor in front of the machine.
c. Tilt the guide bar into the convenient working position by pulling
the lower lever on the right and lock it.
d. Tilt the machine slightly back and move it over the accessory.
e. With a tipping chassis push the pedal of the wheel frame to move it up.
f. Switch on the machine shortly and the accessory locks in.

COLUMBUS
Grinding machines and accessories
4 INSTRUCTIONS
OPERATING INSTRUCTIONS 15
4.3 Starting the machine
a. Connect main cable.
WHEN PLUGGING THE MACHINE AND WORKING WITH THE SAME HOLD THE GUIDE
BAR WITH BOTH HANDS FIRM AND SAFE AND NOT CLENCHED!
b. By pulling the lower lever on the right tilt the guide bar back into the convenient
working position and lock it. Release lever.
c. Push the key button on the back of the switch box. Manipulate switch lever.
(Security against unintended turn-on)
d. Release key button, machine is turned on.
e. Release of switch levers turns off machine.
f. For switching on and working with the machine it is sufficient to manipulate
one of the two switch levers.
4.4 Operation
a. The grinding machines are self-runners, that is to say by slightly pushing or
pulling the guide bar the machines move to the left or right.
movement to the left -> pushing guide bar slightly !
movement to the right -> pulling guide bar slightly !
TO AVOID CROSSING THE CABLE WHEN WORKING PUT THE SAME
OVER THE SHOULDER !
4.5 Transport
a. For transporting the machine tip the same slightly back and move the guide bar
into the upright position.
b. Then the machine can easily be tilted backwards and being transported without
problems.

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS
16
5 MAINTENANCE
Machines and appliances have to be kept dry and to be protected against frost and
heat.
Motor and gear of the machines are maintenance-free, only the dirt residues under
the motor cover have to be removed regularly thus guaranteeing a good cooling of
the motor.
Machines and appliances may only be cleaned with a dry or with a gentle detergent
slightly moistured cloth. No wet cleaning otherwise endangering the electrical safety.
When the suction efficiency is decreasing the cloth filter cartridge in the suction unit
GK has to be cleaned. The filter cap has only to be batted. If necessary the filter
plate beneath (fleece) has to be replaced.
When extremely soiled dust bag and motor filter may be washed in lukewarm water
with gentle washing-powder. However both may only be fitted again after complete
drying.
Maintenance inspection and repair work (including change of the main cable and
carbon brushes of the motor) may only be carried out by authorized service centers or
qualified trained personnel.
After approximately 600 working hours the carbon brushes of the motor have to be
replaced.
When using extension cords or replacing main cables it has to be taken care that the
same comply with our specifications PVC sheated cables H05W-F in accordance with
DIN 57281/VDE 0281. The plugs have to be # of rubber or PVC and the outlet direc-
tion of the cable has to correspond with the direction of the plug pins. When changing
the main cable the under chapter 4 stated relevant safety regulations have to be kept
to.

COLUMBUS
Grinding machines and accessories
OPERATING INSTRUCTIONS 17
MODELS 135S 145SH 155S
1 grinding machine complete 112 455 000 112 560 000 112 750 000
2 machine body 112 455 001 112 560 001 112 750 001
3 guide bar complete 112 750 100 112 750 100 112 750 100
4 guide tube complete 112 750 150 112 750 150 112 750 150
5 frame with wheels co. 112 750 160 112 750 160 112 750 160
6 switch box complete 112 750 110 112 750 110 112 750 110
6 SPARE PARTS
4.3 Subassembly Survey

230 Volt - 112 560 000
120 Volt - 112 560 600
Columbus
Model 145 SH
S P A R E P A R T S STAND: 03 / 2001
230 Volt - 112 560 001
120 Volt - 112 560 601
Machine body2
Page 1

20369600
1Closure112 500 011
54
3Screw M6x20006 706 020
53
3Lock washer J6,4017 410 006
52
20058900
1Centring ring112 300 022
51
20057100
1Segment ring112 200 014
50
20057200
3Catch bolt112 400 069
48
20062000
3Rubber piece112 300 021
47
20057000
1Intermediate ring112 400 04
6
46
20437000
1Bumper112 400 03
0
45
20009300
1Hex. nut M12x1112 400 06
8
44
4Hex. nut M6 STOP
P
012 300 00
6
43
20037201
1Housing112 400 05
6
42
2Hex. nut M8013 700 00
8
41
2Scre
w
M8x50004 608 05
0
40
20023000
1Hose sleev
e
112 400 067
39
20413001
1Switch box, lower part, blu
e
112 750 00
6
38
20060000
1Lock washe
r
J4,3017 410 00
4
37
20159300
1Scre
w
M4x6006 804 00
6
36
20530100
1Plug112 550 012
35
20530000
1Socket 10A112 550 004
34
20010800
4Screw M4x8006 804 008
33
20000300
4Washer A 4,3014 600 041
32
20412901
1Switch box, upper part, blue112 750 005
31
20036000
2Screw CM5x10006 805 010
30
20409300
1Terminal 4-pol112 500 013
29
2Screw M3x16006 803 016
28
1Screw M4x8006 804 008
27
20135800
1Strip112 750 022
26
20161300
1Cable strip112 700 013
25
2Screw M6x25004 006 025
24
20000700
2Washer A 6,4014 600 061
23
20056300
1Counterweight112 400 133
22
20026500
2Carrying handle112 400 06
4
21
20026400
2Bolt for handle112 400 06
5
20
20544200
1Terminal isolation112 750 01
6
19
20088600
1Starting condense
r
230V/50Hz - 120 µF
120V/60Hz - 500 µF
112 500 030
112 500 700
18
20088500
1Capacitor
230V/50Hz - 30 µF
120V/60Hz - 100 µF
112 700 020
112 500 607
17
20413600
1Gasket112 750 017
16
20530331
1Planetary gea
r
3P
L
112 560 050
15
20580032
1Rotor112 550 061
14
20037600
1Centrifugal switch112 700 00
8
13
1Bearing 6001 2RS050 204 00
8
12
20045200
1Washe
r
112 400 14
0
11
4Scre
w
M5x35000 305 03
5
10
20575332
1Motor housing with stato
r
230V/50Hz
120V/60Hz
112 560 060
112 560 660
9
20413701
1Ring BN12x12112 550 062
8
2Lock washer J4,3017 410 00
4
7
2Screw M4x16000 304 01
6
6
20413501
1Cooling fan112 550 151
5
20029700
1Safety ring I 10x1017 000 101
4
3Screw M5x10006 805 010
3
20413204
1Safety cover, silver112 560 004
2
20056400
1Safety ring112 400 001
1
Referenz
VK/DM
Vertrieb
VK/DM
Export
VK/DM
Inland
PcsDescriptionOrder-NoPos
230 Volt - 112 560 000
120 Volt - 112 560 600
Columbus
Model 145 SH
S P A R E P A R T S STAND: 03 / 2001
230 Volt - 112 560 001
120 Volt - 112 560 601
Machine body2
Page 2

112 750 000
12316
112 560 000
104880
112 455 000
104284
Art.-Nr.
up Manr
155S145SH135SH
MOD.
S P A R E P A R T S DATE: 31.05.2006
112 750 100
Handle with support compl.
3
Page 1
/
3
