Foreword
Thank you for purchasing the JRC GPS Navigator JLR-7900/7600.
This equipment is a high-performance navigation equipment consisting of a DGPS/GPS
sensor and navigator, can retrieve the position data using the DGPS/GPS sensor to display
various navigation information on the display.
ƔThoroughly read this instruction manual before operating the equipment.
ƔKeep this manual nearby the equipment to allow ready access to it if necessary. It may
provide valuable information on how to deal with a given situation that may arise during the
operation.













7ZPNA4288

ii
Before Commencing the Operation
Symbols
Several symbols are used in this manual to ensure safety and proper operation of the
equipment and to avoid possible human injury or property damage. These symbols and
their meanings are shown below. Please read and understand these symbols before
proceeding to read this manual.
WARNING Instructions shown with this symbol represent what can
cause death or serious injury if not observed.
CAUTION Instructions shown with this symbol represent what may
cause injury or property damage if not observed.
Examples of the Symbols
The symbols shown in the ∆mark represent those that require attention
(including potential dangers and warnings).
A depiction of the type of caution is shown inside the symbol (the left
symbol indicates a general caution).
The symbols shown in the mark represent actions which are
prohibited. A depiction of the type of prohibited action is shown inside
the symbol (the left symbol indicates that disassembly is prohibited).
The symbol indicates required actions. A depiction of the type of
required action is shown inside the symbol (the left symbol indicates that
the power plug must be disconnected from the outlet).

iii
Precautions Upon the Operation
WARNING
Do not disassemble or modify the equipment. Doing so may result in fire,
electric shock, or equipment failure.
Do not allow the display to become wet. Doing so may result in fire, electric
shock, or equipment failure.
Operate the equipment only at the indicated voltage. Failure to do so may
result in fire, electric shock, or equipment failure.
Do not perform internal inspections or modifications of the equipment.
Inspection or modification by unauthorized personnel may result in fire, electric
shock, or equipment failure. Please consult with JRC or an affiliate to perform
internal inspections or repair.
When disposing of the used lithium battery, place insulating tape over the
battery terminals, or otherwise insulate the battery. Failure to do so may result
in heating, explosion, or fire due to a shorted battery.
Install this unit at least 1 m away from any magnetic compasses. Installation
near a magnetic compass may result in interference with the magnetic
compass, and may result in an accident.
Do not perform internal inspections or modifications of the equipment.
Inspection or modification by unauthorized personnel may result in fire,
electric shock, or equipment failure. Please consult with JRC or an affiliate
to perform internal inspections or repair.

iv
Precautions Upon the Operation
CAUTION
Do not use the equipment in the environment other than those provided in the
specification. Doing so may result in equipment failure, malfunction, or injury.
Do not install the equipment in the place subject to vibration or shock.
Doing so may result in the equipment falling or collapsing, resulting in
equipment failure or injury.
Do not place any item on the top of the equipment.
Doing so may result in equipment failure, malfunction, or injury.
Please consult with JRC or an affiliate to perform installation. Installation by
unauthorized personnel may result in malfunction.
Do not install the display unit in the location where it may come in contact with
water, oil, or chemicals. Doing so may result in equipment failure,
malfunction, or injury.
This equipment is not designed to automatically make judgments on the
position data. The navigation information including the position data needs to
be judged by the user himself.
Do not use benzine, alcohol or thinner when caring this equipment.
Doing so may result in removing the paint or changing of properties.
Wipe off the grime lightly with a dry soft cloth.
Use the indicated screws when installing the display unit to a stable wooden
surface. Failure to do so may result in the display unit falling over, causing
injury or property damage.
Use only the specified fuse.
Failure to do so may result in fire or equipment failure.
Use only the specified battery.
Failure to do so may result in equipment failure or malfunction.

v
When connecting the cable attached to the equipment, do not bend it acutely, twist
it, or impart excessive force. Doing so sometimes causes cracks or damage to the
coating, resulting in fire or electrocution.
Do not install the sensor where there is excessive vibration.
Vibration may cause sensor failure.
Do not paint the sensor.
Doing so may result in reception problems.
Do not install the sensor where temperature exceeds 55 degrees Celsius and
there is covered with exhaust gas from funnel . Doing so may result in equipment failure
or malfunction.
Use the fit cable, when connecting to the junction box.
The Junction box rubber gaskets (25 f Gland side) fit 10mm – 20mm cables.
Install the sensor where there are no obstacles, in order to ensure that GPS signals
can be directly received from satellites without interference or reflection of signals
from surrounding objects.
Whenever possible, select a place with the following characteristics.
If it is difficult to find an ideal site, select a place temporarily and install the equipment. Conduct a
test to make sure that the proper performance can be obtained and then fix the equipment in
position. If it is installed at an improper place, reception accuracy may be impaired.
CAUTION
1. An open space, which allows uniform reception of satellite signals.
2. Far away from any high power transmission antennas.
3. Outside radar beams.
4. Away from the INMARSAT antenna by at least 5 meters and outside
the INMARSAT beam.
5. Away from the antenna of a VHF transmitter and a direction finder
by at least 3 meters.
6. Away from a Magnetic Compass by at least 1 meter.
7. 3 meters or more away from amateur radio antennas.

vi
Appearance of the Equipment
●NWZ-4610 Display Unit
●JLR-4341 DGPS Sensor Unit
●JLR-4340 GPS Sensor Unit

vii
Terminology
Term Meaning (Descriptions)
2D (2 dimension) Positioning with antenna elevation height in addition to satellite
data.
3D (3 dimension) The three dimensional position fix, 4 or more satellites required.
Active route Route that is currently used by a ship
Anchor alert This alert monitors that the own ship is the preset distance or more
away from the waypoint.
Arrival alert This alert informs that the own ship has traveled the preset distance,
approaching the waypoint.
Beacon information Beacon data which is broadcast by message type 16.
CCRP Abbreviation of Consistent Common Reference Point. Reference
position of the own ship.
CDI Abbreviation of Course Deviation Indicator. This indicator shows
information on the deviation from the scheduled route and on the
direction into which the ship should be steered.
Checksum An error detection method to check that the data has been correctly
transmitted.
COG Course Over Ground.
Course Direction in which the ship is traveling, which is the bearing mainly
displayed by the GPS.
DISP-DPU The main circuitry of display unit.
DGPS Abbreviation of Differential Global Positioning System. GPS
satellite error data sent from a reference station whose position is
accurately known is received via beacon from a beacon station,
improving positioning accuracy.
FRAM Nonvolatile memory using a ferroelectric substance.
Geodetic Conditions for expressing position via latitude and longitude.
GPS Satellite (GPS) Abbreviation of Global Positioning System. Refers to satellites
launched for navigational support of military vessels managed by
the United States Department of Defense.
HDOP Abbreviation of Horizontal Dilution of Precision. Indicates accuracy
of positioning. The smaller the number, the higher the accuracy. If
GPS satellites are unevenly distributed, this number will grow. If
GPS satellites are evenly distributed, this number will be smaller.
IEC IEC is the abbreviation of International Electrotechnical
Commission. It is an international standard governing electrical
and electronic technologies.
IPXX IPXXisDegrees of protection provided by enclosures (IP Code)
1st numeral: Against ingress of solid foreign objects (0 – 6)
2nd numeral: Against ingress of water with harmful effects (0 - 8).
(IPX4: splash-proof, IPX6: waterproof)
LCD Unit (LCD) Liquid Crystal Display Unit.
Log Pulse Contact output signal, output pulse per nm.
Expressed in units of "p/nm". mi/h Unit of ship speed.
display Method for expressing the present position with loran system time

viii
difference. (The method is for operators who have a background in
loran navigation.)
Master reset This function changes the settings of the display unit and GPS
sensor back to the factory settings. The function clears all the
data.
Multipath Wave Waves received from multiple directions due to reflection or
refraction of an initial wave by obstacles.
NMEA0183 (NMEA) Abbreviation of National Marine Electrical Association 0183.
International standard for naval equipment transmission
established by the National Marine Electrical Association.
Positioning Use of GPS or DGPS receiving functions to determine the current
position of a ship.
RAIM Accuracy Standard
(RAIM) Abbreviation of Receiver Autonomous Integrity Monitoring. This
system automatically detects failed satellites and deselects their
positioning data from calculations. Including data from failed
satellites will result in a decrease in positioning accuracy; the RAIM
accuracy standard indicates the accuracy degradation base for
removal of failed satellites from positioning calculations.
Ranging Positioning with the use of SBAS satellite in addition to GPS
satellite.
Reception Level GPS signal reception level.
Route plan Plan registered with multiple waypoints in the navigation order
RS-422 Balanced serial transmission standard.
RS-485 Balanced serial transmission standard.
SBAS Abbreviation of Satellite Based Augmentation System. It is a
blanket term for wide scale GPS support systems using fixed
position satellites which send GPS error correction data over a wide
range.
SBAS Search SBAS reception mode (manual / automatic).
Smoothing Function for averaging over a specified number of seconds.
SOG Speed Over Ground, This is the ship’s relative speed to the ground.
SPEED The speed mainly measured by the GPS.
STW Speed Through Water.
Symbol information Information of symbols displayed on the plotting screen. The
information includes symbol positions, comments, etc.
TD Abbreviation of Time Difference. Time difference from the
master-station signal of the loran system to the slave-station signal.
Message Type 0 SBAS satellite test broadcasting.
UTC Abbreviation of Coordinated Universal Time.
XTD alert This alert informs that the own ship has got out of the scheduled
route by the preset distance or more.

ix

Contents
FOREWORD......................................................................................................................................... I
BEFORE COMMENCING THE OPERATION ..................................................................................... II
PRECAUTIONS UPON THE OPERATION ........................................................................................ III
PRECAUTIONS UPON THE OPERATION ........................................................................................IV
APPEARANCE OF THE EQUIPMENT...............................................................................................VI
TERMINOLOGY ................................................................................................................................VII
SECTION 1 EQUIPMENT OVERVIEW..............................................................................1-1
1.1 FUNCTIONS ......................................................................................................................... 1-1
1.2 FEATURES ........................................................................................................................... 1-1
1.3 CONFIGURATION ................................................................................................................ 1-2
1.3.1 Standard configuration ..................................................................................................... 1-2
1.3.2 Option............................................................................................................................... 1-3
1.4 CONSTRUCTION ................................................................................................................. 1-4
1.5 SYSTEM DIAGRAM............................................................................................................ 1-18
SECTION 2 NAMES AND FUNCTIONS OF THE COMPONENTS ...................................2-1
2.1 NWZ-4610 DISPLAY UNIT ................................................................................................... 2-1
2.2 JLR-4341 DGPS SENSOR ................................................................................................... 2-3
2.3 JLR-4340 GPS SENSOR...................................................................................................... 2-3
SECTION 3 DISPLAY SCREEN ........................................................................................3-1
3.1 DISPLAY SCREEN ............................................................................................................... 3-1
SECTION 4 OPERATION ..................................................................................................4-1
4.1 MENU LIST ........................................................................................................................... 4-1
4.2 BASIC OPERATION ............................................................................................................. 4-7
4.2.1 Turning the Unit On.......................................................................................................... 4-7
4.2.1.1 Startup (Standard) .................................................................................................... 4-9
4.2.1.2 Startup (Error-1) ....................................................................................................... 4-9
4.2.1.3 Startup (Error-2) ....................................................................................................... 4-9
4.2.1.4 Startup (Error-3) ....................................................................................................... 4-9
4.2.2 Turning off the power ..................................................................................................... 4-10
4.2.3 Adjusting the Backlight by using the kry ........................................................................ 4-10
4.2.4 Adjusting contrast .......................................................................................................... 4-10
4.2.5 Turning off the buzzer .................................................................................................... 4-11
4.2.6 Switching display ........................................................................................................... 4-11
4.2.7 Alert display.................................................................................................................... 4-11
4.2.8 Selecting items from the menus..................................................................................... 4-12
4.2.9 Entering a numeric value ............................................................................................... 4-13
4.3 PLOT SCREEN OPERATION............................................................................................. 4-14
4.3.1 Cursor Operation ........................................................................................................... 4-14
4.3.1.1 Displaying the Cursor ............................................................................................. 4-14
4.3.1.2 Moving the Cursor .................................................................................................. 4-14
4.3.2 Zooming the Screen In and Out..................................................................................... 4-14
4.3.3 Centering the Own Ship on the Screen ......................................................................... 4-15
4.3.4 Registering the corsor position ...................................................................................... 4-15
4.3.5 Registering the Own ship's position............................................................................... 4-15
4.3.6 Track Display ................................................................................................................. 4-15
4.3.6.1 Setting the Track Period......................................................................................... 4-16
4.3.6.2 Deleting Tracks....................................................................................................... 4-16
4.3.7 Waypoint Symbol and Route Display............................................................................. 4-16
4.3.7.1 Changing Waypoint Symbol ................................................................................... 4-17
4.3.7.2 Changing Event/Mark Symbol................................................................................ 4-17
4.3.7.3 Deleting Event/Mark Symbols ................................................................................ 4-17
4.3.8 Changing Route into Track ............................................................................................ 4-18
4.4 REGISTERING WAYPOINTS ............................................................................................. 4-19
4.4.1 Displaying the Waypoint List.......................................................................................... 4-19
4.4.2 Registering Waypoints ................................................................................................... 4-19
4.4.2.1 Registering the Own Ship Position......................................................................... 4-20

4.4.2.2 Registering Latitude and Longitude ....................................................................... 4-20
4.4.2.3 Registering a Bearing and Distance from a Specified Position.............................. 4-21
4.4.3 Editing Waypoint Information ......................................................................................... 4-22
4.4.4 Copying Waypoint Information....................................................................................... 4-23
4.4.5 Deleting Waypoints ........................................................................................................ 4-23
4.5 ROUTE PLANNING ............................................................................................................ 4-24
4.5.1 Displaying the Route List ............................................................................................... 4-24
4.5.2 Creating Routes ............................................................................................................. 4-25
4.5.3 Editing Routes................................................................................................................ 4-27
4.5.3.1 Changing Route Number ....................................................................................... 4-27
4.5.3.2 Changing route Information.................................................................................... 4-27
4.5.3.3 Skipping Route Waypoint ....................................................................................... 4-27
4.5.3.4 Adding Route Waypoints........................................................................................ 4-28
4.5.3.5 Deleting Route Waypoints...................................................................................... 4-29
4.5.4 Copying Routes ............................................................................................................. 4-30
4.5.5 Deleting Routes ............................................................................................................. 4-31
4.6 PERFORMING NAVIGATION ............................................................................................. 4-32
4.6.1 Selecting a Route from the Route List ........................................................................... 4-32
4.6.2 Selecting a Waypoint/Route with the GOTO Key .......................................................... 4-33
4.6.3 Stopping Navigation ....................................................................................................... 4-36
4.6.3.1 Ending Navigation with GOTO Key........................................................................ 4-36
4.6.3.2 Ending Navigation in Menu .................................................................................... 4-36
4.7 ENTERING COMMENTS.................................................................................................... 4-37
4.7.1 Text Entry ....................................................................................................................... 4-37
4.7.2 Deleting Text .................................................................................................................. 4-38
4.7.2.1 Deleting One Character ......................................................................................... 4-38
4.7.2.2 Deleting All Characters........................................................................................... 4-38
4.7.3 Adding Text .................................................................................................................... 4-39
4.7.4 Canceling Comment Entry ............................................................................................. 4-39
4.8 MOB .................................................................................................................................... 4-40
4.9 SETTING DISPLAY............................................................................................................. 4-41
4.9.1 Adjusting contrast .......................................................................................................... 4-41
4.9.2 Adjusting back light ........................................................................................................ 4-41
4.9.3 Setting a click sound ...................................................................................................... 4-42
4.9.4 Setting a display screen................................................................................................. 4-42
4.9.4.1 STEP1 Selecting a screen................................................................................... 4-42
4.9.4.2 STEP2 Selecting a screen structure.................................................................... 4-43
4.9.4.3 STEP3 Selecting display contents....................................................................... 4-44
4.9.5 Selecting a back light color ............................................................................................ 4-46
4.10 SYSTEM SETTINGS .......................................................................................................... 4-47
4.10.1 Setting Speed and Anntena height Unit ......................................................................... 4-47
4.10.2 Setting the Time Difference............................................................................................ 4-47
4.10.3 Setting the Date Display ................................................................................................ 4-48
4.10.4 Setting Magnetic Correction........................................................................................... 4-48
4.10.5 Displaying as Loran C time differnce ............................................................................. 4-49
4.10.6 Setting the Geodetic System ......................................................................................... 4-49
4.11 LANGUAGE SETTINGS ..................................................................................................... 4-50
4.12 ALERT SETTINGS.............................................................................................................. 4-51
4.12.1 Setting a system alert .................................................................................................... 4-51
4.12.2 Setting a vessel speed alert........................................................................................... 4-52
4.12.3 Setting a TRIP alert........................................................................................................ 4-52
4.12.4 Setting ARRIVAL/ANCHOR Alert ................................................................................... 4-52
4.12.5 Setting XTD Alert ........................................................................................................... 4-53
4.12.6 Setting DGPS Alert ........................................................................................................ 4-53
4.12.7 Setting HDOP Alert ........................................................................................................ 4-54
4.12.8 Setting a buzzer sound and screen back light ............................................................... 4-54
4.13 GPS/BEACON/SBAS SETTINGS....................................................................................... 4-55
4.13.1 Setting GPS Mode ......................................................................................................... 4-55
4.13.2 Setting FIX Mode ........................................................................................................... 4-56
4.13.3 Setting Elevation Mask .................................................................................................. 4-56
4.13.4 Setting HDOP................................................................................................................. 4-56
4.13.5 Setting Position, Speed, and Course Smoothing........................................................... 4-57
4.13.6 Setting RAIM.................................................................................................................. 4-57
4.13.7 Initializing the GPS......................................................................................................... 4-58

4.13.8 Setting Beacon............................................................................................................... 4-59
4.13.9 Setting SBAS ................................................................................................................. 4-60
4.14 BEACON INFORMATION ................................................................................................... 4-61
4.15 EQUIPMENT CONFIGURATION........................................................................................ 4-62
4.15.1 Changing to a maintenance mode................................................................................. 4-62
4.15.2 Setting a model .............................................................................................................. 4-63
4.15.3 Selecting a dimmer unit ................................................................................................. 4-63
4.15.4 Dimmer linked control and data sharing with RS-485.................................................... 4-64
4.15.4.1 Setting RS-485ID ................................................................................................... 4-65
4.15.4.2 Linking dimmer control ........................................................................................... 4-65
4.15.4.3 Setting a dimmer group.......................................................................................... 4-65
4.15.4.4 Sharing data ........................................................................................................... 4-66
4.15.5 Setting a serial port ........................................................................................................ 4-67
4.15.5.1 Setting transmission ............................................................................................... 4-67
4.15.5.2 Setting reception .................................................................................................... 4-69
4.15.6 Setting Contact Input ..................................................................................................... 4-69
4.15.7 Setting Contact Output................................................................................................... 4-70
4.15.8 Outputting Alert history................................................................................................... 4-70
4.15.9 Checking installation ...................................................................................................... 4-70
4.15.9.1 Checking the input port .......................................................................................... 4-71
4.15.9.2 Self-diagnosis......................................................................................................... 4-71
4.15.9.3 Displaying an alert.................................................................................................. 4-72
4.15.9.4 Displaying the software version ............................................................................. 4-73
4.15.10 Performing a Master Reset (Reset) ............................................................................... 4-73
4.15.11 Performing a Demo ........................................................................................................ 4-74
4.15.12 Setting the Sub Display.................................................................................................. 4-74
4.15.13 Setting the GPS Sensor Number ................................................................................... 4-75
4.15.14 Outputting setting value ................................................................................................. 4-75
4.15.15 Setting Sensor Position / CCRP .................................................................................... 4-76
4.15.16 Calculating Trip Distance ............................................................................................... 4-76
4.15.17 Inputtig/Outputting Waypoint, Route and Track ............................................................. 4-77
4.15.17.1 Outputting Waypoint, Route and Track .................................................................. 4-77
4.15.17.2 Inputting Waypoint, Route and Trip........................................................................ 4-78
4.15.17.3 How to Use Exclusive PC Tool............................................................................... 4-80
SECTION 5 MAINTENANCE AND INSPECTION..............................................................5-1
5.1 GENERAL MAINTENANCE AND INSPECTION .................................................................. 5-1
5.2 ALERTS ................................................................................................................................ 5-2
5.3 TROUBLESHOOTING .......................................................................................................... 5-3
5.3.1 Troubleshooting ............................................................................................................... 5-3
5.3.2 Repair Unit ....................................................................................................................... 5-4
5.3.3 Regular Replacement Parts............................................................................................. 5-4
SECTION 6 INSTALLATION ..............................................................................................6-1
6.1 GPS SENSOR INSTALLATION ............................................................................................ 6-2
6.1.1 Selecting the Position for Installation............................................................................... 6-2
6.1.2 Sensor Installation Procedure.......................................................................................... 6-3
6.1.3 Installation of the Sensor on the Mast.............................................................................. 6-4
6.1.4 Installation of the Sensor to Pass a Cable through a Pole .............................................. 6-5
6.2 AFFIXING DISPLAYUNIT NAMEPLATE LABELS ............................................................... 6-7
6.2.1 Affixing Product Nameplate ............................................................................................. 6-7
6.2.2 Affixing Model Identification Plate .................................................................................... 6-7
6.3 DISPLAYUNITINSTALLATION............................................................................................ 6-8
6.3.1 Selecting the Position for Installation............................................................................... 6-8
6.3.2 Mounting the display unit using a rack............................................................................. 6-9
6.3.3 Mounting using a flash mount........................................................................................ 6-11
6.3.4 Removing the display unit by flash mounting ................................................................ 6-13
6.4 CABLE CONNECTION ....................................................................................................... 6-14
6.4.1 DC12/24V DATA Connector........................................................................................... 6-15
6.4.2 DATA1 Connector .......................................................................................................... 6-18
6.4.3 SENSOR/DATA2 Connector .......................................................................................... 6-22
6.5 OPTIONAL PERIPHERAL CONNECTION ......................................................................... 6-24
6.5.1 Sub-Display Connection ................................................................................................ 6-24
6.5.2 Printer Connection ......................................................................................................... 6-24

6.5.3 Dimmer Unit Connection................................................................................................ 6-25
6.5.4 Junction Box Connection ............................................................................................... 6-26
6.5.5 Coaxial Cable Kit Connection ........................................................................................ 6-28
6.5.6 Output buffer (NQA-4351).............................................................................................. 6-29
6.5.7 GPS Select Switch (Manual) (NCZ-1663) ..................................................................... 6-29
6.5.8 GPS Select Switch (Automatic) (NCZ-1537B)............................................................... 6-29
SECTION 7 AFTER-SALES SERVICE..............................................................................7-1
7.1 WARRANTY ............................................................................................................................. 7-1
7.2 REPAIR PARTS STOCKING PERIOD..................................................................................... 7-1
7.3 WHEN REQUESTING SERVICE............................................................................................. 7-1
7.4 RECOMMENDED CHECKS AND INSPECTION..................................................................... 7-1
SECTION 8 DISPOSAL .....................................................................................................8-1
8.1 DISPOSAL OF THE EQUIPMENT........................................................................................... 8-1
8.2 DISPOSAL OF USED BATTERIES.......................................................................................... 8-1
SECTION 9 SPECIFICATION............................................................................................9-1
9.1 NWZ-4610 DISPLAY UNIT ................................................................................................... 9-1
9.1.1 Basic Specification ........................................................................................................... 9-1
9.1.2 Environment..................................................................................................................... 9-1
9.1.3 External Interface............................................................................................................. 9-2
9.2 JLR-4341 DGPS SENSOR ................................................................................................... 9-3
9.2.1 Basic Specification ........................................................................................................... 9-3
9.2.2 Environment..................................................................................................................... 9-3
9.3 JLR-4340 GPS SENSOR...................................................................................................... 9-4
9.3.1 Basic Specification ........................................................................................................... 9-4
9.3.2 Environment..................................................................................................................... 9-4
APPENDIX 1
APPENDIX1 LIST OF GEODETIC SYSTEM.................................................................................... 1
APPENDIX2 LIST OF STANDARD TERMS, UNITS AND ABBREVIATIONS .................................. 2
APPENDIX3 DEFAULT VALUE......................................................................................................... 7
APPENDIX4 SETTING VALUE MEMO ........................................................................................ 10
APPENDIX5 LIST OF SYMBOLS ................................................................................................... 14

1-1
Section 1 Equipment Overview
1.1 Functions
This equipment (JLR-7900/JLR-7600) is a GPS navigator with a JLR-4341 DGPS or JLR4340
GPS sensor being connected to the NWZ-4610 display unit.
The GPS navigator operates around-the-clock to measure the position with high accuracy
anywhere in the world and in all weather conditions by using the GPS satellites. In addition, the
GPS navigator can increase the accuracy of position fixing by receiving correction data from the
DGPS beacon station and SBAS satellites.
1.2 Features
●Availability of three output ports
●High visibility by using 4.5-inch liquid crystal display
●Improvement of operability by using various menus
●Built-in SBAS function
●Built-in RAIM function

1-2
1.3 Configuration
1.3.1 Standard configuration
JLR-7900
No. Name Model Code Q'ty Note
1.1 Display Unit NWZ-4610 NWZ-4610 1 Main body
1.2 Data Power Cable CFQ-5766A CFQ5766A 1
14 cores/2 m/with Fuse
holder
data/contact/power
1.3 Fuse MF60NR 250V 1 5ZFGD00205 2 Display unit 1A fuse
1.4 FRONT PANEL MTV305018A MTV305018A 1
1.5 BASE KITS MPBX47065 MPBX47065 1
Base
Knob Bolt
Gear Washer
Knob Washer
1.6 Model Identification
Plate MPNN47524A MPNN47524A 1 For Rear
1.7 Product Name Plate MPNN47529A MPNN47529A 1 For Front
1.8 Flush Mounting
Drawing - - 1 For Flush Mount
1.9 Instruction Manual 7ZPNA4352 7ZPNA4352 1 English/Japanese
2.1 DGPS Sensor JLR-4341 JLR-4341 1
2.2 Instruction Manual 7ZPNA4162 7ZPNA4162 1 English
2.3 Cable Guard Rubber MPPK31468 MPPK31468 1
3 Screw Adapter MTV302007A MTV302007A 1
4 Mounting Band MPBP02520 MPBP02520 1 Include 2 bands
JLR-7600
No. Name Model Code Q'ty Note
1.1 Display Unit NWZ-4610 NWZ-4610 1
1.2 Data Power Cable CFQ-5766A CFQ5766A 1
14 cores/2 m/with Fuse
holder
data/contact/power
1.3 Fuse MF60NR 250V 1 5ZFGD00205 2 1A fuse
1.4 FRONT PANEL MTV305018A MTV305018A 1
1.5 BASE KITS MPBX47065 MPBX47065 1
Base
Knob Bolt
Gear Washer
Knob Washer
1.6 Model Identification
Plate MPNN47524A MPNN47524A 1 Rear
1.7 Product Name Plate MPNN47529A MPNN47529A 1 Front
1.8 Flush Mounting
Drawing - - 1 For Flush Mount
1.9 Instruction Manual 7ZPNA4352 7ZPNA4352 1 English/Japanese
2.1 GPS Sensor JLR-4340 JLR-4340 1
2.2 Instruction Manual 7ZPNA4008 7ZPNA4008 1 English
3 Screw Adapter MTV302007A MTV302007A 1
4 Mounting Band MPBP02520 MPBP02520 1 Include 2 bands

1-3
1.3.2 Option
No. Name Model Code Q'ty Note
1 AC Power
Rectifier NBG-320 NBG-320 1
AC100/220V input
12V output
2 AC Power
Rectifier NBD-577C NBD-577C 1
AC100/220V input
24V output
3 Data Power Cable
CFQ-5766D CFQ5766D 1
14 cores/10 m/
WithFuseholder
data/contact/power
CFQ-5766F CFQ5766F 1
14 cores/20 m/
WithFuseholder
data/contact/power
4 Data Cable CFQ-5769 CFQ5769 1 4 cores/3 m/RS-485
5 T-shaped
Connector
AA-040404-MMM-
TL
5JCDX00071 1 For RS-485
6 Junction Box CQD-10 CQD-10C 1 16 terminals
7 Dimmer Unit NCM-227 NCM-227-7
NCM-227-2
1
External dimmer unit
7.5BG7/2
2.5G7/2
8 L-TYPE
ADAPTER CFQ-9184 CFQ9184 1
9 Printer NKG-94 NKG-94 1
10 Printer Paper H-7ZPJD0384 7ZPJD0384 1
11 Extension Cable CFQ-9000 CFQ-9000 1
15 m/6 cores/
For Sensor
12 Junction Box NQE-7700A NQE-7700AA 1
13 Pole Mounting Kit MPBP30608 MPBP30608 For NQE-7700A
14 Coaxial Cable Kit NQD-4414 NQD-4414A 1
15 Output Buffer NQA-4251A/4351 NQA-4251A/4351 1
16 GPS Select
Switch NCZ-777/1663
NCZ-777AN4
NCZ-777A2/1663-2
NCZ-777A7/1663-7
NCZ-1663N2
1
Manual switch
N4
2.5G7/2
7.5BG7/2
N2.5
17 GPS Select
Switch NCZ-1537B NCZ-1537B 1 Automatic switch
18 Instruction Manual 7ZPNA4288 7ZPNA4288 1 English

1-4
1.4 Construction

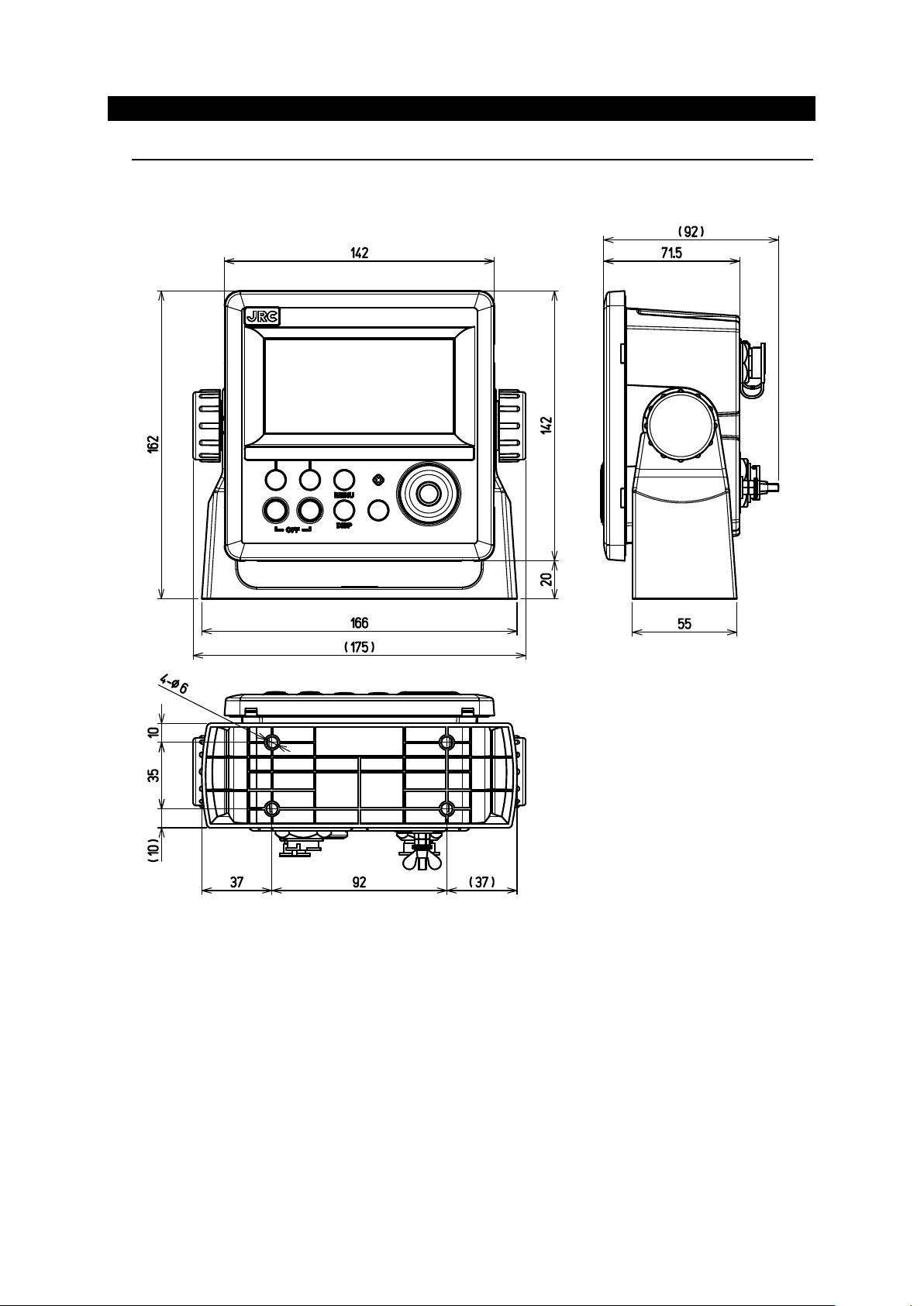

NWZ-4610 Display Unit
Unit: mm
Mass: Approximately 0.8 kg
NWZ-4610 Desktop type
