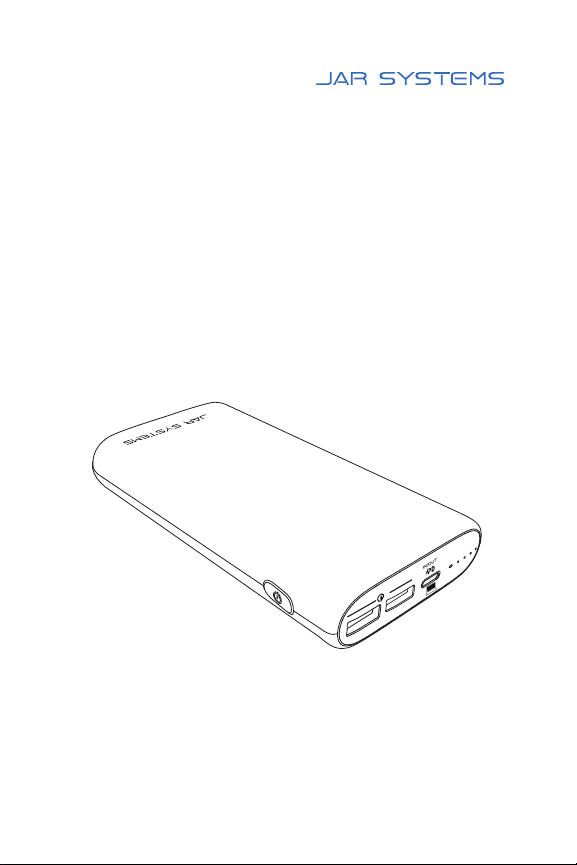

JAR Systems A4-USBC-PB User manual

Active Charge Power Bank
User Manual
Version A
[phone] |www.JAR-Systems.com/Support
3.0

Thank you for your purchase!
Please read this user manual carefully and
keep it for future reference. If you need any
assistance, please contact our support team. For
a copy of the most up-to-date manual, visit:
www.JAR-Systems.com/Support
Call: [phone]
Disclaimer: Failure to read, thoroughly understand, and follow
all instructions can result in serious personal injury, damage to
equipment, or voiding of factory warranty. Since the use of this
information, the equipment connected, and the conditions by which
any JAR Systems product is used is beyond the control of JAR
Systems, it is the obligation of the owner and/or user to determine the
correct and safe use of any equipment and product. To the extent that
the law permits, any liability which may be incurred as a result of the
use or future use of a product manufactured or sold by JAR Systems
is limited to the cost of repairing or replacing the failed product or
component at the discretion of JAR Systems either within, or outside
of warranty periods, and does not extend to any loss or damage
which may be caused as a consequence of misuse or failure of the
equipment, product or the information contained herein. JAR Systems
shall not in any event be liable for economic loss of profits, indirect,
special, bodily injuries or consequential damages. Specifications and
images are for illustration purposes only. Final product may differ and
is subject to change without notice.

Manual Contents
Power Bank
Diagram . . . . . . . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . 2
Technology
USB PD (Power Delivery) . . . . . . . . . . . 3
Quick Charge 3.0 . . . . . . . . . . . . . . . 3
Requirements for USB PD . . . . . . . . . . . 3
Getting Started
Charging the Power Bank . . . . . . . . . . . 3
Charging a Device . . . . . . . . . . . . . . . 4
Low-Current Charging Mode . . . . . . . . . 4
Product Use and Care
Warnings . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . 5
Charge Non-USB-C Devices
Available Charging Emulators . . . . . . Back

LED BatteryLevel Indicator
Power Button
USB-A 1 Output
USB-A 2 Output
USB-C 1 Input 45W / Output 65W
USB-C Fast Charging Indicator (Orange)
3.0
Power Bank
Diagram
Specifications
Part Number A4-USBC-PB
Technology USB Power Delivery 3.0 and
Qualcomm®Quick Charge™3.0
Capacity 20000mAh | 74Wh
Battery Type Lithium-ion
USB-C 1 Input (45W Power Delivery 3.0)
5V=3A/9V=3A/12V=3A/15V=3A/20V=2.25A
USB-C 1 Output (65W Power Delivery 3.0)
5V=3A/9V=3A/12V=3A/15V=3A/20V=3.25A
USB-A 1 Output (Quick Charge 3.0)
5V-V=3A/6V-9V=2A/9V=1.5A
USB-A 2 Output
Max Power
Output 65W
Dimensions 6.17”x2.91”x0.98” | 156.7mm x74mm x25mm
Weight 13.6 oz | 385.55 g

Technology
What is USB PD (Power Delivery)
USB Power Delivery is a universal multi-voltage charging
standard that enables the maximum functionality of USB.
It provides flexible power delivery bidirectionally, along with
data, through a single cable to recharge a wide range of
compatible devices safely and efficiently.
What is Required for USB PD
∙ Electronic devices that have a USB PD compatible port.
(Power bank, laptop, tablet, phone, etc.)
∙ A power source with USB PD compatible port.
(Adapt4 USB-C Charging Station, wall charger, etc.)
∙ A USB PD compatible cable to connect the power source
to the electronic device. (USB-C or Thunderbolt cables)
What is Quick Charge 3.0?
Quick Charge 3.0 charges compatible devices up to four
times faster than conventional charging. It is engineered to
refuel devices twice as fast as Quick Charge 1.0 and is up
to 38% more efficient than Quick Charge 2.0. It is backward
compatible with Quick Charge 2.0/1.0 devices.
Getting Started
Charging the Power Bank
Fully charge the power bank before the first-time use.
∙ Connect a USB-C cable to a USB PD power source such
as the Adapt4 USB-C Charging Station or a wall charger.
∙ Connect the other end to the power bank’s USB-C port.
∙ The LED battery level indicator lights will flash white
indicating the power bank is charging.
∙ Unplug the power bank when fully charged, indicated by
all LED battery level indicator lights staying solidly white.

Charging A Device
∙ Connect a charging cable to a device’s charging port.
∙ Connect the other end of the cable to a compatible port
on the power bank, charging cables need to be either
USB-A or USB-C port compatible. (Larger devices such as
a laptop will need to be connected to the USB-C port to
be able to charge.)
∙ Turn on the power bank by pressing the power button.
∙ Unplug the device when it is fully charged.
∙ To check the remaining power bank level, press the
power button and the LED battery level indicator lights
will indicate the remaining amount.
Low-Current Charging Mode
Designed to charge low-current devices (60mA or less).
Try switching to this mode if a low-powered device (such
as wireless headphones or a fitness tracker) is not charged
using the default fast-charge mode.
∙ Press and hold the power button for 2 seconds to enter
low-current charging mode.
∙ The LED battery level indicator light nearest the USB-C
fast charging indicator will turn green, while the other
lights will stay white.
∙ After 2 hours of charging in this mode, the power bank
will automatically switch back to the default fast-charge
mode and turns off.
∙ Press and hold the power button for 2 seconds to end
low-current charging and enable the default fast-charge
mode.
∙ Unplugging and re-plugging in the charging cable from
the power bank will also exit low-current charging mode.
∙ Charging in low-current charging mode will not harm the
connected device’s battery.

Product Use & Care
Warnings
Best Practices
∙ Do not charge a device while recharging the power bank.
∙ Recharge the power bank at least once every 3 months.
To avoid possible injury:
∙ Do not crush or puncture the power bank.
∙ Do not expose the power bank to water or other liquids.
∙ Keep the power bank away from fire and extreme heat.
∙ Do not open, disassemble, or service any internal parts of
the power bank.
∙ Stop using the power bank if it is damaged, or if you
notice any discharge or the buildup of foreign materials
anywhere on the power bank.
Symbols and Meanings
Batteries, electrical, and electronic equipment
marked with the symbol of a crossed-out wheeled
bin may not be disposed as unsorted municipal
waste. When disposing of the power bank, comply
with local laws or regulations for battery disposal.
European Union conformity – for Class B products
that do not have any models with wireless
devices This product is in conformity with the protection
requirements of EU council directive 2014/30/EU on the
approximation of the laws of the member states relating to
electromagnetic compatibility.
JAR Systems cannot accept responsibility for any failure to
satisfy the protection requirements resulting from a non-
recommended modification of the product, including the
installation of options cards from other manufacturers.
Warranty
For questions, support, or warranty claims, contact
JAR Systems customer support team.

Charge Non-USB-C Devices
Available Charging Emulator Cables
Connect and charge older, non-USB-C devices to USB PD
ports with USB-C PD emulator cables. Listed below are just
a few of the compatible models of each charging emulator
tip that fit into devices power adapter charging port.
Compatibility Part Number Emulator Tip
Acer
Chromebook C72
A4-UCAC-C72 3.00 x 1.10 mm
Apple
Macbooks, tablets, iPhones,
A4-UCAP-LGN Lightning
A4-UCAP-MS1 MagSafe 1
A4-UCAP-MS2 MagSafe 2
Asus
Chromebook C20
A4-UCAS-C20 4.00 x 1.35 mm
Dell/HP
Chromebook C11
A4-UCDL-C11 7.40 x 5.08 mm
HP
Chromebook C13
A4-UCHP-C13 4.50 x 3.00 mm
Lenovo
ThinkPad 11E Chromebook,
N21 Chromebook,
X131 Chromebook,
A4-UCLN-11E Rectangle ‘Slim Tip’
11 x 4.50 mm
A4-UCLN-N21 4.00 x 1.70 mm
A4-UCLN-X131 7.90 x 5.55 mm
Microsoft
Select Surface models
A4-UCMS-SF2 5-Pin Magnetic
Call to Order | [phone]
