Jeep Grand Cherokee User manual

Jeep New Cherokee
Quick guide to Repairs

Jeep New Cherokee
Contents
Contents
1. Vehicle identification data
2. Electrical system
2.1 Engine compartment fuse box
2.2 Internal fuses

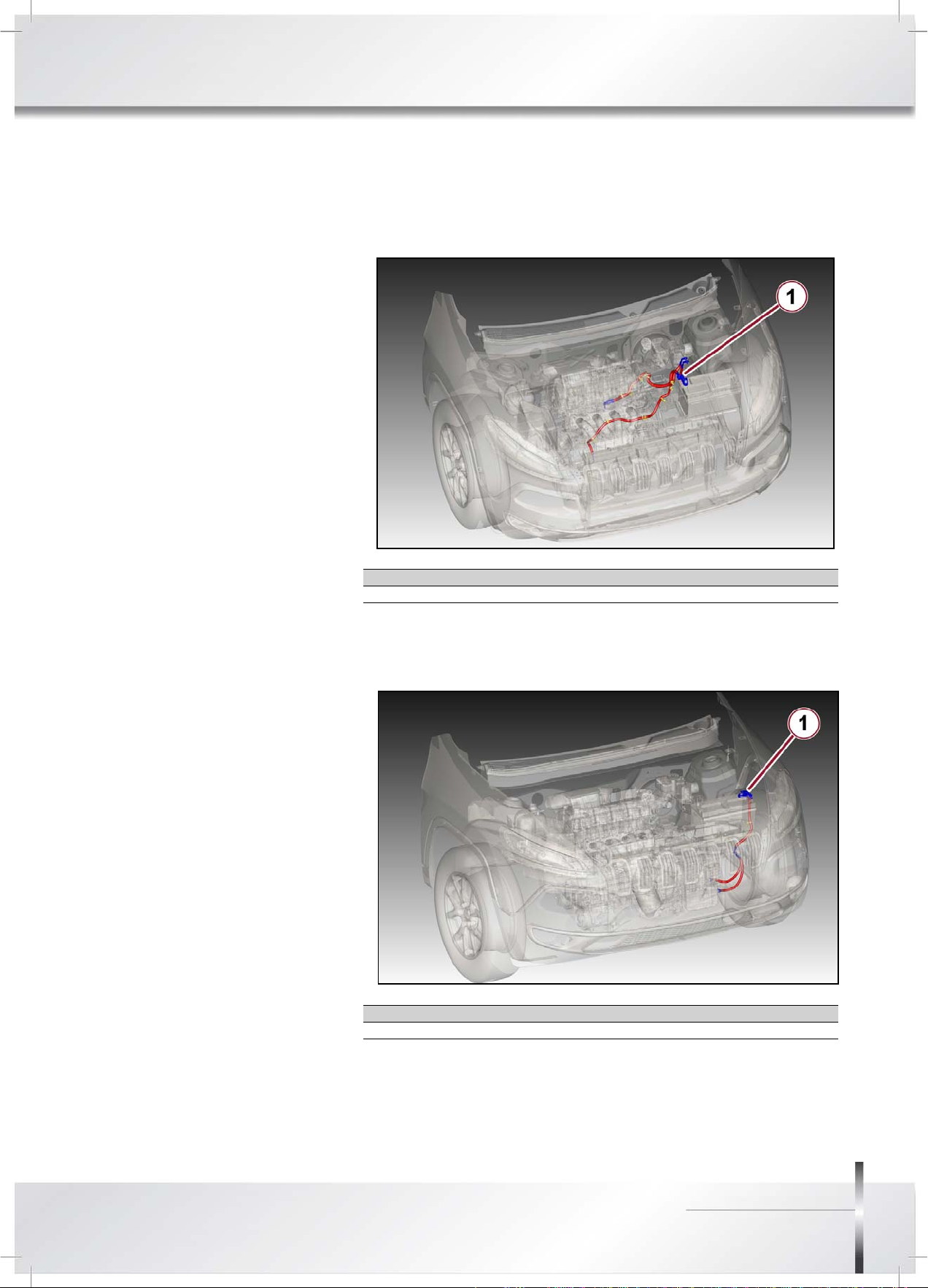

2.3 Battery positive terminal wiring
2.4 Battery negative terminal wiring
3. Emergency procedures
3.1 Jump starting
4. Operations with flat battery
4.1 Automatic transmission - gear lever release
5. Vehicle towing/lifting
5.1 Towing the vehicle

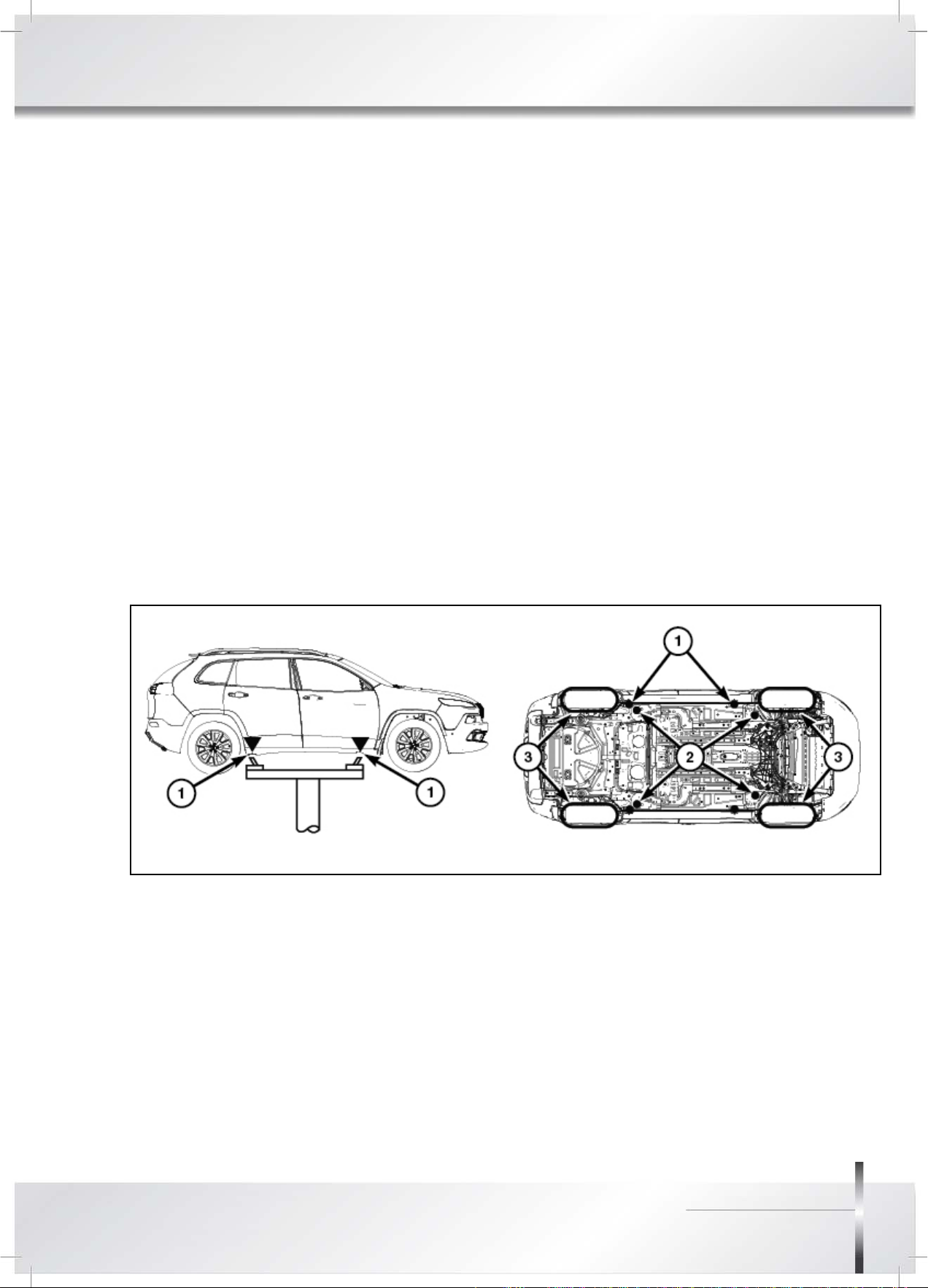

5.2 Vehicle lifting points
6. Technical specifications
6.1 Tyre pressure (bar)
6.2 Fluids

Jeep New Cherokee
Vehicle identification data
ó

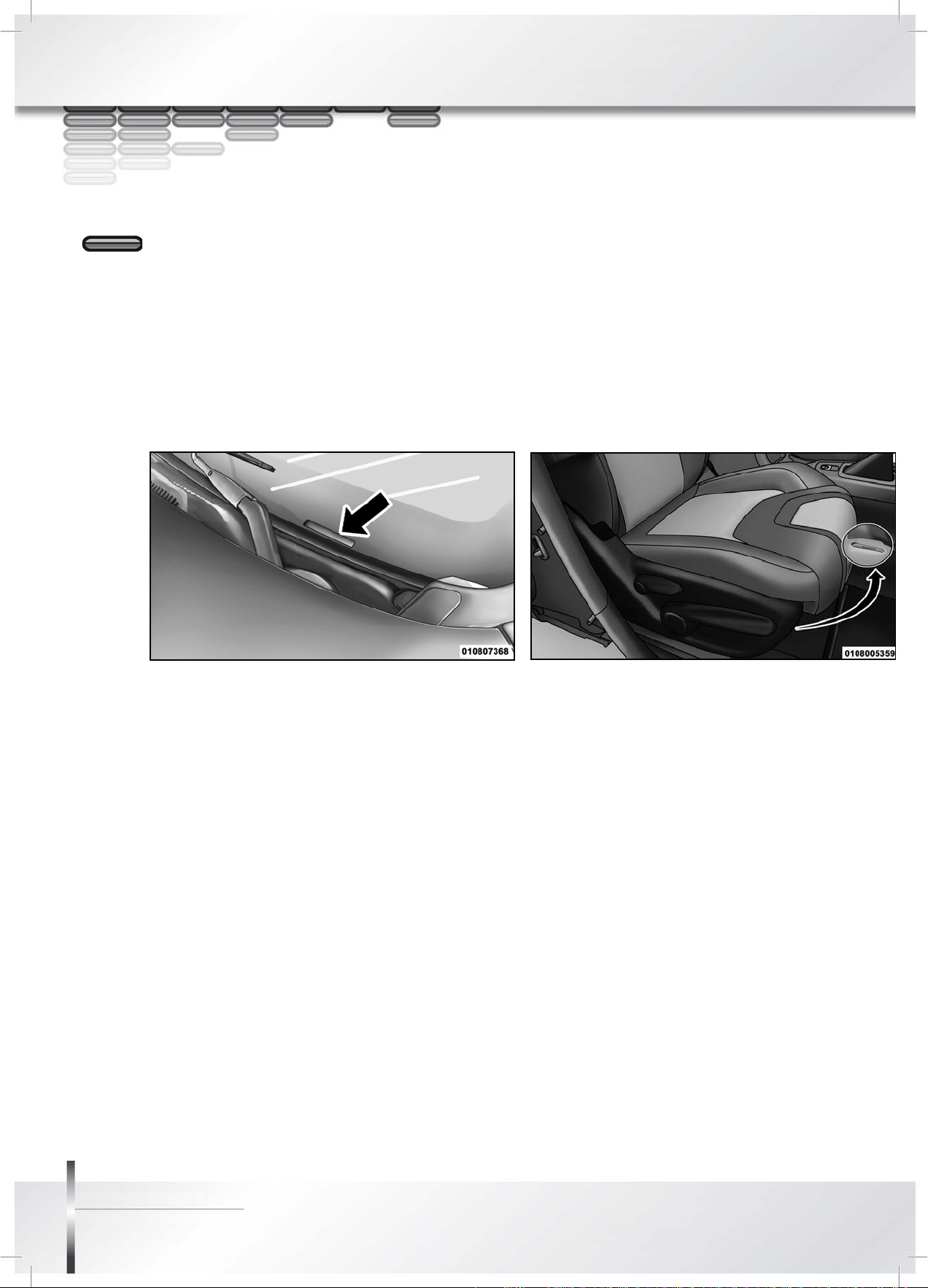

Chassis number
The chassis number (VIN) is indicated in the front left corner of the
dashboard and can be seen from outside the vehicle through the
windscreen. This number is also printed on the front right seat
crossmember, beneath the carpet and is shown on the car
information label on one of the vehicle windows, on the registration
document and on the ownership certificate.
1. Vehicle identification data
VIN position Printed VIN position

Jeep New Cherokee
Electrical system
2.1 Engine compartment junction box
The relay/fuse control unit is in the engine compartment, besides
the battery.
A label inside the cover shows the position of the components.
2. Electrical system
User Fuse Foil fuse Cartridge
fuse
Not used F06 - -
Powertrain Control Module - PCM F07 15 -
Engine control module (ECM) F08 25 A -
Not used F09 - -
Idler unit (PTU) F10 20 A -
Not used F11 - -
Brake vacuum pump - where available F12 20 -
Engine control module (ECM) F13 10 A -
Drivetrain control module (DTCM) / Power Take-off Unit (PTU) - if provided/Braking System Module (BSM) F14 10 A -
Not used F15 - -
Power unit F16 20 A -
Not used F17 - -
Not used F18 - -
Starter solenoid F19 - 40 A (mini)
A/C compressor electromagnetic joint F20 10 A -
Not used F21 - -
Radiator fan F22 5 A -
Body Computer Module (BCM) - Supply 1 F23 70 A -
Not used F24 - -
Not used F25 - -
Fuel heating - Diesel engines only F26 - 30 A (mini)
Not used F27 - -

Jeep New Cherokee
Electrical system
Transmission Control Module (TCM) F28 15 A -
Not used F29 - -
Engine control module (ECM) F30 10 A -
Not used F31 - -
Not used F32 - -
Driver door module (DDM) - if provided F33 - 30 A
Body Computer Module (BCM) - Supply 3 F34 - 30 A
Not used F35 - -
Not used F36 - -
Voltage Stabiliser Module (VSM) - if provided with engine Stop/Start F37 - 50 A
Preheating glow plugs - Diesel only F38 - 60 A
Radiator fan F38 - 50 A
Climate control system fan motor (HVAC) F39 - 40 A
Tow hook parking light - if provided F40 - 20 A
Body Computer Module (BCM) - Supply 2 F41 - 60 A
Electric Parking Brake (EPB) - Left side F42 - 30 A
Trailer light/left direction indicator/brake light - if provided F43 20 A -
Tow hook / 7-way connector - if provided F44 - 30 A
Passenger door module (PDM) - if provided F45 - 30 A
Sun roof/Skyslider - if provided F46 - 25 A
Engine/gearbox assembly control module (DTCM) F47 - 30 A
Not used F48 - -
Supply inverter (115 V A/C) - if provided F49 - 30 A
Electric tailgate - if provided F50 - 30 A
Not used F51 - -
Not used F52 - -
BSM-ECU modules and valves F53 - 30 A
Urea heater control unit - if equipped with Diesel engine F54 - 30 A
Blind spot sensors / Compass / Reverse camera if provided / rear seat heating switches / luggage compartment
light with flashing charger F55 10 A -
Ignition Node Module (IGNM) /Keyless Ignition Node (KIN)/Radio Frequency Hub (RF)/Electric Steering Lock
(ESL) F56 15 A -
Fuel pump motor F57 20 A -
Occupant Classification Module F58 10 A -
Not used F59 - -
Current socket - Centre panel F60 20 A -
Not used F61 - -
Heated mirrors - if provided F62 10 A -
Front heated seats - if provided F63 25 A -
Heated steering wheel/rear heated seats - if provided F64 25 A -
Climate control system (ECC) / Instrument Panel Cluster (IPC) F65 15 A -
Passenger compartment temperature sensor / humidity sensor / Driver Assist System Module (DASM) / Park
Assist Model (PAM) F66 10 A -
Not used F67 - -
Not used F68 - -
Idler housing switch (TSBM) / Active Grille Shutter (AGS) - if provided F69 10 A -
Not used F70 - -
Windscreen defroster - if provided F71 20 A -
Intelligent battery sensor (IBS) if provided with the engine Stop/Start option F72 5 A -
Trailer lights/right direction indicators - if provided F72 20 A -
Rear heated window/mirror defroster F73 - 30 A
Engine Control Module (ECM) for petrol engine - if provided F74 - 20 A
Cigar lighter F75 20 A -
Rear differential module (RDM) - if provided F76 20 A -
User Fuse Foil fuse Cartridge
fuse

Jeep New Cherokee
Electrical system
Fuel flap opening switch/brake pedal F77 10 A -
Diagnosis input / steering column control module (SCCM) / digital TV - if provided F78 10 A -
Integrated Centre Stack (ICS) / Climate control unit / Auxiliary switch bank module (ASBM) / Instrument panel
cluster (IPC) F79 10 A -
Radio / CD - if provided F80 20 A -
Not used F81 - -
Not used F82 - -
Headlight washer pump - if provided F83 - 30 A
Braking system module (BSM) - Pump motor, if equipped with Diesel engine F84 - 40 A
Trailer/Reversing lights - if equipped with petrol engine F84 - 20 A
Not used F85 - -
Not used F86 - -
Not used F87 - -
Collision mitigation module (CMM) / Electrochromic mirror / Smart camera module - if provided F88 15 A -
Headlight aiming - if provided F89 10 A -
Not used F90 - -
Not used F91 - -
Rear supply socket F92 20 A -
Braking system module (BSM) - pump motor, if equipped with petrol engine F93 - 40 A
Electric Parking Brake (EPB) - Right side F94 - 30 A
Electrochromic rear view mirror / rain sensor / sun roof - if provided F95 10 A -
Occupant Restraint Control unit (ORC) F96 10 A -
Occupant Restraint Control unit (ORC) F97 10 A -
Audio amplifier - if provided F98 25 A -
Tow hook module - if equipped with petrol engine F99 - 30 A
Not used F100 - -
User Fuse Foil fuse Cartridge
fuse

Jeep New Cherokee
Electrical system
2.2 Internal fuses
The internal fuse box is located in the passenger compartment, on
the left of the dashboard panel, under the instrument panel.
User Fuse Ampere
Left dipped beam headlight F13 15 A
Interior lighting F32 10 A
Siren/Anti-intrusion Module - if provided F36 10 A
Catch locking F38 20 A
Windscreen washer pump F43 20 A
Right/left fog lights and rear fog lights - if provided F48 25 A
Lumbar support F49 7.5 A
Wireless charging device, if provided F50 7.5 A
Driver electric window switch/electric door mirrors - if provided F51 10 A
UCI port (USB & AUX) F53 7.5 A
Door locks - Release on driver side F89 10 A
Left fog light F91 7.5 A
Right fog light F92 7.5 A
Right dipped beam headlight F93 10 A

Jeep New Cherokee
Electrical system
2.3 Battery positive terminal wiring
2.4 Battery negative terminal wiring
Component code Name
1 BATTERY
Component code Name
1 BATTERY

Jeep New Cherokee
Emergency procedures
3.1 Jump starting
If the battery is flat, it is possible to start the engine using an auxiliary
battery with the same capacity or a little higher than the flat one, or
a booster battery.
IMPORTANT:
Never jump start the engine by pushing, towing or driving downhill.
The battery is located in the engine compartment, behind the front
left light cluster.
- Operate the handbrake and move the gear lever into neutral
(manual gearbox) or into Neutral (automatic transmission) and
the key in OFF position.
- Turn off the heater, the radio and all unnecessary electrical
devices.
- Remove the protective cover over the battery positive pole (+).
- Connect one end of the cable used for positive (+) to the
positive pole (+) of the flat battery.
- Connect the other end of the cable used for positive (+) to the
positive terminal (+) of the auxiliary battery.
- Connect one end of the cable used for negative (-) to the
negative terminal (-) of the auxiliary battery.
- Connect the other end of the cable used for negative (-) to a
safe earth point of the vehicle having the flat battery, far from
the battery and from the injection system.
3. Emergency procedures

Jeep New Cherokee
Emergency procedures
WARNING
Do not connect the cable to the negative terminal (-) of the flat
battery. The following spark could lead to battery explosion and
cause serious harm. Only use the specific earth point; do not use
any other exposed metallic part.
- Start the engine of the car with an auxiliary battery, let it run for
some minutes at idle and then start the engine of the car with
flat battery.
Once theengine is started, remove thecablesused as a jumper
in the reverse sequence:
- Disconnect the end of the cable used for negative (-) from the
earth point (-) of the car with flat battery.
- Disconnect the other end of the cable used for negative
(-) from the negative terminal (-) of the auxiliary battery.
- Disconnect the end of the cable used for positive (+) to the
positive terminal (+) of the auxiliary battery.
- Disconnect one end of the cable used for positive (+) from the
positive pole (+) of the vehicle with flat battery.
- Refit the protective cover over the battery positive pole (+).

Jeep New Cherokee
Interventions with flat battery
4.1 Automatic transmission - gear lever unlocking
If, in the event of a failure, the gear lever cannot be moved from
position P (Park), the following procedure can be used to
temporarily move the gear lever.
- Switch off the engine.
- Fully engage the parking brake.
- Using a screwdriver or similar tool, cautiously divide the lever
unit and the centre panel cover.
- Keep the brake pedal fully depressed.
- Insert a screwdriver or a similar small tool in the access hole (in
the front right angle of the level unit), for keeping the release
lever pressed forwards.
- Place the gear lever in N (neutral) position.
- At this point, the car can be started in N (neutral).
- Refit the access cover for the gear lever release.
4. Interventions with flat battery

Jeep New Cherokee
Vehicle towing/lifting
5.1 Vehicle towing
5.1.1 Warnings and precautions
IMPORTANT:
Do not allow the attachment devices for towing to touch the tank or
the fuel pipes, because this might cause fuel leaks. Do not lift or tow
the vehicle from the front and rear bumper, or the bumper shock
absorbers. Never pass under a lifted vehicle, unless it is supported
by suitable devices. Do not carry passengers on a towed vehicle.
Use a safety chain independently of the towing system. Failure to
observe these instructions may result in serious or fatal injuries.
WARNING:
While connecting the towing device to the vehicle, pay attention to
prevent any damage to the brake pipes, the exhaust system, the
shock absorbers, the anti-roll bars or any other part under the
chassis. Do not connect the towing device to front or rear
suspension components. Do not fasten the vehicle to the towing
device using suspension or steering components. Before starting
any towing operation, remove or secure the loose or projecting
components of the faulty vehicle. Before towing the vehicle, refer to
the local and national laws in force. The weight of the towed vehicle
should not lay on the lower guards, on the air ducts or on the
spoilers.
WARNING:
Do not tow any vehicle with automatic transmission leaving its
wheels on ground; in this way, you prevent any damage to the
engine/transmission assembly. If these vehicles need to be towed,
make sure that all drive wheels are lifted from the ground.
5. Vehicle towing/lifting

Jeep New Cherokee
Vehicle towing/lifting
WARNING:
A towing method for the vehicle other than the one described above
might cause severe damage to the transmission. Possible damage
caused by unsuitable towing methods are not covered by the limited
warranty of the vehicle.
5.1.2 Recommended towing equipment
To prevent any damage to the shields and air ducts, it is
recommended to use a towing means with flat bench or lift type.
When a towing device with lift is used, make sure that the end not
lifted of the faulty vehicle has a ground clearance of at least 100
mm. If the minimum ground clearance cannot be obtained, use a
trailer. If the towing device is a flat bed one, the ramp angle should
not exceed 15 degrees.
1 - Lift
2 - Flat bench

Jeep New Cherokee
Vehicle towing/lifting
To define the towing methods, comply with the following table,
according to the model to be towed.
5.1.3 Ground clearance
Lift the wheels of the vehicle to be towed until reaching at least 100
mmofgroundclearance.Makesurethat theendof theexhaustpipe
is at least 100 mm from the ground. Ifnecessary, removethe wheels
on the lifted part and lower them on the ground to increase the
ground clearance at the opposite end of the vehicle. Install wing
nuts on the wheel stud bolts, to hold brake drums or discs.
5.1.4 Towing of a locked vehicle
If a locked vehicle is to be towed, a trailer touching the ground is the
only recommended means.
5.1.5 Towing using a bar, with four wheels on ground
• Vehicles with manual gearbox can be towed with wheels on
ground at any highway speed allowed and for any distance,
provided that the manual gearbox is in neutral and the ignition
switch is in ACC position.
• Towing of vehicles with automatic transmission and wheels on
the ground is forbidden.
WARNING:
Do not tow any vehicle with automatic transmission leaving its
wheels on ground. To prevent any damage to the engine/
transmission unit. If these vehicles need to be towed, make sure
that all drive wheels are lifted from the ground.
CONDITION
FOR TOWING
GROUND CLEAR-
ANCE
FOR WHEELS
MODELS WITH
FRONT WHEEL DRIVE
(FWD) -
Manual gearbox
MODELS WITH
ALL WHEEL DRIVE (AWD)
Idler unit with one gear
MODELS WITH
ALL WHEEL DRIVE (AWD)
Idler unit with two gears
Towing on level ground NONE NOT PERMITTED NOT PERMITTED • Transmission in PARK • Idler unit in NEUTRAL
• Towing forward
Wheel lifting or towing
on a trailer Rear NOT PERMITTED NOT PERMITTED NOT PERMITTED
Front OK NOT PERMITTED NOT PERMITTED
Car on rescue vehicle
platform ALL BEST METHOD OK BEST METHOD

Jeep New Cherokee
Vehicle towing/lifting
5.1.6 Anchorage of the flat bed for towing
WARNING:
Do not apply chains or ropes on the suspension components or in
the engine coupling points, otherwise the vehicle could be severely
damaged.
Vehicles can be secured to a trailer using the reinforced rings under
the front and rear bumper, on the driver side of the vehicle. There
are also four elongated holes, reinforced type, for T or R hooks,
located at the bottom of the reaction elements of the front frame rail,
inside the inner part of the welding junction of the kickplate.
5.1.7 Towing by lifting front wheels
Whenever possible, it is recommended to tow the vehicle with its
front part lifted from the ground. A wooden bar can be placed
between the lift and the lower part of the moulding, to prevent any
damage to the vehicle during lifting operations. The bar can be
removed after having lifted the vehicle's front part.
5.1.8 Towing by lifting rear wheels
Towing of the vehicle with lifted rear wheels is forbidden.

Jeep New Cherokee
Vehicle towing/lifting
5.2 Vehicle lifting points
IMPORTANT:
The points provided forlifting and attaching the jack are intended for
the entire vehicle. When the engine or rear suspensions are
removed from the vehicle, the centre of gravity is moved, making
certain lifting conditions unstable. In these cases, support the
vehicle appropriately, or fix it to the lifting device. Failure to observe
these instructions may result in serious or fatal injuries.
WARNING:
Do not place the lifting device on any suspension component, front
or rear suspension crossmember included. Do not lift the vehicle
from the front and rear bumper, the lower radiator crossmember or
the front engine mounting.
Do not try to completely lift the vehicle on one side by only placing
a floor jack between the front and rear wheels. This may damage
the vehicle permanently.
1 - Lifting touching the chassis (single post)
1 - Chassis lifting (double lifting)
1 - Outboard lifting (double lifting)
2 - Alternative lifting points
2 - Jack on floor
3 - Transmission on lift

Jeep New Cherokee
Technical specifications
6.1 Tyre pressure (bar)
The correct tyre cold inflation pressure is indicated in a plate on the
driver side door B pillar.
6.2 Fluids
(*) All instructions about the engine oil type are to be found on the oil filler plug.
6. Technical specifications
Use Fluid specifications
LUBRICANT FOR ENGINE 2.4 l (*) SAE 0W-20
LUBRICANT FOR ENGINE 3.2 l (*) SAE 5W-20
LUBRICANTS FOR 2.0 diesel ENGINE SAE 5W-30 ACEA C2
ENGINE COOLING MOPAR Antifreeze/coolant
FLUID FOR BRAKE/CLUTCH MOPAR DOT 3 Brake Fluid SAE J 1703
