JEHNERT SOUND DESIGN 69501-62 User manual

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021
2-way sound package 1 (69501-62/ 69501-82)
»incl. speaker mount« (69830)
»Chic c-line«
»Chic e-line«
Dashboard incl.
Root wood application
Radio Setting Notice:
To achieve the best sound, all settings on the radio (bass, treble, loudness, etc.) should be
should be set to zero or neutral.
Installation Notice:
To avoid vibration noise, secure all cable harnesses with insulating tape or similar.
Packing list:
2x XE 26 - neodymium tweeter ø 26mm
2x XE 100 - high-end midrange driver, ø 100mm
1x midrange module (right + left) Carthago Chic c-line/e-line
2x 2-way crossover
optional: 1x digit. 5-channel amplier
1x subwoofer
2x multibox
1x installation instructions incl. installation template, amplier connection »Plug & Play«
1x mounting set mid-high module: 10x spax 3,5 x 20
10x sheet metal nut 3.9
1x mounting set subwoofer: 4x DUAL LOCK Velcro plate
4x DUAL LOCK Velcro pad
4x self-tapping screw 3.5 x 13
1x angle 40x40x40 (only for Sub 17000/17011)
4x self-tapping screw 3,9x13
tools needed: Phillips screwdriver, Torx screwdriver (TX 25), multi-cutter,
hot glue gun, plastic wedge, insulating tape, white marker
Please note:
Power cable and plug are not
included in the scope of delivery!
Root wood application
Root wood application
Midrange module Carthago Chic c-line/e-line
Warranty:
As the manufacturer, we provide a 2-year warranty for these sound systems, calculated from the date of purchase from the dealer.
Within this warranty period, we will, at our option, repair or replace, free of charge, any defect due to material or manufacturing
manufacturing defects. Excluded from the warranty are damages which are due to improper use or installation, to wear and tear or to interventions
by third parties. The warranty does not cover consequential damages or those defects that reduce the value or the usability of the sound systems
only insignicantly. A warranty obligation is not triggered in the case of damage caused by external inuences. Systems with additional or incorrect
mounting holes are excluded from exchange. These are damages to the components that cannot be repaired.

1
1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [e-mail] I www.jehnert.de
Overview of cable routing throughout the vehicle
Radio
+ -
body battery - = ground
Living room box
Living room box
Subwoofer
Amplifi er
Mid-High Module
Mid-High Module

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021
1. disassembly and cable laying
1.2 Remove screws 1-4 on the wooden cladding.
Loosen screws 5-8 on the metal bracket facing the
wall. Remove panelling below steering column and
fuse box (3 screws 10mm hexagon) disassemble.
1.3 Remove and disconnect the light switch.
Remove the 12 V socket and unplug.
Remove wooden panelling/shelf and unhook
Bowden cable.
1.1. Remove rear view monitor: 2 screws on the right and left
side and left of the cover and lift off monitor with cover
upwards.
1.4 Remove the Carthago cover underneath the driver‘s
seat at the entrance (loosen 4 screws) and disconnect
Disconnect lighting.
1.5. 4x schwarze Abdeckkappen über dem Trittbrett
entfernen und Trittbrett mit einem Keil aushebeln.
1
2
3
4
5-8
4x Remove cover caps
1.6. Amplifi er cabel from the radio over the steering column
and guide it down to the side.
Caution - The cable must not aff ect the steering!
Lenksäule

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021

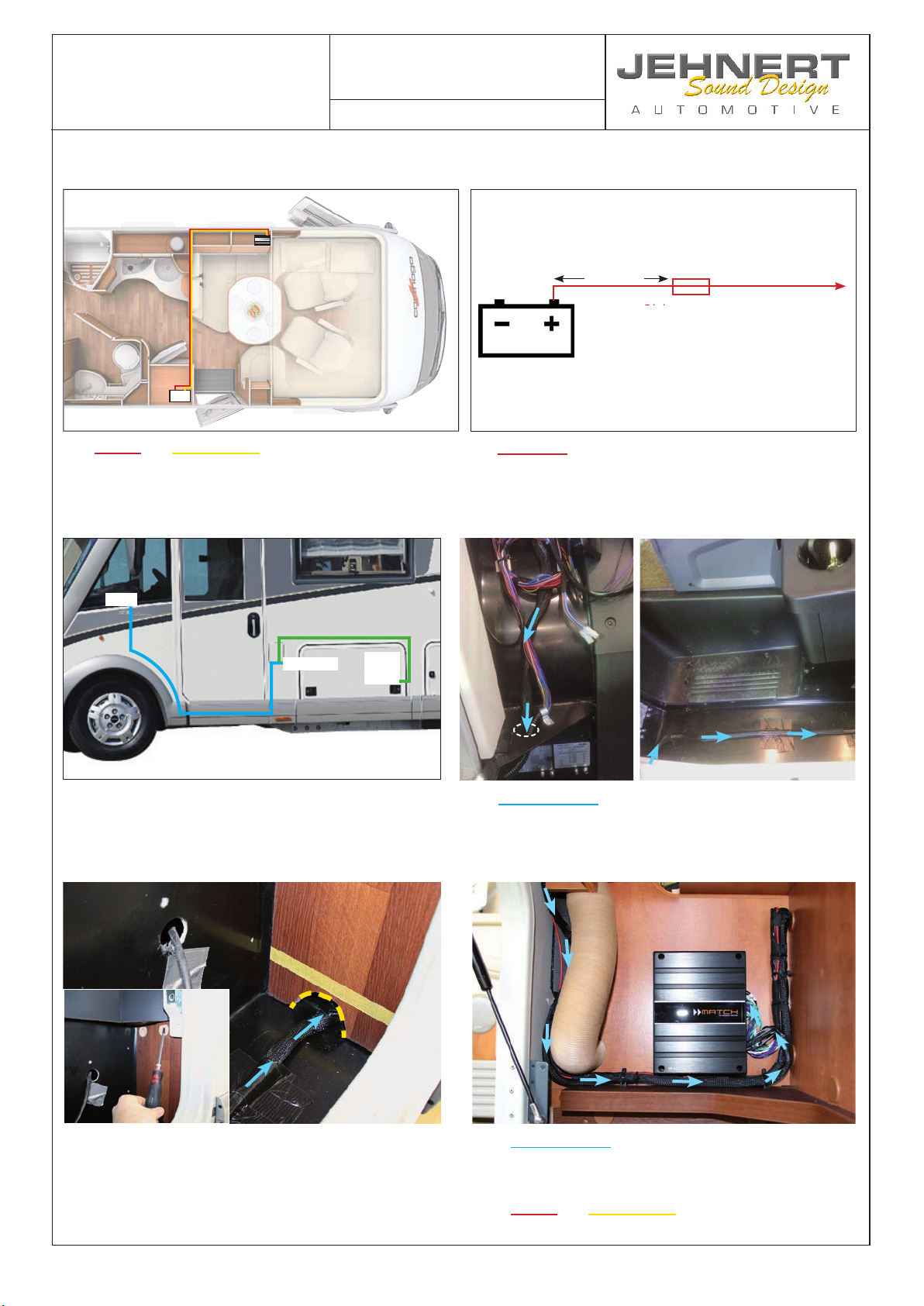

1.12. Amplifi er cable through the opening in the area of the
ventilation hose into the storage compartment behind the
driver‘s seat guide. Mount the amplifi er on the side
connect (»Plug & Play«-plug).
Power- and ground cable plug into the wiring harness
of the amplifi er (see amplifi er instructions page 1 Fig. 2)
1.11. Dismantle the right side panel at the access point
(loosen 2 screws) and saw out a cutout in the side panel
for the cut out in the side panel as shown in the illustration.
1.9. cable routing side view:
Radio -> Amplifi er
Amplifi er -> Subwoofer
Radio
Amplifi er Sub-
woofer
1.10. Amplifi er cable sideways over the wheel housing through
the down through the opening and along the bottom of the
entrance (fi x with adhesive tape).
1.7. Power- and ground cable (2,5mm2) from the body battery
(in the storage compartment on the passenger side) under
the fl oor to the to the amplifi er (amplifi er see fi gure 1.12).
+ -
amplifi er
1.8. Power line secure with fuse (see fi g.).
Important:
for standard amplifi er: power cable 2,5mm2 +/-
Verstärker
Sicherung
Standardverstärker: 25A
ca. 20cm
amplifi er
Fuse
Standard amplifi er: 25A

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021

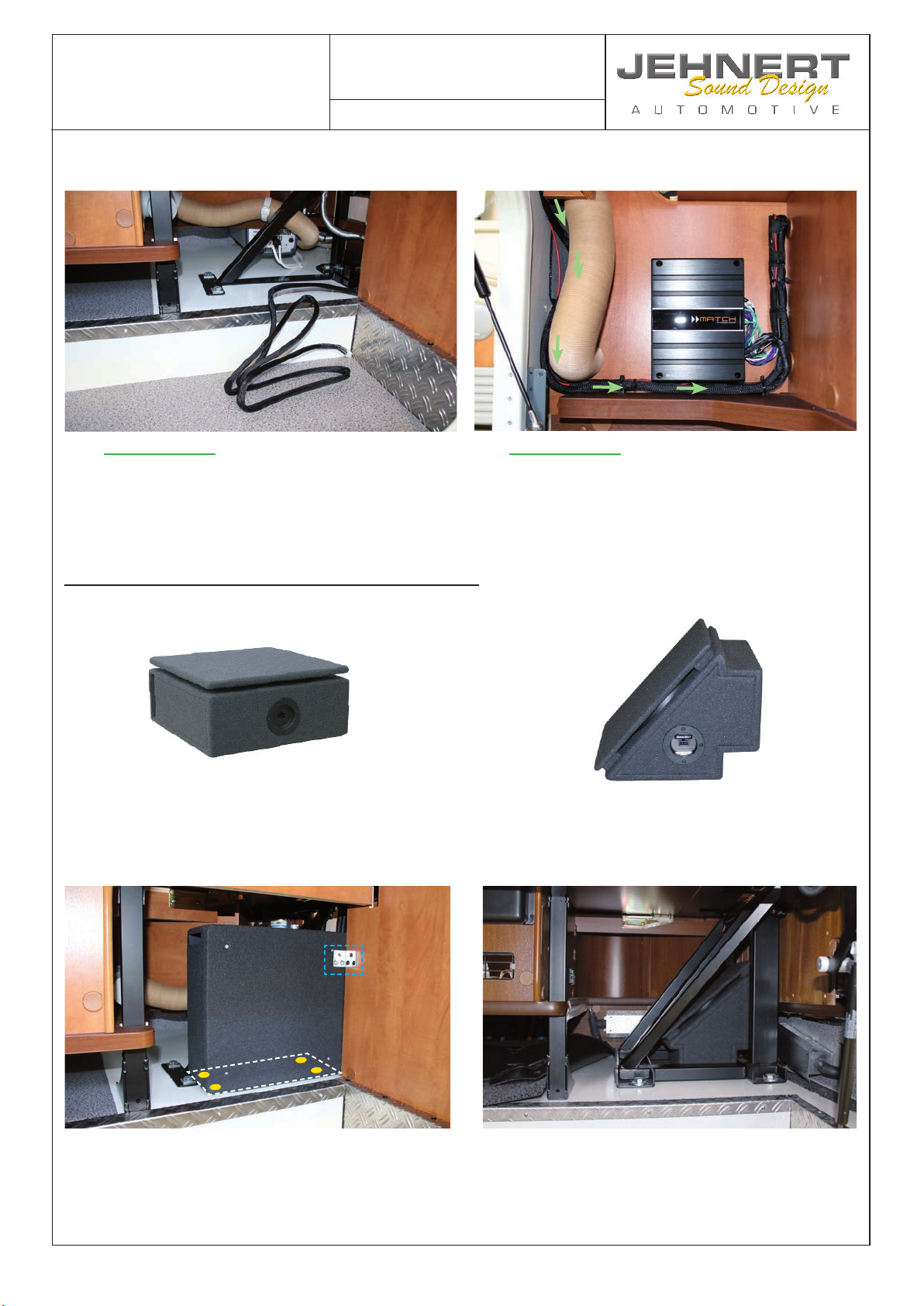

1.14. Subwoofer cable through the opening next to the
ventilation pipe (like amplifi er cable) to the amplifi er
and insert plug in the „Plug & Play“ connector.
Tip: Tie cable together with cable tie
1.13. Subwoofer cable from the mounting location (in the
storage compartment under the seat group, next to belt
support, see Fig. p.5 Step 2) behind the fairing and above
the storage compartment opening to the amplifi er, cable
routing see Fig. 1.9.
Tip: Lay cable duct above the stowage compartment
Subwoofer 17000 Subwoofer Carthago-spezifi c 17009
Subwoofer - optional, depending on the space available:
1.15. Plug in the subwoofer cable »Plug & Play«.
Mount the 4 Velcro pads on the bottom of the subwoofer (4x screws 3.5x13). Place the Velcro pads onto the Velcro plates
and remove the adhesive strips. Make the vehicle fl oor free of dust and grease in the area of the Velcro pads.
and press fi rmly into place. Fasten the subwoofer additionally with a bracket.
Velcro
angle

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021

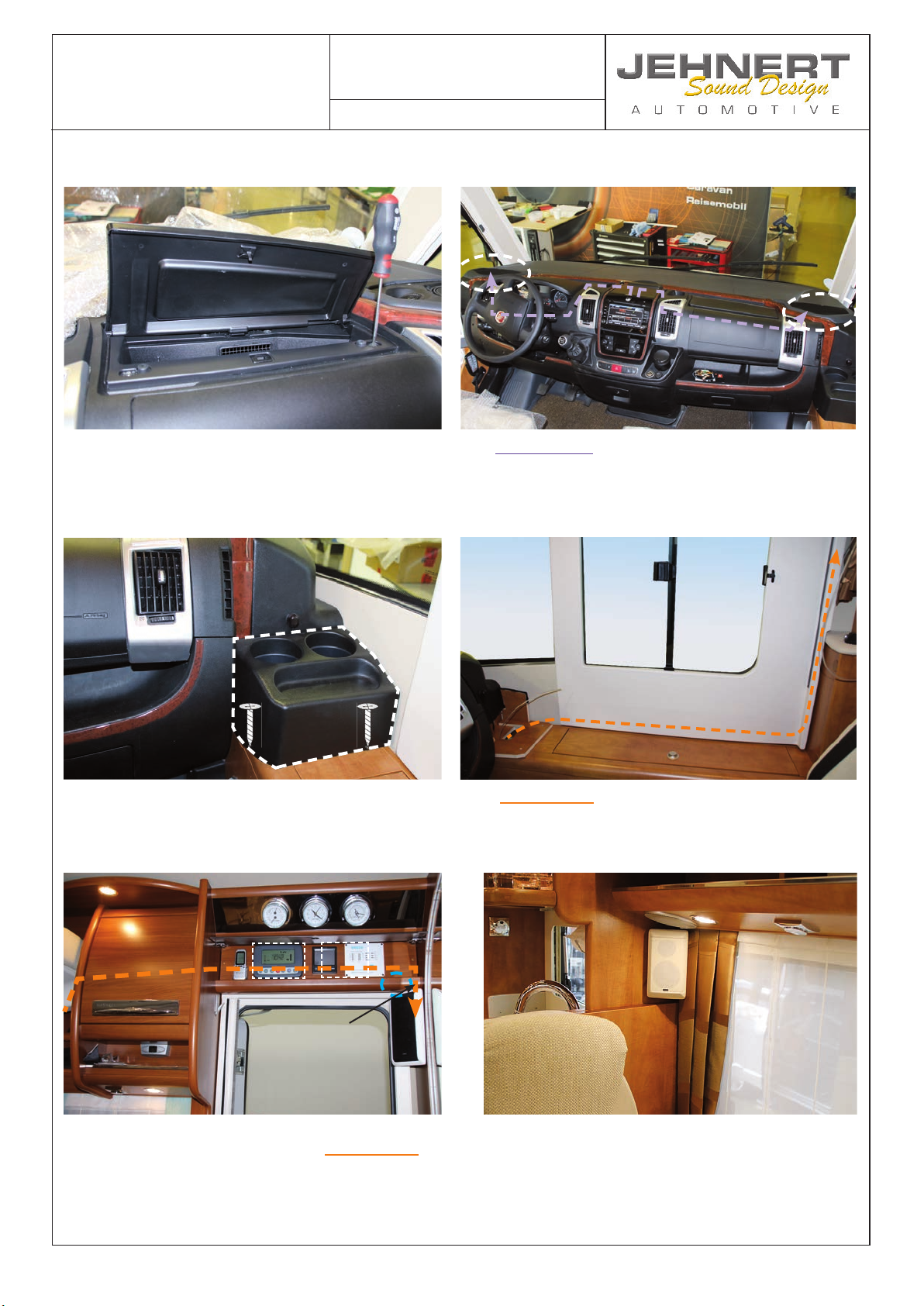

1.20. Remove the monitor and the panel on the right above the
door (do not disconnect the cable!). Speaker cable from
the wall cabinet via the door to the installation location of
the living area box. To feed the cable through, drill a hole
in the wooden strip above the box.
1.21. For the living area box on the driver‘s side, use the
factory installed loudspeaker cable is used:
Remove factory left speaker, extend cable
and lead it through the existing opening to the
to the installation location of the living area box.
drilling
1.16. Remove the storage compartment in the dashboard on
the passenger side. (loosen 4 screws). 1.17. Speaker cable (1,5mm2) under the dashboard lead from the radio to the mid-high modules.
Driver‘s side: same as amplifi er cable - lead over steering
column.
Passenger side: lead under the storage compartment
1.19. Speaker cable (1,5mm2) starting from the radio,
behind the window trim (see Fig.) into the living room.
room up to the cabinet, see Fig. 1.20.
1.18. Remove 2 screws from the storage compartment/trim
panel on the passenger Remove the screws on the
storage compartment/trim on the passenger side and lift
the trim upwards.

1
Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021

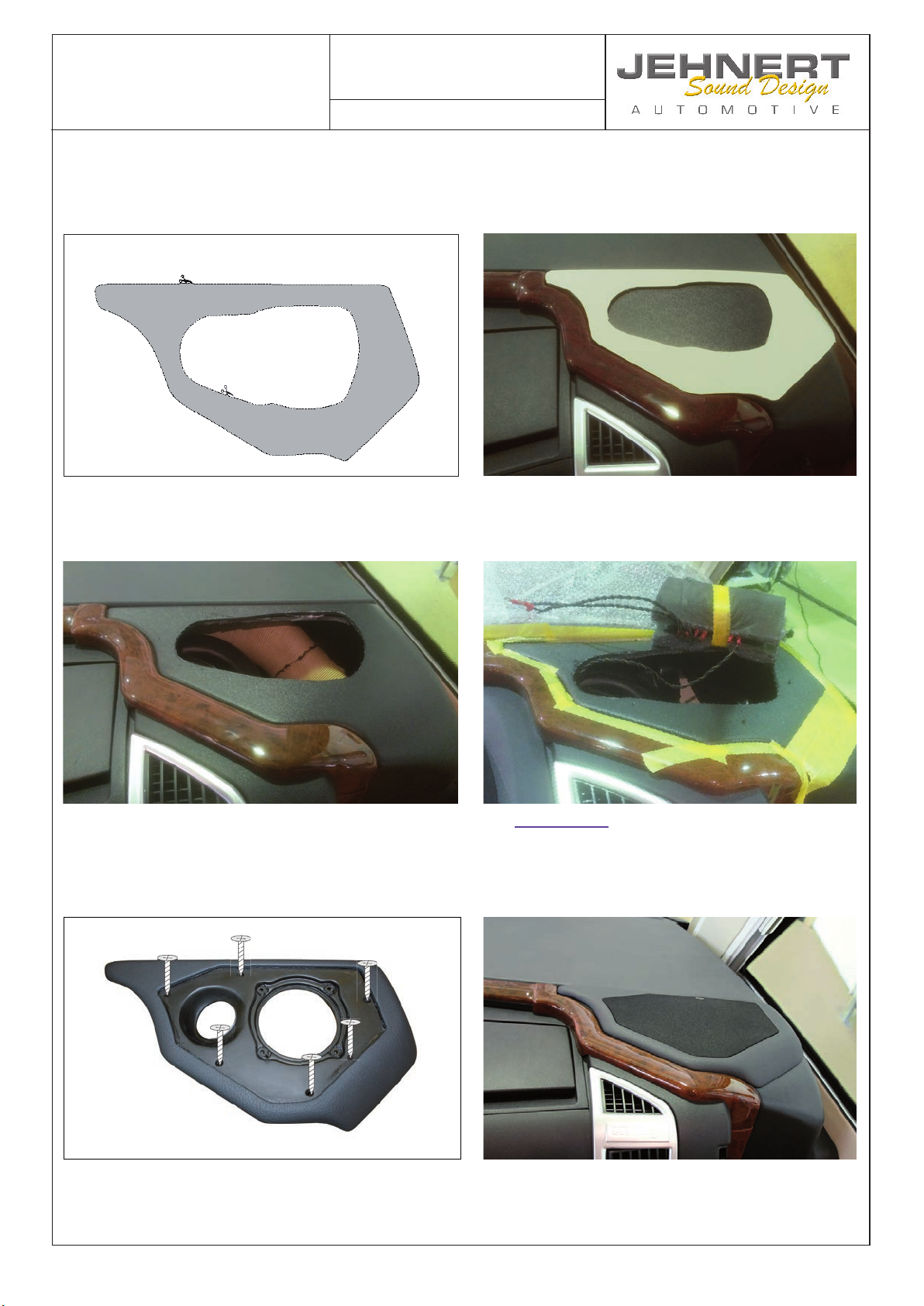

2. mounting of the mid-high module on the dashboard
2.2 Create template according to Fig. and mark loudspeaker
mark the speaker cutout.
2.3 Carefully saw out the marked cutout with a jigsaw
(pay attention to (pay attention to the parts underneath).
Place module without module without midrange driver and
check fi t (rework cutout if necessary).
2.1 Cut out the enclosed installation template (scale 1:1).
the. (Can be used for driver and passenger side).
2.4. Speaker cable to the crossover input and insert the
crossover, which is wrapped with damping fl eece
through the cutout in the dashboard and make sure
it is and ensure a tight fi t.
2.6 Ready assembled module
2.5. connect the loudspeakers to the crossover and module
with the supplied Spax screws 6x 3.5x20 to mount the
module. Secure screws with sheet metal nuts 3.9.
6x Spax 3,5x20
Mounting template for Carthago e-line / c-line mid-high module dashboard
Cut out template and align on the dashboard
Speaker cutout

Assembly instructionCarthago motorhomes
»Chic c-line« »Chic e-line«
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art. No. 69501-62/ 69501-82, FS: 69830
Stand: 18.10.2021
Our team in Pliezhausen will be happy to provide you with advice and assistance at any time:
JEHNERT Sound Design
»Development and production of car audio systems«
Inh. Hans-Peter Jehnert
Im Michelreis 14
72124 Pliezhausen
Tel.: [phone]
Fax: [phone]
[email protected]
Your Notes:
