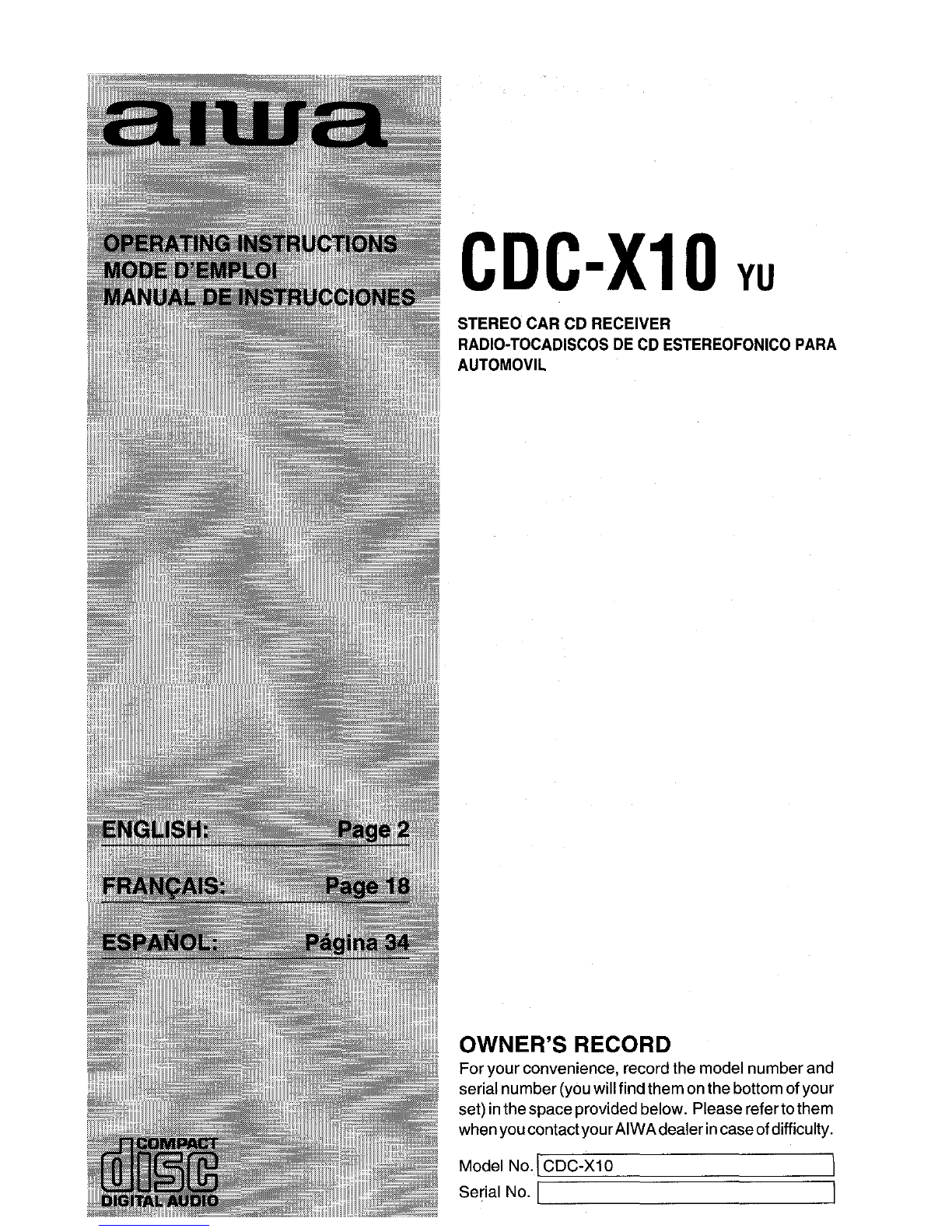

Aiwa CDC-XI User manual

CDC-XIO w
STEREO CAR CD RECEIVER
RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA
AUTOMOVIL
OWNER’S RECORD
For your convenience, record the model number and
serial number(you will find them on the bottom of your
set) inthe space provided below. Please refer to them
when you contact yourAIWA dealer incase of difficulty.
Model No. \CDC-XI O
‘eria’ ‘0 ~

~TABLE OF CONTENTS
PRECAUTIONS .................................................................................................................................. 3
DETACHING THE CONTROL PANEL ................................................................................................4
CONTROL PANEL ............................................................................................................................. 5
TURNING ON/OFF THE UNIT ............................................................................................................6
SOUND ADJUSTMENTS ....................................................................................................................7
RADIO OPERATION .......................................................................................................................... 8
PRESE~lNG STATIONS .................................................................................................................lO
CD PLAYBACK ................................................................................................................................. 12
PROGRAM PLAY ............................................................................................................................. 14
SPECIFICATIONS ............................................................................................................................ 16
TROUBLESHOOTING ..................................................................................................................... 17
NOTE
FOR USE IN THE U.S.A.
This equipment has been tested and found to
comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in aparticular
installation. Ifthis equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and recewer.
–Connect the equipment into an outlet on
circuit different from that to which the receiver
is connected.
–Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications or adjustments to this product,
which are not expressly approved by the
manufacturer, may void the user’s right orauthorify
to operate this product.

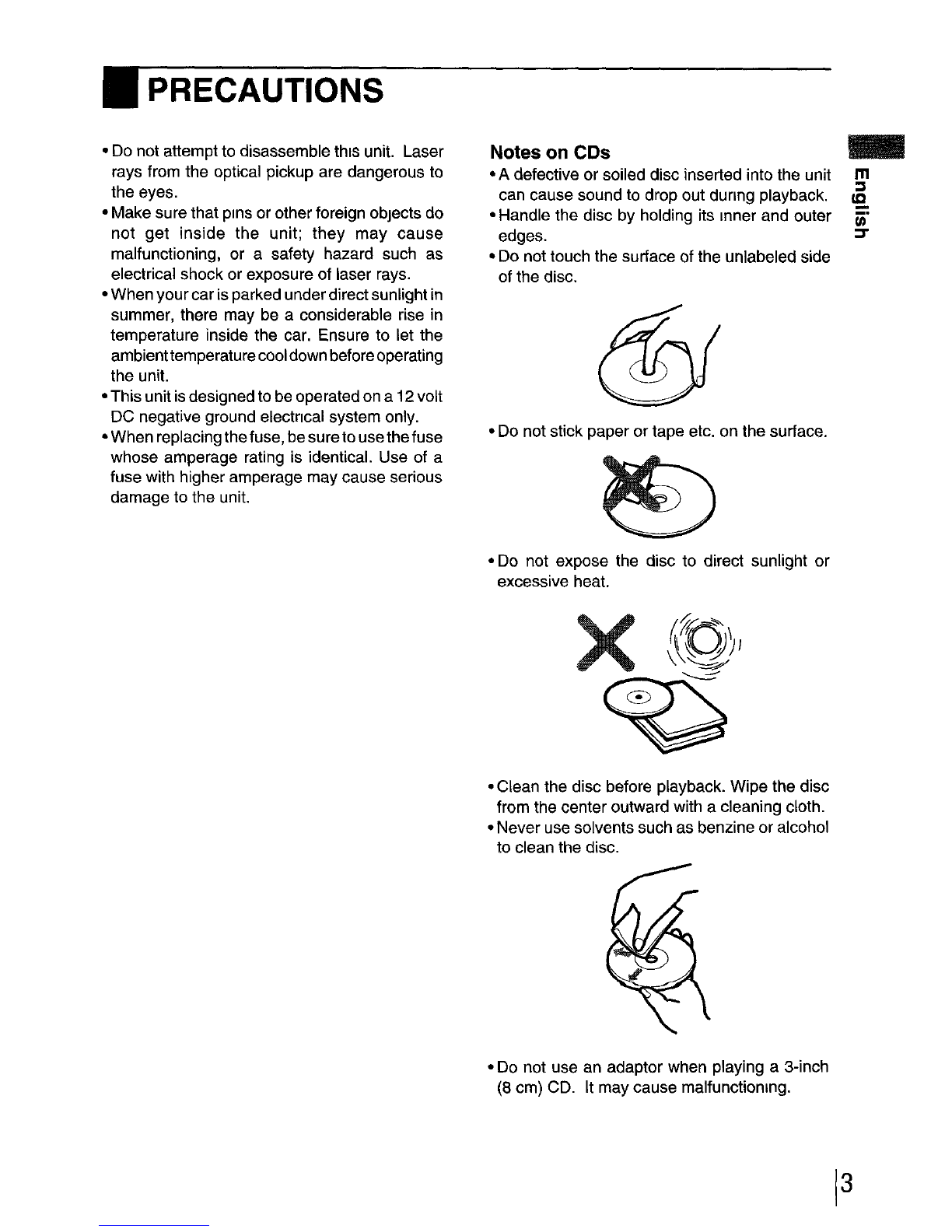

~PRECAUTIONS
●Do not attempt to disassemble this unit. Laser
rays from the optical pickup are dangerous to
the eyes.
●Make sure that pms or other foreign objects do
not get inside the unit; they may cause
malfunctioning, or asafety hazard such as
electrical shock or exposure of laser rays.
●When your car is parked under direct sunlight in
summer, there may be a considerable rise in
temperature inside the car. Ensure to let the
ambient temperature cool down before operating
the unit.
●This unit is designed to be operated on a 12 volt
DC negative ground electrical system only.
●When replacing the fuse, be sure to usethefuse
whose amperage rating is identical. Use of a
fuse with higher amperage may cause serious
damage to the unit.
Notes on CDs
●Adefective or soiled disc inserted into the unit M
can cause sound to drop out during playback. &
●Handle the disc by holding its inner and outer =.
edges. %
●Do not touch the surface of the unlabeled side
of the disc.
●Do not stick paper or tape etc. on the surface.
●Do not expose the disc to direct sunlight or
excessive heat.
.Clean the disc before playback. Wipe the disc
from the center outward with acleaning cloth.
●Never use solvents such as benzine or alcohol
to clean the disc.
/.
●Do not use an adaptor when playing a3-inch
(8 cm) CD. It may cause malfunctiomng.

●DETACHING THE CONTROL PANEL
You can detach the control panel from the unit and carry it with you when you leave your car unattended,
1If adisc is inserted, remove it to prevent possible
damage to the unit.
2Press POWER to turn the unit off.
3While supporting the control panel with one hand,
press @to release one side of the panel. Care
must be taken not to drop the panel as it may
suddenly eject at this point.
E4When the control panel is lifted from the unit,
remove it by pulling away from the unit,
Note
●Put the control panel inside the supplied carrying case to protect it from being damaged when you carry
it with you.
Attaching the control panel

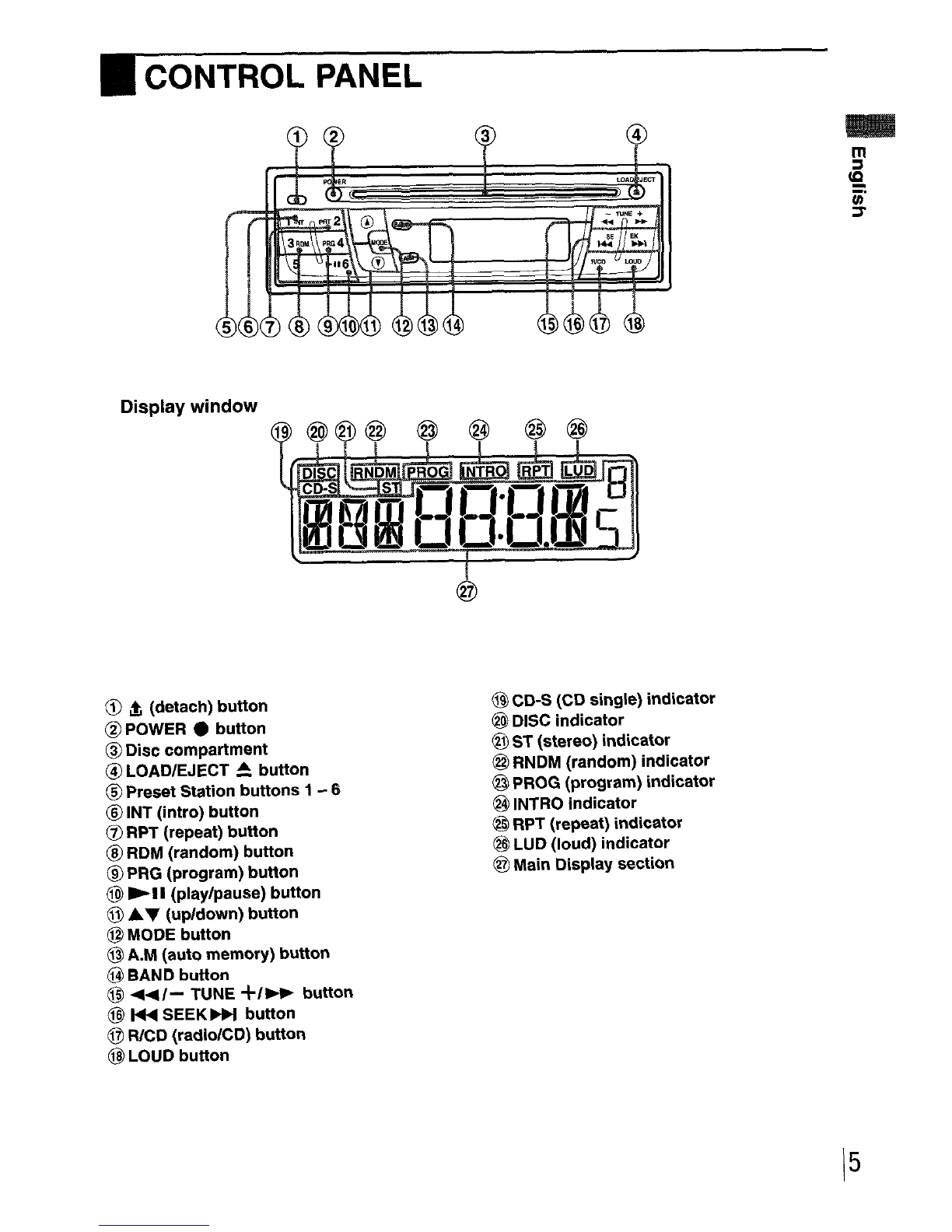

CONTROL PANEL
Display window
o&(detach) button
@POWER @button
@Disc compartment
@LOAD/EJECT 4button
@Preset Station buttons 1-6
@INT (intro) button
@RPT (repeat) button
@RDM (random) button
@PRG (program) button
@-11 (play/pause) button
@AV (upldown) button
@MODE button
@A.M (auto memory) button
@BAND button
@4/- TUNE +/w button
@WSEEKW button
@R/CD (radio/CD) button
@LOUD button
@CD-S (CD single) indicator
@DISC indicator
@ST (stereo) indicator
@RNDM (random) indicator
@PROG (program) indicator
(@INTRO indicator
@RPT (repeat) indicator
@LUD (loud) indicator
@Main Display section

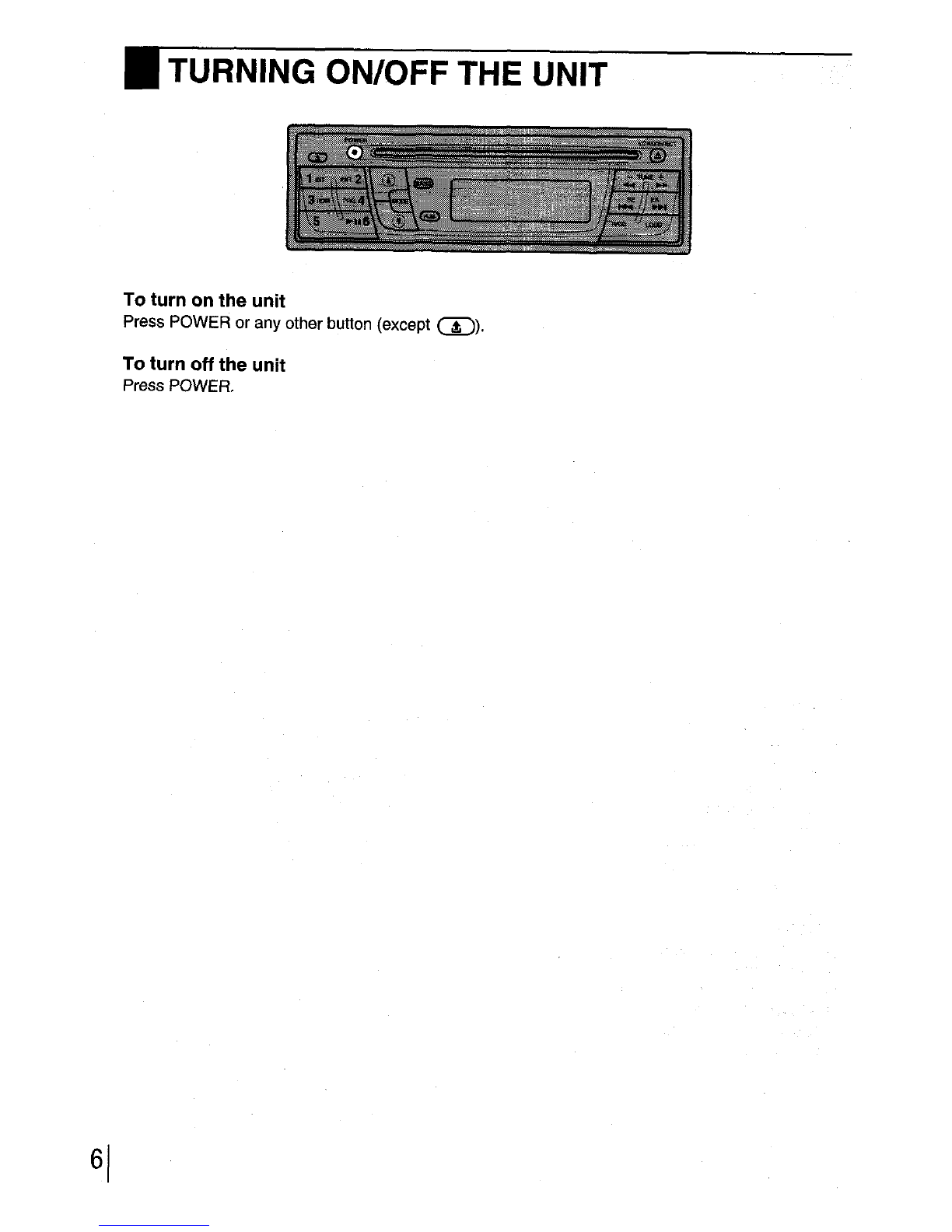

To turn on the unit
Press POWER or any other button (except ~).
To turn off the unit
Press POWER.

mSOUND ADJUSTMENTS
(—) 1Press MODE to select the mode You want to adjust
‘7 from VOL (volume), BAS (bass), TRE (Treble), BAL
(balance), and FAD (fader).
IThemodeindicatorlightsupinthefollowingorder.
(uJThe selected mode changes to the volume mode when MODE
is pressed for more than 5seconds.
2Press Aor V(for less than 0,5 seconds) to adjust
the sound quality.
To change the level rapidly, press and hold Aor 7down
longer.
Aside Vside
Ifrft Increases the Decreases the
vuf_ volume level. volume level.
%H5 Increases the bass Decreases the bass level. level.
Increases the treble Decreases the treble
~l?~ Ilevel. level.
WI Decreases the level Decreases the level
Lof the left of the right
speaker(s). speaker(s).
Decreases the level Decreases the level
~~~ of the front of the rear speakers.
speakers.
Note
*Withoutselecting any mode with MODE, only the volume level can be adjusted by pressing Aor T.
LOUD (loudness) function
Press LOUD to reinforce bass and treble especially when listening at low volume level. To cancel the
loudness, press LOUD again.
To set the turn-on volume level
The unit can be set to always turn on at the same volume level.
After adjusting the volume with Aor Y, press and hold POWER down for more than 2seconds until a
beep tone is heard.

8

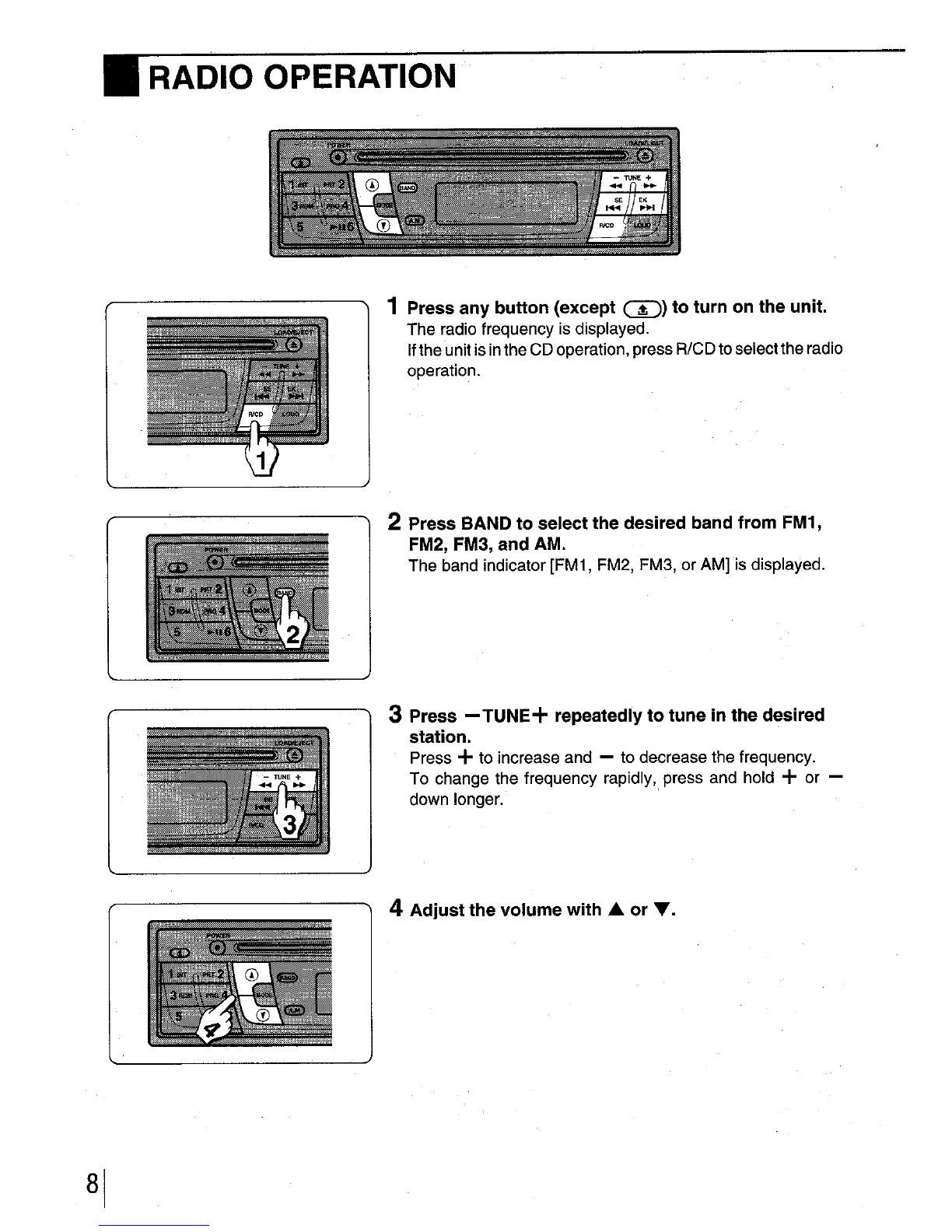

~RADIO OPERATION
3
1Press any button (except ~) to turn on the unit.
The radio frequency is displayed.
Ifthe unit is inthe CD operation, press R/CD to select the radio
operation.
Press BAND to select the desired band from FM1,
FM2, FM3, and AM.
The band indicator [FM1, FM2, FM3, or AM] is displayed.
Press -TUNE+ repeatedly to tune in the desired
station.
Press +to increase and -to decrease the frequency.
To change the frequency rapidly, press and hold +or -
down longer.
.Adjust the volume with Aor 7.

m
m
d
=
m
Y’
Note
●FM1, FM2, and FM3 have the same frequency range.
*ST indicator lights up when an FM stereo broadcast is received with asufficient signal strength.

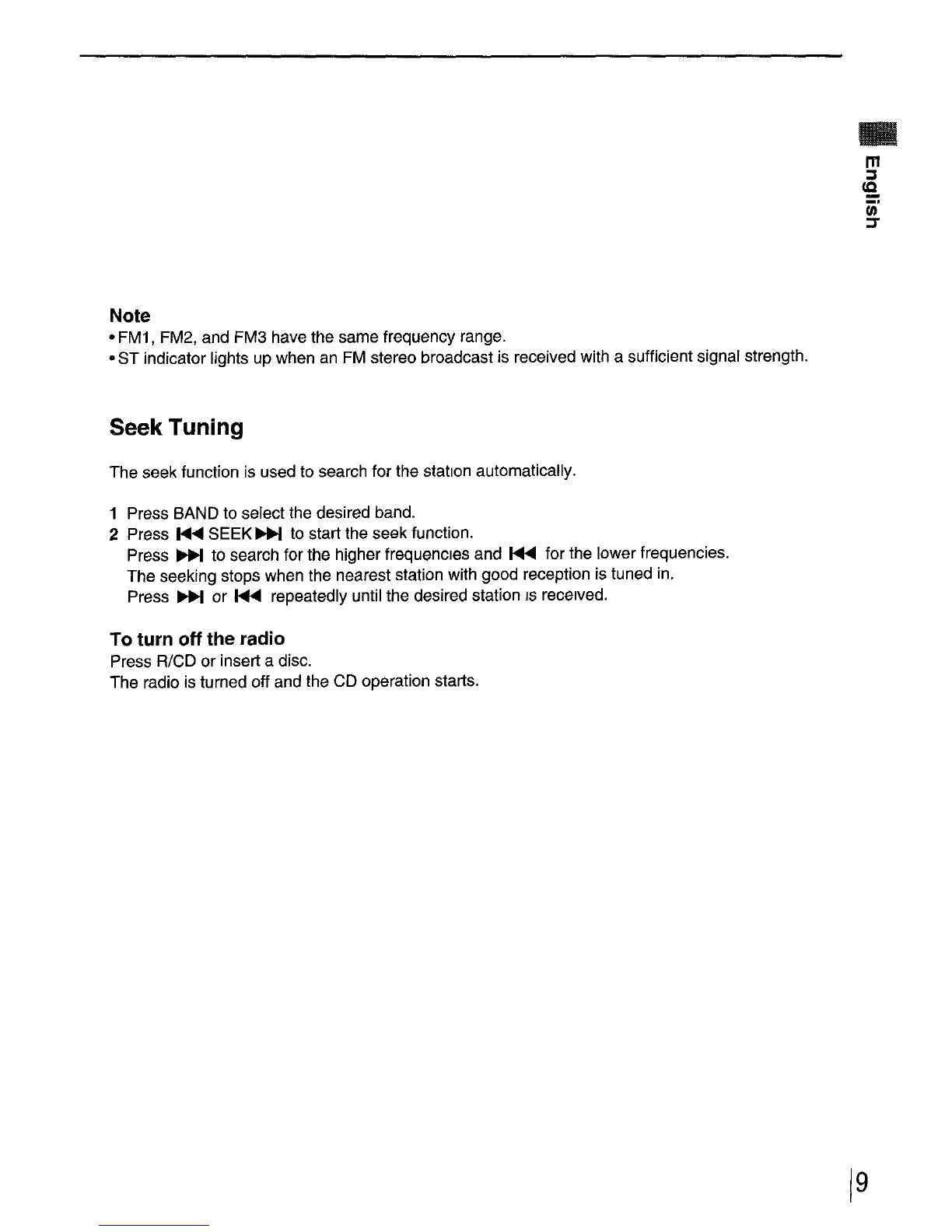

Seek Tuning
The seek function is used to search for the station automatically.
1Press BAND toselect thedesired band.
2Press 144 SEEK~ tostart theseek function.
Press Wtosearch forthehigher frequencies and Mforthe lower frequencies.
The seeking stops when the nearest station with good reception is tuned in.
Press WI or 144 repeatedly until thedesired station lsrecewed.
To turn off the radio
Press R/CD or insert adisc.
The radio is turned off and the CD operation starts.

~PRESETTING STATIONS
Up to 6stations for each band [FM1, FM2, FM3, and AM] can be stored on the preset station buttons.
1Press BAND to select the desired band from FM1,
FM2, FM3, and AM.
zTune in the station to be preset.
aPress one of the preset station buttons (1 -6) for
more than 2seconds until abeep tone is heard.
The number of the pressed preset station button is displayed.
m
[wJ4Repeat steps 2and 3to preset other stations.
Note
●As FM1, FM2, and FM3 have the same frequency range, up to 18 stations can be preset for FM.
.When astation is preset on the preset station button on which another station of the same band has
already been preset, the previously preset station is automatically erased.
10[

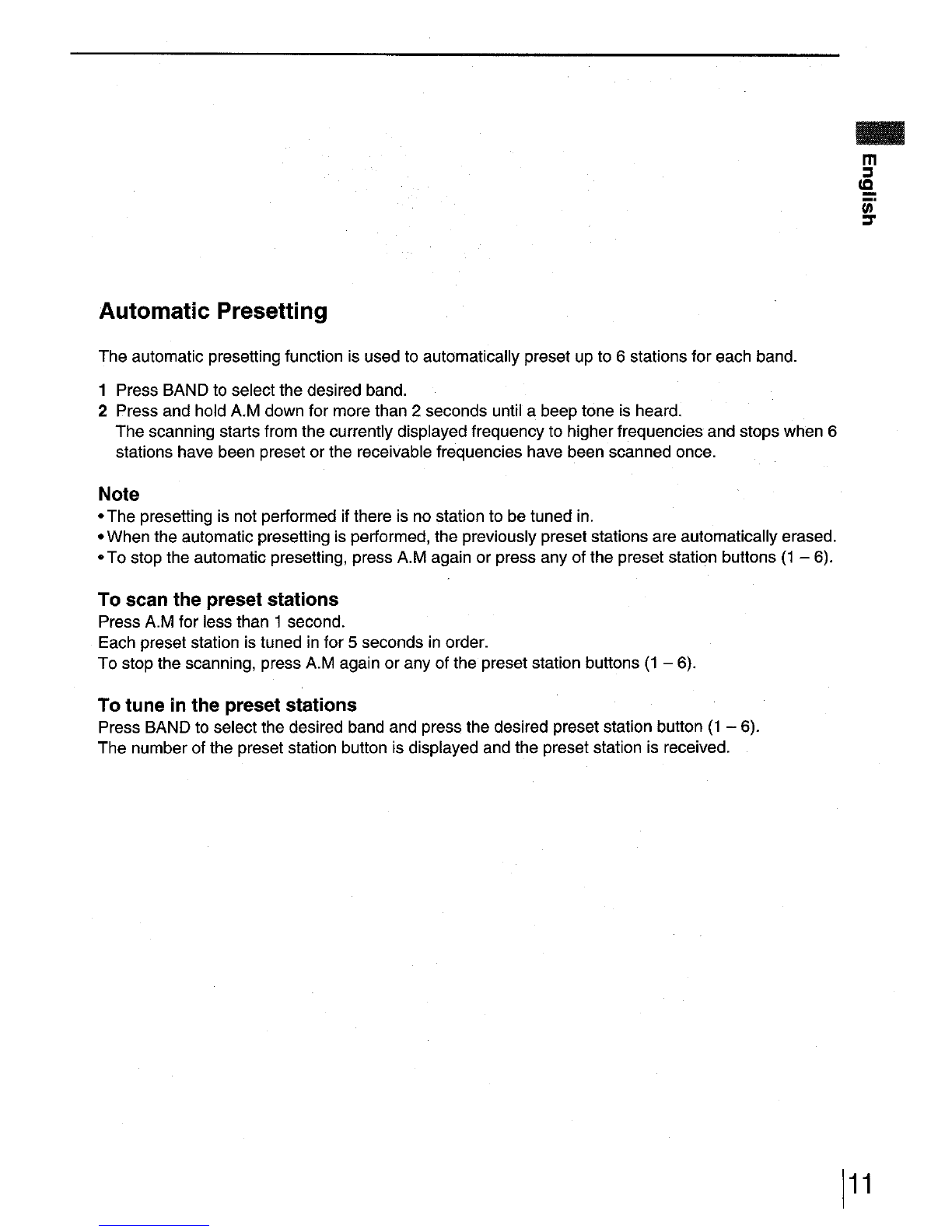

Automatic Presetting
The automatic presetting function is used to automatically preset up to 6stations for each band.
1Press BAND to select the desired band.
2Press and hold A.M down for more than 2seconds until a beep tone is heard.
The scanning starts from the currently displayed frequency to higher frequencies and stops when 6
stations have been preset or the receivable frequencies have been scanned once.
Note
●The presetting is not performed if there is no station to be tuned in.
●When the automatic presetting is performed, the previously preset stations are automatically erased.
=To stop the automatic presetting, press A.M again or press any of the preset station buttons (1 –6).
To scan the preset stations
Press A.M for less than 1second.
Each preset station is tuned in for 5seconds in order.
To stop the scanning, press A.M again or any of the preset station buttons (1 –6).
To tune in the preset stations
Press BAND to select the desired band and press the desired preset station button (1 –6).
The number of the preset station button is displayed and the preset station is received.
Ill

12

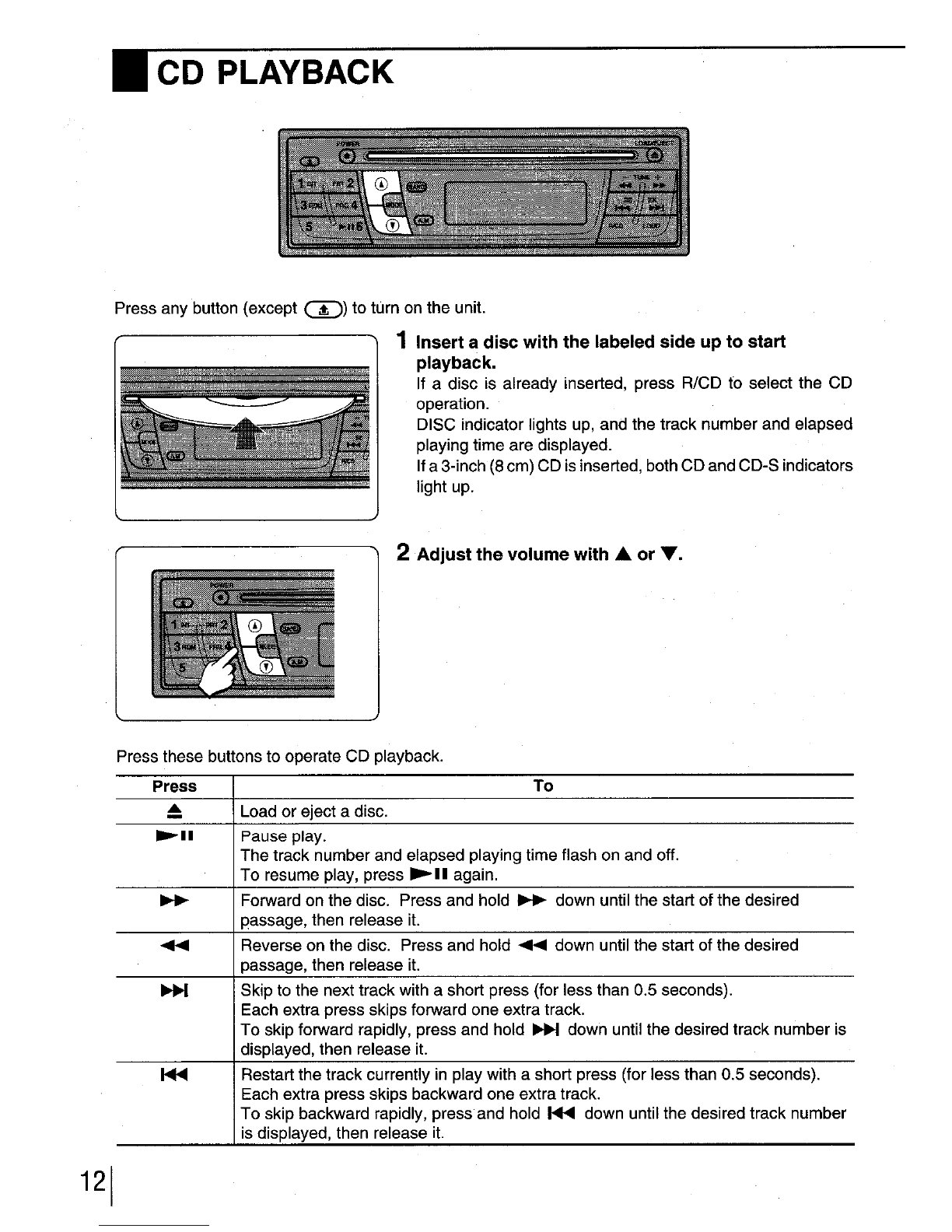

~CD PLAYBACK
Press any button (except ~) to turn on the unit
1Insert adisc with the labeled side uo to start
playback.
If adiscis already inserted, press R/CD toselectthe CD
operation.
DISC indicator lights up, and the track number and elapsed
playing time are displayed.
If a3-inch (8 cm) CD is inserted, both CD and CD-S indicators
light up.
zAdjust the volume with Aor V.
Press these buttons to operate CD playback.
Press To
ALoad or eject adisc.
EIl Pause play.
The track number and elapsed playing time flash on and off.
To resume play, press ~11 again.
EForward on the disc. Press and hold *down until the stari of the desired
passage, then release it.
4Reverse on the disc. Press and hold +down until the start of the desired
passage, then release it.
wISkip to the next track with ashort press (for less than 0.5 seconds).
Each extra press skips forward one extra track.
To skip forward rapidly, press and hold WI down until the desired track number is
disulaved, then release it.
wRestart the track currently in play with ashort press (for less than 0.5 seconds).
Each extra press skips backward one extra track.
To skip backward rapidly, press and hold Kdown until the desired track number
is displayed, then release it.

Note
~The disc is neither inserted nor ejected when
the unit is not turned on.
●Smaller 3-inch (8 cm) CDs can be played on this
unitwithout an adaptor. Donotuse an adaptor
as it may cause malfunctioning.
●The playback starts from the first track on the
disc only when inserting adisc. In other cases
(when switching from the radio operation or
turning on the unit), the playback starts from the
beginning of the track being played when the
playback has stopped.
●Adisc can be inserted by putting it into the disc
compartment slot, and either pushing it lightly
with fingers or pressing LOAD/EJECT.
Intro Play
Press INT during playback.
INTRO indicator lights upandthefirst 10seconds
of all the tracks on the disc are played in order.
When the desired track isfound, press lNTagain.
The unit returns to the normal playback.
Note
●The intro play cannot be performed with the
repeat or random play.
Repeat Play
Press RPT during playback.
RPT indicator lights up and the currently selected
track is played repeatedly.
To cancel the repeat play, press RPT again.
Note
●Ifthe repeat play is not selected, all the tracks on
the disc are played repeatedly.
●The repeat play cannot be performed with the
intro or random play.
Random Play
Press RDM during playback.
RNDM indicator lights up and the tracks on the
disc are played randomly.
To cancel the random play, press RDM again.
Note
●The random play cannot be performed with the
intro or program play. If the repeat play is
selected during the random play, the random
play is canceled.
●During the random play, even If Kis pressed
repeatedly, thetrackcurrently inplay is restarted.
113

14
~PROGRAM PLAY
Up to 10 tracks can be set in the program memory in any order.
1Press PRG.
PROG indicator lights up.
zSelect adesired track by pressing MSEEKBI
until its number is displayed.
aPress PRG to set the track in the program memory.
If PRG is not pressed within 5seconds, the program play is
canceled.
4Repeat steps 2and 3to set other tracks.
b To start the program play, press FI1.

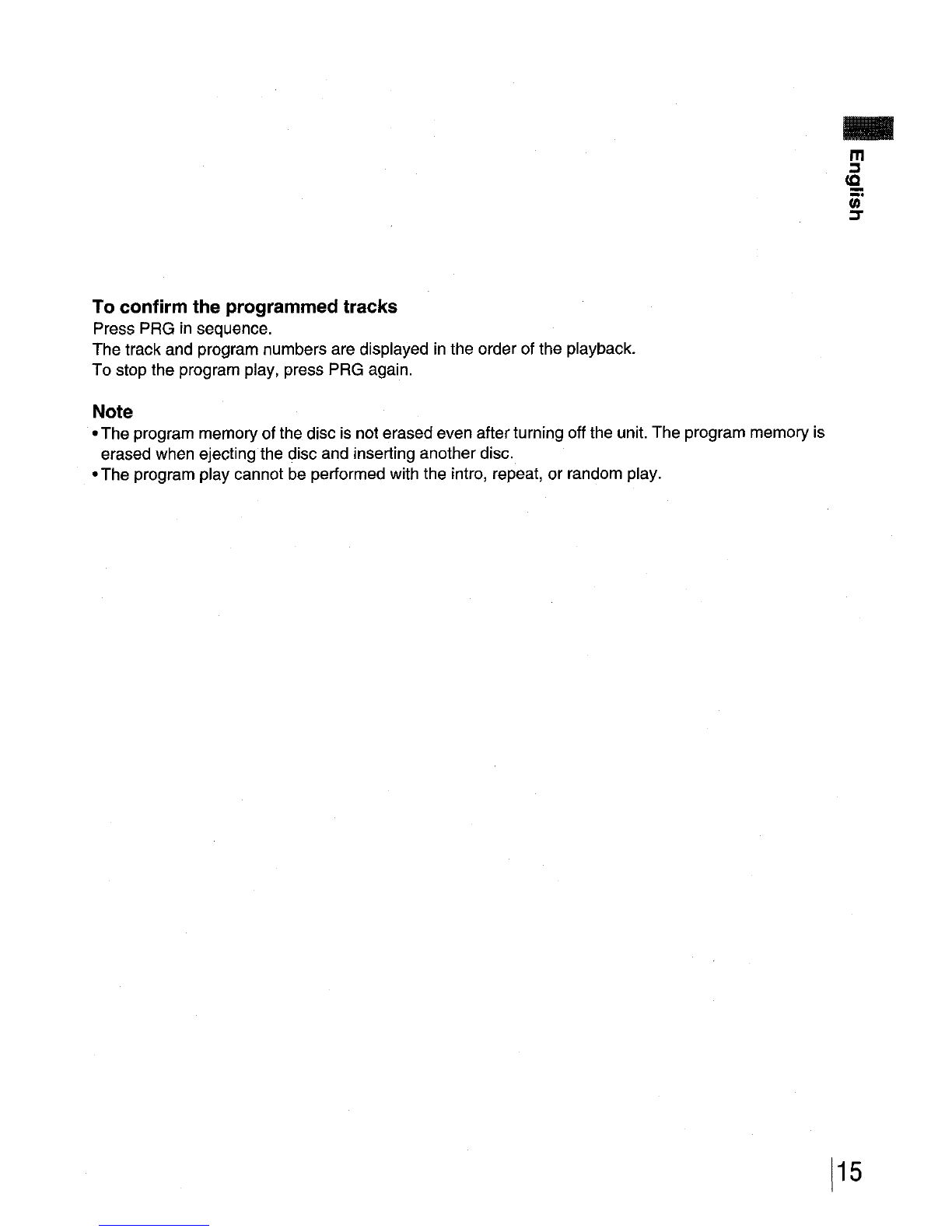

To confirm the programmed tracks
Press PRG in sequence.
The track and program numbers are displayed in the order of the playback.
To stop the program play, press PRG again.
Note
●
The program memory of the disc is not erased even after turning off the unit. The program memory is
erased when ejecting the disc and inserting another disc.
●The program play cannot be performed with the intro, repeat, or random play.
115

,SPECIFICATIONS
RADIO SECTION
FM
FrequencyRange: 87.5 MHz-108 MHz
UsableSensitivity: 12.7dBf
50 dB Quieting Sensitivity
17.2dBf
IF Rejection: 80 dB
FrequencyResponse: 30 Hz–15,000Hz
S/N Ratio: 83 dB
Stereo Se~aration: 35 dB at 1kHz
Alternate Channel Selectivity:
70 dB
Capture Ratio: 3dB
AM
Frequency Range: 530 kHz -1,710 kHz
Usable Sensitivity: 30 PV (30 dB)
CD SECTION
Frequency Response 17 Hz -20 kHz+0/–3 dB
Dynamic Range: Morethan 85 dB
Channel Separation: More than 70 dB
SIN Ratio More than 90 dB
Wow/Flutter Unmeasurable
GENERAL
Power Supply Voltage: 14.4 V(11 to 16 Vallowable),
DC, negative ground
Load Impedance: 4Q
Tone Control: Bass +lOdBat100Hz
Treble +10 dB at 10 kHz
Pre-amp Output Voltage:
3V(max.)
Installation Size: 182 (W) X53 (H) X
155 (D) mm
(7 ‘/, (W) x2‘/8 (H) X
61/8(D) inches)
Accessory Supplied: Carrying case (1)
●Specifications and external appearance are
subject to change without notice due to product
improvement.
AUDIO SECTION
Max. Power Output 25 W+25 W(rear)
7W+7W(front)
16

~TROUBLESHOOTING
In the following cases, the corresponding error code indicator is displayed. m
Error code Cause Solution
E--2, E--3, E--6, E--8 ]The disc is not inserted or ejected IPress RESET and insert the disc
properly. again.
E--4, E--5, E--7 The disc cannot be read properly. The disc may be damaged or
dirtv. Insert another disc.
E--9 The ambient temperature is too Allow the unit to cool off (by
high. moving the car out of direct
sunlight, etc.).
Reset button
=
====+ RESET
The reset button (RESET) is located on the front side of the unit behind the control panel (see
“DETACHING THE CONTROL PANEL” on page 4).
If the unit does not operate properly, press RESET with apointed object such as apencil, etc. to reset
it, Note that the memory contents are erased when pressing RESET.
117

,TABLE DES MATIERES
Precautions ................................................................................................................................ 19
RETRAIT DU PANNEAU DE COMMANDE ......................................................................................2O
PANNEAU DE COMMANDE .............................................................................................................2l
MISE SOUS/HORS TENSION DE L’APPAREIL .................................... .........................................22
AJUSTEMENTS SONORES .............................................................................................................23
FONCTIONNEMENT DE LA RADIO .................................................................................................24
PREREGLAGE DE STATIONS .........................................................................................................26
LECTURE DE CD ............................................ ....................................... ........................................ 28
LECTURE DE PROGRAMME ...........................................................................................................3O
SPECIFICATIONS ............................................................................................................................ 32
EN CAS DE PANNE ......................................................................................................................... 33
ATTENTION
Les modifications ou ajustements de ce produit,
non expressement approuvees par Ie fabricant,
peuvent annuler Ie droit ou l’autorit6 I’utilisateur
afaire fonctionner ce produit.
18

❑PRECAUTIONS
●Ne pas essayer de demonter cet appareil. Les
rayons laser de la t6te de lecture optique sent
dangereux pour Ies yeux.
●Veiller ace qu’aucune epingle ou autre objet
exterieurne penetre clansI’appareil; cela pourrait
dormer lieu a un mauvais fonctionnement, ou
un risque, tel que decharge electrique ou
exposition aux rayons laser.
●Quand Iavoiture est garee en plein soleil en ete,
I’augmentation de temperature aI’interieur peut
@treconsiderable. Laisser baisser latemperature
ambiante avant de faire fonctionner I’apparel
●Cet apparell est conpu unlquement pour
fonctionner sur un systeme electrique amasse
negative 12 volts C.C.
●Au replacement du fusible, utiliser un fusible
aamperage nominal identique. L’emploi d’un
fusible aamperage plus eleve risquerait
d’endommager serieusement I’appared.
Remarques sur Ies CD
●Un disque defectueux ou sale insere clans
I’appareil peut provoquer une coupure du son
pendant la lecture.
●Saisir Ie disque par ses bords exterieur et
interieur.
●Ne pas toucher la surface de la face saris
etiquette du dlsque.
●Ne pas coller du papier ou du ruban, etc. sur la
surface.
●Ne pas exposer Ie disque en plein soleil ou a
une chaleur excessive.
●Nettoyer Ie disque avant la lecture. Essuyer [e
disque du centrevers I’exterieuravec un chiffon
de nettoyage.
●Ne jamais utiliserde solvant, tel que benzine ou
alcool, pour nettoyer un disque.
@
.Ne pas utiliser d’adaptateur pour Iire un CD de
8cm. Cela pourrait provoquer un mauvais
119

~RETRAIT DU PANNEAU DE COMMANDE
Le panneau de commande de I’appareil peut ~tre detache et emporte quand on quitte sa voiture.
1
2
Si un disque est insere, Ie retirer pour eviter tout
dommage aI’appareil.
Appuyer sur POWER pour mettre I’appareil hors
tension.
20
En soutenant Ie panneau de commande d’une main,
appuyer sur ~pour Iiberer un c~te. Prendre
garde de ne pas Iaisser tomber Ie panneau car il
peut r%reejecte brusquement.
[1 14Soulever Ie panneau de commande pour Ie retirer
de I’appareil.
I
Remarque
●Placer Ie panneau de commande clans Ie sac de transporl fourni pour Ie proteger contre Ies dommages
pendant Ie transport.
Reinstallation du panneau
de commande
