USER MANUAL MULTIMEDIAL SYSTEM

TIPS, CONTROLS AND GENERALINFORMATION
ROAD SAFETY
Learn how to use the various system functions before setting off. Read the instructions for the system carefully
before setting off.
RECEPTION CONDITIONS
Reception conditions change constantly while driving. Reception may be interfered by the presence of
mountains, buildings or bridges, or when you are far away from the broadcaster.
IMPORTANT The volume may be increased when receiving traffic alerts and news.
CARE AND MAINTENANCE
Observe the following precautions to ensure the system is fully operational:
➢ the display is sensitive to scratching, liquids and detergents. The display should not come in contact with
pointed or rigid objects which could damage its surface. Do not press on the display when cleaning it.
➢ prevent any liquid from entering the system: this could be damaged beyond repair.
Only clean the front panel and the display with a soft, clean, dry, anti-static cloth. Cleaning and polishing products
may damage the surface. Do not use alcohol or similar products to clean the panel or the display and ensure that
the system is in OFF mode during cleaning operations.
MULTIMEDIA DEVICES: SUPPORTED AUDIO FILES AND FORMATS
For memory stick (USB) and portable media players (iPod) sources the system can play files with the following
extensions and formats:
➢.MP3 (8 –320Kbps);
➢.WAV;
➢.WMA (8 –320Kbps);
➢.AAC;
For all sources (USB, iPod and Bluetooth® ), the system can also play the following Playlist formats:
➢.M3U
➢.PLS
➢.WPL
For USB sources the system can play videos with the following extensions and formats:
➢.MP4;
➢.DAT;
➢.AVI
WARNING
It can be dangerous if the volume is too high.
Adjust the volume so it can still be heard
background noises (e.g. horns, ambulances,
police vehicles, etc.)

Video Codec Name
Profile
Level
Limitation
MPEG4
Simple Profile
L5
For Advanced Simple profile, only
one point GMC is supported.
Advanced Simple Profile
H264
Baseline profile
L 4.1
For Baseline profile with SGM,
the width limitation is 1280.
Main profile
For Baseline profile without SGM, the
width limitation is 4096.
High profile
For USB sources, the system can view images with the following extensions and formats:
➢ .JPEG;
➢ .JPG;
The system supports FAT16, FAT32, ex FAT formatted USB devices. The system does not support devices with a
capacity higher than 128 Gb and Hard Disk.
FRONT PANEL CONTROLS
STANDARD MODEL NAVIGATION MODEL
WARNING
ALWAYS drive safely with your hands on the steering wheel. You
have fully responsibility and assume all risks related to the use of the
multimedia system features in this vehicle. Only use multimedia
system when it is safe to do so. Failure to do so may result in an
accident involving serious injury or death.

Button
Function
Description
SwitchingOn/Off,
Volume Adjustment &
Back to Main Menu
Press the button to turn on the device, press and hold for 2
seconds to turn it off. Increase or decrease the volume via
turning the knob left or right respectively. Press the button to go
back to main menu in any selected menu.
RADIO
Radio
Press the button to enter radio source / Select radio band
MEDIA
Media Source
Press the button to enter/Select USB/iPod/BT media Sources. If
Apple CarPlay or Android Auto Connectionis active, Android Auto
or Apple CarPlay media menucan be accessible.
PHONE
Phone
Press the button to enter the mobile phone menu. Further
details are givenin next chapters.
or
NAV
Display On/Off
or
Navigation
Press the buttonto turn the display onor off.
or
Press the button to turn the navigation system.
Enter/Browse&
Tune/Scroll
Press the buttonto enter the selected menuor approve a pop-up.
Rotate the knob for manual seek for radio and change the
selection up & down in browse.
USB/iPodPort
Connect the device to USB connectionport to activate
iPod/CarPlay/AndroidAutoport.

STEERING WHEEL CONTROLS
Button
Function
Description
Mute Button
Press the button for the activation/deactivation of the volume.
To cut off the microphone device during BT (Bluetooth®) call,
press the button to activate mute function. This allows to hear
theinterlocutor but not being heard fromit. Press the mutebutton
again to deactivate the function.
Voice Command Button
Press to activate Android Auto and Apple Car Play voice command
Call Accept Button
Press to pick-up incoming calls
Call End Button
Press to end the call, or for refusing an incoming call.
Search Button
Press the button to auto seek for next or previous radio station/
track for media sources.
Long press to change them faster.
Volume Up/Down Button
Press to increase/decrease the volume.
Long press to increase/decrease volume faster
TURNING ON/OFF THE RADIO
Press button briefly to turn on the device, press it for 2 or more seconds to turn it off. Rotate the button
clockwise to increase the volume, or anti clockwise to decrease the volume.
RADIO MODE
Press the RADIO button on the touchscreen bottom left corner or icon in the Home page, to enter the
Radio Menu.

Radio Mode Selection
In radio main screen, press RADIO button on the front panel or “FM/AM, AM/DAB (if available), DAB (if
available)/FM” to switch to the bands AM,FM and DAB (if available). Each tuning mode can have a specific
preselection set.
Radio Station Selection
In radio main screen turn button/knob or press and button on screen to search for the desired radio
station. Long press the button on the touchscreen for rapid skip the radio frequencies. Long press the
button for rapid come back to the previous radio frequencies.
Displayed Information
After the desired radio station is selected on the display, the following information is shown:
At the top: the list of radio stations stored (preset) is displayed; the station being listened to is
highlighted only if it is among the ones stored in the preset.
In the middle: the name of the radio station being listened to and the buttons to select the previous or
the next radio station are displayed.
At the bottom: the following buttons are displayed:
➢ "FM/AM/DAB (if available) ”: selection of the desired frequency band (button reconfigurable according to
the band selected: AM, FM, DAB (if available) );
➢ "Stations": list of the available radio stations.
➢ "Info": additional information on the source playing.
➢ "Audio": access to the "Audio setting" screen.

AM/FM/DAB (if available) Radio Station Tuning
Press the icon to enter Direct Tune menu. The graphic keyboard on the display is used to enter
the frequency of the station. In this mode, use buttons + and –to fine-tune the frequency. Press button to
delete a wrong number (and enter the correct station frequency). Press button or the RADIO button on the
display to return to the system main screen.
Fast searching of next/previous radio broadcasting
Keep pressing on or buttons to start fast searching. When you stop pressing the button, the audio
will find the first listenable broadcast.
FM broadcasting list
To see all FM stations list, you need to press button.
Presetting a Station (Preselection)
Pre-selections are activated by touching one of the preselection buttons located at the top of the display. To store
the current radio station, press and hold down the button corresponding to the desired preset until a confirmation
acoustic signal is heard. The system can store up to 12 radio station in each mode: 4 radio stations are displayed at
the top.
DAB (if available) broadcasting
DAB (if available) third-generation broadcasting -- digital audio broadcasting, which provides sound quality close to
CD, radio broadcasting and additional data services with unlimited work opportunities, it has the advantage of a
transmission without noise, without interference and antiradio, adapted to the mobile reception of high velocity.

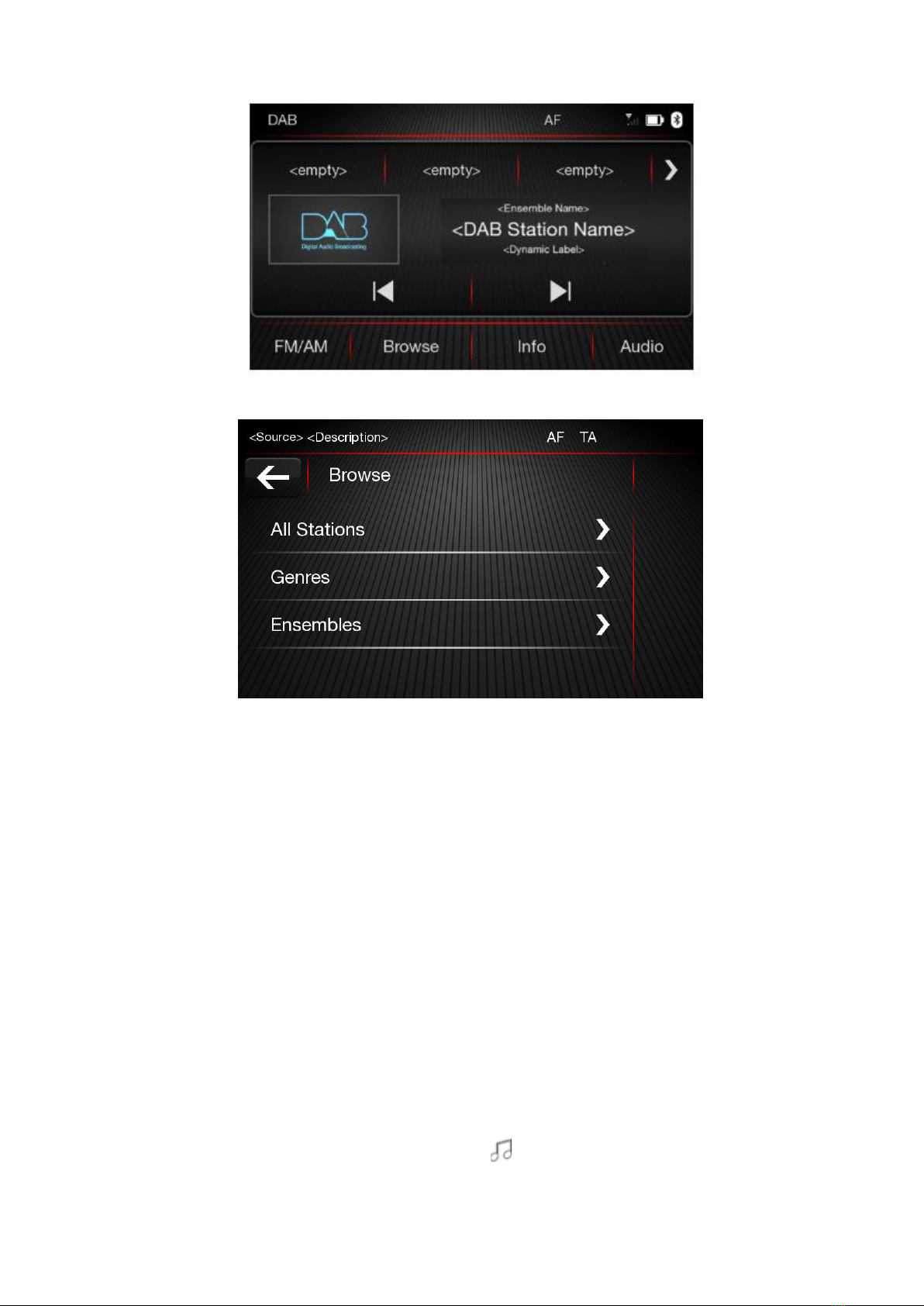

Press the "Browse" button to select “All stations” “Genres” “Ensembles”.

All stations
Press “all stations”, to see all the DAB (if available) broadcasts.
Genres
Press “Genres”, to choose various types of DAB (if available) radio programs, such as weather, finance, children,
religion, etc.
Ensembles
Press “Ensembles”, to scroll through the DAB (if available) ensembles groups
MEDIA MODE
Press MEDIA button located on the faceplate or press the icons on the home page to activate media
sources. After source selection i s completed, sound/photo files in the source are played automatically.

To play audio/photo files via USB, the corresponding device must be connected to the USB port on the radio, if
needed via a required cable (only in the case of device other than USB stick). When a USB / iPod device is
plugged in while the system is on, tracks stored on USB/iPod are available to play. Supported USB flash disks
list is provided at the following link: http://www.fiatnavigation.com
If the mobile phone supports Bluetooth® connection, the audio files stored on the mobile phone can be listened
via the radio in the car.
Seek Previous/Next
Press button to play the next selection. (this can be track/picture). Press button to return to the beginning
of the selection or the beginning of the previous selection.
Fast Seek Previous/Next
Press and hold button on the touchscreen to fast forward the selected track. To fast rewind the track, press and
hold the button.
Browse
This function is used to select tracks in the directory of active device. Additional options for the selection may vary
depending on the connected device or the type of device connected. For example, if a USB / iPod device is
connected, it can be navigated between artists, music genres, and albums, depending on the information in the
songs.
In order to activate this function on corresponding device press the “Browse”button on the display, which allows
the user to scroll through files and make a search. This button may not be available for some specific Apple®
devices. Press button to cancel browse function and turn to the precedent menu.
Use the "ABC" button inside each list to skip to the desired letter inside the list.
Song Information
Press “Info” button to display the information of the current track. Press “CLOSE” button to go back to the
previous screen
WARNING
When connecting a device (USB or iPod) to
the USB port, make sure that the
handbrake lever is not obstructed.

Shuffle
Press button to play the tracks in a random order. Press again to deactivate this function. Shuffle function can
be available only if the USB or Bluetooth® device supports this function.
Repeat Song
Press button repeatedly to cycle between Repeat One, Repeat All and Repeat OFF in loop. Repeat function can
be available if the USB or Bluetooth® device support this function.
➢Repeat One ; in this mode the system repeatedly plays the current track.
➢Repeat Al l; in this mode the system repeatedly plays the list of the current tracks.
➢Repeat OFF ; in this mode the tracks cycling is deactivated.
Media Mode
To activate media mode:
1) Put in the USB port a USB device or an Apple/Android device by USB cable.
2) Press the MEDIA button on the touch screen of the radio.
To play an audio track select the icons of the possible options: USB device, Ipod device, Android device (MTP).
Note: if the Autoplay setting is ON status. The radio will start to reproduce the audio tracks automatically.
BLUETOOTH® MODE
In order to active Bluetooth mode or Bluetooth streaming audio (BTSA), pair a Bluetooth device Before
proceeding, the Bluetooth® device must be paired to the Multimedia System.
NOTE: See the pairing procedure in the Phone Mode section for more details.

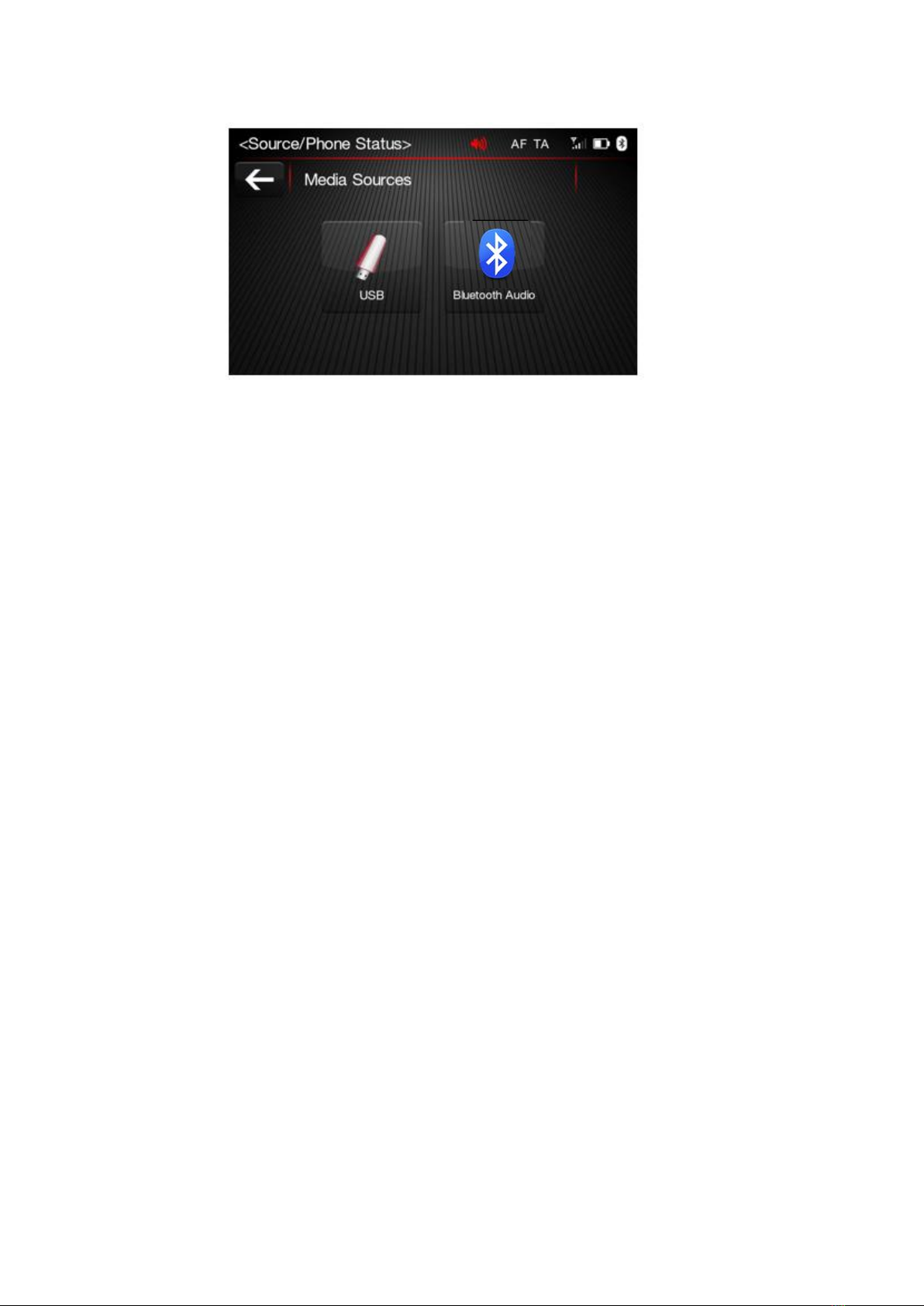

To access Bluetooth® mode, press the “Source” button under the Media Menu of the Home Page, and then select
“Bluetooth® Audio”.
WARNING
Be carefull when the USB/Ipod device is
put in the USB port in order to avoid any
damages.

PHONE MODE
Activating Phone Mode
Press PHONE button on the front panel or the button on the main screen to activate phone mode.
Key Features:
➢ Dialing the number of the person wanted to be called.
➢ Contacts on the phone book of the cell phone can be viewed and called.
➢ Contacts on the recent calls can be viewed and called
➢ Up to 5 cell phones/digital players can be stored for easier and faster access.
➢ The calls on the radio device can be transferred to cell phone and the call on the mobile transferred to
the device. Microphone device can be disabled.
➢ Sound files that are stored on mobile phone, can be played over radio device.
Sound of the mobile phone is directed to the car speaker system over radio. System interrupts radio sound
automatically while mobile phone function is in use.
Pairing the Mobile Phone over BT
The instructions below are to be followed for registering procedure:
➢ Ensure that the vehicle is stationary; the pairing process between vehicle and mobile phone can happen
only when the vehicle is stationary.
➢ Ensure Apple CarPlay/Android Auto is not active on the phone.

➢ Activate Bluetooth® function of the mobile phone.
➢ Press PHONE button of the radio in front panel .
➢ Press Button.
➢ Press the button to start the pairing process.
➢ Search for “FIAT_XXXX”on mobile phone .
➢ If the pairing process doesn’t go automatically enter the PIN code that is displayed on the screen of the
radio, using the mobile phone, after mobile phone requires it. Otherwise confirm the code that is
displayed on mobile phone..
➢ An Information screen which contains cell phone details is displayed when the pairing is completed.
After updating the mobile phone's software, it is recommended to remove the phone from the radio-connected
devices list, delete the previous connection of the phone from the Bluetooth® list, and pair the mobile phone again
to assure the system works correctly.
Transfer of the Phone Data (Phonebook and Recent Calls)
WARNING
If the pairing process is interrupted or fails, it
is recommended to delete the names of the
two corresponding devices from the list of
paired phones / devices from the phone and
radio and repeat the procedure again from
the starting point."
WARNING
Apple phones set the Bluetooth ®volume
to the half of maximum for the first pairing.
If the phone volume is low, change the
Phone volume level in the
Settings/Audio/Volume menu.
WARNING
Bluetooth®Connection Functions and
sound quality may vary and depends on
Mobile Phone Brand.
Supported mobile phones list is given at
web http://www.fiatnavigation.com

If your mobile phone has a function for sending the phonebook via Bluetooth® technology, during the pairing
procedure a pop-up screen will appear with the following request. Answer "Yes" to copy the whole phonebook and
the list of recent calls to the system. Answer "No" to carry out the operation later.

After the first phone data transmission, the procedure for transmitting and updating the phonebook (if supported)
starts as soon as a Bluetooth® connection is established between mobile phone and system.
This downloaded phonebook cannot be edited on the multimedia system. It can only be edited on the mobile
phone. When the device is deleted from the paired device list or the restore default settings option is activated, the
phonebook will be automatically deleted from the multimedia system. The changes are transferred and updated to
the multimedia system on the next phone connection.
Whenever a mobile phone is connected to the system, a maximum of 3000 contacts can be
downloaded and updated for each phone. Depending on the number of items downloaded from
the phonebook, a slight delay can occur before the last downloaded entry can be used. Up to then the phonebook
downloaded previously (if present) will be available.
Only the phonebook of the mobile phone currently connected to the system can be accessed.
Connecting To a Particular Mobile Phone Or Audio Device After Pairing
Multimedia System will automatically connect to the highest priority paired phone and/or Audio Device within
range. If you need to choose a particular phone or Audio Device follow these steps:
➢ Ensure that the Bluetooth® function is in ON status on the mobile phone
➢ Press the PHONE button.
➢ Press to enter to the list of paired devices.
➢ If the mobile phone is in use as a Media source, press button on the touchscreen.
➢ If the mobile phone is in use only for Phone function, press button on the touchscreen.
➢ If the mobile phone is in use as both Media source and Phone, press “Connect Both”button on the
touchscreen.
➢ A pop-up will appear, and multimedia system connects to the mobile phone automatically.
Disconnecting A Phone Or Audio Device
➢ Press the PHONE button on the front panel.
➢ Press the button on the display.
➢ Select the specific device from the "Paired Devices List”.
➢ Press button to disconnect as “Media source” and/or press button to disconnect as
“Phone source”.

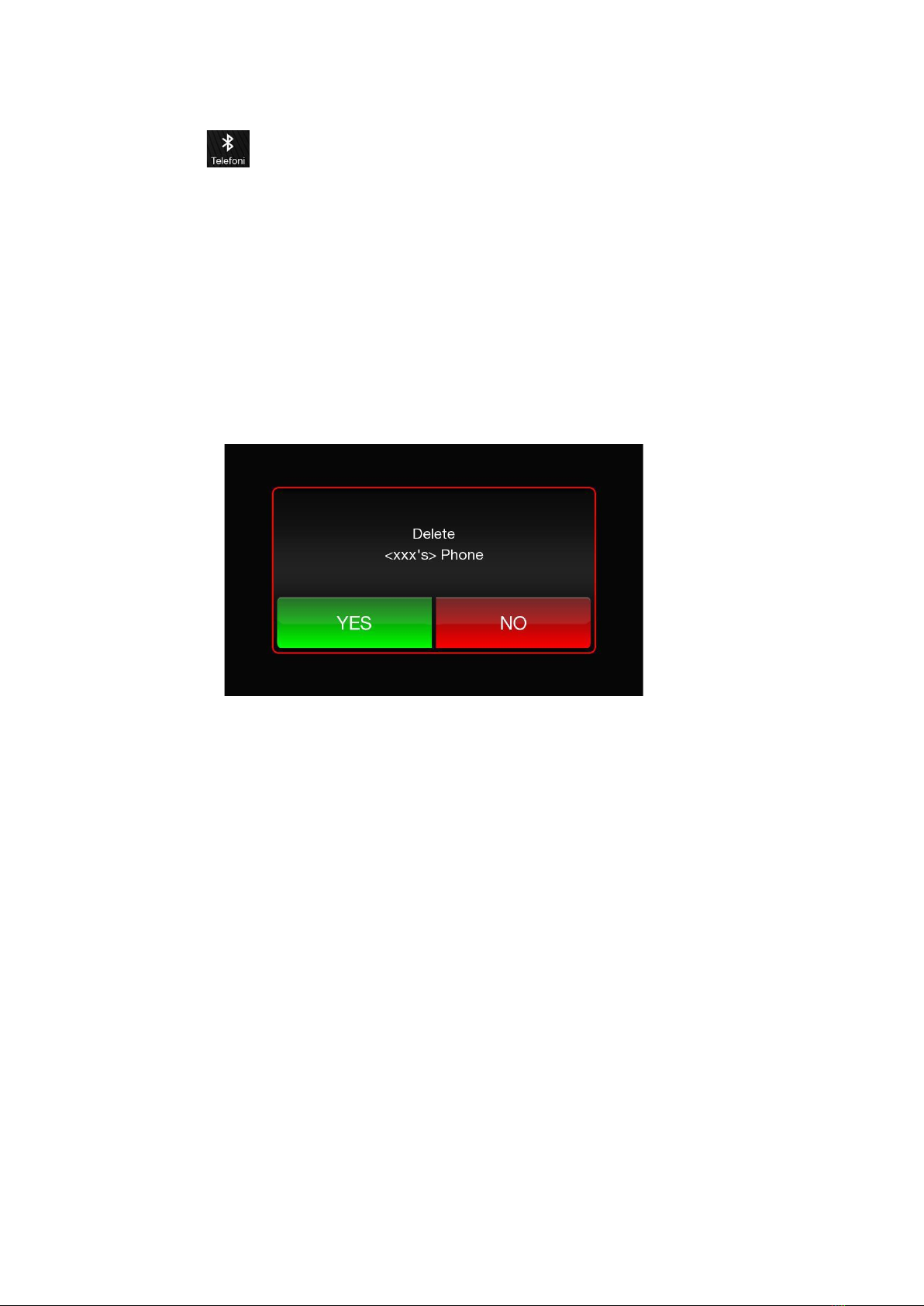

Deleting A Phone or Audio Device
To delete a mobile phone or Bluetooth® audio device from a list, proceed as follows:
➢ Press the PHONE button on the front panel.
➢ Select button on the display.
➢ Select the specific device from the "Paired Devices List”.
➢ Press the "Delete" button
➢ A confirmation screen will appear on the display: press "Yes" to delete the device or "No" to cancel the
operation.

PHONE CALL FEATURES
The following features can be accessed through the Multimedia system if the feature(s) are available and supported
by Bluetooth® on your mobile service plan. For example, if your mobile service plan provides three-way calling, this
feature can be accessed through the Multimedia system. Check with your mobile service provider for the features
that you have.
Ways To Initiate A Phone Call
A call can be made by:
➢ Pressing “Contacts” button (mobile phone phonebook);
➢ Pressing "Recent Calls" button;
➢ Pressing “Keypad” button;
➢ Pressing the "Call Back" button.
Making a Phone Call
The operations described below can only be accessed if supported by the mobile phone in use. For all functions
available, refer to the mobile phone owner's handbook.

Dialing the phone number using the "keypad" button
Enter the phone number using the graphic keyboard displayed. Proceed as follows:
➢ Press the button on the touchscreen in Phone Main Menu;
➢ Use the numbered buttons to enter the number;
➢ Press the "Call" button to make a call.
Dialing the phone number using the mobile phone
It is possible to dial a phone number with the mobile phone and continue using the system (never allow yourself to
be distracted while driving). When a phone number is dialed with the keyboard
of the mobile phone, the audio of the call is played over your car's sound system.

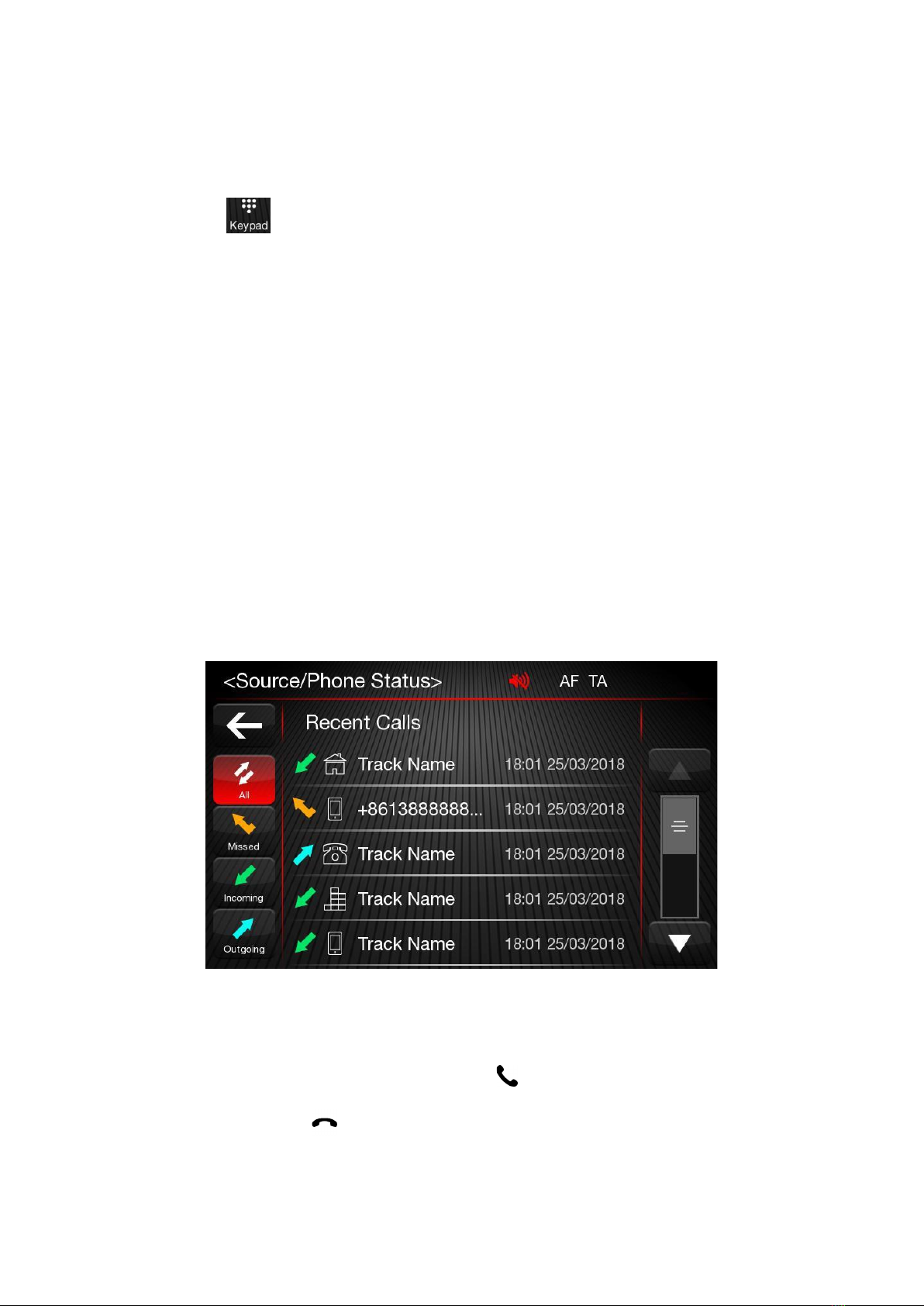

Recent calls
The list of the last calls made for each of the following call types can be displayed:
➢ Incoming calls;
➢ Outgoing calls;
➢ Missed calls
➢ All calls
To access these types of calls, press the "Recent Calls" button on the Phone menu main screen.

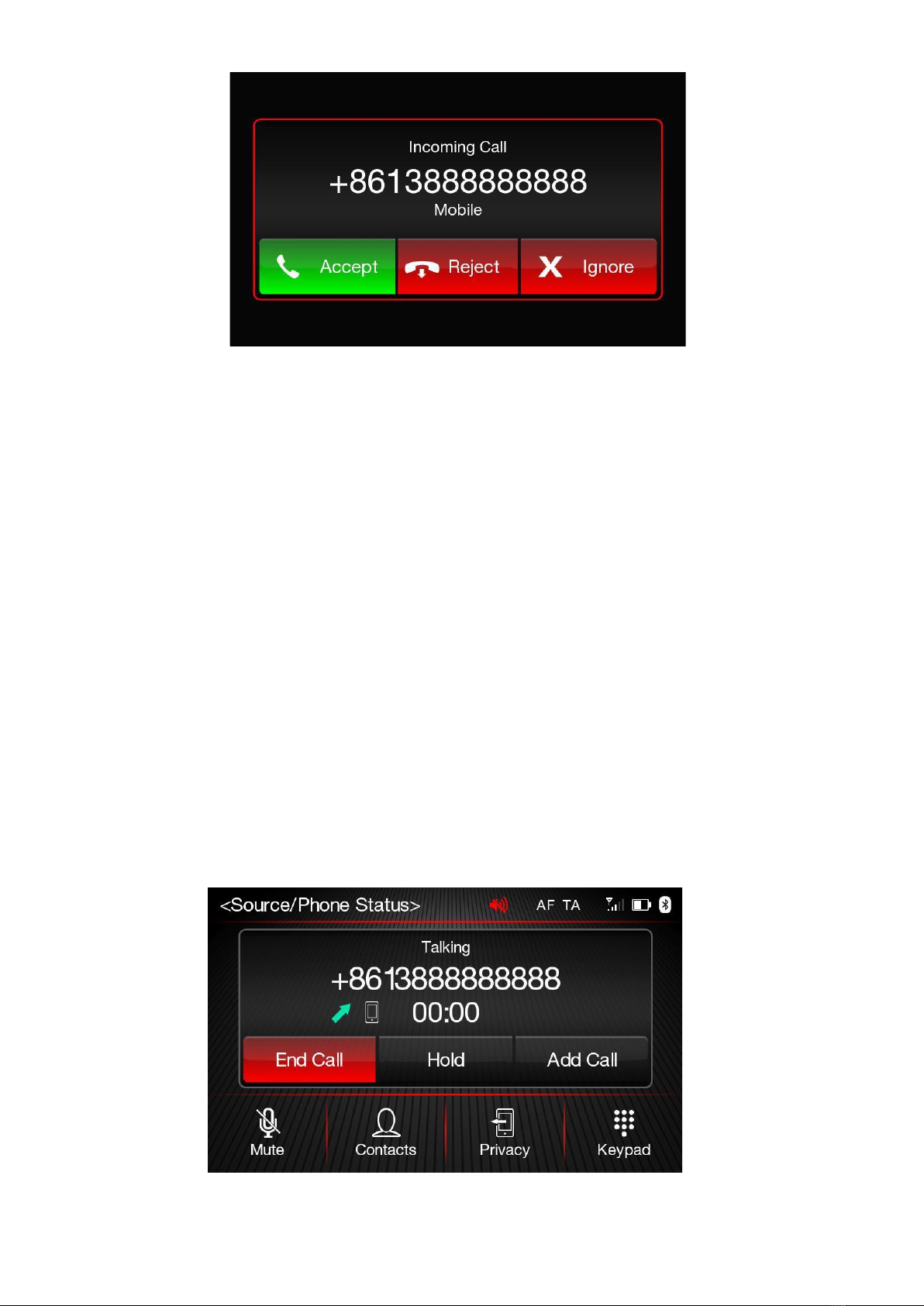

Managing an Incoming Call - Answering a phone call
When a phone call is received on the mobile phone, the system deactivates the audio system (if active)
and displays a popup screen. Press the "Accept" button or the button on the steering wheel controls to answer.
Press the "Reject" button or the button on the steering wheel controls to reject.
Press the “Ignore” button to ignore the incoming call, the incoming call still exist in the background, if user press
PHIONE button of the front panel, the incoming call screen will appear again.

Answering an incoming call during an active conversation
To answer an incoming call while another phone conversation is in progress, press the "Hold”button to put the
ongoing call on hold and answer the new incoming call.
Press “Reject”button to close the ongoing call and answer the new incoming call.
Press “Ignore” button to ignore the new incoming call and continue with the ongoing call.
IMPORTANT: Not all mobile phones may support the management of an incoming call when another phone
conversation is active.
Making a second Phone Call
When a phone conversation is active, a second phone call can be made in 3 different ways on the same menu as
follows:
Press “Add Call” button and Keypad screen is open;
➢ Dial the number using the numbered buttons and press “Call” button;
➢ Press “Recent Calls” button to select from the list of recent calls;
➢ Press “Contact” and go to the Phonebook then select the contact;

Managing two Phone Calls
If two calls are in progress (one active and one on hold), it is possible to switch between them pressing
the "Switch”" button or to merge the two calls in a conference pressing the "Join" button.
Note
Check whether the telephone in use supports the management of a second call and the "Conference"
mode.
Ending a Call
Press the "End" button or the button on the steering wheel controls to end a call in-progress. Only the ongoing
call is ended and any call on hold becomes the new active call. Depending on the type of mobile phone, if the ongoing
call is ended by the caller, the call on hold may not be activated automatically.
Redialing
To call the number/contact of the last call made, press the "Call Back" button on the Phone Main Menu.
