Jehnert 65130 User manual

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130
Recommendation:
To achieve the full sound performance of the sound system, we recommend Sound Package I, which signi-
cantly increases the sound performance of the system with the additional amplier and subwoofer.
3-way sound system Mercedes Sprinter (65130)
Mounting kit part no. 65130:
10x self-tapping screw with collar 3.9 x 16
2x Spax screw 4x25
2x Spax screw 4x55
2x plastic ring washer
Required tools
Phillips screwdriver
Torx screwdriver (TX 20/25/30)
Hot glue gun
Plastic wedge
Insulating tape
Stripper
Crimping pliers
Side cutter
Model/year: Sprinter VS30 from 2018 (Type W907 / W910) - Integrated models incl. low-frequency extension.
Only for vehicles without cover aps on the dashboard/storage compartment
Packing List:
1x midrange/tweeter module incl. acoustic fabric bae (left & right), covered.
2x„XE26“ neodymium softdome tweeter Ø 26mm
2x„XE80“ midrange driver Ø 80mm
2x„XE130G“ low-midrange driver„Power-Woofer“ Ø 130mm
2x mounting ring and grille for„XE130G
2x mid-high crossover incl. cable assembly (Art.-No.: 7000 FW)
2x low frequency crossover incl. cable assembly and rear felt (Art.-No.: 65130FW-TT)
1x mounting set - Mercedes Sprinter art.-no.: 65130)
1x 5-channel DSP amplier incl. 2,2m ISO cable and mounting instructions
1x subwoofer of your choice incl. mounting set and 4,8m subwoofer cable
1x cable crossover for center crossover speaker jacketed
with sound package 2 (68132):
2x living room speakers of your choice incl. mounting set and
mounting instructions

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130

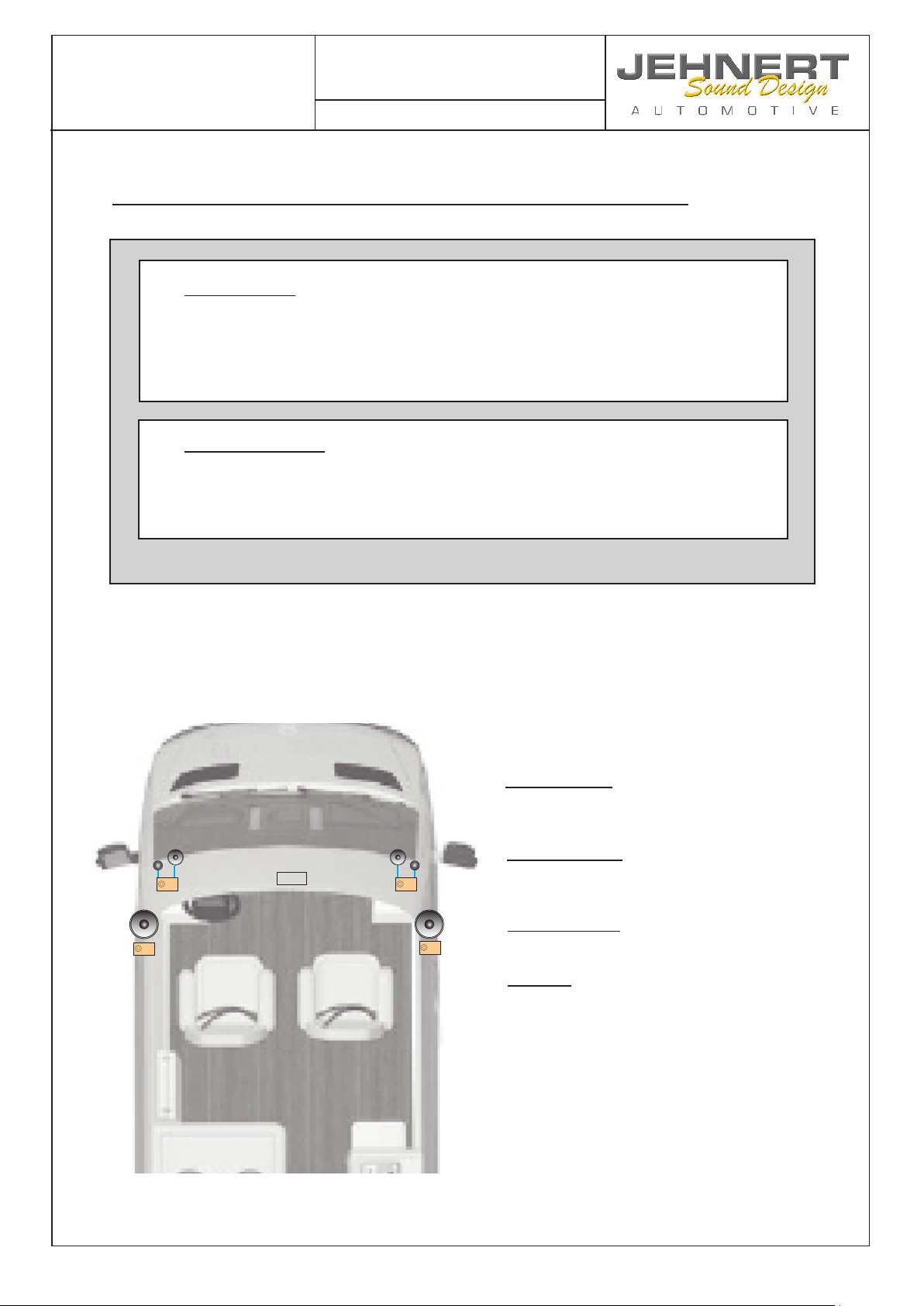

Cable routing / connection scheme 3-way without amp+ subwoofer
Crossover
MHT turnout pre-assembled vehicle-specifi c
Woofer Crossover turnout pre-assembled vehicle-
specifi c
Tweeter »XE 26«
Mounting in the dashboard in the mid-high module,
pre-installed.
Midrange »XE 80«
Mounting in the dashboard in the mid-high module,
pre-installed.
Woofer »XM 165«
Mounting in the vehicle door panels.
radio
CO CO
CO CO
General installation instructions - must be observed!
!Radio settings:
To achieve the best sound, all settings on the radio (bass, treble, loudness,
equalizing, etc.) should be set to ZERO or OFF.
Installation Notice:
To avoid vibration noise, secure all cable harnesses with insulating tape or
similar.

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130

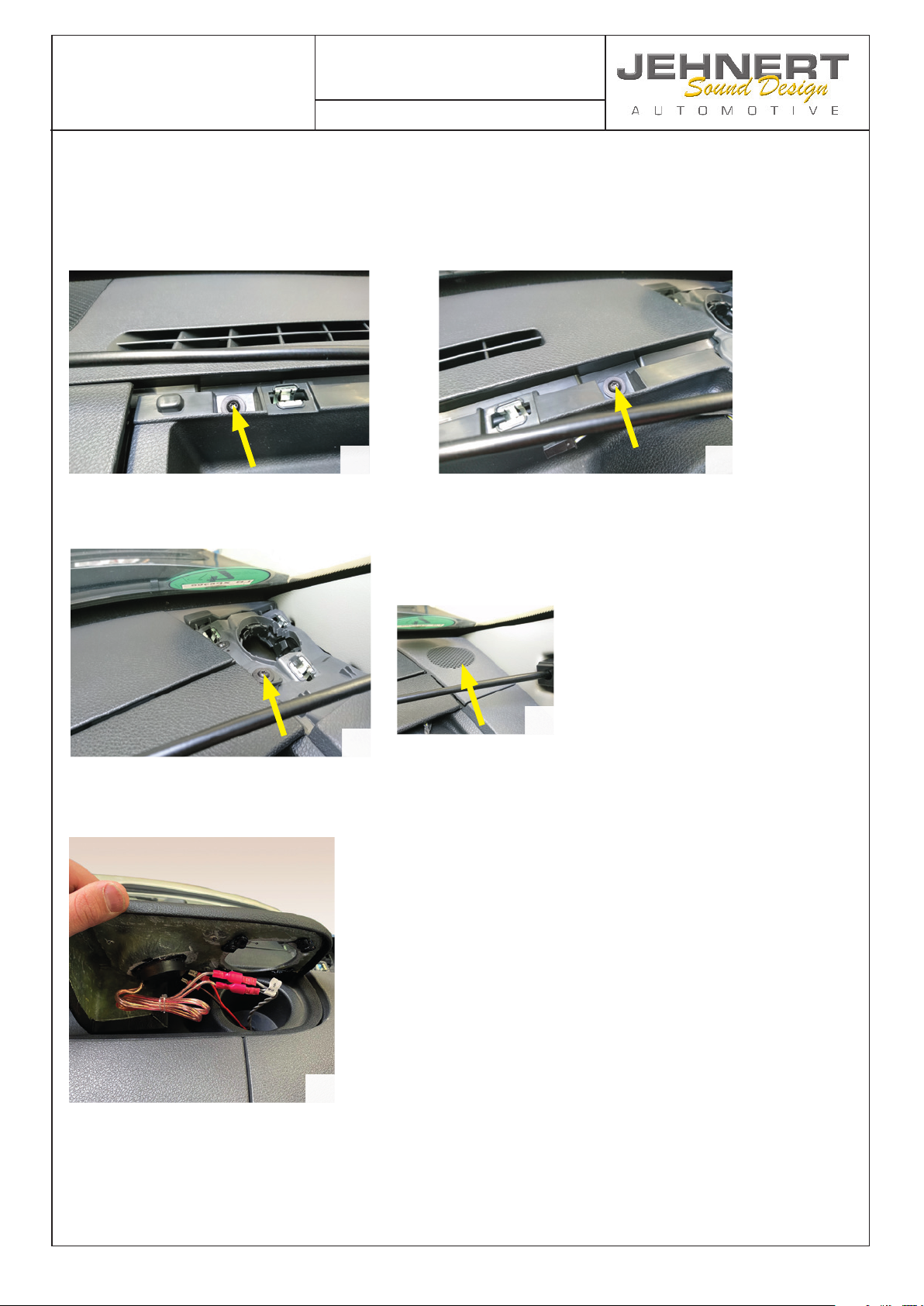

1. mounting of the mid-high modules in the dashboard
• Loosen screw from cover (see Fig. C)
• Unclip cover -> loosen starting from outside (see Fig. D)
• Remove the two cupholder/storage compartment screws located under the disassembled cover (see Figs. E & F)
• Dismantle cupholder/storage compartment -> use wedge and loosen part starting from outside (see Fig. G)
E
G
F
C D
• Remove original tweeter cover with a plastic wedge from the front. (see g. A)
• Remove Mercedes tweeter, disconnect original connection cable (see Fig. B).
1.1. Dismantle factory tweeter
A B

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130

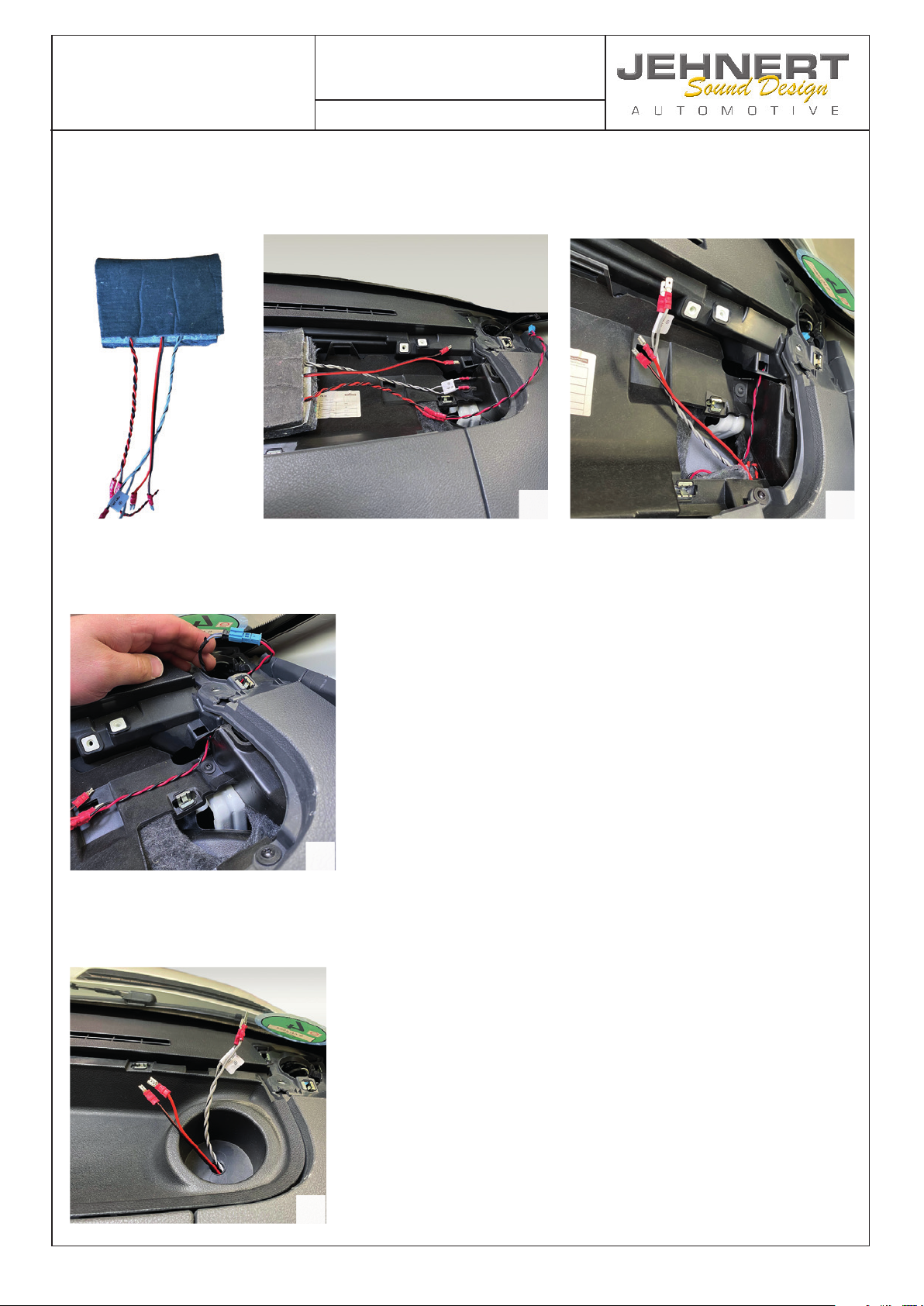

1.2 Assembly of the crossovers
• Wrap mid-high crossover in damping eece (see Fig. A).
• Place crossover in indentation of storage compartment and route tweeter connection through original tweeter hole and
connect with cable (see Fig. C and D).
• Drill a 10 mm hole in the center of the cupholder/storage compartment ->ideally use a step drill.
• Feed the midrange and tweeter speaker cables from below through the drilled hole and check
the position of the storage compartment. (see g. E)
A B C
D
E

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130
• Clip the tweeter cover strips back in place and tighten the screw on the outside (see Fig. H).
• Mount original HT cover (see Fig. I)
• Place the mid-high module on the discard tray and connect the tweeter and mid-range drivers
so that they are short-circuit-proof (see Fig. J).
G
1.3. mounting of the mid-high modules in the dashboard
(only suitable for vehicles with storage compartment without cover ap)
H
I
• When the cables have been properly routed through the hole (no excessive tension) insert both screws of the cupholder storage
compartment and tighten them (see g. F/G)
F
J

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130
1.4. mounting of the midrange/tweeter modules in the dashboard
incl crossovers
(only suitable for vehicles with storage compartment without cover ap)
• Screw down MHT module (see Fig. B) ->outside: Spax 4x25mm, inside: Spax 4x55mm (see g. L/L1/L2)
• Connect midrange driver and screw tight with 4 collar screws 3.9x16mm (see g. M)
• check tight t, nally put on acoustic fabric cover and press (Velcro disc) rmly (see g. N)
K
M
L1 L2
Driver‘s side Passenger side
1
1 2 2
Spax 4 x 25
Spax 4 x 55
1
2
L
N

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130
2. Attenuation of the center speaker in the dashboard
• Dismantle original cover (see g. A)
• Lever out loudspeaker (see Fig. B)
A B
• Disconnect the purple-white marked cable, insert the cable switch (Fig. C) and reconnect the loudspeaker (see Fig. D).
• nally reinsert loudspeaker and clip in cover
D
C
3. woofer mounting in the side panel
3.1 Optional recommendation: Insulation of the side paneling
3.2 Preparation of side panel and mounting woofer incl. mounting ring
• Line the side cladding with Alubutyl, then glue insulating eece over the entire surface.
• Install woofer crossover with collar screw 3.6x16 in the side panel to
the outer wall of the vehicle.
make sure that this does not cause any vibrations or short circuit (by
screw).
• Then connect the original woofer cable to the crossover and con-
nect the crossover output to the woofer.
• Position and mount the woofer incl. mounting ring on the factory
speaker cutout on the side panel using the supplied screws.
• Place the cover grille on the speaker ring.
Bsp.Abb. Fiat Ducato (Hymer Reisemobil)

Assembly instruction
Status: 12.05.2022
Mercedes Sprinter Integrated
W907 /W910, Cab system
Jehnert Sound Design I Im Michelreis 14 I 72124 Pliezhausen I Tel.: [phone] I [email protected] I www.jehnert.de
Art.- No. 65130
3.3 All assemblies
• Screw the disassemblies back on or install them again
Notes:
If you have any questions, please do not hesitate to contact our team in Pliezhausen:
JEHNERT SOUND DESIGN
»Development and production of car audio systems«
Owner: Hans-Peter Jehnert
Im Michelreis 14
72124 Pliezhausen
Phone.: [phone]
Fax: [phone]
[email protected]
www.jehnert.de
Warranty:
As the manufacturer, we warrant these sound systems for 2 years from the date of purchase from the dealer. Within this warranty period, we
will, at our option, repair or replace free of charge all defects that are due to material or manufacturing faults. Excluded from the warranty
are damages caused by improper use or installation, wear and tear or interventions by third parties.
The warranty does not cover consequential damage or defects that only insignicantly impair the value or usability of the sound systems.
A warranty obligation is not triggered in the case of damage caused by external inuences. Systems with additional or incorrect mounting
holes are excluded from exchange. These are damages to the components that cannot be repaired.
