JEM BT10M User manual

BLUETOOTH HANDSFREE CAR KIT
with noise cancellation technology
Model: BT10M
User Manual
Brief Introduction
Thanks for choosing our Bluetooth FM Transmitter. This device streams music and
call directly from your Bluetooth devices to your car FM stereo system. The separated
microphone provides you with an amazing hands free function and it is also with a
Micro SD card/USB Disk slot that lets you enjoy favorite MP3 and WMA tunes by your
car’s stereo system. Please read the user manual carefully before using. Hope this
device makes your driving more interesting and safer.
Packing contents:
⚫Bluetooth device
⚫User manual

⚫Hook and loop fastener
Specification:
⚫Bluetooth version: Action V5.0
⚫Bluetooth protocol: AVRCP,HFP,A2DP
⚫Frequency range: 88.1-107.9MHZ
⚫Frequency stability: ±10ppm
⚫Product input:12-24V
⚫Charger output: 5V/1A +5V/2.4A
⚫Music format: MP3, WMA, WAV, FLAC
⚫Micro SD card (Max capacity): 64GB
⚫USB disk (Max capacity): 64GB
⚫Transmit Distance: about 3m
⚫Bluetooth Distance: about 5m
⚫Product size of FM transmitter: 43*38*76mm
⚫Product size of Microphone: 38*20*9mm
⚫Length of cable:60cm
⚫Product weight: 37.8g
⚫Material: ABS
Features:
1. Wirelessly transmits phone call & audio streaming to the car FM
stereo system via Bluetooth.
2. Switches to handsfree mode automatically from music
streaming status when receiving phone call.
3. Better voice pickup cable incorporated.
4. Dual USB ports output: DC 5V/3.4A (in total).
5. Detect and display the voltage of car battery when powered on.
6. Full 206 channels optional from 88.1-107.9MHz.
7. Support micro SD card & read USB disk.
8. Quick Siri/Google Assistant activation.
9. User-friendly switch to private call.
10. Hook and loop fasteners.
Compatibility:
This device can be paired as a hands free kit with any compatible Bluetooth enabled
devices.
Precautions:

Please read all safety instruction and warnings carefully before using this product.
Improper use of this product may result in damage. To ensure it works well, please
never use this in the following conditions :
1. Moist or underwater conditions.
2. Conditions near heater or high-temperature service.
3. Conditions with direct and strong sunshine.
4. Conditions with apt falling.
5 Never dismantle the product without due permission, otherwise it may nullify the
warranty clause.

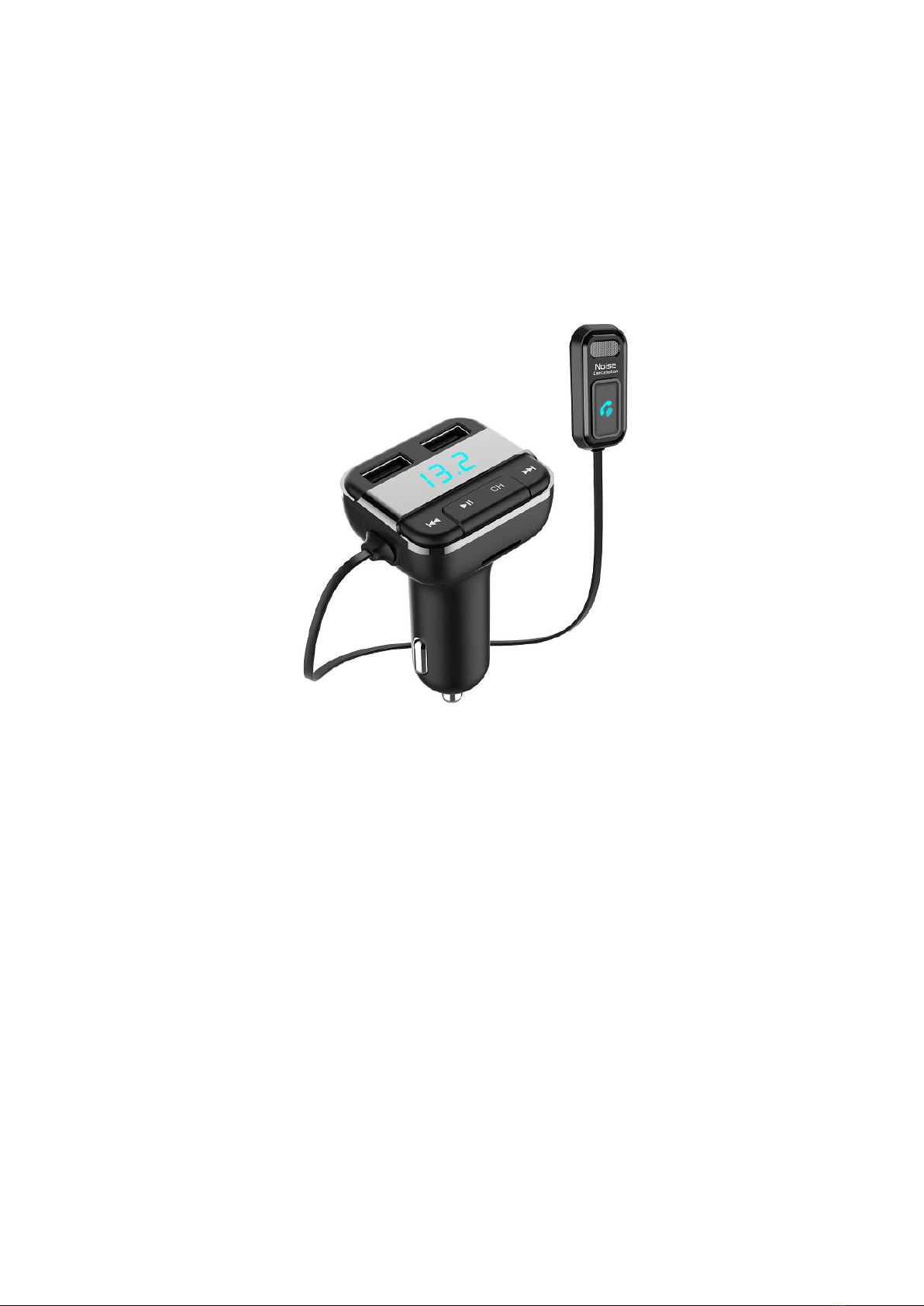

Product Overview:
Using FM Transmitter function:

1. Plug the FM transmitter into your vehicle’s cigarette lighter or power port. The LED
displays the voltage of car battery for 2 seconds. Then the device enters into
Bluetooth pairing mode, LED also displays “bt”.
2. Tune your radio to an unused FM frequency, then match the same frequency of
this unit.
3. Insert a micro SD card/USB disk containing MP3 files into micro SD card/USB disk
slot of this unit and it will play and transmit the MP3 files automatically.
Using Bluetooth function:
1. Paste 3M Adhesive Tape on the place you need.
2. Using Bluetooth for the first time, you need to pair your mobile phone with this
unit. Activate your mobile phone's Bluetooth function, then search new device.
When the mobile phone detects this unit (named as "BT10M"), please pair or
connect by using the original password "0000".
3. In the music playing mode, when there is an incoming call, this unit will
automatically switch to telephone mode.
4. On music playing mode, press the “Play/Pause ” and hold for 2 seconds to switch
modes between Bluetooth and Micro SD card/USB disk reading.
Bluetooth calling:
1. Please press to answer the incoming call or hang off a call.
2. Please press and hold for 2 seconds during call to reject the incoming call in
Bluetooth calling mode.
3. Please press twice to dial the last number automatically.
4. When the call connected , long press to switch a private call.
Using USB charger function:
Connect the USB Charger port (two ports both ok) to your mobile phone, with a USB
cable (not included) when this product powered from car lighter socket,
The product will serve as mobile phone charger.
Please note: The maximum output of right USB port is 1mAh;
The maximum output of left USB port is 2.4mAh;
Read MP3/WMA/ WAV/ FLAC files in USB disk by right USB port.

Siri/Google assistant activation:
When Bluetooth is connected successfully, press and hold 2 seconds to quick
activate Siri/Google assistant of your mobile phone.
Quick Guide:
Operation Guide
On FM transmitter
1. Answer / hang up
the call:
Press " " button: answer the call
Press " " button: hang up the call
2. Ignore call
Press “ ” and hold for 3 seconds to reject incoming calls
3. Call last Number
Press “ ” twice to dial the last number automatically.
4. Private calling
When answering a call ,press “ ” and hold for 3 seconds to switch
to private call mode.
5. Play and Pause the
music:
Press “ ” Button: Play the music
Press “ ” Button again: Pause playing
6. Adjust the Volume:
Press “ ” and hold for 2 seconds to increase the volume
Press “ ” and hold for 2 seconds to decrease volume
7. Set frequency:
Press “CH” first
Then press “ ” : increase the frequency
Or press “ ”: decrease the frequency
8. Choose music:
Press “ ” button: play the next song
Press “ ”button: play the previous song
9. Music sources
switch:
Press “ ”button and hold for 2 seconds to switch modes
between Bluetooth and Micro SD card/USB disk reading

10. Activate
Siri/Google assistant
Long press to quick activate Siri/Google assistant under
Bluetooth connected
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
