JenCam FCB-EH6500-FG Series User manual

Jen
C
am
FCB-EH6500-FG HDMI
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de
1/2.8“ CMOS Exmor 3.27 Megapixel Sensor
Objektiv 20 x optischer Zoom
f=4.3 to 129,0mm / F1.6 to 4.7
Minimum illumination 1,7 lx (F1.6)
Video Output HDMI
FBAS/NTSCorPAL
Signalsystem 1080p/29,97 | 1080p/25 | 1080i/59,84 | 1080i/50 |
720p/59,94| 720p/50 | 720p/29.97 | 720p/25|
Day / Night Mode

Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de
Pin RS232
1 n.c.
2 RXD
3 TXD
4 n.c.
5 GND
6 n.c.
7 n.c.
8 n.c.
9 DC RC
Pin SD VBS
1 VBS out
2 GND
Pin DC IN
1 GND
2 +12V
3 GND
4 VBS out
5 n.c.
6 n.c
7 n.c.
8 n.c.
9 n.c.
10 TxD
11 RxD
12 GND
Pin DC IN
1 GND
2 +12V
3 n.c.
4 n.c.
5 n.c.
6 n.c.
7 n.c.
8 n.c.
9 GND
10 TxD
11 RxD
12 GND
21
FCB-EH6500-FG HDMI
1
1
2
SD-Mode
HD-Mode
1
2
65mm
68mm
123mm
HDMI
2

FCB-EH6500 HD SD
Image sensor 1/2.8”-type CMOS
Number of total pixels 3.27M pixels
Lens 30x optical zoom, F1.6 to F3.5 - f = 4.3mm to 129.0mm
Digital zoom 12x (360x with optical zoom)
Minimum working distance 10 mm (wide end) to 1200 mm (tele end)
S/N Ratio More than 50 dB
Electronic shutter ½ to 1/10,000s
ICR on / off / auto
Minimum illumination 1.7 lx (typical) (F1.6, 50 IRE) Hight sensitvity Mode
Minimum illumination ICR 0.095 lx (typical) (F1.6, 50 IRE) Hight sensitvity Mode
White Balance Auto,ATW, Indoor, Outdoor, One-push, Manual, Sodium Vapar Lamp Fix/Auto
Gain control Auto / Manual (-3 to 28 dB, 2dB 16 steps)
Exposure control Auto,Manual,Shutter Priority,Iris Priority,Bright,EV comp. Slow AE
Focusing system Full Auto (Normal AF/Interval AF/Zoom Trigger AF),One-push
Trigger,Manual,Infinity
Signal system
1080p/29.97
1080p/25
720p/59.94
720p/50
720p/29.97
720p/25
NTSC
1080i/59.94
1080i/50 PAL
One mode out of 12 modes can be selected
Video output HDMI VBS:1.0 Vp-p
(Sync Negative)
Sync system Internal
Camera control interface RS232 signal level
Storage temperature -40 ℃to 85 ℃
Operating temperature -5 °C to 60 °C
Power consumption 12.0 V DC / 6.0W
Mass 600g
Dimensions (W x H x D) 65 x 68 x 126mm
Lens Adapter Screw Φ43.0mm
Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de
Parameter
FCB-EH6500-FG HDMI

Jen
C
am
FCB-EH6500-FG HDMI
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de

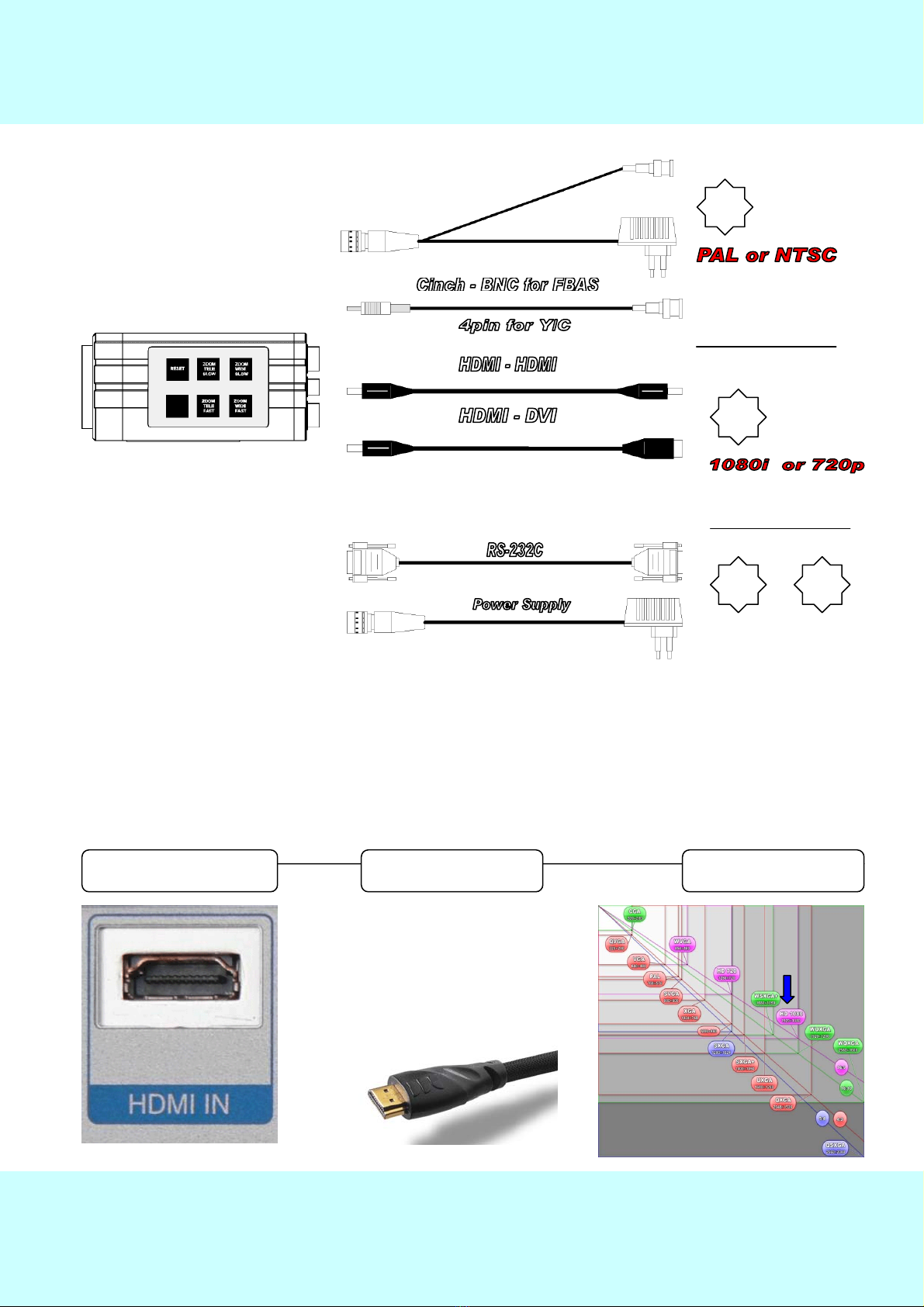

Connection Diagramm
1
2
HDMI Video resolutionHDMI Cable
1 2

Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de

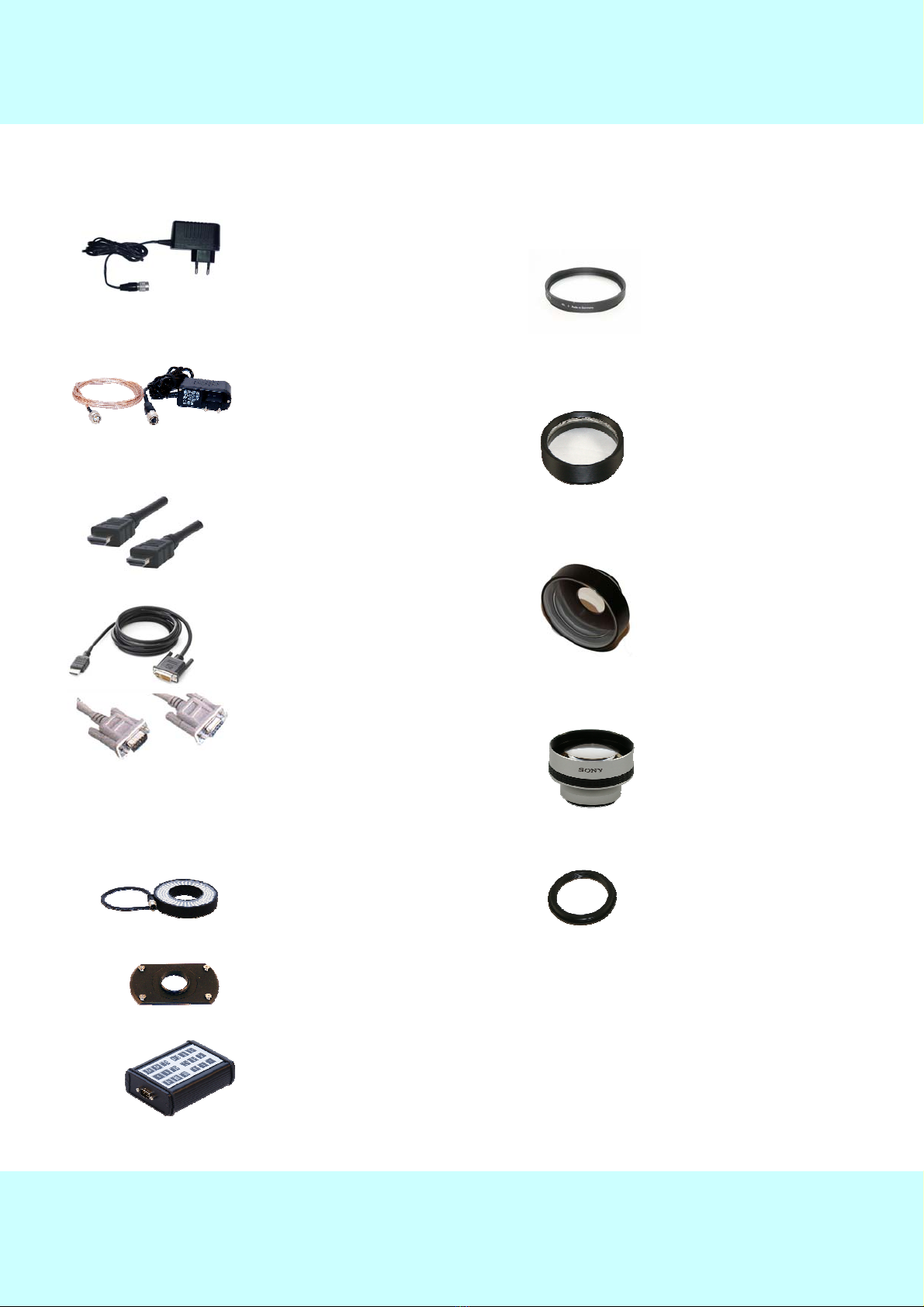

Video-Cable 2m
Power Supply NT8/12
HR 12VDC
12pin Connector
[20052002] Order No. JenCam
Ring Light White RL100W
[10115079] Order No. JenCam
Halter M37 HM37
[30093035] Order No. JenCam
Macro lenses
NL +0.5 [10044005]
NL +1.0 [10044001]
NL +2.0 [10044002]
NL +3.0 [10044003]
NL +4.0 [10044004]
HG Macro lenses
NL +2.5 [10044030]
NL +4.0 [10044031]
NL +6.6 [10044029]
Order No. JenCam
Power Supply NT8/12
HR 12VDC
12pin Connector
[20052001] Order No. JenCam
RS232-Cable 2m
[30039006] Order No. JenCam
RS232-Cable 5m
[30039007] Order No. JenCam
RS232-Cable 10m
[30039008] Order No. JenCam
RS232-Cable 15m
[30039047]Order No. JenCam
Wide conversions lens
x 0,5 [30048109]
x 0.56 [30048021]
x 0.7 [30048034]
x 0,8 [30048035]
Order No. JenCam
Tele conversions lens
x 2.0 [10044010]
Order No. JenCam
x 2.2 [10048110] HQ
Order No. JenCam
x 3.0 [10044054]
Order No. JenCam
FCB-EH6500-FG HD-SDI
Adapter M43 to M37
M37/43 [30093047]
Order No. JenCam
Remote Control EH
[30055272] Order No. JenCam
HDMI-HDMI 2m
[30039122] Order No. JenCam
HDMI-HDMI 3m
[30039096] Order No. JenCam
HDMI-DVI 3m
[30039097] Order No. JenCam

Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de

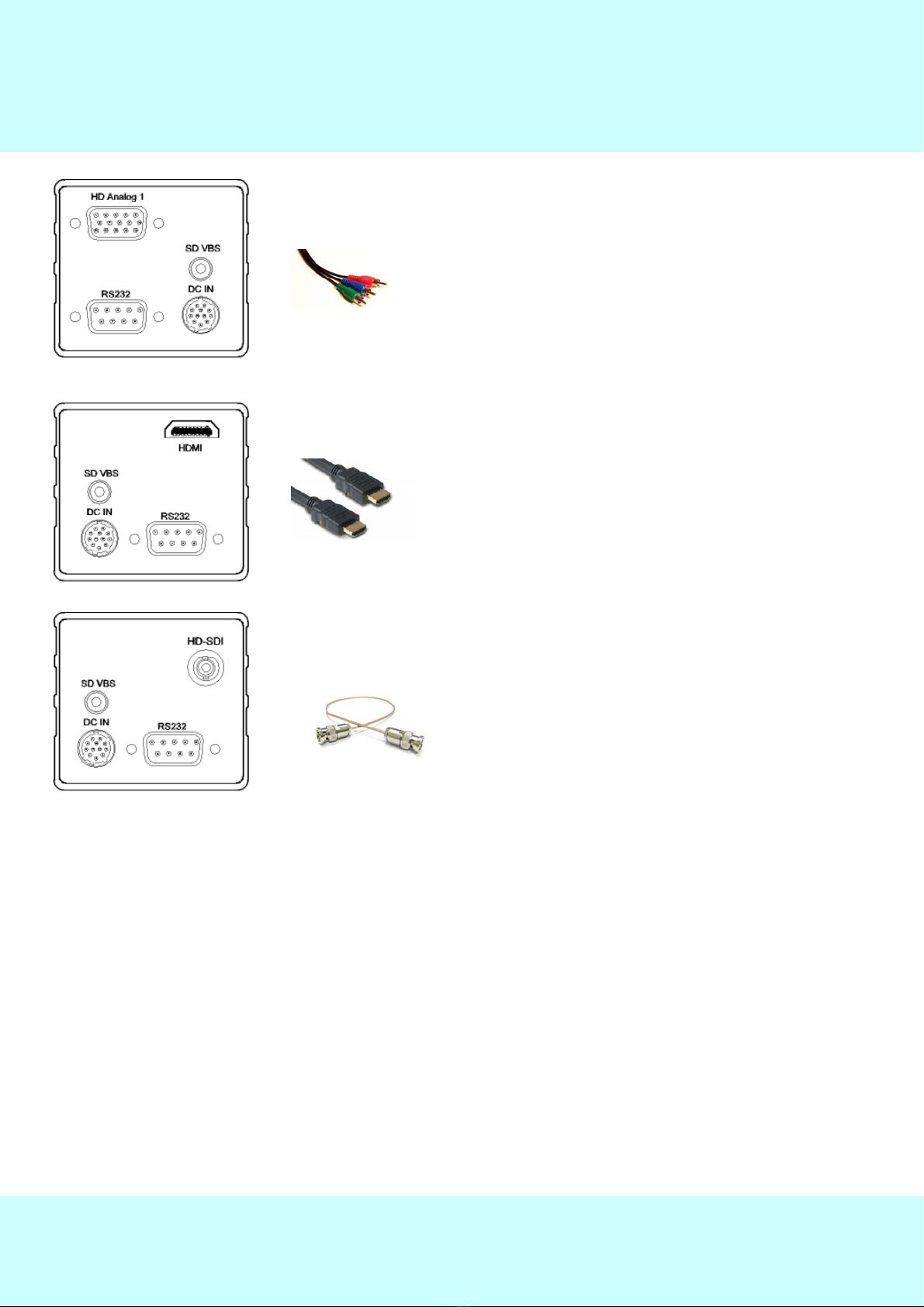

FCB-EH6500-FG HD-A
HD Y/Pb/Pr
FCB-EH6500-FG HDMI
FCB-EH6500-FG HD-SDI
Output Signal
HD Analog Component Y/Pb/Pr
SD VBS
Output Signal
HDMI
SD VBS
Output Signal
HD SDI
SD VBS
FCB-EH6500-FG HDMI

Vollbilder (p) Halbbilder (i) Pixelrate
1080p60 1920 × 1080 × 60 Hz = 124,4 Mpx/s
1080p50 1920 × 1080 × 50 Hz = 103,7 Mpx/s
1080p30 1080i60 1920 × 1080 × 30 Hz = 62,2 Mpx/s
720p60 1280 × 720 × 60 Hz = 55,3 Mpx/s
1080p25 1080i50 1920 × 1080 × 25 Hz = 51,8 Mpx/s
1080p24 1920 × 1080 × 24 Hz = 49,8 Mpx/s
720p50 1280 × 720 × 50 Hz = 46,1 Mpx/s
720p30 720i60 1280 × 720 × 30 Hz = 27,6 Mpx/s
720p25 720i50 1280 × 720 × 25 Hz = 23 Mpx/s
720p24 1280 × 720 × 24 Hz = 22,1 Mpx/s
Videobandbreite
HD SD
Signal system
1080p/29.97 720p/59.94 NTSC
1080p/25 720p/50 PAL
1080i/59.94 720p/29.97
1080i/50 720p/25
One mode out of 12 modes can be selected
PAL 720p 1080p
Vertikale Auflösung 576 Zeilen 720 Zeilen 1080 Zeilen
Horizontale Auflösung 720 Linien (max.) 1280 Linien 1920 Linien
Bildpunkte gesamt (max.) 414.720 921.000 über 2 Mio.
Bildwiederholung interlaced progressive progressive
Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de
Info
High Definition Signal System FCB-EH6300
Vergleich PAL / 720p / 1080p
FCB-EH6500-FG HDMI

Jen
C
am
JenCam GmbH * Felsbachstraße 9 * D-07745 Jena
Telefon [phone] * Fax [phone]
E-Mail [email protected] * Internet http://www.jencam.de
FCB-EH6500-FG HDMI
