Jensen JHT140 User manual

Built-in Dolby Digital decoding for maximum home entertainment enjoyment
Unique laser-head over-current protection system doubles service life
Special DVD deck features fully dustproof and anti shock design as well as augmented error
correction and better stability
Fully functional DVD operating system offers many favorite functions and user-friendly
operation
Integrated DVD and built-in 6-channel amplifier
Audiovox Electronics Corporation
150 Marcus Boulevard, Hauppauge, NY 11788
www.Jensen.com
© 2004 Audiovox
JHT140
DVD Home Theater System
Printed in China
DOLBY and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
HDCD® and High Definition Compatible Digital® are registered trademarks
of Microsoft Corporation, Patent No. 5,479,168.

A lightning bolt with an arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: TO AVOID THE DANGER OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. NEVER
OPEN THE CABINET, AS DANGEROUS HIGH
VOLTAGES ARE CONTAINED INSIDE. ONLY
A QUALIFIED SERVICE TECHNICIAN SHOULD
ATTEMPTTO OPEN THE CABINET.
CAUTION: TO PREVENTELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, AND FULLY INSERTINTO ELECTRICAL
SOCKET.
CAUTION: This DVD receiver unit employs
a laser system. To prevent direct exposure to
the laser beam, do not open the enclosure.
Visible laser radiation is present when enclo-
sure is open. DO NOT STARE INTO BEAM.
Additionally, the use of controls or adjustments
or performance of procedures other than those
specified herein may result in hazardous radia-
tion exposure.
To ensure proper use of this product, please
read this owner's manual carefully and retain
for future reference. Should the unit require
maintenance, contact an authorized service
centre.
PROTECT YOURSELF!
Record the model and serial numbers for this
unit while it is easy to see them. These numbers
are located on the back of the unit's cabinet.
Retain this information for future reference.
Model Number JHT140
Serial No. _________________________
Retain this information for future reference.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). THERE IS NO USER SERVICE
ABLE PART INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRICSHOCK
DO NOT OPEN
WARNING
1
PRECAUTIONS
WARRANTY
28
90 DAY LIMITEDWARRANTY
1-800-252-6123
AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any
part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original purchase, such
defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale),
specification of defect(s), transportation prepaid, to an approved warranty station. For the location of the nearest warranty station to you, call toll-free
to our control office:
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna problems, to cost incurred for
installation, removal, or reinstallation of the product, or damage to tapes, compact discs, speakers, accessories or electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through alteration,
improper installation, mishanding, misuse, neglect, accident or by removal or defacement of the factory serial number/bar code label(s). THE EXTENT
OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
The Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY, SHALL BE LIMITED TOTHE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY
HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 DAYS FROM
DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to
assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the
above limitations or exclusions may not apply to you. This warranty give you specific legal rights and you may also have other rights which vary from
state to state.
U.S.A.: AUDIOVOX ELECTRONIC CORPORATION, HAUPPAUGE, NEW YORK 11788
CANADA: AUDIOVOX CANADA LTD., MISSISSAUGA, ONTARIO
AUSTRALIA: AUDIOVOX PACIFIC PTY LTD., DOYLE AVENUE, UNANDERRA, NEW 2526 • [phone]
NEW ZEALAND: AUDIOVOX PACIFIC PTY LTD., UNIT B, 6 HEADERSON PLACE, PENROSE, AUCKLAND, AUCKLAND • [phone]

CAUTION: Is it important that you read and follow all
of the instructions in this booklet and any marked on
the unit itself. Retain this booklet for future reference.
Accessories--- Never place this product on an un-
stable platform, stand, cart, wall mount, shelf, or
table. The product may fall, causing serious personal
injury to persons and pets, as well as seriously
damaging the product. Use onlywith a stable platform,
stand, cart, wall mount, shelf, or table that has been
recommended by or sold with the product . Any
mounting of the product should follow the
manufacturer's instructions and use a mounting
accessory recommended by the manufacturer.
This unit,while positioned on some carts, must
be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and
cart combination to overturn.
Attachments---Use only approved attachments, as
others may cause hazards.
Cleaning--- Always unplug this unit from the wall
electrical outlet before cleaning. Do not use liquid or
aerosol cleaners; use a damp cloth for cleaning.
Lightning--- For added product protection during
a lightning storm or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and/or disconnect the antenna or cable
system. This will prevent damage to the product due
to lightning and power-line surges.
Object and Liquid Entry--- Never push objects of
any kind into this product through openings asthey
may touch dangerous voltage points or short-out
parts that could cause a fire or electric shock.
Never spill liquidof any kind on or into the product.
Outdoor Antenna Grounding--- If an outside
antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so
as to provide protection against voltage surges and
built-up static charges.
Overloading---Do not overload wall outlets, exten-
sion cords, or integral convenience receptacles, as
this may result in a fire or electric shock.
Power - Cord Protection - Power supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they
exit from the product.
Power Lines---An outsideantenna system should
not be locatedin the vicinityof overhead power lines
or other electriclight or power circuits, or where it
can fall into such power lines or circuits. When
installing an outsideantenna system, extreme care
should be takento keep from touching such power
lines or circuitsas contact withthem might be fatal.
2
Power Sources---This product should be operated
only from the type of powersource indicated on the
marking label. Ifyou are not sure of the type of power
supply to yourhome, consult your product dealer or
local power company. For products intended to
operate from batterypower or other sources, refer to
the operating instructions. This DVD home theater
operates on AC 120V~60Hz. Do not turn off unit
immediately after turningon; wait at least 10 seconds.
Replacement Parts--- If replacement parts are
required, be sure the service technician has used
approved replacement parts or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or
other hazards.
Safety Check---Upon completion of any service
or repairs tothis product, ask the service technician
to perform safety checks to determine that the
product is inproper operating condition.
Servicing--- Do notattempt to service this product
yourself as openingor removing covers may expose
you to dangerousvoltage or otherhazards. Refer all
servicing to qualifiedservice personnel.
TV System---This unit is compatible with television
sets featuring eitherthe NTSC orPAL color system.
Ventilation---Slots and openings in the cabinet
are provided for ventilation and to ensure reliable
operation and protection from overheating. These
openings should never be blocked byplacing the
product on abed, sofa, rug, or other similar surface.
This product shouldnot be placedin a built-in install-
ation such as a bookcase or rack unless proper
ventilation is provided. Never place thisproduct near
a heat source, such as heat registers, stoves,
radiators, or anyother product that produces heat.
Water and Moisture---Do not usethis product near
sources of waterand moisture, such as bath tub, wash
bowl, kitchen sink,or wash machine; in a wet, damp
basement; or near a swimming pool or similar
locations. If moisturecondensation occurs, remove
any disc, connectthe unit's powercord to a wall outlet,
turn the unit on, and leave it on for two to threehours.
By then, the unit will havewarmed up and evaporated
any moisture
IMPORTANT--
SAFETY INFORMATION
27
Frequency Response:
Main Speakers 200Hz-20kHz +/- 3dB
Surround Speakers 200Hz-20kHz +/- 3dB
Center Speaker 200Hz-20kHz +/- 3dB
Subwoofer 20Hz-200Hz +/- 3dB
S/N Ratio > 76dB
Input Sensitivity 350mv, 47k
Channel Resolution > 30dB (Normal)
Remote Control
Transmitter Infrared Ray
Signal Range Approximately 15'
Power Source 2 AAA Batteries
General
Power Supply AC 120V~60Hz
Consumed Power 60W
Specifications subject to change without notice.
""
TECHNICAL
SPECIFICATIONS
DVD Player
TV System NTSC/PAL
Compatible Discs DVD, CD, MP3,
VCD, CD-R, CD-RW
Resolution Ratio Greater Than 500 lines
Video S/N Ratio 65dB
Frequency Response fs (96KHz/24bit)
4Hz - 44KHz:+/-2dB
Audio S/N Ratio 95dB
Degree of Distortion <0.01%
D/A Converter 192KHz/24bit
Video Out 1Vp-p
S-Video Out Y: 1Vp-p(75 )
C: 0.3Vp-p(75 );
Audio Out 2.0V
5.1 Channel,
Digital Audio Output Optical,Coaxial
Connections YUV,CVBS
S-Video, 2 Channel
Output
FM Tuner
Tuning Range 87.5-108MHz
S/N Ratio >46dB
Monophonic >46dB
Stereo >50dB (DIN)
Selectance 50dB
THD
Monophonic 2%
Stereo 3%
Frequency Response 30Hz-10kHz +/- 1dB
Stereo Resolution 35dB (1kHz)
30dB (100Hz-10kHz)
AM Tuner
Tuning Range 530-1710KHz
S/N Ratio 35dB
THD 3%
Amplifier
All speakers tested @ 1kHz single channel driven.
Main Speakers 20W+20W (6 ohms)
Surround Speakers 20W+20W (6 ohms)
Center Speaker 20W (6 ohms)
Subwoofer 40W(8ohms)
+0
-1

3
26
TROUBLESHOOTING
This handy troubleshooting guide is designed
to provide quick solutions in the event that you
experience technical problems with this DVD
player. If the problem is not listed or if the
provided solution does not correct the problem,
please contact Jensen at the number listed in
the warranty section of this manual.
Problems & Possible Solutions
No power
1. Check to ensure that the power plug is
securely in the wall outlet.
No sound
1. Check the connection between the DVD
player and the TV set, amplifier, or any
other unit it is connected to.
2. Check to ensure the TV and amplifier are
in the correct mode.
No picture
1. Check the connection between the DVD
player and the TV set or any other unit it
is connected to.
2. Check to make sure TV is turned on.
Disc does not play
1. Check to make sure the disc is loaded
correctly (label side u)p on the disc tray.
2. Check that disc is free from dirt, dust,
fingerprints, and smudges.
3. Check to ensure disc is with in the guides
on the tray.
4. Check if the parental lock function is on.
5. Make sure disc is for use in region.
Remote does not work.
1. Check batteries; possibly replace.
2. Check to ensure there isn't any obstacle
between the remote sensor on the unit's
front panel and the remote control.
3. Be sure the remote is aimed at the remote
sensor.
Divided picture
1. Check that the disc is clean and has no
scratches.
2. The unit is controlled by a microcomputer,
which may need to be reset. Turn off the
unit's power, wait several seconds, then
turn it back on.
No color picture
1. Check to see if the S connector is damaged
(bent pin).
MP3 discs don't play
1. Use another software edition to reburn
disc, as the edition used may not be com-
patible with the player.
2. Use new editions of software such as Audio
station 4, Easy CD Creator, etc.
3. Make sure MP3 file is not encoded with a
variable bit rate, such as provided by Real
Networks.
"E
JPEG FILES TABLE OF CONTENTS
Precautions............................................... 1
Safety Information .................................... .2
Table of Contents .......................................3
About Your DVD Player ..............................4
Best Location..........................................................4
To Obtain aClear Picture......................................... 4
Playable Discs........................................................4
Digital Audio Output ................................................4
Laser-Head Over-Current Protection System ............4
Use of Discs...............................................5
Handling.................................................................5
Cleaning.................................................................5
Storing...................................................................5
Front and Back Panels . ..............................6
Front Panel.............................................................6
Back Panel.............................................................6
Remote Control..........................................7
Operating the Remote Control.....................8
Connecting Devices...................................9
Speakers..................................................10
Arrangement of Speakers...........................10
Connecting Speakers.................................11
Connecting Antenna...................................12
Connecting Power Supply...........................13
Playing the Radio.......................................14
Basic DVD Operation..................................15
Functions..................................................16
System Setup............................................19
Language Setup. .................................................... 19
Video Setup ............................................................21
Audio Setup........................................................... 22
More Audio Setup....................................................23
Rating Setup...........................................................24
MP3 Function.............................................25
JPEG Files................................................ 26
Troubleshooting ........................................ 26
Technical Specifications ............................ 27
Warranty...............................................................28
JPEG is the most efficient, widely used compression/
storage format. Even if pictures are compressed 15-20
times, they still have good appearance, are supported
by most software, have small data files and are easy
to use. This machine can read JPEG files from a
picture CD.
Press revelant number key to select picture display.
1. Put in disc correctly, and the machine begins to
search disc information.
2. Press the number key to select picture.
Select to play by menu
1. Put in disc, the machine searches disc information
and the main menu appears. Press the number key
to select picture, and press play to confirm.
2. Press direction key to select picture,then press
the play key.
3. Press direction key to select other pictures.
4. Select the first line file item on the right, then
press the play key to return to the main menu.
JHT140 – Package Contents

4
The following will help you get the most enjoyment from your DVD receiver system.
BEST LOCATION
The unit should be placed on a firm, flat surface, away from VCRs, stereos, radios, or large
speakers, as the magnetic flux from these devices may cause distortion in the sound and a poor
picture. If placed in a cabinet, be sure there is at least 1"of free space completely around the unit
for proper ventilation.
TO OBTAIN A CLEAR PICTURE
A DVD receiver is a precision device. If the optical pick-up lens and disc drive parts become dirty
or worn down, picture quality will become poor. Store DVD player in a clean,dust free environment.
PLAYABLE DISCS
This DVD receiver system will play the following types of discs: DVD, MP3, CD, VCD, CD-R, and
CD-RW with super-error correction ability. It is also capable of displaying picture CDs and digital
photo albums. It supports eight languages, up to 32 subtitles, and multi-angle viewing. It features
easy setup and operation with on-screen menus. It has full function CPU upgradeable capability.
DIGITALAUDIO OUTPUT
The unit's coaxial output capability enables you to connect an external six-channel AV amplifier
and processor with built-in Dolby Digital code with just one cord. This enables you to conveniently
enjoy different DVD, CD, and MP3 discs.
ANALOG AUDIOOUTPUT
Speaker system plug-and-play convenience through the built-in six-channel power amplifier
eliminates the use of an external power amplifier.
LASER-HEAD OVER-CURRENT PROTECTION SYSTEM
To extend the service life of the laser head, the unit includes a unique laser-head over-current
protection system, ensuring a constant laser current.
ABOUT YOUR
DVD PLAYER
25
MP3 FUNCTION
An MP3 disc is an audio compression mode using Level 3 of the international standard MPEG, whereby sound
signal is compressed at a rate of 12:1. An MP3 disc can record music for playing over 600 minutes or recording
over 170 songs, rivaling CDs in sound quality.
To play anMP3 disc:
Files Menu of MP3 Play
When playing anMP3 disc, 2 files menus can be selected by pressing the PROG key: File Listand Folder.
1. File List
Select the files to be played by pressing the UP/DOWN arrow key while also pressing the ENTER key, or
use the number keys and the ENTER key to select directly. If the number input is out of the music number,
will display on screen.
2. Folder
Display the menu first,then press UP/DOWN and LEFT/RIGHT arrowsand ENTER key to select the
subdirectory and music.
"CURRENT TRACK NUMBER"
MP3 OPERATION

5
This page contains valuable information regarding the handling, cleaning, and storage of discs
played in this unit.
Handling
Do not touch the playback side of the disc.
Do not attach paper or tape to discs.
Do not stick or write anything on the surface. Protect against fingerprints.
Always hold a disc by the center and edge portions.
Cleaning
Fingerprints and dirt on the disc may cause picture and/or sound deterioration. Wipe the disc from
the center outward with a soft cloth. Always keep the disc clean.
If you can not wipe the dirt off, lightly use a slightly moistened soft cloth and finish with a dry cloth.
Do not use any type of solvent such as paint thinner, benzene, commercially available cleaners or
anti-static spray for vinyl LPs.
Storing
Do not store discs in places subject to direct sunlight or near heat sources.
Do not store discs in places subject to moisture and dust.
Store discs vertically in a case. Stacking or placing objects on discs outside of their cases may
cause warping.
NOTE: We are not responsible for damage that may occur to any disc that is operated in this unit or
not handled, cleaned or stored as suggested above.
USE OF DISCS
24
SYSTEM SETUP
Language Video Audio More Aud RatingLanguage Video Audio More Aud Rating
Rating Setup
Password ----Password ----
Rating
LOAD Factory
Rating
LOAD Factory
8.8. AdultAdult
ResetReset
1:Kid Safe
2:G
3:PG
4:PG-13
5:PG-R
6:R
7:NC-17
8:Adult
The Rating Setup menu allows you to block
playback of DVDs based on their ratings.
Setting the Password & Rating Level
The DVD player allows you to block playback
of inappropriate content with a password-
protected rating system (not all discs are rated).
A. From Stop mode, press SETUP.
B. Select Rating and press ENTER.
C. Select Rating and press ENTER repeatedly to set the rating from 1 (most restrictive)
to 8 (least restrictive ).
If a password has already been set, the lock icon will be closed. You will not be
able to select Rating until you SELECT the correct password using the 0-9 keys.
D. Select Password.
E. Use the 0-9 keys to SELECT a 4-digit password and press ENTER. The lock icon will
close to indicate that the rating and password are set.
F. Press SETUP to save and exit.
Not all DVDs are rated. DVDs that are rated higher than the level you select will not
play without SELECTING the correct password.
If you forget your password, select 8888 to clear the memory. Keep this password
out of reach of children as it will always unlock the Parental Control setting.
Off
Left
Center
Right
Left Surr
Right Surr
Language
Language
Video
Video
Audio
Audio
Rating
Rating
More Aud
More Aud
Prologic
Subwoofer
Pink Noise
DRC
LPCM 48k DS
Prologic
Subwoofer
Pink Noise
DRC
LPCM 48k DS
On
On
Off
Off
Off
On
On
Off
Off
Off
Off
On
Language Video Audio Rating
More Aud
Prologic
Subwoofer
Pink Noise
DRC
LPCM 48k DS
On
On
Off
Off
Off Off
On

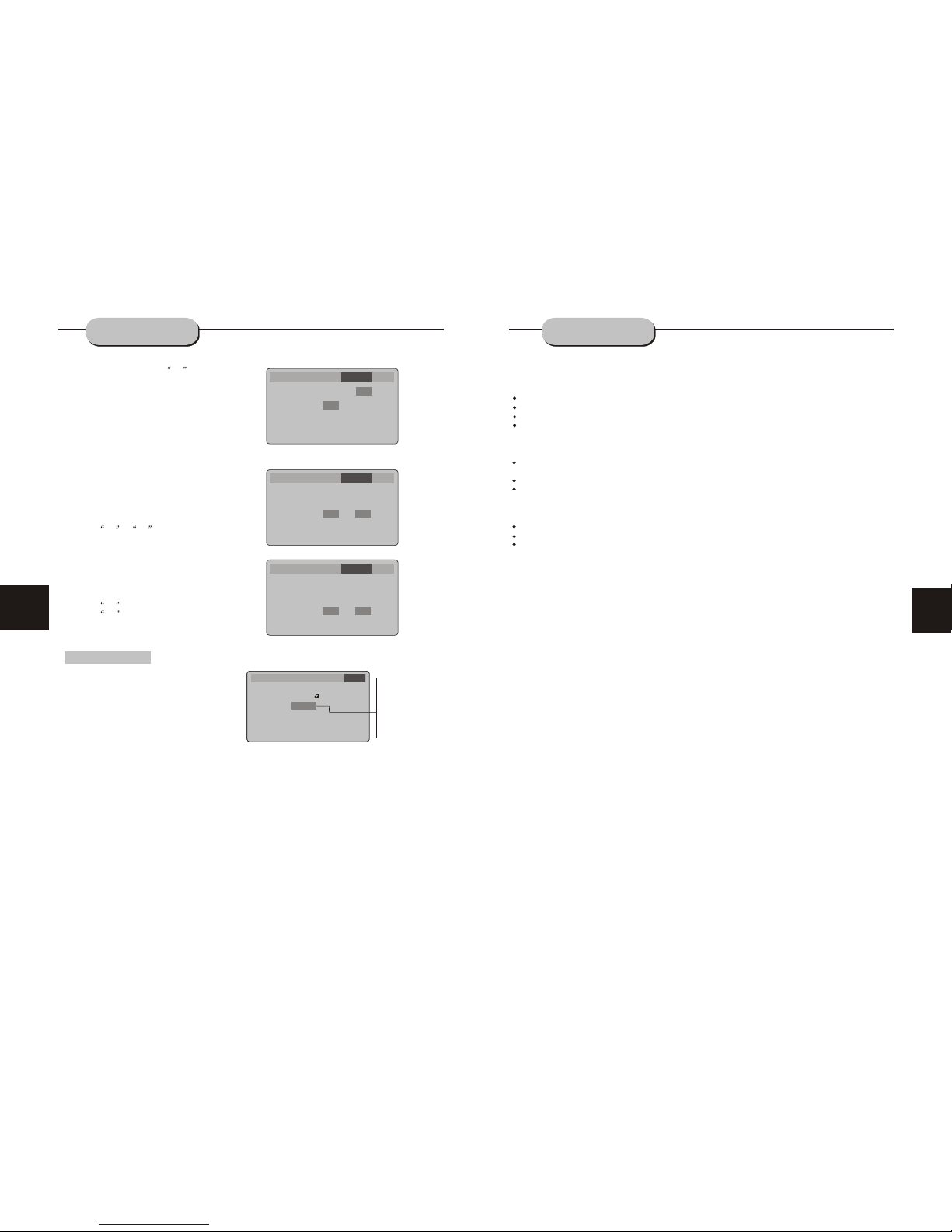

Pink Noise Setting
Pink Noise is test tone set to Off and can select test
LEFT, CENTER, RIGHT, RIGHT SURROUND and LEFT
SURROUND channels.
A. From Stop mode, press SETUP.
B. Select More Audio and press ENTER.
C. Select Pink Noise and press ENTER.
D. Select the desired Pink Noise setting and press
ENTER. This function can select test LEFT,
CENTER, RIGHT, RIGHT SURROUND and
LEFT SURROUND channels.
E. Press SETUP to save and exit.
DRC Setting
DRC is Dynamic Range Control.
A. From Stop mode, press SETUP.
B. Select More Audio and press ENTER.
C. Select DRC and press ENTER.
D. Select the desired DRC setting and press ENTER.
Select Off or On state.
E. Press SETUP to save and exit.
LPCM 48k DS Setting
A. From Stop mode, press SETUP.
B. Select More Audio and press ENTER.
C. Select LPCM 48k DS and press ENTER.
D. Select the desired LPCM 48k DS setting and press
ENTER.
Select Off is LPCM 48k.
Select On is LPCM 96k.
E. Press SETUP to save and exit.

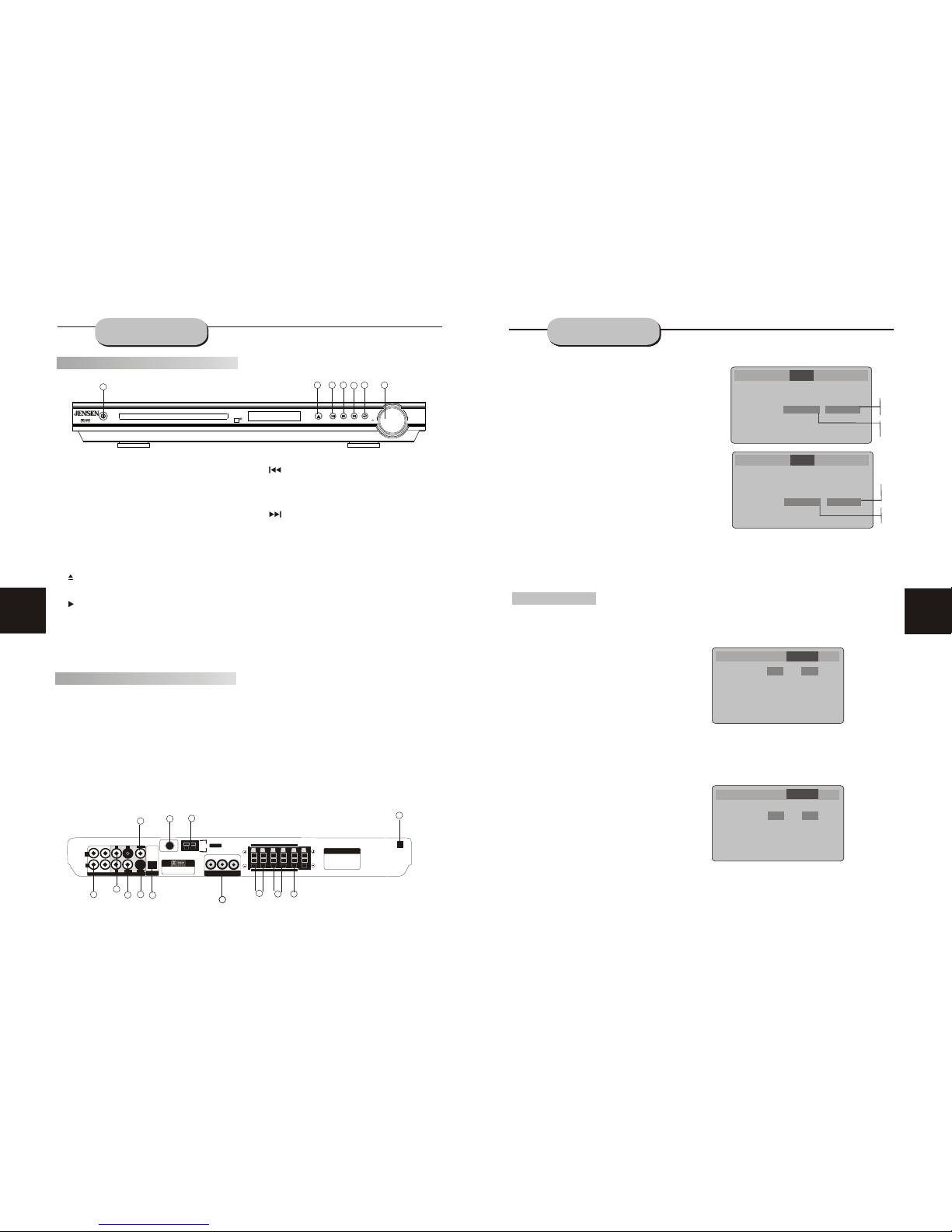

Z300 DVD AMPLIFIER SYSTEM
DVD/CD/CD-R/CD-RW/MP3/HDCD
VOLUME
DOWN UP
623
FRONT AND
BACK PANELS
14
235
Front Panel Functions
Back Panel Functions
1. ANTENNA
Use to connect the provided indoor FM and
AM loop antennas.
2. AUX IN
Use to connect input for both auxiliary 1 and 2
music sources.
3. AUDIO OUT
Use to connect both the right and left channel
line outputs as well as subwoofer output.
4. VIDEO OUTPUT
5. S-VIDEO OUTPUT
6. REAR
Use to connect the four terminals of the left
and right surround sound speakers.
7. FRONT/MAIN
Use to connect the four terminals of the left
and right front or main speakers.
8. CENTER/SUBWOOFER
Use to connect the four terminals of the center
and subwoofer speakers.
9. COAXIAL DIGITAL AUDIO OUTPUT
10. 120V~60Hz
This unit comes with an AC power cord. Be
sure its prongs are dry before plugging it into
an electrical outlet. Take caution not to
overextend the cord or walk on it.
11. COMPONENT VIDEO OUTPUT
12. OPTICAL OUTPUT
1. POWER
Before plugging the power cord into the AC
outlet, check to make sure all connections
are properly completed. When they are,
carefully the plug power cord into the outlet.
Press the POWER button on the front panel
to power the unit on.
When unit is initially powered on, a brief surge
of electricity may cause interference with other
electronic equipment on the same circuit. If this
occurs, connect the unit to an outlet on a
different circuit.
. OPEN/CLOSE
Use this button to open and close the disc tray
while in DVD mode.
3. PLAY/AUTO
Use this button to begin play function while in
DVD mode.
When in the tuner mode, you may press this
button for automatic search.
2
4. PREV/DOWN
While in the DVD mode, you may press this
button to access the previous track.
While in the tuner mode, press this button to
search downward among radio stations.
5. NEXT/UP
While in the DVD mode, you may press this
button to access the next track.
While in the tuner mode, press this button to
to search upward among radio stations.
6. INPUT SIGNAL SOURCE
Use this button to select the proper input signal
source.(Note: Selected input will correspond to
the selected input terminal on the rear panel.)
7. VOLUME
Use this button to control the unit's volume. It
controls all six channels simultaneously.
76
More Audio Setup
The More Audio menu includes Prologic and Subwoofer settings.
Prologic Setting
The DVD player has a built-in Dolby Prologic decoder toprovide virtual surround sound for PCM
(stereo) source material from the 5.1 channel analog audio outputs.
A. From Stop mode, press SETUP.
B. Select More Audio,and press ENTER.
C. Select Prologic and press ENTER.
D. Select the desired Prologic setting and press
ENTER:
Auto stereo audio soundtracks will be output in
Dolby Prologic mode.
On all audio soundtracks will be output in Dolby
Prologic mode.
Off (default ) Dolby Prologic decoding will always
be inactive.
E. Press SETUP to save and exit.
Subwoofer Setting
You must indicate in the menu system whether or not your audio setup includes a Subwoofer
(the 1 in 5.1 sourround sound).
A. From Stop mode, press SETUP.
B. Select More Audio and press ENTER.
C. Select Subwoofer and press ENTER.
D. Select the desired Subwoofer setting and press
ENTER.
On (default) indicates that you are using a Subwoofer
for LFE (low frequency effects) signals.
E. Press SETUP to save and exit.
Prologic
Subwoofer
Pink Noise
DRC
LPCM 48k DS
On On
Off
On
Off
Off
Off
On
Off
Language
Language
Video
Video
Audio
Audio
Rating
Rating
More Aud
More Aud
Prologic
Subwoofer
Pink Noise
DRC
LPCM 48k DS
On
On
Off
Off
Off
SYSTEM SETUPSYSTEM SETUP
Language Video Audio More Aud Rating
Digital Out
PCM
PCM
PCM
Analog Out
5.1 channel
5.1 channel
5.1 channel
PCM
Raw
Off
Others Setting
Follow these steps to set the outgoing analog and digital audio
format of others tracks:
A. From Stop mode, press SETUP.
B. Select Audio,and press ENTER.
C. Select Dolby D,and press ENTER.
D. Set Analog out to:
2 Channel (default) to output 2 channel stereo audio from the
stereo audio output; e.g., to a VCR or TV.
E. Set Digital out (from Optical out) to:
PCM (default) to output 2 channel digital audio from the optical/coaxial digital audio outputs; e.g.,to a Minidisc recorder.
Raw to output the raw 2 channel digital bitstream form th optical/coaxial digital audio outputs; e.g., to an external
amplifier.
Off to disable CD others audio output.
F. Press SETUP to save and exit.
AC3
MP3/WMA
Others
5.1 channel
2 channel
Off
5.1 channel
2 channel
Off
MP3 Setting
Follow these steps to set the outgoing digital audio format of MP3
tracks (Note: The analog format is fixed to 2 channel ):
A. From Audio mode, press SETUP.
B. Select Audio mode, press ENTER.
C. Select MP3,and press ENTER.
D. Set Digital out to:
PCM (default) to output 2 channel digital from the optical/coaxial
digital audio outputs; e.g.,to a Minidisc recorder.
Off to disable MP3 digital output.
E. Press SETUP to save and exit.
Language Video Audio More Aud Rating
Digital Out
PCM
PCM
PCM
Analog Out
5.1 channel
5.1 channel
5.1 channel
PCM
Raw
Off
Ac3
MP3/WMA
Others
1
COMPONENT VIDEO OUT
Cr Cb Y
OPTICAL
R
L
AUX IN OUTPUT
AUX 1 AUX 2
AM ANTENNA SR SL FR FL CEN SW
SPEAKERS IMPEDANCE 6W
LSW COAXIAL
RVIDEO S-VIDEO
FM
(75 W)
8W
DVD & AMPLIFIER SYSTEM
1
2
3
45
6
78
9
10
11
12

7
22
REMOTE
CONTROLLER
SYSTEM SETUP
A. Press ENTER to confirm
B. Press SETUP to exit the Setup Menu
Select [Video Output], and press ENTER or to display
the [Video Out] submenu:
Note: The Composite video and
S-video output is always available.
Press to change your selection
Language Video Audio More Aud Rating
TV Shape
TV System
Video Output
S-Video
YUV
4:3 PS
NTSC
[S-Video] -Select if you connected the DVD player
to your TV using the composite Video output.
[YUV] -Select if you connected the DVD player to your TV using the YUV output.
[Y Pb Pr] - Select if you connected the DVD player to your TV using progressive scan.
S-video
PRE/TUN
SETUP REPEAT
VOLUME
+10
OPEN/CLOSE
UPDOWNMEMO AUTO
DVD TUNER
FM MODE
STOP PAUSE PLAY A-B
PROLOGIC STEP ZOOM RESUME
ENTER
PROG CH LEVEL
SLOW
DISPLAY
TIME
N/P SUBTITLE LANGUAGE ANGLE
MENU
TITLE
MUTE
AUX1 AUX2
2
4
5
6
22
7
38
13
19
14
15
37
36
12
10
11
9
21
20
8
24
27
25
26
OPEN/CLOSE
MUTE
DVD SELECTOR
AM/FM TUNER
AUX1 SELECTOR
AUX2 SELECTOR
N/P TV MODE SELECTOR
0-9 NUMBER KEYS
+10
VOLUME INCREASE
VOLUME DECREASE
PROG PROGRAM
SCREEN DISPLAY
SLOW MOTION
MENU
CHANNEL SELECTOR
SUBTITLE
LANGUAGE
ANGLE
SETUP
ZOOM
RESUME PLAY
REPEAT
FM STEREO / MONO MODE
PRESET/TUNING
SCROLL UP
SCROLL RIGHT
SCROLL DOWN
SCROLL LEFT
ENTER
DOWN (search down for radio stations/ previous track)
UP (search up for radio stations/next track)
TITLE
MEMO (memory/rewind skip)
AUTO (automatic search/forward skip)
STOP
PAUSE
PLAY
A-B REPEAT
TIME
PRO LOGIC
STEP
1
28
29
32
31
30
33
35
34
17
18
39
16
23
42
40
41
3
Audio Setup
The Audio menu allows you to set the analog and digital audio outputs to correspond with the external components you have
connected to the player. For example, if you connected the player to a TV using the Stereo Audio jacks, you should set Dolby
Digital and others settings to 2 channel to enjoy downmixed stereo audio.
You can set the audio format for each of the following sources: Dolby Digital, MP3, CD and .
DVD playback must be stopped in order to adjust the Audio setup.
Others
AC-3 Setting
Follow these steps to set the analog and digital audio formats of
outgoing Dolby Digital 5.1 soundtracks:
A. From Stop mode, press SETUP.
B. Select Audio and press ENTER.
C. Select Dolby D and press ENTER.
D. Set Analog out to:
6 Channel (default) to output Dolby Digital 5.1 channel
audio from the 5.1 channel analog audio outputs; e.g.,
to a 5.1 channel amplifier.
2 Channel to output downmixed 2 channel stereo from
the stereo audio outputs; e.g., to a VCR or TV.
E. Set Digital out to:
PCM (default) to output 2 channel digital from the optical/coaxial digital audio outputs; e.g., to a Minidisc recorder.
RAW to output the raw 5.1 channel digital bitstream form the optical/coaxial digital audio outputs; e.g., to an
external amplifier with a Dolby Digital decoder.
Off to disable Dolby Digital decoder.
F. Press SETUP to save and exit.
AC3
MP3/WMA
Others
Digital Out
PCM
PCM
PCM
Analog Out
5.1 channel
5.1 channel
5.1 channel
PCM
Raw
Off
Language Video Audio More Aud Rating
5.1 channel
2 channel
Off
PCM stands for Pulse Code Modulation, and is the standard 2-channel stereo format used for audio CDs.

Language Video Audio More Aud Rating
TV Shape
TV System
Video Output
4:3 PS
NTSC
S-Video
NTSC
PAL
AUTO
8
Notes:
Do not direct the remote sensor toward
any light source, such as direct sunlight or
a strong fluorescent light, as it may cause
the unit to not operate correctly.
When other remote controls are used
nearby or when the remote is used near
equipment using infrared rays, interference
may occur.
Placing an object on the remote control
may cause it to inadvertently depress a
button, changing a function and shortening
battery life.
Do not glaze the front of the DVD receiver
with colored glass, as it may cause
interference with normal operation of the
controller.
Make sure there is no barrier between the
remote control and remote sensor, as it
could prevent the unit from receiving the
signal.
Do not spill water or put wet items on the
remote control.
Never disassemble remote control.
BATTERIES
INCORRECT USE OF BATTERIES MAY
CAUSE THEM TO LEAK, CORRODE OR
EXPLODE.
Battery Installation
1. Push down and out on the battery Compart-
ment cover to remove it.
2. Insert the two AAA batteries into the battery
compartment of the remote control, making
sure the + and - signs on the batteries and
inside the battery compartment match up.
3. Replace the battery compartment cover.
Notes:
Do not mix batteries from different manu-
facturers, nor old ones with new.
If the remote control will not be used for an
extended period of time, remove the
batteries to prevent damage-causing
corrosion.
Remove dead batteries immediately to
prevent damage-causing corrosion.
If battery leakage occurs, wipe the battery
liquid from the battery compartment, then
replace both batteries.
Always replace both batteries at the same
time, using new, fully charged batteries.
Life expectancy of batteries may vary
depending on amount of use.
Using the Remote Control
Point the remote control at the remote sensor
on the DVD receiver. When the signal is
received from the remote control, the unit will
function accordingly. The remote will operate to
approximately 16' from the remote sensor at an
angle of around 30 degrees each direction.
""
OPERATING THE
REMOTE CONTROL
21

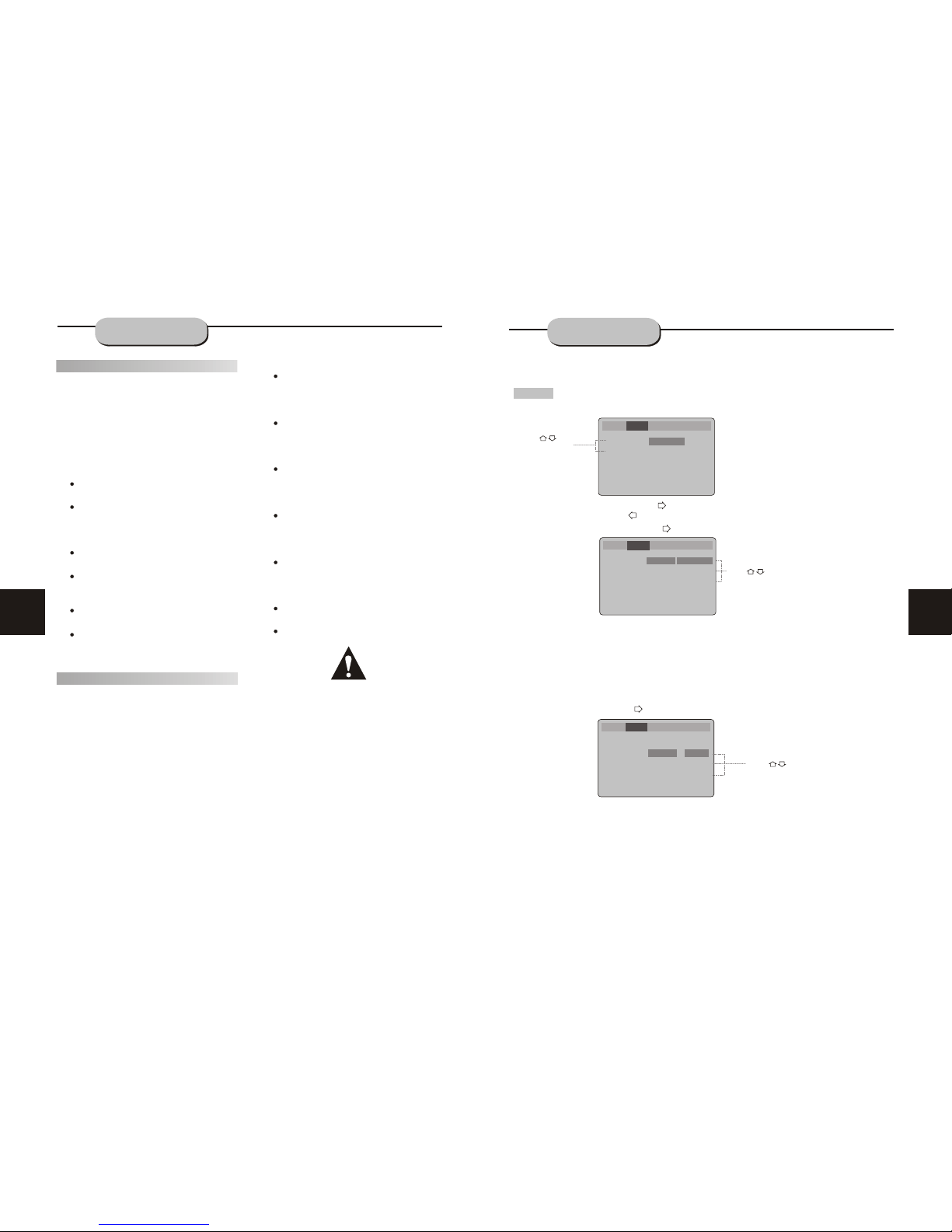

SYSTEM SETUP
[Video] the [Video] sub :Select in the Setup Menu, and press ENTER to display menu
Video Setup
A. Press ENTER to confirm B. Press SETUP to exit the Setup Menu
Press to change your selection
Press to
select the menu
item
Note: Not all DVDs offer movies in Full Screen format. If not, the disc will override your
TV Display setting and the movie will be displayed in Letterbox format.
A or set. Press ENTER to
B. Press to return to the Setup Menu
Language Video Audio More Aud Rating
TV Shape
TV System
Video Output
4:3 PS
NTSC
S-Video
[4:3 PS] -Pan and scan refers to pictures where part of pictures is cut
off so it fills the whole screen.
[4:3LB] -Letter Box refers to pictures where black bands appear at the
top and bottom.
[16:9] -The picture fills the screen of a wide-screen (16:9) television.
Select [TV shape], and press ENTER or to display the [TV shape] submenu:
[TV system] the [TV system] sub :Select and press ENTER or to display menu
Press to change your selection
A. Press ENTER to confirm
B. Press SETUP to exit the Setup Menu.
[NTSC] -Select if you are using NTSC signal system to match your TV set.
[PAL] -Select if you are using PAL signal system to match your TV set.
[AUTO]- Select if you are using AUTO signal system to match your TV set.
Language Video Audio More Aud Rating
TV Shape
TV System
Video Output
4:3 PS
4:3 LB
16:9
4:3 PS
NTSC
S-Video

Language Video Audio More Aud Rating
English
A. Press ENTER to confirm
B. Press SETUP to exit the Setup Menu
A. Press ENTER to confirm
B. Press SETUP to exit the Setup Menu
A. Press ENTER to confirm
B. Press SETUP to exit the Setup Menu
Language Setup
OSD Menu
Subtitle
Audio
DVD Menu
English
English
English
English
Press to change your selection
Press to change your selection
Press to change your selection
Note: Subtitle languages vary by disc.
Note: Audio languages vary by disc.
Note: Menu languages vary by disc.
Select [Audio], and press ENTER or to display the [Audio] submenu:
Select [DVD Menu], and press ENTER or to display the [DVD Menu] submenu:
Select [Subtitle], and press ENTER or to display the [Subtitle] submenu:
German
French
Spanish
Auto
Off
Language Video Audio More Aud Rating
English
OSD Menu
Subtitle
Audio
DVD Menu
English
English
English
English
German
French
Spanish
Language Video Audio More Aud Rating
English
Subtitle
Audio
DVD Menu
English
English
English
German
French
Spanish
9
20
Connection terminals for this DVD receiver
are found on the rear panel. Carefully read
and follow the manufacturers' instructions
for any video or audio device being
connected to this unit.
Do not connect the power until all other
connections have been properly completed.
The red terminal ("R") is for connecting the
right channel. The white terminal ("L")is
ior connecting the left channel. The yellow
terminal is for video connection. Make sure
all connections are securely made. Improper
connections may cause noise, poor perfor-
mance or damage to the equipment.
Do not tie the AV cord with any other cords,
such as the power cord or speaker wires, as
doing so may result in poor picture and/or
sound quality.
CONNECTING
DEVICES
SYSTEM SETUP
Component
Video Output
VCR
Active
Subwoofer
(optional)
COMPONENT VIDEO OUT
Cr Cb Y
OPTICAL
R
L
AUX IN OUTPUT
AUX 1 AUX 2
AM ANTENNA SR SL FR FL CEN SW
SPEAKERS IMPEDANCE 6W
LSW COAXIAL
RVIDEO S-VIDEO
FM
(75 W)
8W
DVD & AMPLIFIER SYSTEM
AM
Antenna
FM
Antenna
Vieo
d
S- i o
Vde
Power
Television
Cassette Deck
