Jettaus SP15 Installation manual

SP15 Notebook PC
Hardware User Guide

2
Contents
1. Introducing the Notebook PC
General Overview������������������������������������������������������������������������������������������������������� 6
Notes For The User ����������������������������������������������������������������������������������������������� 6
Safety Precautions ����������������������������������������������������������������������������������������������������� 7
Transportation Precautions ���������������������������������������������������������������������������������������� 8
Preparing your Notebook PC�������������������������������������������������������������������������������������� 9
2. Knowing the Parts
Top Side�������������������������������������������������������������������������������������������������������������������� 12
Right Side ����������������������������������������������������������������������������������������������������������������� 14
Left Side ������������������������������������������������������������������������������������������������������������������� 16
Bottom Side �������������������������������������������������������������������������������������������������������������� 18
3. Getting Started
Power System ���������������������������������������������������������������������������������������������������������� 20

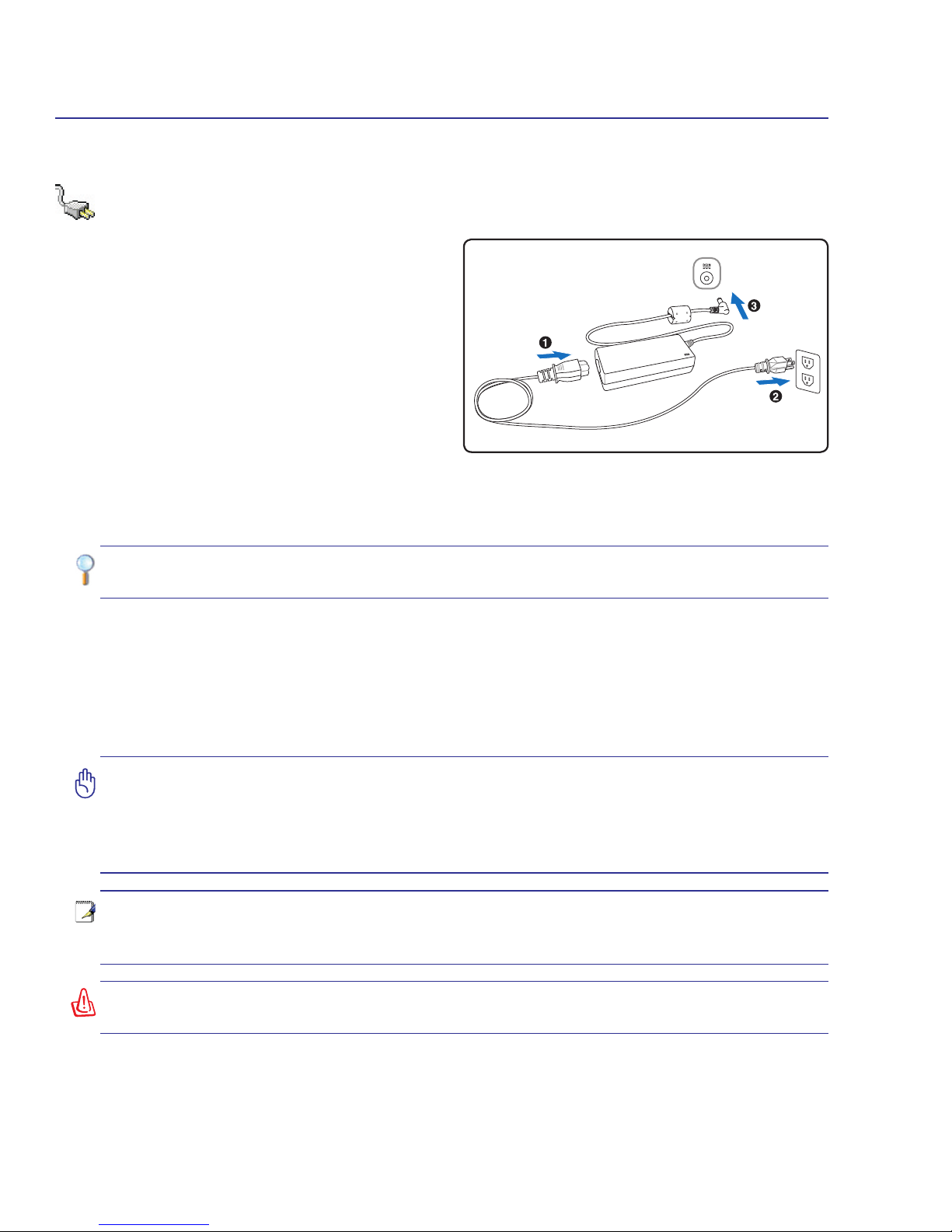

Using AC Power��������������������������������������������������������������������������������������������������� 20
Using Battery Power �������������������������������������������������������������������������������������������� 21
Battery Care��������������������������������������������������������������������������������������������������������� 21
Powering ON the Notebook PC ��������������������������������������������������������������������������� 22
The Power-On Self Test (POST)��������������������������������������������������������������������������22
Checking Battery Power �������������������������������������������������������������������������������������� 23
Charging the Battery Pack����������������������������������������������������������������������������������� 23
Power Options ����������������������������������������������������������������������������������������������������� 24
Power Management Modes��������������������������������������������������������������������������������� 25
Special Keyboard Functions������������������������������������������������������������������������������������� 26
Colored Hot Keys�������������������������������������������������������������������������������������������������26
Microsoft Windows Keys��������������������������������������������������������������������������������������28
Keyboard as Cursors ������������������������������������������������������������������������������������������� 28
Switches and Status Indicators �������������������������������������������������������������������������������� 29
Switches��������������������������������������������������������������������������������������������������������������� 29
Status Indicators �������������������������������������������������������������������������������������������������� 30
Table of Contents

3
Contents
4. Using the Notebook PC
Pointing Device��������������������������������������������������������������������������������������������������������� 32
Using the Touchpad ��������������������������������������������������������������������������������������������� 32
Touchpad Usage Illustrations������������������������������������������������������������������������������� 33
Caring for the Touchpad��������������������������������������������������������������������������������������� 34
Automatic Touchpad Disabling����������������������������������������������������������������������������� 34
Storage Devices ������������������������������������������������������������������������������������������������������� 35
Hard Disk Drive���������������������������������������������������������������������������������������������������� 35
Memory (RAM)����������������������������������������������������������������������������������������������������� 35
Optical Drive �������������������������������������������������������������������������������������������������������� 36
Flash Memory Card Reader �������������������������������������������������������������������������������� 38
ExpressCard �������������������������������������������������������������������������������������������������������� 39
Connections�������������������������������������������������������������������������������������������������������������� 40
Network Connection �������������������������������������������������������������������������������������������� 40
Wireless LAN Connection������������������������������������������������������������������������������������ 41
A. Appendix
Declarations and Safety Statements ������������������������������������������������������������������������ 44
Federal Communications Commission Statement ��������������������������������������������������� 46
Table of Contents (Cont.)

4
Notes

5
1. Introducing the Notebook PC
About This User Guide
Safety Precautions
Transportation Precautions
Preparing your Notebook PC
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.

6
1Introducing the Notebook PC
General Overview
This document provides information on the various components in the
Notebook PC and how to use them� The following are the major sections of this
document:
1� Introducing the Notebook PC
Introduces you to the Notebook PC and its documentation�
2� Knowing the Parts
Gives you information on the Notebook PC’s components�
3� Getting Started
Gives you information on getting started with the Notebook PC�
4� Using the Notebook PC
Gives you information on using the Notebook PC’s components�
Notes For The User
A few notes and warnings in bold are used throughout this document that you should be aware
of in order to complete certain tasks safely and completely� These notes have different degrees
of importance as described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]

7
Introducing the Notebook PC 1
CAUTION! Danger of explosion if the
battery pack is incorrectly replaced�
Replace only with the same or
equivalent type recommended by
the manufacturer�
Safety Precautions
The following safety precautions will increase the life of the Notebook PC� Follow all precautions
and instructions. Except as described in this document, refer all servicing to qualied personnel.
Do not use damaged power cords, accessories, or other peripherals� Do not use strong solvents
such as thinners, benzene, or other chemicals on or near the surface�
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before cleaning.
Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened
with a solution of nonabrasive detergent and a few drops of warm water and remove
any extra moisture with a dry cloth.
Battery safety warnings:
DO NOT throw the battery in re.
DO NOT disassemble the battery�
DO NOT short circuit the contacts�
DO NOT expose to dirty or dusty
environments� DO NOT operate
during a gas leak�
DO NOT expose to or use near
liquids, rain, or moisture� DO NOT
use the modem during an electri-
cal storm�
DO NOT leave the Notebook PC
on your lap or any part of the body
in order to prevent discomfort or
injury from heat exposure�
DO NOT place on uneven or unsta-
ble work surfaces� Seek servicing if
the casing has been damaged�
DO NOT expose to strong magnetic
or electrical elds.
DO NOT press or touch the display
panel� Do not place together with
small items that may scratch or
enter the Notebook PC�
DO NOT place or drop objects on
top and do not shove any foreign
objects into the Notebook PC�
DO NOT throw the Notebook
PC, battery pack or any of its
parts in municipal waste� Check
local regulations for disposal of
electronic products�
SAFE TEMP: This Notebook PC
should only be used in environ-
ments with ambient temperatures
between 5°C (41°F) and 35°C
(95°F)�
DO NOT carry or cover a Notebook
PC that is powered ON with any
materials that will reduce air
circulation such as a carrying
bag�
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power
adapter complies with the rating�

8
1Introducing the Notebook PC
IMPORTANT! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walking
through security checks), and magnetic wands (hand-held devices used on people or
individual items). You can send your Notebook PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional
battery packs before going on long trips� Remember that the power adapter charges the battery
pack as long as it is plugged into the computer and an AC power source� Be aware that it takes
much longer to charge the battery pack when the Notebook PC is in use�
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane� Most airlines will have
restrictions for using electronic devices� Most airlines will allow electronic use only between
and not during takeoffs and landings�
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external
peripherals to prevent damage to the connectors� The hard disk drive’s head retracts when the
power is turned OFF to prevent scratching of the hard disk surface during transport� Therefore,
you should not transport the Notebook PC while the power is still ON� Close the display panel
and check that it is latched securely in the closed position to protect the keyboard and display
panel�
IMPORTANT! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and
scratches�

9
Introducing the Notebook PC 1

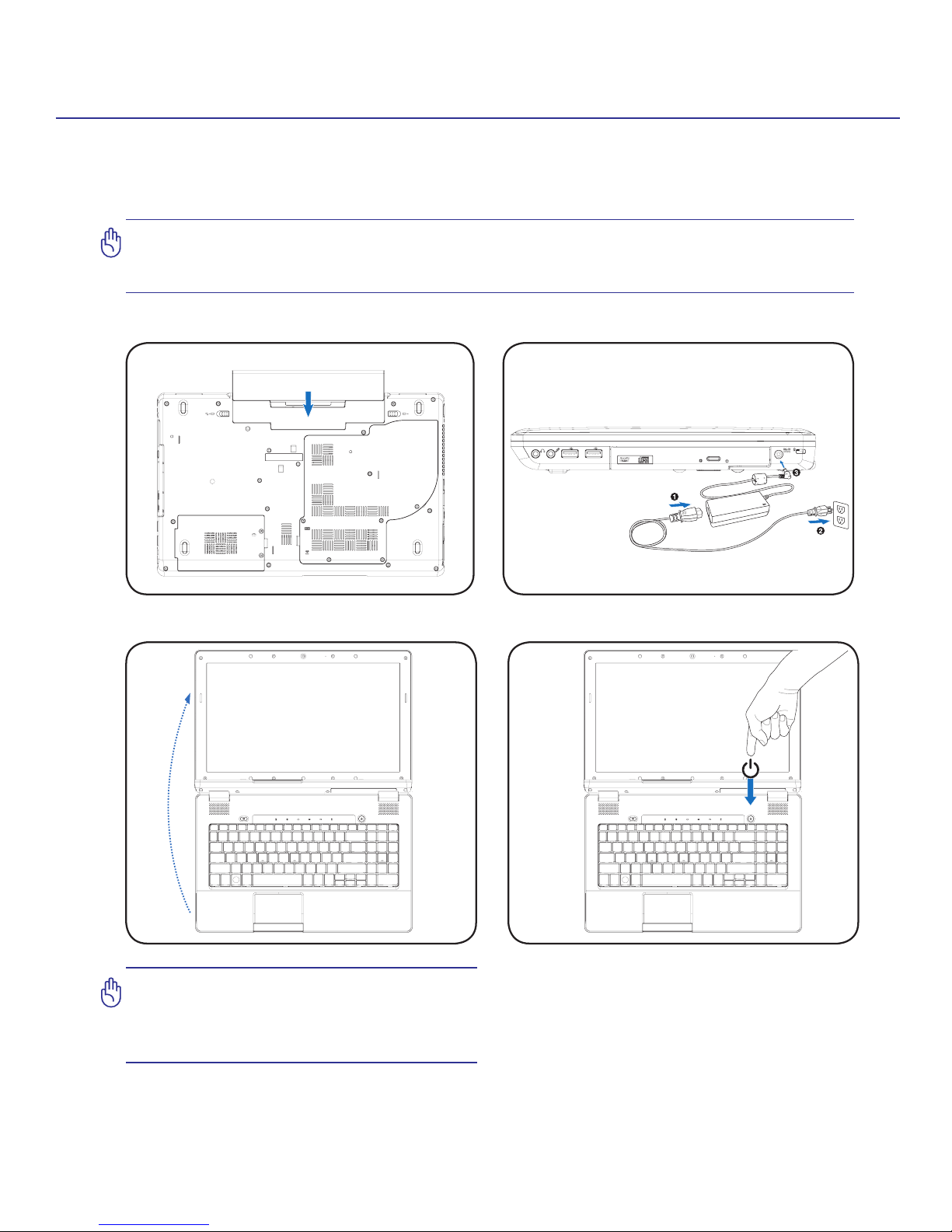

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC� Read the later pages for detailed
information on using your Notebook PC�
1. Install the battery pack 2. Connect the AC Power Adapter
IMPORTANT! When opening, do not
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
3. Open the Display Panel 4. Turn ON the Notebook PC
The power switch turns the Notebook PC ON
and OFF or puts the Notebook PC into sleep
or hibernation modes� Actual behavior of the
power switch can be customized in Windows
Control Panel > Power Options > System
Settings�
IMPORTANT! Selected models may feature display panels that do not fully open to a
180-degree angle, with such models do not attempt to force the display panel beyond
its limit as it may cause damage to the device.

10
Notes

11
2. Knowing the Parts
Basic sides of the Notebook PC
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.

12
2Knowing the Parts
Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC�
NOTE: The keyboard will be different for each territory.
IMPORTANT! Selected models may feature display panels that do not fully open to a
180-degree angle, with such models do not attempt to force the display panel beyond
its limit as it may cause damage to the device.
1
3
5
2
4
8
6
3
7

13
Knowing the Parts 2
2
3
4
5
1
7
8
6

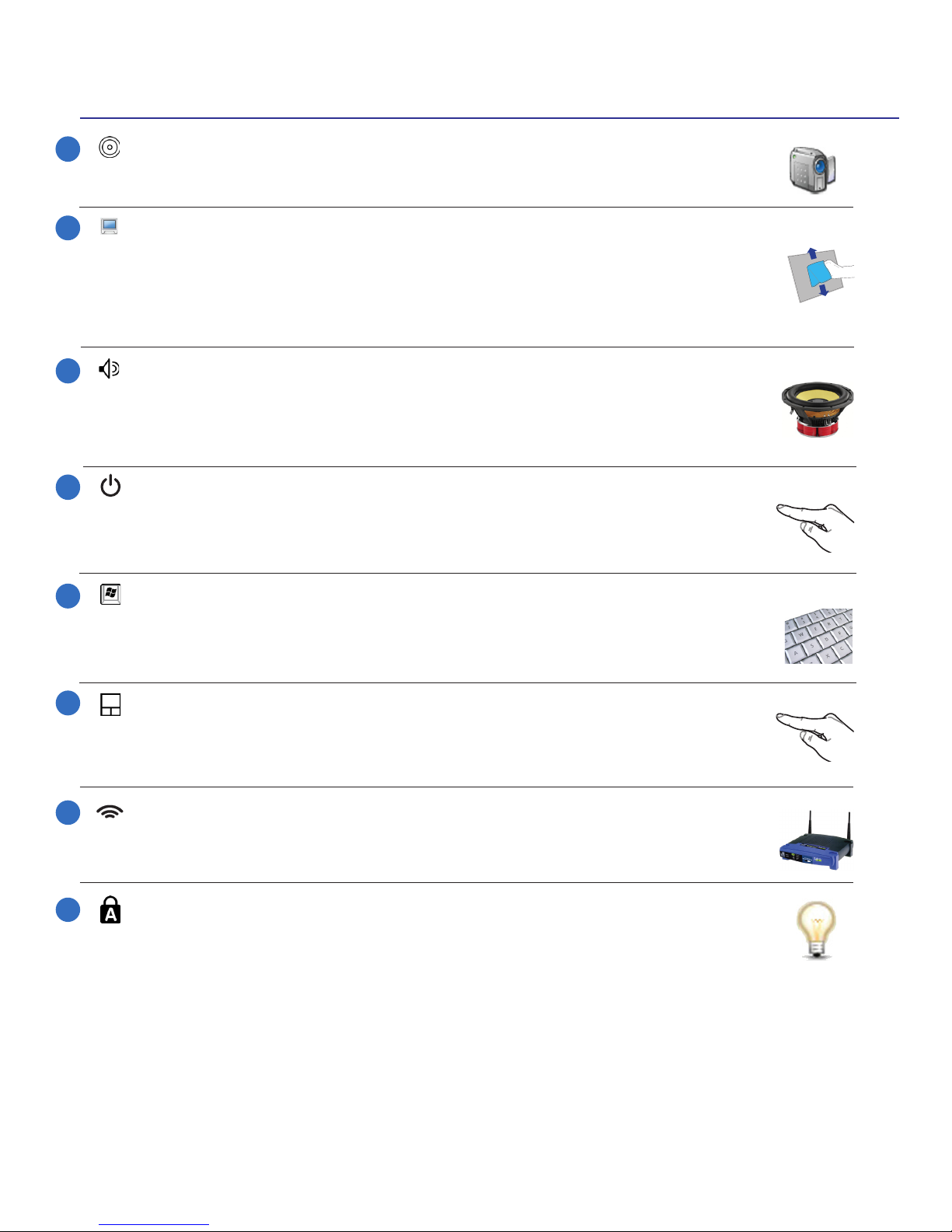

Camera
The built-in camera allows picture taking or video recording� Can be used with video
conferencing and other interactive applications�
Display Panel
The Notebook PC uses an ultra-clear at panel which provides excellent viewing like
that of desktop monitors without any harmful radiation or ickering, so it is easier on
the eyes� Use a soft cloth without chemical liquids (use plain water if necessary) to
clean the display panel� WARNING: The display panel is fragile� Do not to bend or
press the panel�
Status Indicators
Status indicators represent various hardware/software conditions� See indicator details
in Section 3�
Power Switch
The power switch turns the Notebook PC ON and OFF or puts the Notebook PC into
sleep or hibernation modes� Actual behavior of the power switch can be customized
in Windows Control Panel “Power Options�”
Keyboard
The keyboard provides keys with comfortable travel (depth at which the keys can be
depressed) and palm rest for both hands� A Windows function key is provided to help
ease navigation in the Windows operating system�
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional
attachments� The multimedia sound system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with external stereo headphones
or speakers)� Audio features are software controlled�
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions
as a desktop mouse� A software-controlled scrolling function is available after setting
up the included touchpad utility to allow easy Windows or web navigation�
Wireless Switch
This switch allows you to toggle the Notebook PC’s wireless connection� See details
for the switches in Section 3�

14
2Knowing the Parts

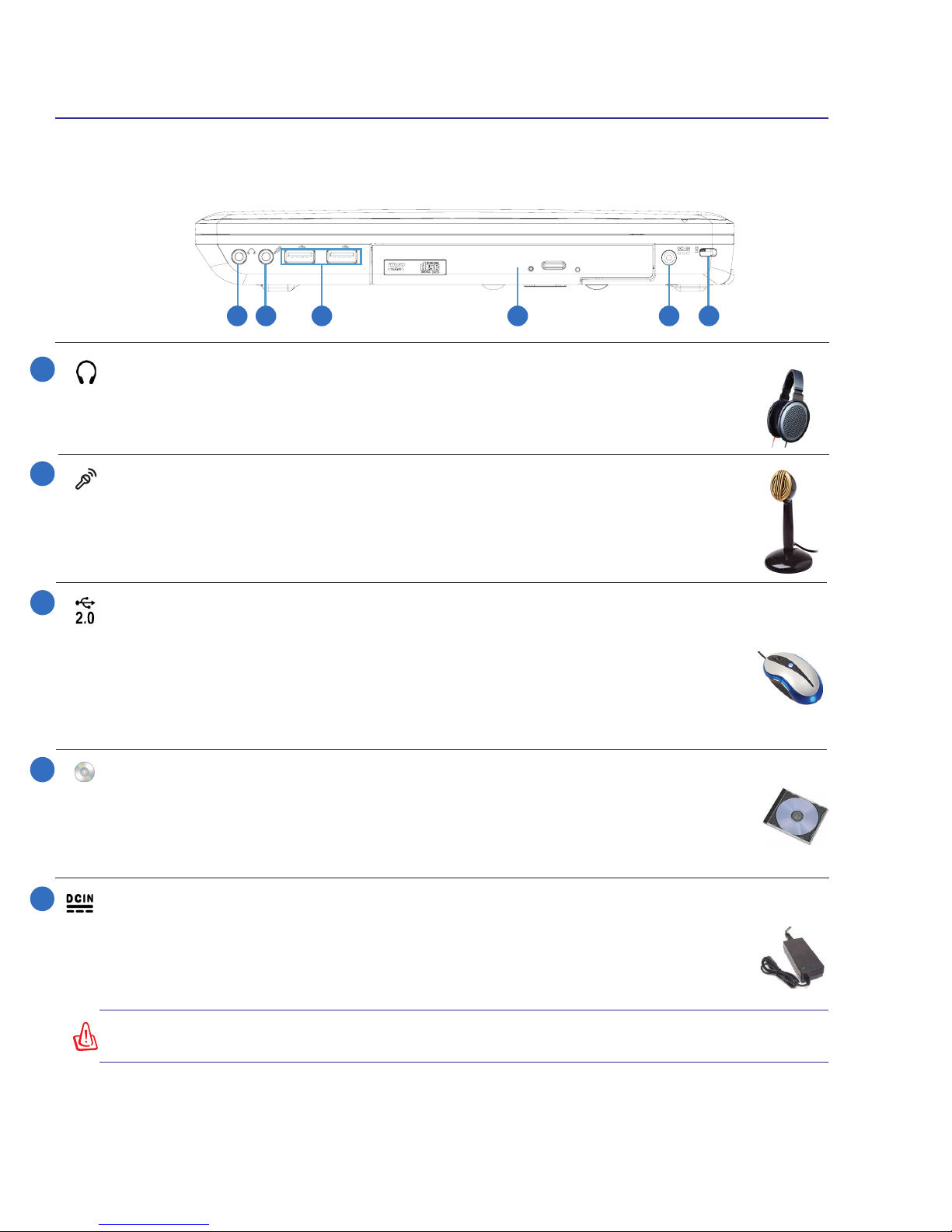

Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC�
1
2
3
USB Ports (2.0/1.1)
The USB (Universal Serial Bus) ports are compatible with USB 2�0 or USB 1�1 devices
such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners
connected in a series up to 12Mbits/sec (USB 1�1) and 480Mbits/sec (USB 2�0)� USB
allows many devices to run simultaneously on a single computer, with some peripherals
acting as additional plug-in sites or hubs� USB supports hot-swapping of devices so that
most peripherals can be connected or disconnected without restarting the computer�
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone
or output signals from audio devices� Using this jack automatically disables the built-in
microphone� Use this feature for video conferencing, voice narrations, or simple audio
recordings�
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out
signal to amplied speakers or headphones. Using this jack automatically disables the
built-in speakers�
5
Optical Drive
The Notebook PC comes in various models with different optical drives� The Notebook
PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD)
and may have recordable (R) or re-writable (RW) capabilities� See the marketing
specications for details on each model.
4
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack�
Power supplied through this jack supplies power to the Notebook PC and charges the
internal battery pack� To prevent damage to the Notebook PC and battery pack, always
use the supplied power adapter�
CAUTION: The adapter may become warm to hot when in use. be sure not to cover
the adapter and keep it away from your body.
5
2
1346
(continued on the next page)

15
Knowing the Parts 2
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products� These security products usually include a
metal cable and lock that prevent the Notebook PC to be removed from a xed object.
Some may also include a motion detector to sound an alarm when moved�

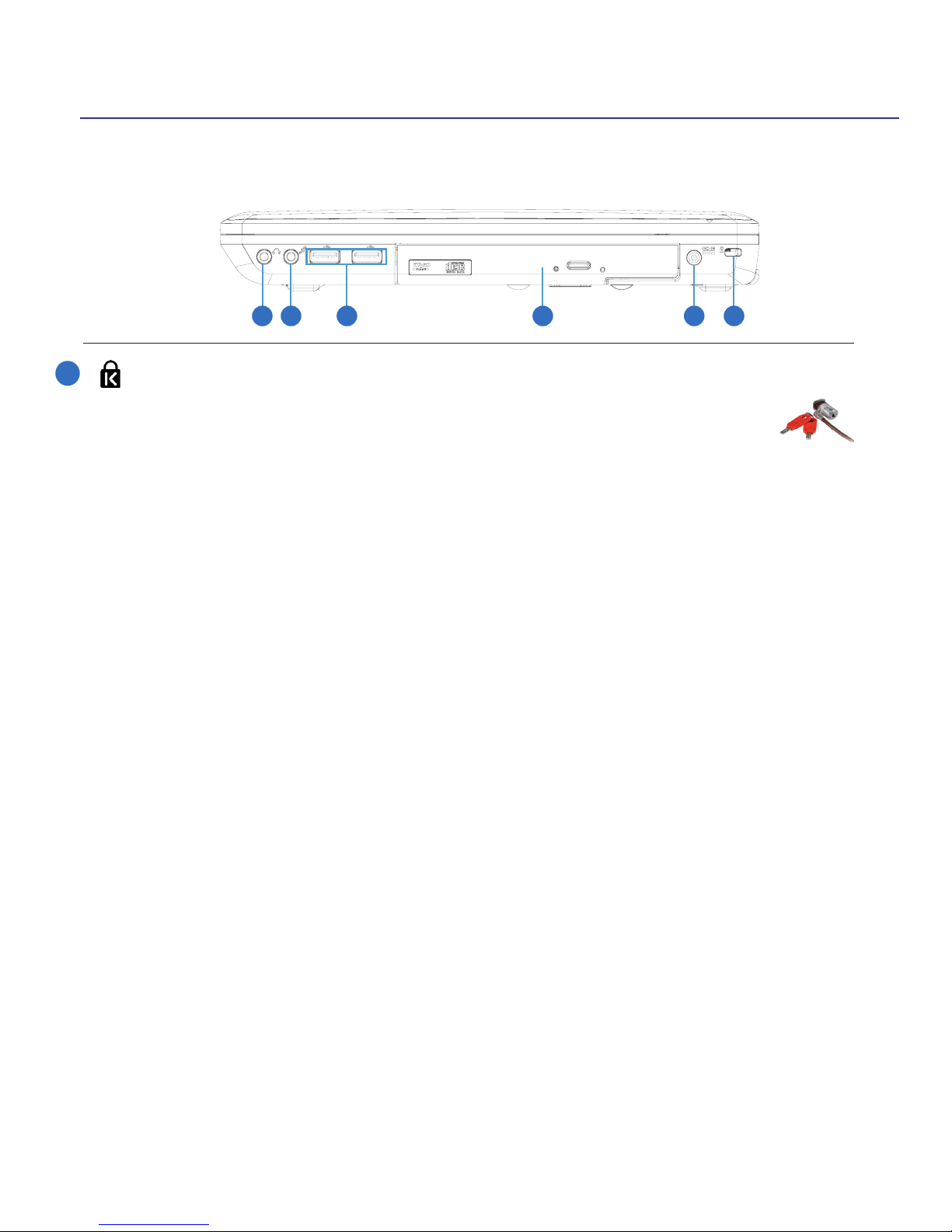

Right Side (cont.)
5
2
1346
6

16
2Knowing the Parts
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC�
1
2
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display�
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports
a standard Ethernet cable for connection to a local network� The built-in connector
allows convenient use without additional adapters�
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2�0 or USB 1�1 devices
such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners
connected in a series up to 12Mbits/sec (USB 1�1) and 480Mbits/sec (USB 2�0)� USB
allows many devices to run simultaneously on a single computer, with some peripherals
acting as additional plug-in sites or hubs� USB supports hot-swapping of devices so that
most peripherals can be connected or disconnected without restarting the computer�
3
5
4
(continued on the next page)
13
245 6
ExpressCard Slot
One 26pin Express card slot is available to support an ExpressCard/34mm or
ExpressCard/54mm expansion card� This interface is faster by using a serial bus
supporting USB 2�0 and PCI Express instead of the slower parallel bus used in
the PC card slot� (Not compatible with previous PCMCIA cards�)
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2�0 or USB 1�1 devices
such as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners
connected in a series up to 12Mbits/sec (USB 1�1) and 480Mbits/sec (USB 2�0)� USB
allows many devices to run simultaneously on a single computer, with some peripherals
acting as additional plug-in sites or hubs� USB supports hot-swapping of devices so that
most peripherals can be connected or disconnected without restarting the computer�

17
Knowing the Parts 2
Flash Memory Card Reader
This Notebook PC has a built-in high-speed memory card reader that can conveniently
read from and write to many ash memory cards used in devices such as digital
cameras, MP3 players, mobile phones, and PDAs�
Memory Stick Duo/Duo Pro/MagicGate (with MS adapater)
SD (Secure Digital)
miniSD (with SD adapter)
SDHC (Secure Digital High Capacity)
microSD (with SD adapter)
Memory Stick Micro (with MS adapter)
xD-Picture Card
MMC (Multimedia Card)
MMC Plus
RS-MMC (Reduced Size) (with MMC adapter)
Memory stick (MS) / PRO / MagicGate / Select
6

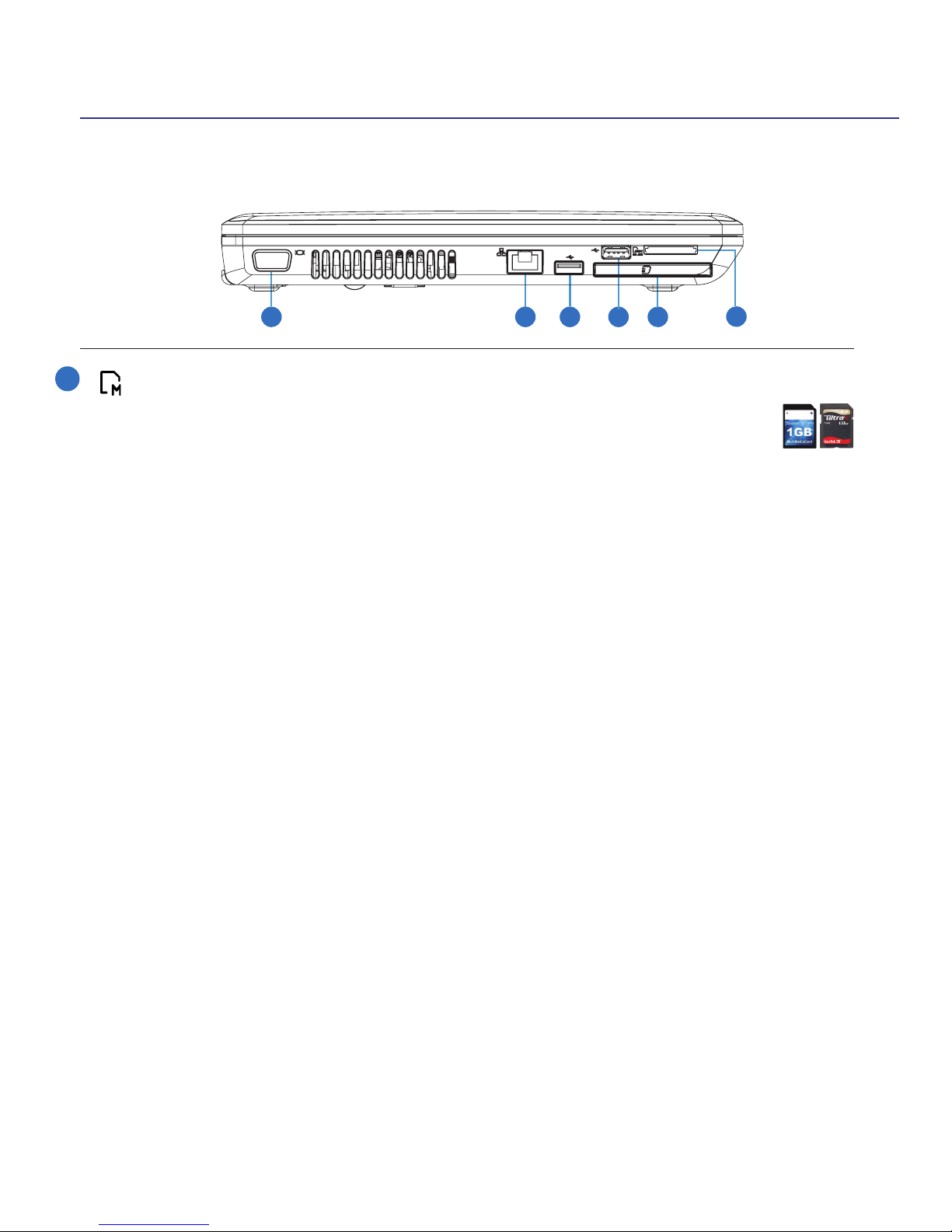

Left Side (cont.)
13
245 6

18
2Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC�
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an
AC power source and maintains power to the Notebook PC when AC power is not
connected� This allows use when moving temporarily between locations� Battery time
varies by usage and by the specications for this Notebook PC. The battery pack
cannot be disassembled and must be purchased as a single unit�
1
2
3
Memory (RAM) Compartment
The memory compartment contains pre-installed RAM� RAM (RandomAccess Memory)
is where operating system, application programs, and data in current use are kept so
that they can be quickly reached� Visit an authorized service center or retailer for more
information on the memory of your Notebook PC�
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment� Hard Disk Drive (HDD) is a non-
volatile data storage device� It stores data on a magnetic surface layered onto hard
disk platters� Visit an authorized service center or retailer for more information on the
hard disk drive of your Notebook PC�
1
2 3

19
3. Getting Started
Power System
Special Keyboard Functions
Status Indicators
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.

20
3Getting Started
IMPORTANT! Damage may occur if you use a different adapter to power the Notebook
PC or use the Notebook PC’s adapter to power other electrical devices. If there is smoke,
burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek
servicing if you suspect a faulty AC-DC adapter. You may damage both your battery
pack(s) and the Notebook PC with a faulty AC-DC adapter.
NOTE: This Notebook PC may come with either a two or three-prong plug depending
on territory. If a three-prong plug is provided, you must use a grounded AC outlet or
use a properly grounded adapter to ensure safe operation of the Notebook PC.
WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE
SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
TIP: You can buy travel kits for the Notebook PC that includes power and modem
adapters for almost every country.
With the AC power cord connected to the AC-DC converter, connect the AC power cord to an
AC outlet (preferably with surge-protection) and then connect the DC plug to the Notebook PC�
Connecting the AC-DC adapter to the AC outlet rst allows you to test the AC outlet’s power
and the AC-DC converter itself for compatibility problems before connecting the DC power
to the Notebook PC� The power indicator on the adapter (if available) will light if the power is
within accepted ranges�
Power System
Using AC Power
The Notebook PC power is comprised of
two parts, the power adapter and the battery
power system� The power adapter converts
AC power from a wall outlet to the DC power
required by the Notebook PC� Your Notebook
PC comes with a universal AC-DC adapter�
That means that you may connect the power
cord to any 100V-120V as well as 220V-240V
outlets without setting switches or using power
converters� Different countries may require that
an adapter be used to connect the provided
US-standard AC power cord to a different
standard� Most hotels will provide universal outlets to support different power cords as well
as voltages� It is always best to ask an experienced traveler about AC outlet voltages when
bringing power adapters to another country�
Table of contents
Other Jettaus Laptop manuals
