Jetter JXM-MUX User manual

User Manual
JXM-MUX - Video Splitter
60874930
We automate your success.

2 Jetter AG
Introduction
Item # 60874930
Revision 1.40
August 2018 / Printed in Germany
This document has been compiled by Jetter AG with due diligence, and based on the known state of the art.
In the case of modifications, further developments or enhancements to products shipped in the past, a revised document
will be supplied only if required by law, or deemed appropriate by Jetter AG. Jetter AG shall not be liable for errors in form
or content, or for missing updates, as well as for damages or disadvantages resulting from such failure.
The logos, brand names, and product names mentioned in this document are trademarks or registered trademarks of
Jetter AG, of associated companies or other title owners and must not be used without consent of the respective title
owner.

Jetter AG 3
JXM-MUX Introduction
How to contact us:
Jetter AG
Graeterstrasse 2
71642 Ludwigsburg
Germany
Phone - Switchboard: [phone]
Phone - Sales: [phone]
Phone - Technical Hotline: [phone]
Fax - Sales: [phone]
E-mail - Sales: [e-mail]
E-mail - Technical Hotline: [e-mail]
This User Manual is an integral part of JXM-MUX:
Type:
Serial #:
Year of manufacture:
Order #:
To be entered by the customer:
Inventory #:
Place of operation:
Address
Assignment to product

4 Jetter AG
Introduction
This document is an integral part of the JXM-MUX:
Keep this document in a way that it is always at hand until the JXM-MUX
will be disposed of.
Pass this document on if the JXM-MUX is sold or loaned/leased out.
In any case you encounter difficulties to clearly understand the contents of this
document, please contact Jetter AG.
We would appreciate any suggestions and contributions on your part and
would ask you to contact us at the following e-mail address: [e-mail].
Your feedback will help us produce manuals that are more user-friendly, as
well as address your wishes and requirements.
This document contains important information on the following topics:
Transport
Mounting
Installation
Programming
Operation
Maintenance
Repair
Therefore, you must carefully read, understand and observe this document,
and especially the safety instructions.
In the case of missing or inadequate knowledge of this document Jetter AG
shall be exempted from any liability. Therefore, the operating company is
recommended to obtain the persons' confirmation that they have read and
understood this manual in writing.
Significance of this User
Manual

Jetter AG 5
JXM-MUX Contents
Table of Contents
1Safety instructions 7
Basic safety instructions ................................................................................................................8
Instructions on EMC.....................................................................................................................10
2Electrical installation 11
2.1 Design of the device ..................................................................................................................12
Product description ......................................................................................................................13
Interfaces of video splitter JXM-MUX...........................................................................................14
Physical dimensions ....................................................................................................................15
2.2 Ports and interfaces...................................................................................................................16
Power Supply Jack POWER........................................................................................................17
Camera Inputs CA1 to CA4 .........................................................................................................18
A and V (AV-IN) Connections.......................................................................................................19
A and V (AV-OUT) Connections...................................................................................................20
CAN port ......................................................................................................................................21
2.3 Mechanical installation..............................................................................................................22
JXM-MUX - Installation ................................................................................................................23
3Configuration 25
JXM-MUX - Configuration ............................................................................................................26
Appendix 32
A: Technical specifications............................................................................................................33
Technical specifications ...............................................................................................................34
Physical dimensions ....................................................................................................................35
Operating parameters - Environment and mechanics .................................................................36
B: Index............................................................................................................................................37

Jetter AG 7
JXM-MUX Safety instructions
1 Safety instructions
This chapter informs the user of basic safety instructions. It also warns the
user of residual dangers, if there are any. Furthermore, it contains information
on EMC.
Topic Page
Basic safety instructions ................................................................................. 8
Instructions on EMC ..................................................................................... 10
Introduction
Contents

8 Jetter AG
1Safety instructions
Basic safety instructions
This device complies with the valid safety regulations and standards.
Jetter AG attaches great importance to the safety of the users.
Of course, the user should adhere to the following regulations:
Relevant accident prevention regulations
Accepted safety rules
EC guidelines and other country-specific regulations
Intended conditions of use include operation in accordance with this User
Manual.
This device has been designed as a peripheral module for use in commercial
vehicles and mobile machines and is intended for connection to an already
existing controller. The JXM-MUX is a video splitter merging up to 4 video
signals into one video signal.
This device meets the requirements of the European Automotive EMC
Directive for electric/electronic subassemblies.
It may only be operated within the limits set forth in the technical
specifications. The operating voltage of the JXM-MUX is classified as SELV
(Safety Extra Low Voltage). Therefore, it is not subject to the EU Low Voltage
Directive.
The device must not be used in technical systems which to a high degree
have to be fail-safe.
The JXM-MUX is no safety-related part as per Machinery Directive
2006/42/EC. This device is not qualified for safety-relevant applications and
must, therefore, NOT be used to protect persons.
If you intend to operate the device at ambient conditions not being in
conformity with the permitted operating conditions, please contact Jetter AG
beforehand.
Depending on the life cycle of the product, the persons involved must possess
specific qualifications. The qualifications required to ensure safe handling of
the device at different phases of the product life cycle are listed below:
Product life cycle Minimum qualification
Transport/storage: Trained and instructed personnel with knowledge in
handling electrostatically sensitive components
Mounting/installation: Specialized personnel with training in
electrical/automotive engineering, such as automotive
mechatronics fitters
Commissioning/
programming:
Trained and instructed experts with profound
knowledge of, and experience with,
automotive/automation technology, such as
automotive engineers for mobile machinery
Operation: Trained, instructed and assigned personnel with
knowledge in operating electronic devices for mobile
machinery
Introduction
Intended use
Usage other than
intended
Personnel qualification

Jetter AG 9
JXM-MUX Safety instructions
Product life cycle Minimum qualification
Decommissioning/
disposal:
Specialized personnel with training in
electrical/automotive engineering, such as automotive
mechatronics fitters
For safety reasons, no modifications and changes to the device and its
functions are permitted.
Any modifications to the device not expressly authorized by Jetter AG will
result in a loss of any liability claims to Jetter AG.
The original parts are specifically designed for the device. Parts and
equipment from other manufacturers have not been tested by Jetter AG
and are, therefore, not released by Jetter AG.
The installation of such parts may impair the safety and the proper functioning
of the device.
Any liability on the part of Jetter AG for any damages resulting from the use of
non-original parts and equipment is excluded.
The device contains electrostatically sensitive components which can be
damaged if not handled properly.
To exclude damages to the device during transport it must be shipped in its
original packaging or in packaging protecting against electrostatic discharge.
Use an appropriate outer packaging to protect the device against impact or
shock.
In case of damaged packaging inspect the device for any visible damage.
Inform your freight forwarder and Jetter AG.
When storing the device observe the environmental conditions given in the
technical specification.
The operator is not allowed to repair the device. The device does not contain
any parts that could be repaired by the operator.
If the device needs repairing, please send it to Jetter AG.
When disposing of devices, the local environmental regulations must be
complied with.
Modifications and
alterations to the module
Transport
Storing
Repair and maintenance
Disposal

10 Jetter AG
1Safety instructions
Instructions on EMC
To ensure immunity to interference the JXM-MUX must be wired as shown
below. The jacks CA1 to CA4 are soldered to the JXM-MUX housing.
A
CA1 CA2 CA3 CA4
POWER
INPUT
DC10V-32V
AV-OUT
Control Box
AV-IN
AV
V
Klappferrit
7427122
Video
Out
Cam1
Cam2
Sicherungs-
bügel
Cam3
Cam4
+UB
GND
Klappferrit
7427122
Triggereingänge
abgeschnitten
bzw. unbestückt
CAN
CAN
Wiring Instructions

Jetter AG 11
JXM-MUX Electrical installation
2 Electrical installation
This chapter covers design, interfaces and installation of the video splitter
JXM-MUX.
To ensure immunity to interference follow the wiring instructions (see page
10).
Topic Page
Design of the device ..................................................................................... 12
Ports and interfaces...................................................................................... 16
Introduction
Wiring Instructions
Table of Contents

12 Jetter AG
2Electrical installation
2.1 Design of the device
This chapter describes the design of the device.
Topic Page
Product description ....................................................................................... 13
Interfaces of video splitter JXM-MUX ........................................................... 14
Physical dimensions ..................................................................................... 15
Introduction
Table of Contents

Jetter AG 13
JXM-MUX Electrical installation
Product description
The JXM-MUX is a video splitter merging up to 4 video signals. Up to 4
cameras can be connected to it. The signals from these cameras are routed to
the monitor. Optionally one to four video signals can be displayed on the
monitor. Supported video standards are PAL or NTSC. Each video signal from
the cameras can be mirrored, for example when a camera is used as rear
view camera.
The video splitter is controlled by a CAN interface with implemented
CANopen® protocol.
The product features are listed below:
Video system: NTSC, PAL (5 channels)
4 camera ports (5-pin MiniDIN jacks)

1 video input (RCA/cinch)
1 audio input (RCA/cinch) (not supported)
1 video output (RCA/cinch)
1 audio output (RCA/cinch) (not supported)
Controlled by a CAN interface with implemented CANopen® protocol.
The following items are included in the scope of delivery of a JXM-MUX:
Item no. Quantity Description
10000790 1 Video splitter JXM-MUX with power cable (2 m)
and 2 retaining clips
60240700 2 Cable snap ferrite
60873457 1 CAN cable 1 m
60873458 1 CAN
terminating resistor (120 Ω) for connection to
JXM-MUX
Video Splitter JXM-MUX
Product Image
Product features
Scope of delivery

14 Jetter AG
2Electrical installation
Interfaces of video splitter JXM-MUX

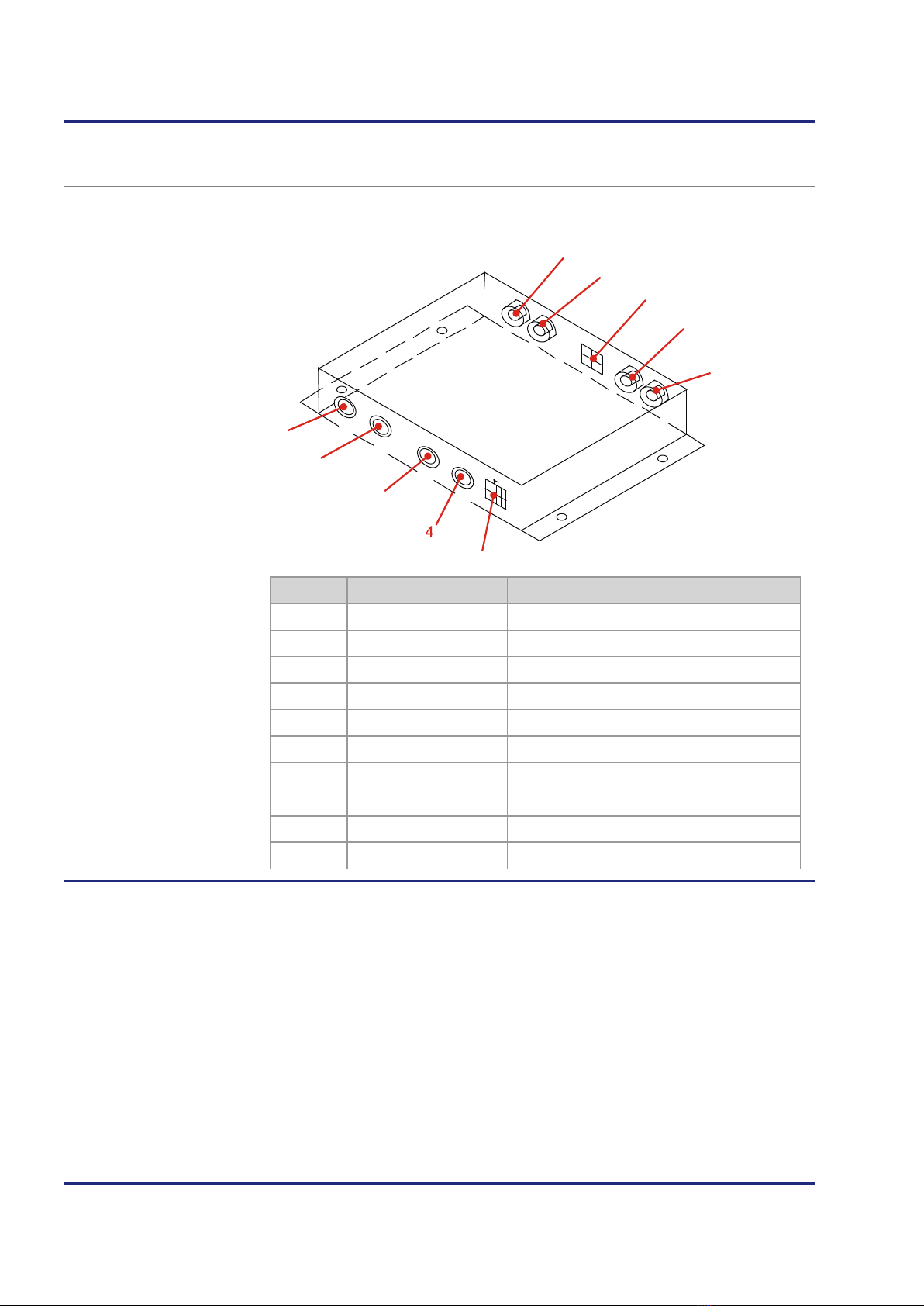

The JXM-MUX is equipped with the following interfaces:

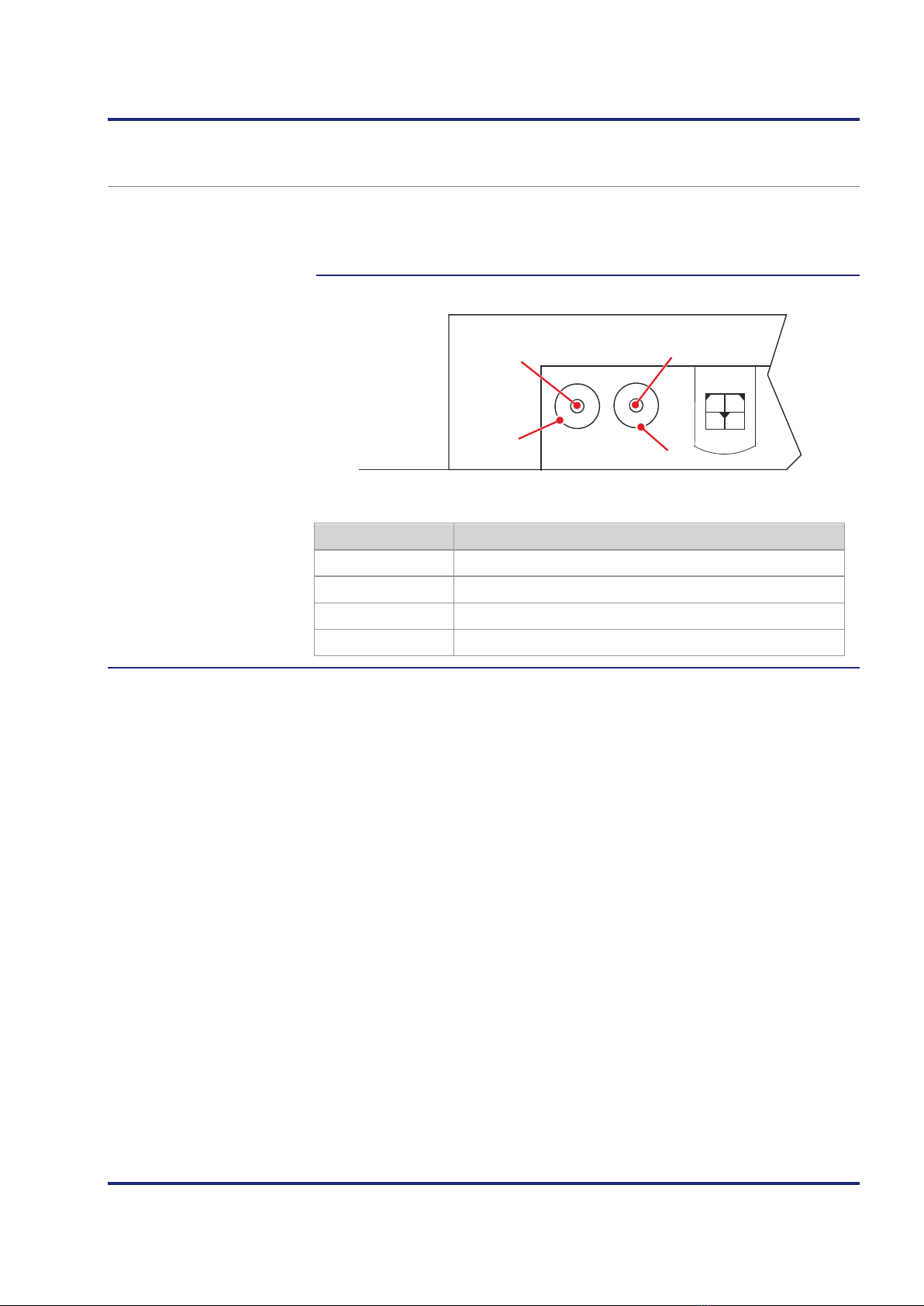

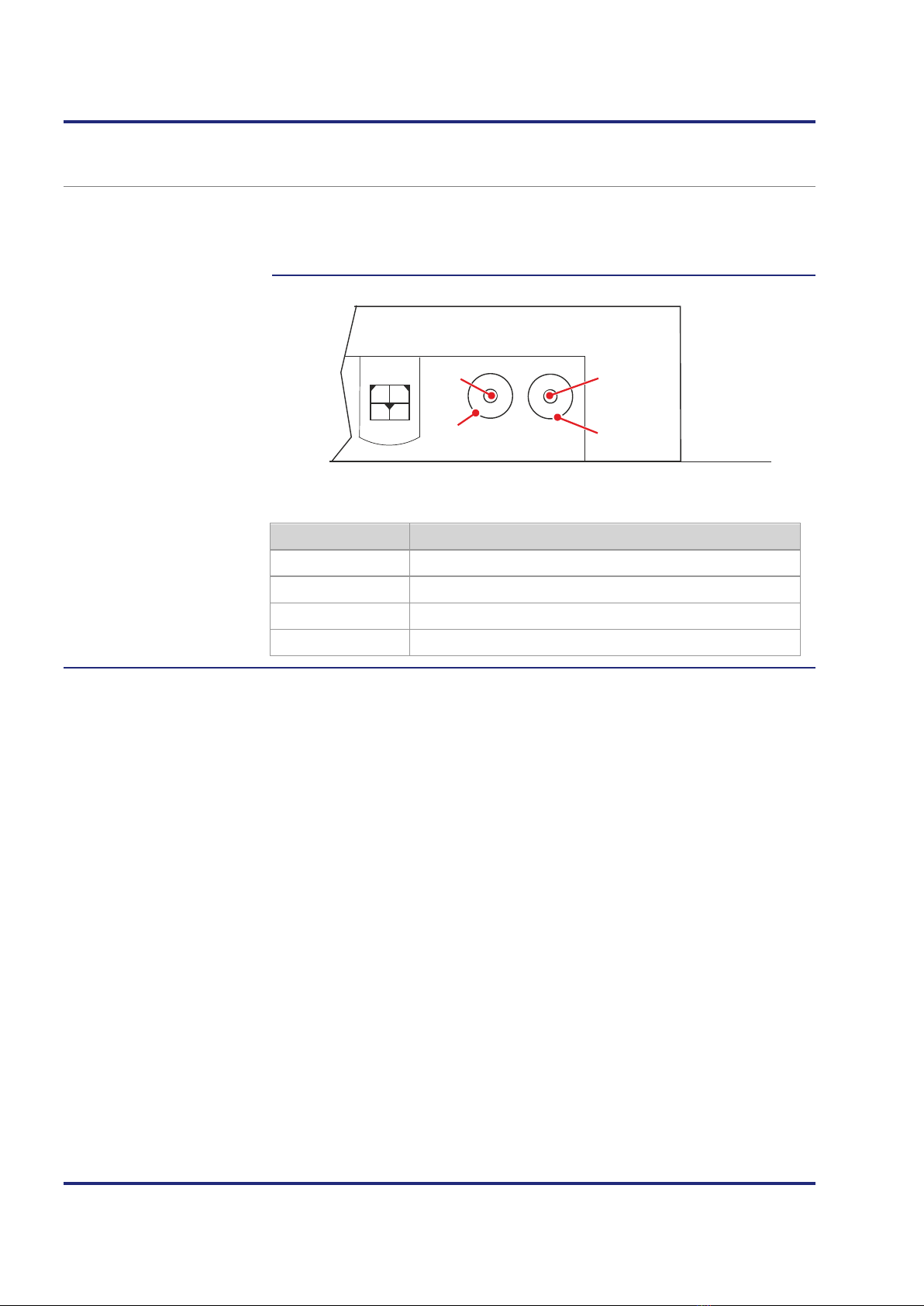

1
2
3
5
6
7
8
9
10
Number Element Description
1 CA1 Camera input # 1
2 CA2 Camera input # 2
3 CA3 Camera input # 3
4 CA4 Camera input # 4
5 POWER Power supply
6 V (AV-IN) Video input
7 A (AV-IN) Audio input (not supported)
8 MONITOR CAN port
9 V (AV-OUT) Video output
10 A (AV-OUT) Audio output (not supported)
Ports and interfaces

Jetter AG 15
JXM-MUX Electrical installation
Physical dimensions
The illustration below shows the physical dimensions of the JXM-MUX in
millimeters.
5
6
6
12
154
130
12
5
10
10
19
19
17
17
69
28 28
105
5
5
A
CA1 CA3
CA2 CA4
POWER
INPUT
DC 10V~32V
AV V
AV-OUT MONITOR AV-IN
The video splitter JXM-MUX can be installed in vertical or horizontal position.
Physical dimensions
Mounting orientation

16 Jetter AG
2Electrical installation
2.2 Ports and interfaces
The function of the jack POWER is as follows:
Power supply for JXM-MUX
The function of MiniDIN connectors CA1 to CA4 is as follows:
Connection of cameras with an operating voltage of 12 VDC
The function of the RCA/cinch jacks V (AV-IN) is as follows:
Additional AUX input for a video signal
The function of the RCA/cinch jacks V (AV-OUT) is as follows:
Output of a resulting video signal
The function of the CAN interface is as follows:
Configuration and control of the video splitter JXM-MUX via CANopen®
bus
Topic Page
Power Supply Jack POWER......................................................................... 17
Camera Inputs CA1 to CA4 .......................................................................... 18
A and V (AV-IN) Connections........................................................................ 19
A and V (AV-OUT) Connections.................................................................... 20
CAN port ....................................................................................................... 21
Mechanical installation.................................................................................. 22
Jack POWER
MiniDIN connectors
(female) CA1 to CA4
RCA/cinch jacks V
(AV-IN)
RCA/cinch jacks V
(AV-OUT)
CAN port
Table of Contents

Jetter AG 17
JXM-MUX Electrical installation
Power Supply Jack POWER
The jack POWER is for connecting the power supply cord to the JXM-MUX.
8
1
Pin Description
1 VIn (DC 10 V ... 32 V)
8 Reference potential (GND)
Parameter Description
Operating voltage DC 10 V ... DC 32 V
Input current at DC 12 V (typically) 2.0 A max.
Input current at DC 24 V (typically) 1.0 A max.
Power consumption 24 W max.
An 8-pole connector (male) is included in the scope of delivery of a JXM-MUX.
The power supply cord with one red and one black core (each 2 m in length) is
connected to the connector terminals.
Purpose
Pin assignment
Technical specifications
Male Connector for
POWER jack

18 Jetter AG
2Electrical installation
Camera Inputs CA1 to CA4
The following camera types can be connected to the MiniDIN connectors CA1
to CA4:
CCD cameras
Internal vehicle cameras
Rear view cameras
Monitoring cameras
Cameras with an operating voltage of DC 12 V
Cameras with audio output
Cameras with PAL or NTSC video signals
1
23
4
5
Pin Description
1 Power DC 12 V
2 Audio IN
3 Mirror
4 Video IN
5 GND
Purpose
Contact Assignment of
MiniDIN Connectors CA1
to CA4

Jetter AG 19
JXM-MUX Electrical installation
A and V (AV-IN) Connections
The video splitter JXM-MUX offers the option to feed in an additional video
signal via AUX input (RCA/cinch jacks).
Audio signals are not supported.
1
2
3
4
Pin Description
1 Video input signal V (AV-IN)
2 Reference potential for video signal
3 Audio input signal A (AV-IN) (not supported)
4 Reference potential for audio signal (not supported)
Purpose of A and V
(AV-IN) Connections
Contact Assignment of A
and V (AV-IN) Jacks

20 Jetter AG
2Electrical installation
A and V (AV-OUT) Connections
The JXM-MUX forms a resulting video signal from the incoming video signals.
The resulting video signal is output via V (AV-OUT) jacks.
Audio signals are not supported.
1
2
3
4
Pin Description
1 Video output signal V (AV-OUT)
2 Reference potential for video signal
3 Audio output signal A (AV-OUT) (not supported)
4 Reference potential for audio signal (not supported)
Purpose of A and V
(AV-OUT) Connections
Contact Assignment of A
and V (AV-OUT) Jacks
