Jinko JK4000 Series User manual

User Manual
JK4000 Series
Multi-channel Temperature Recorder
Changzhou Jinailian Electronic Technology Co., Ltd
No.C3,Building 22,New Impetus Pioneering Center, No.1,Qingyang North Road,Tianning
District,Changzhou,Jiangsu,CN
TEL: [phone] FAX: [phone]
https://jinailian.en.alibaba.com www.jk17.com www.jaldz.com
An instruction manual
Ver1.0

Catalog
Chapter One
Safety and warranty.........................................................................................................................1
Introduction of instrument.................................................................................................................2
Application........................................................................................................................................3
Chapter Two
Difference of temperature recorder..................................................................................................4
General overview of temperature recorder......................................................................................5
Chapter Three
Fast introduction...............................................................................................................................7
Introduction of product front panel....................................................................................................7
Product rear panel introduction.........................................................................................................9
Display and function key introduction.............................................................................................11
Parameters setting..........................................................................................................................13
Chapter Four
Installation and accessories............................................................................................................15
Chapter Five
Communication...............................................................................................................................15
Communication protocol.................................................................................................................16
Software operation interface...........................................................................................................16

Preface
Summary
The new multi-channel temperature recorder has ultra-thin chassis, light weight, small volume
and easy to carry. At the same time, the digital synchronous sampling technology has the
advantages of fast measuring speed, high precision, easy to use, light and beautiful and so on.
The instrument test precision is 0.5. This product is widely used in scientific research colleges
and universities, electric power, chemical industry, petroleum, steelmaking, glass, ceramics, heat
treatment and plastic, rubber, printing and dyeing, packaging and food machines. Temperature
measurement and temperature control in the machinery industry.
The disposal of old packaging boxes and the disposal of old packaging boxes should be carried
out in accordance with relevant national environmental regulations.
Please pay attention to separate the plastic and paper packaging products.
Maintenance of the instrument
◆The surface of instrument should be dust in time,The interior of the instrument is best not to
accumulate dust.
◆The instrument should be calibrated once a year, so as to ensure the accuracy of the
instrument, so that it can be used normally.
Warning: be sure to disconnect the power before cleaning.
Announcement
The contents of this manual are subject to change without notice. Excuse

1/20
Chapter One
Security
Do not install on your instrument instead of parts, or execute any unauthorized
modification.Please send the instrument to the maintenance department of the company to
maintain it, so as to ensure its safety characteristics.
Security rules
In order to prevent electric shock, not authorized personnel of the company, it is strictly
forbidden to disassemble the instrument and strictly prohibit the use of the equipment on the
life maintenance system or any other equipment with safety requirements.We are not
responsible for direct or indirect financial losses that may occur when using this product.
Certification and quality assurance
The multichannel temperature recorder has achieved all the technical indicators mentioned in the
manual.
Warranty
The company of materials and manufacturing of this product, from the date of shipment to the
quality warranty for one year.
Warranty service
If you need the product warranty service or repair, must be the product to the maintenance unit.
The customer must pay the one-way freight to the maintenance department, and the company
will be responsible for paying the return freight. If the product is returned to factory maintenance
from other countries, all freight, duties and other taxes shall be borne by the customer.
Guarantee restriction
The warranty does not apply to the damage caused by the following circumstances:
The customer is incorrect or improper in repairing products.
Customers use their own software or interface;
Unauthorized modification or misuse;
Operating this product or not in the specified environment or repair and repair at unsuitable
places,Damage caused by the circuit of the customer's own installation.Or a defect caused by a
customer's use of its own product.

2/20
Brief introduction
JK4000 is a high performance, low price temperature recorder. It can watch multi-channel
temperature changes at the same time.It is very suitable for application of temperature acquisition
and temperature recording.It has the RS232 interface to upload data directly to the PC, and also
has the USB interface to save the measured data directly to the U disk when it is inconvenient to
connect to the PC, and then transfer the data to the PC when needed.It is a half frame wide host
with a top 64 channel direct slot on the back of which can be measured with a thermocouple,
and 1 infinite expansion slots, which can be assembled by a module.Whether you need only a
few simple data recording channels or hundreds of thousands of performance channels, you
can meet your temperature collection at a reasonable price.
Meet the measurement of 7 different thermocouple types
Includes temperature recording software for measurements you can rely on
Unique design allows, you can enter the setting interface to switch the required thermocouple
type at will in order to achieve maximum flexibility and quickly and easily set the internal
automatic range conversion. Change the configuration as needed
There are up to 24 channels of direct slots and 1 unlimited expansion slot on the back to meet
your unique needs. You can buy only the parts you need at the time, and add more modules later
as your application develops. Up to hundreds of thousands of inputs can be measured with a half
-rack unit.
Free software simplifies data collection
If you require PC-based data logging capabilities, but don't want to spend time programming,
software can solve this problem. Use this software to set up your test, collect and archive
measurement data, and perform real-time display and analysis of the obtained data and curves.
The familiar electronic meter environment can be easily configured and controlled for testing, and
the rich color graphics provide many options for displaying your data. In addition, the software
can easily send data to other applications for further analysis, or include it in your displays and
reports.
Module introduction
The module can be used directly by connecting to the infinite expansion slot on the back of the
instrument and connecting the thermocouple cable. When more modules are needed, just
connect it to the reserved slot of the first module (this function is especially It is especially
practical when the instrument needs to be far away from the measured point. It can not only
reduce the measurement accuracy drop caused by the too long thermocouple, but also save a lot
of money needed to purchase the thermocouple)..

3/20
Application
Instrument safety index
◆Insulation resistance: the outer part of the housing and the power input are larger than 20MΩ.
◆Withstand voltage: the power input terminal and the housing are 2 seconds withstanding
voltage 1800V, and the rated current is 10mA.
◆Grounding: the power grounding pole, and the resistance between the outer shells is less than
0.2Ω。
◆security: conforms to CSA,UL-1244,IEC1010 Cat I regulations RFI and
ESD:CISPR11,IEC801/2/3/4
Precautions before use of the instrument
◆The instrument should be placed smoothly And where the dust is less.
◆The temperature conditions that ensure the accuracy of the test:20℃±5℃。
◆Working temperature range:0~40℃，Air relative humidity：30%~90%。
◆No corrosion, detonable gas in the room.
◆Protect ground.
◆Power supply: AC90-240V/50/60HZ，Power waste ≤15W。
◆Fuse：0.5A
◆weight ：Net weight 3.6kg
◆accuracy :±0.3%(the highest temperature measured at the time)
When using the "T" thermocouple, the accuracy can reach as high as 0.1%.

4/20
Chapter Two
A list of functional difference of each thermometer
Serial
number
Model
The
largest
number of
channel
temperature range①
Flip the
screen
U DISK
②
RS232
communication
interface
1
JK4000-8
8
7 kinds of thermocouples
+PT100 thermal resistance
One screen
yes
yes
2
JK4000-16
16
7 kinds of thermocouples
+PT100 thermal resistance
One screen
yes
yes
3
JK4000-24
24
7 kinds of thermocouples
+PT100 thermal resistance
One screen
yes
yes
4
JK4000-32
32
7 kinds of thermocouples
+PT100 thermal resistance
One screens
yes
yes
5
JK4000-40
40
7 kinds of thermocouples
+PT100 thermal resistance
Two screens
yes
yes
6
JK4000-48
48
7 kinds of thermocouples
+PT100 thermal resistance
Two screens
yes
yes
7
JK4000-64
64
7 kinds of thermocouples
+PT100 thermal resistance
Two screens
yes
yes
8
108 way
acquisition
module
108
7 kinds of thermocouples
+PT100 thermal resistance
The specification and measurement range of JK4000 series input type
Input type
Specifications
measuring range
Thermal resistance（RTD）
Pt100
-200~850℃
Thermocouple
B
600~1800℃
E
-30~800℃
J
-100~1200℃
K
-100~1350℃
S
-0~1750℃
T
-200~400℃
R
0~1750℃
U disk: the instrument does not connect to PC. It can store data on the U disk, and save data
permanently in the computer by transferring data.
The 4000-8 in Table 8 is that the acquisition module with 8 channels can be used in conjunction
with each of the above instruments. After the customer has purchased any instrument, if you want
to increase the acquisition channel, the 8 channel can choose 108 modules for one unit.

5/20
In table 10, 4000+108 indicates that customers can choose how many channels to collect
temperature according to their needs and choose a 108 acquisition module with 8 channels as a
unit in the case of a host. If you need 80 channels, you can choose a 64 way host and 2 108
acquisition modules.
Technical parameter ：
Model
JK4000
Input type
Thermocouple: J/K/T/E/S/N/B type PT100
Measuring range
Measurement accuracy: 0～1000℃: ±(reading value×0.5%+1)℃,
-100～0℃:±(reading value×0.5%+2)℃;
Number of channels
8~64 channels can be expanded to 128 channels
Display
4.3 inch TFT color screen
Display resolution
0.1℃
U disk storage
Yes
Scan speed
100ms/channel
Internal storage
No
Curve drawing
Yes
Communication
interface
RS232 port or USB port
Supporting software
2015 version V1.3 software
Alarm mode
One public alarm (relay output) (optional)
Voltage output
Internal independent power supply output
Anti-dry winding
Anti-high frequency interference
Single screen display
32 channels
Temperature correction
Yes
Other functions
Clock function Calendar function
Terminal type
M3 screw type
Allowable
environmental
conditions
1. Power supply: AC 220V±10%, 50Hz±2%;
2. Use environment: working temperature: -20-70℃, relative humidity:
20%-90%;
Accessories
Standard configuration: K-type thermocouple (-50℃to 200℃) 8 pieces
(2 meters/piece), data acquisition software
Dimensions
Length×Width×Height: 36cm×26cm×16cm Overall weight: about 5kg

6/20
The above information is measured under the following conditions:
Temperature conditions: 23℃±5℃
Humidity conditions: 65% R.H.
Warm-up time: >10 minutes
Calibration time: 12 months
Measurement environment:
Index: Temperature 15℃~35℃Humidity <80%RH
Operation: temperature 10℃~40℃humidity 10~90%RH
Storage: temperature 0℃~50℃humidity 10~90%RH
.

7/20
Chapter three
Product introduction
front panel
Introduction of front panel
1：display screen
2：power
3：System function key
4：USB disk interface
5：Qualified / unqualified
6：Lock key
7：Digital keyboard
8：Cursor key
9：show key

8/20
Display area schematic:
1：Display date / time: as shown in the picture 1th January,2007,At 20:26 00 seconds
2：Show the temperature of each channel, respectively（001 represents the first channels,
002 represents the second channels), and so on.
3：Thermocouple model
4: Unit of temperature

9/20

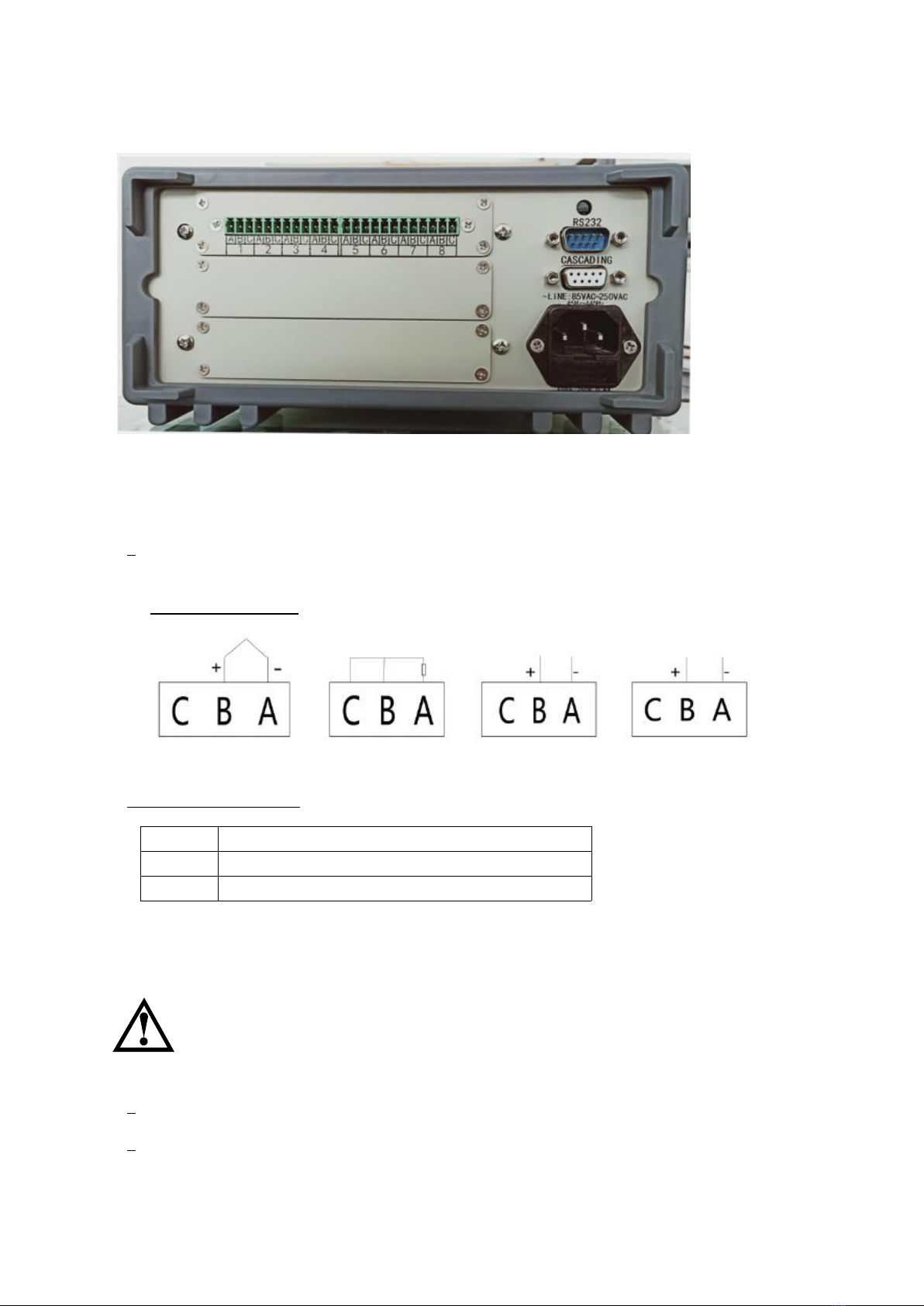

Rear panel schematic:
As shown in the picture.
1：Indicating the interface definition of each channel number and input signal（01 represents 1
channels, 02 represents 2 channels, and so on.）
Signal wiring method：
3-3 Terminal description
*Other channel connections are the same as above
The isolation voltage between channels is DC 350V, AC 230V
2：The input voltage of the power outlet is AC220V 50Hz 0.5A
3：The USB interface is used for computer USB port connection (RS232 and USB choose
one).
B
Thermocouple positive terminal
A
Thermocouple negative terminal
C
Ground

10/20
4：The RS232 interface can directly upload the data measured to the PC through the RS232
cable line and the host computer software (RS232 and USB choose one).
5:CASCADING: Used for channel expansion and alarm relay contact output terminal, when
alarm relay output, contact signal as shown in the figure:
2,3 are normally closed contacts
3,4 are normally open contacts
Contact load capacity is DC 24V/1A
Channel setting ：
1, Select the required setup items, press the "parameter settings" key, and use the "up and
down" key to set the value or function.For example, setting the number of channels: after moving
the cursor to the number of channels, press the key of "parameter", change the parameters with
"up and down" key, then press the "set to finish" button.
2, Type setting of thermocouple: move cursor to the type of thermocouple, select thermocouple
type with "up and down" key, and press "set up" to exit.
3, The other projects are like this,
When the settings are completed, press "MENU" to save the settings and exit; press
the exit key, do not save the settings and exit.

11/20
Equipment parameter page introduction:
Channel number: number of test instruments
Baud rate: communication rate between instrument and host computer
Device address: the host computer inquires the address of the machine
Sampling time: speed of reading temperature and data
Unit of temperature: a unit of temperature:（℉，℃）
Automatic screen change: when the number of passages exceeds 32, the temperature needs
multi page display.
Multi page automatic rotation display at ON
Temperature rise: no function at present
Time setting: instrument clock
Buzzer alarm: the buzzer opens or closes the choice
Power saving: no function at present
Upper limit alarm value: high temperature alarm value. Every 8 channels is an adjustment base,
and can be switched through thermocouple type.
The lower limit alarm value is low temperature alarm value. Every 8 channels are adjusted base
and can be switched through thermocouple type.
Reference value: no function at present
CJC calibration: adjust the channel deviation value, each 8 channels as an adjustment base.
Type of thermoelectric coupler: Type: choose the probe type of the instrument test, each 8
channels as an adjustment base.
Functional selection:
1. When displaying the channel parameters, press the "MENU" button to switch to the digital
bar.Then, through the upper and lower keys to adjust the number you need, and then switch to
the next digit through the left and right keys.When the settings are completed, press "MENU" to
save the settings and exit; press the exit key, do not save the settings and exit.。
2. Baud rate：1200，2400，4800，9600，19200，38400 According to your different needs, you
can set it on your own. The default is 9600 when you start the machine.
3. Device address: according to the COM port of different PC, that is to choose to several. The
default is 001.
4. Sampling time: how long is it needed to collect, how long it takes to tune up, the minimum
time is 1 second, the maximum is 9999 seconds.
5. Temperature unit：℃/℉Switch.

12/20
6. Automatic screen switching：ON/OFF Switch.
7.Time settings: set the year, month, hour, minute and seconds that you need to display.
8. Buzzer alarm: when the temperature is adjusted to "ON", if the temperature exceeds the upper
limit or lower limit set by you, there is a sound of sound. If it is adjusted to "OFF", there is no
sound hint.
9. In the measurement, you can set an upper limit of temperature and a lower limit of a
temperature. When the measured temperature exceeds the range you set, if the buzzer alarm is
in the "ON" state, there will be a sound warning to you. The "+" on the display represents the
positive temperature "-" representing the negative temperature.
10. Type of thermocouple: it can be arranged from 8 to one, and different thermocouple types
are set for a unit.
11. After all settings are finished, press "set up" to exit the parameter settings.
Curve parameter page introduction:
At any interface, just press the "DISP" button to return to the measurement display interface.
According to the "graph" key, the curve display interface is displayed, as shown in the figure.
According to the "curve setting" key, enter the "curve setting" display interface, as shown in the
figure.

13/20
X axis length: X axis time value, 1min~999min can be set freely.
Y axis range: Y axis temperature range, -1999~+1999,If you want to set negative numbers, you
need to make sure that when the number is not 0 Change+/-.
X axis grid number: X axis grid number, 1~9 can be set freely.
Y axis grid number: Y axis grid number, 1~9 can be set freely.
Background color: curve background color value, 000~255 can be set freely.
Raster color: curve grid line color, 000~255 can be set freely.
Font color: the color of the word on the curve page, 000~255 can be set freely.
Curve color: set the color value of each channel curve, 000~255 can be set freely.
Channel display: channel curve opening and closing settings, 0 passes, 1 open, every 8 channels
is a set base.
Introduction of function settings interface
At any interface, just press the "DISP" button to return to the measurement display interface.
Press the function setting key to enter the function setting interface, as shown in the figure.
Language: language includes two languages, Chinese and English.
Set steps: the cursor area moves to Chinese and English, click the "parameter setting" key, switch
the language, click "set up" key, if you need to cancel the setting, click "cancel the setting" key.
Storage mode: U disk storage and internal storage of 2.

14/20
Introduction of Function setting interface
At any interface, just press the "DISP" button to return to the Function setting interface.
According to the U disk , you can enter the Function setting interface, as shown in the figure.
Press the up and down button to select the U save and click Set End .
system information
The system information interface includes:
Instrument model
Software version
Hardware version
Date of manufacture
Instrument number

15/20
Chapter Four
Install
Make sure that you receive the following components when you receive multiple
temperature records. If there is any shortage, please contact your dealer as soon as
possible.
Chapter Five: instrument communication
Communication interface reference for multichannel temperature recorder
To facilitate users, there are two optional interfaces for instrument communication: RS232
interface (DB9 port) and USB port.
Baud rate: range 1200 - 38400
Instrument communication data format: 1 start bits, 8 data bits, 1 stop bits (corresponding to 8051,
8096 serial mode 1).
Serial connection:Standard RS 232 level, DB9 pin definition,2 - RXD, 3 - TXD, 5 - GND
USB communication interface: the inside is a 232 turn USB module, and the outlet is located on
Power line (one)
JK-E171
JK-E172
JK-E173
JK-E174
Users can choose different power
lines according to the specifications of
the power outlets in the area.
1 piece
User's Manual
Including the installation of information,
operation information
1 piece
Software CD-
ROM
1 piece
Test Report
Test report on the instrument before the
factory
1 piece
RS232 Cable
JK-R1
1 piece

16/20
the back side of the instrument (the front panel is the U disk socket).
USB communication requirements: we need to install USB driver software on the U disk to be
used.
Connect with the computer: connect the USB communication line with the instrument to the
computer USB port. After the USB driver is installed, the computer will detect the USB
communication interface of the instrument. The resource manager can check the port number,
and the port number of the communication software can be communicated to the secondary port
number.
Instrument communication command:
1，Start a real time acquisition handshake ：01 11 c0 2c
01 Instrument address，11 command，C02c is the CRC check value.
Instrument return：01 11 0a 49 44 41 51 38 35 31 38 30 30 5b d6
5bd6 is a CRC check value
2，Reading upper and lower limits：01 03 00 50 00 03 05 da
05da is a CRC check value
Instrument return：01 03 06 00 01 00 32 00 0b fc bd
0001 represents the first set of parameters, the upper limit of 0032, and the lower limit of 00
0b.fcbd is a CRC check value
3,Read the data：01 03 00 00 00 50 45 f6
50 Data length，45 f6 is a CRC check value
return：01 03 a0 00b4 00b5 00b3………………CRC
The data is 2 bytes with a symbol number, a decimal point
4，Write set data 01 10 00 50 00 03 06 00 01 00 32 00 0b 38 09(CRC)
The 03 is 3 sets of data, 06 is 6 bytes, 0032 is the upper limit value, the 000b lower limit value.
The data is 2 bytes with symbols, no decimal point.
Software operation interface
1, after ensuring the connection of RS232 communication cables between PC and instruments,
After installing the software provided by our company, click on the JK5080 icon and you will enter
it. In the "File" column, click on the " " Select the save path:
